Laser MP3 Player User manual

1

Contents
Precautions 4·········································································································································
····································································································································
································································································································
·····························································································································
··································································································································
···································································································································
································································································································
···································································································································
·······································································································································
·······································································································································
··································································································································
·········································································································································
················································································································································
·································································································································
·········································································································································
···························································································································
··············································································································
·······························································································································
···································································································································
Characteristics 5
About the Player 7
Screen Description 8
Basic Operation 9
System Menu 11
Listen to Music 13
Play the video 15
Voice REC 16
Navigation 17
Photo Browser 18
FM Tuner 18
Text 20
Game Function 21
USB Disk 22
Convert Video File 23
Upgrade Player Firmware 25
Troubleshooting 28
Specifications 29
2

Precautions
This manual contains important safe measurements and correct operational information, so please
read all the information carefully before you use the device in order to avoid any unexpected
accidents.
 Do not put the player in the condition of high temperature, humidity or dust.
 Do not put the player in high temperature place (over 40℃), especially not in the cars with
window closed in summer.
 Do not knock or hit the player, especially do not shake TFT screen in order to avoid TFT
being damaged or displayed abnormally.
 Select suitable volume, turn down or stop use when you feel tingle in ears.
 Battery service lift may be various from different using conditions, manufacturer and
manufacturing time.
3

Precautions
 Do not disconnect the player abruptly during the formatting or uploading and downloading,
otherwise, it will cause the program error.
 We will not be responsible for any obligation for any memory loss caused by product damage,
repair or other reasons. Please operate correctly as per the manual.
 The player, no matter is powered on or not, once connected with the USB port of started
computer, can be charged.
 Do not dismantle the player personally or use alcohol, thinner or benzene to clean the surface
of the player.
 Do not use the player in the electronics-prohibited area, such as in the plane.
 Do not use the player when driving or walking in order to avoid traffic accidents.
 Please charge in the following conditions:
A. Battery electricity icon displays no electricity.
B. Further power on the player when the system is powered off automatically, but it powers off soon.
C. No response with the pressing keys.
※Our Company reserves the right for the improvement of the product. It is subject to any change on
the specifications and designs without further notice!
4

Characteristics
2-inch real colored TFT display
Multi music formats as MP3, WMA, good timber and real audio frequency display
MPEG-4 video format play, full-screen play display, exterior-sound speaker play
High-definition JPEG picture browse function
Fm Tuner function, can store 20 stations at the most
Built-in hi-fi 8 Ohm speaker
Digital record
Energy-saving setting, brightness adjustable, customerized power off time
Good timber, support 3D EQ surrounding effect, customerized EQ
Support multi languages, support Chinese and English
USB2.0 ultra-high speed transmission as 4M/S
Listen to music while reading E-book, with bookmark function
Listen to music while playing games
Portable U-disk function, support Firmware Upgrade
A-B reapeat function
5

About the Player
6

ScreenDescription
 Music Play
 REC Mode
7

ScreenDescription
Video Play
■Game
■Picture Browse/E-Book/Resources Manager
8

BasicOperation
 Power On/Off
Power On:
Push the power switch to ON position, long press key for 3 seconds, the player will display the
Boot interface and enter the working mode.
Power Off:
a. In Play state: short press to pause, long press for 3 seconds to power off.
b. In Play state: long press for 3 seconds to power off.
c. In other modes: press for 3 seconds to power off.
d. The system will power off automatically if the battery is not enough.
 Power Reset
If your player is blocked during the using, you can push [ON/OFF] power switch to restart the
player.
 Connect to Computer and Data File Transmission
After starting the computer, you can connect the player to computer via USB cable to achieve the
USB power supply or USB data transmission. When the player is connected to the computer via
USB port, it can be used as a U disk. It requires you to copy your favorite music or data into MP3.
9

BasicOperation
 Volume Control
You should press the “VOL” until the red speaker icon is flashed at the corner of the right side in the
screen, then press and to adjust the volume.

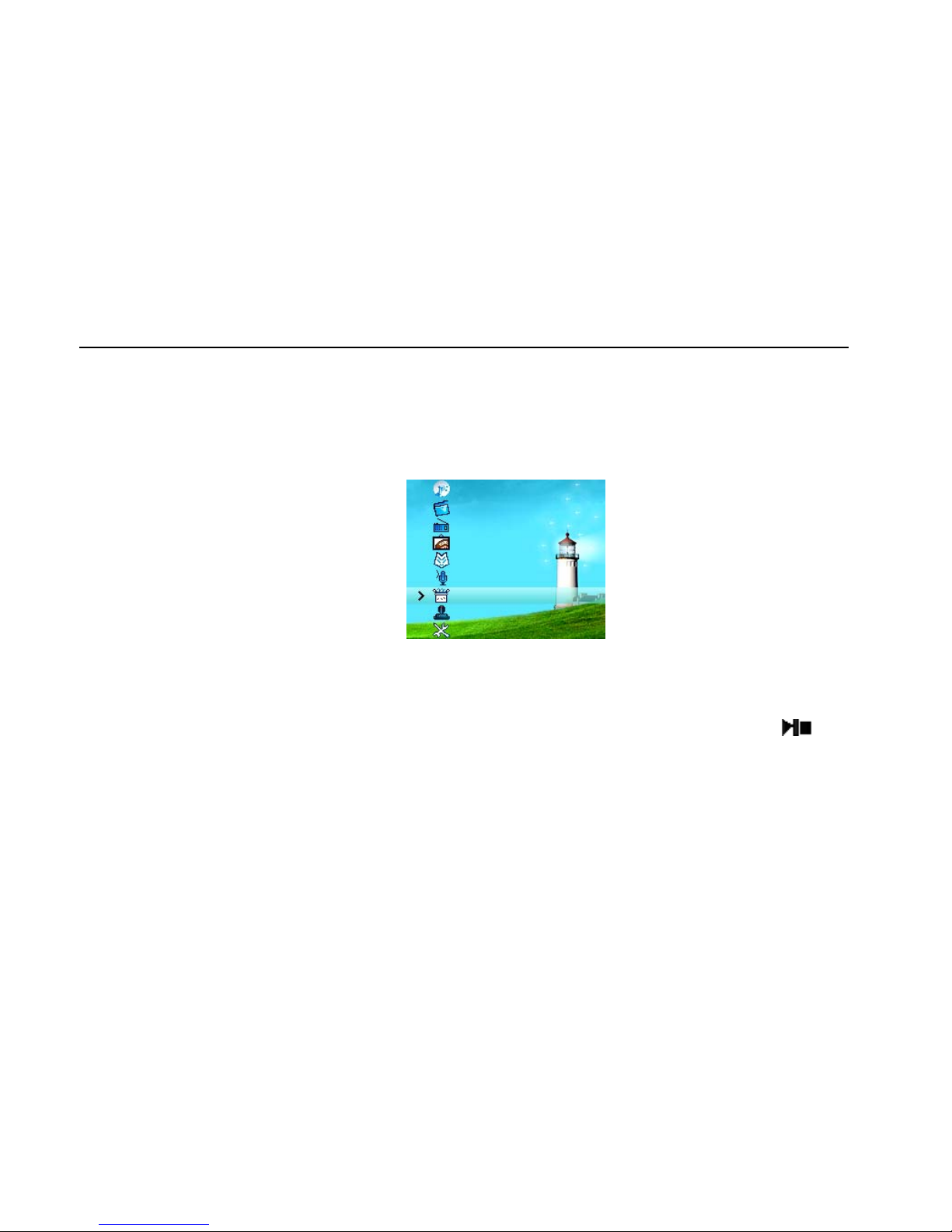

 Main Interface
After entering the Main Interface, select your desired option among [Music ]/[Video ]/ [FM ]/
[Photo]/[Text]/[Record]/[Navigation]/[Game]/[Settings] circularly by pushing leftwards or
rightwards, and short press the "M" key to enter the option menu, long press [M] key to exit the
submenu and return to Main Interface
10

SystemMenu
 Settings
In Main Interface, push leftwards or rightwards to select [Settings] option, short press "M" key to
enter Setting interface (shown in right bottom), and select the sub-option to be set by pushing
Leftwards or rightwards .
 Display
①Blight time: six options of 5 sec., 10 sec., 15 sec., 20 sec., 30 sec., and always on.
②Lum: five options of +1, +2, +3, +4 and +5, the higher level, the more bright.
③Blight mode: two options of Normal and Power Save modes.
 System
Four sub-options: Language, about, Upgrade and Default set.
①Language: three options of Simplified Chinese, Traditional Chinese and English
11

SystemMenu
②About: player storage memory, remain memory and system software version no., these
information are read-only, short press [M] key to exit.
③Upgrade
Eject out the dialog box in this menu, it reminds you whether to upgrade the firmware, it will
exit if no firmware upgrading.
⑤Defaulted Set
In this menu, eject out the dialog box, confirm whether to resume the defaulted value, select
“Yes” or “No”.
 PowerOff Time
In this menu, there are six options of Power: Off, 3 min., 5 min., 10 min., 15 min. and 20 min.
 Format
In this menu, eject out the dialog box, confirm whether to format the player, select “Yes” or “No”.
12

ListentoMusic
 Play/Stop
In Music Play menu, connect the earphone with player, select the desired song file by pushing
leftwards or rightwards key, then short press key to begin the playing, then short press
key to pause, operate it circularly. During the playing of music, the interface has real audio
frequency display, e.g., for the file with LRC file, behind the frequency is the Synchronous Lyric.
 Lyric Display
The player only supports the Lyric Synchronous Display that the file shares the same name as LRC
file of MP3 format, e.g., music file is named as “Angel.mp3”, the LRC file must be named as
“Angel.Irc”, what’s more, they have to be in the same directory.
 Music Play Setting Menu
In Music Play state, long press “M” key to enter Main Menu and enter the “Music” in “Settings”
option, there are multi options, push Leftwards or rightwards key to shift to the desired setup menu.
After your selection, press “M” key to confirm.
■A-B Repeat function
In Music Play state, short press “VOL” to begin the repeat at the first time, “A” will display on the
screen; short press “VOL” to end the repeat at the second time, A-B will display , the player will
repeat between the beginning point and the ending point. Short press “VOL” to quite the repeat
13

ListentoMusic
function at the third time. It’s unavailable to using repeat function when the music is at pause
situation. Long press and keys for fast ward playing or back ward playing at fast ward the “A” or
“A-B” situation.
1. Repeat Mode
a. Once Stop after playing song.
b. Repeat 1 Repeat playing a single song.
c. Folder once Stop after Playing all the songs in the folder.
d. Folder repeat Repeat play all the songs in the folder.
e. All once Stop after Play all the songs.
f. All repeat Repeat play all the songs.
g. Intro Play all the songs of the first 10 seconds in the current folder.
2. play mode
order
shuffle
3. EQ Setup
Normal/3D/Rock/Pop/Classic/bass/Jazz/User EQ, the above eight options will bring you different
music effects.
4. you can edit your favorite EQ effect by [User EQ set] option. The operation is done by
leftwards, rightwards, [M] keys
14

ListentoMusic, Playthevideo
play the video
In video paly menu, select the desired video file by pushing leftwards or rightwards key, then short
press [M] key to begin the playing, then short press [M] key to pause, operate it circularly.
15

VoiceREC
 Voice REC
In Main Interface, enter Record state, short press “M” key to start recording, short press key
to pause recording, short press key to save the recorded file and enter next Record preparation
state. Long press [M] key to save the record and exit the REC mode.
 REC Setup
In Stop state of REC mode, long press [M] key to exit the Main interface, and enter [Record] option,
adjust the settings among [REC Quality]/[REC Volume]/[CHECK SW].
1. REC Quality: high quality, common quality (the first one has larger REC file and better effect;
the second one is in the opposite)
2. REC Volume: five options of +1, +2, +3, +4 and +5. The higher level, the larger recorded volume.
*The recorded voice files can be found in Music Play menu and played to try the effect.
*If the screen displays “Full Space”, it indicates that there is no space for new recorded file, please
delete other files to release more space.
16

ResourcesManager
 Navigation
Resources manager is one of the function characteristics, it can make you know the inside file type,
structure and contents more clearly, for convenient management and search of the file content in
classifications .
 Delete File
In Resources Manager, you can select music or video files, long press “VOL” key to display delete
Dialog box, select “Yes” to delete and “No” to cancel. After the selection, short press key to
implement the selected option.
17

Photo, FM
 Photo
In Main Interface, short press MENU key to confirm to enter Picture Browse mode
Push Leftwards or rightwards key to select the previous or next picture.
 FM
Enter FM menu,.Press Mode key to select: Manu,Auto,Mem,Pres,Del
Manu: short Press [M] Key to confirm, press leftwards or rightwards to change the frequent
manually, long press [M] to exit.
18

FM
Auto: Press [M] to enter, the player will automatically search, after search will display. prese CH XX,
Press leftwards or rightwards to select the station.
Mem: press [M] key to enter, press leftwards or rightwards to select the stations, press [M] to
confirm store, the frequent display on screen will replace the frequent that stored before. First Short
press [M]to exit memory, then long press MENU to return FM menu. pres: Press [M] key to enter,
press leftwards or rightwards select the stations that stored in the player.
Del: press [M] key to enter, press +or _to select the station that you want to delete, press [M] the
confirm, after delete the station’s frequent will display “empty”, First Short press MENU to exit
mem,then long press [M] to return FM menu.
FM record :
When you listen the FM music, long press “VOL” key to enter FM record mode, short press
key to record and pause selecting, short press [M] key to store the Music as file and exit FM record
mode.
Note:
In FM mode, the earphone is using as antenna, so please keeping the earphone is connected well.
19

TEXT
 Download TXT File
Connect the player to computer, select the desired file to download and save the file as TXT format
in portable disk.

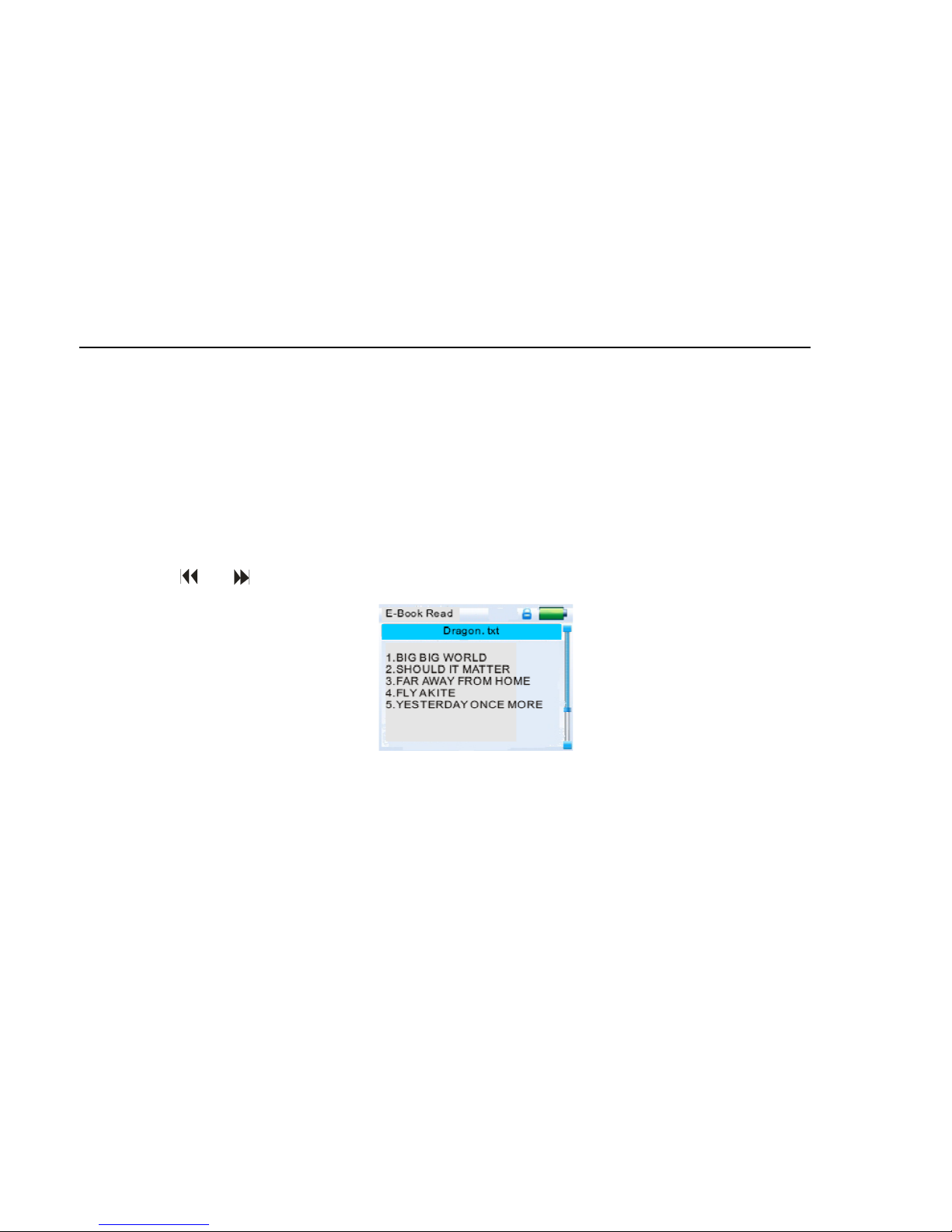

 Read File
In Main Interface, enter Text option, push leftwards or rightwards key to select the desired file to
read, then short press [M] key to read. Turn pages by pushing leftwards or rightwards key, turn rows
by pushing and key.
