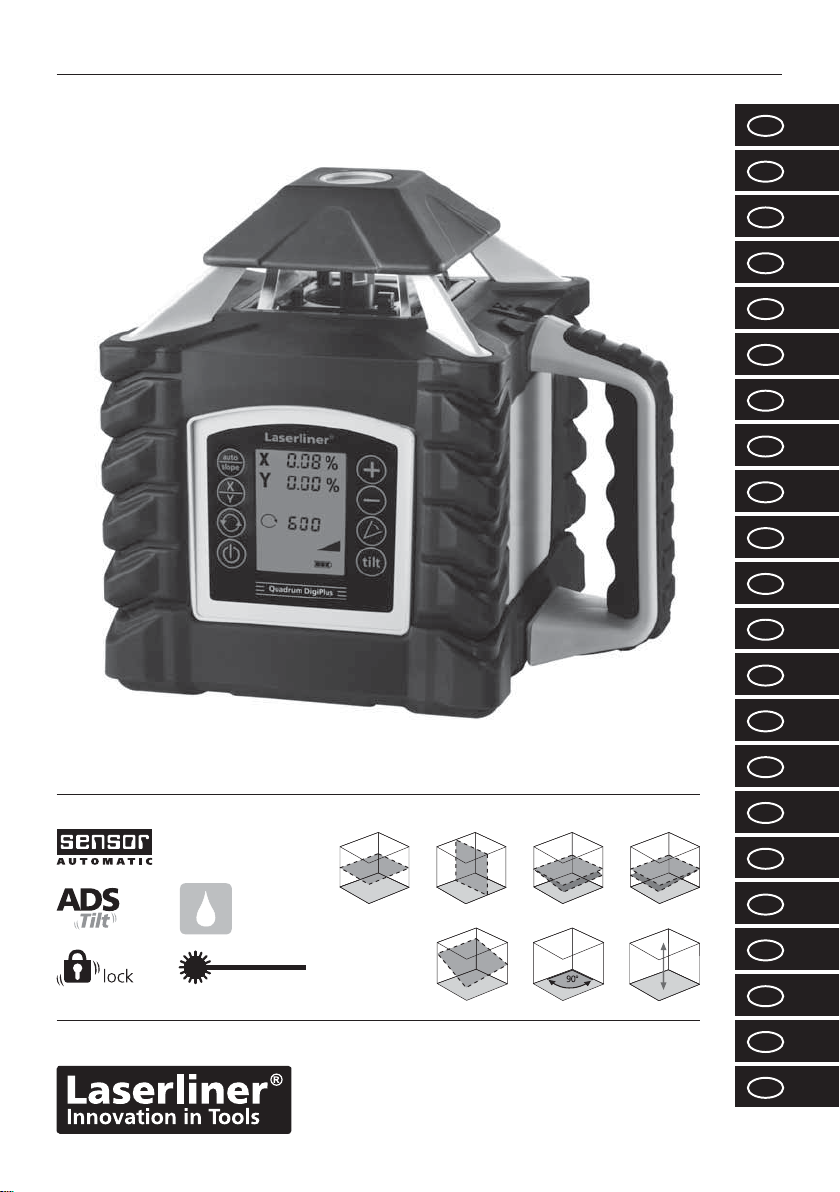

Quadrum DigiPlus / Quadrum DigiPlus Green
IP 66
13
GB
Please read the operating instructions as well as the enclosed brochures „Guarantee and
additional notices“ and „Laser class 3R safety instructions“. Follow the instructions they
contain. Safely keep these documents for future reference.
!
Two-axis grade laser with red or green laser technology.
– With additional red plumb laser
– Laser modes: spot, scan, rotary and hand receiver mode
– The laser modes can be set using the remote control.
– optional SensoLite 310: Laser receiver range up to 300 m radius
– optional SensoLite 410: Laser receiver range up to 400 m radius
– optional SensoMaster 400 (Quadrum DigiPlus red only): Laser receiver range in excess of 300 m
radius. With longer laser receiver unit and millimetre exact distance reading for laser level.
Caution: Prior to using the laser, you must read the safety instructions for laser class 3R thoroughly.
Warning signs must not be removed from the laser measuring device! Do not look directly into the
beam. Lasers must be kept out of reach of children. Never intentionally aim the device at people.
This is a quality laser measuring device and is 100% factory adjusted within the stated tolerance. For
reasons of product liability, we must also draw your attention to the following: Regularly check the
calibration before use, after transport and after extended periods of storage. We also wish to point
out that absolute calibration is only possible in a specialist workshop. Calibration by yourself is only
approximate and the accuracy of the calibration will depend on the care with which you proceed.
Laser radiation!
Avoid direct exposure
to the eyes.
Laser class 3R
< 5 mW Ċ530 - 670 nm
EN60825-1:2007-10
General safety instructions
Special product features and functions
The device characterised by specific protection against dustand rain.
Transport LOCK: The device is protected by a special motor brake during transport.
The rotary laser aligns itself automatically. It is set to the required initial position (to within
an operating angle of ± 6°) and the automatic system then performs the necessary fine
adjustment, with three electronic measurement sensors detecting the X, Y and Z axes.
Quadrum_DigiPlus_Rev0112.indd 13 13.02.12 12:02

auto
man
auto auto x auto y
14
GB
The anti-drift system (ADS) prevents erroneous or inaccurate measurements. How it works:
continuous monitoring of the alignment of the laser is activated 30 seconds after the ADS is switched on.
If the device moves due to external factors or if the laser loses its height reference, the laser will come to
a standstill and blink. In addition, TILT will be illuminated continuously, a warning triangle will appear on
the LC display and the system will beep. To continue working, press the tilt button again or switch the
device off then on again. Erroneous and inaccurate measurements are thus prevented simply and reliably.
The ADS is not active following switch-on. Once the device has been set up, press the tilt button to
activate the ADS, enabling you to protect the laser from changes in position caused by the device being
disturbed by external factors. The word „TILT“ will flash on the display to indicate that the ADS function
is active; see the diagram below.
The ADS does not activate the monitoring function until 30 seconds after the laser levelling
procedure has been completed (set-up phase). The word „TILT“ will flash every second during
the set-up phase and then flash more slowly when the ADS is active.
!
ADS function
ON External influence
Adjustment phase
Sensor Automatic ADS activation: press the Tilt button; the
word „TILT“ will
flash every second
The
laser will
remain stationary as a
precaution. Then the laser
will flash and the word
„TILT“ will be illuminated
continuously.
ADS active after
30 seconds; „TILT“
flashes slowly.
Rotation
begins
Space grids: These show the laser planes and functions.
auto: Automatic alignment / man: Manual alignment
Horizontal levelling
Slope function
Vertical levelling
90° angle
X axis slope
Plumb function
Y axis slope
Quadrum_DigiPlus_Rev0112.indd 14 13.02.12 12:02

Quadrum DigiPlus / Quadrum DigiPlus Green
+
C
–
+
C
–
+
C
–
+
C
–
K
L
J
I
H
G
15
GB
Quadrum DigiPlus Green: green laser technology
The distance at which a laser is visible to the naked eye depends on its colour i.e. wavelength. This is
because of the human eye‘s physiology – green appears brighter to us than red. Depending on ambient
light, green lasers are therefore many times more visible than red lasers; in indoor areas this is as much
as 12 times brighter. This permits applications on dark surfaces, over longer distances and work in very
bright ambient light. A red laser with a 635 nm wavelength is used as a reference value for brightness
differentiation.
In contrast to red lasers, green laser light can only be produced indirectly. This is a source of potential
characteristic fluctuations:
– The optimal operating temperature is 20°C. Outside of its operating temperature range of 0 – 40°C,
the green rotary laser will be darker. IMPORTANT: Allow the unit enough time to adapt to the
ambient temperature before switching the unit on.
– Laser brightness may vary somewhat from one unit to another. This is a natural phenomena and
excluded from warranty claims.
– Green Laser will only work with certain Receivers. The maximum range of the Receiver is shorter,
please refer to technical details.
Battery charging
– Charge the device‘s battery completely prior to use.
– Connect the charger to mains power supply and the charging
socket (J) of the battery compartment (L). Please only use the
charger supplied; using a different charger will invalidate the
warranty. The rechargeable battery can also be charged when
it is not inserted in the device.
– When the rechargeable battery is being charged, the LED on
the charger (N) lights up red. When the LED changes to green,
charging is complete. When the unit is not connected to the
charger the power charger‘s LED lamp will blink.
– Alkaline batteries (4 x type C) can be used as an alternative.
Insert them in the battery compartment (K) as per the
installation symbols.
– Insert battery (L) / battery compartment (K) into slot (G) and
secure it in place with fastening screw (I). The electrical
contacts (H) must be connected.
– With the rechargeable battery inserted, the device is ready
to run even during charging.
– If the battery symbol (14) flashes continuously on the LC display,
the batteries must be replaced or the rechargeable battery must
be charged.
Insert batteries into the remote control
– Observing the correct polarity.
Quadrum_DigiPlus_Rev0112.indd 15 13.02.12 12:02

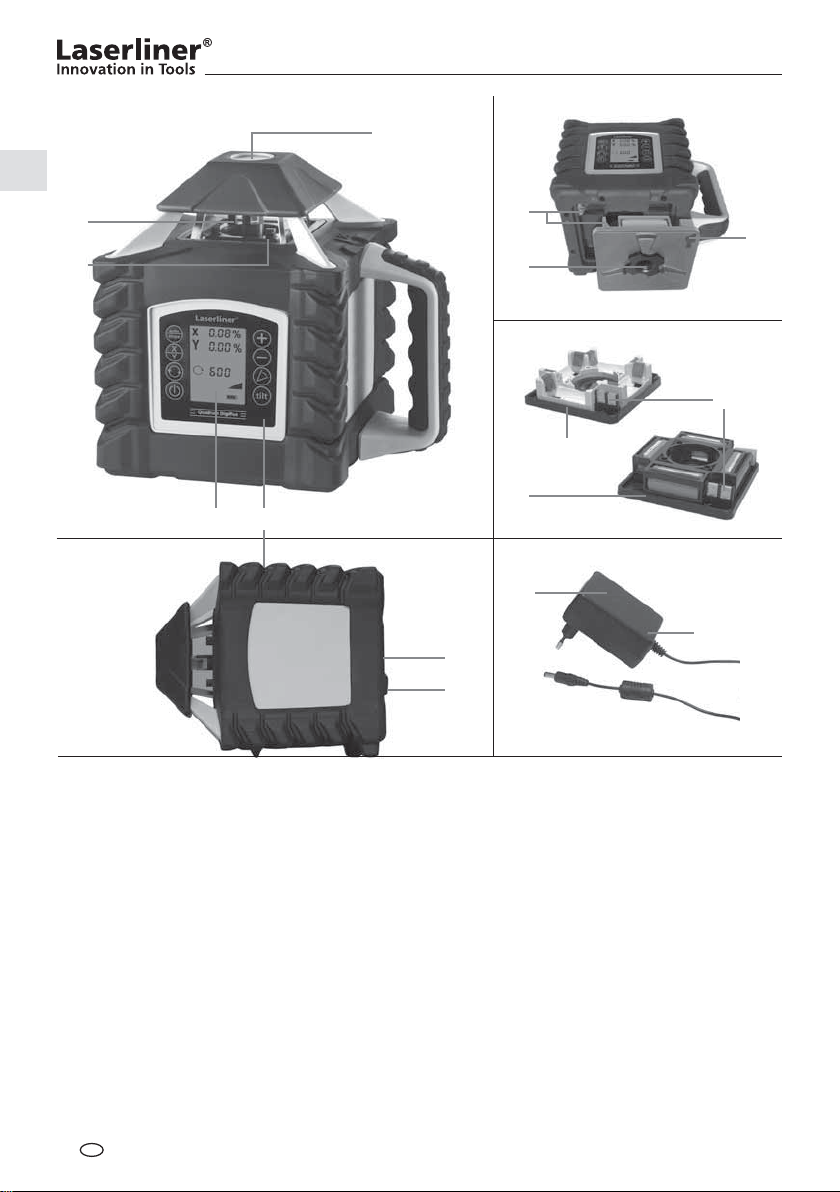

A
B
C
DE
F
G
H
I
L
M
J
K
H
N
16
GB
A
B
C
D
E
F
G
H
I
J
K
L
M
N
Reference / plumb laser outlet
Prism head / laser beam outlet
Receiver diodes for remote control (4 x)
Control panel
LC display
5/8“ thread /
Reference, plumb laser outlet
Slot for rechargeable battery / battery
compartment
Electrical contacts
Battery compartment /
battery fastening nut
Charging socket
Battery compartment
Rechargeable battery
compartment
Mains unit / charger
Operation indicator
red: battery is charging
green: charging process complete
Vertical operation
Quadrum_DigiPlus_Rev0112.indd 16 13.02.12 12:02

Quadrum DigiPlus / Quadrum DigiPlus Green
Y
X
5
6
7
8
1
2
3
4
3
21
7
20
9
10
14
12
13
11
15
16
17
18
19
17
GB
Control panel Quadrum DigiPlus
LC display
Quadrum DigiPlus
Remote control
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
auto/slope function
Switching the x and y-axes
Rotary speed for selection
600 / 300 / 120 / 60 / 0 rpm
ON/OFF button
Plus button for setting the
inclination with the digital and
manual slope function
Minus button for setting the
inclination with the digital and
manual slope function
Scan mode
Tilt function
Display of inclination setting
of the x-axis
Display of inclination setting
of the y-axis
Tilt function warning indicator
Scan mode indicator
Dual grade function indicator
Battery charge status indicator
Calibrating mode indicator
Speed indicator
Levelling indicator
Tilt function indicator
Manual mode indicator
Positioning button
(rotate to the left)
Positioning button
(rotate to the right)
Quadrum_DigiPlus_Rev0112.indd 17 13.02.12 12:02

auto auto
auto
X
±6°
1. 2.
18
GB

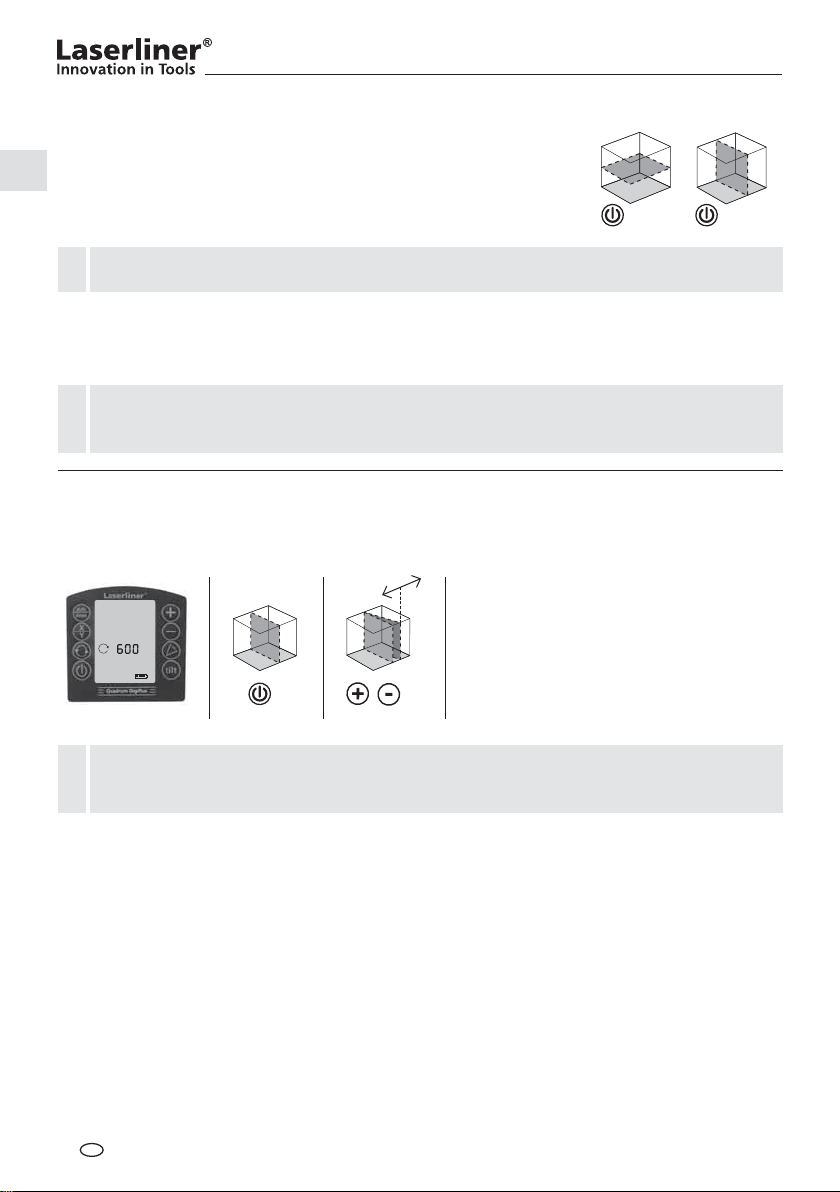

Horizontal levelling and vertical levelling
– Horizontal: Position the device on a level surface or on a tripod.
– Vertical: Set the unit on its side feet. The operator panel should be
at the top. With the optional wall bracket (product ref. 080.70),
the device can be mounted on a tripod for vertical usage.
– Press the „ON/OFF“ switch
The rotary laser aligns itself automatically once it is turned on.
!
– The device levels itself automatically to within a range of ± 6°. During the set-up phase, the laser flas-
hes and the prism head remains stationary. When levelling is complete, the laser lights up continuously
and rotates at maximum speed. Refer also to the sections about „Sensor Automatic“ and „ADS Tilt“.
If the device has been placed on a surface with too much of a slope (more than 6°), the prism
head will remain stationary and the laser will flash and emit a warning sound. The device must
then be placed on a more even surface.
!
Positioning the vertical laser level
In vertical mode the laser level can be positioned exactly. „Sensor Automatic“ remains active and levels
to the vertical laser level. Refer to the illustration below.
When the maximum slope range of 6° has been reached, the laser will stay fixed and blink and
emit a sound. In this case, reduce the slope angle.
!
Quadrum_DigiPlus_Rev0112.indd 18 13.02.12 12:02

Quadrum DigiPlus / Quadrum DigiPlus Green
(±10°)
XY
Y
Xauto
1. 2. 3. 4. 5.
±6°
XY
Y
Xauto man man
3 sec
1. 2. 3. 4. 5.
19
GB
Manual slope function up to 6° – horizontal
Activation of the slope function deactivates the automatic sensor, To return the laser to manual mode,
keep the ON/OFF button pressed until the hand symbol (19) appears on the LC display. Press the X/Y
button to set the horizontal plane. The plus/minus buttons are used to re-adjust the slope by means of
a motor. In the process the X-and Y-axis can be adjust separately. Refer to the illustrations below.
Digital inclination function (dual grade function)
The horizontal plane can be inclined digitally in the x and y-axes. The maximum
inclination of a plane is up to ±10%. In the sum of both axes, the maximum value
is reduced per each axis. On the large LC display, the values are displayed and can
be entered independently.
Setting the axes: Press the auto/slope button (1). The x-axis indicator blinks on the
LC display. The numbers can be set with the Plus and Minus buttons (5/6). Switch to
the y-axis by pressing the X/Y button (2). Then the y value can be set with the Plus
and Minus buttons (5/6). Pressing the X/Y button (2) again confirms the entry. The
device then adjusts to the desired value. Refer to the illustrations below.
Important: It is not possible to enter any information while the device is levelling. The LC display shows
the blinking levelling symbol (17). When the levelling symbol stops blinking, levelling is complete and
new numbers can be entered.
On 2 planes
The automatic sensor is activated whenever the digital slope function is in use.
!
The X/Y axes are marked on the device.
!
On 1 plane
Quadrum_DigiPlus_Rev0112.indd 19 13.02.12 12:02

auto man man
Y
Y
X
3 sec
1. 2. 3. 4.
X
5.
man
3 sec
20
GB
Manual slope function > 6°
Steeper slopes can be set using the angle plate, which is
available as an optional extra (product ref. 080.75).
TIP: Allow the device to align itself automatically and set
the angle plate to the zero position. Then switch off the
automatic sensor. See: Manual slope function up to 6°.
Finally, incline the device to the angle you require.
Manual slope function up to 6° – vertical
When the maximum slope range of 6° has been reached, the laser will stay fixed and blink and
emit a sound. In this case, reduce the slope angle.
!
When the hand symbol appears on the LC display, the automatic sensor is not activated
and therefore horizontal and vertical levelling is not possible.
!
Rotary mode
The following speeds can be set using the rotary button:
0, 60, 120, 300, 600 rpm
Laser modes
Spot mode
You access spot mode by pressing the rotary button repeatedly until
the laser stops rotating. The laser can then be positioned exactly at
the measuring point by means of the direction buttons.
Scan mode
The scan button can be used to activate and set a lightintensive
segment in 4 different widths. You position the segment via the
direction buttons.
Hand receiver mode
Working with the laser receiver (available as an optional extra): Set the
rotary laser to maximum speed and switch on the laser receiver. Refer
to the operating instructions for the respective laser receiver about this.
Quadrum_DigiPlus_Rev0112.indd 20 13.02.12 12:02

Quadrum DigiPlus / Quadrum DigiPlus Green
21
GB
Technical data (Subject to technical alterations)
Self-levelling range ± 6°
Accurancy
± 0,75 mm / 10 m
Horizontal / vertical levelling Automatic with electronic sensors
and servo motors
Self-levelling alignment time Approx. 30 seconds over the entire
operating angle
Vertical reference beams 90° to rotation plane
Rotation speed 0, 60, 120, 300, 600 RPM
Remote control Infrared IR
Laser wavelengths green / red 635 nm / 532 nm
Laser class red / green 3R (EN60825-1:2007-10)
Laser output rating red / green < 5 mW
Power supply High-performance rechargeable
battery /batteries (4 x type C)
Rechargeable battery life red / green approx. 35 h / approx. 14 h
Non-rechargeable battery life red / green approx. 50 h / approx. 8 h
Battery recharging time ca. 6 h
Operating temperature red / green -10°C ... + 50°C / 0°C ... + 40°C
Storage temperature -10°C ... + 70°C
Protection class IP 66
Dimensions (W x H x D) /
Weight (incl. batteries) 215 x 205 x 165 mm / 2,6 kg
Remote control
Power supply 2 x type AAA
Remote control range
max. 40 m (IR-Control)
Dimensions (W x H x D) /
Weight (incl. batteries)
63 x 130 x 24 mm /
0,15 kg
EU directives and disposal
This device complies with all necessary standards for the free movement
of goods within the EU.
This product is an electric device and must be collected separately for disposal
according to the European Directive on waste electrical and electronic equipment.
Further safety and supplementary notices at: www.laserliner.com/info
Working with the reference/plumb laser
The unit has two reference lasers. In horizontal operation these lasers
can be used to drop a perpendicular. In vertical operation these reference
lasers are used to align the unit. This is done by adjusting the reference
lasers parallel to the wall. This aligns the vertical laser plane at a right
angle to the wall, see illustration.
Quadrum_DigiPlus_Rev0112.indd 21 13.02.12 12:03

A1
A2
2.
1.
A1
A3
A2
A2
A1
4.
3.
A3
A2
< 0,75 mm / 10 m = OK
22
GB
If points A2 and A3 are more than 0,75 mm / 10 m apart on either the X or Y axis, the device is
in need of adjustment. Contact your authorised dealer or else the UMAREX-LASERLINER Service
Department.
!

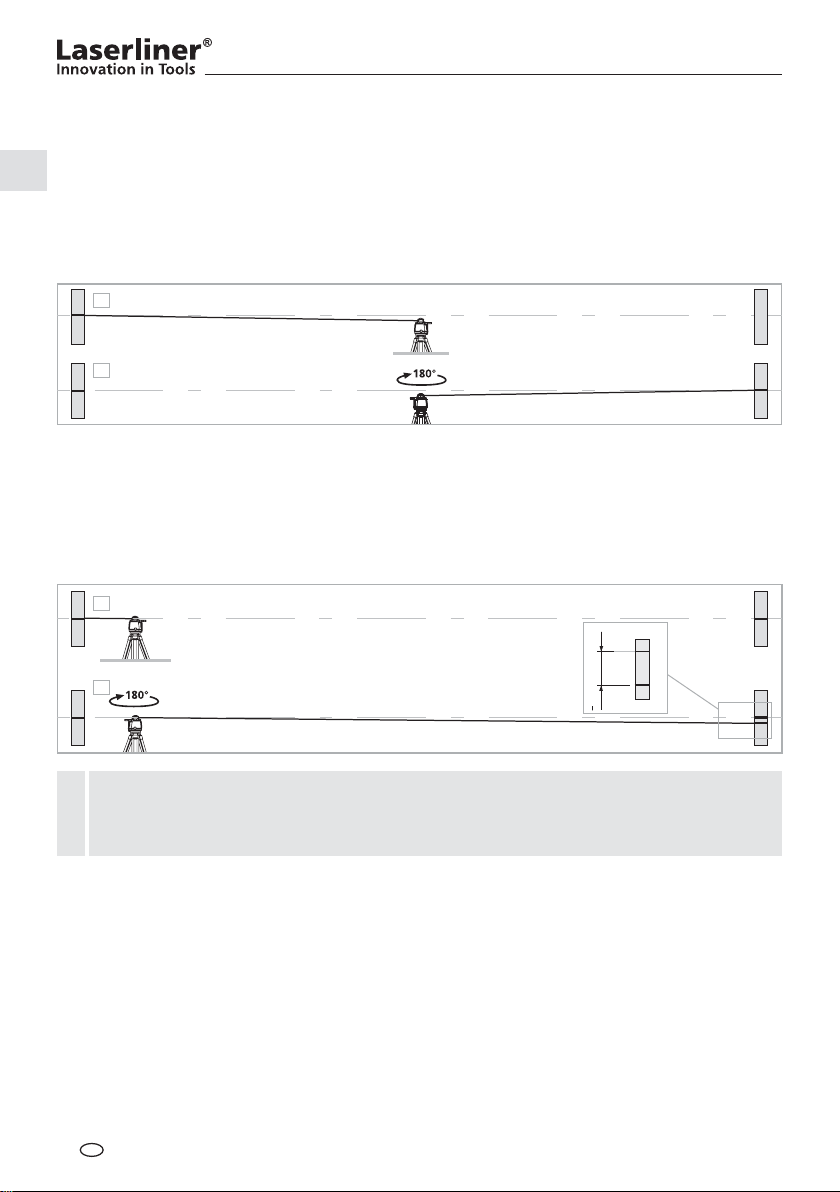

Preparing the calibration check
It is possible for you to check the calibration of the laser. To do this, position the device midway
between 2 walls, which must be at least 5 metres apart. Switch the device on. The best calibration
results are achieved if the device is mounted on a tripod. IMPORTANT: The automatic sensor must
be active.
1. Mark point A1 on the wall.
2. Turn the device through 180° and mark point A2. You now have a
horizontal reference between points A1 and A2.
Performing the calibration check
3. Position the device as near as possible to the wall at the height of point A1.
Now adjust the device in the X axis.
4. Turn the device through 180° and mark point A3. The difference between
points A2 and A3 is the tolerance for the X axis.
5. To check the Y and Z axis, repeat steps 3 and 4.
Quadrum_DigiPlus_Rev0112.indd 22 13.02.12 12:03

Quadrum DigiPlus / Quadrum DigiPlus Green
Y
Z
X
23
GB
X- / Y- /
Z-Axis
Regularly check the adjustment before use, after
transport and after extended periods of storage.
Always make sure to control all axes.
!
Adjustment mode
1. Take the alignment of the rotary laser into account when performing adjustment work.
Always adjust all the axes.
2. Switch the device to adjustment mode:
Switch off the rotary laser and switch it on again while holding the auto/slope button. Press
and hold the auto/slope button until the x-axis indicator starts to flash on the display. Then
you can release the auto/slope button.
The x-axis indicator flashes first in horizontal mode (X/Y axis). You can switch between x and
y-axis using the X/Y button on the rotary laser.
Only the Y-axis indicator is shown in vertical mode (z-axis).
3. Correcting the adjustment:
Using the Plus/Minus buttons on the rotary laser, you can move the laser away from its current
position to the level of reference point A2. The laser only changes its position by pressing the
buttons several times.
4. Completing the adjustment:
Cancel: Switch the rotary laser off (via the ON/OFF button) to reject all adjustment
settings and restore the previous status.
Save: Pressing the auto/slope button saves the new adjustment settings.
Positioning: The laser can be rotated by pressing the positioning buttons on
the remote control.
Quadrum_DigiPlus_Rev0112.indd 23 13.02.12 12:03

Quadrum DigiPlus / Quadrum DigiPlus Green
8.053.96.05.1 / Rev.0112
SERVICE
Umarex GmbH & Co KG
– Laserliner –
Möhnestraße 149, 59755 Arnsberg, Germany
Tel.: [phone], Fax: [phone]
[email protected]
Umarex GmbH & Co KG
Donnerfeld 2
59757 Arnsberg, Germany
Tel.: [phone], Fax: -333
www.laserliner.com
Quadrum_DigiPlus_Rev0112.indd 244 13.02.12 12:16
