POWR607/6AT6 Evaluation Board
User’s Guide

2
POWR607/6AT6 Evaluation Board
Introduction
Thank you for choosing the Lattice Semiconductor POWR607/6AT6 Evaluation Board!
This user’s guide describes how to start using the POWR607/6AT6 Evaluation Board, an easy-to-use platform for
evaluating and designing with the Lattice Power Manager II devices, POWR607 and POWR6AT6. The Evaluation
Board has pre-loaded Processor Support demonstration design. You may also reprogram the
POWR607/POWR6AT6 to review your own custom designs.
Note: Static electricity can severely shorten the lifespan of electronic components. See the POWR607/6AT6 Evalu-
ation Board QuickSTART Guide for handling and storage tips.
Features
• POWR607/6AT6 Evaluation Board - A 3.75 by 2.00 inches form factor that features the following on-board com-
ponents and circuits:
– Power Manager II ispPAC®-POWR607
– Power Manager II ispPAC® -POWR6AT6
– LEDs for general purpose I/O, power indicators, and watchdog timer interrupt indication
– Slide potentiometer
– USB B-mini connector for power and programming
– 2x14 expansion header for general I/O, voltage monitor inputs, and power supply trim outputs
– Push buttons for reset and watchdog timer trigger
– 4-bit DIP switch for watchdog timer period programming and reset pulse stretch enable
– JTAG and I2C header landings for JTAG cable programming and I2C interface
• Pre-loaded Processor Support Demo - The board includes a pre-loaded demo design that demonstrates watch-
dog timer, voltage supervisor, and reset generation features of the POWR607.
• USB Connector Cable - The POWR607/6AT6 Evaluation Board is powered from the mini B USB socket when
connected to a host PC with the included USB cable. The USB channel also provides a programming interface to
the POWR607/6AT6 and POWR6AT6 JTAG ports.
• QuickSTART Guide - Provides information on connecting the POWR607/6AT6 Evaluation Board, running the
pre-loaded processor support demo.
• POWR607/6AT6 Evaluation Board Web Page - Provides access to the latest documentation, demo designs, and
drivers for the kit. See www.latticesemi.com/boards and look for the POWR607/6AT6 Evaluation Board.
The contents of this user’s guide include demo operation, programming instructions, top-level functional descrip-
tions of the evaluation board, descriptions of the on-board connectors, switches and a complete set of schematics
of the board.
Software Requirements
You should install the following software before you begin developing designs for the board:
• PAC designer 6.25 or later
• Lattice Diamond Programmer

3
POWR607/6AT6 Evaluation Board
Figure 1. POWR607/6AT6 Evaluation Board, Top Side
Slide Potentiometer (R16)
PWR LED (D1)
WD_INT LED (D11)
USB
WD_Trig Push Button DIP Switch (1, 2, 3, 4)
Reset Push uon
Thru-Hole Prototype Area
SEL1 LED (D6)
SEL0 LED (D5)
RST LED (D4)
CPU RESET LED (D2)
SMD Prototype Area
Expansion Header
POWR6AT6
POWR607
JTAG Header
I2C Header

4
POWR607/6AT6 Evaluation Board

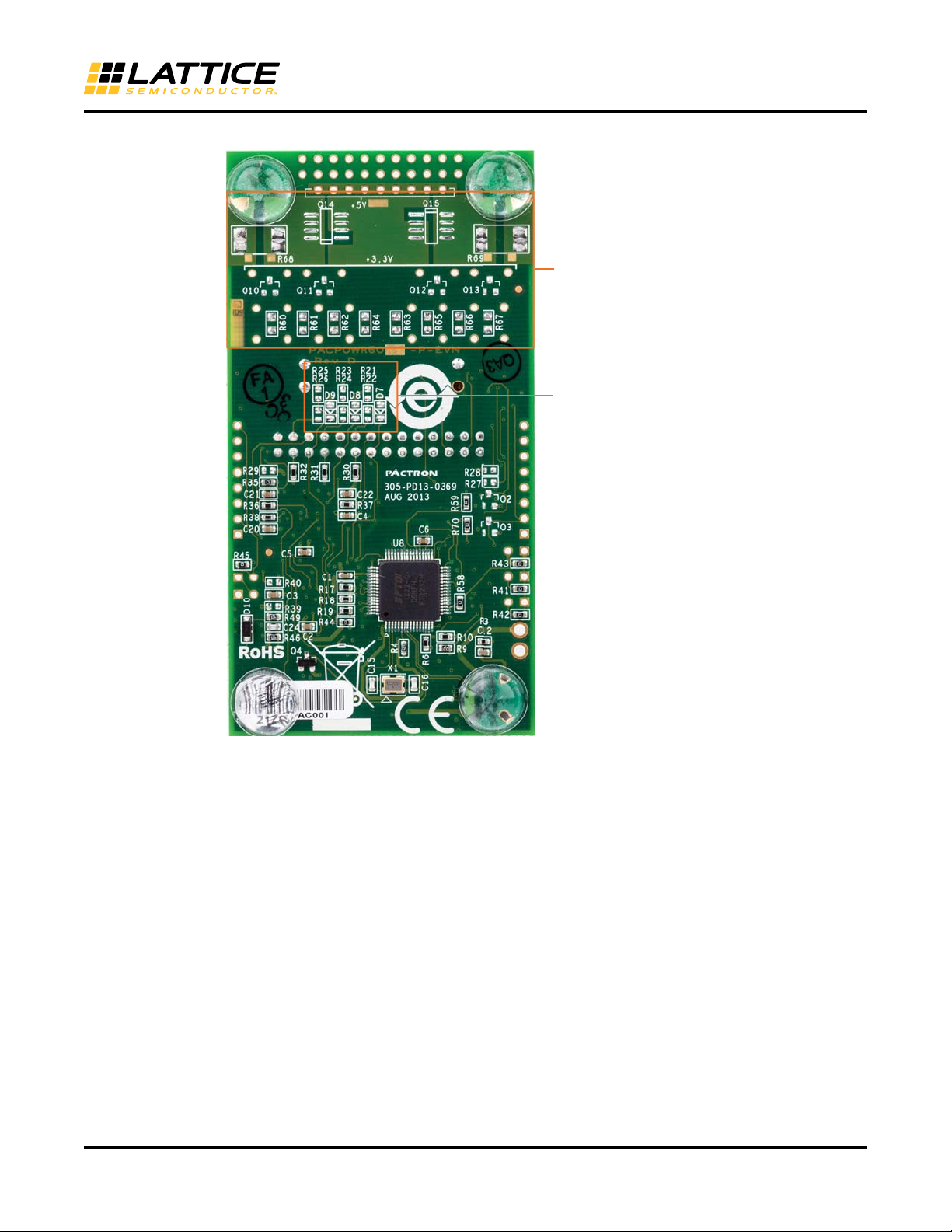

Figure 2. POWR607/6AT6 Evaluation Board, Bottom Side
VMON Attenuation Networks
Bottom SMD Prototype Area

5
POWR607/6AT6 Evaluation Board
POWR607 Device
This board features the POWR607, an in-system programmable, mixed-signal PLD that integrates high-perfor-
mance analog voltage monitors, 4 timer counter blocks, and a 16-macrocell programmable logic device. A com-
plete description of this device can be found in the DS1011, ispPAC-POWR607 Data Sheet.
Demonstration Designs
Lattice provides two demos that illustrate key applications of the Power Manager II devices POWR607 and
POWR6AT6:
•Processor Support - Demonstrates the POWR607 as a power manager for a processor, DSP, ASSP, or ASIC. It
integrates three functions traditionally covered by discrete ICs: voltage supervisor, reset generator, and watch-
dog timer. The programmable features of the POWR607 highlight its flexibility to be used in a variety of system
support roles. The processor support demo design is pre-loaded into the POWR607 by Lattice.

Note: The processor support demo program (JEDEC) differs slightly from the Initial Factory Configuration
described in DS1011, ispPAC-POWR607 Data Sheet. WDT_Intr output is active-high in the demo program, and
active-low in the factory configuration.
•Voltage Monitoring - Shows application of the ispPAC-POWR6AT6 to provide supply measurements via an I2C
interface. The voltage monitoring support demo design is pre-programmed into the POWR6AT6 by Lattice with
the I2C address of 0x6A.

Note: It is possible that you may obtain your POWR607 board after it has been reprogrammed. To restore the
factory default demo and program it with other Lattice-supplied examples see the Download Demo Designs and
Download Windows Hardware Drivers sections of this document.
Processor Support Demo
The processor support demo is pre-programmed into the non-volatile elements of the POWR607 and POWR6AT6
devices and is operational upon power-up. The design provides the following features:
• Detect voltage supply violations and assert a CPU reset if a fault occurs.
• Provide a 500ms, 2 sec, 10 sec, or 1 min period watchdog timer and assert a watchdog timer interrupt if a timer
expires before a watchdog trigger interrupt occurs.
• Assert CPU reset pulses if manual reset of the board occurs. Provide an optional 200ms pulse stretch of the
reset.
• De-bounce manual reset input.
A PAC-Designer software project (.pac) defines the analog trip points for the POWR607 voltage monitors, timer-
counter period, and supervisory equations that define logical functions.

6
POWR607/6AT6 Evaluation Board

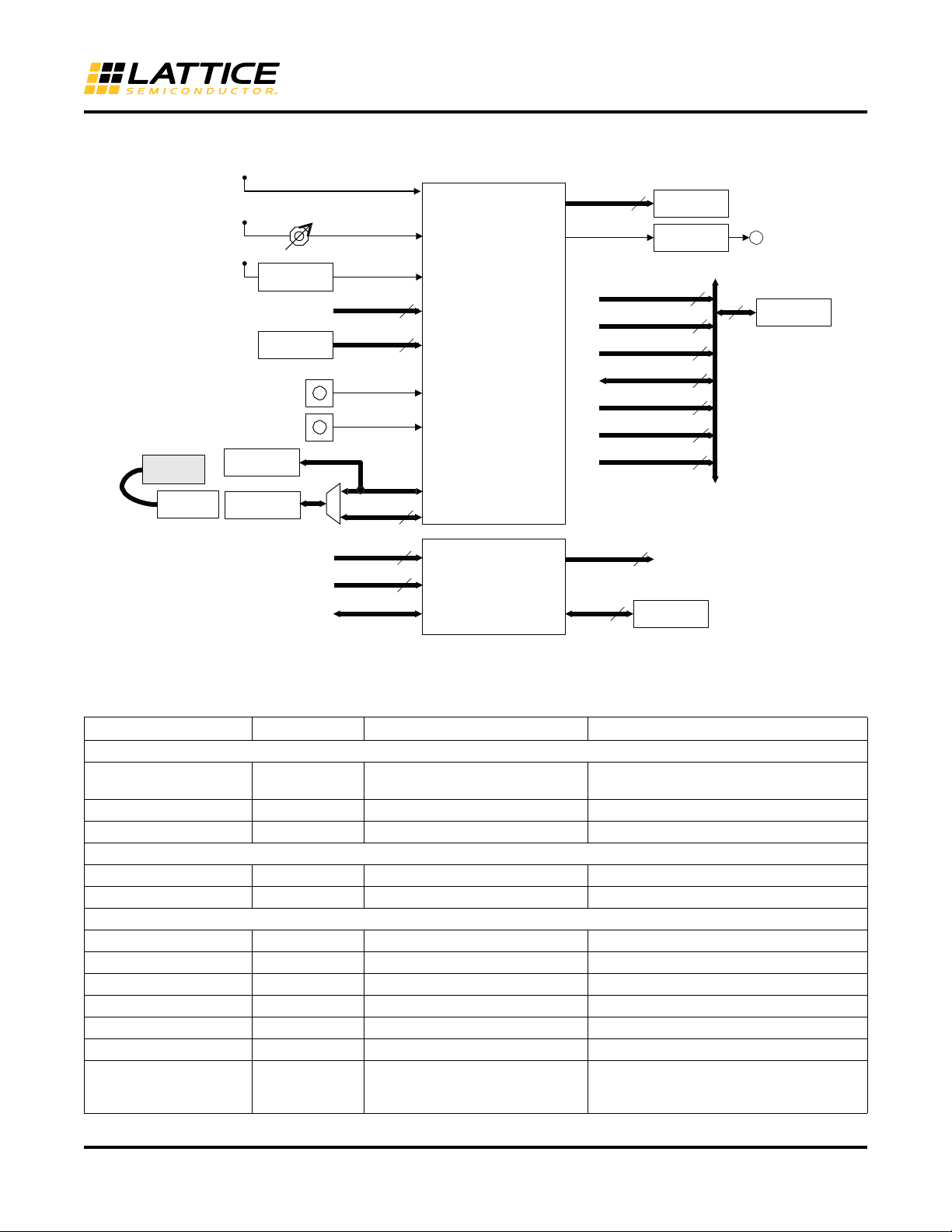

Figure 3. Processor Support Demo Block Diagram
Table 1 describes the DIP switch, push-button inputs, and slide potentiometer settings that control the pre-config-
ured POWR607 and emulate a variety of processor support scenarios. Use them as a reference as you follow the
procedure. To indicate a ‘1’ (logical True) on the DIP switch SW1, slide the switch towards the number indicated on
the switch body. Note the circuit board silkscreen markings for: VM3=1.8, RST=0, SEL0=0, and SEL1=0.
Table 1. Processor Support Demo Switch and Button Settings
Setting Function
DIP Switch (1, 2, 3, 4)
XX00
500ms WDT (SEL0=0, SEL1=0)
Enables a 500ms period watchdog timer (WDT).
When active, the POWR607 will monitor the terminal count (TC) value a programmable timer. Once
500ms expires, the WDT_Intr output is asserted. An amber WDT_INT LED (D11) will light momentarily
to indicate the WDT interrupt input to the processor/DSP is active. Once activated, you may reset the
WDT by pressing the push-button switch (WD_Trig) to emulate a WDT trigger event asserted by the pro-
cessor/DSP.
A red LED D5 will light when SEL0=0 and LED D6 will light when SEL1=0.
Note: For the demonstration scenario, an additional transistor circuit of the evaluation board stretches
WDT_Intr output period to make the interrupt event visible to the eye.
XX10 2 sec WDT (SEL0=1, SEL1=0)
Enables a 2-second period watchdog timer (WDT).
XX01 10 sec WDT (SEL0=0, SEL1=1)
Enables a 10-second period watchdog timer (WDT).
DC-DC#1
3.3V
(VMON1)
DC-DC#2
2.5V (-5%)
(VMON2)
DC-DC#3
1.8V
(VMON3)
1
Power,
Blue LED
R16 VM3
SW1- 8
PWR-D1
Power Supply Bus
Voltage Supervisor
Reset
(SW2)
Reset Generator
Watchdog Timer
Reset_CPU
WDT_Intr
WDT_Trig
CPU Reset or
Power Fail (IO1-D2)
WDT Interrupt (D11)
WDT Sel
POWR607
2
Reset_Pulse
WD_Trig (SW3)
Processor/DSP
SEL1, SEL0 (SW1)
00 = 500ms
01 = 2 sec
10 = 10 sec
11 = 1 min
RST (SW1)
0 = No Stretch
1 = 200ms Stretch

7
POWR607/6AT6 Evaluation Board
Connect to the POWR607/6AT6 Evaluation Board
To power and program the evaluation board you may use a PC USB port or use a combination of an external 5 V
power supply and a JTAG cable. If your PC does not provide a USB port, see Adding Support for a JTAG Cable
and/or I2C Communications in the Modifying the POWR607/6AT6 Evaluation Board section.
USB Cable Connection
Use the USB cable provided to connect the evaluation board to your PC:
1. Connect the USB cable from a USB port on your PC to the board’s USB mini-B socket (J1) on the bottom left
side of the board. After connection is made, a blue Power LED (PWR) will light up indicating the board is pow-
ered on.
2. If you are prompted, “Windows may connect to Windows Update” select No, not this time from available
options and click Next to proceed with the installation. Choose the Install from specific location (Advanced)
option and click Next.
3. Select Search for the best driver in these locations and click the Browse button to browse to the Windows
driver folder created in the Download Windows Hardware Drivers section. Select the CDM 2.04.06 WHQL Cer-
tified folder and click OK.
4. Click Next. A screen will display as Windows copies the required driver files. Windows will display a message
indicating that the installation was successful.
5. Click Finish to install the USB driver.
XX11 1 min WDT (SEL0=1, SEL1=1)
Enables a 1-minute period watchdog timer (WDT).
X0XX Disable Reset Pulse Stretch (RST=0)
Disables the reset pulse stretch option of POWR607. A red LED D4 will light when RST=0.
X1XX
Enable 200ms Reset Pulse Stretch (RST=1)
Appends an additional 200 ms period to any processor/DSP reset output asserted by the POWR607.
Programmable clock and timer functions of the POWR607 allow for a variety of timeout intervals from 32
us to 1.96 sec in 128 steps. It may be necessary to connect a logic analyzer to detect the pulse
stretch.
0XXX 1.8 V Supply OK (VM3=1.8)
Connects the 1.8V supply rail to the voltage monitor input (VMON3) of the POWR607.
This setting emulates a stable 1.8 V supply.
1XXX 1.8 V Supply Failure (VM3=High-Z)
Disconnects the 1.8 V supply rail from the voltage monitor input (VMON3) of the POWR607.
This setting emulates a DC-DC converter or other supply failure on the PCB. The POWR607 will assert
the Reset_CPU output signal to initiate a reset of the processor/DSP target device. A red LED (D2) will
light to indicate the power fail condition.
Push-button Switch
WD_Trig WDT Trigger
Press the push-button switch (WD_Trig) to emulate the watchdog timer reset trigger issued periodically
for normal operation by the processor/DSP.
Reset Manual Reset
Press the push-button switch (Reset) to assert a manual reset of the evaluation board. All timers of the
POWR607 will be cleared and the Reset_CPU output signal will be asserted.
Slide Potentiometer
R16 Voltage Supervisor Input
A slide potentiometer emulates the variability of a 2.5 V voltage rail on the PCB. Slide the pot towards
the 0.0 V
position to lower the voltage level input to the POWR607 voltage monitor (VMON2).
Setting Function

8
POWR607/6AT6 Evaluation Board
JTAG Cable Connection
Use a JTAG cable (sold separately) to connect the evaluation board to your PC:
1. Connect external +5 V and GND power to pad locations J5 and J6 (Schematic Sheet 5 of 6).
2. Connect a JTAG cable from a JTAG source to the board’s JTAG header (J3) (Schematic Sheet 5 of 6) on the
right side of the board.
See Adding Support for a JTAG Cable and/or I2C Communications in the Modifying the POWR607/6AT6 Evaluation
Board section for information on how to modify the evaluation board to add a JTAG header connection.
Run the Processor Support Demo
The POWR607 Processor Support Demo illustrates key functions of the POWR607: voltage supervisor, reset gen-
erator, and watchdog timer (WDT). The block diagram of the processor support demo, Figure 3, shows the
POWR607 interface to a simulated processor/DSP. LEDs and switches are used to emulate the processor inter-
face.
Many processor power management scenarios can be shown with the POWR607 evaluation board. Follow the pro-
cedure below to emulate one particular case.
1. Set the POWR607 configuration to indicate 1.8 V Supply OK, disable reset pulse stretch and enable a two- sec-
ond watchdog timer period. 

Select DIP Switch (1, 2, 3, 4) = 0010

Note: To indicate a logical 1, slide the switch towards the 1, 2, 3, or 4 numeral marks on the case. Select the
R16 Slider = 3.3 V position.
2. Press and then release the Reset push button. 

The POWR607 Evaluation Board is reset. The CPU Reset LED (D2) lights to indicate the reset condition. The
WDT timer is reset and the two-second WDT count begins.
3. Press and release the WD_Trig push button.

The WDT_Trig signal is asserted by the processor/DSP. The POWR607 timer/counter is reset and the two- sec-
ond watchdog timer restarts.

Continue pressing the WD_Trig to “pet” the watchdog timer to prevent the two-second timeout.
4. Wait for two seconds and allow the WDT timer period to expire.

The POWR607 asserts the WDT_Intr output signal and the WDT_Interrupt LED (D11) lights momentarily to
indicate the interrupt condition.

In the next step you will increase the watchdog timer period from 2 seconds to 10 seconds and enable Reset
Pulse Stretch.
5. Select SW1 (1, 2, 3, 4) = 0101. Also select the R16 Slider = 3.3 V position. Press and release the Reset push
button on the POWR607 board.

The CPU Reset LED (D2) light indicates the reset condition. The WDT timer is reset and the 10-second WDT
count begins.

The following steps emulate a brown out condition of a 2.5 V supply rail output of a DC-to-DC converter (DC-
DC#2) monitored by the POWR607.

9
POWR607/6AT6 Evaluation Board
6. Slowly slide R16 towards the 0.0 V position. 

Once the POWR607 voltage monitor detects the 2.5 V supply rail has dropped below a 2.5 V -5% threshold
value a supply fault will be triggered and the Reset CPU output signal is asserted. The CPU Reset LED (D2)
light indicates the reset condition. Note that the POWR607 watchdog timer is also disabled.
7. Slide R16 toward the 3.3 V position. Once the POWR607 voltage monitor detects that the 2.5 V rail is above a
threshold value of 2.5 V -5%, the Reset CPU output signal is released. The CPU Reset LED (D2) light goes out.
Run the Voltage Monitoring Demo
The voltage monitor demo illustrates how to access the 2-wire I2C slave interface of the ispPAC-POWR6AT6 device
to perform voltage level measurements. This is a popular means for a microcontroller/microprocessor to monitor
voltages and adjust the voltage profiles of the POWR6AT6 DC-DC converter margin output drivers. For more infor-
mation on POWR6AT6 end applications see AN6077, Stable Operation of DC-DC Converters with Power Manager
Closed Loop Trim. This demo uses the ispPAC-POWR6AT6 I2C Utility software provided with PAC-Designer soft-
ware running on a host PC to emulate a processor’s interface to the POWR6AT6.
1. Modify the evaluation board to use the JTAG cable. See Adding Support for a JTAG Cable and/or I2C Communi-
cations in the Modifying the POWR607/6AT6 Evaluation Board section for more information.
2. Install PAC-Designer software.
3. From the PAC-Designer<ver>\Macro directory, run PowerManager_6AT6_I2C_Utility.exe. For more information
on the I2C Hardware Verification Utility software and operation see AN6067, ispPAC-POWR1220AT8 I2C Hard-
ware Verification Utility User’s Guide.
4. Set I2C Address = 6Ah
Download Demo Designs
The processor support demo is preprogrammed into the POWR607 Evaluation Board, however over time it is likely
your board will be modified. Lattice distributes source and programming files for demonstration designs compatible
with the POWR607 board.
To download demo designs:
1. Browse to the POWR607 Development Kit web page of the Lattice web site. Select the Demo Applications
download and save the file.
2. Extract the contents of “POWR607_DK_DemoSource.zip” to an accessible location on your hard drive.
Two demo design files are unpacked. 

Where:
Recompile a Demo Project with PAC-Designer
Use the procedure described below to recompile any of the demo projects for the POWR607 Evaluation Board.
1. Install PAC-Designer software
2. Download the demo source files from the POWR607 Development Kit web page.
3. Run PAC-Designer.
4. Open the <demo>.pac project file.
5. From the schematic block diagram, double-click the Sequence Controller block. The LogiBuilder interface
appears.
Demo Files
Processor Support Demo Demo_POWR607_DK.pac
Voltage Monitoring with the POWR6AT6 Demo Demo_POWR6AT6_DK.pac

10
POWR607/6AT6 Evaluation Board
6. Choose Tools > Compile LogiBuilder Design. After a few moments the JEDEC programming file is output.
7. See the Processor Support Demo section of this document for details on downloading a programming file to the
board.
Download Windows Hardware Drivers
If you wish to reprogram the POWR607/6AT6 Evaluation Board, you will need to obtain the necessary hardware
drivers for Windows. If your installation of Windows does not automatically install USB drivers when the evaluation
board is connected to a USB port, then use the procedure below to download them from the Lattice web site.
To download Windows Hardware Drivers:
1. Browse to the POWR607/6AT6 Evaluation Board web page, locate the hardware device drivers for the
USB/JTAG interface. See www.latticesemi.com/boards and look for the POWR607/6AT6 Evaluation Board.
2. Download the ZIP file to your system and unzip it to a location on your PC.
Programming with Lattice Diamond Programmer
The processor support and voltage monitoring demo designs are pre-programmed into the POWR607/6AT6 Evalu-
ation Board by Lattice. To restore a POWR607/6AT6 Evaluation Board to factory settings or load an alternative
demo design, use the procedures in this section.
To install Lattice Diamond Programmer:
1. Install Lattice Diamond or standalone Lattice Diamond Programmer.
2. Connect the board to a host PC using the USB port or JTAG header connection.
3. Follow the USB Cable Interface or JTAG Cable Interface procedure below to program the evaluation board.
USB Cable Interface
The POWR607/6AT6 Evaluation Board is equipped with a built-in USB-based programming circuit. This consists of
a USB PHY and a USB connector. When the board is connected to a PC with a USB cable, it is recognized by the
Diamond Programmer as a “USB Download Cable”. The POWR607 and POWR6AT6 can then be scanned and
programmed using the Diamond Programmer.
To program a demo programming file:
1. From the Start menu, click All Programs > Lattice Diamond > Accessories > Diamond Programmer . 
Diamond Programmer starts.
2. The Diamond Programmer – Getting Started dialog box appears.
3. Select the following options:
Create a New Project from a Scan.

Cable: USB2 Port: FTUSB-0

Click OK.
4. The Diamond Programmer window appears. 

The New Scan Configuration Setup window appears. The ispPAC-POWR607 and ispPAC-POWR6AT6
device(s) appear in the device list. In case the devices fail to appear, try doing scanning again

In Programmer, choose Design > Scan or click in the toolbar. Programmer opens a new chain configuration
file, scans the printed circuit board connected to your computer, and lists the devices in the new chain file.
5. Make sure the Operation is Erase, Program, Verify.

11
POWR607/6AT6 Evaluation Board
6. Click on the File Name section and browse to the <Demo Dir>\project folder, select <Demo>.jed, and click
Open. 

Select appropriate JEDEC files of POWR607 and POWR6AT6
7. In Programmer, choose Design > Program, or click on the toolbar programming will start.
Programming requires about 20-40 seconds. During programming, a pop-up “Programming XCF” appears. At the
end of programming, the Output console of Programmer should show “Operation: successful”.
JTAG Cable Interface
This section describes how to connect and reprogram the evaluation board using a JTAG cable.
1. Connect external +5 V and GND power to pad locations J5 and J6.
2. Connect the JTAG cable between J3 header and the JTAG source.
3. Run Lattice Diamond Programmer to program the POWR607 board.
4. Follow the procedure of “USB Cable Interface” using Diamond Programmer, select Cable “LATTICE” and down-
load JEDEC files to selected devices.
POWR607/6AT6 Evaluation Board
This section describes the features of the POWR607/6AT6 evaluation board in detail.
Overview
The POWR607/6AT6 Evaluation Board is a complete development platform for the Lattice POWR607 mixed-signal
device. The board includes circuitry to emulate a processor/DSP interface, a USB program/power port, SMD and
thru-hole prototyping areas, and an expansion header to support test connections. A Power Manager II ispPAC-
POWR6AT6 is included and can be programmed to demonstrate power supply margin and trim applications. The
board is powered by a PC USB port and you may reprogram the board using Lattice Diamond Programmer. If no
USB port is available for your PC, the board can be modified such that it can be powered with an external power
supply and programmed with a JTAG cable (sold separately) from another JTAG source.

12
POWR607/6AT6 Evaluation Board
Figure 4. POWR607/6AT6 Evaluation Board Block Diagram
Table 2 describes the components on the board and the interfaces it supports.
Table 2. POWR607/6AT6 Evaluation Board Components and Interfaces
Component/Interface Type Schematic Reference Description
Circuits
Pulse Stretch Circuit Circuit Q4, D10, D11 Stretch watchdog interrupt pulse outputs to
40ms.
USB Controller Circuit U8:FT2232H USB-to-JTAG interface.
USB Mini B Socket I/O J1:USB_MINI_B Programming and debug interface.
Components
Power Manager II Mixed Signal IC U3: ispPAC-POWR6AT6 Voltage monitor, margin, trim.
Power Manager II Mixed Signal IC U1:ispPAC-POWR607 Mixed Signal Device.
Interfaces
8x1 Header Landing I/O J2:I2C I2C interface.
8x1 Header Landing I/O J3:JTAG Interface JTAG interface.
14x2 Header I/O J4:HEADER 14X2 User-definable I/O.
5 LEDs Output D7-D0 User-definable LEDs, I/O1 to I/O5.
DIP Switch I/O SW1A, B, C, and D 4-bit DIP switch.
Push-button Switches I/O SW2:Reset, SW3:WD_Trigger General-purpose push buttons.
Slide Potentiometer I/O R16 Potentiometer tied to 3.3 V rail. Emulates
brown-out 2.5 V conditions at VMON2 inputs
of POWR607 and POWR6AT6.
3.3V
Slide
VMON1
IO_[1:5] 5
5 LEDs
2.5V Potentiometer
1.8V
VMON2
IO_2
Pulse Stretch
Circuit
LED D11
DIP Switch
SW1A
VMON3
VMON [4:6] 4
VMON [1:6] 6
VMON_GS[4:6] 3
24
Header 14x2
A/Mini-B
DIP Switch
SW1B,C,D
Pushbutton
Switch SW2
Pushbutton
Switch SW3
JTAG
Header
IO_[3:5] 3
IN1
IN2
Power Manager II
POWR607
ispPAC-
POWR607-01SN24I
TRIM_[4:6] 3
IO_[1:5] 5
IN_[1:2] 2
VRAIL[4:6] 3
HVOUT[1:2] 2
USB Cable
USB Mini B
Socket
USB
Controller
I2C 2
VMON 6 TRIM_[4:6] 3
VMON_GS 3
JTAG
Power Manager II
POWR6AT6
ispPAC-
POWR6AT6-01SN32I
I2C 2
I2C
Header

13
POWR607/6AT6 Evaluation Board
Subsystems
This section describes the principle sub-systems for the POWR607/6AT6 Evaluation Board in alphabetical order.
When reviewing the board, orient it so the silkscreen markings are readable.
DIP Switch
The evaluation board includes a four-bit input toggle switch located in the lower-right corner of the board. Three are
available as general purpose inputs. Slide the switch towards the numeral mark on the switch case to indicate a
logical ‘1’.
Table 3. DIP Switch Reference
Table 4. DIP Switch Pin Information
Expansion Header
The expansion header provides 28user I/O’s connected to the POWR607 and POWR6AT6. The remaining pins
serve as power for expansion boards. The expansion connector is configured as one 16x2 100mil centered pin
header.
Table 5. Expansion Connector Reference
Table 6. Expansion Header Pin Information
Item Description
Reference Designators SW1A, B, C and D
Part Number 219-4MST
Manufacturer CTS
Web Site www.ctscorp.com
SW1 Description POWR607 Pin
D/4 Watchdog Delay SEL1 or user-defined input 15
C/3 Watchdog Delay SEL0 user-defined input 17
B/2 Reset Pulse Stretch enable or user-defined input 18
A/1 3.3 V supply rails to VMON3 connection 4
Item Description
Reference Designators J4
Part Number 90131-0800
Manufacturer Molex/Waldom Electronics
Web Site www.molex.com
J4 Pin Function POWR607 Pin POWR6AT6 Pin Other Connections
1 +3.3 V — —
2 +3.3 V — —
3 IO_5 IN_OUT5 —
4 IO_4 IN_OUT4 —
5 IO_3 IN_OUT3 —
6 IO_2 IN_OUT2 —
7 IO_1 IN_OUT1 —
8IN2IN2—
9IN1IN1—

14
POWR607/6AT6 Evaluation Board
10 HVOUT2 — —
11 HVOUT1 — —
12 VMON2 VMON2 VMON2
13 VMON1 VMON1 VMON1
14 VMON3 VMON3 VMON3
15 VMON4 VMON4 VMON4
16 TRM4 — DAC4
17 VMON4_GS — VMON4GS
18 VRAIL4 — — Voltage supervisory circuit
19 VMON5 VMON5 VMON5
20 TRM5 — DAC5
21 VMON5_GS — VMON5GS
22 VRAIL5 — — Voltage supervisory circuit
23 VMON6 VMON6 VMON5
24 TRM6 — DAC6
25 VMON6_GS — VMON6GS
26 VRAIL6 — — Voltage supervisory circuit
27 GND — —
28 GND — —
J4 Pin Function POWR607 Pin POWR6AT6 Pin Other Connections

15
POWR607/6AT6 Evaluation Board
JTAG Interface Circuits
For power and programming, an FTDI USB UART/FIFO IC converter provides a communication interface between
a PC host and the JTAG programming chain of the POWR607 board. The USB 5 V supply is also used as a source
for the 3.3 V and 1.8 V supply rails. A USB B-type mini socket is provided for the USB connector cable.
The evaluation board can be modified to use a JTAG cable for programming. See Adding Support for a JTAG Cable
and/or I2C Communications in the Modifying the POWR607/6AT6 Evaluation Board section for more information.
Table 7. JTAG Interface Reference
Table 8. JTAG Programming Pin Information
LEDs
Five red LEDs (D2-D6) are used to reflect I/O’s of the preprogrammed processor support demo. Three of the five
LEDs are connected to DIP switch inputs. The LEDs are located in the center of the board, next to the expansion
header. You may use D2-D6 for user-defined outputs for your own custom POWR607 designs.
A blue LED (POWR - D1) is used to indicate USB 5 V power. An amber LED (D11) is used to indicate interrupt
events asserted by the POWR607.
Table 9. User LEDs Reference
Table 10. LED Pin Information
Item Description
Reference Designators U8
Part Number FT2232H
Manufacturer FTDI (Future)
Web Site www.ftdichip.com
Signal Name Description POWR607 Pin POWR6AT6
TDO Test Data Output 11:TDO 4:TDI
PM_TDO Test Data Output — 1:TDO
PM_TDI Test Data Input 13:TDI —
TMS_605 Test Mode Select 14:TMS —
TMS_6AT6 Test Mode Select — 5:TMS
PM_TCK Test Clock 12:TCK 3:TCK
Item Description
Reference Designators D2-D6
Part Number LTST-C190CKT
Manufacturer Lite-On
Web Site www.liteonit.com
Signal Name Description (Processor Support Demo) POWR607 Pin
D6 IO_5, Watchdog Delay SEL1 input 15
D5 IO_4, Watchdog Delay SEL0 input 17
D4 IO_3, Reset Pulse Stretch enable input 18
D3 IO_2, Watchdog timer interrupt (WDT_Intr) output 19
D2 IO_1, CPU Reset or Power Fail output 20
D1 USB 5 V Power na
D11 Watchdog Timer Pulse na

16
POWR607/6AT6 Evaluation Board
POWR607
The POWR607 device (ispPAC-POWR607) on the board integrates voltage supervisor, watchdog timer, and reset
generator functions in a 4x4 mm chip scale package
Table 11. POWR607 PLD Reference
Table 12. POWR607 Pin Information
Power Supply
A single 3.3 V supply voltage for the board components is provided from the USB connection.
Item Description
Reference Designators U1
Part Number ispPAC-POWR607-01-SN24I
Manufacturer Lattice Semiconductor
Web Site www.latticesemi.com
Pin # Pin Function
Board Connection Processor
Support Demo
1VMON1 VMON1
2VMON2 VMON2
3 VCCD —
4VMON3 VMON3
5VMON4 VMON4
6VMON5 VMON5
7VMON6 VMON6
8GNDA —
9 GNDD —
10 VCCJ —
11 TDO TDO
12 TCK PM_TCK
13 TDI PM_TDI
14 TMS TMS_605
15 IN_OUT7 IO_5
16 VCCA —
17 IN_OUT6 IO_4
18 IN_OUT5 IO_3
19 IN_OUT4 IO_2
20 IN_OUT3 IO_2
21 IN2 IN2
22 IN1_PWRDN\ IN1
23 HVOUT1 —
24 HVOUT2 —

17
POWR607/6AT6 Evaluation Board
POWR6AT6
The POWR6AT6 device (ispPAC-POWR6AT6) on the board provides power supply margin and trim functions, ana-
log input monitoring with an embedded 10-bit ADC in a 5x5 mm quad flat-pack package.
Table 13. POWR6AT6 Reference
Table 14. ispPAC-POWR6AT6 Pin Information
Item Description
Reference Designators U3
Part Number ispPAC-POWR6AT6-01-SN32I
Manufacturer Lattice Semiconductor
Web Site www.latticesemi.com
Pin # Pin Function
Board Connection Processor
Support Demo
1 TDO PM_TDO
2VCCJ —
3 TCK PM_TCK
4TDI TDO
5 TMS TMS_6AT6
6 CLTEN b CLT EN b
7 VPS0 VPS0
8 VPS1 VPS1
9CLTLOCK/SMBA —
10 SCL PM_SCL
11 SDA PM_SCA
12 VCCD —
13 VCCA —
14 VMON1GS —
15 VMON1 VMON1
16 VMON2GS —
17 VMON2 VMON2
18 VMON3GS —
19 VMON3 VMON3
20 VMON4GS VMON4_GS
21 VMON4 VMON4
22 VMON5GS VMON5_GS
23 VMON5 VMON5
24 VMON6GS VMON6_GS
25 VMON6 VMON6
26 TRIM6 TRIM6
27 TRIM5 TRIM5
28 TRIM4 TRIM4
29 TRIM3 —
30 TRIM2 —
31 TRIM1 —
32 GND —

18
POWR607/6AT6 Evaluation Board
Pulse Stretch Circuit
The pulse stretch circuit (Schematic Sheet 4 of 5) produces a ~40ms period pulse so watchdog timer interrupt out-
puts are visible to the eye. When active, amber LED (D11) blinks. The actual output pulse generated by the
POWR607 is about 6 µs.
Push-button Switches
The board has two momentary push-button switches (SW2 and SW3) to support the pre-loaded processor support
demo. SW2 is tied to a POWR607 input pin (IN1) which asserts the Reset input. SW3 is tied to a POWR607 input
pin (IN2) which asserts the watchdog trigger (WD_Trig) input. You may use SW2/SW3 for user-defined inputs for
your own custom POWR607 designs.
Modifying the POWR607/6AT6 Evaluation Board
The POWR607/6AT6 Evaluation Board provides landing areas for additional circuits to support the following func-
tions:
• Additional voltage supervisor input circuits
• SMD and thru-hole prototyping areas on top and bottom
• Measure power-down current draw of the POWR607 device
• Bypass devices in the JTAG programming chain
• Powering the board with an external 5 V supply
• Programming the board with a JTAG cable
• Interfacing to the PAC-Designer I2C Utility software for the POWR6AT6 Power Manager II
Note: Modifying your board requires good electronics handling and PCB fabrication techniques to avoid damage.
Adding Support for a JTAG Cable and/or I2C Communications
This section describes how to modify the POWR607/6AT6 evaluation board to use a JTAG cable for JTAG program-
ming and/or I2C communications. The JTAG header interface is required if your PC does not provide a USB port
interface and you wish to reprogram the board. The I2C header interface is required to communicate with the PAC-
Designer POWR6AT6 I2C Utility program.
To modify the evaluation board to support a JTAG cable:
1. Remove R20, R35, R45 and R58 (Schematic Sheet 2 of 6).
2. Install R28, R29, R27, Q3 and Q2 (Schematic Sheet 5 of 6).
3. Install an 8-pin header at location J3 - JTAG Interface (Schematic Sheet 5 of 6).
To modify the evaluation board to support I2C communications:
1. Remove R59 and R70 (Schematic Sheet 2 of 6).
2. Install an 8-pin header at location J2 - I2C Interface (Schematic Sheet 5 of 6).

19
POWR607/6AT6 Evaluation Board
Add Voltage Supervisor Circuits
This section describes how to modify the POWR607/6AT6 Evaluation Board for additional voltage supervisor dem-
onstrations. Add a pair of resistors for each additional voltage monitor input channel that you require to the on-
board voltage supervisor circuits (Schematic Sheet 3 of 6) at positions R21/R22, R23/R24, and R25/R26. Each
supervisor circuit is a voltage divider with the following characteristics:
• 1% accurate resistors
• yk <= 3k ohms
• Select x and y resistor values so VMON = 0.669V
• Install Zener diodes if VRAIL > 5.5 V
• Remove 100k ohm for higher accuracy
You may attach prototype circuits or test equipment to the VMON inputs using J4 - HEADER 14X2 (Schematic
Sheet 5 of 6).
For more information on sensor circuit interfaces to Power Manager II and POWR607 devices, see AN6041,
Extending the VMON Input Range of Power/Platform Management Devices.
Measure Power-Down Current of the POWR607
This section describes how to modify the POWR607 power supply connections to support current measurements.
1. Remove R43 and R44 (Schematic Sheet 1 of 6).
2. Install jumper at location J12 (PM_VCC) (Schematic Sheet 1 of 6).
3. Attach ammeter to pins 1 and 2 of J12.
JTAG Chain Bypass
This section describes how to selectively bypass the POWR607 or POWR6AT6 devices in the JTAG programming
chain.
1. JTAG TMS bypass: Remove R42 (POWR607 TMS) or R41 (POWR6AT6 TMS) to bypass either device. To
reverse the bypass you may install jumpers at locations J10 or J11 to reconnect the TMS circuit (Schematic
Sheet 1 of 6).
2. Install 10k ohm resistors at locations R39 and R40 (Schematic Sheet 1 of 6).
3. JTAG TDI/TDO bypass: Install jumpers at locations J7 (Bypass 607/5) or J8 (Bypass 6AT6) to break the TDI /
TDO circuit.
Mechanical Specifications
Dimensions: 3.75 in. [L] x 2.0 in. [W] x 1.00 in [H]
Environmental Requirements
The evaluation board must be stored between -40° C and 100° C. The recommended operating temperature is
between 0° C and 55° C.
The evaluation board can be damaged without proper anti-static handling.

20
POWR607/6AT6 Evaluation Board
Glossary
CPLD: Complex Programmable Logic Device
DIP: Dual in-line package.
I2C: Inter-Integrated Circuit.
LED: Light Emitting Diode.
Mixed-Signal PLD: A PLD integrated with analog and mixed signal support circuitry.
PCB: Printed Circuit Board.
RoHS: Restriction of Hazardous Substances Directive.
PLL: Phase Locked Loop.
SPI: Serial Peripheral Interface.
SRAM: Static Random Access Memory.
TransFR™: Transparent Field Reconfiguration.
UART: Universal Asynchronous Receiver/Transmitter.
USB: Universal Serial Bus.
WDT: Watchdog timer
