Lawmate PV-1000 Touch User manual

CHAPTER 01 OVERVIEW 02
02 FUNCTION MODES 06
03 BASIC OPERATION 07
04 INTRODUCTION OF SETTING FUNCTIONS 13
05 VIDEO PLAYBACK 20
06 VIDEO EDITING 23
07 PHOTO BROWSING 24
08 PHOTO EDITING MODES 26
09 SUPPORTED IMAGE FILE FORMAT 28
10 RECORD 29
11 REMOTE CONTROLLER 33
12 SPECIFICATIONS 34
13 SUPPORTED VIDEO FILE FORMAT 35
14 IMPORTANT 36
P
V
-1000 User Manual
01
TABLE OF CONTENT

P
V
-1000 User Manual
02
Overview
PV-1000 Main Device
Power ON/OFF
Hold Button
Recording Button
AV Output
AV Input Wire Control Port
Power Supply Jack
USB Jack
SD Card Slot
Camera in
/ DC 5V out
IR Sensor
Reset Button

P
V
-1000 User Manual
03
Overview
Wire control :
Power OFF/ON/ REC AV in/ DC12V Out Jack
Wire Control Port
REC Indication Light
POWER Indication Light

P
V
-1000 User Manual
04
Overview
Remote control
Navigation & Pause Button
Volume Button
Setup Button
LCD/TV Switch
Power Button
ESC/STOP
Recording Button Switch

P
V
-1000 User Manual
05
Overview
Accessories

P
V
-1000 User Manual
06

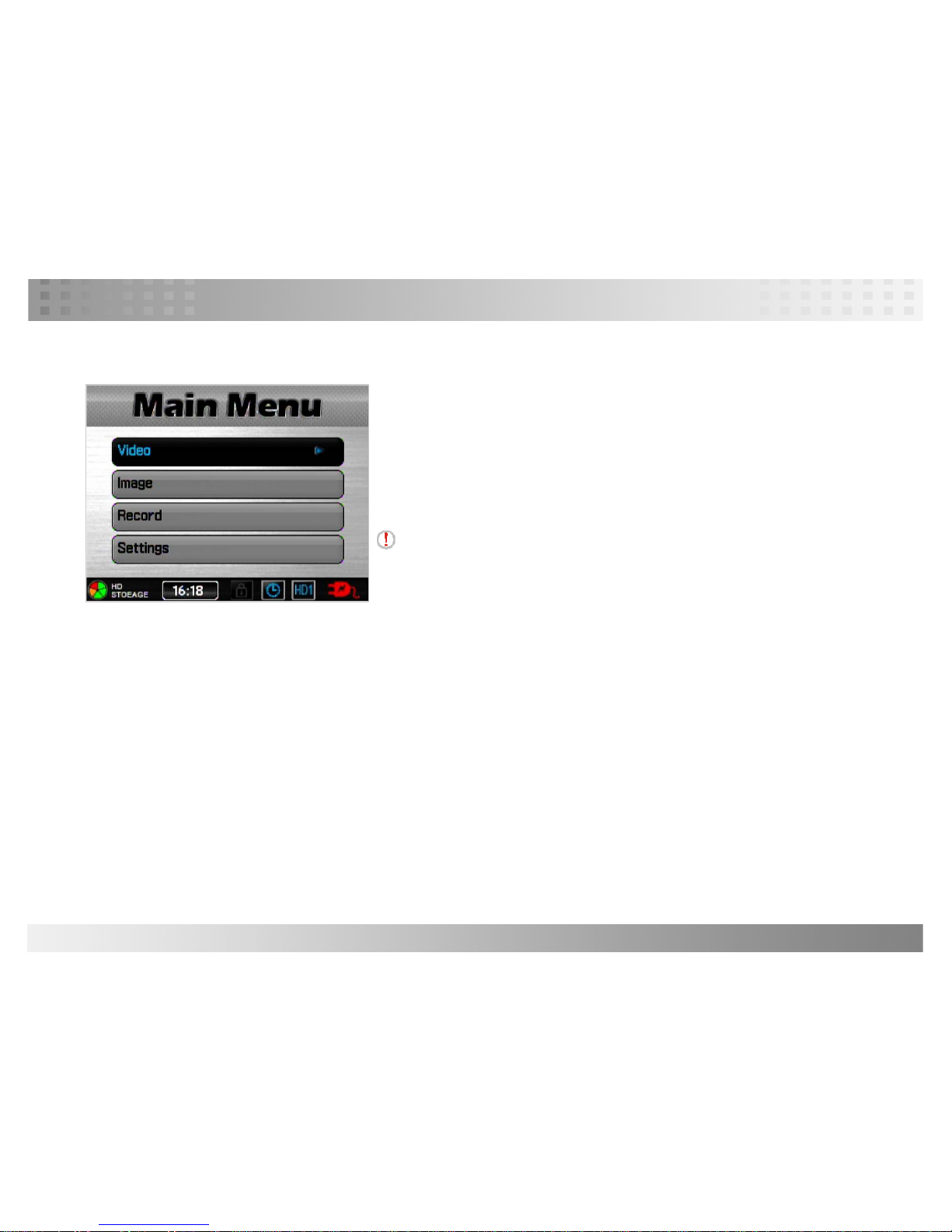

Function Modes
Video file playback
Browse images and pictures
External video source recording
Function settings

P
V
-1000 User Manual
07
Basic operation
Turn on/ off
To Do this
Turn On Press Power On/ Off button for 1 sec. Greeting display will appear.
Turn Off Press Power On/Off button for 1 sec. Or press Power button on the remote control.
Select Functions
After the player is turned on, press to select desired function. After selection, press to enter the selected
function.
Note: The navigation key will be shown as / / / on PV-1000 main device.
The navigation key will be shown as on remote control.

P
V
-1000 User Manual
08
Basic operation
Setup
● Switch to Video mode, Image and various standby modes: Press SET UP or button on controller to edit setting.
● Select items in the main menu: Press / or on controller to move the cursor on the display display.
● Enter submenu: Press |or on controller to enter the submenu.
● Select item in the submenu: press / / / or on controller to select items.
● Confirm the setting: Press |or on controller to confirm the change of the setting.
● Do not save change and return to main menu or exit SETUP: Press STOP or on controller.
Adjust volume
● When video is playing on display , press the volume VOL+ / VOL- buttons or
on controller to adjust volume.
● Volume is ranged in 10 levels.
● Volume status is displayed on the lower left corner of display.

P
V
-1000 User Manual
09
Basic operation
Record button
● Start Recording: Press the REC button on the PV-1000 or on controller to start
recording.
● Stop Recording: Press STOP button or on controller to stop recording. Device will
automatically access to standby mode to prepare next recording.
Link with external devices
● External Video Recording: Plug in an external camera into
AV IN/ DC 5V OUT to enable recording.
● Output to TV Display: Plug-in an RCA cable in AV-OUT output
image on TV.
IMPORTANT: To enable image output, note the setting, Setting >
Preview > Display, requires to change to “TV” instead
of “LCD”.

P
V
-1000 User Manual
10
Basic operation
● Connect to PC: ● Connect to wire controller:
1. Connect the two ends of A/B type of USB cable to PV-1000 and PC.
2. An indication of “USB Mode” appears on the display for 5 seconds.

P
V
-1000 User Manual
11
Basic operation
● Charging:
When the battery is low, power LED indictor blinks with green light and the meter
shows no-bar filled indication on the lower right corner of the display. Required to
be recharged immediately. Connect the main device with power supply and then
plug the power supply into power outlet. LED light blinks with Orange light.
Important: The LED light is turned off after charged. To keep long life-span of the
battery, the power supply should be unplugged after finishing charging.
At first time charge, please charge the battery for continuous 12 hours
before use.

P
V
-1000 User Manual
12
Introduction to all Setting Functions
● Resolution (352X288 /640X480/720X576/1024X768/1280X720/1280X960)
● Quality (Good/Normal/Low)
● Frame Rate( 1 / 5/ 15 /20/30)
● Audio (Enable/Disable)
● Frame Counter Stamp (On/Off )
● Timestamp (On/Off)
● Device ID Stamp (On/Off)
● Display (LCD/TV/Both)
● Microphone sensitivity
● Over-write
01. Preview >
In Main Menu, press |to select Setting. Then, press |to select Preview. Preview Submenu obtains following items:
Note: To enable image output, note the setting, Setting > Preview > Display, requires to change to TV instead
of LCD/Both selection.

P
V
-1000 User Manual
13
Introduction to all Setting Functions
02. Pre-event >
In Main Menu, press |to select Setting. Then, press |to select Pre-event. Pre-event Submenu obtains following items:
● Resolution (352X288 /640X480/720X576/1024X768/1280X720/1280X960)
● Quality (Good/Normal/Low)
● Frame Rate ( 1 / 5/ 15 /20/30)
● Audio (Enable/ Unable)
● Frame Counter Stamp (On/Off)
● Timestamp (On/Off)
● Device ID Stamp (ON/Off)
● Display (LCD/TV/BOTH)
● Pre-Record Time (30 sec，15 sec)
● Microphone sensitivity
● Over-write (Disable/Enable)

P
V
-1000 User Manual
14
Introduction to all Setting Functions
● Resolution (352X288 /640X480/720X576/1024X768/1280X720/1280X960)
● Quality (Good/Normal/Low)
● Frame Rate ( 1 / 5/ 15 /20/25)
● Audio (Enable/ Unable)
● Frame Counter Stamp (On/Off)
● Timestamp (On/Off)
● Device ID Stamp (ON/Off)
● Display (LCD/TV/BOTH)
● Motion detection level (LOW/Medium/High)
● Motion Detect Record time (30sec/1min/3min/5min/10min)
● Motion Detect Area Select
● Microphone sensitivity
● Over-write (Disable/Enable)
03. Motion diction >
In Main Menu, press |to select Setting. Then, press |to select Motion Detection. Motion Detection Submenu obtains
following items:

15
Introduction to all Setting Functions
04. Date/time setting > Set Date and Time
In Main Menu, press |to select Setting. Then, press |to select Date and Time. In Date and Time Submenu, press
/ / / to set values and press |to confirm the setting.
05. Date/time format >
In Main Menu, press |to select Setting. Then, press |to select Date Format. In Date Format Submenu, Press
/ / / to set values and press |to confirm the setting. Selections are YYYYMMDD / DDMMYYYY.
06. Language > Choose the language for Operating interface
In Main Menu, press |to select Setting. Then, press |to select Language. In Language Submenu, Press
/ / / to set values and press |to confirm the setting. Selections are English/François/簡
体中文/繁體中文/日本語.
P
V
-1000 User Manual
07. Pre –set > Set up the display to be automatically returned to recording mode.
In Main Menu, press |to select Setting. Then, press |to select Pre-set. In Pre-set Submenu, press
/ / / to set values and press |to confirm the setting. Selections are Normal/Preview/Pre-Event/Motion Detect
08. Resume period to pre-set > set up the timing to recording mode
In Main Menu, press |to select Setting. Then, press |to select Resume Period to Pre-set. In Resume period to pre-
set Submenu, press / / / to set values and press |to confirm the setting. Selections are 15sec/30 sec/No.

P
V
-1000 User Manual
16
Introduction to all Setting Functions
09. Timer recording > schedule time to record at specific time period
Time Setting: In Main Menu, press |to select Setting. Then, press |to select Timer Recording. In Timer Recording
Submenu, there are four Timer Recording icon can be selected. Press |, to select Timer Recording icon and set values on each
schedule time. Press / / / to switch between pages. There are three pages can be selected from, Video Line In REC
start, Video Line In REC stop, Video Line In REC Select.
21 3 4 5
Note: It is required to set each timer ON. Main Menu > Setting > Timer Recording > (Any) Timer Recording icon > Video Line In REC Select/
Setting, selects “ON” option. The scheduled timer is executed only when the device is status of POWER ON.
10. Back light off >
In Main Menu, press |to select Setting. Then, press |to select Backlight Time-out. In Backlight Time-out Submenu,
there are four selections, NO /30 sec/ 1 min/ 3 min, to set delay time to turn off backlight during playback in 30 seconds, 1 min-
ute, 3 minutes or never turn off.
11. Storage medium option >
In Main Menu, press |to select Setting. Then, press |to select Storage Medium Option. In
Storage Medium Option Submenu, there are two selections, SD or HDD, where the recording will be
written in.

12. Storage information > show the storage usage information
In Main Menu, press |to select Setting. Then, press |to select Storage Infor-
mation. Press |to read information. Press STOP to return to last page.
13. Storage capacity > Show the icon on the device.
In Main Menu, press |to select Setting. Then, press |to select Storage Capacity. In Storage Capacity Submenu,
press / / / to set values and press |to confirm the setting. Selections are On /Off. Press STOP to return to last
page.
14. Format memory > allow to reformat SD or HDD
In Main Menu, press |to select Setting. Then, press |to select Format Memory. In Format Memory Submenu, press
/ / / to set values and press |to con-
firm the setting. Selections are SD/HDD. Press |
to select OK or Cancel.
P
V
-1000 User Manual
17
Introduction to all Setting Functions
15. TV-out setting >
In Main Menu, press |to select Setting. Then, press |to select TV-out set-
ting. In TV-out setting Submenu, press / / / to set values and press |to con-
firm the setting. Selections are NTSC/PAL.

P
V
-1000 User Manual
18
Introduction to all Setting Functions
16. TV-output adjustment >
In Main Menu, press |to select Setting. Then, press |to select TV-out adjustment. In TV-out adjustment Submenu,
Press |to adjust TV-out position. Press / / / to select the TV-out zooming
scale .
17. Playback > set up repeat mode for video file
In Main Menu, press |to select Setting. Then, press |to select Playback. In Playback Submenu, press / / / 
to set values and press |to confirm the setting. Selections are All/No/Single.
18. Video thumbnail > Set up to enable image preview when reading video files
In Main Menu, press |to select Setting. Then, press |to select Video Thumbnail. In Video Thumbnail Submenu, press
/ / / to set values and press |to confirm the setting. Selections are On /Off.
19. Thumbnail > set up to enable to image preview when reading picture files
In Main Menu, press |to select Setting. Then, press |to select Thumbnail. In Thumbnail Submenu, press / / /
to set values and press |to confirm the setting. Selections are On /Off.
20. Slide show > set up to enable slideshow
In Main Menu, press |to select Setting. Then, press |to
select Slide Show. In Slide Show Submenu, press / / / to set
values and press |to confirm the setting. Selections are All/No.

P
V
-1000 User Manual
19
Introduction to all Setting Functions
21. Slideshow period > set up slideshow playing time
In Main Menu, press |to select Setting. Then, press |to select Slideshow Period. In Slideshow Period Submenu,
press / / / to set values and press |to confirm the setting. Selections are 3 sec/ 5 sec/ 7sec/10 sec.
22. Firmware Upgrade> Insert the memory card which contains updated software into the device. Select OK to
start upgrade. When upgrade is completed, system will reboot automatically. If the message “Update Error” is
shown, it means that there are errors during updating, it might be that the software is incomplete or the mem-
ory card is damaged. Please use other memory card, or reboot the device after inserting the memory card.
In Main Menu, press |to select Setting. Then, press |to select Firmware Upgrade. In Firmware Upgrade Submenu,
press / / / to set values and press |to confirm the setting. Press |to select OK or
Cancel.
23. Restore factory setting >
In Main Menu, press |to select Setting. Then, press |to select Restore Factory Setting. In Restore Factory Setting
Submenu, press / / / to set values and press |to confirm the setting. Press |
to select OK or Cancel.
