LCG LEAD PACK 14 User manual

www.lc-group.ca
1
USER MANUAL
LEAD PACK 14
LCG-B314IP
(14x3W RGB 3-in-1)

www.lc-group.ca
2
Catalogue
1. Summary................................................................................................................ 3
2. Safety Instruction................................................................................................... 4
3. Outside Size Picture ............................................................................................... 5
4. Main Function ........................................................................................................ 6
5. DMX Control Function............................................................................................ 7
6. Display Operation instruction ................................................................................ 8
7. Infrared keyboard operation................................................................................ 13
8. Operating Control Instruction .............................................................................. 14
9. XLR cable connecting ........................................................................................... 14
10. Trouble Shooting.................................................................................................. 15
Please read over this manual before operating the light

LEAD PACK 14(LCG-B314IP)-User Manual
3
1. Summary
Summary
Thank you for purchasing our LEAD PACK 14. Please read these instructions carefully before begin
and
operate the fixtures according to these instructions to avoid any possible damages and
accidents causes
by misusage
Product introduction
LED LEAD PACK 14 light uses casting aluminum housing
, designed in a fashion of hydrodynamic
form.
Appearance shows. It adopts high power 3-in-1 LED, which refers to single LED is made of R,G,B
3-IN-1 LED, And long life span, low consumption, good
color mixing effect and high brightness are the
most prominent features. Each kind of LED can be independently dimmed. The built-in program includes
dimming, strobe, eotic, gradual change, fading and so on.
It uses power switch, performs low weight and
consumption, stable
capability and long life. International standard DMX 512 signal is requested.
Packing List
LEAD PACK 14 1 PC
DMX Signal Cable 1 Set
Power cable 1 PC
User Manual
Warranty Card
IR Remote Control

LEAD PACK 14(LCG-B314IP)-User Manual
4
2. Safety Instruction
Safety Notes
! Enquire the skilled people before any repair;
! Always make sure disconnect from the power source before setting up, serving and moving;.
!Avoid direct eye exposure to the fixture when it is on;
Safety instruction
●Make sure the power supply voltage are consistent with this lights，Ensure the use of voltage is in the range
of the request technical parameter.
●Before the installation, please check the light’s fasteners and mechanical structure have been received in
good condition and appear no damage.
●
This light is designed for indoor use; working temperature is lower than 40 degree.
●The fixtures maybe mounted in any position provided there is adequate room for ventilation. Make sure
there are no inflammable and explosive items (ornaments) in 0.5 meters away.
●Yellow / green cabling earthling safety; no flicker when the fixture is working on.

LEAD PACK 14(LCG-B314IP)-User Manual
5
3. Outside Size Picture

LEAD PACK 14(LCG-B314IP)-User Manual
6
4. Main Function
Input voltage: AC 100V-264V/47-63HZ
Power Consumption：50W
Maximum Power: 50W
Lamp Type：3W LED 3-in-1 R、G、B
(14PCS)
Life span: 50000~100000hours
PWM Dimmer：1500HZ(16666 grades)
Control Signal：DMX512
Control mode：stand alone/ Master/Slaver
Infrared keyboard control
IR Remote Included
Channel：7CH/5CH/3CH
Function Effect: dimmer, strobe, gradual change
Touch buttons, automatic lock key
Cooling mode: Natural Convection
Anti-electricity intension：1.5KV
Insulation Resistance:>2MΩ
Beam Angle: 25°(15°,45°,60° Optional)
Net Weight: 2.4KG
IP Rate：IP65
Dimension: 30*8*9CM

LEAD PACK 14(LCG-B314IP)-User Manual
7
5. DMX Control Function
DMX Channels
3CH 5CH 7CH Value Function
-
CH1
CH1
0-255
Dim all
CH1
CH2
CH2
0-255
R
CH2 CH3 CH3 0-255 G
CH3 CH4 CH4 0-255 B
- - CH5
0-29 No effect
30-59
AUTO 1(R,G,B,RG,RB,GB)
60-89
AUTO 2(R
↑
,R
↓
,G
↑
,G
↓
,B
↑
,B
↓
)
90-119 AUTO 3(R↑G↑,R↓G↓,R↑B↑,R↓B↓,B↑G↑,B↓G↓)
120-149 AUTO 4(R↑G↑B↑,R↓G↓B↓)
150-179 AUTO 5(Rainbow effect: B,BG↑,BG,B↓G,G,GR↑,GR,G↓
R,R,RB↑,RB,R↓B)
180-209 CHASE1
210-255 CHASE2
- - CH6 0-255 Auto speed, slow->fast
- CH5 CH7
0-5 No strobe
6-115 Normal strobe(slow to fast)(Synchronous)
116-130 Random burst strobe(slow to fast)(Asynchronous)
131-170 Electronic Sine wave(slow to fast)
171-210 Opening pulse(slow to fast)
211-250 Closing pulse(slow to fast)
251-255 No strobe

LEAD PACK 14(LCG-B314IP)-User Manual
8
6. Display Operation instruction
MENU : access the menu or return to a previous menu option
ENTER: select the current menu option
UP: menu selection or parameter increments
DOWN: menu selection or parameters decrease
Menu Tree
TAB
LEVEL1
LEVEL2
LEVEL3
LEVEL4
ADDR(Address)
001-512
STAT(Static
control) R 0-255 *
G 0-255 *
B 0-255 *
SHUT 0-255 *
SET(Set) CAL(Calibration) R 0-255
G 0-255
B 0-255
USE YES/NO
CHMD(Channel
mode) 7CH
5CH
3CH
DIM(Dimming
mode)
LIN(linear)/SQR(square
law)/ISQR(inverse square
law)/SCUR(S-curve)/LIN.(linear
smooth)/SQR.(square law
smooth)/ISQR.(inverse square
law smooth)/SCUR.(S-curve
smooth)

LEAD PACK 14(LCG-B314IP)-User Manual
9
LOCK YES/NO
AUTO(Auto) AT01 RUN.. *
. RUN.. *
. RUN.. *
. RUN.. *
AT05 RUN.. *
ATSP(Auto speed) 0-255(S)
CHS1（Chase 1） RUN.. *
CHS2（Chase 2） RUN.. *
PROG（Program） CHS1（Chase 1）SC01（Scene 1）R 0-255
. . G 0-255
. . B 0-255
. . SHUT 0-255
. . AUTO NONE,AT01-AT05
. . ATSP 0-255(S)
. . TIME 0-255(S)
. . WAIT 0-25.5(S)
. . USE YES/NO
. SC25（Scene 25）
CHS2（Chase 3）
INFO
（Information)
SOFT(Software
version) Vx.x
POW(Power
reduction) xxx%
TEM(temperature) xxxC
LOAD(Load) ST L（
Setting load)
YES/NO
PR L（Program
load) YES/NO
SEND(Send) YES/NO
Instructions：
When enter to the “*” position displayed on the LED, the light will automatically set as master and send
data to external. Other fixtures can receive this data and will synchronously running without manually set as
slave. When power cycle it will jump to the “*” position and running again.And in these position it will not
return back to the default display after two minutes.
6.1 DMX ADDRESS SETTING
1) Press the 【ENTER】button in 【ADDR】menu, then enter to the DMX address setting.
2) Press the【UP/DOWN】button to select【1-512】numerical value.

LEAD PACK 14(LCG-B314IP)-User Manual
10
3) Press the【ENTER】button to escape and save.
6.2 STATIC SETTING
1) Press the【ENTER】button in 【S TAT】menu, then enter to the static setting.
2) Press the【UP/DOWN】button to select 【RED】，【GREEN】，【BLUE】and【SHUT】.
3) Press the【UP/DOWN】button to set up the【0-255】numerical value.
4) Press the【ENTER】button to escape and save.
6.3 COLOR CAST CALIBRATION SETTING
1) Press the【ENTER】button in 【CAL】menu, then enter to the color cast calibration setting.
2) Press the【UP/DOWN】button to select 【RED】，【GREEN】...【BLUE】
3) Press the【UP/DOWN】button to set up the【0-255】numerical value.
4) On the【USE】interface, pressing【YES】button means valid,【NO】means invalid.
5) Press the【ENTER】button to escape and save.
Illustrations: When pressing the【YES】button which means valid on the【USE】interface, the actual output value
of RED...WHITE is output in accordance with the percentage which the color cast calibration value divides 255.
6.4 CHANNEL MODE SETTING
1) Press the【ENTER】button in 【CHMD】menu, then enter to the channel mode setting.
2) Press the【UP/DOWN】button to select【7CH】，【5CH】，【3CH】
3) Press the【ENTER】button to escape and save.
6.5 DIMMING MODE SETTING
1) Press the【ENTER】button in【DIM】menu, then enter to the dimming mode setting.
2) Press the【UP/DOWN】button to select【LIN】，【SQR】，【ISQR】，【SCUR】，【LIN.】，【SQR.
】，【ISQR.】and【SCUR.】.
3) Press the【ENTER】button to escape and save.
Illustrations：When setting【LIN.】，【SQR.】，【ISQR.】and 【SCUR.】in 【DIM】menu, there will be
added a little delay dimming effect for smooth..
Dimming curve:
Linear curve: square law curve: Inverse Square law curve: S-curve:

LEAD PACK 14(LCG-B314IP)-User Manual
11
6.6 AUTO LOCK KEY SETTING
1) Press the【ENTER】button in【LOCK】menu, then enter auto lock key setting.
2) Press the【UP/DOWN】button to select【YES】,【NO】
3) Press the【ENTER】button to escape and save.
Instructions:
When set to [YES], it will lock automatically after two minutes to prevent accidental triggering flood
flushing. When in the order press MENU->UP->DOWN->ENTER three times to unlock，and the time
between two keys be press down must within 2 seconds.
6.7 AUTO RUN, SELF-PROGRAM RUN
1)Press the【ENTER】button in【AUTO】menu, then enter to the auto run,self-program run.
2)Press the【UP/DOWN】button to select【AT 01】…【AT 0 5 】，【 AUTO SPEED】，【 CHASE01】…【CHASE02
】
3)Press the【ENTER】button to start running.
6.8 EDIT SELF-PROGRAM
1) Press the【ENTER】button in【PROG】menu, then enter to the edit self-program.
2) Press the【UP/DOWN】button to select【CHASE01】…【CHASE02】
3) Press the【ENTER】button for confirmation and enter to the next menu.
4) Press the【UP/DOWN】button to select【SCENE01】…【SCENE25】
5) Press the【ENTER】button for confirmation and enter to the next menu.
6) Then press the【UP/DOWN】button to select【RED】…【SHUT】，【TIME】，【WA I T 】，【USE】
7) Press the【UP/DOWN】button to set up the parameter which are needed.
8) Press the【ENTER】button t o escape and save.

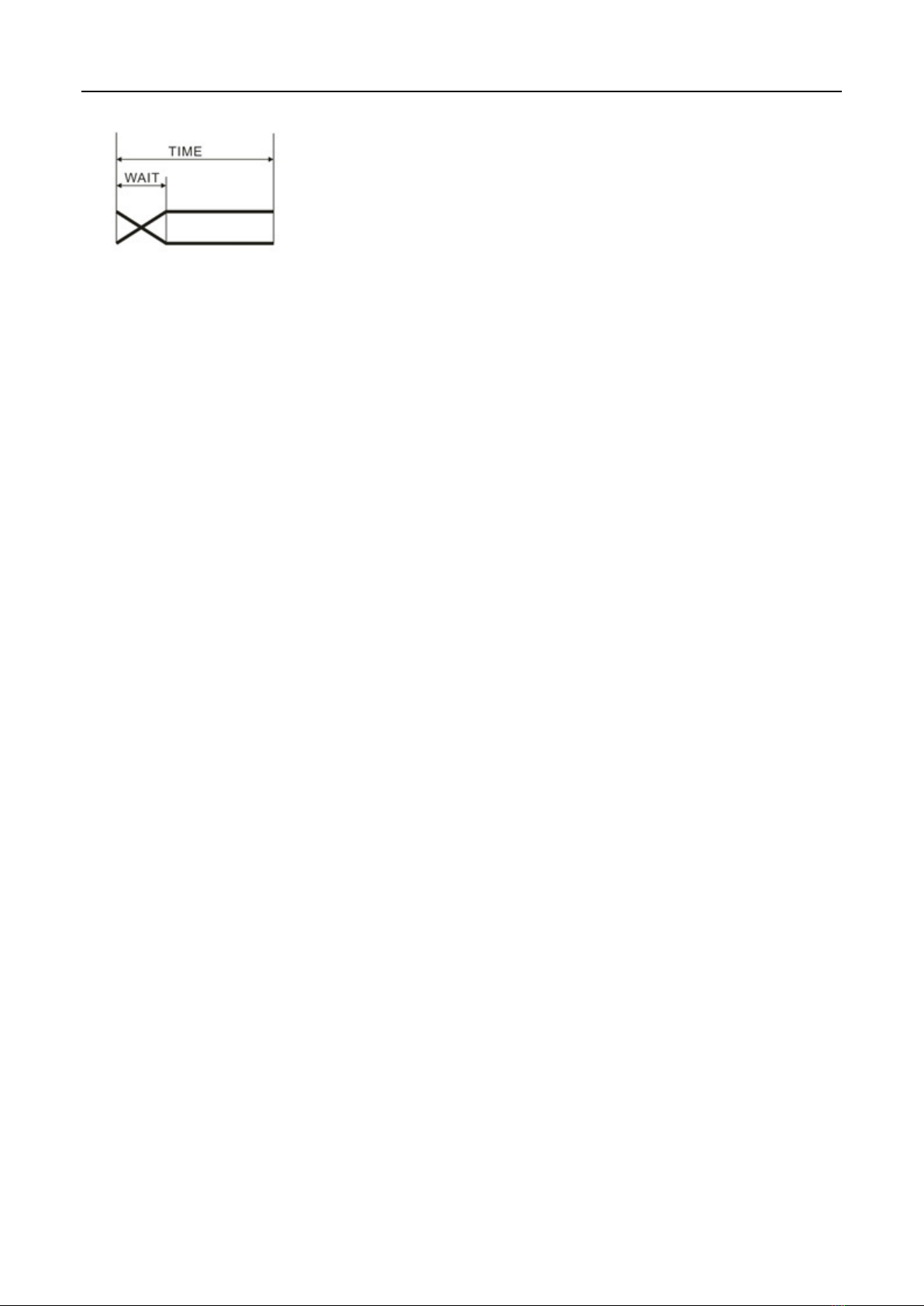

Illustrations：When【USE】is set to be【NO】， or the parameter of【TIME】is 0, it will not run this scene.When
【WA I T 】is set to be FADE time, the running process isas the following chart showing.

LEAD PACK 14(LCG-B314IP)-User Manual
12
6.9 CHECK THE LIGHTING INFORMATION
1) Press the【ENTER】button in【INFO】menu, then enter to the checking the lighting information.
2) 【SOFT】button is for software version information.
3) 【POW】button is for the current information of power reduction.
4) 【TEM】is the current temperature of lamp.
6.10 LIGHTING SETTING PARAMETER RESET
1) Press the【ENTER】button in【ST L】menu, then enter to the lighting setting parameter reset.
2) Press the【UP/DOWN】button to select【YES】.
3) Press the【ENTER】button to escape and save.
Illustrations：“ADDR” and “PROG” are not reset, the others reset to the underlined value of the word.
6.11 【PROG】SELF-PROGRAMMING PARAMETER RESET
1) Press the【ENTER】button in【PR L】menu, then enter to the【PROG】self-programming parameter reset.
2) Press the【UP/DOWN】button to select【YES】.
3) Press the【ENTER】button to escape and save.
6.12 LIGHTING PARAMETER DOWNLOADING EACH OTHER VIA DMX
CABLE
1) Press the【ENTER】button in【SEND】menu, then enter to sending parameter to other lightings.
2) Press the【UP/DOWN】button to select【YES】.
3) Press the【ENTER】button to confirm sending.
Illustrations：
1)Please disconnect the connection of projector and DMX console before sending the parameter.
2)The information of【ADDR】、【CAL】can’t be sent, can’t be downloaded each other.
3)There will be an automatic reset of the other projectors after receiving parameter correctly.

LEAD PACK 14(LCG-B314IP)-User Manual
13
7. Infrared keyboard operation
1) 【MENU】, 【UP】, 【DOWN】, 【ENTER】is same as the keys on the fixture.
2) 【R1】...【B1】，【SHUT】is shortcut for 【S TAT】.
3) 【AT 0 1 】,【CHS01】, 【ATSP】is correspond to the positon of 【AT01】,【CHS01】in the MENU.
4) 【CLEAR】is clear the value of 【R1】, 【G1】... 【SHUT】then save and reset。

LEAD PACK 14(LCG-B314IP)-User Manual
14
8. Operating Control Instruction
Master/Slave
When the fixtures work in master mode it will send out the signal for the slave synchronous
with it. To avoid the host signal and DMX512 signals interfere with each other, should cut off the
DMX512 signals. The signal lines are longer than 60 meters (20 lamps), should increase a signal
amplifier.

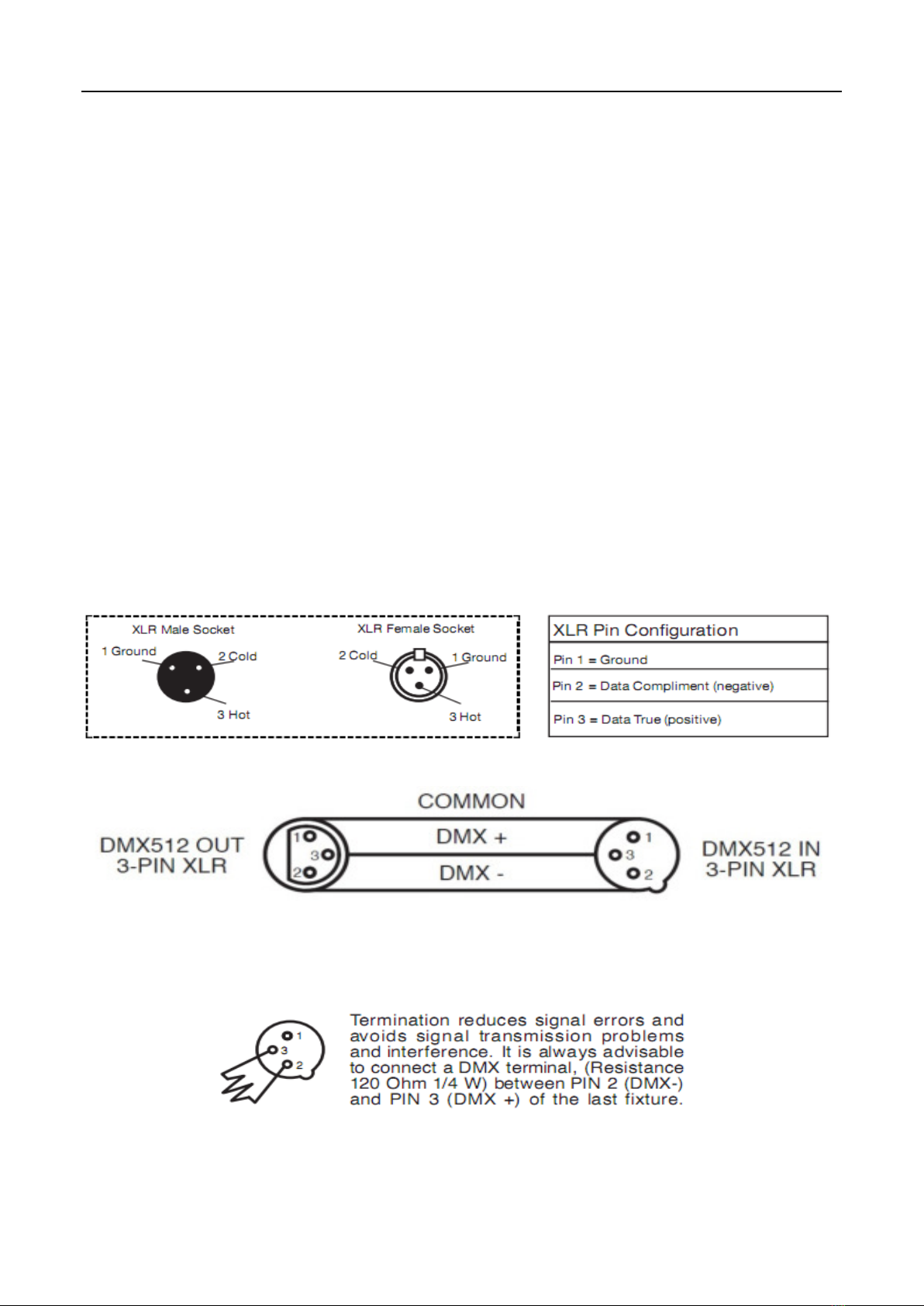

9. XLR cable connecting
XLR cable：
The standard connection way of the XLR is: one end connects to the male plug, and the other
connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal
Noted：In order to avoid failures and interference signal transmission，we connect a
resistance120Ω （1/4W ）at the end of the DMX connecting as below:
The Conversion between 3 pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable

LEAD PACK 14(LCG-B314IP)-User Manual
15
10. Trouble Shooting
PROBLEM REASON AND ACTION
The lighting can’t be
started normally

Check the power connection is correct or not.
Please detect the voltage.

Power supply is damaged or incorrect connected. Call a
qualified personnel to fix it.
Connection of control board is not correct. Call
a qualified
personnel to fix it.
Out of console’s
control
฀
Please check the DMX connector and the power connection
is connected correctly or not. It means having signal if it shows
twinkling of the decimal point which in the lower right corner
of the screen when exiting the screen saver.
Please check the DMX address setting of lighting is correct or
not.
Check【CHMD】setting is correct or not.
Please check whether the DMX line is near to the high voltage
wire or not. In that case, it will damage or interfere the DMX
electric circuit.
The beam appears
dim ,the brightness
declines obviously
Check whether the 【CAL】is started or not and the set value is
too small.
Check whether the【POW】
is in over temperature protection
situation or not, if yes, please take measures for ventilation.
