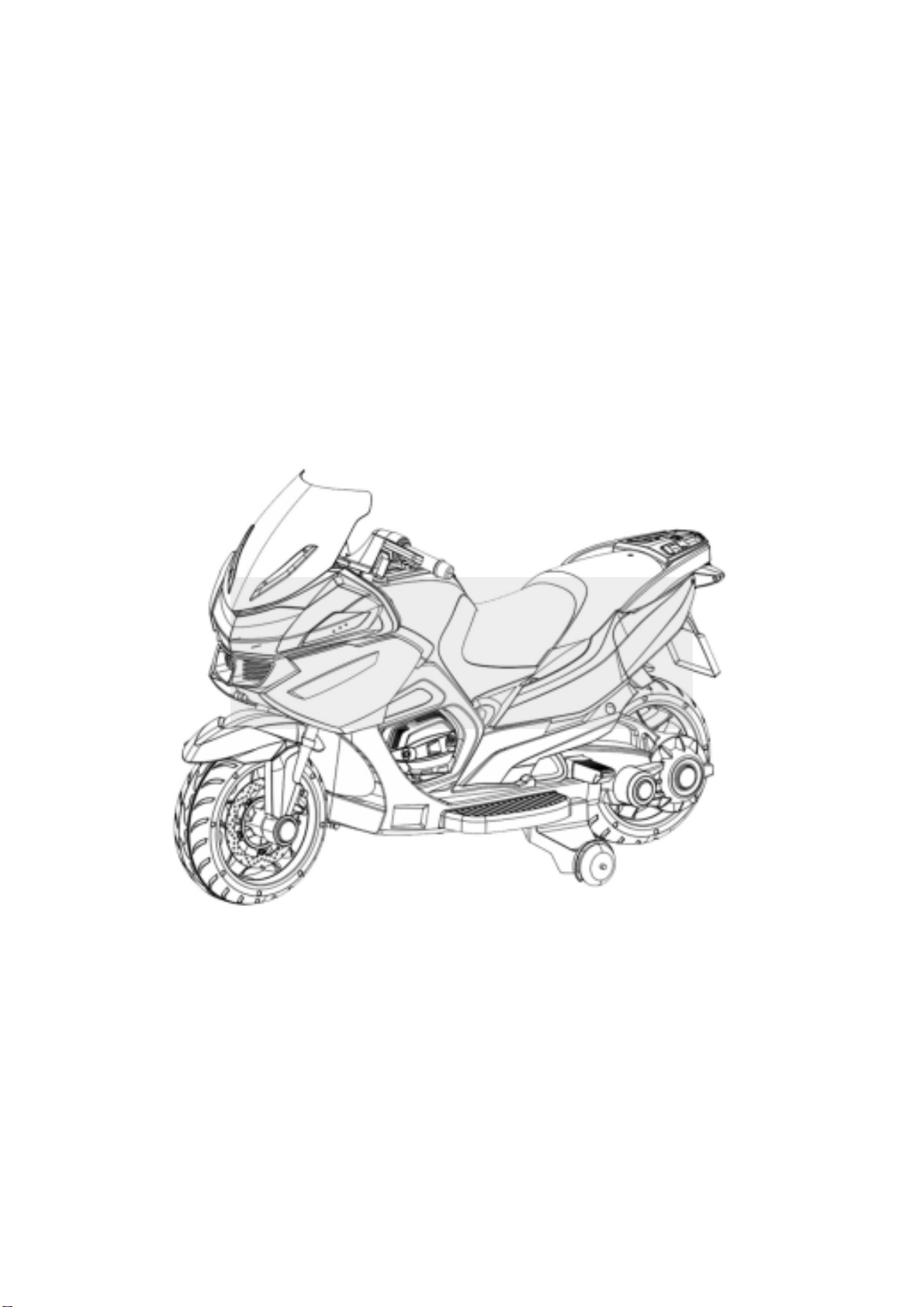

Owner’s Manual
HZB-118
Suitable for: 37-96 months
. Key for power start
. Music function
. USB socket and SD card socket (for selection)
. Rear tool case (for selection)
1

Thank you for choosing our children’s electrical vehicle.
Please read the instruction before using this product. It will tell you the right
operation way and assembly steps, in order to avoid injury to your children and
prevent the product from the wrong operation way.
The packaging must be retained since it contains important information.
⦁SPECIFICATION
Age for: 37-95months Max weight
capacity: 30kgs
Battery: 6V 7AH / 12V 7AH Vehicle size: 120*60*65cm
Charge time: 8-12 hours Speed: 3 km/h
Charger: Input: According to local voltage;
Output: DC6V 700MA or 12V 1000MA
Motor: 6V 35W*1 OR 12V 35W*2
⦁PARTS LIST
NO. PARTS NAME QTY REMARK
1Vehicle head 1 pc
2Tool case 2 pcs For selection
3Vehicle body 1 pc
4Front Wheel 1 pc
5Charger 1 pc
6Decoration parts on front wheel 1 pc
7Seat 1 pc
8Manual 1 pc
9Accessories bag 1 pc
10 Rear assistant wheels 2 pcs
11 Pedal 2 sets
2

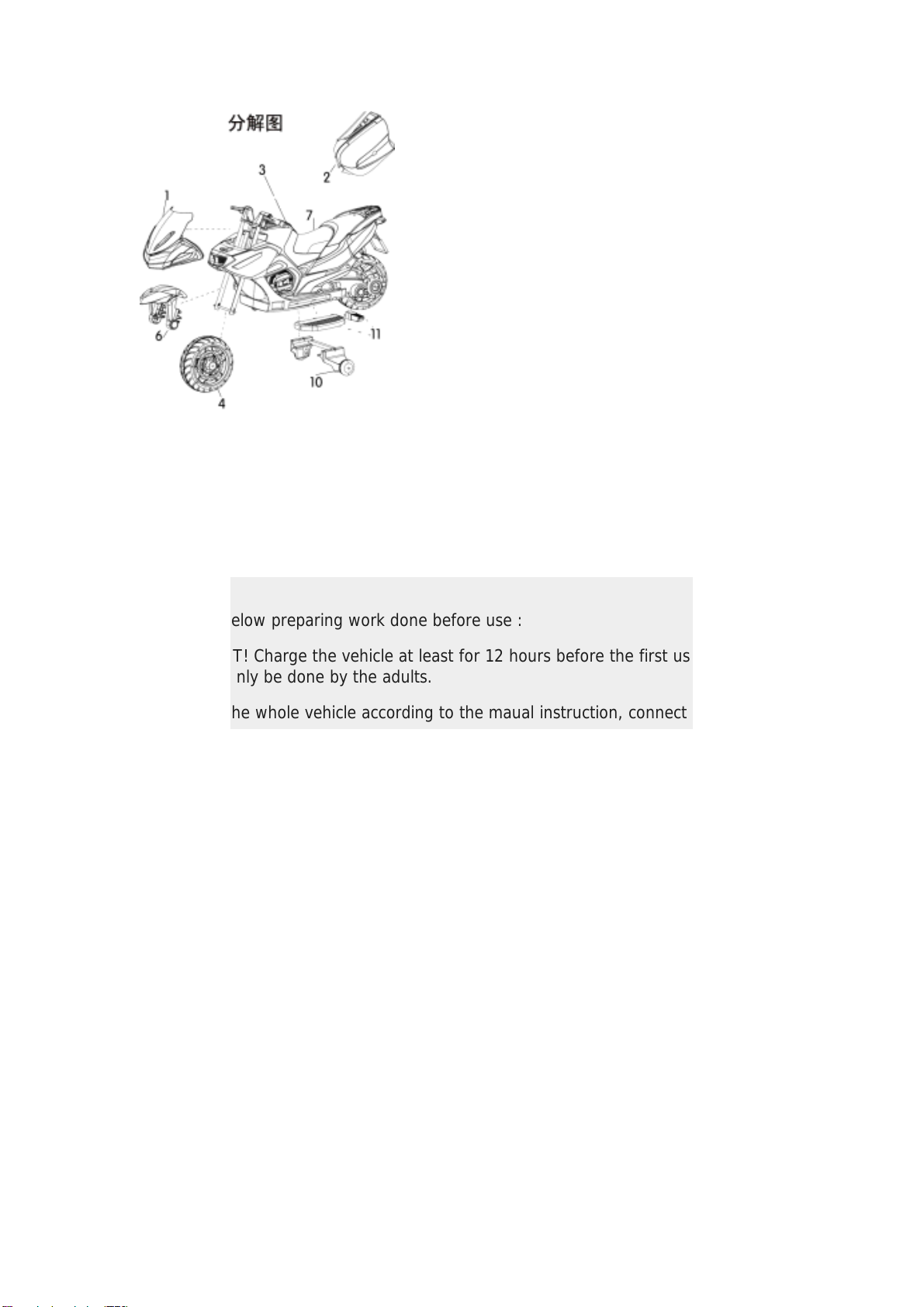

分解图：Diagram
⦁USE WARNING
Make sure below preparing work done before use :
. IMPORTANT! Charge the vehicle at least for 12 hours before the first use, and the
charge can only be done by the adults.
. Assembly the whole vehicle according to the maual instruction, connect the
batteries terminals to make the power open.
. Make sure all the screws at the right position and tighten well.
⦁SAFE WARNING
For the safety of your children, please pay attention to following warnings, read and
tell your children and their friend, make sure they understand these rules!
. Make sure use the vehicle in safety places, such as in home, garden and
playground.
. Drive the vehicle on the smooth floor, in order to make sure child’s safety, please
not ride it at any dangerous area as below:
⦁Groove or hollow, river, glassground, slope and other unsmooth ground;
⦁Road, highway or other vehicle use or warlkers use places;
3

⦁With obstacle which may be impacted to cause injury;
⦁Other dangerous places.
. Never ride the vehicle in dark, children may can’t treat the suddenly obstacle or
accident, only use it in daytime and bright area.
. Never use it in rain or snow area.
. Make sure the vehicle is stop moving when change the speed and direction.
. Make sure the user’s age is suitable for our product and not over the maximum
weight. This vehicle is suitable for 37 to 96 moths and the maximum capacity is
25kgs.
. Warning. Never change the vehicle’s parts or circuit by yourself and without
manufacturer’s instruction.
. Please check the vehicle constantly of the circuit and make sure it in good
condition.
. Please keep the children away from the moving vehicle and never let the child
touch the moving wheels.
. There is a safety belt for this product, please tight it when use to ensure the safety.
.There are some small parts for assembly, please keep small parts far away from
children that 3 years old and below to prevent injury.
.Check all the parts before assembly, to avoid injuring the children, please keep the
plastic packing materials far away from children.
. Put 2 pieces of AAA battery in the remote control, all the batteries should be insert
with correct polarities. Please change the batteries when the power is use off.
. Children should use the product under the guide of adult. The adult should not
absent while children is using.
. Battery should be charged by adult, please charge the battery before use.
. Waring: Not to be used in traffic.
. A recommendation for adult supervision of young children;
. The toy should be used with caution since skill is required to avoid falls or collisions
4

causing injury to the user or third parties.
. Check the battery before use, once found leakage please stop use and replace the
battery.
. Warning. Protective equipment should be worn. Always wear shoes when riding.
. Warning. Only for domestic use.
. The toy must only be used with the recommended transformer.
. The transformer is not a toy.
. Disconnect toy from the transformer before cleaning the toy with liquid.
. Don’t ride on the vehicle during charging.
. Please regularly check the product to ensure the battery, charger, wire plugs, shells
and other components are not damaged.
. If you have discovered any damages mentioned above, stop using until it is
repaired.

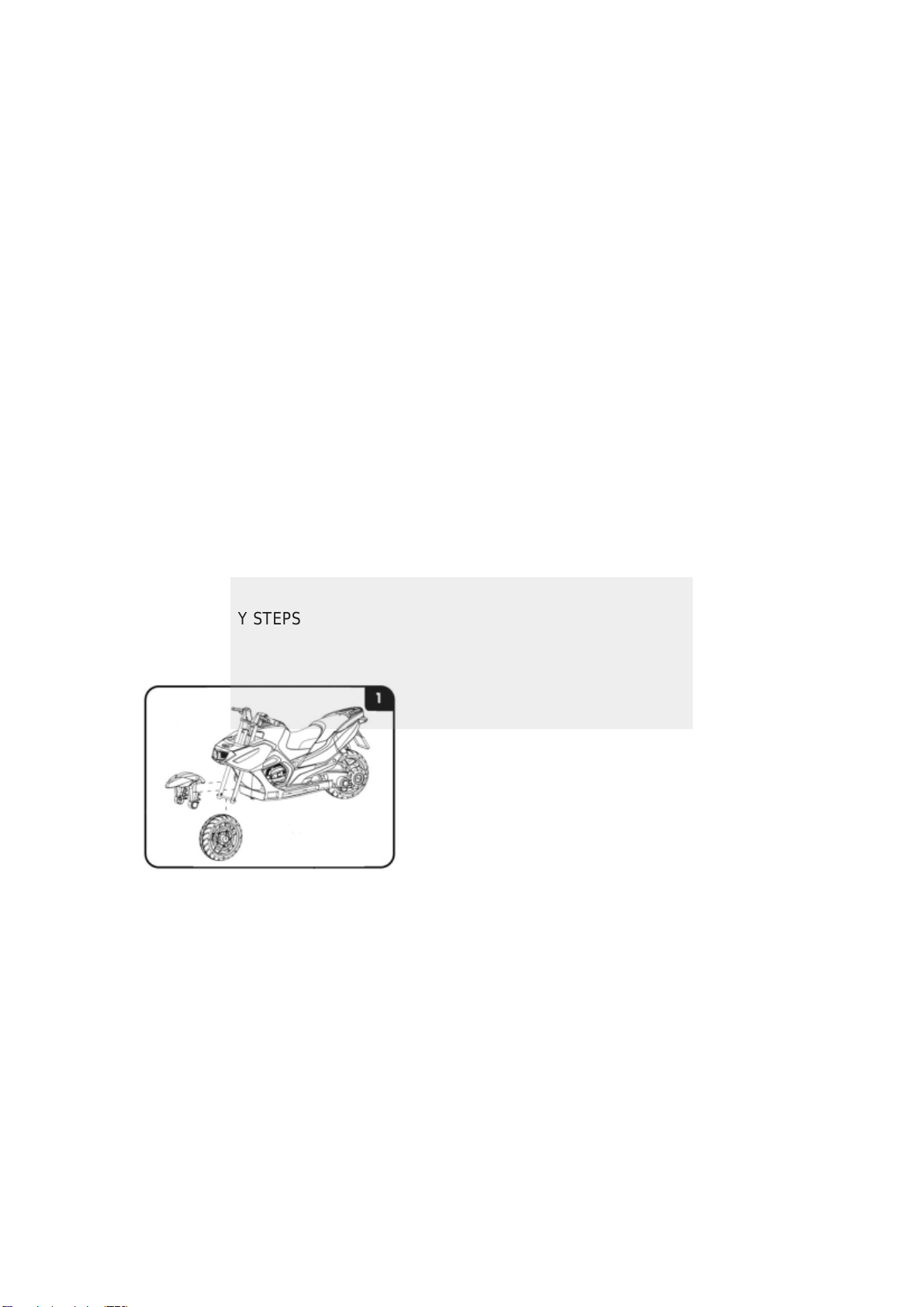

⦁ASSEMBLY STEPS
⦁Remove the front axle from the front folk, assembly the fender.
⦁Insert the front axle through front folk, front wheel and fender tube, make
them fit well.
⦁Cover the both end of the front axle by a little metal cap.
5

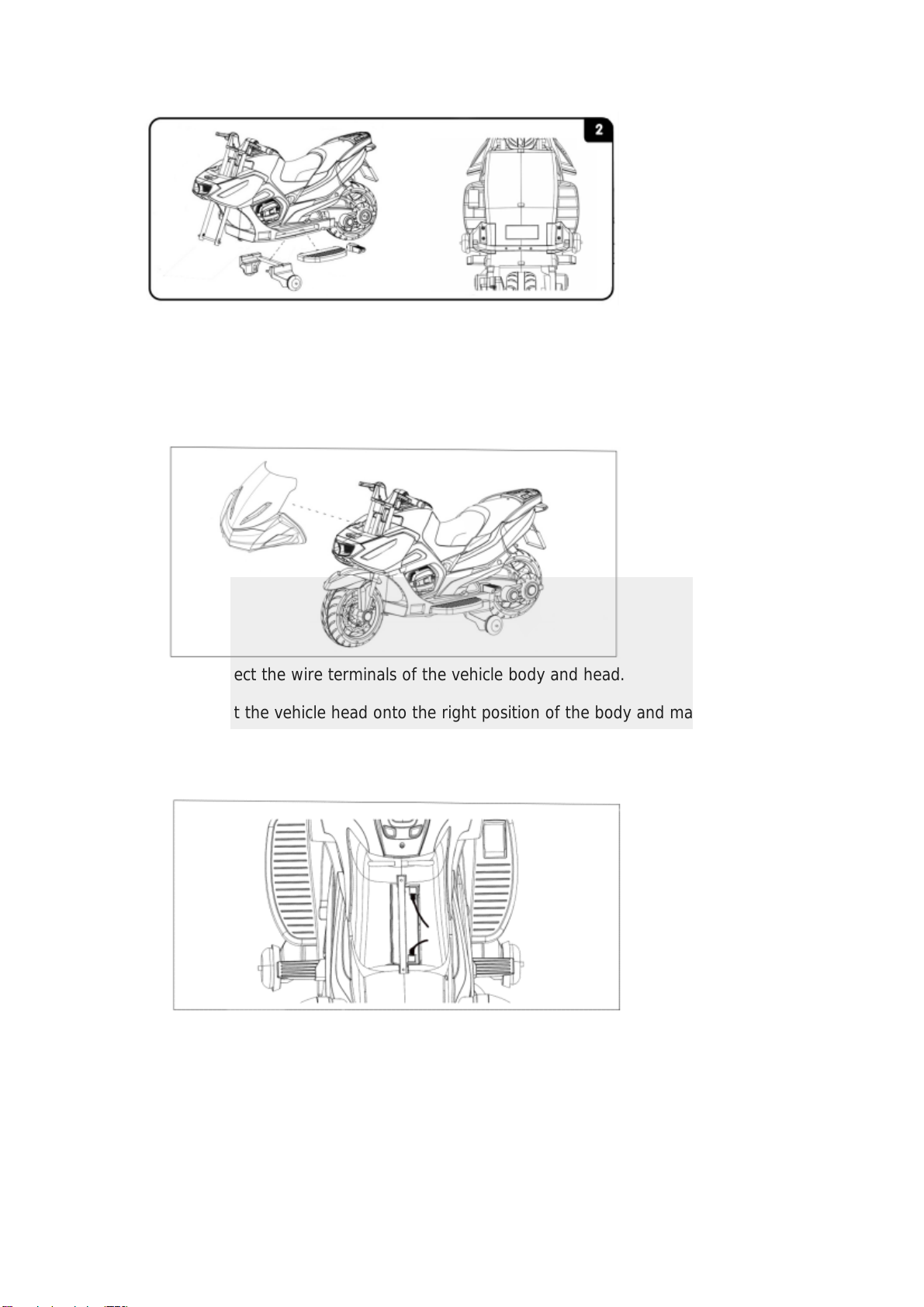

⦁Turn over the vehicle body, assembly the pedal and connect the wire to pedal
switch.
⦁Fix the metal support of assistant wheels onto vehicle body.
⦁Assembly the assistant wheels onto the pedal.
⦁Connect the wire terminals of the vehicle body and head.
⦁Insert the vehicle head onto the right position of the body and make sure all
the grooves fit well.
⦁Put the handlebar tubes onto the handlebar and fix them.
⦁Connect the wire plugs to the battery terminals before assembly the seat.
(Notice: The red wire must be connected to the positive pole terminal of the
battery, while the black wire must be connected to the negative pole. )
⦁Assembly the seat and fix it by 4.12 self-tapping screw.
6

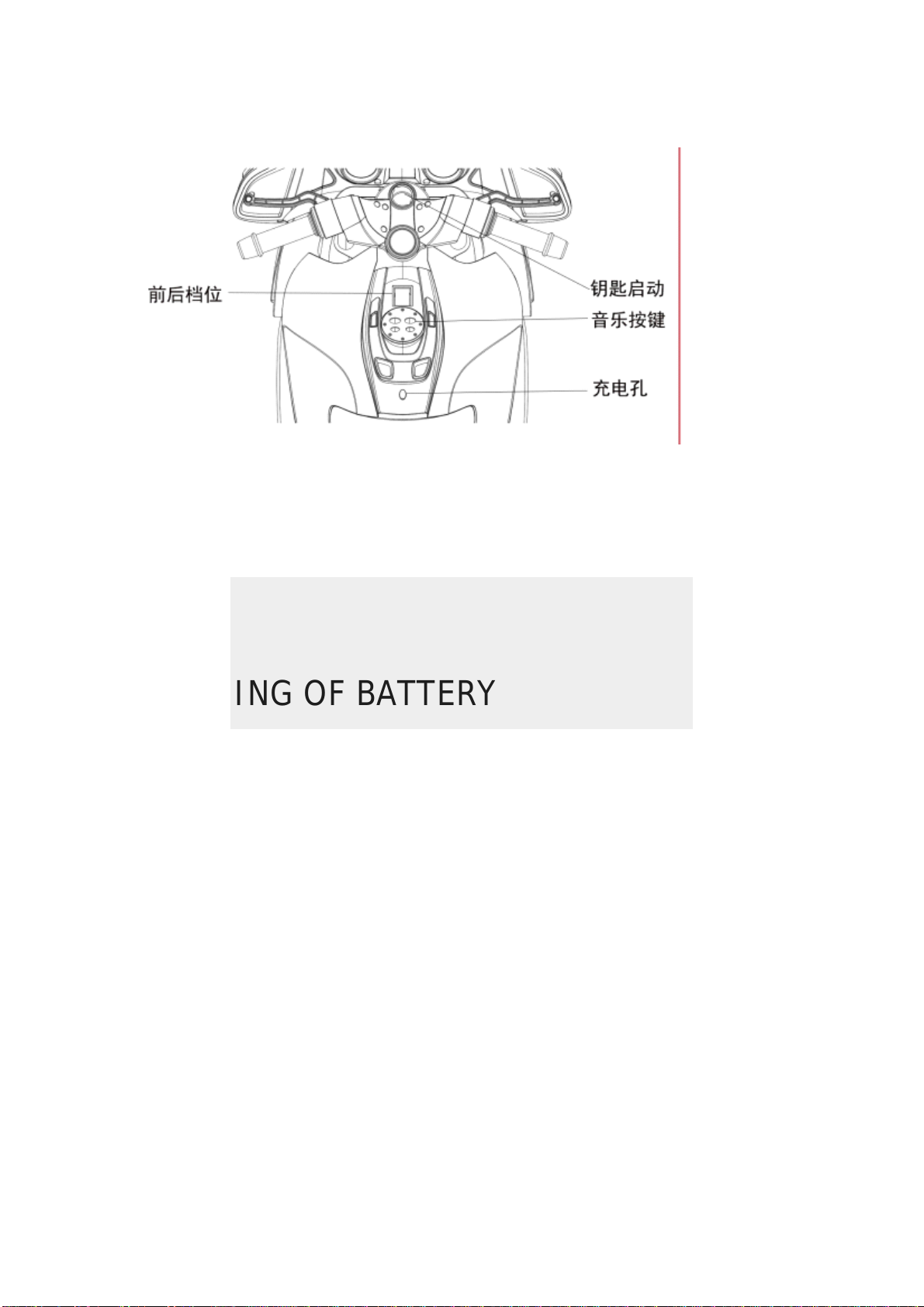

前后档位： Forward/backward
钥匙启动：Key for power start
音乐按键：Music button
充电孔: Charge socket
WARNING OF BATTERY
. Prevent fir accident and electric shock：
Failure to comply with the following safety warnings may result in serious
injury or death.
•Use of a battery or charger other than the supplied 6V rechargeable battery
and charger may cause a fire or explosion.
•Using the 6V rechargeable battery and charger for any other product may
result in overheating, fire or explosion.
•Explosive gases are created during charging. Charge the battery in a well
ventilated area. Do not charge the battery near heat or flammable materials.
•Contact between the positive and negative terminals may result in fire or
explosion. Avoid direct contact between the terminals. Picking up the
battery by the wires or charger can cause damage to the battery and may
result in a fire. Always pick up the battery by it’s case or handles.
•Liquids on the battery may cause fire or electric shock. Always keep all
liquids away from the battery and keep the battery dry.
•Contact or exposure to battery leakage (lead acid) may cause serious injury.
If contact or exposure occurs immediately call your physician. If the chemical
7

is on the skin or in the eyes, flush with cool water for 15 minutes. If the
chemical was swallowed, immediately give the person water or milk. Do not
give water or milk if the patient is vomiting or has a decreased level of
alertness. Do not induce vomiting.
•Battery posts, terminals and related accessories contain lead and lead
compounds (acid), chemicals to cause cancer, reproductive harm and are
toxic and corrosive. Never open the battery.
•Tampering or modifying the electric circuit system may cause a shock, fire or
explosion and permanently damage the system. Exposed wiring, circuitry in
the charger may cause electric shock. Always keep the charger housing
closed.
WARNING OF CHARGING
1. Important! Before using the vehicle for the first time the battery needs to
be charged for 16 hours. Failure to do so may damage the battery and can’t
be repaired.
2. Insert the charger plug into charge hole on vehicle body first, then connect
the other end with power supply.
3. Charge the vehicle when each use after 1hour, normal charging time is 10
to 12 hours.
4. Each charge no more than 18 hours.
5. Only an adult who has read and understands the safety warnings should
handle, charge or recharge of the battery.
6. If the vehicle won’t use for a long time, it need to be charged at least once
per month.
7. The charger and the battery may be a little heating-up, it will be acceptable
if the temperature less than 60°c.
8. The charging hole and jack can’t be damp or it may cause short-circuit.
9. Only charge the vehicle by proprietary charger which sell with the product.
10. Note: It is not necessary to remove the battery from the vehicle for
charging.
⦁Troubleshooting Guide
Problem Possible Cause Remedy
Motor does not work Pedal switch not connect well. Repair the pedal switch.
The terminal and wire on motor loose Connect the wire and terminal
The plug for motor and battery not
connected well Reconnect the plug
The motor is damaged. Replace the motor
8

Vehicle can go forward but can’t
backward The forward/backward switch not connected well. Replace the switch.
The wire connect forward/backward
and battery loose Reconnect the wire
The speed is slow The battery with low power Charge the vehicle
The gear not fit well in the motor Change the motor
The vehicle can’t be charged The charger is damaged (if the output
terminal of charger tested no voltage) Change the charger
The battery is damaged (connect the
charger and check the terminals on
battery, there is a voltage of 6.8-8.0v)
Change the battery
The charge socket not connected well
or the welding spot loose Tighten the socket or reweld the wires
The vehicle can move but no
sound and lights The button for music and lights is damaged. Replace the buttons.
The wire from battery not connect the
vehicle head plug well Reconnect them.
Motor works while the vehicle
can’t move The motor loose from the gear box Open the gear box and tighten t
h
screws to fix the motor.
The gear in gear box damaged. Change a new gear box.
The vehicle moves but not
smooth The user weight is over 30kg. No need mend..
smooth The vehicle moves on uneven
surface. No need mend. Just ride the vehicle on smooth surface.
The wheels or axle seized up by
something. Check the wheels and axle, remove the debris.
The battery with low power. Charge the vehicle in time.
The vehicle can’t stop The pedal can’t rebound when
remove the foot. Check the pedal switch, remove the debris. If damaged, change
a
new switch.
⦁Maintenance
The vehicle should be checked for damage, missing or badly worn parts
before each use.
• Check the tightness of the fasteners before each use.
• Check the tightness of the wheel locknuts.
Note: If the wheel locknuts are not tight the drive wheel will not engage and
the vehicle will not run.
• Ensure the battery is securely in place before use.
• Occasionally use lightweight oil to lubricate moving parts such as wheels
and steering linkage. Do not use oil on plastic or nylon parts. No lubrication is
required.
• Store the vehicle indoors or cover it with a tarp to protect it from the wet
weather. Keep it away from sources of heat, such as stoves and heaters.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use
a non-wax furniture polish. Do not use car wax, abrasive cleaners or wash the
vehicle with soap and water. Water will damage the motor, electrical system
and battery.
9

H. Circuit of the product
前进：Forward 后退: Backward 电机: Motor
电池: Battery 电源开关: Power switch 脚踏开关: Pedal switch
DISCLAIMER: The wires, structure and function can’t be modified without
manufacturer’s permission, or the manufacturer won’t responsible for the problems
caused by any private changes.
