Lean Cars XMX623 User manual

Battery Powered Ride-on
6 Wheels Dump Truck
OWNERS MANUAL
• Suitable for 3+ Years
• Maximum user weight: 50 kg
Please keep this manual for future reference as it contains important information.
Before first time use, charge the battery for at least 4-6 hours, but no more than 10
hours.
Read and understand this entire manual before using!
Must be assembled by an adult.
with Assembly Instructions
WARNING:

On the purchase of your new Ride-On.
This ride-on car will provide your child with many miles of riding of enjoyment. To help
assure you and your rider a safe ride we ask you to please read this manual carefully, and
keep it for future reference.
Follow the recommendations in this manual, they are designed to improve the safety and
operation of your ride-on car and its rider.
Suitable age:
Charge time:
Load capacity:
Size of car:v
Speed:
About Your New Vehicle
2WD 4WD 4WD
3+ Years
8~12 hours
Under 50 kg
1430 x 680 x 650 mm
3-8 km/h
Specification
●Non-rechargeable batteries are not to be recharged.
●If removable rechargeable batteries are used, the are only to be charged under adult supervision.
●Remove rechargeable batteries from the product before charging.
●Do not mix old and new batteries. Do not mix different types of batteries: alkaline, standard
(carbon-zinc) or rechargeable (nickel-cadmium).
●Insert batteries as indicated inside the battery compartment, anode to anode, cathode to cathode.
●Remove batteries during long periods of non-use. Always remove exhausted batteries from the
product. Battery leakage and corrosion can damage this product. Dispose of batteries safely.
●Never short circuit the battery terminals.
BATTERY INFORMATION
Battery
Charger
input
Motor
24V7AH X1
24V800mA
550-13500 x4
24V7AH X1
24V800mA
555-20000 x2
12V10AH X1
12V1000mA
550-10000 x4
Depend on local voltage
1

1
2
2
4
6
6
6
6
2
1
8
1
1
1
1
1
1
1
2
1
2
2
1
1
1
4
4
2
2
6
6
6
2
1
8
1
1
1
1
1
1
1
2
1
/
2
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
NO.
REMARK
Vehicle body
Rear gear box
Driving wheel
Normal wheel
Ø12 washer
Ø10 washer
Lock nut
Wheel cover
Rear axle
Front bumper
Ø4x14 screw (black)
Steering wheel
M5x40 machine screw
M5 nut
Seat
Seat back
Rear roll bar
Windshield
Mirrors
Dump gate
Iron tube
Spanner
Charger
Remote controller
Parts List
2WD 4WD
For R/C type only
For 2WD type only
Left and right
2
PART NAME Q’TY (PCS)

22
23
24
Assembly tools required:
Screwdriver (not included)
S
P
W
1
55
21
3
7
7
7
8
8
8
4
5
9
20
15
17
14
10
11
6
6
6
3
29
2
12
18
16
13
19
19
11
11
Parts Diagram
HINT: Some parts shown are assembled on both sides of vehicle
3
2WD

Safety 4
• This vehicle has adjustable play seat belts. Please instruct children how to tie the safety belt
before using, guarantee the security.
WARNING:
• CHOKING HAZARD! Not suitable for children under 36 months.
• Must be assembled by an adult.
• To reduce the risk of injury, adult supervision is required.
• Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming
pools or other bodies of water; always wear shoes, and never allow more than 1 rider.
• Power supply or battery charger used with the electric toy shall be regularly examined for
damage to the supply cord, plug, enclosure or other parts, and in the event of damage, it
shall not be used not be used until the damage has been repaired.
• Use only battery(ies) and charger specified by the manufacturer.
• The battery on the vehicle is not replaceable.
• This toy should be used with caution since skill is required to avoid falls or collisions causing
injury to the user or third parties.
• Protective equipment should be worn.
• Always wear shoes, always sit on the seat.
• Not to be used in traffic.
• This toy is unsuitable for children under 36 months due to its maximum speed; Maximum
user weight is 50 kg.
• This toy has no brake.
Rules for Safe Riding
• Keep Children within Safe Riding Areas.
• Use the toy only on flat surfaces. Such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident.
Operate the vehicle only in the daytime or a well-lit area.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• Do not let any child touch the wheels or be near them when the car is moving .

1
2
3
4
5
6
6. Insert the rear axles into the
correct holes on the rear
side of the body.

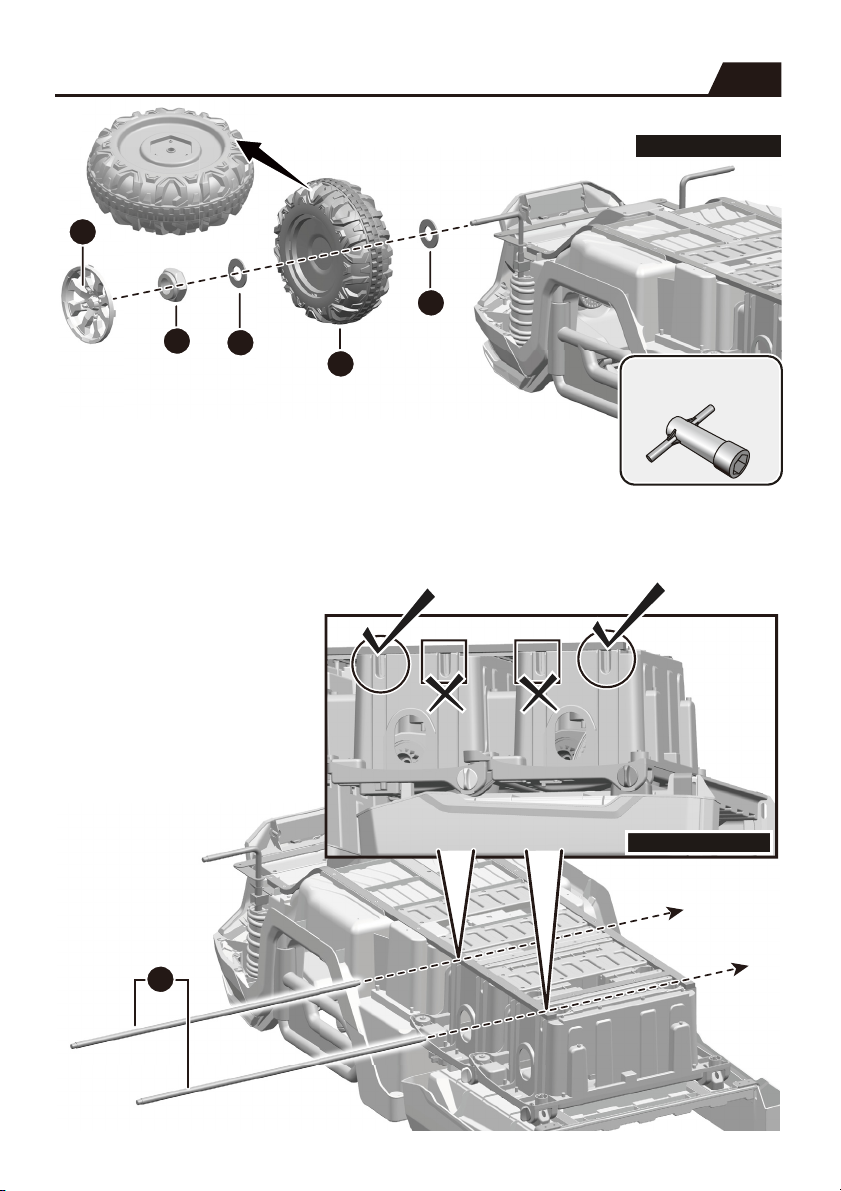

Attach the Front Wheels & Rear Axles 5
Front botttom View
Rear botttom View
Remove all the parts from the front axle.
1. Slide a Ø12 washer onto the front axle.
2. Slide a front wheel onto the front alxe.
3. Slide a Ø10 washer onto the front axle.
4. Tighten a lock nut to the end of the front axle with a spanner. DO NOT over tigthen.
5. “Snap” the hubcap to the wheel.
Repeat the above procedure to assemble the other rear wheel.
Tools required:
M10 Spanner

1-2. Plug the connector of the rear gear box to the
connector from the vehicle body. And fit the rear
gear box onto the axle,
3. Slide a driving wheel onto the axle.
4. Slide a Ø10 washer onto the alxe.
5. Tighten a locknut to the end of the rear axle with a Spanner.
Repeat for the other middle wheel.
6. “Snap” the wheel covers to the wheels.
6
7
1 2 Plug the connector of the rear gear box to the
6
7
1
2
3
5
2
3
4
5
6
4
1
Attach the Middle Wheels 6
Rear botttom View
Rear botttom View
1. Slide a Ø12 washer onto the axle.
2. Slide iron tube to the axle.
3. Slide a Ø12 washer onto the axle.
4. Slide a normal wheel onto the alxe.
5. Slide a Ø10 washer onto the axle.
6. Tighten a lock nut to the end of the axle with a spanner. DO NOT over tigthen.
Repeat the above procedure to assemble the other rear wheel.
7. “Snap” a wheel cover to each wheel.
2WD
4WD

There are two types of rear gear box
2
4
5
1
3
4WD 2WD
rear gear box
rear gear box
Attach the Rear Wheels 7
Rear botttom View
1. Plug the connector of the rear gear box to the connector from the vehicle body. And fit
the rear gear box onto the rear axle,
2. Slide a driving wheel onto the rear axle.
3. Slide a Ø10 washer onto the rear alxe.
4. Tighten a locknut to the end of the rear axle with a M10 socket wrench.
Repeat for the other driving wheel.
5. “Snap” the wheel covers to the rear wheels.

2
4
1
3
7
5
6
4
7
5
6

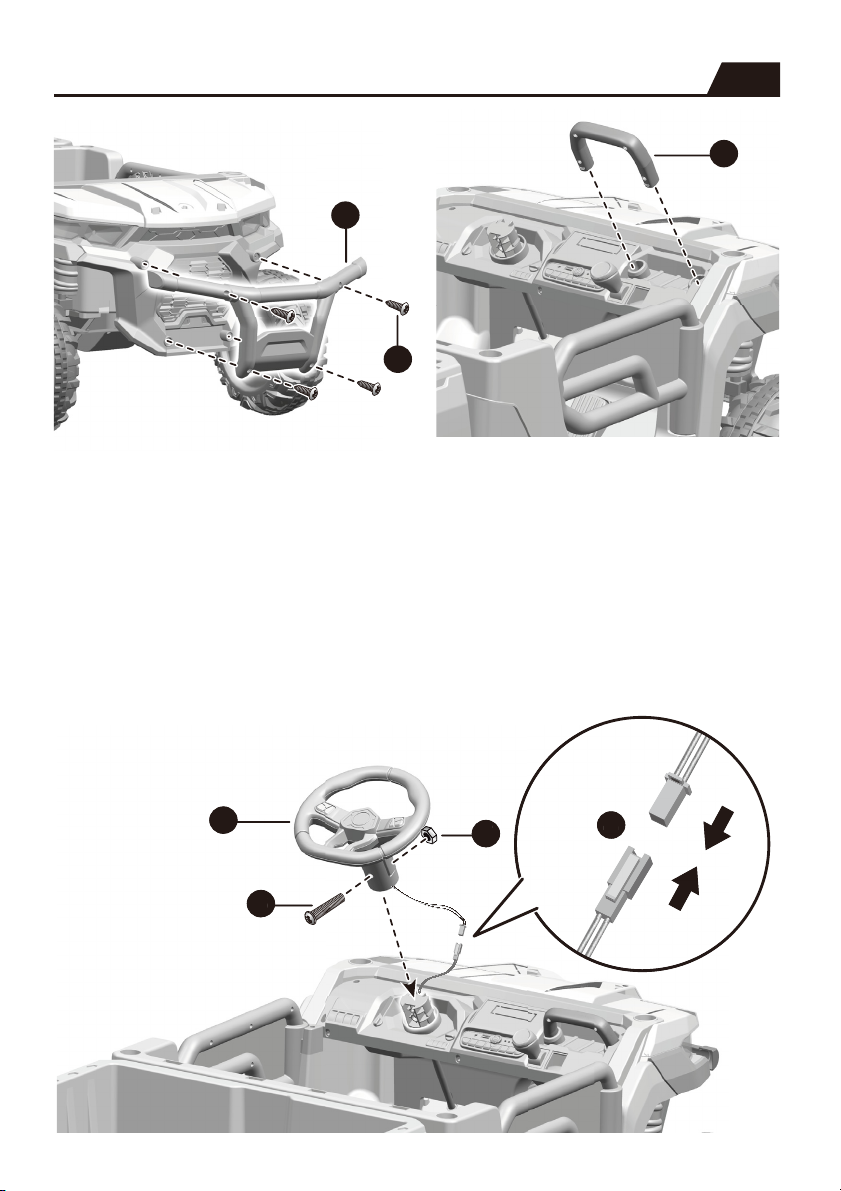

Attach the Steering Wheel
1-2. Fit the front bumper to the vehicle body, insert four Ø4x14 black screws and tighten.
3. Insert the handle to the holes in the dash.
4. Plug the sound unit connector on the steering wheel into the connector on the vehicle
body. Then hide the connecotrs and wires into the steering wheel.
5. Fit the steering wheel to the steering wheel base on the body.
6-7. Line up the holes on the steering wheel with the holes on the steering wheel base,
insert the M5x40 machine screw. Fasten a nut on the opposite end of the screw with a
screwdriver.
8

2
4
2
4
1
Bottom of seat
Bottom of seat
Buttons
3

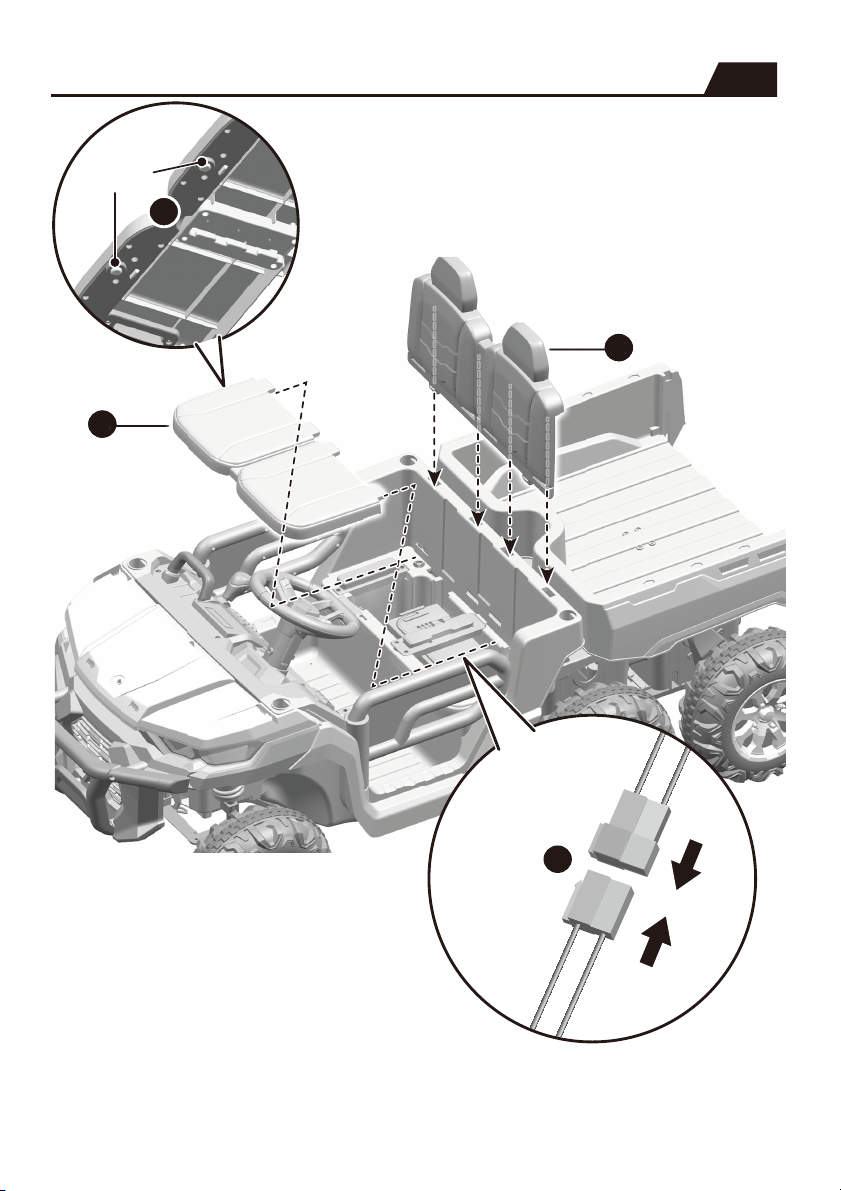

Connect the Power Supply & Attach the Seat
1. Plug the connector from the vehicle body
into the connector on the battery.
2. Fit the seat back to the vehicle body.
3-4. Press and hold the buttosn on the
9
bottom of the seat until the seat is attached to the body.

4
1
4
5
1
2
3

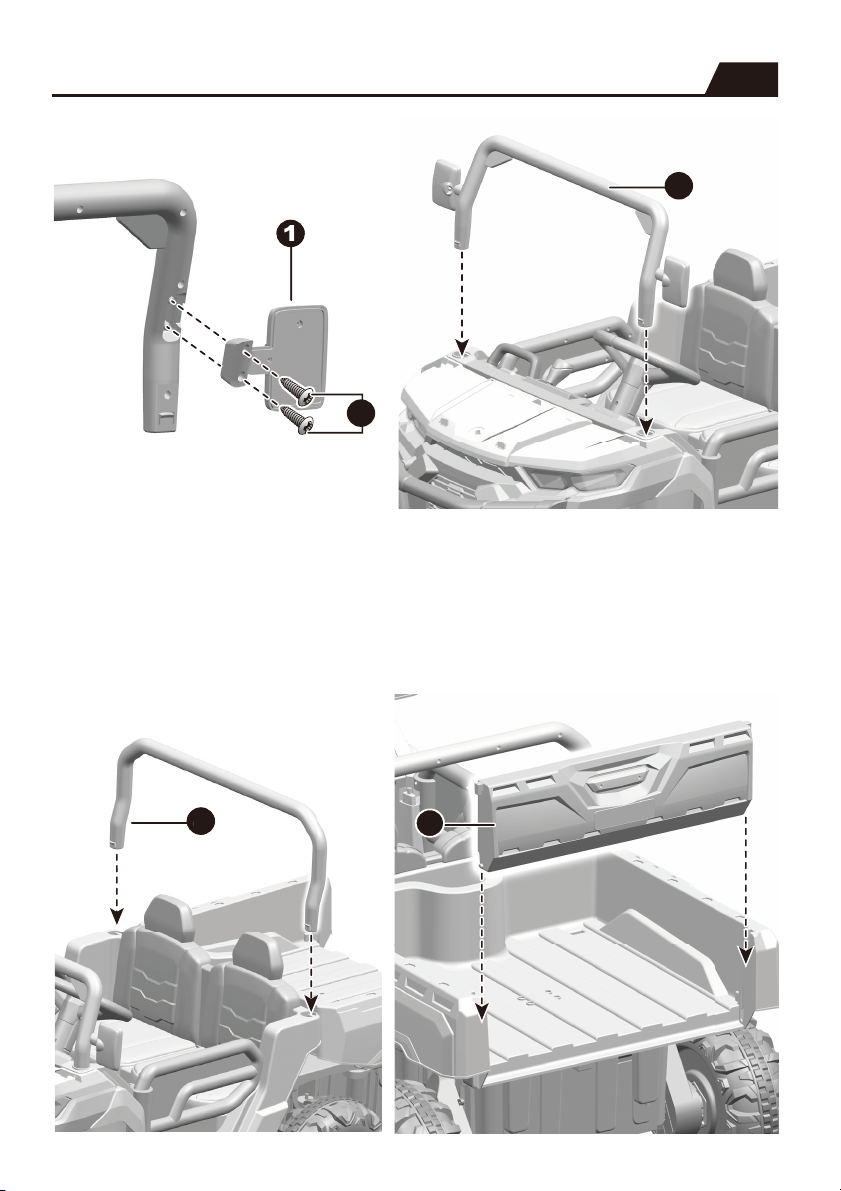

Attach the Windshield & Roll Bar
y
1-2. Insert the mirrors to the windshield. HINT: The mirrors are designed to fit vehicle
only way. Insert and Tighten two Ø4x14 screws on each mirror.
3. Insert the tabs on the windshield into the holes on the vehicle body, push until you
hear it “click” into place
4. Insert the tabs on the roll bar into the holes on the vehicle body, push until you hear it
“click” into place.
5 . “Click” the dump gate to the dump on the vehicle body.
10

4
2
1
7
3
5
6
Use Your New Ride-on
11
1. Power button: Turn the product on and off.
2. Forward/Stop/Reverse lever: Changes the direction that product moves from
forward to reverse.
●To move the product forward, shift the lever to top position.
●To move the product backward, shift the lever to down position.
●Shift the lever to middle position, the product will not move.
3. Sound button: Press for sound or horn playing.
4. Throttle pedal: Applies power (speed) to the product.
●To move the product, press the pedal down.
●To brake or slow down, release pressure from the pedal.
5. Pedal - R/C switch (If equipped): Change operating mode, throttle control or remote
control
6. Dump switch: Press the switch once to tip the dump. Press it twice quickly and the
dump will automatically reset after tipping.
7. Mp4 (if equipped)

A. Previous / Long press for Volume -
B. Play / Long press for Pause
C. Next / Lone fress for Volume +
D. On 12V product-Rocking button: Turn rocking mode on and off. Product cannot
move under this mode.
On 24V product-Bluetooth button.
E. Lights button: Turns the lights on and off.
F. High speed button: Operates the product to move in high speed.
G. Low speed button: Operates the product to move in low speed.
H. Mode button: Change audio input
I. Device input 1
J. Device input 2
K. Digital voltmeter: It displays the power level of the battery when the product is stop.
►►І
V+
І◄◄
V- ►II D2 D1
MODE
High Low
A
IJ K
BCDEFGH

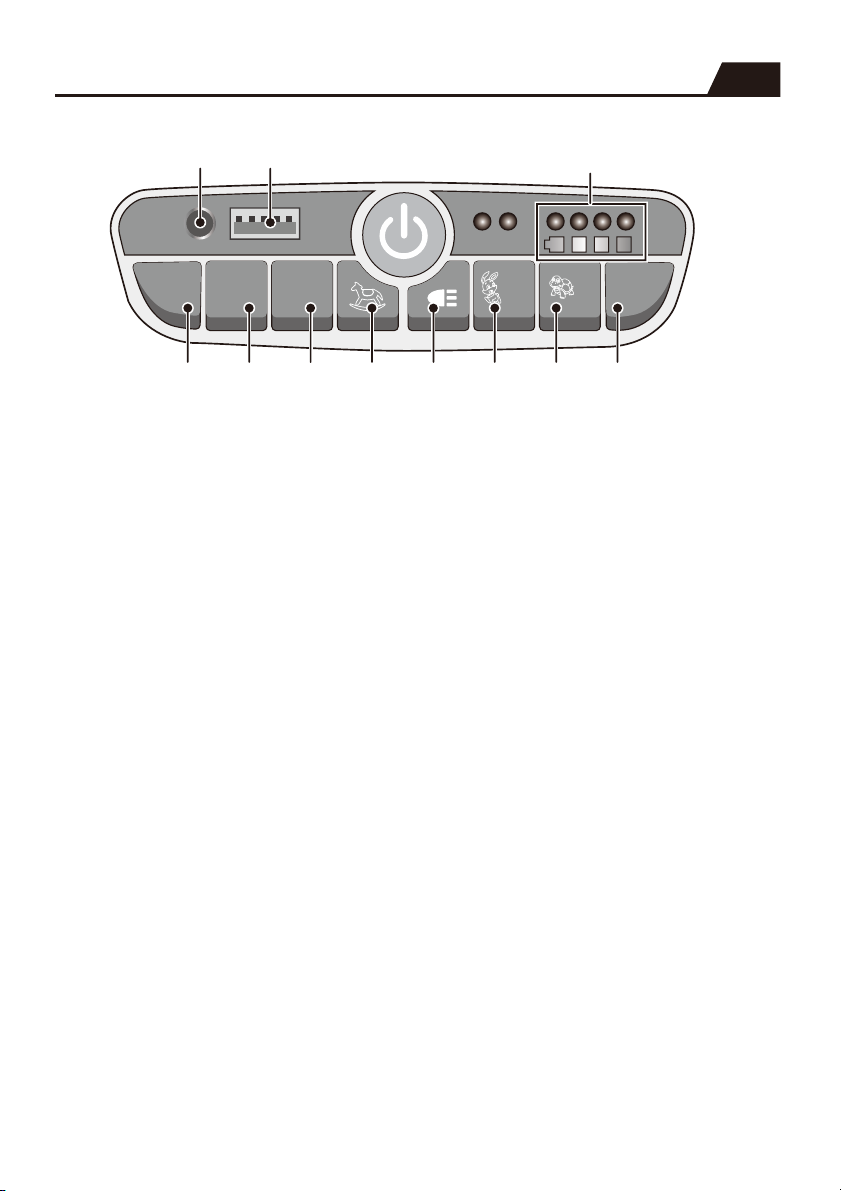

Use the Audio Player
12

S
P
W
Use the Remote Controller 13
• Leave the remote controller idling for about 10 seconds, it will shut down automatically.
• Rebuild connection when you replace the batteries of the remote controller.
Insert the batteries of controller
Lift the battery compartment door on the back of the controller and insert two AAA(LR03)
batteries.
HINT: Batteries not included. Refer to the Battery Information on the page 1.
NOTE:
1. Build connection
Press the Connection button for 2 seconds, the status indicator flashes, then turn on the power
switch located on the the vehicle dash, when the status indicator turns off about 2 seconds
and turns into long bright, means the connection successful. If the status indicator makes no
response, means the connection failed. Replace the batteries and try again.
2. Brake button
Press the button to stop the vehicle, press it again to release the brake.
3. Speed select button
The switch operates the vehicle to move in low, normal or high speed.
HINT: This switch won’t work while your vehicle moves reverse.
Speed select
button
High speed indicator
Normal speed indicator
Low speed indicator
Connection button
Forward button
Reverse button
Left button
Brake button
Right button

2

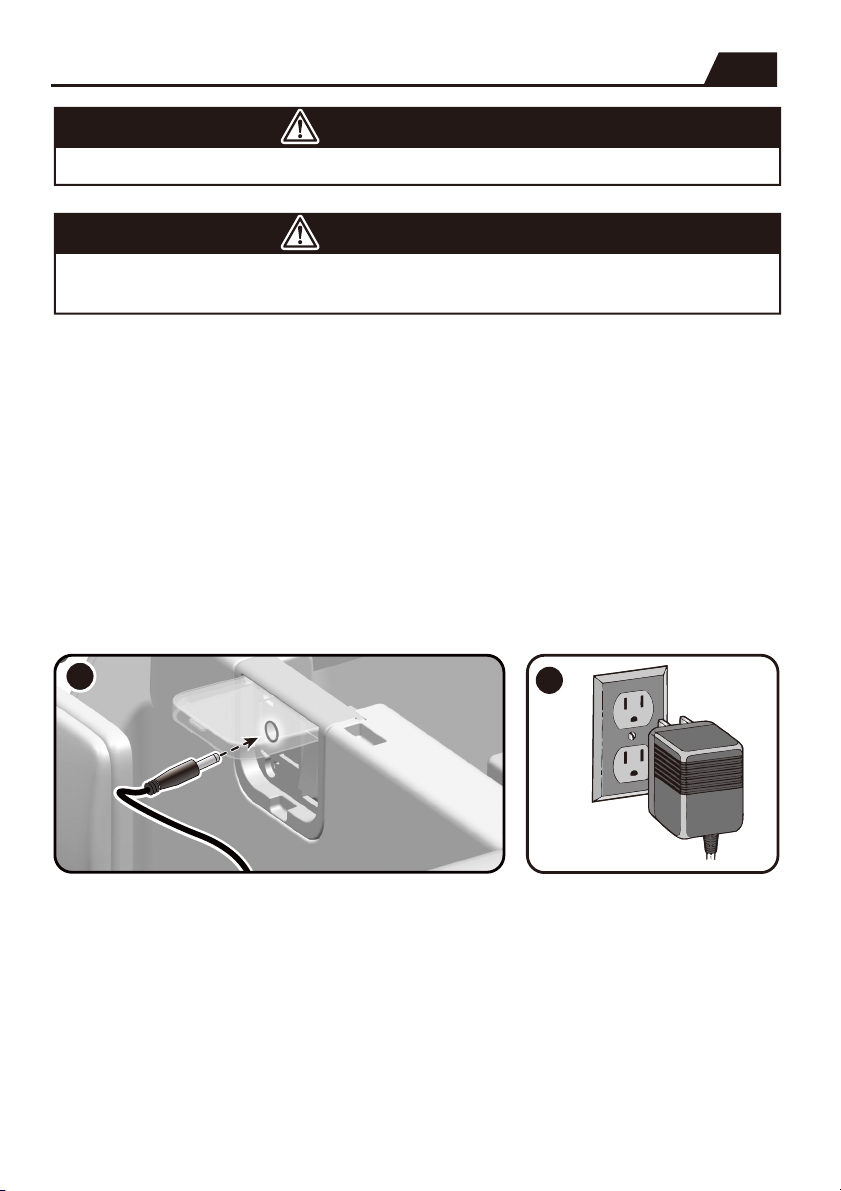

Charging
WARNING!
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!
WARNING!
This product with Charging Protection: when charging, all functions will be cut off!
Only an adult can charge and recharge the battery!
• The POWER SWITCH must be turned in OFF position when charging.
• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the
battery for more than 10 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
• After each use or once a month minimum recharge time as 8 to 12 hours, less than 20
hours at most.
• Use the only rechargeable battery and charger supplied with your vehicle. NEVER
substitute the battery or the charger with another brand. Using another battery or
charger may cause a fire or explosion.
• Do not use the battery or charger for any other product.
14
How to charge the battery
1. Open the charging cover (below the seat). Plug the charger port into the charger
socket.
2. Plug the charger plug into a wall outlet. The battery will begin charging.
1

Troubleshooting Guide 15
.
Problem Possible Cause Solution
Vehicle does not run
Vehicle does not run
very long
Vehicle runs sluggishly
Vehicle needs a push
to go forward
Difficult shifting from
forward to reverse or
vice-versa
Loud grinding or clicking
noises coming from
motor or gear box
Battery low on power
Thermal fuse has tripped
Battery connector or wires
are loose
Battery is dead
Electrical system is damaged
Motor is damaged
Battery is under charged
Battery is old
Battery is old
Vehicle is overload
Vehicle is being used in harsh
conditions
Poor contact of wires or
Connectors
“Dead Spot” on motor
Motor or gears are damaged
Battery low on power
Recharge battery.
Reset fuse, see <Fuse>
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor
contact your distributor please.
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor,
contact your distributor please.
A dead spot means the electric power is not being
delivered to the terminal connection and the vehicle
needs repair. Contact your distributor please.
Attempting to shift while the
vehicle is motion
Completely stop the vehicle and shift, see <Use Your
New Vehicle>
Check that the battery connectors are firmly plugged
into each other when recharging
Replace battery, contact your distributor please.
Replace battery, contact your distributor please.
Replace battery, contact your distributor please.
Reduce weight on vehicle.
Avoid using vehicle in harsh conditions ,see <Safety>.
Recharge battery, contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Battery will not
recharge
Charger feels warm
when recharging
Battery connector or adapter
connector is loose
Charger not plugged in
Charger is not working
This is normal and not a
cause for concern
Check that the battery connectors are firmly plugged
into each other.
Check that the battery charger is plugged into a
working wall outlet.
Completely read through this manual and the troubleshooting guide table before calling. If you
still need help resolving the problem Contact your distributor please.

Maintaining
• It is parents' responsibility to check main parts of the toy before using, must regularly
examine for potential hazard, such as the battery, charge,cable or cord, plug, screws
are fastening enclosure of other parts and that in the event of such damage, the toy
must not be used until that damage had been properly removed.
• Make sure the plastic parts of the vehicle are not cracked or broken.
• Occasionally use a lightweight oil to lubricate moving parts such as wheels.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic parts
may melt.
• Recharge the battery after each use. Only an adult can handle the battery. Recharge the
battery at least once a month when the vehicle Raider is not being used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do
not drive the vehicle in rainy or snowy weather. Water will damage the motor, electric
system and battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-wax
furniture polish. Do not use car wax. Do not use abrasive cleaners.
• Do not drive the vehicle in loose dirt, sand or fine gravel which could damage the moving
parts, motors or the electric system.
• When not using, all the electrical source should be turn off. Turn off the power switch
and disconnect the battery connection.
16

Battery Fuse
Our products are suitable for ASTM F963; GB6675; EN71 and EN62115 standard.
The battery features a thermal fuse with a rest fuse that will automatically trip and cut all
power to the vehicle if the motor, electric system or battery is overloaded. The fuse will
reset and power will be restored after the unit is turned OFF for 20 seconds and then
turned ON again. If the thermal fuse trips repeatedly during normal use, the vehicle may
need repair. Contact your distributor please.
To avoid losing power, follow these guidelines:
●Do not overload the vehicle.
●Do not tow anything behind the vehicle.
●Do not drive up steep slopes.
●Do not drive into fixed objects, which may cause the wheels to spin, causing the motor to
overheat.
●Do not drive in very hot weather, components may overheat.
●Do not allow water or other liquids to come in contact with the battery or other electric
components.
●Do not tamper with the electric system. Doing so may create a short, causing the fuse to trip.
17
Disposal Of Battery
●Your sealed lead-acid battery must be recycled or disposed of in an environmentally sound
manner.
●Do not dispose of your lead-acid battery in a fire. The battery may explode or leak.
●Do not dispose of a lead-acid battery in your regular, household trash. The incineration, land
filling or mixing of sealed lead-acid batteries with household trash is prohibited by law.
