Lean Cars JH-101 User manual

R
Instruction for installation and use of JH-101 baby carrier
·fast/slow selection
·multifunctional remote control
·2.4G slow boot
·USB media play
Instructions to be read before use
Remember to keep the instruction for further reference

12V7Ah x1 12V10Ah x1 12V14Ah x1
44KG
162X81X82CM
60KG
35KG
12V10Ah x1 12V14Ah x1
RS550 DC-12V RPM12000X2
RS550 DC-12V RPM10000X2
RS390SP-12V RPM6600X1
RS550 DC-12V RPM12000X4
RS550 DC-12V RPM10000X4
RS390SP-12V RPM6600X1
162X81X82CM
60KG
47.1KG
38.1KG
3.5-4KM/H3-3.5KM/H
1
Please read this instruction carefully before start using this product. It will tell you details
which refer to installing steps and right way to use it. It will also teach you how to avoid
operation mistakes so that you won’t break this product and harm the rider. Please keep
it appropriately and put it in the place where you can acquire easily.
specification Dual-wheel Four-wheel drive
Storage
Drive motor
Steering motor
Charger
Load limit
Using time
Speed
Age limit
Remote distance/
remote battery
Body size
Gross weight
Net weight
Input AC220V-240V 50HZ-60HZ
Output DC12V1A
Input AC220V-240V 50HZ-60HZ
Output DC12V1A
1-2hours after charging 1-2hours after charging
37-95months 37-95months
15±5M/ AAA1.5V*2 15±5M/ AAA1.5V*2
Matters need attention when charging
1. Before the first use of the car, make sure the battery has been charged,(4-6 hours, or the
battery would be damaged permanently and cannot be repaired). When charging, first
open the charging cover and then insert the plug into the charging hole, and then plug
the charger into the power socket. The vehicle cannot operate during charging. (The
charging process has to be operated by adults)
2. When the battery is low, please charge it in time. Normally the charging hour is 8-12
hours, but do not charge it more than 15 hours.
3. It is normal that the battery jar emits heat (below 60 centigrade), but when the
temperature is too high, you should examine whether the recharging process is
short-current.
4. Only chargers and battery equipped by this car can be used. Chargers and battery
jars of other brand are strictly prohibited. Or the charger and battery might be damaged.
5. The car cannot be operated when charging.
6. New/old and different kinds of batteries cannot be used together.
7. Please check the circuit when the car is charging.
8. When the product is packed away or will not be used for a long time, you have to fully
charge the battery and charge it once every month to guarantee the life of the battery.
9. The charger and battery is not toy. Children should not be allowed to play with them.

2
3 2/4
4
4
4
1
2
1
1
1
1
1
4
5
6
10
11
12
13
17
18
19
1 17 14
2 1 1 19 16
1 1 1 18 15

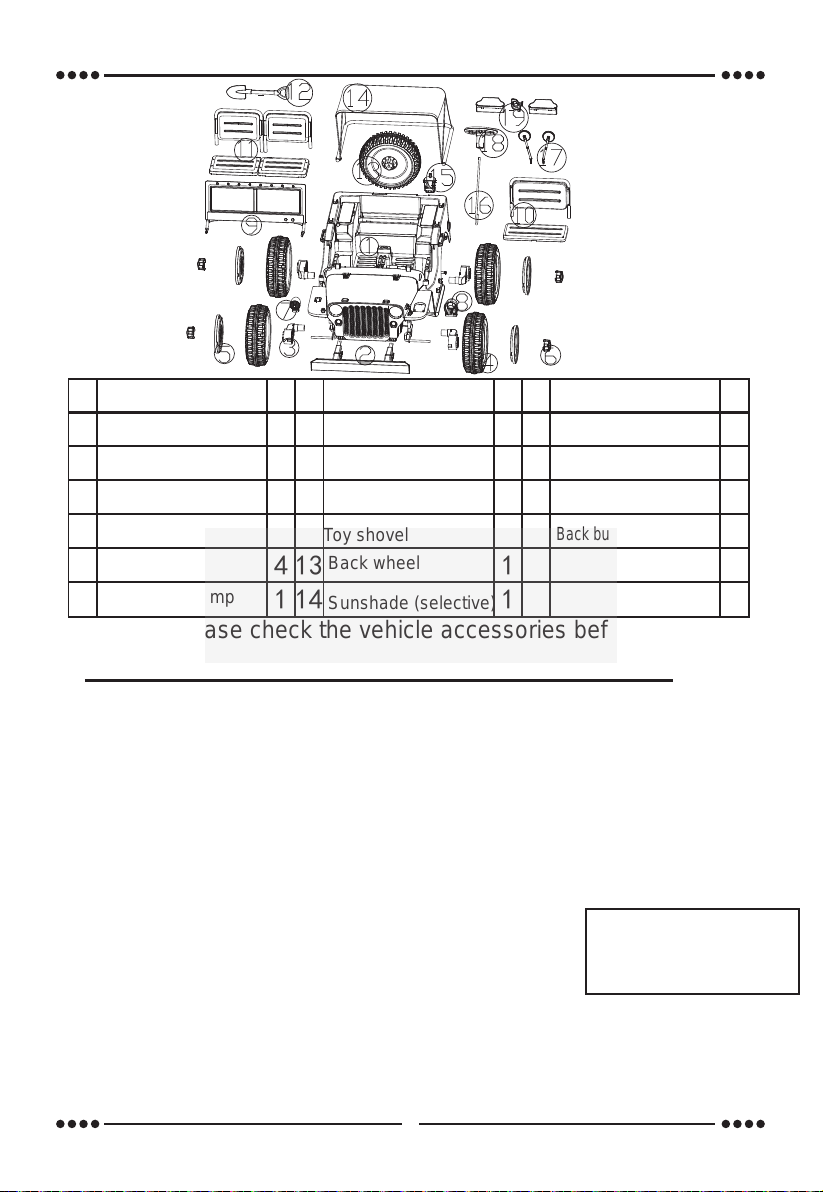

body
Front bumper
Drive motor
Wheel
Wheel cover
Right fancy lamp
Wheel cap
Left fancy lamp
Windshield
Back cushion
Front/left/right cushion
Toy shovel
Back wheel
Sunshade (selective)
Flagpole base
Steering hook
Reflector
Steering wheel
Back bumper decoration
Attention: Please check the vehicle accessories before assembling!
Safe using matters
• This product is not for children under 3-year old or over 8-year old.
• The assembling process could only be operated by adults.
Pay attention to risk of sharp tips such as screw cotter pin.
• Please check whether all the part are installed well to position and connected tightly.
• This car cannot be used on dangerous places like public transport road and slopes.
• This car should only be rode under adult's supervision.
• Do not change the structure, line and additional electrical devices without permission.
• Do not switch the forward/backward frequently.
• Examine the product and charger regularly to see whether the parts are becoming old
or dropped off. When damage is found, the product should be stopped using until fixed.
• Only rechargeable batteries can be used.
• Batteries can only be interposed in right poses.
• Rechargeable batteries should be taken out before used-off.
• Positive and negative poles short circuit is strictly prohibited.
• Rechargeable batteries should only be charged by adults; when playing this car,
the distance between the car and an adult cannot be more than 10 meters.
• Children cannot stand in the car.
• The car is outfit with seat belt. Make sure the child has fastened it.
Warning!
When change the gear, please
make sure the car is completely
stopped. Or it will damage
the gear case and motor.

3
1. Installing front bumper and left/right
support frame
a. First place the left and right support frame
aroundthe body as shown in the figure, then
lock and fix itwith 18 M4*12 flat head screws;
b. Insert the front bumper into the body hole
and then lock it with 4 M4*12 flat head screws;
c. Place the fixed beam of the front bumper as
shown in the figure, and finally lock it with 4
M4*12 flat head screws.
2. Fix the rear support frame
a. As shown in the figure, after aligning the hole
position of the rear axle support fixing frame
and the fixed hole position of the shock
absorber spring, insert an hexagon socket fixing
screw and fix it with hex nut.
3. Installing front/rear wheel
a. As shown in the figure, first load the driving
motor, wheel and wheel cover into the iron shaft
once; then put a gasket on each side of the nut
and lock it with M10 anti-loosen nut. Finally,
clamp the wheel cap on the outside of the nut.
b. Then put a gasket on each side of the nut and
lock it with M10 anti-loosen nut. Finally, clamp
the wheel cap on the outside of the nut.
4. Installing steering wheel and cushion
a. After inserting the steering wheel into the
steering hook as shown in the figure, after
aligning the steering wheel hole and the steering
iron hole, insert an M5 screw and finally tighten
the nut.
b. As shown in the figure, place the front and rear
seats on the car body, and then lock and fix them
with 10 M4*12 flat head screws.
c. Insert the front and rear seat back into the body
hole as shown.(note: please refer to the attached
drawing for seat back removal)

+ AAA 1.5V -
+ AAA 1.5V -
4
5. Installing windshield, left/right reflector and
left/right lamp decoration
a. Refer to the figure, put the L/R reflector and L/R lamp
decoration into car body;
b. Place the windshield as shown in the picture,
then insert the wrench screw on both sides of the iron
piece and lock it with the embedded nut.
6. Installing the rear spare tire, the flagpole
base and the rear bumper decoration
a. As shown in the figure, assemble the rear spare tire,
the flagpole base and rear bumper decoration on the
back of the car body.
7. 2.4G remote control instruction
For the first time, it needs to check the
code, this product has built-in memory,
and there is no need to check the code
for battery replacement later.
1. Turn off the power and hold down the
"M" button of the remote control. After 3
seconds, the first indicator light will flash,
and then release the button.
2. At this point, turn on the power switch, the first indicator light of the remote control
changes into the state of constant light, the code successfully.
3. When the remote control is not in use, it will enter the sleep state after 10 seconds
and press any key to wake up.
4. Key function description: “▲”forward, “▼” back,“◄” turn left, “►”turn right, “S” adjust
speed,“P”brake.Press “S” key to adjust the speed, one light for low speed, two lights for
medium speed, and three lights for high speed, astern only at medium speed.
Press P to enter the brake state, all the indicators flash, press P again to exit the brake state.
forward
adjust speed
back
speed display
brake
turn right
turn left
code key
Loosen battery cover screw
put 2 AAA 1.5V batteries

5
Warning! This product is not for kids under 3-year-old,
keep small components away from children. Danger for asphyxia.
-Refer to the figure, put 2 AAA (1.5V) dry batteries.
-Use non-rechargeable batteries and these batteries cannot be recharged.
-New/old and different kinds of batteries cannot be used together.
-Positive and negative poles short circuit is strictly prohibited.
-Used-off batteries should be taken out of the toy and dealt properly to prevent kid's playing.
-The positive and negative extremes of the power supply must not be short-circuited.
-Keep the instruction for further reference.

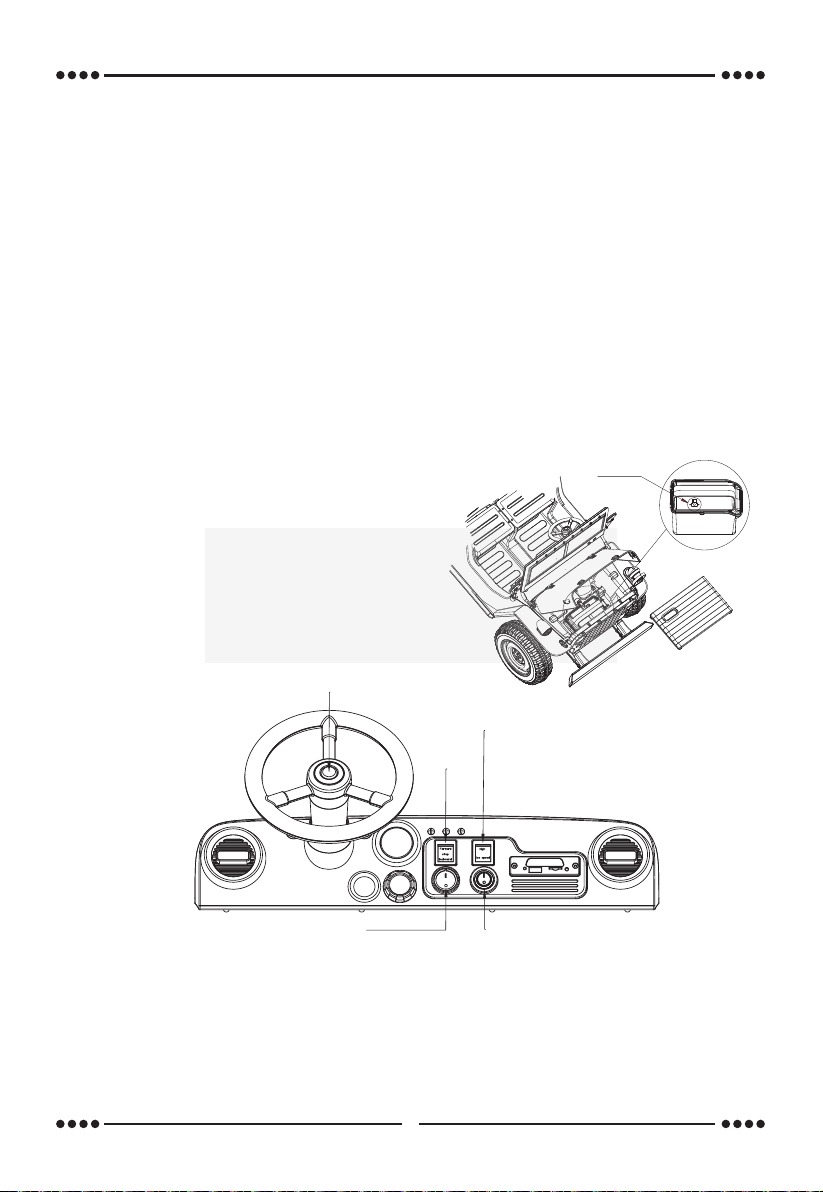

8. Charging instruction
a. When the battery voltage displayed on the right side of the instrument panel is less than
10V, the battery is insufficient. Please timely charge the battery.The charging box is
shown in the hood.
b. During charging, the vehicle is in charge protection state and the power supply of the
vehicle cannot start. After the charging hole is pulled out from the charging seat, the
whole car is adjusted to the normal mode.
9. Indicator diagram of platform function
music button
high/low speed button
forward/stop/back button
on-off switch light button
a. On-off switch——(1) The platform is energized, the lighting system lights up with the engine
sounds; (2) The dashboard is equipped with a music function operator, which can be connected
to the mobile phone blue tooth device, volume adjustment, power display and other functions.
b. Steering wheel——(1) the steering wheel is equipped with music buttons.
c. The lighting system switches with one button——(1) Light can be turned on and off.
d. High low speed switch——(1) This car can switch between high speed and low speed freely,
having different driving pleasure.

6
Simple maintenance
Gear is broken Change a new gear
Car has noise when
progressing
Gear case is broken or
run out of gas
Fault type Reason analysis Exclusion methods
Car's not moving
Battery has low voltage
Battery is broken
The nut of the wheel is
dropped off
Motor is broken
Socket connector of the
battery has been missing
Fuse wire is broken
Power is turned off
Recharging the battery
Replace new battery
Screw the nut on
Go to the maintenance area
Replace new socket connector
Change a new fuse
Turn on the power
Low speed
Battery is without power
Dead battery
Pavement irregularity
Overload
Battery is old
Recharge the battery
Change motor
Ride on smooth-riding surface
Reduce weight
Change new battery
Battery cannot be recharged
Charger or motor is broken
Socket connector of
battery is broken
There is no power
Change new charger or motor
Change new socket
Plug it in
Short flight mileage Battery off
Battery is old Recharging the battery Change a new battery
Car is shaking when
progressing
Connector cable for lens
motor contact poorly
There's dead spot
on the motor
Reconnect it
Repair it in maintenance point
Replace gear case or supply
gas

Matters needing attention
• The product should be assembled correctly by adults before usage.
• Keep away from children under 3 or over 8.
• Battery charging process should be performed by adults.
• Ensure a 10-hour-long battery charging process before the first use;
otherwise the battery will suffer permanent damage.
• Keep away from dangerous areas like street/road/slippery areas etc.
• For three people weighting less than 60KG only.
• Make sure the safety belt fastened and the child seated.
Dangerous actions as well as standing up are forbidden.
• Do not press the forward/back button abruptly while driving.
• Do not drive in narrow space, in order to avoid damage to the product.
• Go on periodic check.
Pay close attention to the security situation of the product and its peripheral equipment.
• Pull out the battery during the long period without use.
• The product should be used with adult guardianship.
