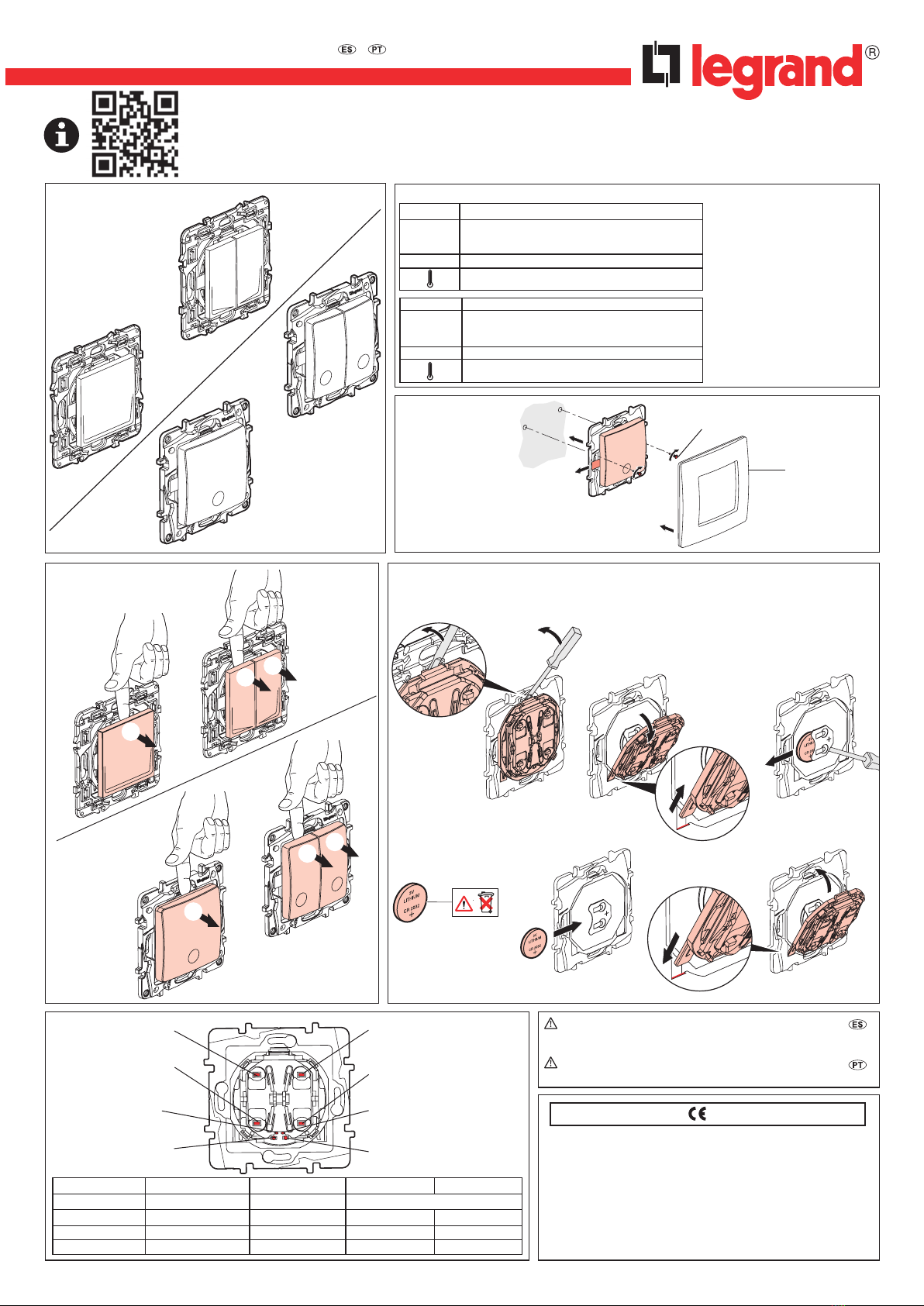

LEGRAND 0 746 85 User manual









0 746 85/86/89 - 0 784 29 - 6 651 05/06/10 /
LE06902AA




• Caractéristiques
• Montage
• Mounting




• Démontage
• Dismounting
• Changement de la pile
• Changing the battery
Alimentation 1 pile au lithium CR2032, 3 V
Technologie
Radio fréquence 2,4 GHz (16 canaux) – Débit : 250 KO/s
Réseau sans l maillé, auto-adaptatif et sécurisé (AES 128),
selon la norme IEEE 802.15.4 (LR-WPAN)
Performance Portée : 150 m en champ libre point à point
+5°C à +45°C
A commander
séparément
To be ordered
separately
LED d’APPRENTISSAGE (LEARN)
LEARN LED (LEARN)
LED RESEAU (NETW)
NETWORK LED (NETW)
Touche RESEAU (NETW)
NETWORK button (NETW) Touche d’APPRENTISSAGE (LEARN)
LEARN button (LEARN)
Touche de commande C
Control button C
Touche de commande B
Control button B
Touche de commande A
Control button A
Consignes de sécurité
Respecter strictement les conditions d’installation et d’utilisation.
The directive 1999/5/CE of the european parliament
and of the council of March 9th, 1999
EN 301 489
EN 300 328
CONFORMITY DECLARATION
We declare that the products satisfy the provisions of :
On condition that they are used in the manner intented and/or in accordance with the current installation
standards and/or with the manufacturers recommandations
These provisions are ensured for directive 1999/5/CEE by conformity to the following standards :
Channel availability depends on local country regulations. Wireless LAN system administrator must choose
correct country of operation. Channels are then automatically configured to comply with specified
country's regulations.
6 651 05/06/10
0 746 85/86/89 - 0 784 29
Touche de commande D
Control button D
Référence/Reference Touche A/Button A Touche B/Button B Touche C/Button C Touche D/Button D
6 651 05/0 746 85 Inopérante/Not used Inopérante/Not used ON/OFF 1
6 651 06/0 746 86 Inopérante/Not used Inopérante/Not used ON/OFF 2 ON/OFF 1
0 746 89 Inopérante/Not used Variation +/Dim + Variation -/Dim - ON/OFF
6 651 10/0 784 29 Réglage/Setting 0 883 26 Montée/Up Descente/Down Stop
Non fournies
Not supplied
• Characteristics
Durée de vie de la pile (à 23°C) :
5 ans pour 30 appuis journaliers ou
2 ans pour 100 appuis journaliers.
Battery life (at 23°C):
5 years with 30 presses per day or
2 years with 100 presses per day.
Power supply 1 lithium battery CR2032, 3 V
Technology 2.4 GHz Radiofrequency band (16 channels) - Byte rate: 250 KB/s
Self healing MESH network with high security level (AES128)
according to IEEE 802.15.4 (LR-WPAN) standard
Performance 150 m far eld, in point to point communication
+5°C to +45°C
Safety instructions
Strictly comply with instructions for installation and use.

Alimentación 1 batería de litio CR2032, 3 V
Tecnología Radiofrecuencia 2,4 GHz (16 canales) – Velocidad: 250 kb/s Red inalámbrica mallada, autoadaptativa y protegida
(AES 128), según la norma IEEE 802.15.4 (LR-WPAN)
Rendimiento Alcance: 150 m en campo libre punto a punto
+5°C a +45°C
Instruções de segurança
Respeitar rigorosamente as condições de instalação e de utilização.








0 746 85/86/89 - 0 784 29 - 6 651 05/06/10 /




• Características
• Montaje
• Montagem




• Desmontaje
• Desmontagem
• Cambio de la batería
• Mudança da pilha
Pedir por
separado
Encomendar
separadamente
LED de APRENDIZAJE (LEARN)
LED DE MEMORIZAÇÃO (LEARN)
LED de RED (NETW)
LED REDE (NETW)
Tecla de RED (NETW)
LED REDE (NETW) Tecla de APRENDIZAJE (LEARN)
Tecla DE MEMORIZAÇÃO (LEARN)
Tecla de mando C
Tecla de comando C
Tecla de mando B
Tecla de comando B
Tecla de mando A
Tecla de comando A
The directive 1999/5/CE of the european parliament
and of the council of March 9th, 1999
EN 301 489
EN 300 328
CONFORMITY DECLARATION
We declare that the products satisfy the provisions of :
On condition that they are used in the manner intented and/or in accordance with the current installation
standards and/or with the manufacturers recommandations
These provisions are ensured for directive 1999/5/CEE by conformity to the following standards :
Channel availability depends on local country regulations. Wireless LAN system administrator must choose
correct country of operation. Channels are then automatically configured to comply with specified
country's regulations.
6 651 05/06/10
0 746 85/86/89 - 0 784 29
Tecla de mando D
Tecla de comando D
Referencia/Referência Tecla A/Tecla A Tecla B/Tecla B Tecla C/Tecla C Tecla D/Tecla D
6 651 05/0 746 85 Inoperativa/Inoperativo Inoperativa/Inoperativo ON/OFF 1
6 651 06/0 746 86 Inoperativa/Inoperativo Inoperativa/Inoperativo ON/OFF 2 ON/OFF 1
0 746 89 Inoperativa/Inoperativo Variación +/Variação + Variación -/Variação - ON/OFF
6 651 10/0 784 29 Ajuste/Ajuste 0 883 26 Ascenso/Subida Descenso/Descida Parada/Stop
No suministradas
Não fornecidas
• Características
Vida útil de la batería (a 23 ºC):
5 años para 30 pulsaciones diarias o
2 años para 100 pulsaciones diarias
Duração de vida da pilha (a 23°C) :
5 anos para 30 pressões diárias ou
2 anos para 100 pressões diárias.
Consignas de seguridad
Respetar estrictamente las condiciones de instalación y uso.
Alimentação 1 pilha de lítio CR2032, 3 V
Tecnologia Rádio frequência 2,4 GHz (16 canais) – Fluxo: 250 kb/s
Rede sem o malhada, auto-adaptativa e segura (AES 128),
segundo a norma IEEE 802.15.4 (LR-WPAN)
Desempenho Alcance: 150 em campo livre ponto a ponto
+5°C a +45°C

Przepisy bezpieczeństwa
Ściśle przestrzegać instrukcji dotyczących instalacji i użytkowania.








0 746 85/86/89 - 0 784 29 - 6 651 05/06/10 /




• Eigenschaften
• Montage
• Montaż




• Demontage
• Demontaż
• Batteriewechsel
• Wymiana baterii
Getrennt zu
bestellen
Do zamówienia
osobno
LERN LED (LEARN)
DIODA LED NAUKI (LEARN)
NETZWERK LED (NETW)
NETWORK LED (NETW)
NETZWERK Taste (NETW)
Przycisk SIEĆ (NETW) LERN Taste (LEARN)
Przycisk NAUKA (LEARN)
Steuertaste C
Przycisk sterujący C
Steuertaste B
Przycisk sterujący B
Steuertaste A
Przycisk sterujący A
The directive 1999/5/CE of the european parliament
and of the council of March 9th, 1999
EN 301 489
EN 300 328
CONFORMITY DECLARATION
We declare that the products satisfy the provisions of :
On condition that they are used in the manner intented and/or in accordance with the current installation
standards and/or with the manufacturers recommandations
These provisions are ensured for directive 1999/5/CEE by conformity to the following standards :
Channel availability depends on local country regulations. Wireless LAN system administrator must choose
correct country of operation. Channels are then automatically configured to comply with specified
country's regulations.
6 651 05/06/10
0 746 85/86/89 - 0 784 29
Steuertaste D
Przycisk sterujący D
Referenz/Numer Taste A/Przycisk A Taste B/Przycisk B Taste C/Przycisk C Taste D/Przycisk D
6 651 05/0 746 85 Unwirksam/Nieużywany Unwirksam/Nieużywany ON/OFF 1
6 651 06/0 746 86 Unwirksam/Nieużywany Unwirksam/Nieużywany ON/OFF 2 ON/OFF 1
0 746 89 Unwirksam/Nieużywany Variation +/Zmiana + Variation -/Zmiana - ON/OFF
6 651 10/0 784 29 Einstellung/Regulacja 0 883 26 Auf/W górę Ab/W dół Stopp/Stop
Nicht im Lieferumfang enthalten
Nie należy do zestawu
• Charakterystyka
Lebensdauer der Batterie (bei 23°C):
5 Jahre bei 30 täglichen Betätigungen
oder 2 Jahre bei 100 täglichen Betäti-
gungen.
Czas działania baterii (w temp. 23°C):
5 lat przy 30 wciśnięciach dziennie lub
2 lata przy 100 wciśnięciach dziennie.
Sicherheitshinweise
Einbau- und Gebrauchsanleitungen sind genau zu beachten.
Versorgung 1 Lithium Batterie CR2032, 3 V
Technologie
Funkfrequenz 2,4 GHz (16 Kanäle) – Übertragungsrate: 250 Kb/s
Drahtloses Mesh-Netz, selbstabgleichend und sicher (AES 128),
gemäß der Norm IEEE 802.15.4 (LR-WPAN)
Leistung Reichweite: 150 m im freien Raum zwischen zwei Punkten
+5°C bis +45°C
Zasilanie 1 bateria litowa CR2032, 3 V
Technologia Pasmo radiowe 2,4 GHz (16 kanałów) –Przepustowość: 250 kb/s
Sieć bezprzewodowa rozproszona, zabezpieczona (AES 128),
zgodnie z normą IEEE 802.15.4 (LR-WPAN)
Parametry Zasięg: 150 m punkt do punktu, w otwartej przestrzeni
od +5°C do +45°C
