Leica Lino L360 User manual

Leica Lino
L360, L2P5, L2+ , L2, P5, P3

1Start up
Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
User Manual
Version 757665g
English
Congratulations on your purchase of the Leica Lino.
The safety instructions follow the
section on how to operate the
instrument. Before starting up the
instrument for the first time, please
read through the entire User Manual paying special
attention to the section Safety Instructions .
Contents
Start up ................................................................1
Operation.............................................................3
Technical data ...................................................12
Safety instructions ........................................... 14
Start up
Inserting / replacing batteries
Slide the locking button forwards to unlock the
battery compartment. Open the battery compart-
ment cover and insert the batteries, observing the
correct polarity. Then press the battery compartment
cover back down until it engages.
The battery symbol 9 lights up when the battery
voltage is too low. Replace the batteries as soon as
possible.
• Insert the batteries observing the correct polarity
• Use alkaline batteries or rechargeable batteries only
• Remove the batteries if the instrument is not to
be used for a long period of time (to prevent
corrosion)
L2, P3, P5
L2P5, L2+

2
Start up Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
Charging / first-time use
• The battery must be charged prior to first use
because it is delivered with as low an energy
content as possible.
• The permissible temperature range for charging is
between 0°C and +40°C/+32°F and +104°F. For
optimal charging we recommend charging the
batteries at a low ambient temperature of +10°C
to +20°C/+50°F to +68°F if possible.
• It is normal for the battery to become warm
during charging.
1Jack for battery charger
Lino L360
L360
7 h
1

3Operation
Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
Operation

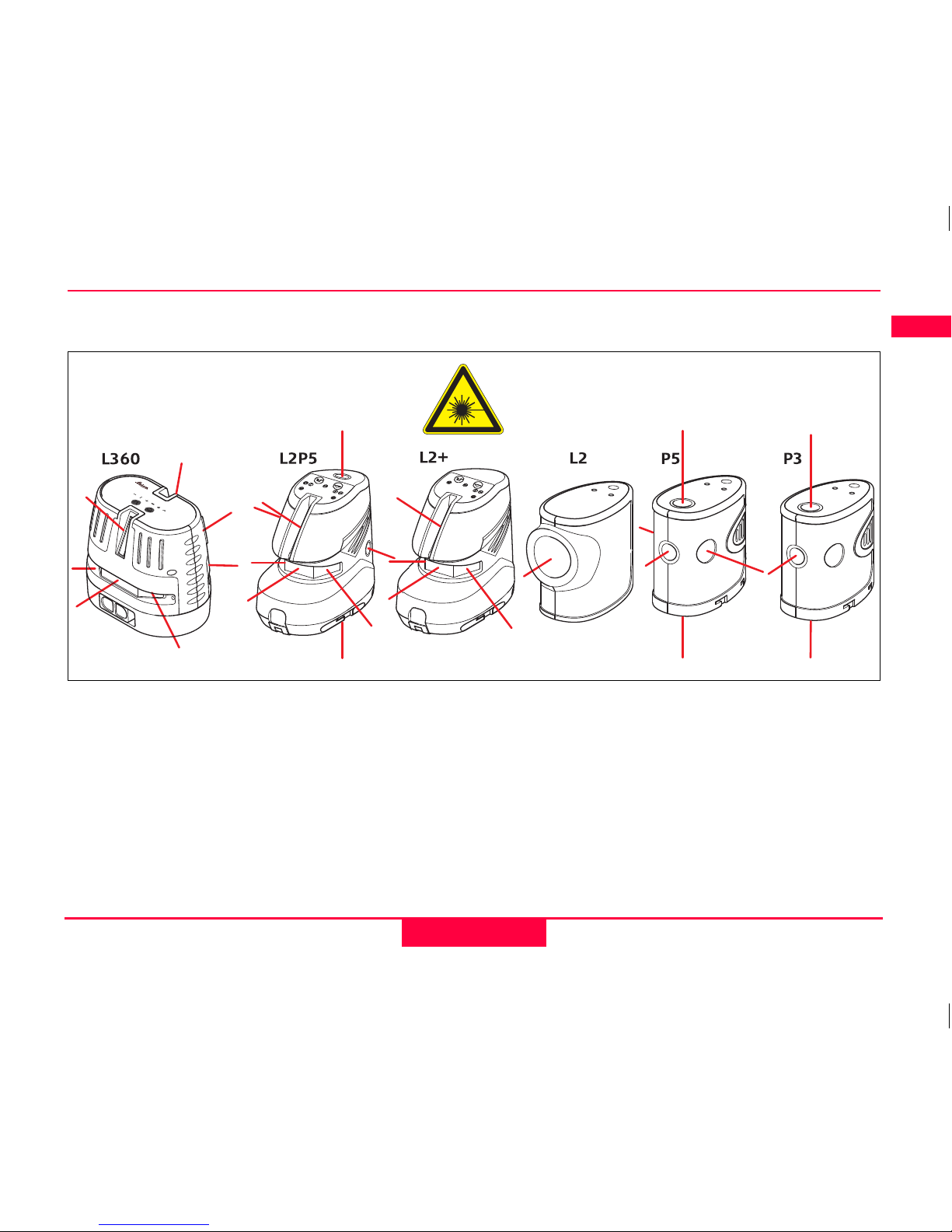

Keypad and control elements
1LASER key
2PULSE/POWER SAVE MODE key
3Lock switch
Display
4Laser crossline
5Horizontal laser line
6Vertical laser line
7Locked
8Pulse/Power save mode ON
9Battery voltage too low
AT Plumbing and crossline intersection point
AK Plumbing point
AL Laser switched on
3
Lino L360
7
647
519 82
5
6
1
8
2
9
Lino L2
+
7
5
6
1
8
10
11
2
9
Lino L2P5
1
2
4
5
67
8
9
Leica Lino L2
12 9
1
Leica Lino P3
Lino L360

4
Operation Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
Switching on/off
Lino L360, L2P5, L2+, and L2:
•ON: Briefly press the LASER key 1.
•OFF: Press and hold down the LASER key 1.
Lino P3 and Lino P5:
•ON: Move the Lock switch 3to the right.
•OFF: Move the Lock switch 3to the left.
Laser functions
Pressing the LASER key 1activates the following laser functions:
Action
L360 L360 L2P5 L2P5
L2 L2+ P3 P5
not in Lock
mode in Lock mode not in Lock mode in Lock mode
1x horizontal and
vertical
only
horizontal
horizontal and
vertical
only
horizontal
horizontal and
vertical
horizontal and
vertical all 3 points all 5 points
2x only
horizontal only vertical all lines and points only vertical only horizontal
only
horizontal
only plumbing
points
only plumbing
points
3x only vertical again as 1x all points again as 1x only vertical only vertical again as 1x
plumbing
point and
right/left
4x again as 1x - only plumbing
point - again as 1x again as 1x - again as 1x
5x - - again as 1x - - - - -

5Operation
Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
Self-levelling and Lock functions
The instrument automatically levels itself within the
specified grade range (Refer to "Technical data") .
Press the Lock switch 3in order to transport or tilt
the instrument beyond the self-levelling range. When
locked, the pendulum is fixed and the self-levelling
function is deactivated.
Pulse/Power save mode
(only Lino L360, L2P5, L2+, and L2)
The instrument is fitted with a Power save mode. If
particularly good visibility of the laser line is not
necessary and you wish to save energy, you can
switch the Pulse mode on and off by pressing the
PULSE/POWER SAVE MODE key 2.
To be able to detect the laser lines over long
distances (> 15 m) or in unfavourable lighting condi-
tions, a laser detector can be used. The detector is
able to locate the laser beam in Pulse mode, even
over long distances.
(Laser detector refer to accessories)

6
Operation Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR

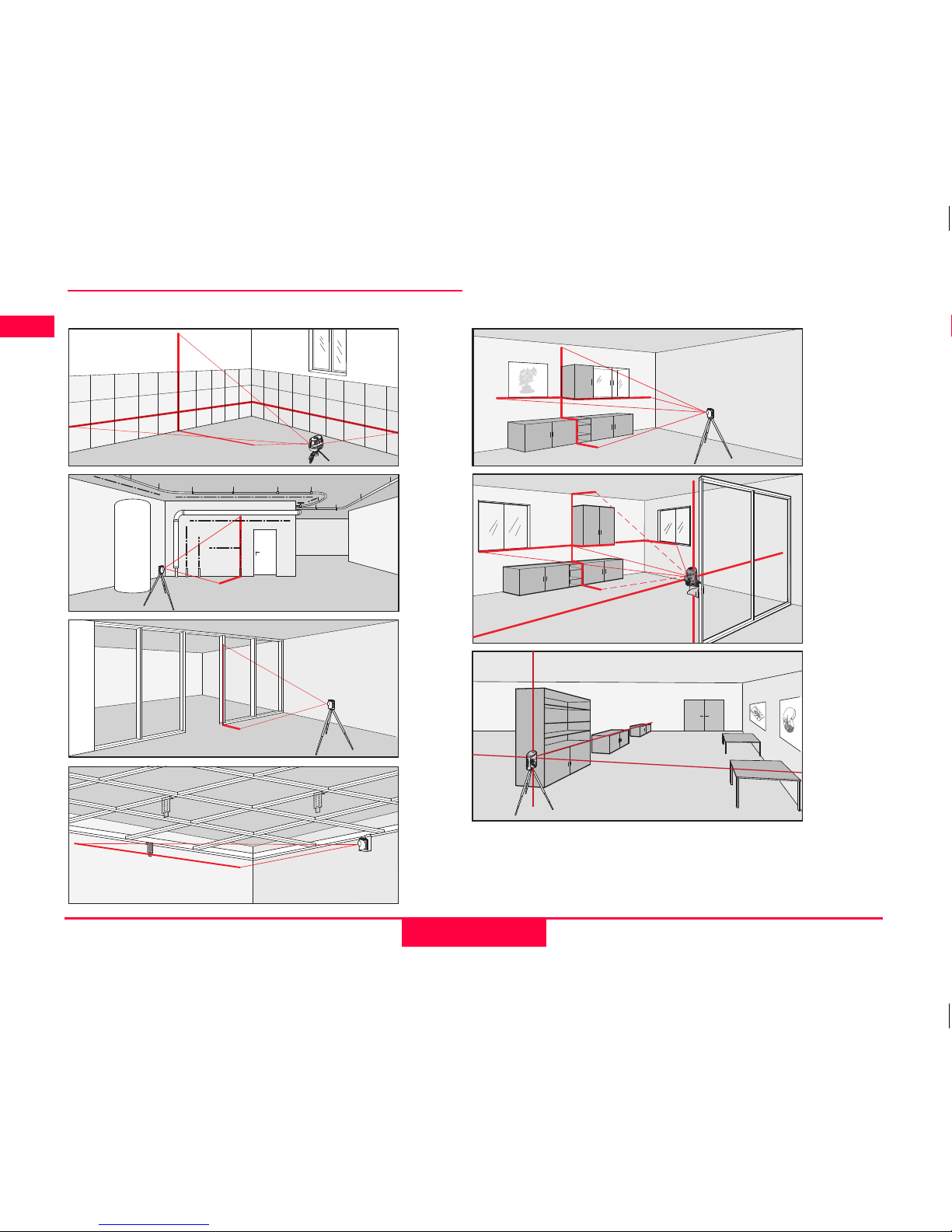

Applications

7Operation
Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
How to use the wall mount bracket:
Lino L360

8
Operation Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
Checking the accuracy of the Leica
Lino
)Check the accuracy of your Leica Lino regu-
larly and particularly before important measuring
tasks.
Checking the accuracy of the levelling
Set the instrument on a tripod half-way between two
walls (A+B) that are approx. 5 m apart.
Place the Lock switch 3in the "Unlocked" ( )
position.
Direct the instrument at wall A and switch on the
instrument. Activate the horizontal laser line or laser
dot and mark the position of the line or the dot on
wall A (-> A1).
Rotate the instrument by 180° and mark the hori-
zontal laser line or the laser dot in exactly the same
way on wall B (-> B1).
Then place the instrument at the same elevation as
close as possible to wall A and again mark the hori-
zontal laser line or the laser dot on wall A (-> A2) .
Rotate the instrument by 180° again and mark the
laser on wall B (-> B2). Measure the distances of the
marked points A1-A2 and B1-B2. Calculate the differ-
ence of the two measurements. If the difference
does not exceed 2 mm, then the Leica Lino is within
tolerance.
| (A1 - A2) - (B1 - B2) | ≤2 mm
A1 B1
2.5 m 2.5 m
A1
A2
B1
B2
5 m

9Operation
Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR

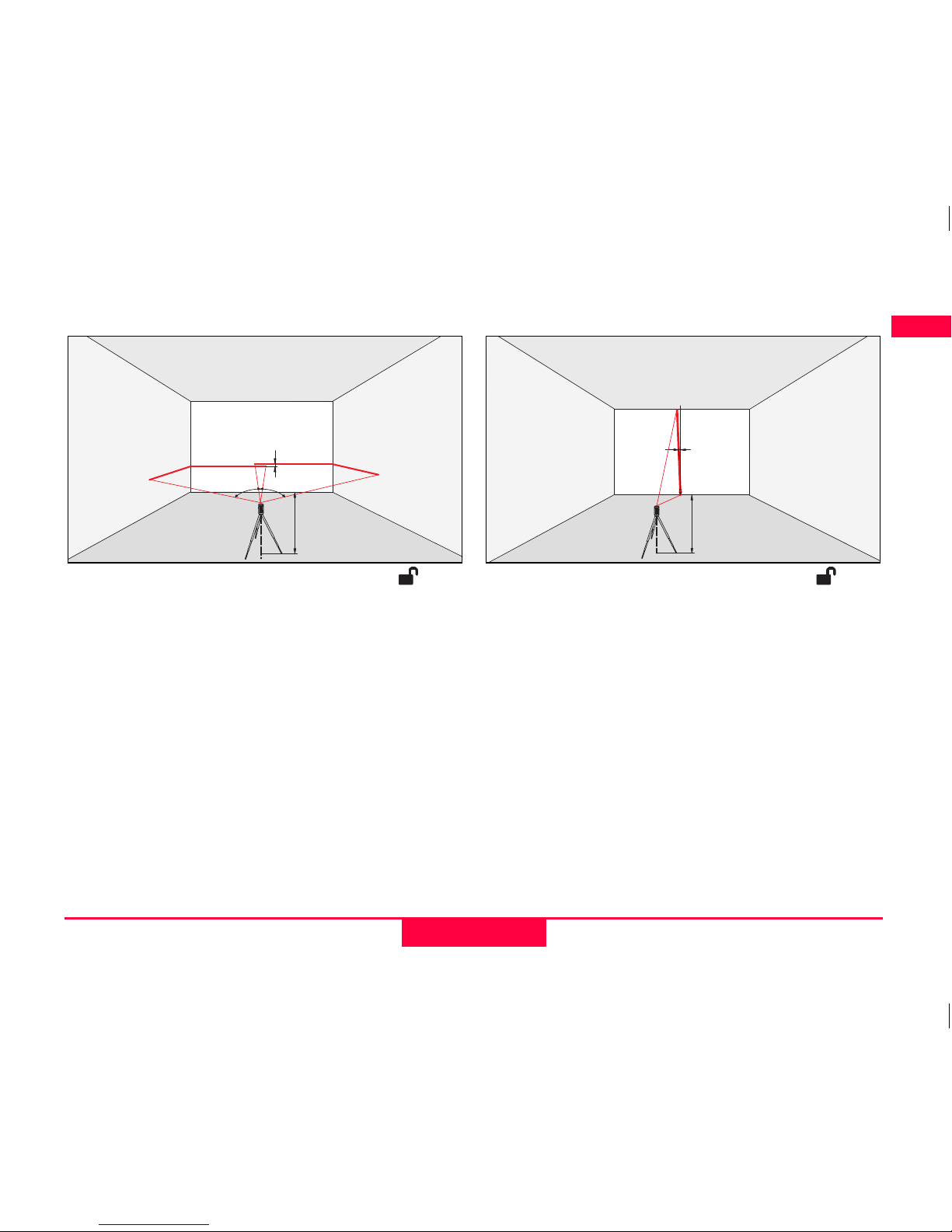

Checking the accuracy of the horizontal line
(only Lino L360, L2P5, L2+, and L2)
Place the Lock switch 3in the "Unlocked" ( )
position.
Position the instrument approx. 5 m away from the
wall. Direct the instrument at the wall and switch on
with the LASER key 1. Activate the laser line with the
LASER key 1and mark the intersection point of laser
crosshairs on the wall.
Swivel the instrument to the right and then to the
left. Observe the vertical deviation of the horizontal
line from the marking. If the difference does not
exceed 3 mm, then the Leica Lino is within tolerance.
Checking the accuracy of the vertical line:
(only Lino L360, L2P5, L2+, and L2)
Place the Lock switch 3in the "Unlocked" ( )
position.
As reference, use a plumb-bob and attach it as close
as possible to an approx. 3 m high wall.
Position the instrument at a distance of approx.
1.5 m from the wall at an elevation of approx. 1.5 m.
Direct the instrument at the wall and switch on with
the LASER key 1. Activate the laser line with the
LASER key 1. Rotate the instrument and align it with
the bottom of the plumb line. Now read off the
maximum deviation of the laser line from the top of
the plumb line. If the difference does not exceed
2 mm, then the Leica Lino is within tolerance.
max.
3 mm
5 m
1.5 m
max.
2 mm

10
Operation Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR

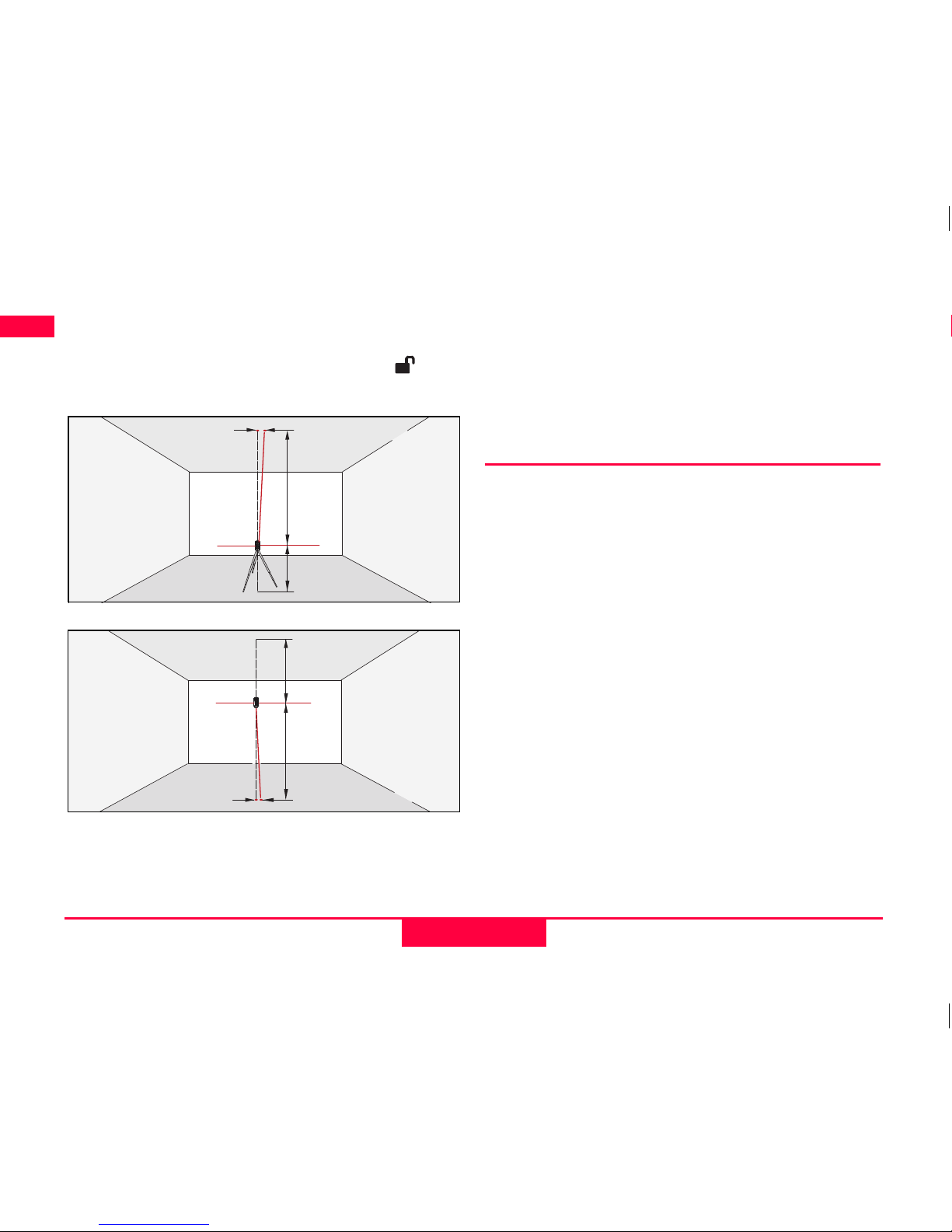

Checking the accuracy of the vertical
plumbing:
(only Lino P3, Lino P5 and Lino L2P5)
Place the Lock switch 3in the "Unlocked" ( )
position.
Checking the upper plumbing point:
Checking the lower plumbing point:
Set up the laser on its tripod or wall mount bracket
near point A1 at a minimum distance of 1.5 m from
point B1. The horizontal laser is aligned in direction 1.
Mark the laser dots A1 and B1 with a pin.
Rotate the instrument by 180° so that it points in the
opposite direction 2 to direction 1. Adjust the instru-
ment so that the laser beam hits point A1 exactly. If
point B2 is no further than 2 mm away from point B1,
then the Leica Lino is within tolerance.
)Should your Leica Lino be outside of the spec-
ified tolerance, please contact an authorised dealer-
ship or Leica Geosystems.
Display notices
Falling below or exceeding the permissible
temperature range:
The laser switches off and all symbols flash.
Outside of the self-levelling range:
The laser switches off and the symbol of the function
used starts to flash.
Pendulum locked:
(only Lino L360, L2P5, L2+, and L2)
The laser beam is not levelled and the Lock symbol 7
lights up.
1
B1
A1
B2
1.5 m
max. 2 mm
2
1
B1
A1
B2
1.5 m
max. 2 mm
2

11 Operation
Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
Care and advice on operation
Do not immerse the instrument in water. Wipe off dirt
with a damp soft cloth. Do not use aggressive
cleaning agents or solvents. Treat the instrument
with the same care that you would apply to binocu-
lars or a camera.
Dropping or violent shaking of the instrument may
damage it. Check the instrument for any damage
before using it. Check the levelling accuracy of the
instrument regularly.
Transport
To safely transport the instrument, set the Lock
switch 3to "Locked" ( ).
Warranty
This product comes with a three* year warranty from
Leica Geosystems.
More detailed information can be found at:
www.leica-geosystems.com/registration
All rights reserved for changes (drawings, descrip-
tions and technical specifications).
*) To receive the three year warranty, the product
must be registered on our website
www.leica-geosystems.com/registration
within eight weeks of the purchase date. If the
product is not registered, a two year warranty
applies.

12
Technical data Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
Technical data
* depending on lighting conditions
All rights reserved for changes (on drawings, descriptions and technical data).
L360 L2P5 L2 L2+ P3 P5
Range up to 15 m*
Range with detector > 30 m -
Levelling accuracy @ 5 m ± 1.5 mm ± 1 mm ± 1.5 mm
Self-levelling range 3.5° ± 0.5° 4° ± 0.5°
Accuracy of plumbing point @ 5 m - ± 1.5 mm - ± 1.5 mm
Accuracy of horizontal line @ 5 m ± 1.5 mm -
Vertical accuracy @ 3 m
line length ± 0.75 mm -
Beam divergence 360°
(horizontal) <180° <120° <180° - -
Number of laser dots - 4 - 3 5
Number of laser lines 2 -
Beam direction vertical,
horizontal
vertical,
horizontal,
up, down,
right, left
vertical, horizontal up, down,
forward
up, down,
forward,
right, left
Laser type 635 nm, laser class II
Batteries NiMH battery pack
(rechargeable)
Type AA
4 x 1.5 V Type AA 3 x 1.5 V Type AA 4 x 1.5 V Type AA 3 x 1.5 V
Protection class spray water / dust IP65 IP54
Operating temperature -10°C to 40°C
Storage temperature -25°C to 70°C
Dimensions (H x D x W) 131.7 x 145 x
96.2 mm
117.8 x
130.7 x
75.4 mm
96 x 91 x
54 mm
117.8 x
130.7 x
75.4 mm 99.1 x 108.1 x 59.3 mm
Weight without batteries 1009 g (with batte-
ries) 370 g 321 g 437.2 g 310 g 320 g
Tripod thread 1/4"

13 Technical data
Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
* depending on lighting conditions
All rights reserved for changes (on drawings, descriptions and technical data).
L360 L2P5 L2 L2+ P3 P5
Range up to 50 ft*
Range with detector > 100 ft -
Levelling accuracy @ 16 ft ± 1/16 “ ± 0.04 in ± 1/16 “
Self-levelling range 3.5° ± 0.5° 4° ± 0.5°
Accuracy of plumbing point @ 16 ft - ± 1/16 “ - ± 1/16 “
Accuracy of horizontal line @ 16 ft ± 1/16 “ -
Vertical accuracy @ 10 ft
line length ± 1/32 “ -
Beam divergence 360°
(horizontal) <180° <120° <180° -
Number of laser dots - 4 - 3 5
Number of laser lines 2 -
Beam direction vertical,
horizontal
vertical,
horizontal,
up, down,
right, left
vertical, horizontal up, down,
forward
up, down,
forward,
right, left
Laser type 635 nm, laser class II
Batteries Type
NiMH battery
pack
(recharge-
able)
Type AA
4 x 1.5 V Type AA 3 x 1.5 V Type AA 4 x 1.5 V Type AA, 3 x 1.5 V
Protection class spray water / dust IP65 IP54
Operating temperature 14°F to +104°F
Storage temperature -13°F to +158°F
Dimensions (H x D x W) 5.19 x 5.71 x
3.79 in 14.6 x 5.1 x 2.95 in 3.8 x 3.6 x 2.1 in 14.6 x 5.1 x 2.95 in 3.9 x 4.25 x 2.3 in
Weight without batteries 35.6 oz (with
batteries) 13.1 oz 11.3 oz 15.4 oz 10.9 oz 11.3 oz
Tripod thread 1/4"

14
Safety instructions Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
NiMH battery pack L360
(rechargeable, Art.No.: 790532)
Safety instructions
The person responsible for the instrument must
ensure that all users understand these directions and
adhere to them.
Symbols used
The symbols used have the following meanings
WARNING:
Indicates a potentially hazardous situation or
an unintended use which, if not avoided, will result in
death or serious injury.
CAUTION:
Indicates a potentially hazardous situation or
an unintended use which,if not avoided, may result in
minor injury and/or appreciable material, financial
and environmental damage.
)Important paragraphs which must be adhered
to in practice as they enable the product to be used
in a technically correct and efficient manner.
Permitted use
• Projection of horizontal and vertical laser lines
and laser dots
Prohibited use
• Using the product without instruction
• Using outside the stated limits
• Deactivation of safety systems and removal of
explanatory and hazard labels
• Opening of the equipment by using tools (screw-
drivers, etc.), as far as not specifically permitted
for certain cases
• Carrying out modification or conversion of the
product
• Deliberate dazzling of third parties; also in the
dark
• Inadequate safeguards at the surveying site.
Limits of use
)Refer to section "Technical data".
The Leica Lino is designed for use in areas perma-
nently habitable by humans. Do not use the product
in explosion hazardous areas or in aggressive envi-
ronments.
Input voltage 7.5 V
Input current 1 A
Charging time 7 h

15 Safety instructions
Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
Areas of responsibility
Responsibilities of the manufacturer of the original
equipment Leica Geosystems AG, CH-9435 Heerbrugg
(for short Leica Geosystems):
Leica Geosystems is responsible for supplying the
product, including the User Manual in a completely
safe condition.
Leica Geosystems is not responsible for third
party accessories.
Responsibilities of the person in charge of the
instrument:
The person in charge of the instrument has the
following duties:
• To understand the safety instructions on the
product and the instructions in the User Manual.
• To be familiar with local safety regulations
relating to accident prevention.
Hazards in use
CAUTION:
Watch out for erroneous measurements if the
instrument is defective or if it has been dropped or
has been misused or modified.
)Carry out periodic test measurements.
Particularly after the instrument has been subject to
abnormal use, and before, during and after important
measurements.
Refer to section "Checking the accuracy of the Leica
Lino".
WARNING:
Flat batteries must not be disposed of with
household waste. Care for the environment and take
them to the collection points provided in accordance
with national or local regulations.
The product must not be disposed of with
the household waste.
Dispose of the product appropriately
in accordance with the national regulations
in force in your country.
Always prevent access to the product by
unauthorised personnel.
Product specific treatment and waste management
information can be downloaded from the Leica
Geosystems home page at
http://www.leica-geosystems.com/treatment or
received from the Leica Geosystems dealer.
WARNING
Using a battery charger not recommended by
Leica Geosystems can destroy the batteries. This can
cause fire or explosions.
Precautions:
Only use chargers recommended by Leica Geosys-
tems to charge the batteries.

16
Safety instructions Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
Electromagnetic Compatibility
(EMC)
WARNING:
The Leica Lino conforms to the most stringent
requirements of the relevant standards and regula-
tions. Yet, the possibility of it causing interference in
other devices cannot be totally excluded.
FCC statement (applic. in U.S.)
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful inter-
ference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be deter-
mined by turning the equipment off and on, the user
is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help
WARNING:
Changes or modifications not expressly
approved by Leica Geosystems for compliance could
void the user’s authority to operate the equipment.

17 Safety instructions
Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
Laser classification
The Leica Lino produces visible laser beams, which are emitted from the instrument:
It is a Class 2 laser product in accordance with:
• IEC60825-1 : 2007 "Radiation safety of laser
products"
Laser Class 2 products:
Do not stare into the laser beam or direct it towards
other people unnecessarily. Eye protection is
normally afforded by aversion responses including
the blink reflex.
WARNING:
Looking directly into the beam with optical aids
(e.g. binoculars, telescopes) can be hazardous.
CAUTION:
Looking into the laser beam may be hazardous
to the eyes.
Lino L360

18
Safety instructions Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR

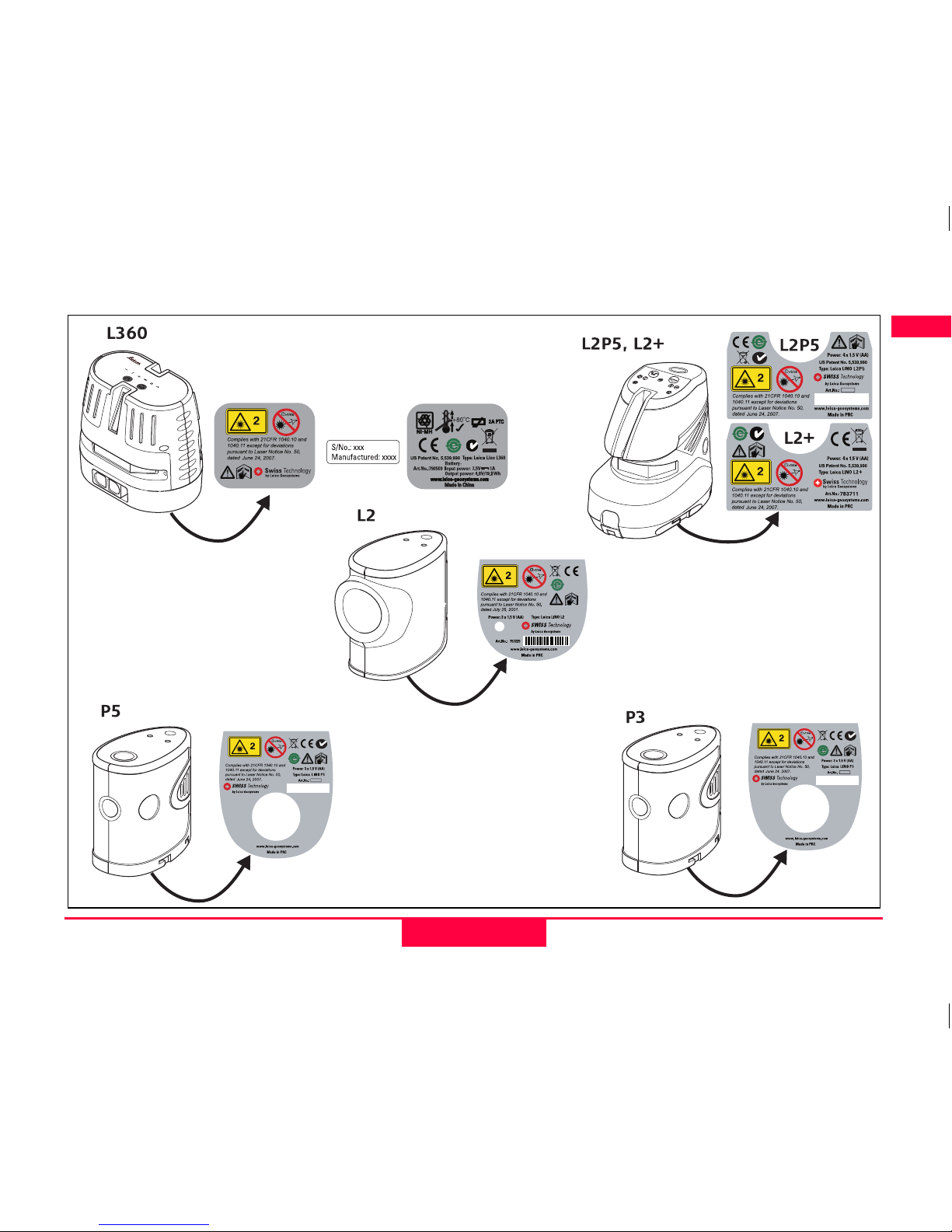

Labelling
L2P5
L2
L2+
P3/P5
Laser Radiation
Do not stare into the beam
Laser class 2
in acc. with IEC 60825-1:2007
Maximum radiation power: <1.0mW c.w.
Emitted wavelength: 620-690nm
Beam divergence < 180°
Laser Radiation
Do not stare into the beam
Laser class 2
in acc. with IEC 60825-1:2007
Maximum radiation power: <1.0mW c.w.
Emitted wavelength: 620-690nm
Beam divergence < 120°
Laser Radiation
Do not stare into the beam
Laser class 2
in acc. with IEC 60825-1:2007
Maximum radiation power: <1.0mW c.w.
Emitted wavelength: 620-690nm
Beam divergence < 180°
Laser Radiation
Do not stare into the beam
Laser class 2
in acc. with IEC 60825-1:2007
Maximum radiation power: <1.0mW c.w.
Emitted wavelength: 620-690nm
Beam divergence <1.5 mrad
Laser Radiation
Do not stare into the beam
Laser class 2
in acc. with IEC 60825-1:2007
Maximum radiation power: <1.0mW c.w.
Emitted wavelength: 620-690nm
Beam divergence <1.5 mrad
Laser Radiation
Do not stare into the beam
Laser class 2
in acc. with IEC 60825-1:2007
Maximum radiation power: <1.0mW c.w.
Emitted wavelength: 620-690nm
Beam divergence < 360°
L360

19 Safety instructions
Leica Lino 757665g en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR
Position of label:
Lino L360
