Leica Disto E7100i User manual

Leica DISTOTM E7100i
The original laser distance meter
Leica DISTOTM E7100i
The original laser distance meter

Leica DISTOTM E7100i 812795 1
ENTable of Contents
Instrument Set-up - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
Insert batteries - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
Attach / Remove clip - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
Operations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Switching ON/OFF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Clear - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Message Codes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Unit setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Measuring Functions - - - - - - - - - - - - - - - - - - - - - - - - 5
Measuring single distance - - - - - - - - - - - - - - - - - - - - - - - - - - 5
Permanent measuring - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
Area - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
Bluetooth®Smart- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
Technical Data - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
Message Codes- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
Care - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
Disposal - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
Warranty- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Symbols used - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Permitted use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Prohibited use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Hazards in use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Limits of use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Areas of responsibility - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
Electromagnetic Compatibility (EMC) - - - - - - - - - - - - - - - - - 10
FCC statement (applicable in U.S.) - - - - - - - - - - - - - - - - - - - 10
Use of the product with Bluetooth®- - - - - - - - - - - - - - - - - - - 11
Laser classification - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
Labelling - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11

Leica DISTOTM E7100i 812795 2
ENInstrument Set-up
Introduction
The safety instructions and the user manual should be read
through carefully before the product is used for the first time.
The person responsible for the product must ensure that all
users understand these directions and adhere to them.
The symbols used have the following meanings:
WARNING
Indicates a potentially hazardous situation or an unintended use
which, if not avoided, will result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation or an unintended use
which, if not avoided, may result in minor injury and/or appreciable
material, financial and environmental damage.
Important paragraphs which must be adhered to in practice as
they enable the product to be used in a technically correct and
efficient manner.
i
Overview
Display
On/Measure
Area / Units
Clear / Off
Bluetooth®

Leica DISTOTM E7100i 812795 3
ENInstrument Set-up
Display
Info
Units
Battery
Main line
Area
Bluetooth®
Insert batteries
Attach / Remove clip
+
+
-
-
i
To ensure a relia-
ble use, do not
use zinc-carbon
batteries.
Change batteries
when battery
symbol is flashing.
click!

Leica DISTOTM E7100i 812795 4
ENOperations
Switching ON/OFF Clear Message Codes
ON
OFF
2 sec
Device is turned
OFF.
i
Press ON button
2 sec to start
continuous laser
mode.
1x
Undo last action.
2x
Leave actual func-
tion, go to default
operation mode.
If the message "InFo" appears with a
number, observe the instructions in
"Message Codes" section.
Example:
Unit setting
0.000 m
0.0000 m
0.00 ft
0‘00‘‘ 1/32
0 in 1/32
2 sec
Switch between the
following units:

Leica DISTOTM E7100i 812795 5

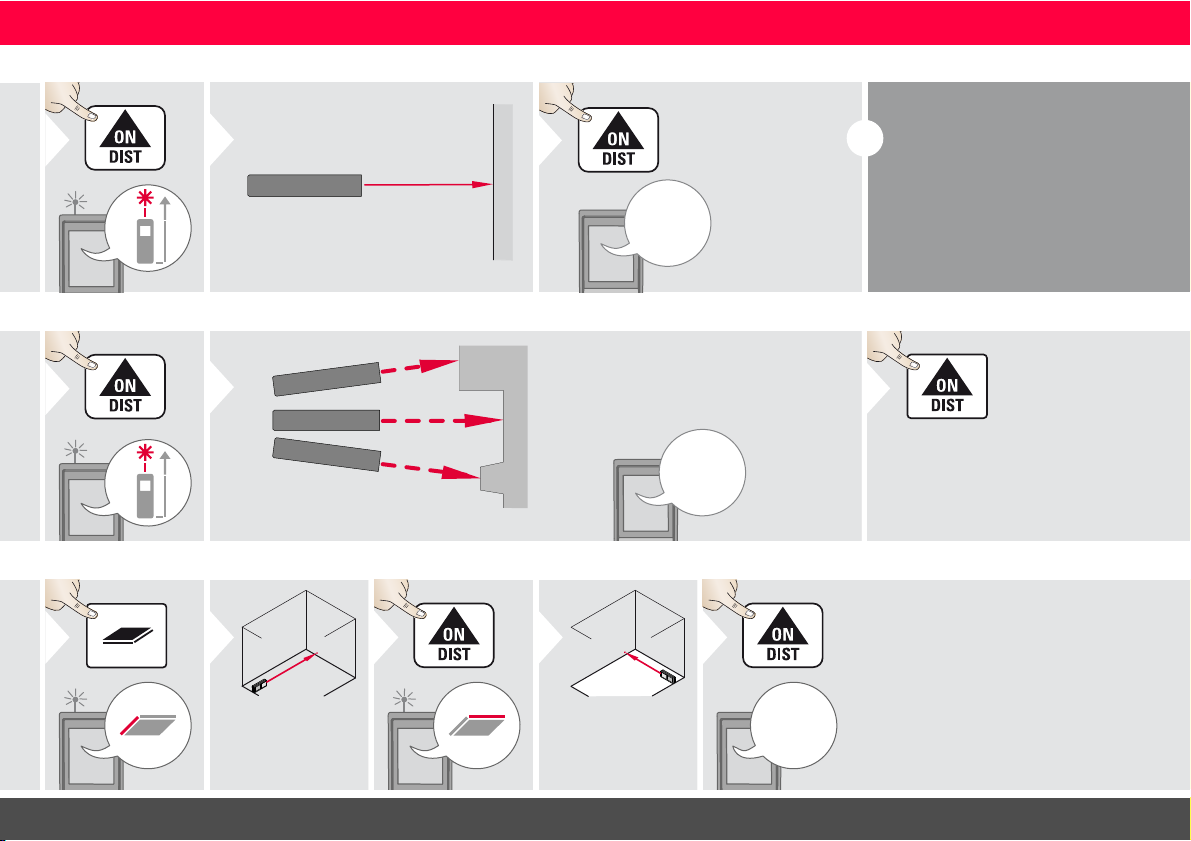

ENMeasuring Functions
Measuring single distance
1
Aim active laser at target.
2
8.532 m
3
i
Target surfaces: Measuring errors
can occur when measuring to
colourless liquids, glass, styrofoam
or permaeble surfaces or when
aiming at high gloss surfaces.
Against dark surfaces the
measuring time increases.
Permanent measuring
1
2 sec
8.532 m
Aim active laser at target.
The last value measured is dis-
played.
2
Stops permanent measuring.
3
Area
1
2
Aim laser at first
target point.
3
4
Aim laser at sec-
ond target point.
24.352 m
2
5

Leica DISTOTM E7100i 812795 6
ENMeasuring Functions
Bluetooth®Smart
I8.462 m
2
Value from main-
line is transferred
Deactivate/Activate Bluetooth®
2 sec
i
App Mode: Use this mode to transfer the data using an App.
Bluetooth®Smart is always active when the device is switched on.
Connect the device with your smart-phone, tablet, laptop,…
Measurement values will be transferred automatically right after a meas-
urement. To tranfer a result from the main line, press the Bluetooth®key.
Bluetooth®switches off as soon as the laser distance meter is switched off.
The efficient and innovative Bluetooth®Smart module (with the new
Bluetooth®standard V4.0) works together with all Bluetooth®Smart
Ready devices. All other Bluetooth®devices do not support the energy
saving Bluetooth®Smart Module, which is integrated in the device.
We provide no warranty for free DISTO™software and offer no support
for it. We accept no liability whatsoever arising from the use of the free
software and we are not obliged to provide corrections nor to develop
upgrades. A wide range of commercial software can be found on our
homepage. Apps for Android®or iOS can be found in special internet
shops.
For more details, see our homepage.

Leica DISTOTM E7100i 812795 7
ENTechnical Data
* applies for 100 % target reflectivity (white painted wall),
low ambient light, 25 ºC
** applies for 10 to 500 % target reflectivity, high ambient
light, - 10 ºC to + 50 ºC
*** Tolerances apply from 0.2 m to 5 m with a confidence
level of 95%. The maximum tolerance may deteriorate to
0.1 mm/m. At unfavorable conditions such as bright
sunlight, targets with poor reflectivity, or high or low
temperatures, the maximum tolerance may deteriorate to
0.15 mm/m above 5m.
**** applies for 100 % target reflectivity, background illumi-
nation of approximately 30'000 lux
General
Typical Measuring Tolerance* ± 1.5 mm / ± 0.06 in ***
Maximum Measuring
Tolerance**
± 3.0 mm / 0.12 in ***
Range at Leica target plate
GZM26
70 m / 230 ft
Typical Range* 0.2-60 m / 0.6-200 ft
Range at unfavourable
condition ****
30 m / 98 ft
Smallest unit displayed 0.1 mm / 1/32 in
Power Range Technology™yes
Laser class 2
Laser type 635 nm, < 1 mW
Ø laser point
at distances
6 /30 / 60 mm
10 / 50 / 100 m
Protection class IP54 (dust- and splash
water protected)
Autom. laser switch off after 90 s
Autom. power switch-off after 180 s
Bluetooth® Smart Bluetooth v4.0
Range of Bluetooth® 10 m
Battery durability (2 x AAA) up to 3000 measure-
ments
Dimension (H x D x W) 120 x 37 x 23 mm
4.72 x 1.46 x 0.91 in
Weight (with batteries) 92 g / 3.25 oz
Temperature range:
-Storage
-Operation
-25 to 70 °C
-13 to 158 °F
-10 to 50 °C
14 to 122 °F
Functions
Distance measuring yes
Permanent measuring yes
Area yes
Beep yes
Bluetooth®Smart yes
Illuminated display yes

Leica DISTOTM E7100i 812795 8
ENMessage Codes
If the message Error does not disappear
after switching on the device repeatedly,
contact the dealer.
If the message InFo appears with a number,
press the Clear button and observe the
following instructions:
Care
•Clean the device with a damp, soft cloth.
•Never immerse the device in water.
•Never use aggressive cleaning agents or
solvents.
Disposal
CAUTION
Flat batteries must not be disposed of with
household waste. Care for the environment
and take them to the collection points
provided in accordance with national or local
regulations.
The product must not be disposed with
household waste.
Dispose of the product appropriately
in accordance with the national regu-
lations in force in your country.
Adhere to the national and country specific
regulations.
Product specific treatment and waste
management can be downloaded from our
homepage.
Warranty
Lifetime Manufacturer's Warranty
Warranty coverage for the entire usage time
of the product according to Leica Geosys-
tems International Limited Warranty. Free of
charge repair or replacement for all products
that suffer defects as a result of faults in mate-
rials or manufacturing, for the entire life of
the product.
3 Years no Cost
Guaranteed service should the product
become defective and require servicing
under normal conditions of use, as described
in the user manual, at no additional charge.
To receive the "3 years no cost" period, the
product must be registered at www.leica-
geosystems.com/registration within 8 weeks
of the purchase date. If the product is not
registered, a "2 years no cost" period applies.
No. Cause Correction
204 Calculation error Perform measurement
again.
240 Data transfer error Repeat procedure.
252 Temperature too high Let device cool down.
253 Temperature too low Warm device up.
255 Received signal too
weak, measuring time
too long
Change target surface
(e.g. white paper).
256 Received signal too high Change target surface
(e.g. white paper).
257 Too much background
light
Shadow target area.
258 Measurement outside of
measuring range
Correct range.
260 Laser beam interrupted Repeat measurement.

Leica DISTOTM E7100i 812795 9
ENSafety Instructions
The person responsible for the instrument
must ensure that all users understand these
directions and adhere to them.
Symbols used
The symbols used have the following mean-
ings:
WARNING
Indicates a potentially hazardous situation or
an unintended use which, if not avoided, will
result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation or
an unintended use which, if not avoided, may
result in minor injury and/or appreciable
material, financial and environmental
damage.
Important paragraphs which must be
adhered to in practice as they enable
the product to be used in a technically
correct and efficient manner.
Permitted use
•Measuring distances
Prohibited use
•Using the product without instruction
•Using outside the stated limits
•Deactivation of safety systems and
removal of explanatory and hazard labels
•Opening of the equipment by using tools
(screwdrivers, etc.)
•Carrying out modification or conversion of
the product
•Use of accessories from other manufac-
turers without express approval
•Deliberate dazzling of third parties; also in
the dark
•Inadequate safeguards at the surveying site
(e.g. when measuring on roads, construc-
tion sites, etc.)
•Deliberate or irresponsible behaviour on
scaffolding, when using ladders, when
measuring near machines which are
running or near parts of machines or instal-
lations which are unprotected
•Aiming directly in the sun
Hazards in use
WARNING
Watch out for erroneous measurements if
the instrument is defective or if it has been
dropped or has been misused or modified.
Carry out periodic test measurements,
particularly after the instrument has been
subject to abnormal use, and before, during
and after important measurements.
CAUTION
Never attempt to repair the product your-
self. In case of damage, contact a local dealer.
WARNING
Changes or modifications not expressly
approved by Leica Geosystems for compli-
ance could void the user’s authority to
operate the equipment.
Limits of use
Refer to section "Technical data".
The device is designed for use in areas
permanently habitable by humans. Do not
use the product in explosion hazardous areas
or in aggressive environments.
i
i

Leica DISTOTM E7100i 812795 10
ENSafety Instructions
Areas of responsibility
Responsibilities of the manufacturer
of the original equipment:
Leica Geosystems AG
Heinrich-Wild-Strasse
CH-9435 Heerbrugg
Internet: www.disto.com
The company above is responsible for
supplying the product, including the User
Manual in a completely safe condition.
The company above is not responsible for
third party accessories.
Responsibilities of the person in
charge of the instrument:
•To understand the safety instructions on
the product and the instructions in the
User Manual.
•To be familiar with local safety regulations
relating to accident prevention.
•Always prevent access to the product by
unauthorised personnel.
Electromagnetic Compatibility
(EMC)
WARNING
The device conforms to the most stringent
requirements of the relevant standards and
regulations.
However, the possibility of causing interfer-
ence in other devices cannot be totally
excluded.
FCC statement (applicable in
U.S.)
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reason-
able protection against harmful interference
in a residential installation.This equipment
generates, uses and can radiate radio
frequency energy and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications.
However, there is no guarantee that interfer-
ence will not occur in a particular installation.
If this equipment does cause harmful interfer-
ence to radio or television reception, which
can be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the
equipment and receiver.
•Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced
radio/TV technician for help.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
•This device may not cause harmful interfer-
ence, and
•this device must accept any interference
received, including interference that may
cause undesired operation.
This device complies with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions:
•This device may not cause interference and
•this device must accept any interference,
including interference that may cause
undesired operation of the device.

Leica DISTOTM E7100i 812795 11
ENSafety Instructions
Use of the product with Blue-
tooth®
WARNING
Electromagnetic radiation can cause distur-
bances in other equipment, in installations
(e.g. medical ones such as pacemakers or
hearing aids) and in aircraft. It can also affect
humans and animals.
Precautions:
Athough this product conforms to the most
stringent standards and regulations, the
possibility of harm to people and animals
cannot totally excluded.
•Do not use the product near petrol
stations, chemical plants, in areas with a
potentially explosive atmosphere and
where blasting takes place.
•Do not use the product near medical
equipment.
•Do not use the product in airplanes.
•Do not use the product near your body for
extended periods.
Laser classification
The device produces visible laser beams,
which are emitted from the instrument:
It is a Class 2 laser product in accordance
with:
•IEC60825-1 : 2007 „Radiation safety of
laser products“
Laser Class 2 products:
Do not stare into the laser beam or direct it
towards other people unnecessarily. Eye
protection is normally afforded by aversion
responses including the blink reflex.
WARNING
Looking directly into the beam with optical
aids (e.g. binoculars, telescopes) can be
hazardous.
CAUTION
Looking into the laser beam may be
hazardous to the eyes.
Labelling
Subject to change (drawings, descriptions
and technical data) without prior notice.
Laser Radiation
Do not stare into the beam
Laser class 2
acc. IEC 60825-1:2007
Maximum radiant power: <1mW
Emitted wavelength: 620-690nm
Beam divergence: 0.16 x 0.6 mrad
Impulse duration: 0.2 x 10
-9
s - 0.8 x 10
-9
s

Survey Instrument Sales
24037 Acacia
Redford, MI 48239
www.surveyinstrumentsales.com
Leica Geosystems AG, Heerbrugg, Switzerland has been certified as being
equipped with a quality system which meets the International Standards of
Quality Management and Quality Systems (ISO standard 9001) and Environ-
mental Management Systems (ISO standard 14001).
Total Quality Management - Our commitment to total customer satisfaction.
Ask your local Leica Geosystems agent for more information about our TQM
program.
Copyright Leica Geosystems AG, Heerbrugg,
Switzerland 2013
Original text (812795 EN)
Pat. No.: WO 9427164, WO 9818019, WO 0244754, WO 0216964,
US 5949531, EP 1195617, US 7030969, WO 03104748,
EP2589980
