LEM 517 User manual

Revised 4/1/07
NOTE: If you grind your meat or sausage only one time, assemble the patty machine head and attach it to
the grinder before you start grinding. If you grind twice, attach the machine head before the second grind.
PATTY AND JERKY MACHINE
517, 517A, 517B, 517C, 517J
1. Remove the retaining ring from the grinder.
2. Attach the appropriate grinder adapter to the grinder using the retaining ring as you would
attach a stuffing tube.
3. Mount the patty machine head (#7) to the adapter and secure it with the winged bolts (#6).
4. Place the meat chute (#12) in position and secure it with the winged bolts (#6).
5. Attach the waxed paper roll (#13) to the patty machine head (#7) using the paper rod (#14) and
winged nuts (#15). Thread the paper between the patty machine and the meat chute. (Make
sure the paper unrolls counter-clockwise from back of roll, wax side up onto the chute.)
6. Pull the paper down the tray about 3”. Start grinding. The extruded meat will push the paper
down the tray.
7. When the meat reaches the end of the tray stop the grinder. Use the scissors to cut patties to
desired size or cut full length and cut to size later. A fast and easy way to have patties all the
same size is to run out full-length patty strips, cut and stack 4 or 5 strips, then cut to size with an
electric knife.
8. To change plates to make ⅜” patties, jerky strips or snack sticks, screw the selected plate onto
the head with two plate attaching screws (#11).
LEM PRODUCTS
4440 Muhlhauser Rd., Suite .300, West Chester, OH 45011
Order Online at www.lemproducts.com ● Toll Free: 877-536-7763 ● Fax: [phone]

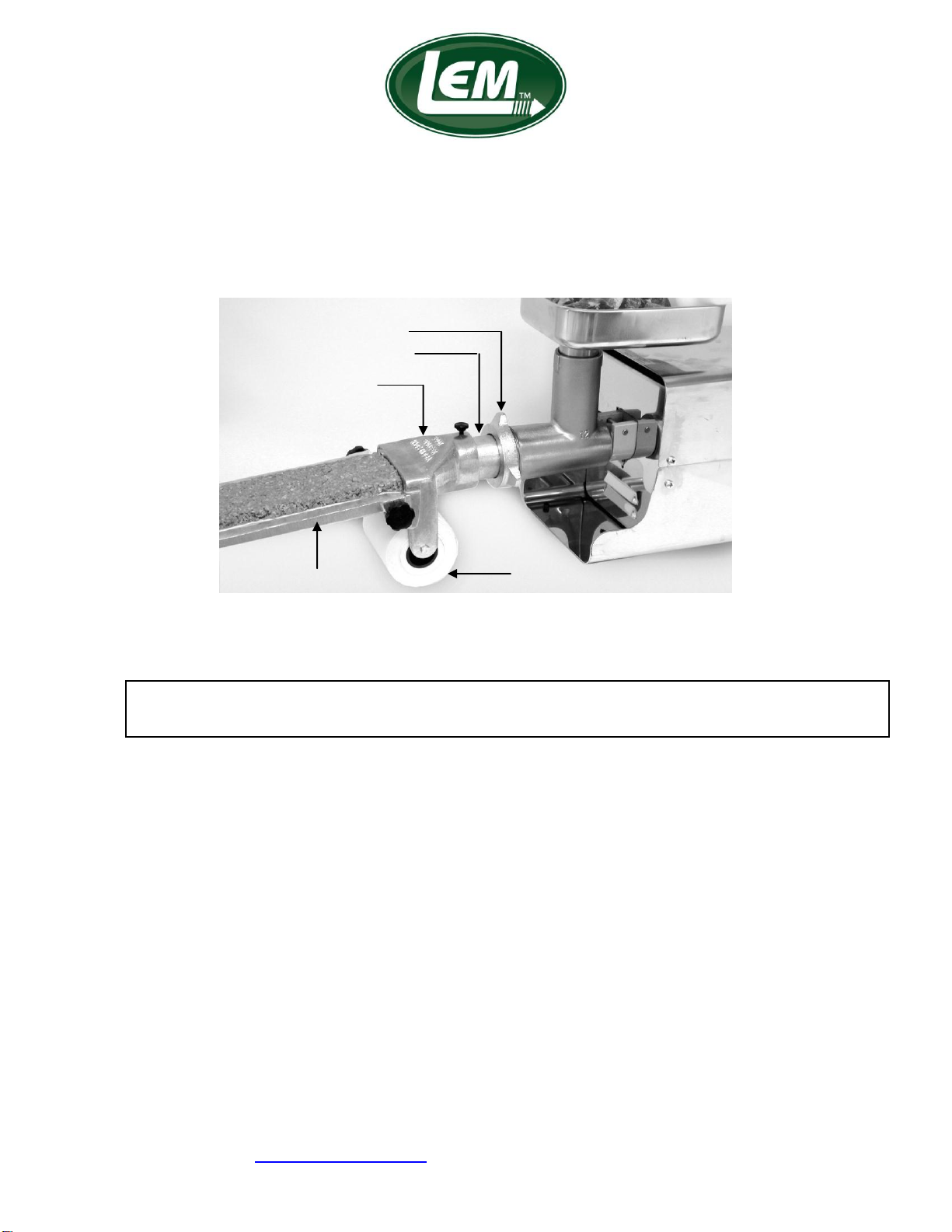

MEAT CHUTE
WAXED PAPER
PATTY MACHINE HEAD
GRINDER ADAPTER
RETAINING RING

Revised 4/1/07
LEM Products
4440 Muhlhauser Rd., Suite 300, West Chester, OH 45011
www.lemproducts.com Toll Free: 877-536-7763
Diagram No.
Part
#5 517J
#8 517
#12 517A
#22 517B
#32 517C
Description
Part #
Part #
Part #
Part #
Part #
1
#8 Grinder Adapter
517-1
2
#5 Grinder Adapter
517J-1
3
#12 Grinder Adapter
517A-1
4
#22 Grinder Adapter
517B-1
5
#32 Grinder Adapter
517C-1
6
Winged Bolt (4)
517-3
517-3
517-3
517-3
517-3
7
Patty Maker Head
517-2
517-2
517-2
517-2
517-2
8
Jerky Plate
517E
517E
517E
517E
517E
9
3/8” Patty Plate
517D
517D
517D
517D
517D
10
Snack Stick Plate
517F
517F
517F
517F
517F
11
Plate Attaching Screw (2)
517-4
517-4
517-4
517-4
517-4
12
Meat Chute
517-5
517-5
517-5
517-5
517-5
13
Waxed Paper
265D
265D
265D
265D
265D
14
Paper Rod for #13
517-6
517-6
517-6
517-6
517-6
15
Wing Nut for #14 (2)
517-15
517-15
517-15
517-15
517-15
16
Scissors (Not Shown)
517-7
517-7
517-7
517-7
517-7
