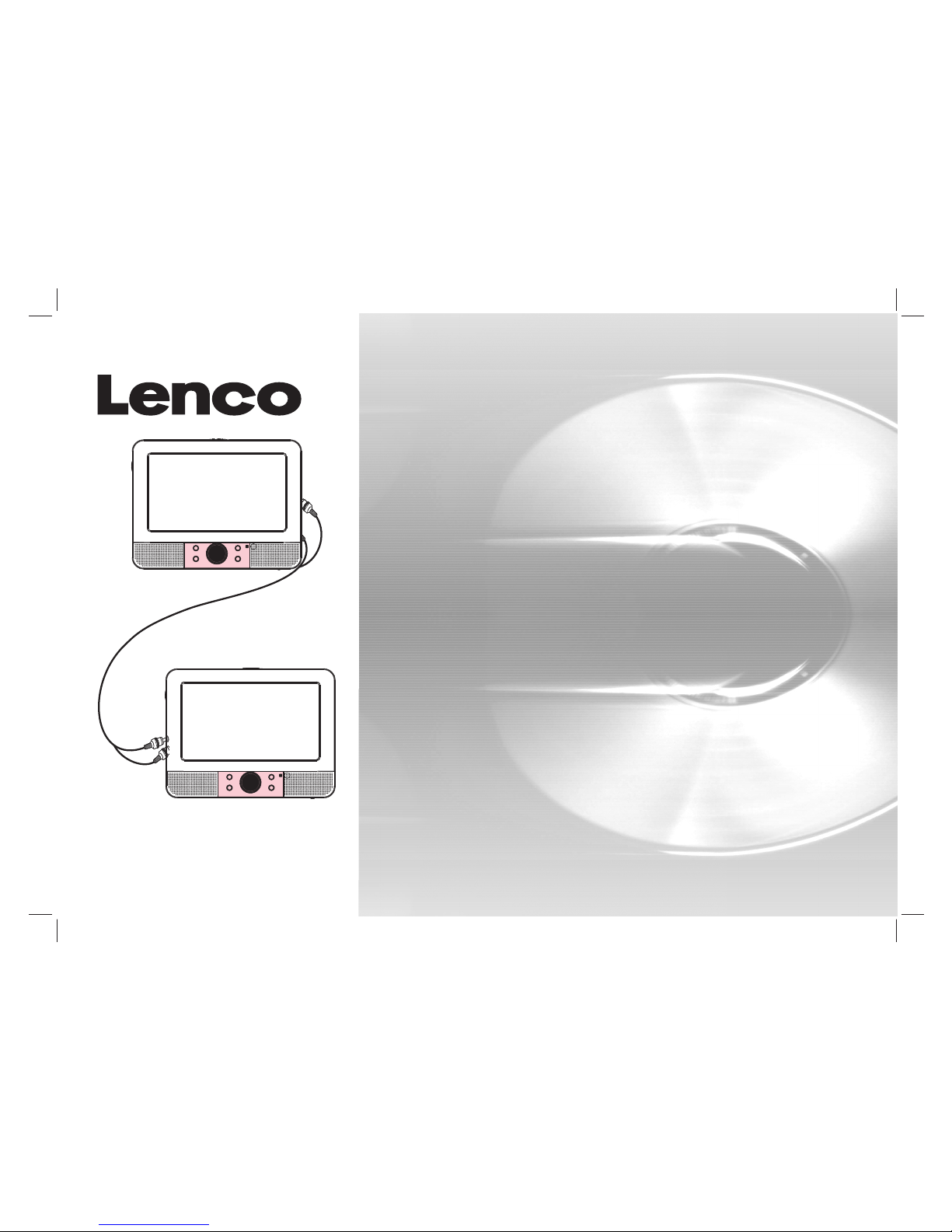

LENCO MES-403 User manual

PORTABLE DVD
Before connecting, operating or adjusting this product,
please read this user's manual carefully and completely.
USER'S MANUAL
MES-403
For information and support,WWW.lenco.eu

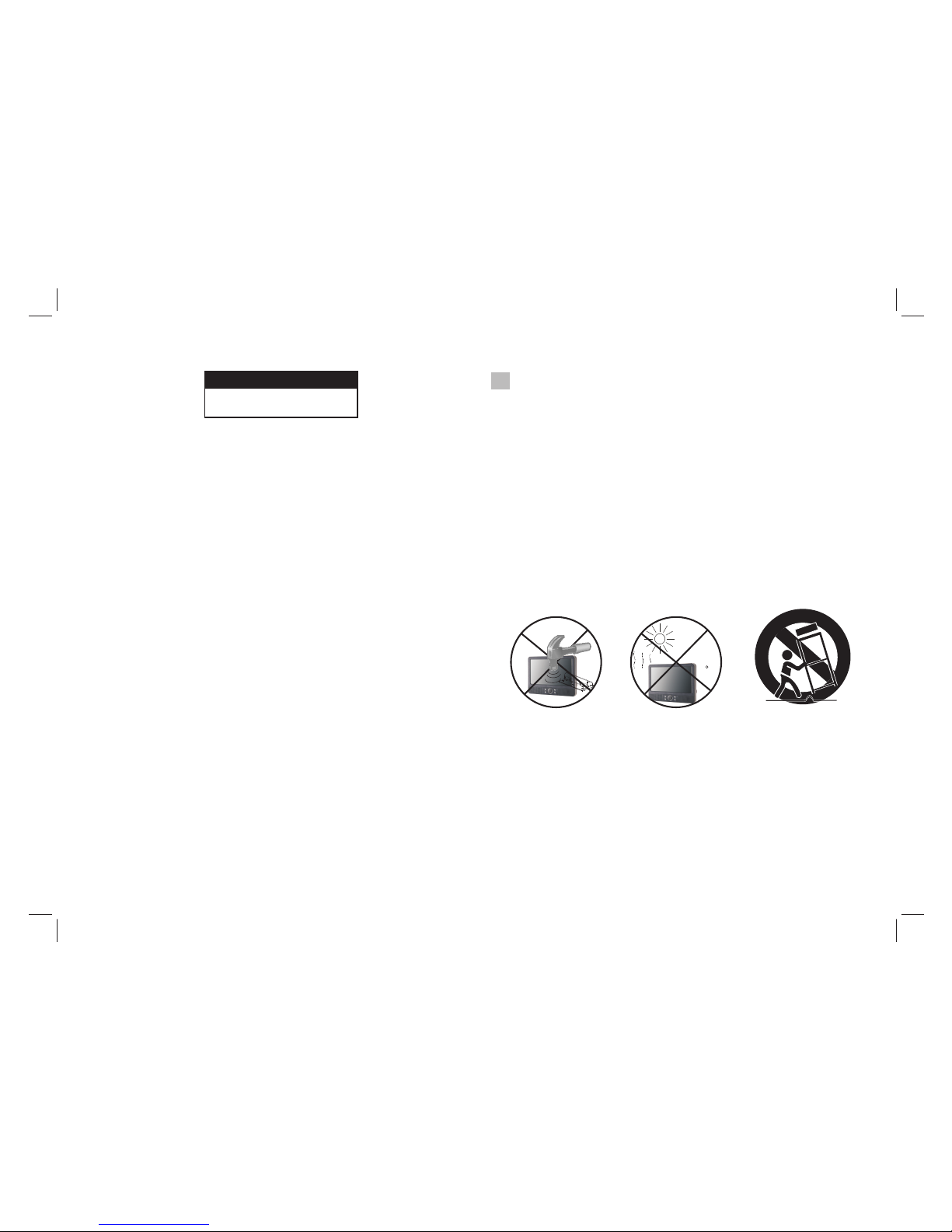

1.Warning: To reduce the risk of electric shock, do not remove
the cover or back. There are no user-serviceable parts inside.
Refer servicing to qualified personnel.
2.Warning: To prevent fire or electric shock hazard, do not
expose the unit to rain or moisture.
3.Do not expose the Adaptor and portable DVD to water
(dripping or splashing) and no objects filled with liquids, such as
vases, should be placed on the unit.
4.Keep the portable DVD away from direct sunlight and heat
source such as radiators or stoves.
5.Do not block the ventilation openings. Slots and openings on
the unit are provided for ventilation. The openings should never
be blocked by placing your portable DVD on a cushion, sofa or
other similar surface.
6.Do not place the portable DVD on unstable cart, stand, tripod,
bracket or table. The unit may fall, resulting in possible damage
or injury.
7.Never place heavy or sharp objects on the LCD panel or frame.
8.Only use the AC adapter included with portable DVD. Using
any other adapter will void your warranty.
9.The plug of AC adaptor is used as the disconnect device, the
disconnect device shall remain readily operable.
10.Unplug the power from the outlet when the unit is not in use.
11.WARNNING: Excessive sound pressure from earphones or
headphones can cause hearing loss.
This marking indicates that this product
should not be disposed with other
household wastes throughout the EU. To
prevent possible harm to the environment
or human health from uncontrolled waste
disposal, recycle it responsibly to promote
the sustainable reuse of material
resources. To return your used device,
please use the return and collection
systems or contact the retailer where the
product was purchased. They can take this
product for environmental safe recycling.
1
Important Safety Instructions
12.WARNNING: Only use attachments/accessories specified
provided by the manufacturer, the portable DVD is supplied by
AC adapter, the AC adapter is used as disconnect device, the
disconnect device shall remain readily operable.

NNotes on Copyrights:
7. It is forbidden by law to copy, broadcast, show,broadcast via
cable, play in public, or rent copyrighted material without
permission.
8. This product features the copy protection function developed by
Macrovision.Copy protection signals are recorded on some discs.
When recording and playing the pictures of these discs picture
noise will appear.This product incorporates copyright protection
technology that is protected by method claims of certain U.S.
Patents and other intellectual property rights owned by Macrovision
Corporation and other rights owners.Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless
otherwise authorized by macrovision Corporation. Reverse
engineering or disassembly is prohibited.
2
Safety Precautions
N
5.Warning: when the unit using by child, parents must make sure
to let the child understand all contents in Instruction book.
6.Warning: more than 250mm USB extension cord is prohibited
to use for USB port
1.Warning: This digital video disc player employs a laser system.
Use of controls,adjustments, or the performance of procedures
other than those specified herein may result in hazardous
radiation Exposure.
2.Warning: To prevent direct exposure to laser beam,do not open
the enclosure.Visible laser radiation when open.
3.Warning: Never stare directly into the laser beam.
4.Caution: Do not install this product in a confined space such
as a book case or similar unit.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
over
heat
40 C
strong
impact

Mounting in the Vehicle
Use the supplied car mounting straps to install the main unit
and monitor on the back of the vehicle's headrests.Tightly
wrap the mounting strap around the headrest.
Dear Customer:
Thank you for purchasing this Portable DVD player .
When opening the box for the first time, please check whether all
the accessories are present. Before connecting parts and power,
please carefully read the user manual and always keep
theseinstructions close by your Portable DVD player.
Box content:
1 x main unit
1 x slave unit
1 x Remote control including battery
1 x AC adapter
1x Car Adaptor
Straps
Note: if some parts are missing please contact your dealer as soon
as possible.
3

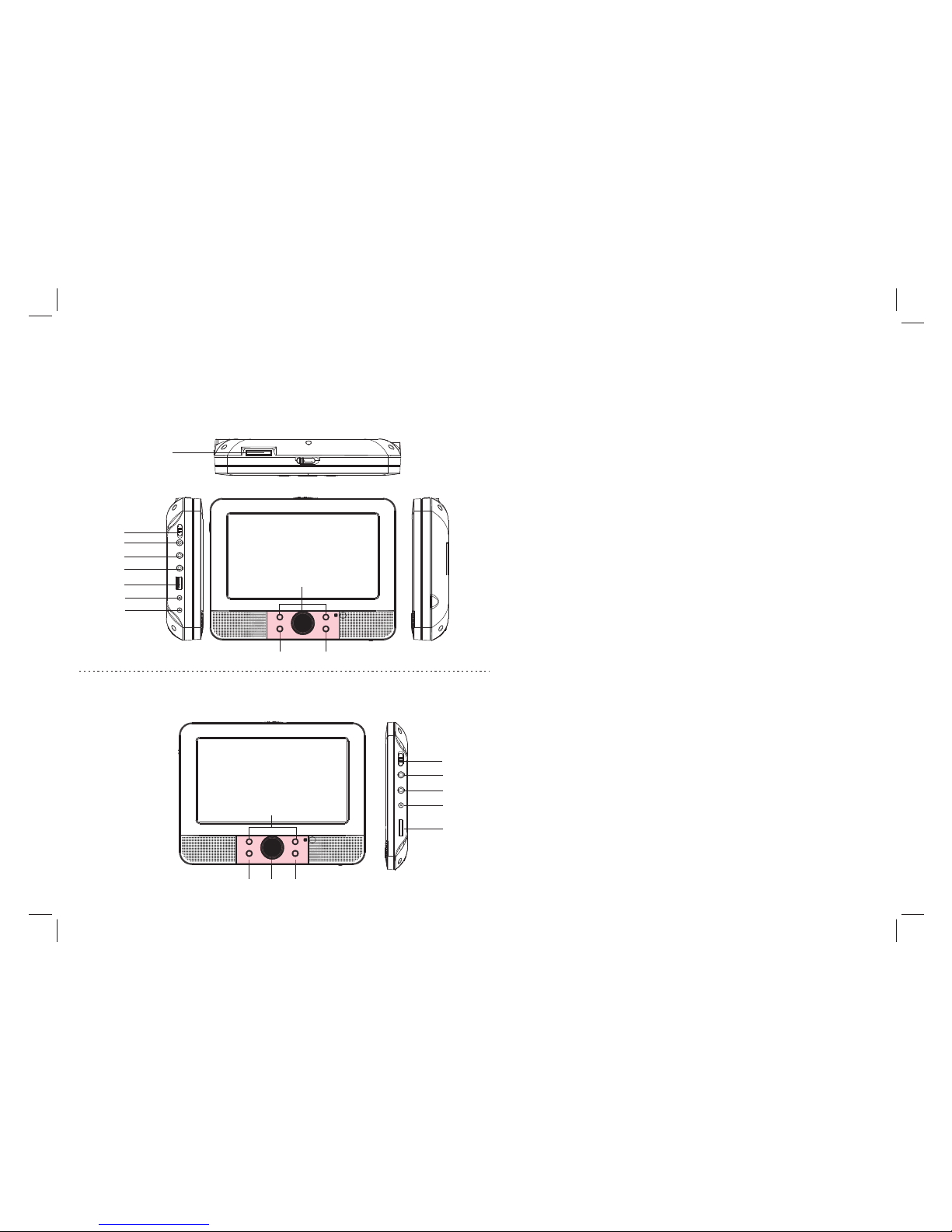

Identification of Controls
Main Unit
4
1.SD/MS/MMC
2. POWER ON/OFF
3. HEADPHONE OUT JACKS
4. VIDEO/AUDIO OUT
5. DIGITAL AUDIO OUT (COAXIAL)
6.USB
7. DC OUT
8. DC IN 9-12V
9. ENTER
10. UP/DOWN/LEFT/RIGHT
11. SOURCE
12. UP/DOWN
13. MODE
Slaver TFT menu setting.
14. LEFT/RIGHT
15.BACK LIGHT
Slaver TFT backlight switch.
16. POWER ON/OFF
17. AV IN
18. HEADPHONE OUT JACKS
19. DC IN
20. Volume Rotary
MASTER TFT SCREEN
SLAVER TFT SCREEN
1
2
3
4
5
6
7
8
9
10
11
16
17
18
19
20
15 12 13
14

5
Remote control unit
Identification of Controls
1. SOURCE
DVD/CARD/USB.
3.0-9 NUMBER BUTTON
Selects numbered items in a menu.
4.DISPLAY
To display the playtime and status information.
2. MUTE
Disable Audio output.
5.10+ BUTTON
In order to select a track 10 or greater, first press 10+, For example;
select track 12, first press 10+, and then press number 2 button.
6. MENU/PBC
Return to DVD root menu(DVD).
PBC on/off switch (VCD) .
7.AUDIO
DVD:Press AUDIO repeatedly during playback to hear a different
audio language or audio track, if avilable.
MP3/CD/VCD:Press AUDIO repeatedly during playback to
hear a different audio channel ( Left,Right,Mix,Stereo).
10.MODE
Set LCD parameter(adjust bightness, contrast,and saturation).
14. BUTTON
Press BUTTON allow skipping ahead at 5-level speed(X2->X4->
X8->X16->X32->PLAY), press PLAY button return to normal playback.
8.PLAY/PAUSE
Press PLAY/PAUSE once to pause playback, pressing PLAY/
PAUSE second time will resume the playback.
13.Reverse Skip
Go to previous chapter/ track to the beginning.
12.Forward Skip
Go to next chapter/ track.
9.STOP
When this buttom is pressed once, the unit records the stopped
point,from where playback will resume if PLAY( )is pressed after
wards. But if STOP button is pressd again instead of PLAY( )
button, there will be no resume function.
11.VOL+
1 2 34
5678
9 0 10+
REPEAT
TITLE
ENTER
MODE
SUBTITLE
AUDIO
MUTE
SOURCE
STEP
DISPLAY
MENU
/PBC
VOL+VOL-
SLOW
ZOOM
16
17
2
1
3
4
5
7
8
9
10
11
12
13
14
15
27
26
25
24
23
22
21
20
18
19 6

Identification of Controls
6
Remote control unit
17.SEARCH
Goto time point , title or chapter you want in DVD Mode.
15. BUTTON
Press BUTTON allow skipping back at 5-level speed(X2->X4->
X8->X16->X32 PLAY), press PLAY button return to normal playback.->
16.STEP
Step the motion in DVD mode.
22.SETUP
Accesses or removes setup menu.
18.SUBTITLE
Press SUBTITLE repeatedly during playback to hear a different
subtitle languages.
20.TITLE
Return to DVD title menu
21.ENTER
Confirms menu selection..
24.REPEAT
Press REPEAT during playback to select a desired repeat mode.
DVD: you can play select repeat chapter/title/off.
VCD: you can select repeat single/all/off.
CD/MP3: you can select repeat single/folder/off.
19.ANGLE
DVD:Press ANGLE will change the view angle, on DVDs that
support this feature.
25.SLOW
Press Slow button repeatedly to enter slow playback, and cycle
between different speeds. The speeds are 1/2,1/4,1/8,1/16,and
normal.
26.PROGRAM
DVD/VCD:The program function enables you to store your
favourite tracks from the disc. Press PROGRAM button ,then
PROGRAM MENU will appear on screen, now you can use the
number key to direct input the titles,chapters or tracks number and
select PLAY option. TO resume normal playback, press PROGRAM
and select clear program option on the program menu,press
PROGRAM again to exit program menu.
Adjust volume
23.VOL-
DVD/VCD: Use ZOOM to enlarge or shrink the video image.
1.Press ZOOM during playback or still playback to activate the
Zoom function. The square frame appears briefly in the right bottom
of the picture.
2. Each press of the ZOOM button changes the TV screen in the
following sequence:
JPEG: Use ZOOM to enlarge or shrink the picture.
1.Press 'ZOOM' .
2,Used " " to enlarge,or " " to shorten the picture.
Use the button to move through the zoomed picture.
27.ZOOM

Setup Menu Setting
General Setup Page
7
OSD Language
You can select your own preferred language seetings.
TFT DISPLAY:Selects the TFT display to 16:9 or 4:3.
Angle Mark
Displays current angle setting information on the right hand corner
of the TFT screen if available on the disc.
Closed Captions
Closed captions are data that are hidden in the video signal of some
discs.Before you select this function,please ensure that the disc
contains closed captions information and your TV set also has this
function.
Screen Saver
This function is used to turn the screen saver On or Off.
Audio Setup Page
Audio Setup Page
-- --
DOWNMINX STR
DOLBY DIGITAL
LT/RT
SPDIF/OFF
SPDIF/RAW
SPDIF/PCM
DUAL MONO
DYNAMIC
STR STR
L-MONO
R-MONO
MIX-MONO
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
FULL
OFF
-
Press SETUP button to get the setup menu. Use direction buttons
to select the preferred item. After finishing settings, press
SETUP again to normal display.
The following menu items can be changed:
GENERAL: selects the GENERAL PAGE menu.
AUDIO: selects the AUDIO PAGE menu.
VIDEO: selects the VIDEO PAGE menu.
PREFERENCE : selects the PREFERENCE PAGE menu.
PASSWORD: selects the PASSWORD PAGE menu.
General Setup Page
- - GENERALSETUP PAGE - -
GOTO GENERAL SETUP PAGE
TV DISPLAY WIDE
TFT DISPLAY 16:9
ANGLE MARK ON
OSD LANGUAGE ENG
CLOSED CAPTIONS ON
SCREEN SAVER ON
4:3 PANSCAN
4:3 LETTERBOX
16:9
ON
OFF
ENGLISH
FRENCH
GERMAN
SPANISH
DUTCH
POLISH
HUNGARIAN
ON
OFF
ON
OFF
TV DISPLAY: selects the aspect ratio of the playback picture.
4:3 PANSCAN: if you have a normal TV and want both sides of the
picture to be trimmed or formatted to fit your TV screen.
4:3 LETTERBOX: if you have a normal TV. In this case, a wide
picture with black bands on the upper and lower portions of the TV
screen willbe displayed.
16:9:wide screen display.
- - - -AUDIO SETUP PAGE
GO TO AUDIO SETUP PAGE
DIGITAL OUTPUT RAW STEREO
TFT 16:9
TFT 4:3

Setup Menu Setting
8
Video Setup Page
Video Setup Page
- - VIDEO SETUP PAGE - -
GOTO VIDEO SETUP PAGE
BRIGHTNESS 00
CONTRAST 00
HUE 00
SATURATION 00
Brightness,Contrast,Hue,Saturation:setting the video quality.
Preference Page
Preference Page
- - PREFERENCE SETUP PAGE - -
GOTO PREFERENCE PAGE
TV TYPE PAL
AUDIO ENG
SUBTITLE ENG
DISC MENU ENG
PARENTAL
DEFAULT
PAL
AUTO
NTSC
ENGLISH
FRENCH
GERMAN
SPANISH
DUTCH
POLISH
HUNGARIAN
OTHERS
1 KID SAF
2 G
3 PG
4 PG13
5 PGR
6 R
7 NC17
8 ADULT
RESET
TV Type
Selecting the colour system that corresponds to your TV when AV
outputs.This DVD Player is compatible with both NTSC and PAL.
Downmix
This options allows you to set the stereo analog output of your
DVD Player.
Audio Setup Page
LT/RT :Select this option if your DVD Player is connected to a
Dolby Pro Logic decoder.
Stereo :Select this option when output delivers sound from only
the two front speakers.
Dolby digital
The options included in Dolby Digital Setup are: and
'Dynamic '.
'Dual Mono '
Dual Mono
Stereo:Left mono sound will send output signals to Left speaker
and Right mono sound will send output signals to Right speaker.
L-Mono:Left mono sound will send output signals to Left speaker
and Right speaker.
R-Mono:Right mono sound will send output signals to Left speaker
and Right speaker.
Mix-Mono:Left and Right mixed mono sound will send output
signals to Left and Right speakers.
Dynamic
Dynamic range compression.
ENGLISH
FRENCH
GERMAN
SPANISH
DUTCH
POLISH
HUNGARIAN
OTHERS
ENGLISH
FRENCH
GERMAN
SPANISH
DUTCH
POLISH
HUNGARIAN
OFF
OTHERS
Digital Output
The function is used to select the SPDIF Output:SPDIF Off,SPDIF
/RAW,SPDIF/PCM.
SPDIF Off: Turns off the SPDIF output.
SPDIF/RAW: If you have connected your DIGITAL AUDIO OUT
to a multi-channel decoder/receiver.
SPDIF/PCM: Only if your receiver is not capable of decoding
multi-channel audio.

Setup Menu Setting
9
Password: select the menu password change page.
Password Setup Page
OLD PASSWORD
NEW PASSWORD
CONFIRM PWD
OK
OLD PASSWORD: Enter the OLD password, (Factory setting is
1369), and the cursor will jump automatically to
NEW PASSWORD
.
NEW PASSWORD: Enter the NEW password. Enter 4 digits from
the remote control unit numeric buttons, and the
cursor will automatically jump to CONFIRM PASSWORD.
CONFIRM PASSWORD: Confirm the NEW password by entering
it again. If the confirmation is incorrect, the cursor
will stay in this column. After entering, the correct new password
again, the cursor will jump automatically to OK.
OK: When cursor is on this button, press ENTER key to confirm
setting.
PAL - Select this if the connected TV is PAL system.It will change the
video signal of a NTSC disc and output in PAL format.
NTSC-Select this if the connected TV is NTSC system.It will change
the video signal of a PAL disc and output in NTSC format.
Auto:Chang the video signal output automatic according to the
playing disk format.
Preference Page
Audio:Selects a language for audio (if available).
Subtitle:Selects a language for subtitle (if available).
Disc Menu:Selects a language for disc menu (if available).
Parental
Some DVDs may have a parental level assigned to the complete disc
or to certain scenes on the disc.This feature lets you set a playback
limitation level.The rating levels are from 1 to 8 and are country
dependent. You can prohibit the playing of certain discs that are not
suitable for your children or have certain discs played with alternative
scenes.
Default:Back to the factory setting.
Password Setup Page
Password Setup Page
- - PASSWORD SETUP PAGE - -
GOTO PASSWORD SETUP PAGE
PASSWORD MODE ON
PASSWORD
ON
OFF
Password mode: Set password mode on/off. If set to off, change
parental level will not check password.
Note: If the password has been changed, the parentaland disc
lock code will also be changed.
The default password(1369)is always active even the password
has been changed.

Picture Page
50
50
50
BRIGHT
CONTRAST
COLOR
L ANG ENGLISH
Z00M 16:9
Brightness
Adjust screen Bright Setting.
Contrast
Adjust screen Contrast Setting.
Color
Adjust screen Color Setting.
LANG
Adjust Menu OSD Language
ZOOM
Adjust screen ZOOM 16:9 or 4:3
10
Slaver TFT Menu Setting
Item Standard requirement
Output
Audio :Speaker:1WX2, output, Coaxial outputHeadphones
Electronical parameters
VIDEO OUT
AUDIO OUT :1.0 Vrms (1 KHz, 0 dB)
Power requirements
Power consumption
Operating humidity
: AC 100-240 V , 50/60 Hz
: <15W
: 5 % to 90 %
System
Laser :Semiconductor laser, wavelength 650 nm
Signal system : NTSC / PAL
Frequency
response
Signal-to-noise ratio :More than 80 dB (ANALOG OUT connectors only)
Dynamic range :More than 80 dB (DVD/CD)
Note: Design and specifications are subject to change prior notice.
: 20Hz to 20 kHz(1dB)
Parameters and specifications
