LENCO CR-3306 BT User manual

CR-3306 BT
FM Radio with Bluetooth®
User manual
www.lenco.com
20121112 v1.0

2
Table of content
What’s in the box? ...................................................................................................... 4
Exploring the device ................................................................................................... 5
Top view............................................................................................................................ 5
Front view.......................................................................................................................... 5
Rear view........................................................................................................................... 6
Getting started............................................................................................................ 7
Where to install.................................................................................................................. 7
Connecting the device to the mains................................................................................... 7
Basic settings ............................................................................................................. 8
Setting the clock ................................................................................................................ 8
Pair & Play™, connecting a Bluetooth® device.................................................................. 8
Adjust the brightness of the display.................................................................................... 9
Basic Operation.......................................................................................................... 9
Basic Features................................................................................................................... 9
Power on/off the device................................................................................................................ 9
Adjust the speaker volume.......................................................................................................... 9
Select the input source ................................................................................................................ 9
Setting the alarm clock....................................................................................................... 9
Snooze, interrupt the alarm...............................................................................................10
Disable the alarm for 24 hours..........................................................................................10
Disable the alarm..............................................................................................................10
Radio mode......................................................................................................................10
Turning the radio on..........................................................................................................10
Finding a station / frequency.............................................................................................10
Storing preset stations...................................................................................................11
Recalling a preset station...............................................................................................11
Playback from a Bluetooth® device ..................................................................................11
Basic Operation during playback from a Bluetooth® device ........................................................ 11
Other functions......................................................................................................... 11
Using the sleep timer........................................................................................................11
Using the night light ..........................................................................................................12
Reset the device...............................................................................................................12
Connections.............................................................................................................. 12
Connecting a device through the AUX input......................................................................12

3
Charging a device through the built-in USB charger..........................................................12
Maintenance of the device........................................................................................ 13
Troubleshooting........................................................................................................ 13
Specification............................................................................................................. 13
Safety instructions .................................................................................................... 14
Declaration of Conformity......................................................................................... 15
Do not distribute copyrighted material...................................................................... 16
Disclaimer................................................................................................................. 16
End of life.................................................................................................................. 17
Service and support.................................................................................................. 18

4
Dear customer,
Thank you for choosing for Lenco. At Lenco, we are convinced that everyone should
enjoy life as much as possible. Our products are meant to support, improve and
create joyful moments for everyone. For this reason, we offer user-friendly, high-
quality and well-designed consumer electronics for an excellent price. This user
manual is designed to help you with the features of this device.
Note:
This user manual was written during the development of the product, based on the
factory settings. If the product would need improvement, priority is given to the
product and therefore, in these cases, the quick start guide, user manual, illustrations
in the user manual and/or packaging may differ from the actual product.
Lenco is not liable for any printing errors in this user manual.
What’s in the box?
The content of the box is assembled with the utmost care. In the unfortunate case
that anything is missing, please contact your dealer.
Content of the box:
1 Radio
1 Power adaptor

Exploring the device
In the user manual, every feature or action always includes the number of the button
or part that is used, so that you can easily recognize the buttons or parts that are
needed.

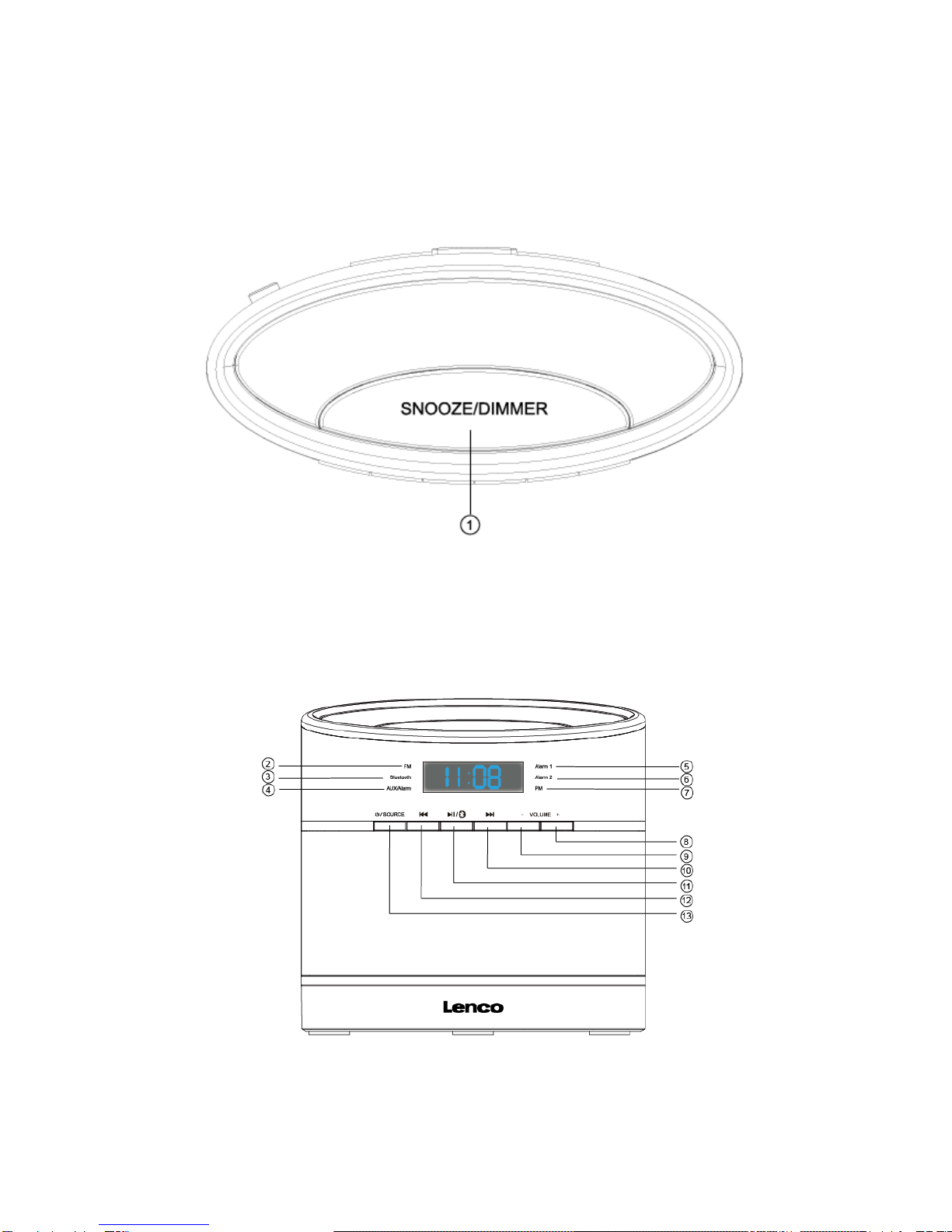

Top view
1. Snooze, Dimmer button, when the alarm sounds, press this button to snooze the
alarm for 9 minutes. When listening to the radio or music, this button can be used
to set the sleep timer. The device will automatically turn off when the set time has
elapsed. If the device is turned off, press this button to set the display brightness.
Front view
2. FM LED, when the radio is receiving an FM station, this LED will be lit.

6
3. Bluetooth® LED, this LED indicates the Bluetooth® status. When the LED is
blinking, the device is searching for a Bluetooth® device. When the LED is lit, a
Bluetooth® device is connected.
4. AUX, Alarm LED, this LED is lit when the device is in AUX mode or when an
alarm is activated.
5. Alarm 1 LED, This LED is lit when alarm 1 is set.
6. Alarm 2 LED, This LED is lit when alarm 2 is set.
7. PM LED, When the clock has been set to 12 hour format, this LED will be lit
during 12 o’clock in the afternoon and 12 o’clock in the evening.
8. Volume + button, press this button to increase the volume.
9. Volume - button, press this button to decrease the volume.
10.Next button, press this button to skip to the next track.
11.Play, Pause, Pair button, press this button to start/pause playback or to search
for a Bluetooth® device.
12.Previous button, press this button to skip to the previous track.
13.Power, Source button, press this button to turn the device on/off or to chance
the input source.

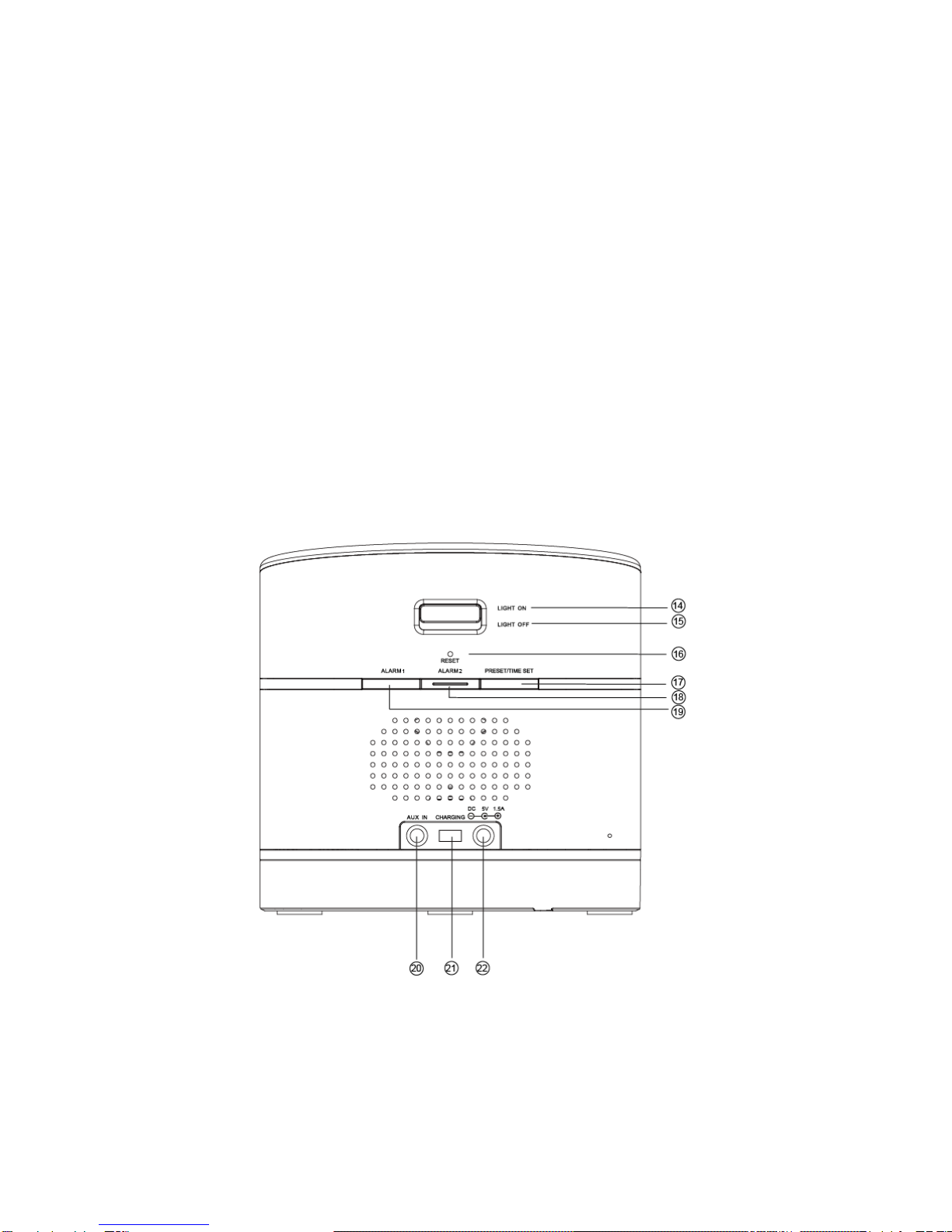

Rear view
14.Light on position, put the light switch in this position to turn on the built-in light.
15.Light off position, put the light switch in this position to turn off the built-in light.
16.Reset button, carefully press this button with a paperclip to reset the device.
17.Preset, Time Set button, use this button to store a radio station, recall a radio
station or set the time.

7
18.Alarm 2 button, press this button set alarm 2 or activate it.
19.Alarm 1 button, press this button to set alarm 1 or activate it.
20.AUX input, connect an AUX device to this input.
21.USB charger, a device can be charged using this connector.
22.Power socket, connect the power adapter to this socket.
Getting started
Where to install
Never place the device in direct sunlight. Place it on a sturdy platform of which the
surface should be flat and steady, so the product can’t fall or hit by any objects. Make
sure the product is placed in such a manner that nothing can fall on top of it, as
pressure will damage or break the product. Prevent insertion of objects into the
ventilation slots, or openings in the cabinet at all time.
Always read the safety instructions carefully before use.
Lenco is not responsible for damages and/or consequential damage caused by
improper use or malfunction of the device.
Lenco is not responsible for the loss of data during data transfer or or the loss
of data.
Do not use a USB extension cable to connect a USB device. The use of a USB
extension cable can cause malfunction or loss of data.
Connecting the device to the mains
The device can be powered by connecting it to the mains. Connect one end of the
power adapter to the adapter socket (22) located on the back of the device. Connect
the other end to a power outlet.

8
Basic settings
Setting the clock
In standby mode, the device will display the clock on the LCD display. You can set
the clock as follows:
1. Make sure the device is in Standby mode.
2. Hold the time set button (17) for 3 seconds until 12H or 24H appears on the
display.
3. Use the previous / next buttons (10, 12) to change the clock display format. You
can select 12 or 24 hours display format. To select the 12 hours display format,
make sure the display shows 12H . To select the 24 hours display format, make
sure the display shows 24H . Confirm the selection by pressing the clock set
button (10, 12). The device will automatically go to the screen for setting the
clock.
4. Use the previous / next buttons (10, 12) to set the hours. Once the hours are set,
confirm the setting by pressing the time set button (17). The device will now
automatically switch to the screen for setting the minutes.
5. Use the previous / next buttons(10, 12) to set the minutes. Once the minutes are
set, confirm the setting by pressing the time set button (17). The device will now
return to the Standby mode and the set time is shown on the display.
Pair & Play™, connecting a Bluetooth® device
Pair & Play™ allows you to connect a Bluetooth® device with a simple press on the
button and it allows you to directly enjoy your favorite music.
1. Turn on the device by pressing the Power button (13).
2. Switch to the Bluetooth® mode by repeatedly pressing the source button (13).
Once the display shows blue, the device is in the Bluetooth® mode.
3. Go to the Bluetooth® menu on the external device and click on "Lenco". The
devices will now establish a connection. Depending on the external device, you
may have to give Lenco permission to automatically connect to the external
device. To increase user-friendliness, Lenco advises to allow establishing an
automatic connection. If the external device would ask for a PIN code, then input
the code 0000.

9
4. Go to the music player on the external device and export your favorite music to
the Lenco radio.
Adjust the brightness of the display
When the device is in standby mode, press the Dimmer button (1) to adjust the
display brightness. The brightness can be set to low, medium and high.
Basic Operation
Basic Features
Power on/off the device, press the Power button (13) to turn the device on or off.
Adjust the speaker volume, press the volume buttons (8, 9) to adjust the volume.
Select the input source, press the de source button (13) to select the input source,
the options are: Radio, AUX and Bluetooth®.
Setting the alarm clock
The device is equipped with 2 independent alarms, which can be set to wake you at
different times. When the alarm sounds, it will start soft and it will gradually increase
in volume until the maximum set volume is reached. Set the alarm as follows:
Important note: If both alarms are set within 60 minutes of each other, the first alarm
will automatically be disabled when the second alarm is scheduled to start. The alarm
that is disabled will sound again at the set time on the next day.
Note: in the instructions below, alarm 1 is set as an example. Alarm 2 can be set by
following the same procedure.
1. Make sure the device is in standby mode.
2. Press the Alarm 1 button (19), the Alarm 1 LED (5) lights up.
3. Press the Alarm 1 button (19) again and keep it pressed until the hours starts
flashing.
4. Use the Previous (12) and Next (10) buttons to set the hours.
5. Confirm the hours by pressing the Alarm 1 button (19).
6. Once the hours have been confirmed, the minutes start flashing.
7. Use the Previous (12) and Next (10) buttons to set the minutes.
8. Confirm the minutes by pressing the Alarm 1 button (19).
9. Once the minutes have been confirmed, the wake up source starts flashing.
10.Use the Previous (12) and Next (10) buttons to select the wake up source. The
following sources can be selected: FM and AUX. When setting the source,

10
please note that the external device will play when selecting Aux and the right
radio station is selected when selecting FM.
11.Confirm the wake up source by pressing the Alarm 1 button (19).
12.Finally set the desired maximum wake up volume. Use the Previous (12) and
Next (10) buttons to set the wake up volume.
When the alarm sounds, the alarm will sound 60 minutes. After 60 minutes, the
alarm stops and it will sound again on the next day.
Snooze, interrupt the alarm
When the alarm sounds, it can be temporarily interrupted. Interrupt the alarm by
pressing the Snooze button (1). When snooze is activated, the alarm will resume
after 9 minutes. Using the snooze function is possible for up to 60 minutes after the
set alarm time. After 60 minutes, the alarm stops and it will sound again on the next
day.
Disable the alarm for 24 hours
If you want the alarm to stop and continue on the next day, press the Power button
(13).
Disable the alarm
Press the Alarm 1 button (19) to disable alarm 1. Press the Alarm 2 button (18) to
disable alarm 2.
Radio mode
This device has an FM radio with a wire antenna for receiving radio signals. If you
want to listen to the radio, first fully extend the wire antenna. If the signal is weak,
adjust the position of the antenna to find the best reception. Contact your local
service provider for a frequency list of the radio stations that can be received in your
area.
Turning the radio on
Press the Power button (13) to turn the device on. If the radio is not in radio mode,
press source (13) until the display shows "Rad". Once "Rad" has disappeared, the
frequency and the band (FM) are shown on the display.
Finding a station / frequency
You can use manual tuning or automatic tuning when searching for a radio station.
To automatically search for a station with a frequency higher than the current
frequency, hold the next button (10) for 3 seconds. To automatically search for a
station with a frequency lower than the current frequency, hold the previous button
(12) for 3 seconds. Once the tuner has found a station with sufficient signal strength,
it will stop scanning automatically.
To manually switch frequency or to fine tune, briefly press the previous button (12) to
lower the frequency with steps of 0,05 MHz. Briefly press the next button (10) to
increase the frequency with steps of 0,05 MHz.
