Lenovo ThinkCentre 8336 Parts list manual

ThinkCentre
Hardware Installation and Replacement Guide
Machine Types: 6136, 6139, 6175, 7187, 7345, 7348, 7356, 7359, 7479,
7626, 7629, 7637, 8336, 8338, 8820, and 9961.

ThinkCentre
Hardware Installation and Replacement
Guide

Note
Before using this information and the product it supports, be sure to read and understand the ThinkCentre Safety and
Warranty Guide for this product and “Notices,” on page 35.
First Edition (November 2008)
©Copyright Lenovo 2008. All rights reserved.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and
are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted
rights to use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered
pursuant aGeneral Services Administration ″GSA″contract, use, reproduction, or disclosure is subject to restrictions
set forth in Contract No. GS-35F-05925.

Contents
Figures ...............v
Chapter 1. Important safety information 1
Chapter 2. Overview .........3
Additional information resources .......3
Handling static-sensitive devices........4
Locations ...............5
Locating controls and connectors on the front of
your computer.............5
Locating connectors on the rear of your computer 6
Locating components ..........8
Identifying parts on the system board .....9
Chapter 3. Installing options and
replacing hardware .........11
Installing external options .........11
Opening the cover ............11
Installing internal options .........12
Installing memory ...........12
Replacing the battery ...........13
Replacing the front audio and USB assembly ...14
Replacing the heat sink ..........16
Replacing the microprocessor ........17
Replacing the system fan assembly ......19
Replacing ahard disk drive .........21
Replacing an optical drive .........22
Replacing amemory module ........24
Replacing the adapter card .........25
Replacing the AC power adapter .......27
Replacing the internal speaker ........28
Replacing the keyboard ..........29
Replacing the mouse ...........30
Chapter 4. Completing the parts
replacement ............31
Obtaining device drivers ..........32
Chapter 5. Security features .....33
Integrated cable lock ...........33
Password protection ...........33
Erasing alost or forgotten password (clearing
CMOS) ................34
Appendix. Notices ..........35
Television output notice ..........36
Trademarks ..............36
©Copyright Lenovo 2008 iii

iv Hardware Installation and Replacement Guide

Figures
1. Controls and connectors.........5
2. Locating the rear connectors .......6
3. Locating components..........8
4. Locating parts on the system board .....9
5. Opening the computer cover .......12
6. Installing amemory module .......13
7. Removing the old battery ........13
8. Installing anew battery ........14
9. Removing the front bezel ........15
10. Removing the front audio and USB assembly 15
11. Removing the heat sink ........16
12. Removing the microprocessor ......17
13. Lifting the microprocessor .......18
14. Installing the microprocessor .......18
15. Removing the system fan assembly ....19
16. Installing the short rubber mounts .....20
17. Replacing the system fan assembly.....20
18. Removing the hard disk drive ......21
19. Installing the hard disk drive into the bracket 22
20. Removing the front bezel ........23
21. Removing the optical drive .......23
22. Retainer bracket for optical drive .....23
23. Replacing the optical drive .......24
24. Removing the memory module ......24
25. Installing the new memory module ....25
26. Releasing the system board .......26
27. Removing the adapter card .......26
28. Connecting the AC power adapter .....27
29. Removing the internal speaker ......28
30. Keyboard connectors .........29
31. Replacing amouse ..........30
32. Routing the cables ..........31
33. Closing the computer cover .......32
34. Integrated cable lock .........33
©Copyright Lenovo 2008 v

vi Hardware Installation and Replacement Guide

Chapter 1. Important safety information
CAUTION:
Before using this manual, it is important that you read and understand all the
related safety information for this product. Refer to the ThinkCentre Safety and
Warranty Guide that you received with this product for the latest safety
information. Reading and understanding this safety information reduces the risk
of personal injury and or damage to your product.
If you no longer have acopy of the ThinkCentre Safety and Warranty Guide,you can
obtain one online from the Lenovo®Support Web site at:
http://www.lenovo.com/support
©Copyright Lenovo 2008 1

2Hardware Installation and Replacement Guide

Chapter 2. Overview
This guide provides information about installing and or replacing Customer
Replaceable Units (CRUs). However, this guide does not include procedures for all
parts. It is expected that cables, switches, and certain mechanical parts be replaced
by trained service personnel without the need for step-by-step procedures.
Note: Use only parts provided by Lenovo.
This guide contains instructions for installing and or replacing the following parts:
vBattery
vFront audio and USB assembly
vHeat sink
vMicroprocessor
vSystem fan assembly
vHard disk drive
vOptical drive
vMemory module
vAdapter card
vAC power adapter
vInternal speaker
vKeyboard
vMouse
Additional information resources
If you have Internet access, the most up-to-date information for your computer is
available at:
http://www.lenovo.com/support
You can find:
vCRU removal and installation information
vCRU removal and installation videos
vPublications
vTroubleshooting information
vParts information
vDownloads and drivers
vLinks to other useful sources of information
vSupport phone list
©Copyright Lenovo 2008 3

Handling static-sensitive devices
Do not open the static-protective package containing the new part until the
defective part has been removed from the computer and you are ready to install
the new part. Static electricity, although harmless to you, can seriously damage
computer components and parts.
When you handle parts and other computer components, take these precautions to
avoid static-electricity damage:
vLimit your movement. Movement can cause static electricity to build up around
you.
vAlways handle parts and other computer components carefully. Handle adapter
cards, memory modules, system boards, and microprocessors by the edges.
Never touch any exposed circuitry.
vPrevent others from touching the parts and other computer components.
vBefore you replace anew part, touch the static-protective package containing the
part to ametal expansion-slot cover or other unpainted metal surface on the
computer for at least two seconds. This reduces static electricity in the package
and your body.
vWhen possible, remove the new part from the static-protective packaging, and
install it directly in the computer without setting the part down. When this is
not possible, place the static-protective package that the part came in on a
smooth, level surface and place the part on it.
vDo not place the part on the computer cover or other metal surface.
4Hardware Installation and Replacement Guide

Locations
This section provides illustrations to help locate the various connectors, controls,
and components of the computer.
Locating controls and connectors on the front of your
computer

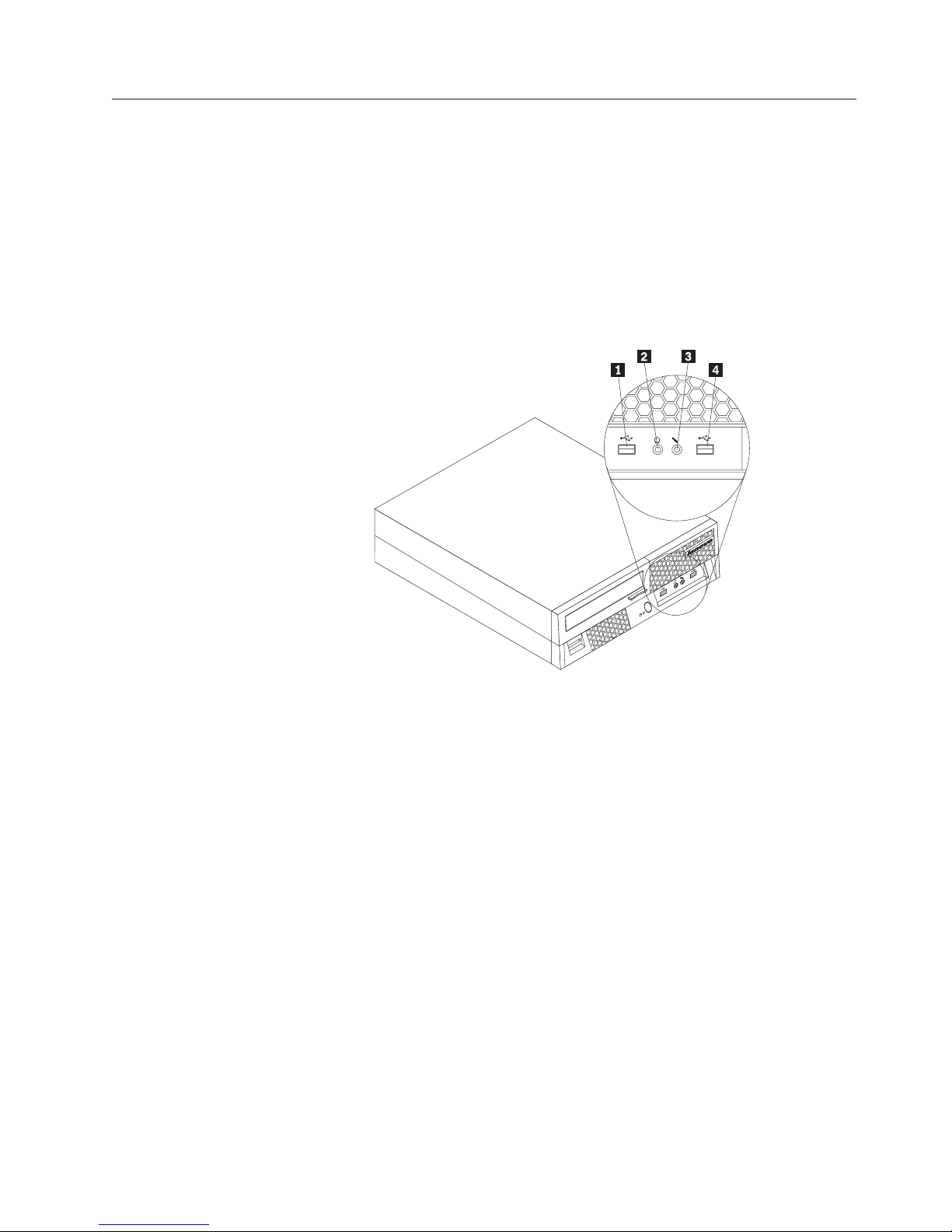

Figure 1shows the location of the controls and connectors on the front of your
computer.
Note: Not all computer models have the following controls and connectors.
1 USB connector 3 Microphone connector
2 Headphone connector 4 USB connector
Figure 1. Controls and connectors
Chapter 2. Overview 5

Locating connectors on the rear of your computer

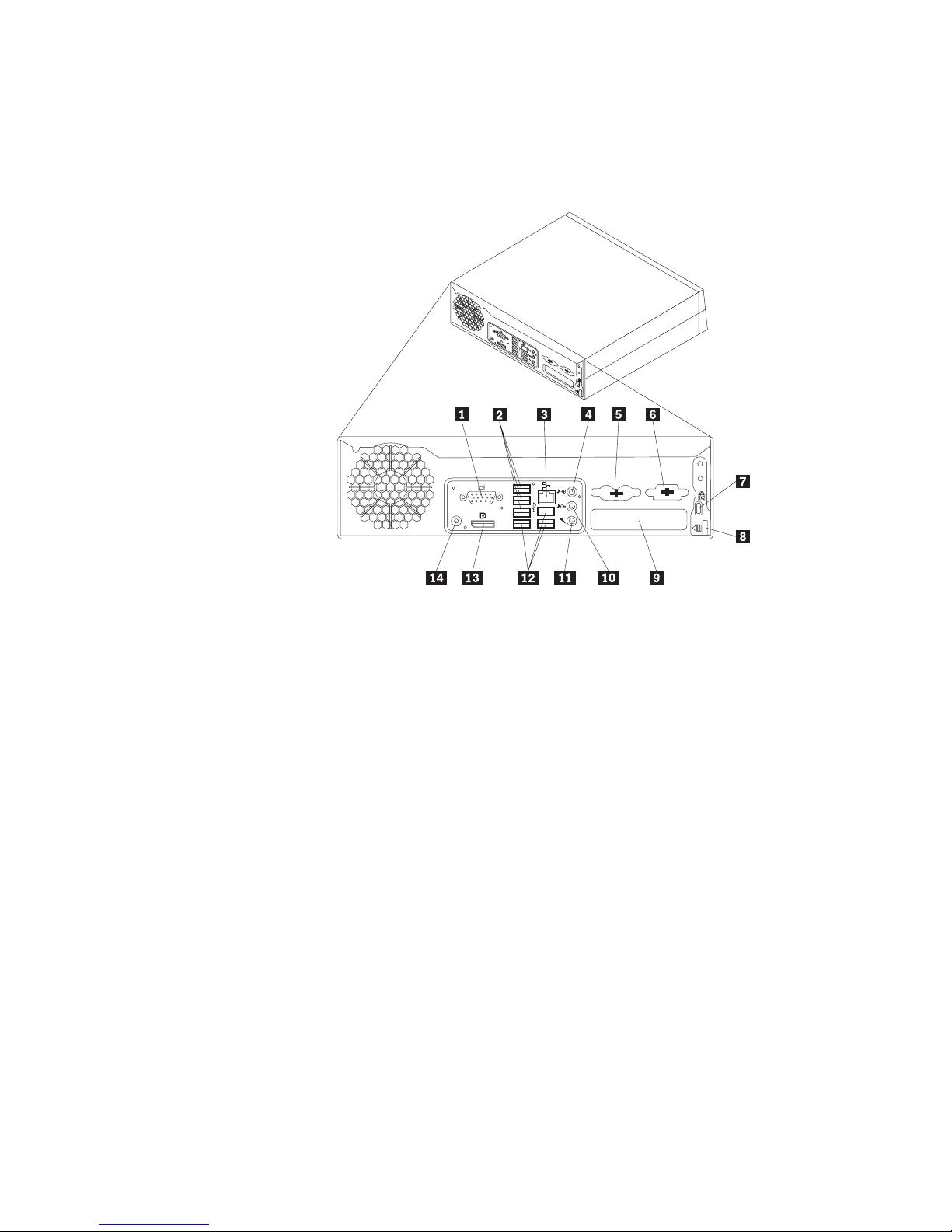

Figure 2shows the location of connectors on the rear of your computer. Some
connectors on the rear of your computer are color-coded to help you determine
where to connect the cables on your computer.
1 VGA (Video graphics array)
monitor connector
8 Cover-release button
2 USB connectors (3) 9 Adapter card slot
3 Ethernet connector 10 Audio line-out connector
4 Audio line-in connector 11 Microphone connector
5 Standard mouse and
keyboard connectors (some
models)
12 USB connectors (3)
6 Serial port (some models) 13 DisplayPort connector
7 Cable lock connector 14 AC power adapter connector
Figure 2. Locating the rear connectors
6Hardware Installation and Replacement Guide

Connector Description
USB connector Used to attach adevice that requires aUniversal Serial Bus
(USB) connector, such as aUSB keyboard, aUSB mouse, aUSB
scanner, or aUSB printer. If you have more than eight USB
devices, you can purchase aUSB hub, which you can use to
connect additional USB devices.
Ethernet connector Used to attach an Ethernet cable for alocal area network
(LAN).
Note: To operate the computer within FCC Class Blimits, use
aCategory 5Ethernet cable.
Audio line-in connector Used to receive audio signals from an external audio device,
such as astereo system. When you attach an external audio
device, acable is connected between the audio line-out
connector of the device and the audio line-in connector of the
computer.
Serial port Used to attach an external modem, aserial printer, or other
devices that use a9-pin serial port.
Audio line-out connector Used to send audio signals from the computer to external
devices, such as powered stereo speakers (speakers with
built-in amplifiers), headphones, multimedia keyboards, or the
audio line-in connector on astereo system or other external
recording device.
Microphone connector Used to attach amicrophone to your computer when you want
to record voice or other sounds on the hard disk if you use
speech-recognition software.
DisplayPort connector Used to attach ahigh-performance monitor, adirect-drive
monitor, or other devices that use aDisplayPort connector.
Chapter 2. Overview 7

Locating components
To open the computer cover, see “Opening the cover” on page 11.
This section shows the location of the various components in your computer.
1 Optical drive 5 Heat sink
2 Front bezel 6 Battery
3 Hard disk drive 7 Memory slots (2)
4 System fan assembly 8 Internal speaker
Figure 3. Locating components
8Hardware Installation and Replacement Guide

Identifying parts on the system board
The system board (sometimes called the planar or motherboard) is the main circuit
board in your computer. It provides basic computer functions and supports a
variety of devices.
Figure 4shows the location of parts on the system board.
1 Microprocessor 9 PCI slot
2 Clear CMOS/Recovery jumper 10 Front USB connector 2
3 Thermal sensor connector 11 Intrusion switch connector/Cover
presence switch connector
4 Battery 12 Front I/O and LED/Switch header
5 Memory slots (2) 13 eSATA connector
6 Internal speaker connector 14 Internal power distribution connector
7 Serial (COM) connector 15 Fan connector
8 SATA connectors (2)
Figure 4. Locating parts on the system board
Chapter 2. Overview 9

10 Hardware Installation and Replacement Guide

Chapter 3. Installing options and replacing hardware
This chapter provides an introduction to the features and options that are available
for your computer. You can expand the capabilities of your computer by adding or
replacing memory, adapter cards, and drives. When installing an option, use these
instructions along with the instructions that come with the option.
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the ThinkCentre Safety and Warranty Guide that came with your computer.
To obtain acopy of the ThinkCentre Safety and Warranty Guide,go to:
http://www.lenovo.com/support
Note: Use only parts provided by Lenovo.
Installing external options
External speakers, aprinter, or ascanner can be connected to your computer. For
some external options, you must install additional software in addition to making
the physical connection. When adding an external option, see “Locating connectors
on the rear of your computer” on page 6and “Locating controls and connectors on
the front of your computer” on page 5to identify the required connector, and then
use the instructions that are included with the option to help you make the
connection and install any software or device drivers that are required for the
option.
Opening the cover
CAUTION
Turn off the computer and wait three to five minutes to let the computer
cool before removing the computer cover.
This section provides instructions on how to open the computer cover.
1. Remove any media from the drives, shut down your operating system, and
turn off all attached devices and the computer.
2. Unplug all power cords from electrical outlets.
3. Disconnect the cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer. See “Locating controls and connectors on the front of your
computer” on page 5and “Locating connectors on the rear of your computer”
on page 6.
4. Remove any locking devices, such as acable lock that secures the computer
cover.
©Copyright Lenovo 2008 11

5. Carefully lift and position the computer upside down as shown in 6.
6. Pivot the cover-release button 1 on the rear of the computer and then raise
the cover as shown.
Installing internal options
Important
Read “Handling static-sensitive devices” on page 4before opening the
computer cover.
Installing memory
Your computer has two slots for installing SODIMMs (small outline dual inline
memory modules) that provide up to amaximum of 4GB of system memory.
When installing memory modules, the following rules apply:
vUse 1.8 V, 200-pin DDR3 SDRAM (double data rate 3synchronous dynamic
random access memory).
vUse 1GB or 2GB memory modules in any combination up to amaximum of 4
GB.
Note: If there is an available memory slot, continue with installing amemory
module. To replace amemory module, go to “Replacing amemory module” on
page 24.
This section provides instructions on how to install amemory module.
1. Open the computer cover. See “Opening the cover” on page 11.
2. Locate the memory slots. See “Identifying parts on the system board” on page
9.
Figure 5. Opening the computer cover
12 Hardware Installation and Replacement Guide
