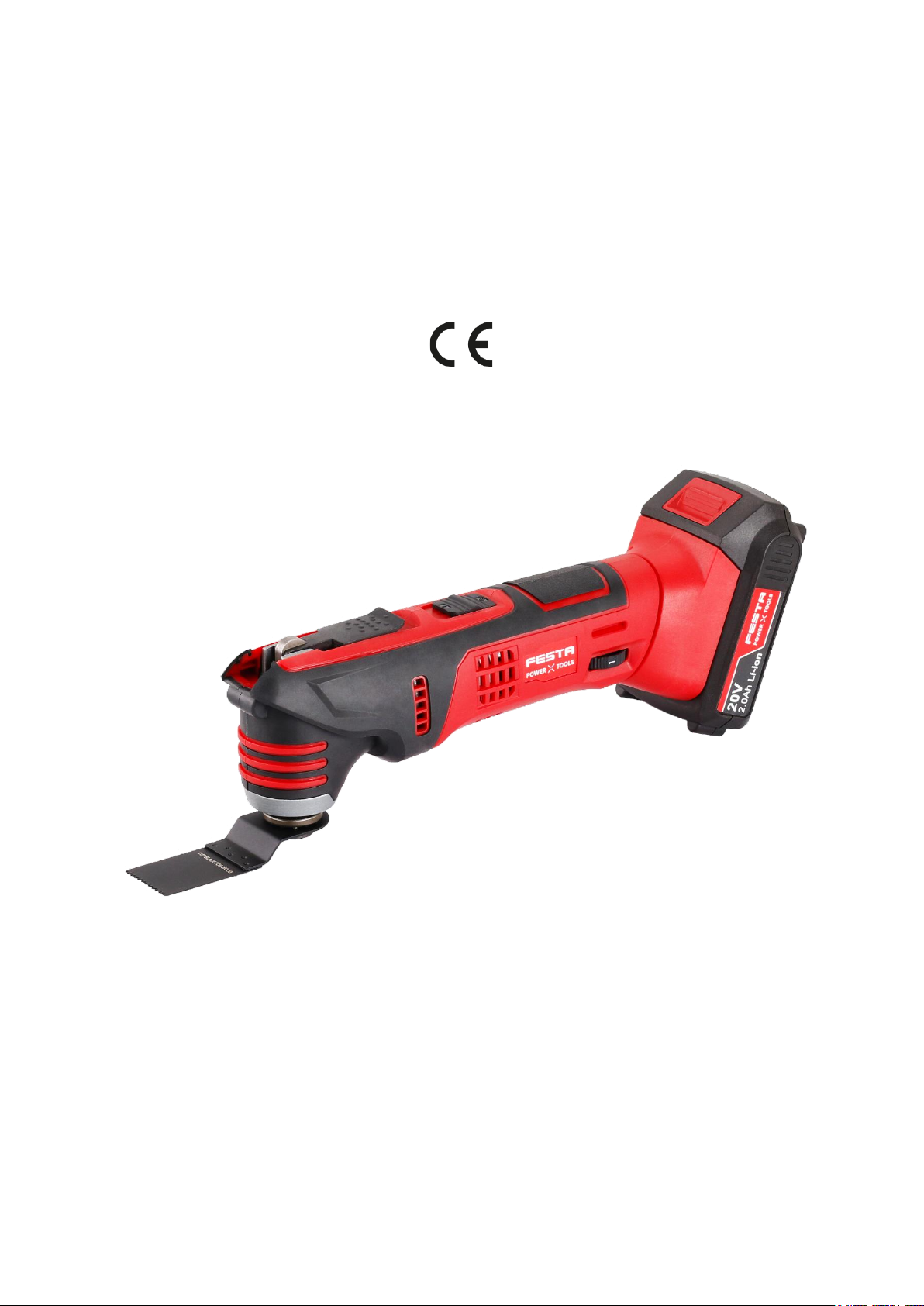

LEVIOR 28045 Instruction manual

1
Manual for use
Item number: 28045
Please read this manual carefully before using.

2

3
Technical specifications
Item
Cordless multi-function tool
Number of oscillations without load
5000-15000min-1
Max. battery voltage
20V
Oscillation angle
3°
Dimension of delta grinding base
90mm
Vibration speed control
YES
Attaching the saw blade
universal
Weight without battery
1kg
Protection marking
IPX0
Sound pressure level, uncertainty K
LpA= 78dB(A), K= 3dB(A)
Sound power level, uncertainty K
LwA= 89dB(A), K= 3dB(A)
Max. total vibration value
ah= 2,8m/s2;K= 1,5m/s2

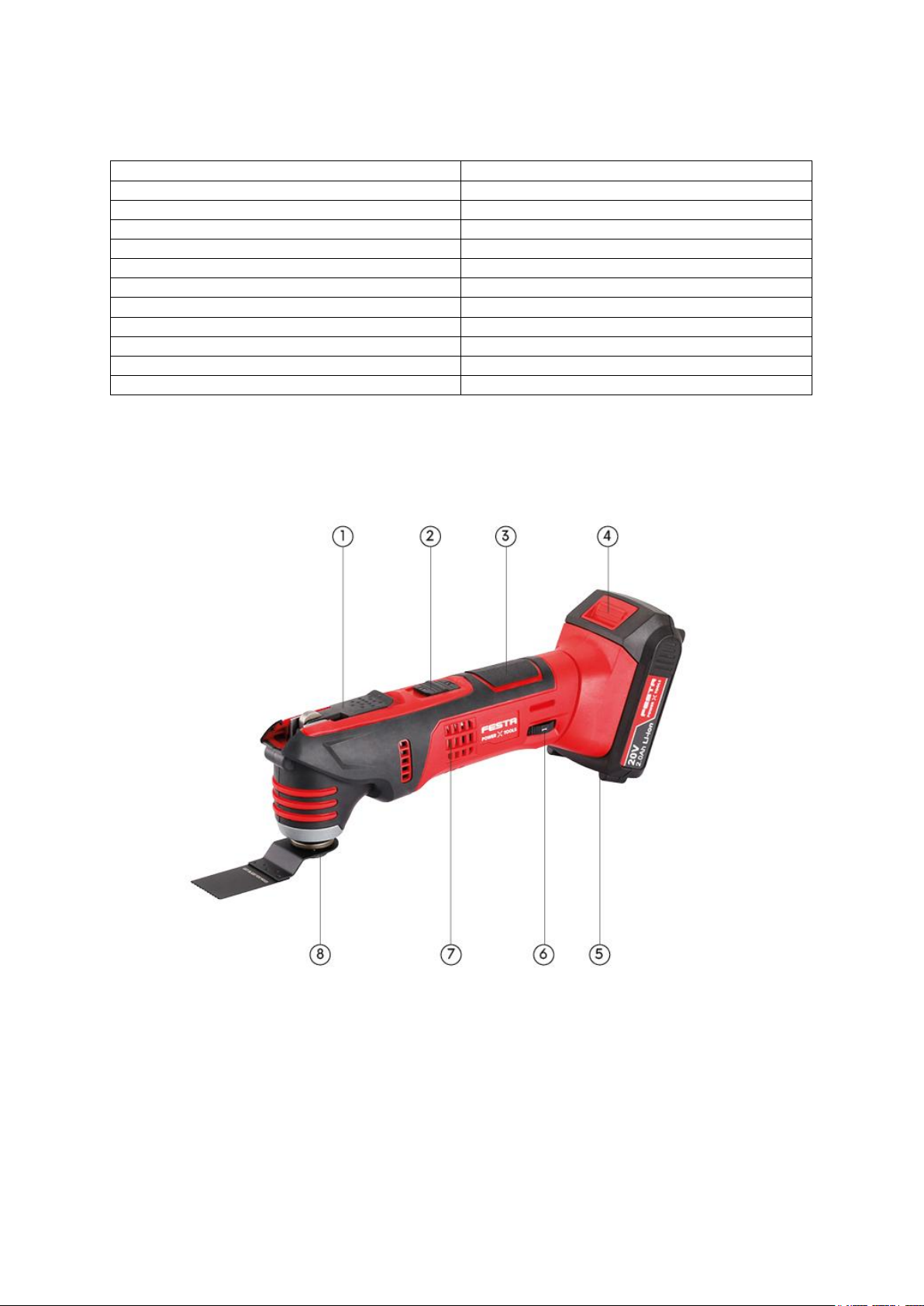

Součásti a ovládací prvky
1) Tool change lever
2) Trigger
3) Handle
4) Battery release button
5) Button for checking the battery level with leds
6) Regulation of the number of oscillations
7) Engine vents
8) Tool

4
Charging the battery
APPROXIMATE CHARGE TIMES WITH CHARGERS
4000 mAh
4 A quick charger (28086)
55 min.
2,4 A quick charger (28085)
90 min.
2000 mAh
4 A quick charger (28086)
30 min.
2,4 A quick charger (28085)
45 min.
WARNING
Before preparing and using the cordless tool for use, read the entire instruction manual and keep
it with the product so that the operator can familiarize himself with it.
If you lend or sell the product to anyone, enclose this instruction manual with it. Avoid damaging
this manual. The manufacturer is not liable for damages or injuries caused by using the device,
which is in conflict with these instructions. Before using the appliance, familiarize yourself with all
its controls and components, as well as how to switch off the appliance, so that you can switch it
off immediately in the event of a dangerous situation. Before use, check that all components are
securely fastened and that any part of the device, such as the safety guards, is not damaged,
incorrectly installed or missing in place. This also applies to the charger and its power cord. If the
cordless tool, battery or charger is damaged or incomplete, do not use it and have it repaired or
replaced with original parts.
To check the battery charge level, press the button on the battery and, if necessary, charge the
battery according to the number of LEDs and the expected operating time of the cordless tool.
When the battery is fully charged, all LEDs are lit. The battery can be charged from any charge
level without reducing its capacity.
1. Insert the battery into the slots of the supplied charger first.
2. Before connecting the charger to a power source. current, check that the voltage in
the socket corresponds to the range 220-240 ~ 50 Hz and that the charger does not
have a damaged power cable (eg insulation) or cover or other part.
If the charger is damaged, have it replaced by a faultless original one from the manufacturer. Only
the original charger provided by the manufacturer must be used to charge the battery, otherwise
the use of another charger may cause a fire or explosion due to unsuitable charging parameters.
Protect the charger's power cord from damage.
3. Connect the charger to a wall outlet. current.
For 28085/28086 chargers
•when in charging process, it is indicated by a green flashing LED next to the red LED.
•when full charging, it is indicated only by a green LED on.
•when in abnormal charging process, it is indicated by both green and red flashing LED.
•The charge level of the battery can be monitored by the number of lit LEDs on the battery
that light up when the battery is being charged. We reserve the right to change the above
signaling of the charging and recharging process.

5

4. After charging, first disconnect the charger from the power source. power, and then
slide the battery out of the charger slots by pressing and holding the button on the
battery.
Description of battery functions
Display of remaining battery capacity
Attaching or removing the battery

6
Use
1. Install / replace the tool with the battery removed from the tool battery. Open the clamping
system lever and remove the clamping mandrel. For tools that have a cutout in the holder,
it is not necessary to completely remove the clamping mandrel, just release it and lift it.
2. Place the required tool in the appropriate place so that the protrusions are in the tool holes,
while the tool can be rotated in the horizontal plane at an angle for more convenient access
to the workplace.
•Tools with a universal handle can be installed on multifunction tools.
EXAMPLES OF USE OF SUPPLIED ACCESSORIES:
•The scraper is designed, for example, for removing soft putty between tiles, scraping putty
or paint ...
•The immersion sheet is intended for making cuts in wood and softer materials in hard-to-
reach places such as corners, installed carpet strips, large areas ...
•Delta board using sandpaper to sand wood, furniture.
1. Secure the seated tool with the clamping mandrel and lower the clamping system lever.
SWING SPEED ADJUSTMENT
•Select theappropriate speed according to the natureof the material for optimal work results
by regulating the vibration speeds. The speed can be changed while the device is running.
INSERTING THE BATTERY INTO THE OSCILLATION TOOL
•Slide the battery into place so that it clicks into place.
USE OF MULTIFUNCTIONAL OSCILLATION BATTERY TOOLS
1. Start up the tool with the operating switch. Use the control wheel to set the optimal number
of oscillations.
2. Place the tool on the workpiece with the tool.
3. Move the tool back and forth with gentle pressure. This will not cause significant heating
and wear in one place of the work tool.
•Do not put too much pressure on the tool, otherwise its work performance will deteriorate,
the tool will become very hot, blunt and possibly even block.
CUTTING
•Use saw blades for cutting that are not damaged and are designed for the material. Do not
use the saw blade intended only for cutting wood to cut metal.
•Bent or blurred saw blades can break.
•Only make immersion cuts in soft wood or plasterboard.
•Before cutting, make sure that no unwanted objects are present in the material to be cut,
nails, wires, etc. Remove foreign objects or use a saw blade for cutting.
•Cutting tools wear more significantly with longer use, eg when cutting tiles, this is a natural
phenomenon.
•The machine is intended for dry cutting only. Never use water or other coolants for cooling.

7
GRINDING
•Attach the sanding sheet to the delta plate with Velcro. The sanding sheet must perfectly
cover the entire sanding surface of the delta plate to prevent damage. Sanding sheets are
designed for sanding wood, wooden materials, soft building materials and metal.
•Do not apply excessive pressure to the tool when working. Excessive pressure leads to
more wear on the machine and the sanding sheet.
•When sanding, use suitable dust extraction and a protective dust mask with a P3 filter,
inhalation of dust is harmful to health.
•To ensure good sanding performance, use sanding sheets that are not excessively worn.
•Do not use sanding paper used to sand wood to sand paper.
SCRAPING
•Set a high oscillation speed for scraping.
•When working, do not raise the tool too high from the surface to be machined, otherwise
the scraper may be cut into the substrate.
BATTERY INFORMATION
•The battery is equipped with full discharge protection which damages it. This protection is
manifested by the fact that when the battery is more discharged, the operation of the tool
stops suddenly even when the operating switch is pressed. After releasing and pressing
the operation switch againafter a certain time, the device starts up for a shorttime, but then
its operation stops again.
SAFETY INSTRUCTIONS FOR BATTERY TAIL SAW AND MULTIFUNCTIONAL
OSCILLATION TOOLS
1. When performing an operation where a cutting or other tool may touch a hidden guide or
its own supply, hold the power tool by the gripped insulated surfaces. Contact of the
machine tool with a "live" wire can cause the non-insulated metal parts of the
electromechanical tool to become alive and can lead to electric shock to the user.
2. Clamps or other practical means shall be used to secure and support the workpiece on a
stable base. Holding the workpiece by hand or against the body leads to its instability and
can lead to loss of control.
WARNING
•During operation, the device generates an electromagnetic field that can adversely affect
the operation of active or passive medical implants (pacemakers) and endanger the user's
life. Check with your doctor or implant manufacturer before using this tool to see if you can
work with this device.

8
General safety instructions for power tools
CAUTION!
All safety instructions, operating instructions, pictures and regulations supplied with this
tool must be read. Failure to follow all of the following instructions may result in electric shock,
fire, and / or serious personal injury.
All instructions and instructions for use must be kept for future reference.
The term "power tool" in all of the following warnings refers to a mains-operated (flexible power
supply) or a battery-powered power tool (without a movable power supply).
1. SAFETY OF THE WORK ENVIRONMENT
a) Workplaces must be kept clean and well lit. Clutter and dark spaces are often the cause
of accidents.
b) Power tools must not be used in potentially explosive atmospheres whereflammable
liquids, gases or dust are present. Power tools create sparks which may ignite the dust
or fumes.
c) When using a power tool, keep out of the reach of children and others. If the operator
is disturbed, he may lose control of the activity being performed.
2. ELECTRICAL SAFETY
a) The plug of the power tool's flexible lead must match the power outlet. The forks
must never be modified in any way. No socket adapters may be used with tools that
have a protective earth connection. Plugs that are not damaged by modifications and
the corresponding sockets will reduce the risk of electric shock.
b) Operators must not touch grounded objects, such as pipes, central heating units,
cookers and refrigerators. The risk of electric shock is greater if your body is connected
to the ground.
c) Power tools must not be exposed to rain, moisture or wetness. If water enters the
power tool, the risk of electric shock increases.
d) The flexible supply must not be used for other purposes. The power tool must not
be carried or pulled by the power cord, nor must the plug be unplugged from the
outlet. The inlet must be protected from heat, grease, sharp edges or moving parts.
Damaged or tangled leads increase the risk of electric shock.
e) If the power tool is used outdoors, an extension cord suitable for outdoor use must
be used. Using an extension cord for outdoor use reduces the risk of electric shock.
f) If the power tool is used in humid areas, a RCD protected power supply must be
used. Using an RCD reduces the risk of electric shock. The term "RCD" may be replaced
by "main circuit breaker (GFCI)" or "leakage circuit breaker (ELCB)".
3. PERSONAL SAFETY
a) When using a power tool, the operator must be careful, pay attention to what he is
doing, and concentrate and think soberly. Power tools must not be used if the
operator is tired or under the influence of drugs, alcohol or medication. Momentary
inattention while using a power tool can result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment
such as a respirator, non-slip safety shoes, hard headgear or hearing protection, used in
accordance with the working conditions, reduces the risk of personal injury.
c) Unintentional starting of the machine must be avoided. Make sure that the switch is

9
in the off position before plugging in and / or connecting the battery pack, lifting or
carrying the tool. Carrying a tool with your finger on the switch or plugging in a tool fork
with the switch on can cause accidents.
d) All adjusting tools or wrenches must be removed before turning on the tool. An
adjusting tool or wrench that remains attached to the rotating part of the power tool may
result in personal injury.
e) The operator must only work where he can reach safely. The operator must always
maintain a stable posture and balance. This will allow better control of the power tool in
unforeseen situations.
f) Dress appropriately. Do not wear loose clothing or jewelry. The operator must make
sure that hishair and clothing are far enough away from moving parts.Loose clothing,
jewelry and long hair can be caught in moving parts.
g) Where means are provided for the connection of dust extraction and collection
facilities, care shall be taken to ensure that such equipment is connected and used
correctly. The use of these devices can reduce the hazards caused by dust.
h) The operator must not allow the routine, which is based on the frequent use of the
tool, to become complacent and ignore the principles of tool safety. Careless
operation can cause serious injury in a fraction of a second.
4. USE AND MAINTENANCE OF BATTERY TOOLS
a) Power tools must not be overloaded. It is necessary to use the correct power tool
that is intended for the work performed. The right power tool will do the job it was
designed to do better and safer.
b) Power tools that cannot be turned on and off with the switch must not be used. Any
power tool that cannot be operated with the switch is dangerous and must be repaired.
c) Before making any adjustments, changing accessories or storing power tools,
unplug the power tool and / or remove the battery pack from the power tool, if
removable. These precautions reduce the risk of accidental starting of the power tool.
d) Unused power tools must be stored out of the reach of children and persons
unfamiliar with the power tool or these instructions must not be allowed to use the
power tool. Power tools are dangerous in the hands of inexperienced users.
e) Power tools and accessories must be maintained. It is necessary to check the
adjustment of moving parts and their mobility, focusing on cracks, broken parts and
any other circumstances that may jeopardize the function of the power tool. If the
tool is damaged, it must be repaired before further use. Many accidents are caused by
poorly maintained power tools.
f) Cutting tools must be kept sharp and clean. Properly maintained and sharpened cutting
tools are less likely to catch on the material or become jammed and easier to control.
g) Power tools, accessories and tool bits etc. must be used in accordance with these
instructions and in the manner intended for the particular power tool, taking into
account the working conditions and the work to be performed. Using power tools for
activities other than those for which they were designed can lead to dangerous situations.
h) Handles and grip surfaces must be kept dry, clean and free of grease. Slipperyhandles
and grip surfaces do not allow the tool to be held and inspected safely in unexpected
situations.
5. USE AND MAINTENANCE OF BATTERY TOOLS
a) Charge the tool only with the charger specified by the manufacturer. A charger that
may be suitable for one type of battery pack may present a fire hazard when used with
another battery pack.
b) Only use the tool with a battery pack that is specifically designed for the tool. Use of

10
any other battery pack may present a risk of injury or fire.
c) When the battery pack is not in use, protect it from contact with other metal objects
such as paper clips, coins, keys, nails, screws, or other small metal objects that may
cause onebattery contact to connectwith another. Short-circuiting the battery terminals
may cause burns or fire.
d) If used incorrectly, liquids may leak from the battery; avoid contact with them. In
case of accidental contact with these liquids, rinse the affected area with water. In
addition, seek medical attention if fluid gets in your eyes. Liquids escaping from the
battery can cause inflammation or burns.
e) A battery pack or tool that is damaged or rebuilt must not be used. Damaged or
modified batteries can behave unpredictably, which can result in fire, explosion, or risk of
injury.
f) Battery packs or tools must not be exposed to fire or excessive heat. Exposure to fire
or temperature above 130 ° C may cause an explosion.
g) All charging instructions must be followed and the battery pack or tool must not be
charged outside the temperature range specified in the operating instructions.
Improper charging or charging at temperatures outside this range may damage the battery
and increase the risk of fire.
6. SERVICE
a) Have your cordless tool repaired by a qualified person using identical spare parts.
This will ensure the same level of tool safety as before repair.
b) Damaged battery packs must never be repaired. Repairs to battery packs should only
be performed by the manufacturer or an authorized service center.
Charger safety instructions
•Protect the charger from rain and moisture. The charger may only be used indoors.
•The charger is intended for charging only the battery supplied with this cordless tool and
no other batteries. Charging batteries other than those for which the charger is intended
may result in fire or explosion.
•Keep the charger clean.
•Before each use, check that the charger is in good condition, including the power cord.
•Do not operate the charger on highly flammable objects and substrates (eg paper) or in an
environment with an explosive and / or flammable atmosphere.
•Always provide adequateventilation when charging, as vapors or electrolytemay leak from
the battery if the battery is damaged due to mishandling / damage.
•Do not operate the charger on highly flammable objects and substrates (eg paper) or in an
environment with an explosive and / or flammable atmosphere.
•Always provide adequateventilation when charging, as vapors or electrolytemay leak from
the battery if the battery is damaged due to mishandling / damage.
•When charging is complete, disconnect the charger from the wall outlet. do not leave it
connected to the power supply for longer than necessary.
•Avoid using the charger by persons (including children) whose physical, sensory or mental
disability or lack of experience and knowledge prevents them from using the appliance
safely without supervision or instruction. Children must not play with the appliance. In
general, the use of the appliance by very young children (age 0-3 years inclusive) and use

11
by younger children without supervision (age over 3 years under 8 years) are not taken into
account. It is recognized that people with severe disabilities may have needs outside the
level specified in this standard (EN 60335).
Battery safety instructions
•Store and charge the battery in a dry environment and make sure that no water enters it.
•Never expose the battery to direct sunlight or temperatures above 50 ° C.
•Chargethebatteryonlyforthetimerequiredforcharging,see.indicatorlightonthecharger.
•Keep the battery connectors clean and free from clogging, deformation and short circuits.
•Protect the battery from shocks, moisture and never open or mechanically damage the
battery.
•Never incinerate, dispose of in water or the environment, but dispose of it in an
environmentally friendly manner.
•Avoid skin contact if the battery is damaged and electrolyte leaks due to improper handling
of the battery. If skin gets on, wash thoroughly with water. Liquids leaking from the battery
can cause inflammation, burns,or burns. In case of contact with eyes, rinse thoroughly with
clean water and consult a doctor immediately, in case of ingestion consult a doctor
immediately about the procedure.
Storage
•Store cordless tools in a dry place out of the reach of children. For safety reasons, remove
the battery before storing the cordless tool. When the battery is inserted in the cordless
tool, it discharges faster. Protect the battery and tools from frost, high temperatures,
humidity and water

12
Meaning of symbols on labels
Read the instructions before
use.
Use certified eye and ear
protection with a sufficient
level of protection.
Use certified respiratory
protection with adequate
level of protection.
Meets relevant EU
requirements.
Second class protection
equipment. Double insulation.
The charger is intended for
indoor use only. Must be
protected from rain and
moisture.
DC current/ voltage.
The socket is designed for
charging the battery with
direct current.
Fuse with indication of
current value in A.
Caution, warning, follow
instructions.
Battery recovery, see
below.
Electrical waste, see below.
Do not expose the battery to
direct sunlight or
temperatures above 50 °C.
Do not dispose of the battery
in water or the environment.
Do not incinerate the
battery.

13
Serial number including year,
month of manufacture
Waste disposal
PACKAGING
•Dispose of the packaging in the appropriate waste container.
CORDLESS POWER TOOLS
According to the European Directive (EU) 2012/19, electrical and electronic equipment
may not be disposed of as mixed waste, but it is necessary to return them for ecological
disposal to the return of electrical equipment at designated collection points. Before
returning the cordless tool, remove the battery, which must be disposed of in an
environmentally friendly manner separately. You will receive information about collection points at
the municipal office.
BATTERY
The battery contains cartridges that are dangerous for the environment, so return it to the
batteries for ecological recycling / disposal. According to the European Directive on
Accumulators and Batteries 2006/66 EC, unusable batteries must not be disposed of with
mixed waste or the environment. You will receive information about collection points at
the municipal office.
Warranty period and conditions (rights from
defective performance)
•If the buyer so requests, the seller is obliged to provide the buyer with warranty conditions
(rights from defective performance) in writing in accordance with the law.
WARRANTY AND POST-WARRANTY SERVICE
To exercise the right to warranty repair of the goods, contact the dealer from whom you purchased
the goods.
EU Declaration of Conformity
Manufacturer Levior s.r.o. • Tovačovská 3488, CZ-750 02 Přerov declares that the subsequently
marked devices, based on their concept and construction, as well as the designs listed on the
market, meet the requirements of the European Union listed below. This declaration is issued under
the sole responsibility of the manufacturer.
Subjects of declaration-product identification:
Brushless angle grinder:
Cordless multi-function tool:
28045 Cordless multi-function tool

14
comply with the following harmonized standards, including their amending annexes, if any, by
which conformity with the following harmonization provisions is declared:
2006/42 ES:
EN 62841-1:2015, EN 62841-2-1:2018, EN 62841-1:2015, EN 62841-2-2:2014 cordless drills; EN
62841-1:2015, EN 62841-2-2:2014 cordless impact driver; EN 60745-1:2009, EN 60745-2-6:2010
cordless hammer; EN 60745-1:2009, EN 60745-2-3:2011 cordless angle grinder; EN 62841-
1:2015, EN 62841-2-4:2014 cordless multi-function tool; EN 62841-1:2015, EN 62841-2-5:2014
cordless circular saw; EN 62841-1:2015, EN 62841-2-4:2014, cordless sander; EN 60745-
1:2009/A11:2010, EN 60745-2-16:2010 cordless stapler; EN62841-1:2015, EN 62841-2-11:2016
cordless reciprocating saw; EN 62841-1:2015, EN 62841-2-11:2016 cordless jig saw; EN 60598-
2-5:2015 used in conjunction with EN 60598-1:2015, clause 9.2 cordless led light; EN 62841-2015,
EN 62841-2-2:2014 cordless screwdriver.
(EU) 2014/35:
EN 60335-1:2012, EN 60335-2-29:2004; EN 62233:2008 chargers
(EU) 2014/30:
EN 55014-1:2006 until 28.4.2020/ thereafter EN 55014-1:2017; EN 55014-2:1997 until 25.3.2018/
thereafter pursuant to EN 55014-2:2015; for chargers furthemore: EN 61000-3-2:2014; EN 61000-
3-3:2013;
(EU) 2011/65: EN 50581:2012
EN 62133:2013 until 14.3.2020/ thereafter EN 62133:2017, UN 38.3 battery
The completion of technical documentation 2006/42 EC and 2000/14 EC was performed by
Ondřej Marek with his registered office at the manufacturer's address.
The technical documentation (2006/42 EC, 2000/14 EC) is available at the manufacturer's
address.
Place and date of issue of the EU declaration of conformity: Přerov, 3.3.2021
Person authorized to draw up the EU declaration of conformity on behalf of the manufacturer
(signature, name, function):
Ondřej Marek
Managing director Levior s.r.o.

15
Návod k použití
Číslo položky: 28045
Před použitím si pečlivě přečtěte tento manuál.
Tento manuál byl přeložen z originálu.

16

17
Technické údaje
Název
Aku multifunkční oscilační nářadí
Počet kmitů bez zatížení
5000-15000min-1
Max. napětí akumulátoru
20V
Úhel oscilace
3°
Rozměr delta brusné základny
90mm
Regulace rychlosti kmitání
ANO
Uchycení pilového plátku
univerzální
Hmotnost bez akumulátoru
1kg
Krytí
IPX0
Hladina akustického tlaku; nejistota K
LpA= 78dB(A), K= 3dB(A)
Hladina akustického výkonu; nejistota K
LwA= 89dB(A), K= 3dB(A)
Max. celková hodnota vibrací
ah= 2,8m/s2;K= 1,5m/s2
Součásti a ovládací prvky
1) Páčka pro výměnu nástroje
2) Provozní spínač
3) Rukojeť
4) Tlačítko pro odjištění akumulátoru
5) Tlačítko kontroly úrovně nabití akumulátoru LED kontrolkami
6) Regulace počtu kmitů
7) Větrací otvory motoru
8) Nástroj

18
Nabíjení akumulátoru
PŘIBLIŽNÉ DOBY NABÍJENÍ AKUMULÁTORŮ NABÍJEČKAMI
4000 mAh
4 A rychlonabíječka (28086)
55 min.
2,4 A rychlonabíječka (28085)
90 min.
2000 mAh
4 A rychlonabíječka (28086)
30 min.
2,4 A rychlonabíječka (28085)
45 min.
UPOZORNĚNÍ
Před přípravou aku nářadí k použití a jeho použitím si přečtěte celý návod k použití a ponechte jej
přiložený u výrobku, aby se s ním obsluha mohla seznámit.
Pokud výrobek komukoli půjčujete nebo jej prodáváte, přiložte k němu i tento návod k použití.
Zamezte poškození tohoto návodu. Výrobce nenese odpovědnost za škody či zranění vzniklá
používáním přístroje, které je v rozporu s tímto návodem. Před použitím přístroje se seznamte se
všemi jeho ovládacími prvky a součástmi a také se způsobem vypnutí přístroje, abyste jej mohli
ihned vypnout v případě nebezpečné situace. Před použitím zkontrolujte pevné upevnění všech
součástí a zkontrolujte, zda nějaká část přístroje jako např. bezpečnostní ochranné prvky nejsou
poškozeny, či špatně nainstalovány nebo zda nechybí na svém místě. Toto platí i pro nabíječku i
její přívodní kabel. Jsou-li aku nářadí, akumulátor či nabíječka poškozeny, nebo nejsou-li
kompletní, nepoužívejte je a zajistěte jejich opravu či náhradu za originální díly.
Pro ověření úrovně nabití akumulátoru stiskněte tlačítko na akumulátoru a podle počtu svítících
diod a předpokládané době provozu aku nářadí akumulátor v případě potřeby dobijte. Je-li
akumulátor plně nabitý, svítí všechny LED diody. Akumulátor lze nabít z jakékoli úrovně nabití, aniž
by se tím snižovala jeho kapacita.
1. Akumulátor nejprve zasuňte do drážek dodávané nabíječky.
2. Před připojením nabíječky ke zdroji el. proudu zkontrolujte, zda napětí v zásuvce
odpovídá rozmezí 220-240~50 Hz a zda nabíječka nemá poškozený přívodní kabel
(např. izolaci) či kryt nebo jinou část.
Je-li nabíječka poškozena, zajistěte její náhradu za bezvadnou originální od výrobce. K nabíjení
akumulátoru musí být použita pouze originální nabíječka od výrobce, jinak použití jiné nabíječky
může způsobit požár či výbuch v důsledku nevhodných nabíjecích parametrů. Napájecí kabel
nabíječky chraňte před poškozením.
3. Nabíječku připojte ke zdroji el. proudu.
Pro nabíječky 28085/28086
• proces nabíjení je indikován zelenou blikající LED vedle červené LED.
• plné nabití je indikováno pouze rozsvícením zelené LED.
• neobvyklý / špatný proces nabíjení je indikován zelenou a červenou blikající LED.
• Úroveň nabití baterie lze sledovat podle počtu rozsvícených LED diod na baterii, které se rozsvítí
při nabíjení.

19
Právo na změnu výše uvedené signalizace procesu nabíjení a nabití vyhrazeno.
4. Po nabití nejprve odpojte nabíječku od zdroje el. proudu a poté z drážek nabíječky
vysuňte akumulátor po stisknutí a přidržení tlačítka na akumulátoru.
Popis funkcí baterie
Zobrazení zbývající kapacity baterie
Upevnění nebo vyjmutí baterie

20
Použití
1. Instalaci / výměnu nástroje provádějte při odejmutém akumulátoru z aku nářadí. Odklopte
páčku upínacího systému a odejměte upínací trn. Pro nástroje, které mají v úchytu výřez
není nutné upínací trn zcela vyjmout, stačí jej uvolnit a nadzvednout.
2. Na příslušné místo usaďte požadovaný nástroj tak, aby výstupky byly v otvorech nástroje,
přičemž nástroj lze v horizontální rovině natočit do úhlu pro vhodnější přístup do pracovního
místa.
•Na multifunkční nářadí lze instalovat nástroje s univerzálním úchytem.
PŘÍKLADY POUŽITÍ DODÁVANÉHO PŘÍSLUŠENSTVÍ:
•Škrabka je určena např. pro odstraňování měkkého tmelu mezi obklady, seškrabování
tmelu nebo barvy...
•Zanořovací list je určen pro provádění výřezů do dřeva a měkčích materiálů ve špatně
přístupných místech jako např. v rozích, v instalovaných kobercových lištách, do velkých
ploch...
•Delta deska s použitím brusného papíru k broušení dřeva, nábytku.
1. Usazený nástroj zajistěte upínacím trnem a sklopením páčky upínacího systému.
NASTAVENÍ RYCHLOSTI KMITÁNÍ
•Regulací rychlostíkmitání zvolte vhodné otáčky vzhledem k povaze materiálu pro optimální
výsledek práce. Otáčky lze měnit za chodu přístroje.
VLOŽENÍ AKUMULÁTORU DO OSCILAČNÍHO NÁŘADÍ
•Akumulátor zasuňte do příslušného místa přístroje, aby došlo k jeho zacvaknutí.
POUŽITÍ MULTIFUNKČNÍHO OSCILAČNÍHO AKU NÁŘADÍ
1. Nářadí uveďte do provozu provozním spínačem. Regulačním kolečkem nastavte
optimální počet kmitů.
2. Nářadí přiložte nástrojem k opracovávanému materiálu.
3. Nářadím pohybujte s jemným přítlakem sem a tam. Tím nebude docházet k výraznému
zahřívání a opotřebování v jednom místě pracovního nástroje.
•Na nářadí příliš netlačte, jinak se bude zhoršovat jeho pracovní výkon, nástroj se bude
silně zahřívat, tupit a případně i zablokovávat.
ŘEZÁNÍ
•Pro řezání používejte pilové plátky, které nejsou poškozeny a jsou určeny pro daný
materiál. Pilový plátek určený pouze pro řezání dřeva nepoužívejte k řezání kovu.
•Zprohýbané nebo neostré pilové plátky se mohou zlomit.
•Ponorné řezy provádějte jen do měkkého dřeva nebo sádrokartonu.
•Před řezáním zkontrolujte, zda v řezaném materiálu nejsou přítomny nežádoucí předměty
hřebíky, dráty apod. Cizí tělesa odstraňte nebo k řezání použijte k tomu určený pilový
plátek.
•Řezací nástroje se při delším používání např. při řezání obkládaček výrazněji
opotřebovávají, jde o přirozený jev.
