Leviton HCCUR User manual

Universal Remote Control
Cat. No. HCCUR
Owner’s Manual
DI-000-HCCUR-00A
LIMITED 2 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of
anyone else that this product at the time of its sale by Leviton is free of defects in
materials and workmanship under normal and proper use for two years from the
purchase date. Leviton’s only obligation is to correct such defects by repair or
replacement, at its option, if within such two year period the product is returned
prepaid, with proof of purchase date, and a description of the problem to Leviton
Manufacturing Co., Inc.,Att: Quality Assurance Department, 59-25 Little Neck
Parkway, Little Neck, New York 11362-2591 (In Canada send to Leviton Mfg.
of Canada Ltd., 165 Hymus Blvd., Point Claire, (Quebec), Canada H9R 1E9).
This warranty excludes and there is disclaimed liability for labor for removal of this
product or reinstallation. This warranty is void if this product is installed improperly
or in an improper environment, overloaded, misused, opened, abused, or altered
in any manner, or is not used under normal operating conditions or not in
accordancewithany labelsorinstructions.There are no other orimplied warranties
of any kind, including merchantability and fitness for a particular purpose, but if
any implied warranty is required by the applicable jurisdiction, the duration of any
suchimplied warranty, including merchantabilityandfitness for a particular purpose,
is limited to two years. Leviton is not liable for incidental, indirect, special, or
consequential damages, including without limitation, damage to, or loss of use of,
any equipment, lost sales or profits or delay or failure to perform this warranty
obligation. The remedies provided herein are the exclusive remedies under this
warranty, whether based on contract, tort or otherwise.
For Technical Assistance Call:
1-800-824-3005 (U.S.A. Only)
1 800 405-5320 (Canada Only)
www.leviton.com
DI-000-HCCUR-00A
16
DI-000-HCCUR-00A-prnspd 8/9/02, 10:16 AM1

READ THIS FIRST!
SAFETY CONSIDERATIONS
Remember to exercise good common sense when using the
Home Automation features of your Remote - especially when
scheduling unattended devices. There can be some
unexpected consequences if not used with care. For example,
an empty coffee pot can be remotely turned on. If that should
happen, your coffee pot could be damaged from
overheating. If an electric heater is turned on by remote
control while clothing is draped over it, a fire could result. DO
NOT USE the remote for the control of high power heating
appliances such as portable heaters.
WARNING: TO PREVENT ELECTRIC SHOCK HAZARD, DO NOT
EXPOSE ANY PART OF THE HOME AUTOMATION SYSTEM TO RAIN
OR MOISTURE
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
DISASSEMBLE ANY PART OF THE HOME AUTOMATION SYSTEM’S
PLUG-IN MODULES OR CONTROLLERS. NO USER-SERVICEABLE
PARTS ARE INSIDE. IF YOU SPILL LIQUID ON A UNIT, DISCONNECT
THE UNIT FROM THE AC OUTLET TO PREVENT POSSIBLE FIRE OR
SHOCK HAZARD AND CONSULT AUTHORIZED SERVICE
PERSONNEL.
POWERLINE OPERATED EQUIPMENT OR ACCESSORIES
CONNECTED TO ANY OF THESE UNITS SHOULD BEAR THE UL
LISTING OR CSA CERTIFICATION MARK AND SHOULD NOT HAVE
BEEN MODIFIED IN ANY WAY THAT MIGHT DEFEAT THEIR SAFETY
FEATURES.
2
TROUBLESHOOTING
The Transceiver Module doesn’t respond to the remote:
•Check the House Code on the Transceiver Module is set to
‘A’. If you have changed the House Code on the remote
(see p. 14), you must reprogram the House Code on all
modules to match the code on the remote.
•Press the ON/OFF button on the front of the Transceiver to
confirm it operates the equipment connected to it.
The Transceiver Module works, but other modules don’t
respond:
•Check that the Module has the same House Code as the
Transceiver Module. If you have changed the House Code
on the remote (see p. 14), you must reprogram the House
Code on all modules to match the code on the remote.
•Try plugging the Module into a different outlet.
NOTE: When you use an RF Transceiver (such as the HCPRF) to
control Modules, you will be able to control up to 16 Modules.
E.G., when you press 1-6-ON you turn on Module number 16.
The Remote won’t control your Audio/Video equipment, or
doesn’t work at all:
•Use manual controls or the original remote control to
confirm the equipment is working properly.
•Be sure you pressed the device key for the device you
want to control.
•Reenter the code for your A/V product from the code
listings on the separate sheet included.
•Try searching for codes as described on page 10.
•Replace the Remote’s batteries.
15
DI-000-HCCUR-00A-prnspd 8/9/02, 10:16 AM2

FCC CAUTION
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
This equipment generates and uses radio frequency energy,
and if not installed and used properly, that is, in strict
accordance with the manufacturers instructions, it may cause
interference to radio and television reception. It has been
type tested and found to comply with the limits for remote
control devices in accordance with the specifications in Sub-
Parts B and C of Part 15 of FCC Rules, which are designed to
provide reasonable protection against such interference in a
residential installation. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause interference to radio or television
reception, which can be determined by unplugging the
equipment, try to correct the interference by one or more of
the following measures.
•Reorient the antenna of the radio/TV experiencing the
interference.
•Relocate the interface with respect to the radio/TV.
•Move the interface away from the radio/TV.
•Plug the interface into an outlet on a different electrical
circuit from the radio/TV
experiencing the interference.
•If necessary, consult your local Dealer for additional
suggestions.
NOTE: Modifications to any of the components in this kit will
void the user’s authority to operate this equipment.
3

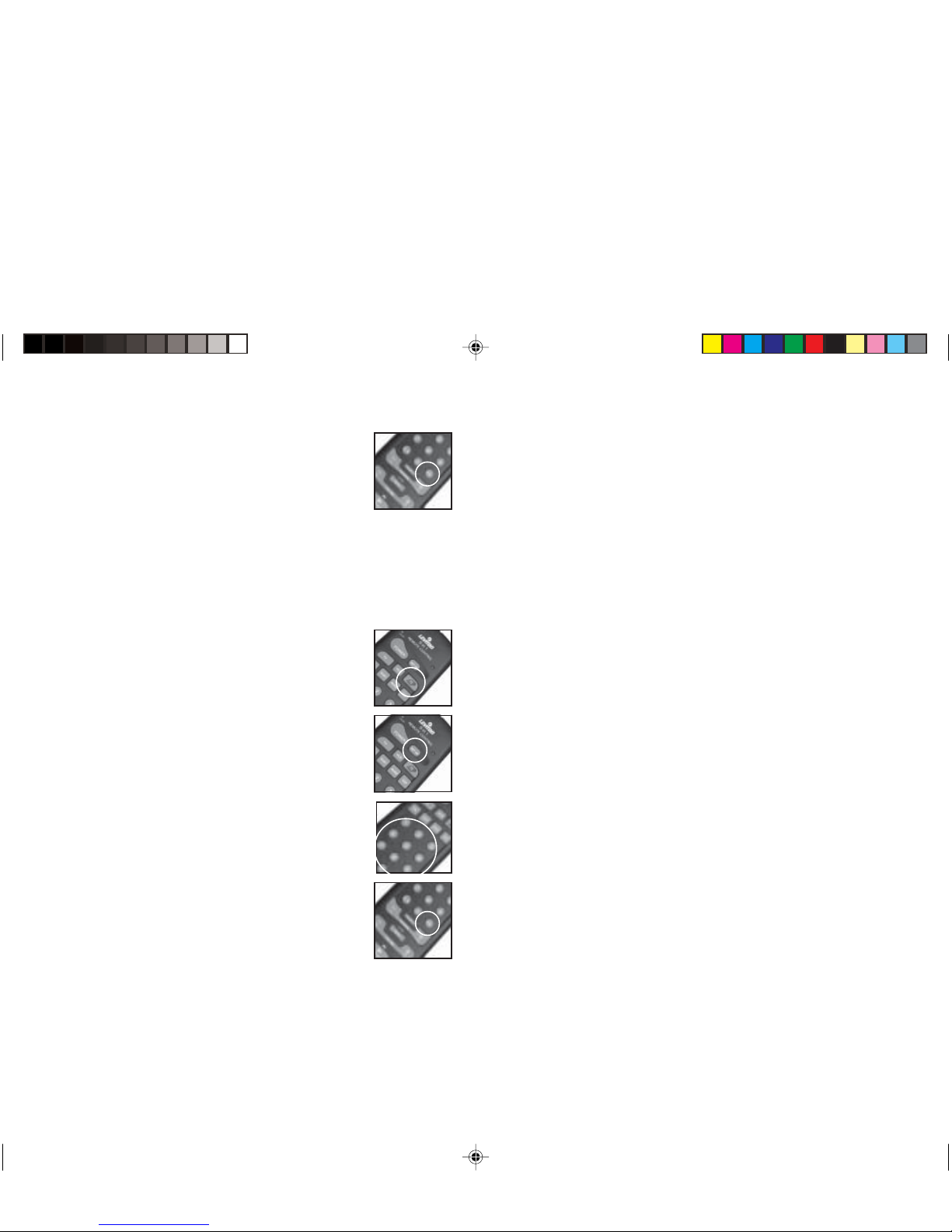

6. Press ENTER to confirm the setting.
CHANGING THE HOUSE CODE:
The Remote is factory programmed to House Code A. In most
cases you will not need to change this unless you are
experiencing interference from a neighboring Home Control
system. Receiver module codes must match the Remote
codes to operate.
1. Press and release the button with the House
symbol on it.
2. Press and hold SETUP until the LED indicator
lights steadily. Release Setup button.
3. Use the number buttons to enter the number
equivalent to the chosen House Code (1=A,
2=B...16=P).
4. Press the ENTER button to confirm the House
Code. The LED turns off.
14
DI-000-HCCUR-00A-prnspd 8/9/02, 10:16 AM3

CONTENTS
INTRODUCTION ....................................................................... 5
GETTING STAR TED ................................................................... 6
6-IN-1 REMOTE ...................................................................... 6
SETTING UPYOUR REMOTE ........................................................ 6
BUTTON DESCRIPTIONS ............................................................. 6
SETTING UP FOR TV, VCR,
CABLE BOX AND SATELLITE RECEIVER .......................................... 8
USING AUX TO CONTROL
ASECOND TV, VCR, CABLE BOX OR SATELLITE RECEIVER .............. 9
SEARCHING FOR CODES ........................................................ 10
IDENTIFYING CODES FOUND USING
THE SEARCH PROCEDURE ........................................................ 11
SETTING THE TV SLEEP TIMER ................................................... 12
CONTROLLING MODULES ....................................................... 12
TOSET THE HC SLEEP TIMER ................................................... 13
CHANGING THE HOUSE CODE: ............................................... 14
TROUBLESHOOTING ................................................................ 15
WARRANTY ......................................................................... 16
4
HOME CONTROL FUNCTIONS:
On: CHANNEL +
Off: CHANNEL –
Bright: VOLUME +
Dim: VOLUME –
All Lamps On: POWER
All Modules Off: MUTE
NOTE: You cannot dim or brighten an Appliance Module. If the
module was off and you press Bright or Dim (VOLUME+ or VOLUME-)
this will simply turn the module on.

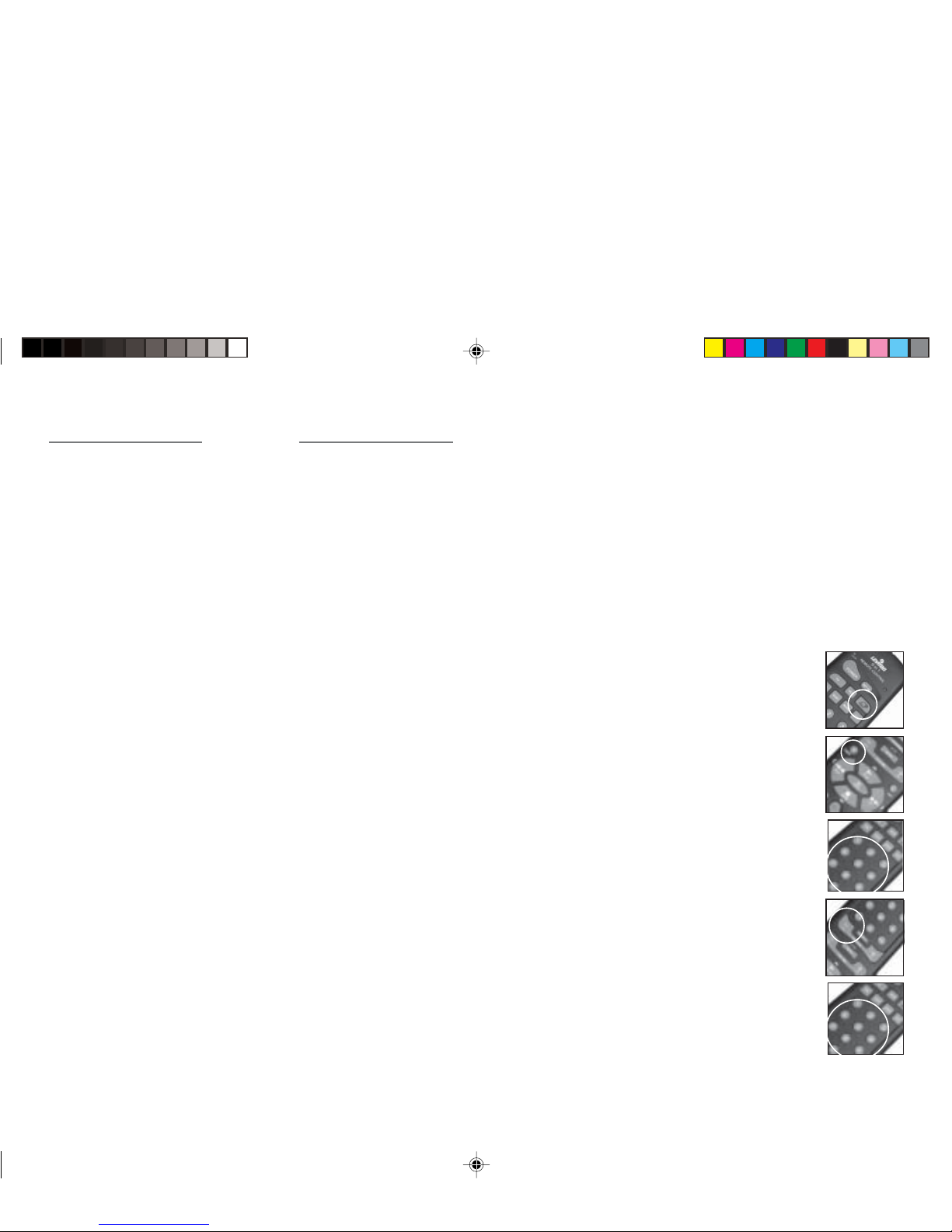

TOSET THE HOME CONTROL (HC) SLEEP TIMER
The Sleep Timer switches off the chosen modules after the
preset time.
1. Press and release the button with the House
symbol on it.
2. Press and hold TIMER until the LED indicator
lights steadily. Release the TIMER button.
3. Use the number buttons to enter the module
Unit Code for the module to be turned off.
4. Press the desired function button (e.g.
CHANNEL - to turn the module off after the
preset time).
5. Using the number buttons enter the sleep time
required (1 to 99 mins). Minutes less than 10
should be entered as follows:
01, 02, 03...09.
13
DI-000-HCCUR-00A-prnspd 8/9/02, 10:16 AM4

INTRODUCTION
Congratulations on your purchase of a Leviton Universal
Remote Control.
Make your lights and appliances go to work for you....
The Remote will control most or all of your video and audio
equipment. But what really sets it apart from other remotes is
that you can also control almost any light or appliance in your
home - even in another room! And it’s easy to set up. Within
minutes, you can be using your Remote to dim the lights, start
brewing a fresh pot of coffee and play your favorite movie!*
Here are just some of the things you can do with your
Remote...
•Control your entire audio/video and lighting setup for the
ultimate Home Theater experience.
•Turn on lights at night to scare away intruders if you hear a
noise.
•Start the coffee from your bedroom when you wake up.
•Turn on your electric blanket before the movie ends, so
you it’s nice and warm when you go to bed.
Use this manual to become familiar with your Remote....
This manual will explain how to set up your Remote to use it
with your existing Audio/Video equipment.
Next it will show you how you can use it to set up a Transceiver
Module and Lamp Module (sold separately) to operate
electrical products in your home.
* Requires Leviton Home Control Modules, sold separately.
5
SETTING THE TV SLEEP TIMER
The Sleep Timer automatically turns off the TV after the time
you set. Press the TV button, then follow the instructions below
to set the Sleep Timer:
1. Press and hold TIMER until the LED indicator
lights steadily. Release the TIMER button.
2. Use the number buttons to enter the sleep time
required (1 to 99 minutes). Minutes less than 10
should be entered as follows:
01, 02, 03...09.
3. Press ENTER to confirm the setting.
NOTE: Take care to leave the remote pointing at the
TV to ensure it turns off the TV at the time you set.
CONTROLLING
MODULES
If you have purchased and installed a Transceiver Module,
you can control it and other modules as follows:
1. Press and release the button with the House
symbol on it.
2. Use the number buttons to enter the Unit
Code number of the chosen module. (You do
not need to enter ‘0’ first for a single digit
number.)
3. Press the appropriate button for the function
you require (refer to next page).
12
DI-000-HCCUR-00A-prnspd 8/9/02, 10:16 AM5

GETTING STARTED
6-IN-1 REMOTE
The 6-in-1 Remote lets you control practically everything
electrical in your home. It has IR technology that lets you
control all your TV, VCR, Cable and Satellite equipment, and
RF technology that lets you control lamps and appliances
anywhere in your home.
To find out more about configuring the Remote to work with
your audio/video equipment, refer to the following section
titled “Setting Up Your Remote.”
1. Push the tab and lift off the battery cover.
2. Fit two AAA batteries, taking care to match
the + and - marks in the battery
compartment.
SETTING UP
YOUR REMOTE
BUTTON DESCRIPTIONS
INDICATOR LIGHT
The indicator light flashes when the remote is operating.
POWER
Works in the same way as your original remote.
SET UP
Used for programming the remote.
HOUSE SYMBOL
Lets you control modules to operate lamps and appliances
around the home.
6
IDENTIFYING CODES FOUND USING THE SEARCH PROCEDURE
1. Press and hold the SETUP until the LED
indicator lights steadily. Release Setup button.
2. Press the mode button that matches the
equipment you want to identify. The LED blinks
once.
3. Press and release SETUP. The LED blinks once.
4. To find the first digit, press each number button
from 0 to 9 until the LED blinks. The number you
pressed is the first digit of the code.
5. Press each number button from 0 to 9 again as
above to find the second digit.
6. Press each number button in turn to find the
third digit. When the third digit has been found,
the LED goes out.
11
DI-000-HCCUR-00A-prnspd 8/9/02, 10:16 AM6

TV, VCR, CBL, AUX1, AUX2, SAT
Used to select the device to control. SAT includes DBS
receivers.
0-9
Used as your original remote and to enter device codes.
LAST
Selects the last channel viewed on your TV, VCR, Cable Box or
Satellite Receiver.
CHANNEL +/-
Works like your original remote. Also used to switch modules on
and off.
MUTE
Works the same as your original remote.
VOLUME +/-
Works like your original remote. Also used to brighten and dim
lamps connected to Modules.
TIMER
Used to set the Sleep Timer to automatically switch off the TV
or modules after a preset time.
CAP (CAPTION)
Has different function depending on Mode e.g. TV Closed
Caption in TV Mode.
PLAY, REW, FF, STOP, PAUSE
Work the same as on your original remote.
REC
Record button. Works the same as your original remote. You
must press the REC button twice to begin recording.
SHIFT
For accessing additional functions.
DISP (DISPLAY)
Used to access on-screen information
7
NOTES:
If your audio/video component does not respond, try the
other codes for your brand. If it still doesn’t respond, try the
Code Search using the following method.
If the LED blinked rapidly when you entered the code, you
may have entered an invalid code. Recheck the code in the
code list (separate sheet) and try again.
SEARCHING FOR CODES
1. Turn on the device you want to control.
2. Press and hold SETUP until the LED indicator
lights steadily. Release Setup button.
3. Press the mode button that matches the
equipment you want to control. The LED blinks
once.
4. Press CHANNEL + repeatedly* until the device
to be controlled changes channel.
If you accidentally go past the code, press
CHANNEL - repeatedly until the channel
changes again.
5. Press and release the ENTER button to
complete the setup.
*NOTE: You might have to press CHANNEL+ many
times (50+). If the device does not have a Channel Up
function, use the PLAY button (VCR only) or the POWER button.
10
DI-000-HCCUR-00A-prnspd 8/9/02, 10:16 AM7

SETTING UP FOR TV, VCR, CABLE BOX AND SATELLITE RECEIVER
1. Turn on the device you want to control (TV, VCR,
cable box, satellite receiver etc.).
2. Press and hold SETUP until the LED indicator
lights steadily. Release the SETUP button.
3. Press and release mode button for the device
you want to control. The LED blinks once. Use
AUX1 or AUX2 for CD equipment.
4. Enter the 3 digit Code from the Code List
(separate sheet). The LED turns off after the last
digit entered.
5. Point the remote at the device and press the
POWER button. Your device should turn off.
6. Turn your device on and press CHANNEL+. If
the device responds, setup is complete.
NOTES:
For CD players use the AUX 1 or AUX 2 buttons.
If your TV/VCR/Cable Box/Satellite Receiver does
not respond, try the other codes for your brand. If it still doesn’t
respond, try the Code Search method on page 10.
If the LED blinked rapidly when you entered the code, you
may have entered an invalid code. Recheck the code in the
code list (separate sheet) and try again.
If some buttons do not operate your equipment, try one of the
other codes for your brand.
8
USING AUX TO CONTROL ASECOND TV, VCR, CABLE BOX OR
SATELLITE RECEIVER
The AUX button is normally used to control an audio
component, but it can also be configured to control a second
TV, VCR, cable box or satellite receiver.
1. Turn on the equipment you want to control.
2. Press and hold SETUP until the LED indicator
lights steadily. Release Setup button.
3. Press the AUX1 or AUX2 button.
4. Press and release the mode button that
matches the A/V equipment you want to
control. The LED blinks once.
5. Enter the 3 digit Code from the Code List. The
LED turns off after the last digit entered.
6. Point the remote at your audio component
and press the POWER button. Your audio
component should turn off.
7. Turn your audio component on and press
CHANNEL +. If it responds, setup is complete.
9
DI-000-HCCUR-00A-prnspd 8/9/02, 10:16 AM8
