LG PDRYCB300 User manual

www.lg.com
Please read this usage/installation manual completely before installing the product.
Usage/Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
Please retain this installation manual for future reference after reading it thoroughly.
Dry Contact For Thermostat
PDRYCB300
INSTALLATION MANUAL
AIR
CONDITIONER
P/NO : MFL69265517
ENGLISH

2Dry contact for thermostat
Dry contact for thermostat Owner’s & installation manual
TABLE OF CONTENTS
■Safety Precautions .............................................................3~5
■Name of each part ..................................................................6
■Installation Method .............................................................7~8
Installation.................................................................................................7
■Setting and using method ................................................9~20
1. Power supply and indoor unit connection ...........................................9
2. Setting of Contact Signal Input ..........................................................10
3. Setting of ‘SETTING_SW’..................................................................11
4. Setting of ‘TEMP_SW’ .......................................................................14
5. Installation of thermostat....................................................................15
6. Indoor unit monitoring ........................................................................20

Safety Precautions
Installation manual 3
ENGLISH
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is
classified by the following indications.
■Meanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage.
Be sure not to do.
Be sure to follow the instruction.
WARNING
■Installation
Service
Center
Service
Center
Don’t touch with the hands
while the power is on.
• Cause fire, electric shock,
explosion or injury.
Product installation must
be referred to a service
center or installation shop.
• Cause fire, electric shock,
explosion or injury.
Request installation from
installation shop or service
center when reinstalling
the product.
• Cause fire, electric shock,
explosion or injury.

Safety Precautions
4Dry contact for thermostat
Standardized
product
Do not install the product
in the place where rain can
get to the product.
• Cause product failure
Do not install the unit in
humid locations.
• Cause product failure
Do not put the product
closer to fire.
• Cause fire
Do not install in a place
that cannot withstand the
weight of the product.
• The product may get
damaged or may break.
Do not install the product
to a place that generates
oil, steam, salt, sulfuric
gas, etc.
• Cause the product’s
deformation or failure.
Use standardized Product.
• Cause product failure
Do not change or extend
power lines arbitrarily.
• Cause fire or electric shock.
Do not give a shock to the
product.
• If you give a shock to the
product, it may cause the
product’s failure.
Do not use a heater near
the power line.
• Cause fire or electric shock.
■Operation

Safety Precautions
Installation manual 5
ENGLISH
Service
Center
STOP
Do not spill water inside of
the product.
• Cause electric shock or
breakdown.
If the product has been
inundated, you must refer to
a service center or
installation shop.
• It can cause a fire.
Children and elderly use the
product under the
guardian’s supervision.
• Cause accidents and product
failures.
Do not use for special
purpose / place such as
conserving flora and fauna,
precision instruments, art.
• Otherwise, it can cause property
damage.
Remove the power plug
when cleaning.
• Cause fire or electric shock.
Do not place heavy objects
on the power line.
• Cause fire or electric shock.
Do not disassemble, repair,
or modify the product.
• Cause fire or electric shock.
Do not touch with wet
hands.
• Cause fire or electric shock.

Name of each part
6Dry contact for thermostat
Name of each part

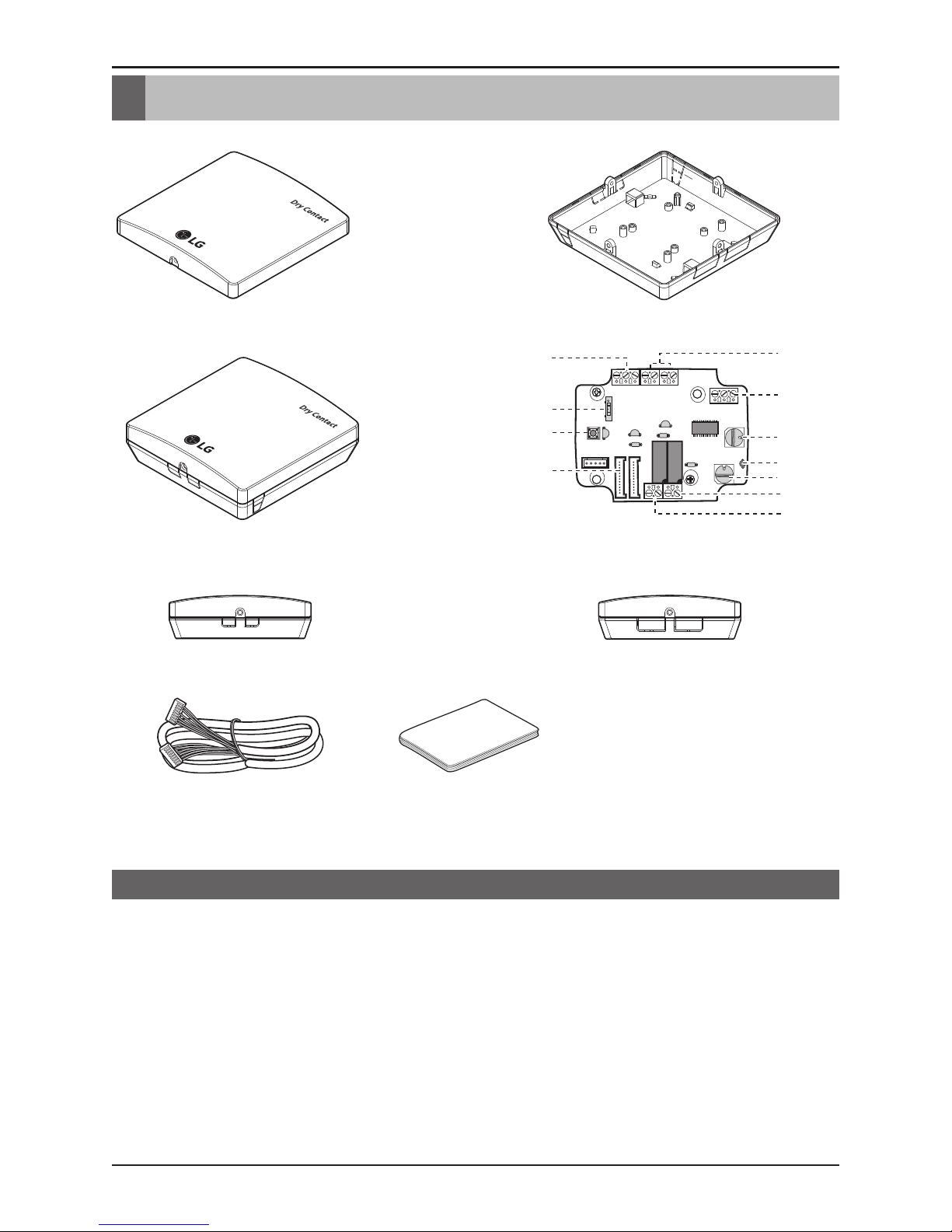

1. CN_INDOOR : Connector for indoor unit
2. CHANGE_OVER_SW : Switch to select External Voltage or Non Voltage for input contact signal
3. CN_OUT(O1,O2) : Output terminal to show whether the indoor unit is operating (Relay contact)
4. CN_OUT(E3,E4) : Output terminal to show whether there is an error with the indoor unit (Relay contact)
5. TEMP_SW : Switch to set the desired temperature of the indoor unit
6. SETTING_SW : Switch to select whether to use set function of Dry contact
7. CN_Ther/oper : Input terminal for thermo & operation signal
8. CN_MODE : Input terminal for Mode signal
9. CN_WIND : Input terminal for Wind signal
10. DISPLAY_LED : LED to display the status of Dry contact Module
11. RESET_SW : Reset switch
DRY CONTACT FOR THERMOSTAT
8
9
10
6
5
3
4
1
7
2
11
PCB
Front Case Rear Case
ISO View
Side
Cable(1 EA)
(For Connecting with indoor unit)
Installation Manual
Side
* Others :
Screw 4 EA(For installation)
Clamp 4 EA(For installation)

Installation Method
Installation manual 7
Installation

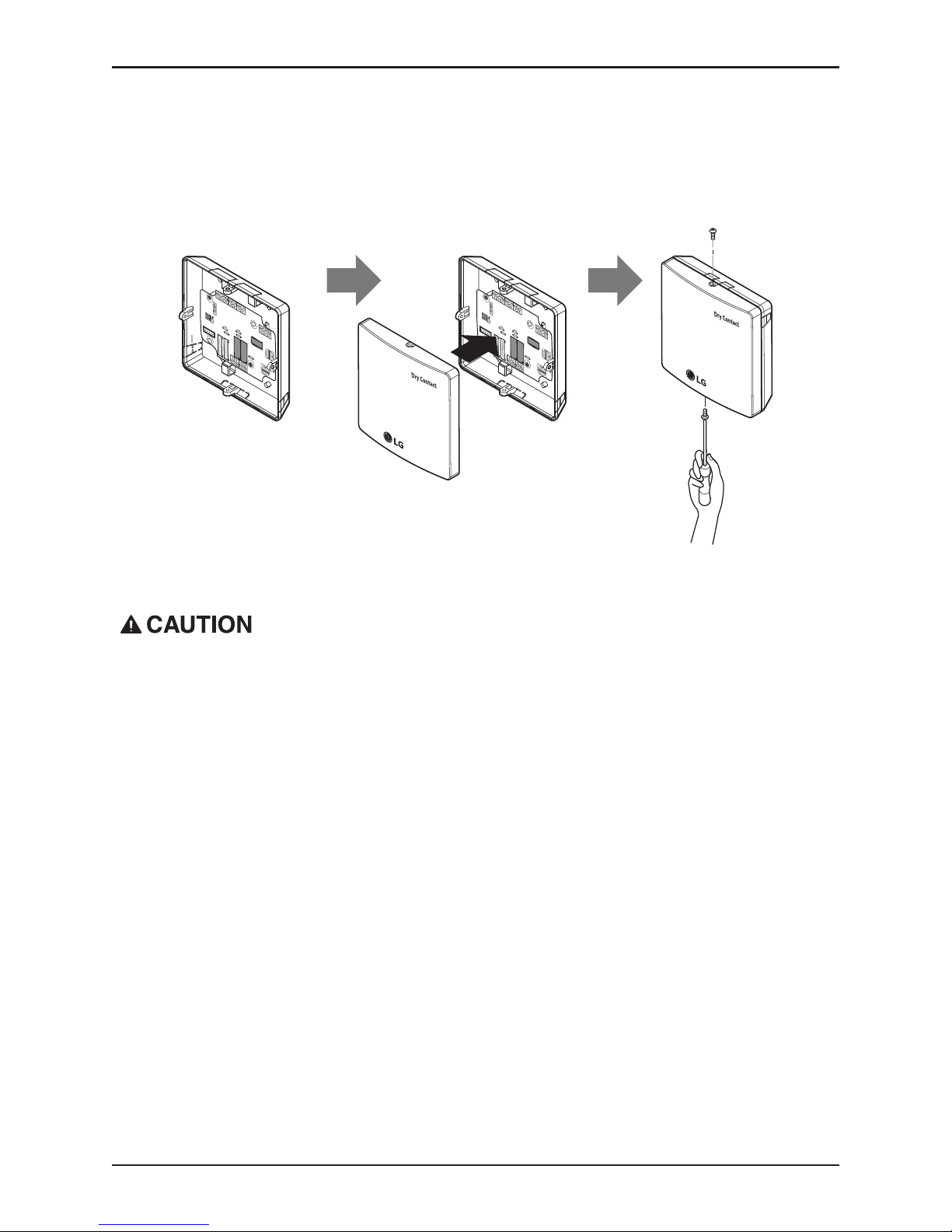

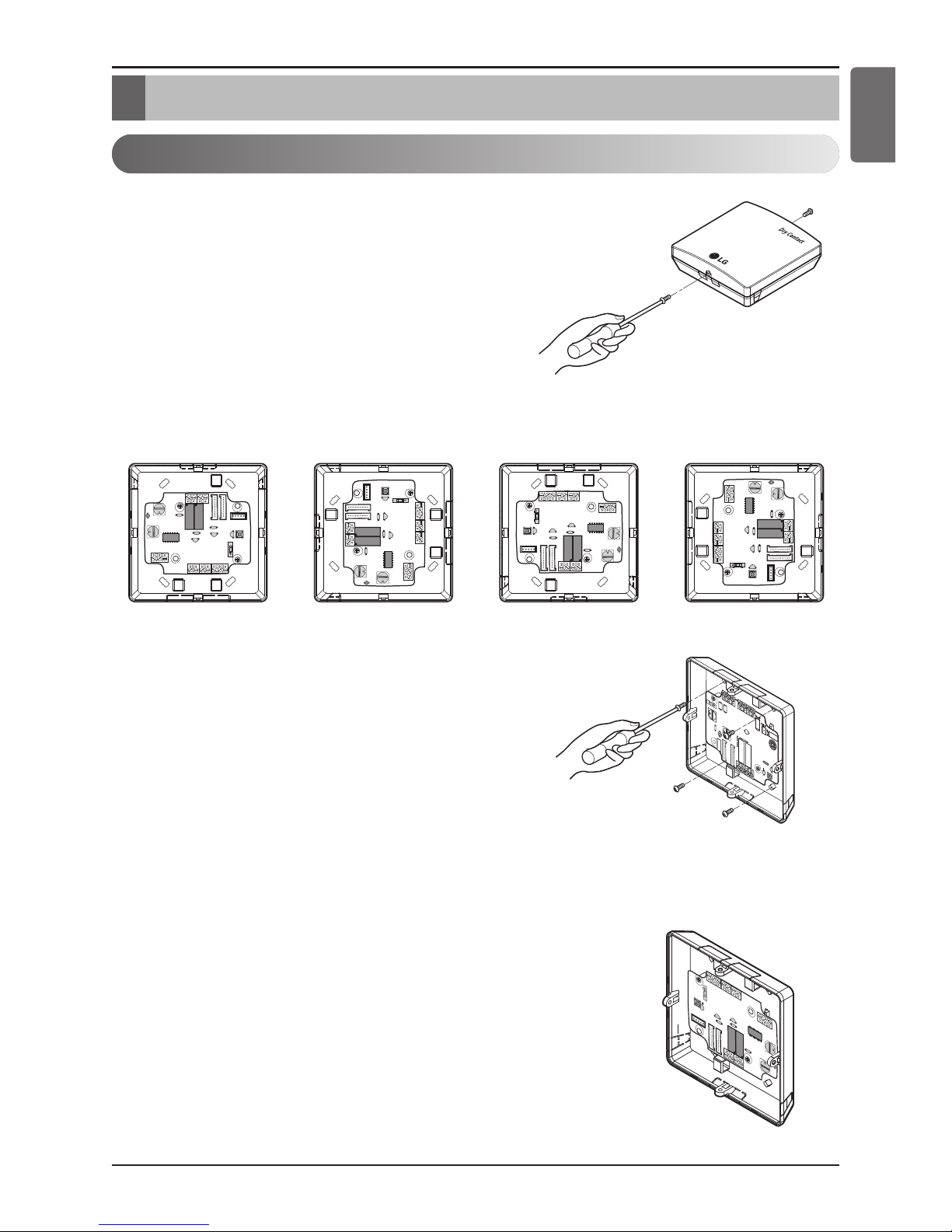

1) Loosen and remove two screws that secure the
product.
2) Position the rear case to the direction towards to the
connector for convenient cable arrangement.
3) Secure the rear case on the installation place using the
supplied fixing screws.
4) Remove knock out shapes on the rear case (4-sided)
according to the connector’s size and direction.
ENGLISH
Installation Method

8Dry contact for thermostat
Installation Method
5) Connect the connection wires properly according to the connection method. (Refer to the instruction
and set-up description)
6) Set the switch according to the setting method. (Refer to the instruction and set-up description)
7) Tighten the fixing screws on the top and bottom of the case.
1. Install the product on flat surface and install anchoring screws at more than 2 places. Otherwise
the central controller may not be anchored properly.
2. Do not tighten anchoring screws too tightly. It may cause deformation of the case.
3. Do not deform the case at random. It may cause malfunction of the central controller.

Installation manual 9
ENGLISH
Setting and using method
Setting and using method
1. Power supply and indoor unit connection
After change any Dry contact setting, then you must press RESET switch to reflect the setting.
■
When using the Dry contact for communication independently
Indoor unit
PCB
CHANGEOVER_SW
RESET_SW
CN_Ther/Oper CN_MODE
CN_WIND
CN_INDOOR
DISPLAY_LED
TEMP_SW
SETTING_SW
CN_OUT
CN_PI485

10 Dry contact for thermostat
Setting and using method
2. Setting of Contact Signal Input

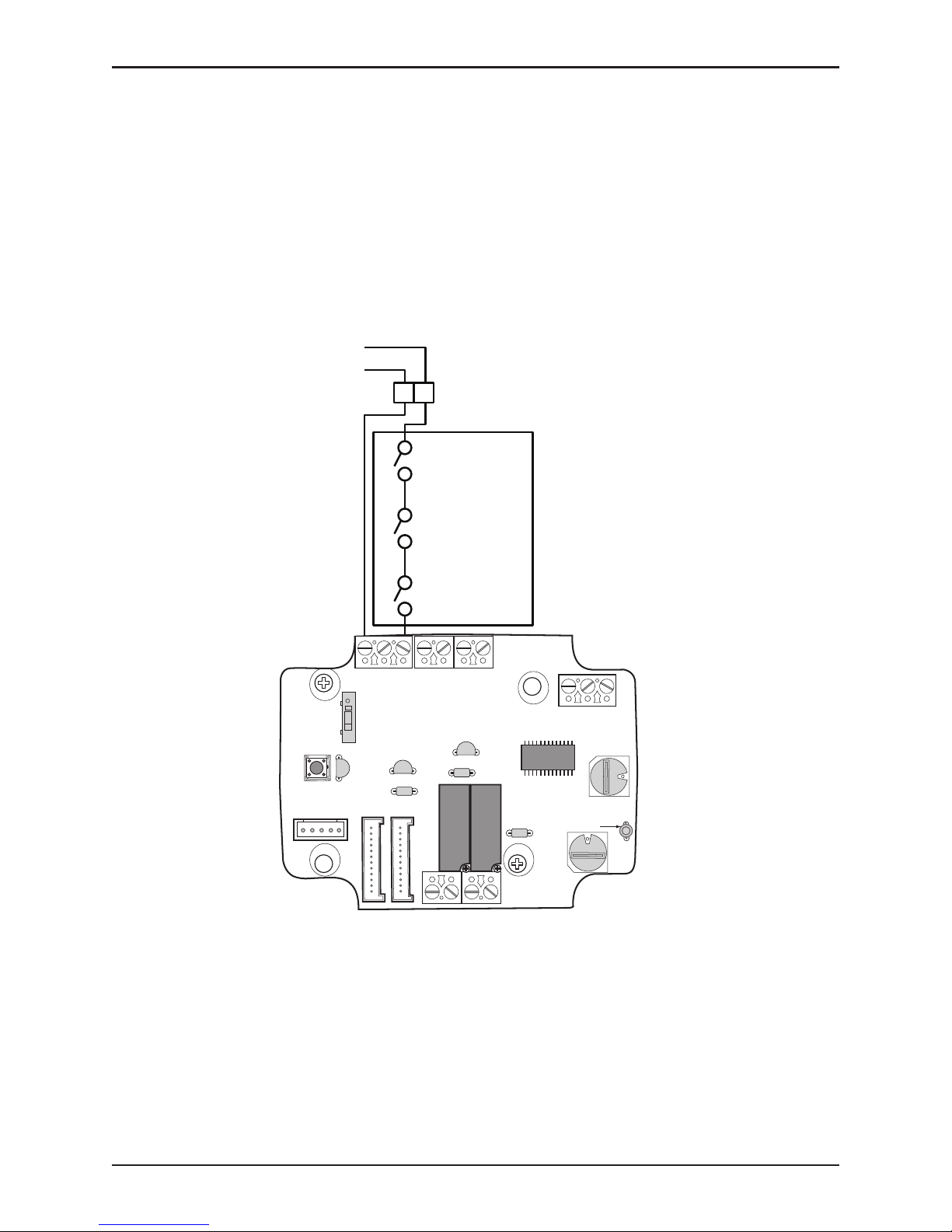

■For input contact closure only(No power input)
■For input contact voltage : DC 12 V, 24 V~
Notes
Do not input the voltage signal in
"NON VOLT" setting mode otherwise
it will cause serious damage
NOT USE
CHANGE
OVER_SW
VOLT NON
VOLT
NOT USE
CHANGE
OVER_SW
VOLT NON
VOLT
Connect separate
External voltage of
DC 12 V, 24 V~
jvtt
{ v jvtt
mhu
olh{ jvvs
sv~
tpkksl opno
COMM
Themal Operation COMM
FAN
HEAT COOL
LOW
MIDDLE HIGH
Thermostat
LG does not
supply this section
(Field supply)
Thermostat
LG does not
supply this section
(Field supply)
CHANGEOVER_SW
RESET_SW
CN_Ther/Oper CN_MODE
CN_WIND
CN_INDOOR
DISPLAY_LED
TEMP_SW
SETTING_SW
CN_OUT
CN_PI485
CHANGEOVER_SW
RESET_SW
CN_Ther/Oper CN_MODE
CN_WIND
CN_INDOOR
DISPLAY_LED
TEMP_SW
SETTING_SW
CN_OUT
CN_PI485

Installation manual 11
ENGLISH
Setting and using method

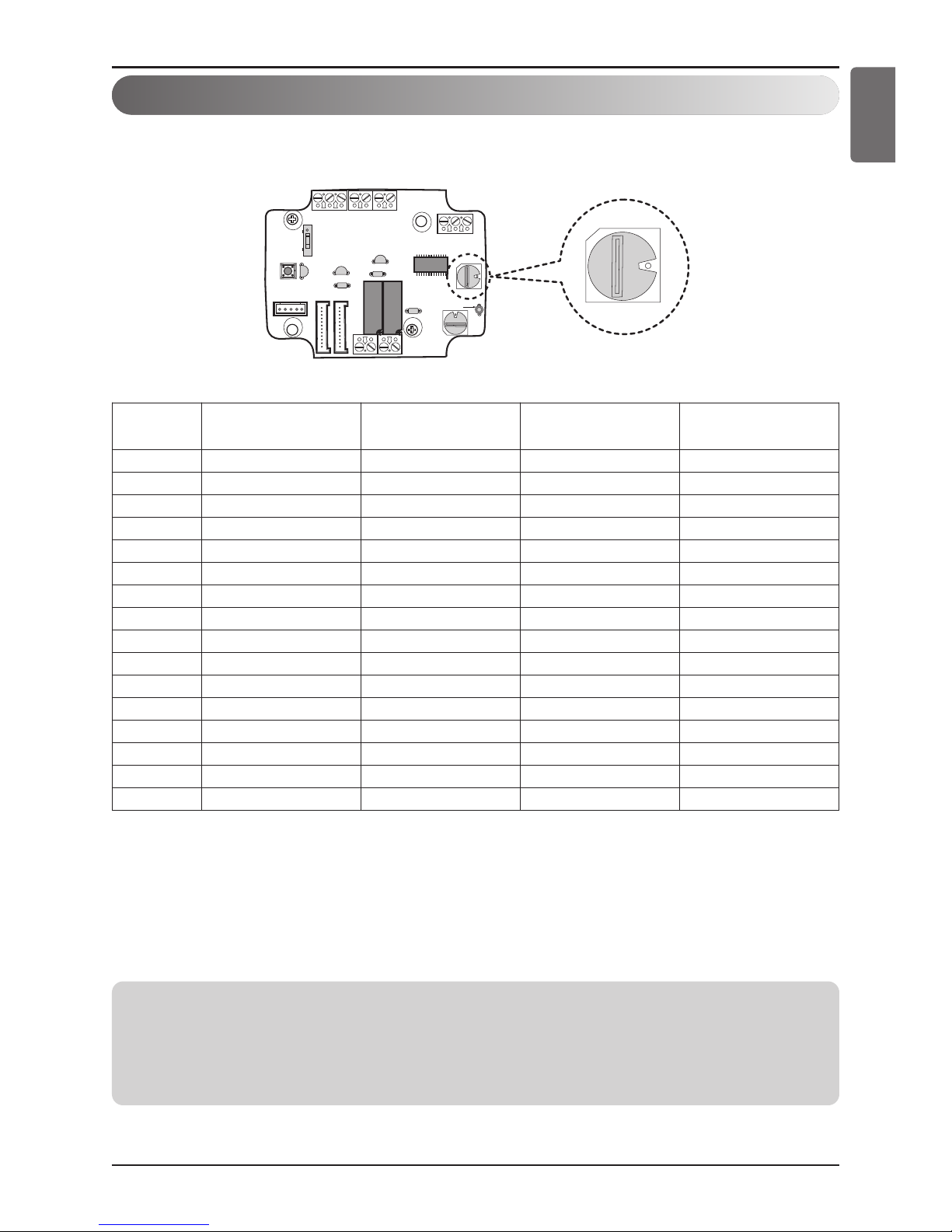

3. Setting of ‘SETTING_SW’
■Using ‘SETTING_SW’ , select the Option of control Function
as described below
Notes
• Information of ‘SETTING_SW’ is sensed only initial step by Dry contact module therefore , once the
configuration changed , Reset of Dry contact module is required.
• After power input or unit’s reset , wait 25~30 sec(Display LED 10 times blinking) for unit stabilization
then Dry contact module will operate normally.
CHANGEOVER_SW
RESET_SW
CN_Ther/Oper CN_MODE
CN_WIND
CN_INDOOR
DISPLAY_LED
TEMP_SW
SETTING_SW
CN_OUT
CN_PI485
SETTING_SW
1) Enable CN_WIND signal – Amount of wind flow (Low, Middle, High) signal enable
2) Enable Thermo ON/OFF input signal
- Desired Temperature 18 ℃ in cooling mode
- Desired Temperature 30 ℃ in heating mode
- No function in FAN mode
3) Enable CN_MODE signal – Operation mode (Cool, Heat, Fan) signal enable
4) Enable Thermostat priority control mode – Indoor’s remote-controller signal will be disregarded
No. WIND Signal
en/disable
Thermal
en/disable
Oper Mode
en/disable
Dry Contact Control
Priority
0 Disable Disable Disable Disable
1 Disable Disable Disable Enable4)
2 Disable Disable Enable3) Disable
3 Disable Disable Enable Enable
4 Disable Enable2) Disable Disable
5 Disable Enable Disable Enable
6 Disable Enable Enable Disable
7 Disable Enable Enable Enable
8 Enable 1) Disable Disable Disable
9 Enable Disable Disable Enable
A Enable Disable Enable Disable
B Enable Disable Enable Enable
C Enable Enable Disable Disable
D Enable Enable Disable Enable
E Enable Enable Enable Disable
F Enable Enable Enable Enable
<SETTING_SW Function>

12 Dry contact for thermostat
Setting and using method
Use WIND Signal?
Set the switch ‘0 ~ 7’
Use Thermal function?
Use Operation mode?
Switch 0
Set the switch ‘0 ~ 3’
Set the switch ‘0 ~ 1’ Set the switch ‘2 ~ 3’
Switch 1 Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 Switch 7
Set the switch ‘4 ~ 7’
Use Operation mode?
YES
NO
NO
YES
NO
NO YESNO YESNO YESNO
NO
YES YES
Use Dry Contact
Control Priority?
Use Dry Contact
Control Priority?
Use Dry Contact
Control Priority?
Use Dry Contact
Control Priority?
Use WIND Signal?
Set the switch ‘8 ~ F’
Use Thermal function?
Use Operation mode?
Switch 8
Set the switch ‘8 ~ B’
Set the switch ‘8 ~ 9’ Set the switch ‘A ~ B’ Set the switch ‘C ~ D’ Set the switch ‘E ~ F’
Switch 9 Switch A Switch B Switch C Switch D Switch E Switch F
Set the switch ‘C ~ F’
Use Operation mode?
YES
YES
NO
YES
NO
NO YESNO YESNO YESNO
NO
YES YES
Use Dry Contact
Control Priority?
Use Dry Contact
Control Priority?
Use Dry Contact
Control Priority?
Use Dry Contact
Control Priority?
Set the switch ‘4 ~ 5’ Set the switch ‘6 ~ 7’
-. When not using WIND signal
-. When using WIND signal
■Flow Chart for ‘SETTING_SW’
Notes
• When you change a function with remote control without setting Dry_contact control priority the display
condition between remote control and controller can be different.

Installation manual 13
ENGLISH
Setting and using method
■Function table for the selection of ‘SETTING_SW’ and the
input signal
Notes
1) Thermal On : This input will change automatically desired temperature
Desired Temperature 18 °C In cooling mode
Desired Temperature 30 °C In heating mode
No function In FAN mode
CHANGEOVER_SW
RESET_SW
CN_Ther/Oper CN_MODE
CN_WIND
SETTING_SW
85
SETTING_SW
COMM
Themal Operation COMM
FAN
HEAT COOL
LOW
MIDDLE HIGH
SETTING
_SW

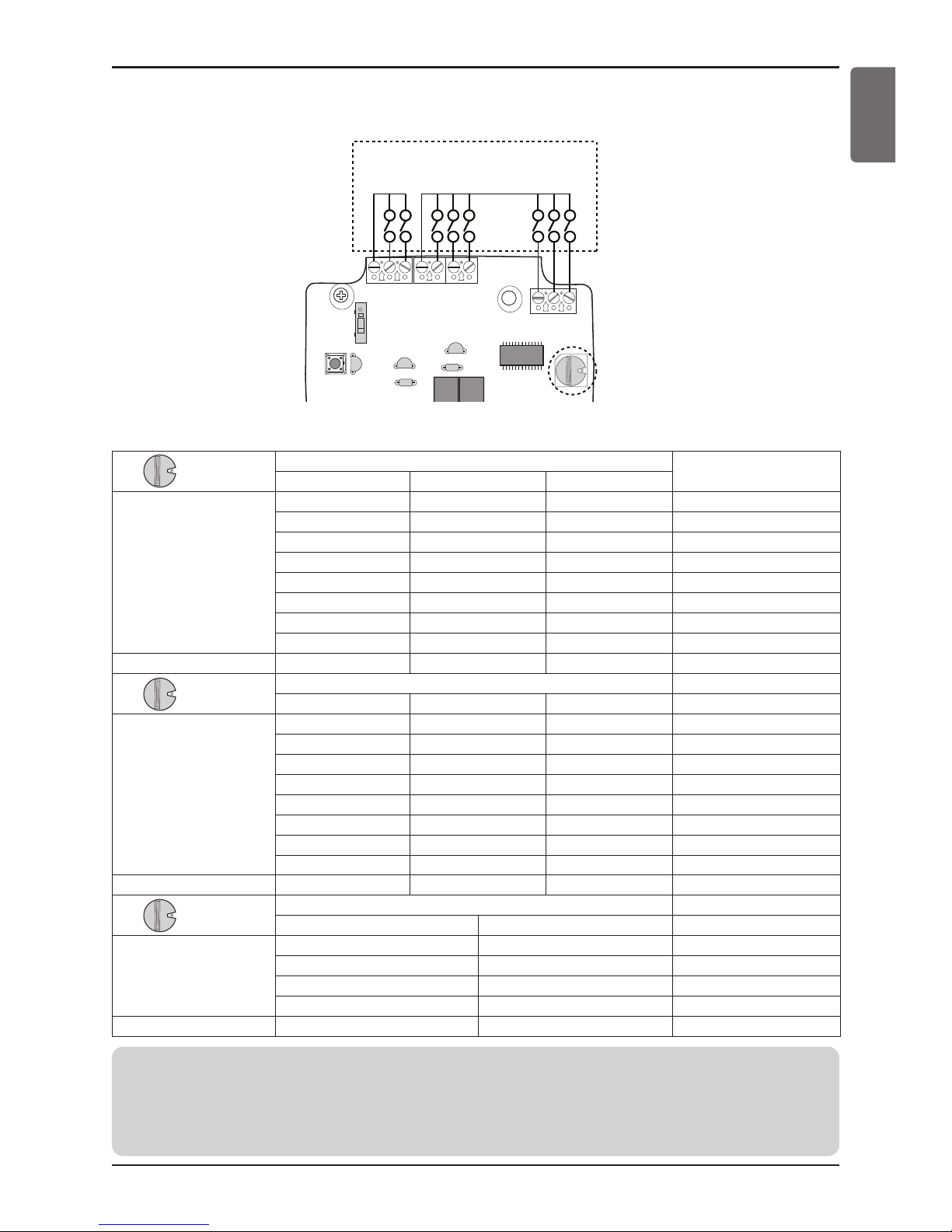

CN_MODE input Function
FAN HEAT COOL
2,3,6,7,A,B,E,F
0 0 0 NA
0 0 1 COOL
0 1 0 HEAT
0 1 1 NA
1 0 0 FAN
1 0 1 NA
1 1 0 NA
1 1 1 NA
Others - - - NA
SETTING
_SW
CN_WIND input Function
Low Middle High
8,9,A,B,C,D,E,F
0 0 0 NA
0 0 1 High
0 1 0 Middle
0 1 1 NA
1 0 0 Low
1 0 1 NA
1 1 0 NA
1 1 1 NA
Others - - - NA
SETTING
_SW
CN_Ther/Oper input Function
Thermal Operation
4,5,6,7,C,D,E,F
0 0 Thermal Off + Stop
0 1 Thermal Off + Run
1 0 Thermal On + Stop
1 1 Thermal On + Run
Others - - NA

14 Dry contact for thermostat
CN_WIND
DISPLAY_LED
TEMP_SW
SETTING_SW
CN_OUT
Setting and using method
4. Setting of ‘TEMP_SW’
■When setting the desired temperature of the Dry contact
Module
: When operating the indoor unit using Dry contact module’s desired temperature, set the desired
temperature according to the ‘TEMP_SW’ setting.
If Thermostat priority control mode is disabled, the desired temperature can be reset by other controller
- Use the ‘TEMP_SW’ to set the temperature as shown below.
TEMP
(°C)
'TEMP SW'
setting
Not use Dry Contact
module's Desired
temp function
0
18 19 20 21 22
12345
TEMP
(°C)
'TEMP SW'
setting
23 24 25 26 27 28 29 30
6789ABCD
*. E, F : Reserved

Installation manual 15
ENGLISH
Setting and using method
5. Installation of thermostat
■When interlocking with thermostat, select the option of
control function as described below.
CHANGEOVER_SW
RESET_SW
CN_Ther/Oper CN_MODE
CN_WIND
CN_INDOOR
DISPLAY_LED
TEMP_SW
SETTING_SW
CN_OUT
CN_PI485
SETTING_SW
TEMP_SW
<Switch Function>
TEMP_SW SETTING_SW Thermostat mode WIND Signal en/disable
F
0Conventional AC Unit Thermostat Disable
1 Enable
2Heat Pump Thermostat_O
Terminal
Disable
3 Enable
4Heat Pump Thermostat_B
Terminal
Disable
5 Enable
1) When interlocking with thermostat, set TEMP_SW to F.
2) Enable CN_WIND signal – Amount of wind flow(Low, Middle, High) signal enable
Notes
• Information of ‘SETTING_SW’ is sensed only initial step by Dry contact module therefore , once the
configuration changed , Reset of Dry contact module is required.
• After power input or unit’s reset , wait 25~30 sec(Display LED 10 times blinking) for unit stabilization
then Dry contact module will operate normally.
• Do not use desired temperature setting function when interlocking with thermostat.

16 Dry contact for thermostat
Setting and using method
■Details of Installation for thermostat
1) In case of Occupancy sensor,
- When motion is detected by the sensor, Indoor unit is enabled.
- Otherwise, Indoor unit is disabled.
2) In case of Emergency Stop or Security option.
- When emergency condition occurs, Indoor unit is disabled.
- Otherwise, Indoor unit is enabled.
Reference Cases
CHANGEOVER_SW
RESET_SW
CN_Ther/Oper CN_MODE
CN_WIND
CN_INDOOR
DISPLAY_LED
TEMP_SW
SETTING_SW
CN_OUT
CN_PI485
C
24 V~ H
N
R
Security
Emergency Stop
Occupancy Sensor

Installation manual 17
ENGLISH
Setting and using method
Notes
• IDU Fan logic, depending on model selected, may delay IDU fan operation momentarily during a cold
start heat call. This function allows IDU coil to warm up prior to operating fan in some IDU models.
• Thermostats that use resistive anticipation are not supported at this time.
• Verify documentation of desired thermostat so that the logic is same as shown in the table above.
NOT USE
CHANGE
OVER_SW
VOLT NON
VOLT
Thermostat
LG does not supply this section
(Field supply)
CHANGEOVER_SW
RESET_SW
CN_Ther/Oper CN_MODE
CN_WIND
CN_INDOOR
DISPLAY_LED
TEMP_SW
SETTING_SW
CN_OUT
CN_PI485
LOW
MIDDLE HIGH
H
H
N
HH
Operation
FAN
HEAT COOL
COMM
C
24 V~
RGWY
■For conventional thermostat signal input
Thermostat Fan & System Switch Input IDU Response
[Mode / Thermal / Fan]
FAN
[Auto / On]
MODE
[Cool / Heat / Off] Operation FAN [G]
HEAT
[W]
COOL
[Y]
- - - 0 - - - Disable Operation
Auto
OFF-1000 Enable
Cool RT>SP1101 Cool / On / On
RT<SP1000 Enable
Heat RT<SP1110 Heat/ On/On
RT>SP1000 Enable
ON
FAN-1100 Fan/ Off/ On
Cool RT>SP1101 Cool/ On/ On
RT<SP1100 Fan/ Off/ On
Heat RT<SP1110 Heat/ On/ On
RT>SP1100 Fan/ Off/ On

18 Dry contact for thermostat
Setting and using method
NOT USE
CHANGE
OVER_SW
VOLT NON
VOLT
CHANGEOVER_SW
RESET_SW
CN_Ther/Oper CN_MODE
CN_WIND
CN_INDOOR
DISPLAY_LED
TEMP_SW
SETTING_SW
CN_OUT
CN_PI485
Thermostat
LG does not supply this section
(Field supply)
LOW
MIDDLE HIGH
H
H
N
HH
Operation Thermal
FAN
COOL
COMM
C
24 V~
RYGO
■For heat pump thermostat with O terminal signal input
Thermostat Fan & System Switch Input IDU Response
[Mode / Thermal / Fan]
FAN
[Auto / On]
MODE
[Cool / Heat / Off] Operation Thermal [Y]
FAN
[G]
COOL
[O]
- - - 0 - - - Disable Operation
Auto
OFF-1000 Enable
Cool RT>SP1101 Cool / On / On
RT<SP1001 Enable
Heat RT<SP1100 Heat/ On/On
RT>SP1000 Enable
ON
FAN-1010 Fan/ Off/ On
Cool RT>SP1111 Cool/ On/ On
RT<SP1011 Fan/ Off/ On
Heat RT<SP1110 Heat/ On/ On
RT>SP1010 Fan/ Off/ On
Notes
• Thermostats that close contacts "O" or "B" during Cool or Heat call only have not been verified. "O"
and/or "B" contact closure must be maintained during respective cycle / mode selection.
• IDU Fan logic, depending on model selected, may delay IDU fan operation momentarily during a cold
start heat call. This function allows IDU coil to warm up prior to operating fan in some IDU models.
• Thermostats that use resistive anticipation are not supported at this time.
• Verify documentation of desired thermostat so that the logic is same as shown in the table above.

Installation manual 19
ENGLISH
Setting and using method
NOT USE
CHANGE
OVER_SW
VOLT NON
VOLT
CHANGEOVER_SW
RESET_SW
CN_Ther/Oper CN_MODE
CN_WIND
CN_INDOOR
DISPLAY_LED
TEMP_SW
SETTING_SW
CN_OUT
CN_PI485
Thermostat
LG does not supply this section
(Field supply)
LOW
MIDDLE HIGH
H
H
N
HH
Operation Thermal
FAN
HEAT
COMM
C
24 V~
RYGB
■For heat pump thermostat with B terminal signal input
Thermostat Fan & System Switch Input IDU Response
[Mode / Thermal / Fan]
FAN
[Auto / On]
MODE
[Cool / Heat / Off] Operation Thermal [Y]
FAN
[G]
HEAT
[B]
- - - 0 - - - Disable Operation
Auto
OFF-1000 Enable
Cool RT>SP1100 Cool / On / On
RT<SP1000 Enable
Heat RT<SP1101 Heat/ On/On
RT>SP1001 Enable
ON
OFF-1010 Fan/ Off/ On
Cool RT>SP1110 Cool/ On/ On
RT<SP1010 Fan/ Off/ On
Heat RT<SP1111 Heat/ On/ On
RT>SP1011 Fan/ Off/ On
Notes
• Thermostats that close contacts "O" or "B" during Cool or Heat call only have not been verified. "O"
and/or "B" contact closure must be maintained during respective cycle / mode selection.
• IDU Fan logic, depending on model selected, may delay IDU fan operation momentarily during a cold
start heat call. This function allows IDU coil to warm up prior to operating fan in some IDU models.
• Thermostats that use resistive anticipation are not supported at this time.
• Verify documentation of desired thermostat so that the logic is same as shown in the table above.

20 Dry contact for thermostat
Setting and using method

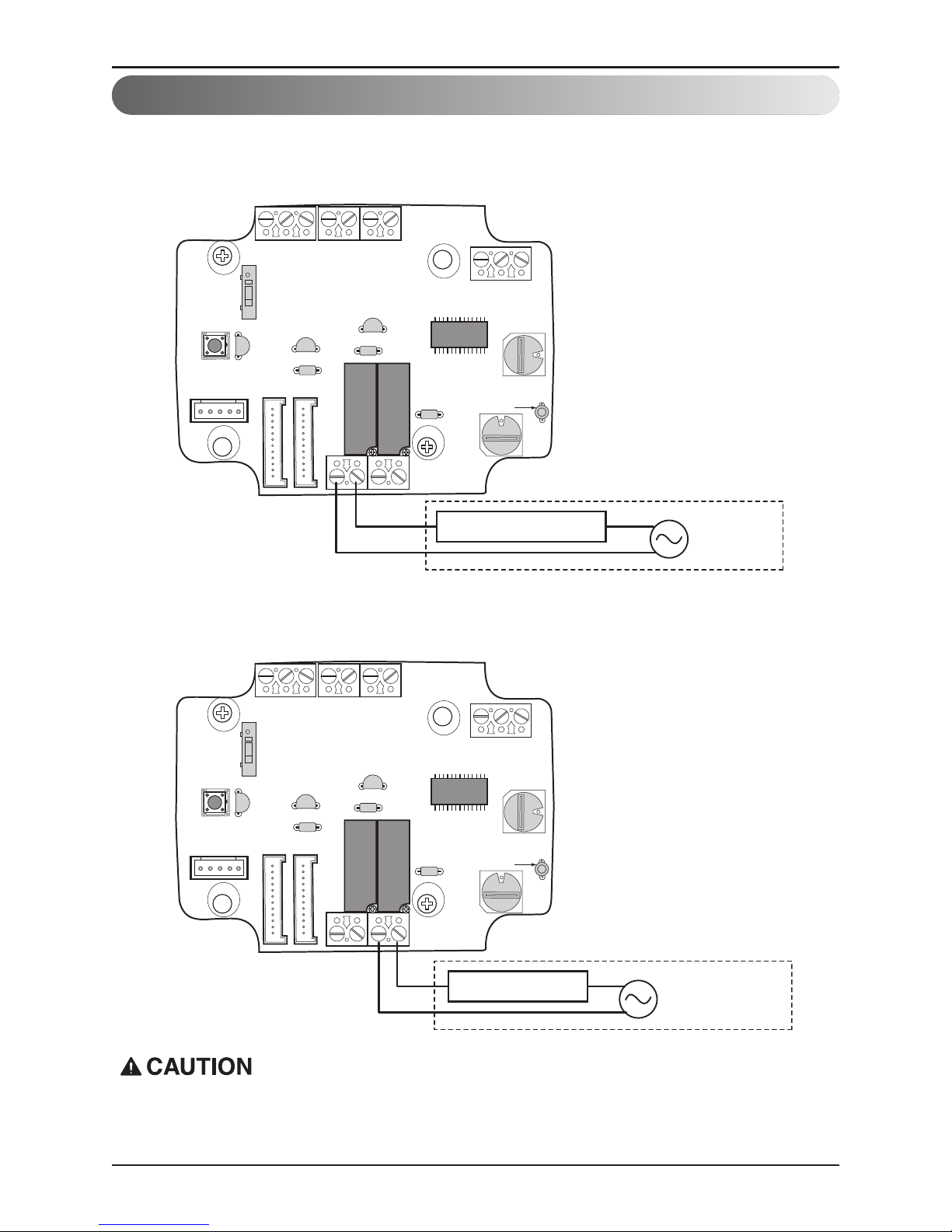

6. Indoor unit monitoring
■Monitoring whether the indoor unit is operating: Refer to
below and connect to the control device that you want to
control.
CHANGEOVER_SW
RESET_SW
CN_Ther/Oper CN_MODE
CN_WIND
CN_INDOOR
DISPLAY_LED
TEMP_SW
SETTING_SW
CN_OUT
CN_PI485
CHANGEOVER_SW
RESET_SW
CN_Ther/Oper CN_MODE
CN_WIND
CN_INDOOR
DISPLAY_LED
TEMP_SW
SETTING_SW
CN_OUT
CN_PI485
Error Display
Field Supply
(Depends on Operation display power type)
Power
AC or DC
Field Supply
(Depends on Error display power type)
Power
AC or DC
Operation Display
Field supply power should not use more than DC 12 V(3A), 24 V~(3A)
■Monitoring indoor unit error: Refer to below and connect to
the control device that you want to control.
