LG W242AC User manual

OWNER’S MANUAL
AIR CONDITIONER
Please read this manual carefully before operating
your set and retain it for future reference.
TYPE : WINDOW
P/NO : MFL67740301 www.lg.com

2Room Air Conditioner
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
■Staple your receipt to this page in the event you need it
to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little
preventive care on your part can save you a great deal of
time and money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
PRECAUTION
•Contact the authorized service technician for repair
or maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young
children or invalids without supervision.
• Young children should be supervised to ensure that
they do not play with the air conditioner.
• When the power cord is to be replaced, replacement
work shall be performed by authorized personnel
only using only genuine replacement parts.
• Installation work must be performed in accordance
with the National Electric Code by qualified and
authorized personnel only.
Safety Precautions..........................3
Before Opeation ..............................7
Introduction ....................................8
Installation ......................................9
Operating Instructions .................14
Maintenance and Service ............21
Window-Type Air Conditioner Owner’s Manual
TABLE OF CONTENTS

Owner’s Manual 3
ENGLISH

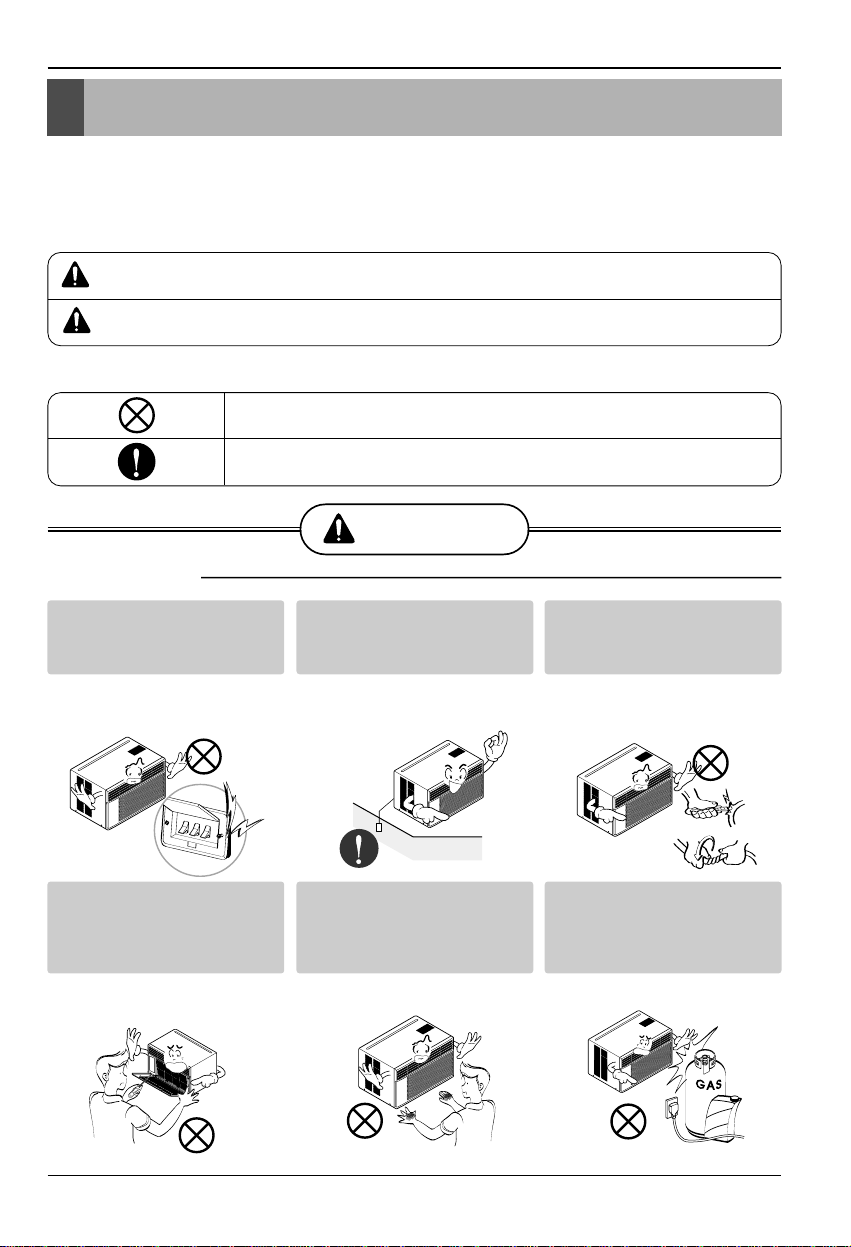

Safety Precautions
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness
is classified by the following indications.
■Meanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
WARNING
■Installation
Be sure not to do.
Be sure to follow the instruction.
Don’t use a power cord, a
plug or a loose socket which
is damaged.
• Otherwise, it may cause a
fire or electrical shock.
Always ground the
product.
• There is risk of fire or
electric shock.
Do not modify or extend
the power cable.
• There is risk of fire or
electric shock.
Do not disassemble or
modify products.
• It may cause failure and
electric shock.
Be caution when unpacking
and installing.
• Sharp edges may cause
injury.
Do not use the power cord near
flammable gas or combustibles
such as gasoline, benzene,
thinner, etc.
• It may cause explosion or
fire.
Gasolin

4Room Air Conditioner

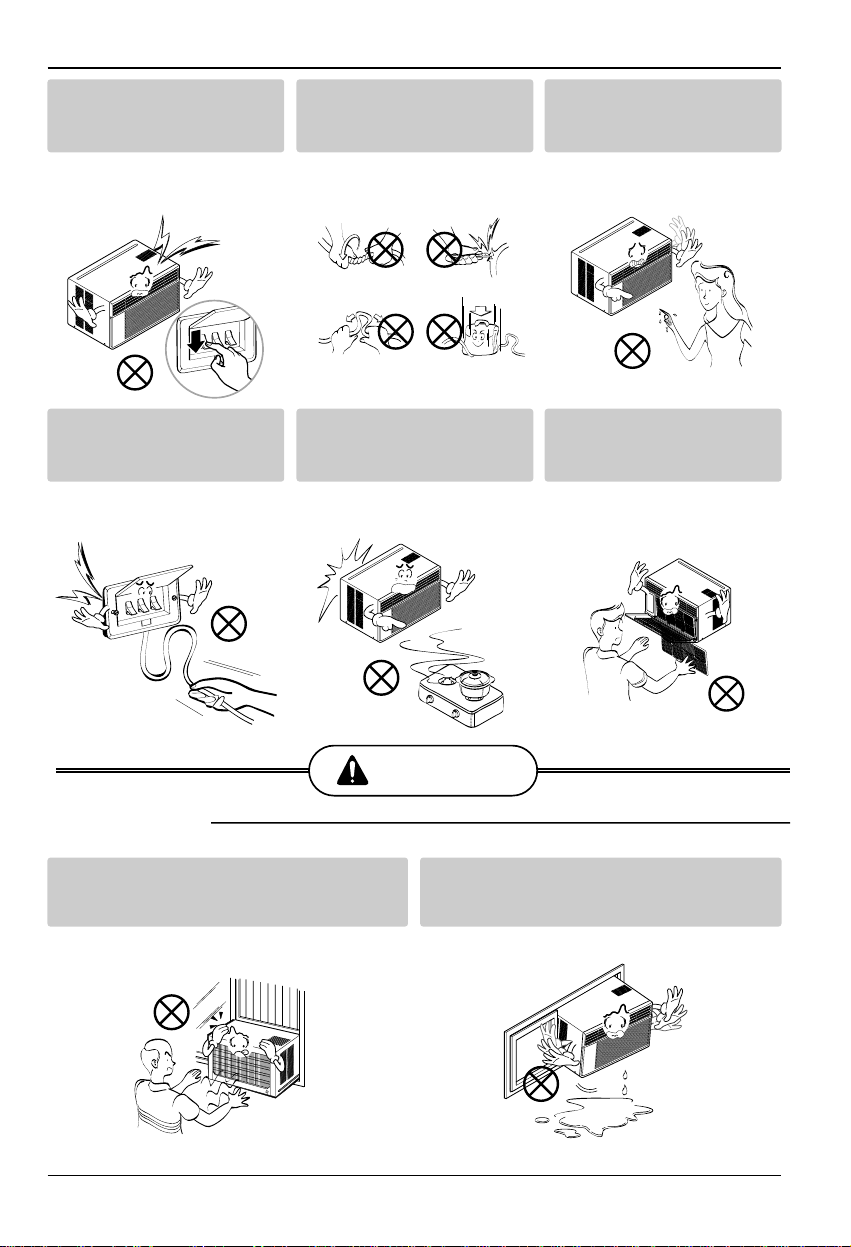

Safety Precautions
■Operation
Do not place the power cord
near a heater.
• It may cause fire and electric
shock.
Do not allow water to run
into electric parts.
• It will cause failure of machine
or electric shock.
Use a soft cloth to clean. Do
not use wax, thinner, or a
strong detergent.
• The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
Wax
Thinner
Ventilate the room well when
using this appliance
together with a stove, etc.
• An oxygen shortage may
occur.
Turn off the power and
breaker firstly when
cleansing the unit.
• Since the fan rotates at high
speed during operation, it may
cause injury.
Turn off the main power
switch when not using it for
a long time.
• Prevent accidental startup and
the possibility of injury.
If strange sounds, or small or
smoke comes from product.
Turn the breaker off or
disconnect the power supply
cable.
• There is risk of electric
shock or fire.
Do not open the suction inlet
grill of the product during
operation.
• Otherwise, it may electrical
shock and failure.
If water enters the product, turn
off the the power switch of the
main body of appliance. Contact
service center after taking the
power-plug out from the socket.
Do not place heavy object
on the power cord and take
care so that the cord should
not be pressed.
• There is danger of fire or
electric shock.
Always install a dedicated
circuit and breaker.
• Improper wiring or
installation may cause fire
or electric shock
Do not touch(operate) the
product with wet hands.
• There is risk of fire or
electrical shock.

Owner’s Manual 5
ENGLISH
Safety Precautions
CAUTION
■Installation
Do not plug or unplug the
power supply plug during
operation.
• There is risk of fire or
electric shock.
Do not damage or use an
unspecified power cord.
• It will cause electric shock or
fire.
Do not operate with wet
hands or in damp
environment.
• It will cause electric shock.
Take care to ensure that power
cable could not be pulled out
or damaged during operation.
• There is risk of fire or
electric shock.
When gas leaks, open the
window for ventilation
before operating the unit.
• Otherwise, it may cause
explosion, and a fire.
Never touch the metal parts
of the unit when removing
the filter.
• They are sharp and may
cause injury.
Install the product so that the noise or hot
wind from the outdoor unit may not cause
any damage to the neighbors.
• Otherwise, it may cause dispute with the
neighbors.
Keep level parallel in installing the product.
• Otherwise, it may cause vibration or water
leakage.

6Room Air Conditioner
Safety Precautions

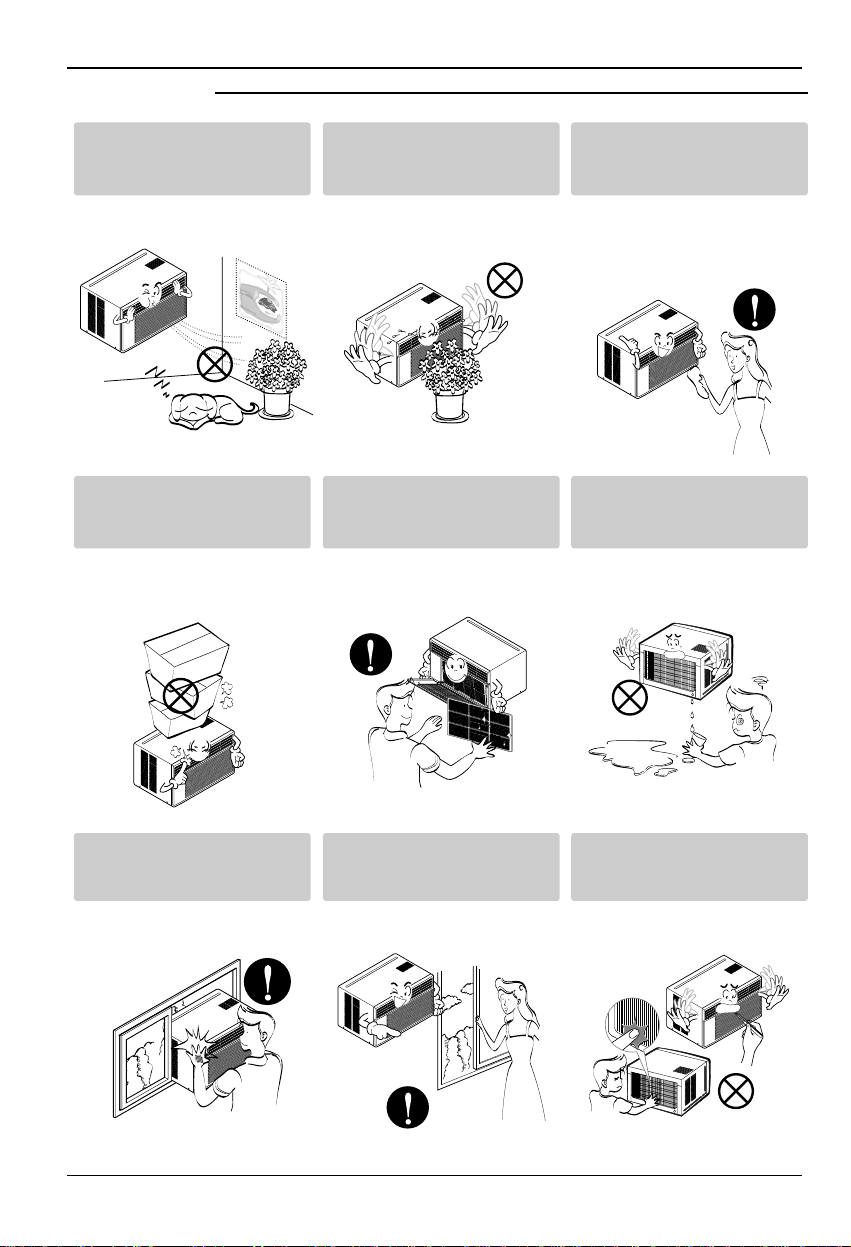

■Operation
Be cautious not to touch the
sharp edges when
installing.
• It may cause injury.
Avoid excessive cooling and
perform ventilation
sometimes.
• Otherwise, it may do harm to
your health.
Do not insert the hands or
bars through the air inlet or
outlet during operation.
• Otherwise, it may cause
personal injury.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
• It may cause injury.
Do not block the inlet or
outlet of air flow.
• It may cause product failure.
Use a soft cloth to clean. Do
not use wax, thinner, or a
strong detergent.
• The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
Do not step on the
indoor/outdoor unit and do
not put anything on it.
• It may cause an injury
through dropping of the unit
or falling down.
Always insert the filter
securely.
Clean it every two weeks.
• Operation without filters will
cause failure.
Do not drink water drained
from air conditioner.
• It contains containments and
will make you sick.

Owner’s Manual 7
ENGLISH
Before to Operation
Before Operation
1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/stop operation by plugging/unplugging the power cord.
6. If the cord/plug is damaged, replace it with only an authorized replacement
part.
1. Being exposed to direct airflow for an extended period of time could be
hazardous to your health. Do not expose occupants, pets, or plants to direct
airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used
together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g.
preserving precision devices, food, pets, plants, and art objects). Such usage
could damage the items.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can
occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can
destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned
off. The fan rotates at a very high speed during operation. There is a possibility
of injury if the unit’s power is accidentally triggered on while cleaning inner
parts of the unit.
For repair and maintenance, contact your authorized service dealer.
Preparing for Operation
Usage
Cleaning and Maintenance
Service

8Room Air Conditioner
Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to
the air conditioner.
This symbol indicates special notes.
NOTICE
This appliance should be installed in accordance with the National Electric Code.

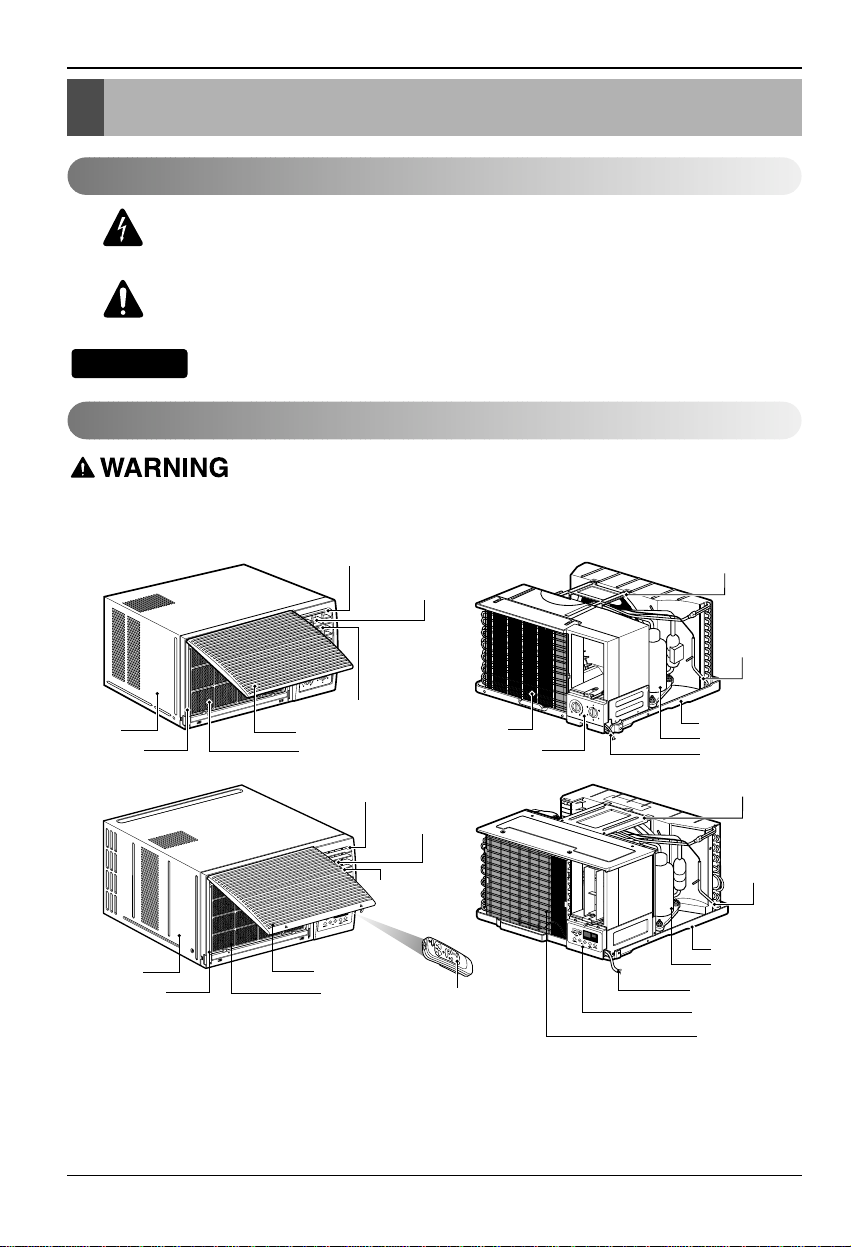

Vertical Air Deflector
(Horizontal Louver)
Horizontal Air Deflector
(Vertical Louver)
Air Discharge Evaporator
Control Board
Evaporator
Control Board
Condenser
Base Pan
Brace
Brace
Cabinet
Front Grille Air Filter
Air Intake(Inlet Grille)
Vertical Air Deflector
(Horizontal Louver)
Horizontal Air Deflector
(Vertical Louver)
Air Discharge
Cabinet
Front Grille Air Filter Remote Controller
Air Intake(Inlet Grille)
Compressor
Power Cord
Condenser
Base Pan
Compressor
Power Cord
Introduction
Symbols Used in this Manual
Features

Owner’s Manual 9
ENGLISH
Installation
Installation

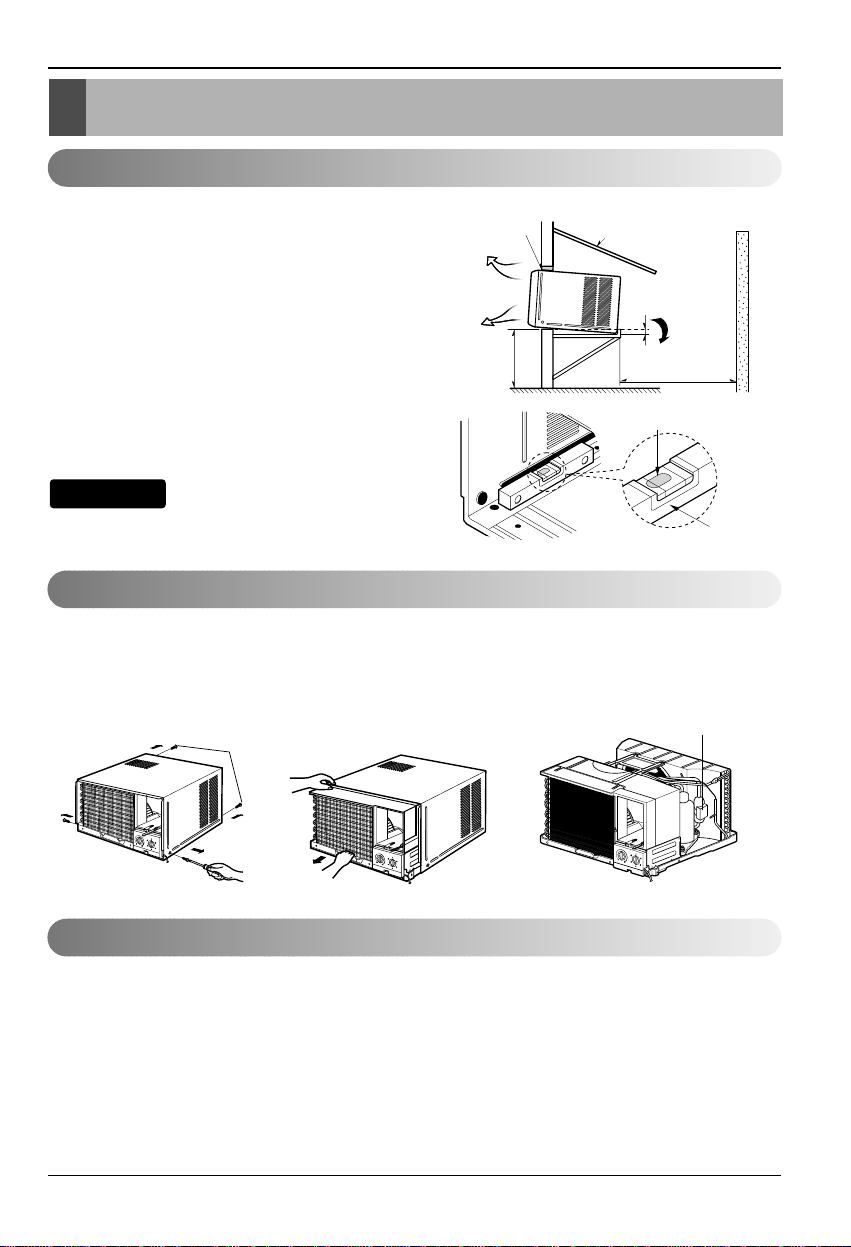

Select the Best Location
1. Measure the space for installation to assure a good
fit. The air conditioner must be installed firmly into
place to prevent vibration and noise.
2. Avoid exposure to direct sunlight.
3. Remove all obstacles from the rear of the unit.
There must be at least 50cm (20in.) of cleared
space around the rear of the unit. Obstacles
restricting the airflow may reduce the cooling
efficiency of the unit.
4. The unit should be installed with a slight tilt
towards the outside (approx. 3°) to allow
condensed water to drain. (About 10~15mm or 1/4
bubble with level)
The external grille must be exposed outside for
air discharge.
NOTICE
Remove the Air Conditioner From the Case
1. Remove 2 shipping screws from the back of the case.
2. Remove the 2 screws on each side of the case. Keep these for later use.
3. Slide out the air conditioner from the case by pulling the base-pan handle while bracing the case.
4. Remove the white Styrofoam shipping block from the compressor. (Applicable for some models)

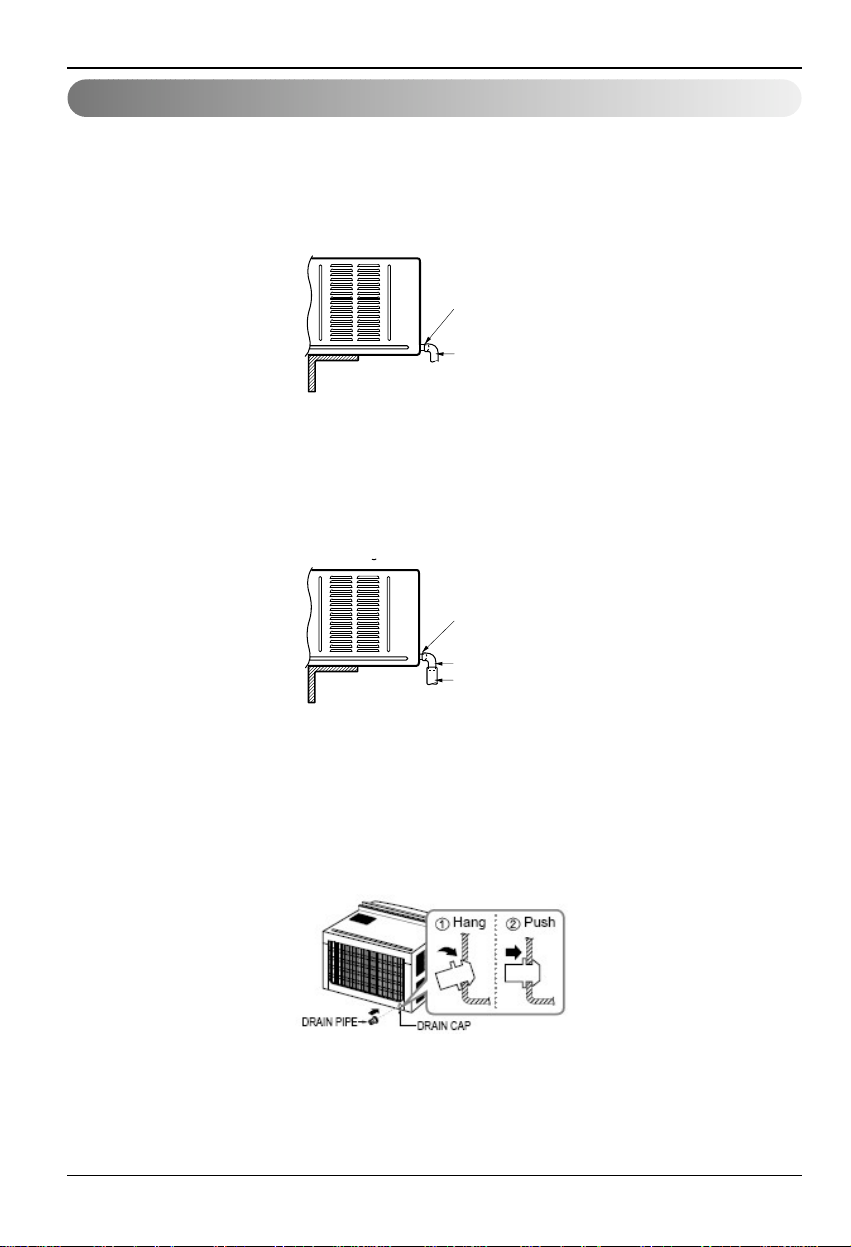

Attaching the Drain Pan (Optional)
The drain pan is used to collect condensed water.
The base-pan may overflow due to high humidity. The base-pan may also collect excess water when in
reverse mode (in Reverse Cycle models only). To drain the excess water, remove the drain cap from the back
of the unit and secure the drainpipe as follows:
1. Remove the drain pan located in the air discharge or on the barrier.
2. Remove the rubber cap from the hole on the base-pan. (Not applicable to all models)
3. Install the drain pan to the left corner of the cabinet with 2-4 screws.
4. Connect the drain hose to the hole located on the bottom of the drain pan.
You can purchase the drain hose or tubing locally to satisfy your particular needs. (Drain hose not included)
10 ~15mm
Over 50cm
HEAT
RADIATION
FENCE
AWNING
FOAM
COOLED
AIR
70-150cm
Level
1/4 Bubble
Shipping screws White styrofoam block

10 Room Air Conditioner
Step 1
Remove the air conditioner from it’s packaging and
slide the air conditioner out of it’s housing.
Step 2
Prepare the hole in the wall so that the bottom of the
housing is well supported, the top has minimum
clearace and the air inlet louveres have clearance
as shown. Holes from the outside through to the
cavity should be sealed. The housing should slope
down towards the rear by about 5mm to allow water
formed during operation to drain.
Step 3
Install the housing into the wall and secure. Ensure
the foam seals are not damaged. Flash, seal or fill
gaps around the inside and outside to provide
satisfactory appearance and protection against the
weather, insects and rodents.
Installation
Installation of the Housing
Installations of the unit into the Housing
Installations of the unit into the wall
1. Slide the unit into the housing until it is firmly
against the rear of the housing. Care is required
to ensure the foam sealing strips on the housing
remain in position.
2. Connect the air conditioner to the power and coil
excess cord length beneath the air conditioner
base or control box.
3. Engage the Chassis Lock into the bottom housing
rail and secure to the base with the screw
provided.
4. Remove the front panel from i’s carton and plastic
bag and fit as per the Operating Instruction.
5. Switch unit on. Check for operation of the unit and
check for vibration in the installation.
6. Fit the drain chute to the housing and run a drain
line to a suitable location if required.
FLASH OR SEAL AROUND EXTERNAL
WALL FRAME OR ARCHITRAVE
STURDY TIMBER
FRAME ALL ROUND
UNIT
DRAIN CHUTE
EXTERNAL SUPPORT
FRAME AT BALANCE
POINT OF RAC

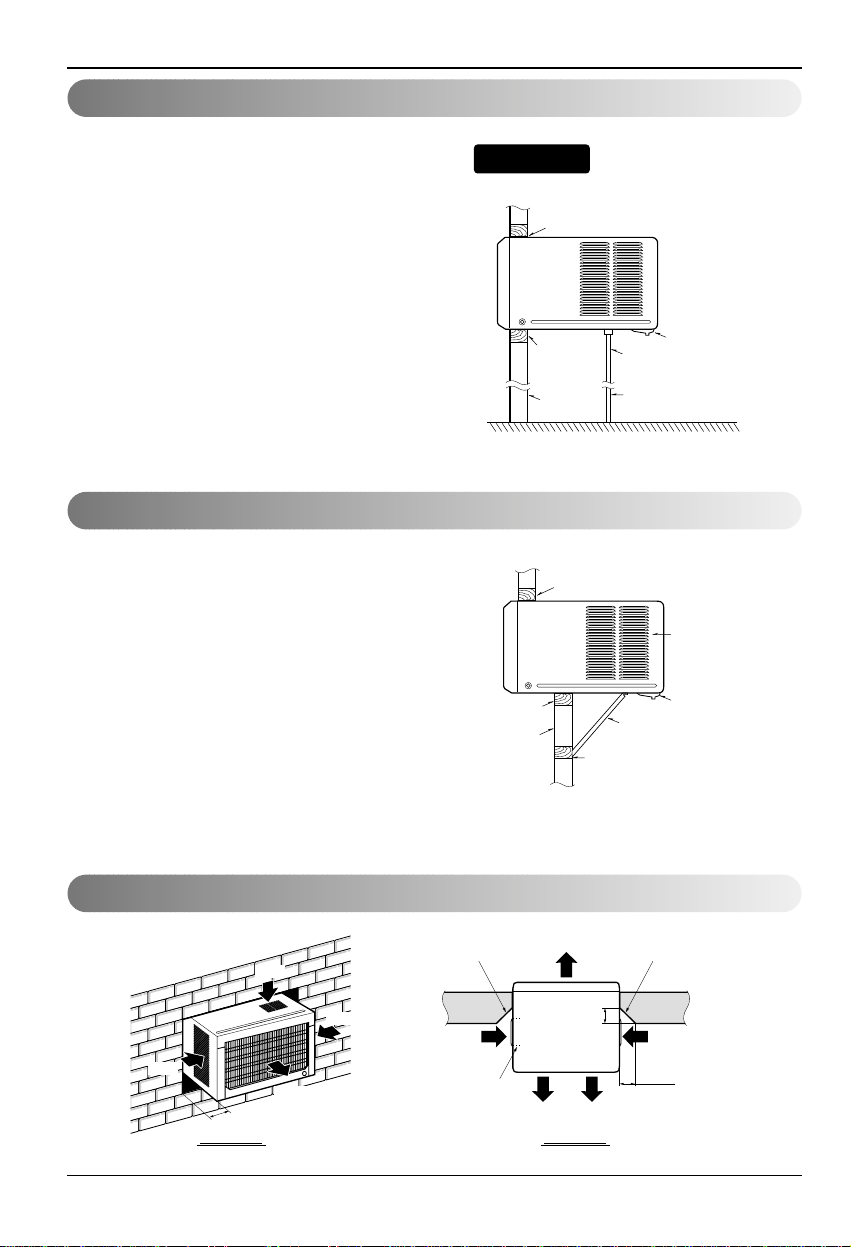

Preferred method of installation into
a timber framed wall, partition or window.
ALTERNATIVELY, BRACKETS
AS ILLUSTRATED BELOW
MAY BE USED.
TIMBER FRAMED
WALL OR PARTITION
NOTICE UNIT MAY BE SUPPORTED BY A
SOLID FRAME FROM BELOW
OR BY A HANGER FROM A
SOLID OVERHEAD SUPPORT.
Alternative method of installation if external
support cannot be provided.
FLASH OR SEAL AROUND EXTERNAL
WALL FRAME OR ARCHITRAVE
ENSURE LOUVRES
ARE ENTIRELY
OUTSIDE THE WALL.
DRAIN CHUTE
STURDY TIMBER
FRAME
STEADYING BRACKET
(ONE PER SIDE)
SOLID TIMBER SUPPORT
TIMBER FRAMED
WALL OR PARTITION
100mm minimum
AIR IN
AIR IN
AIR IN
AIR OUT
OPTION A
100mm
100mm
LOUVRE
FRONT
45°BRICK CUT AWAY
TO CLEAR LOUVRES 45°BRICK CUT AWAY TO CLEAR LOUVRES
BRICK
WALL
BRICK
WALL
AIR IN AIR IN
AIR OUT
TOP
VIEW
OPTION B

Owner’s Manual 11
ENGLISH

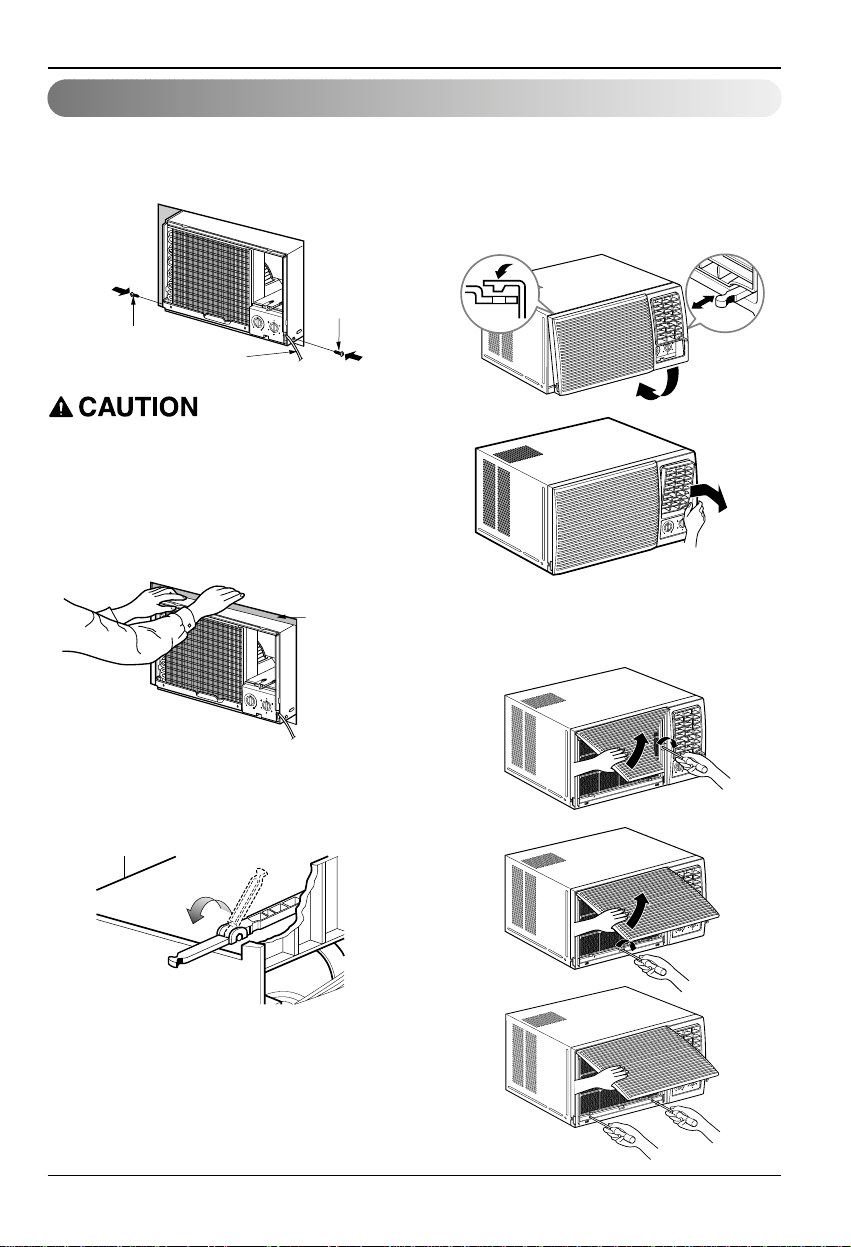

Installation
Install the Air Conditioner in the Case
1. Slide the air conditioner into the case.
Reinstall the 2 screws removed earlier on each
side of the case.
The power cord must be connected to an
independent circuit.
The green wire must be grounded.
2. Stuff the foam between the top of the unit and the
wall to prevent air and insects from getting into the
room.
3. Before installing the front grille, pull out the vent
control lever located above the unit control knobs,
as shown. (for some models)
4. Attach the front grille to the case by inserting the
tabs on the grille into the slots on the front of the
case. Push the grille in until it snaps into place.
When you detach the front grille from the case,
push the grille to your right side and pull it toward
you.
5. Lift the inlet grill and secure the front grille with a
screw(L:10mm). Lower the inlet grille into place.
(for some models)
Power Cord
Screw
Screw
The Foam

12 Room Air Conditioner
Installation
The grille is designed to clean the filter both upward and downward.
A. Before attaching the front grille to the cabinet, if you want to pull out the filter
upward;
1. Open the inlet grille slightly (a).
2. Turn inside out the front grille (a).
3. Disassemble the inlet grille from the front grille with separating the hinged part by inserting a straight type
screw-driver tip (b).
4. Then, rotate the inlet grille 180 degrees and insert the hooks into bottom holes of the front grille.
5. Insert the filter and attach the front grille to the cabinet.
B. If you want to pull out the filter downward;
The grille is already designed that way.

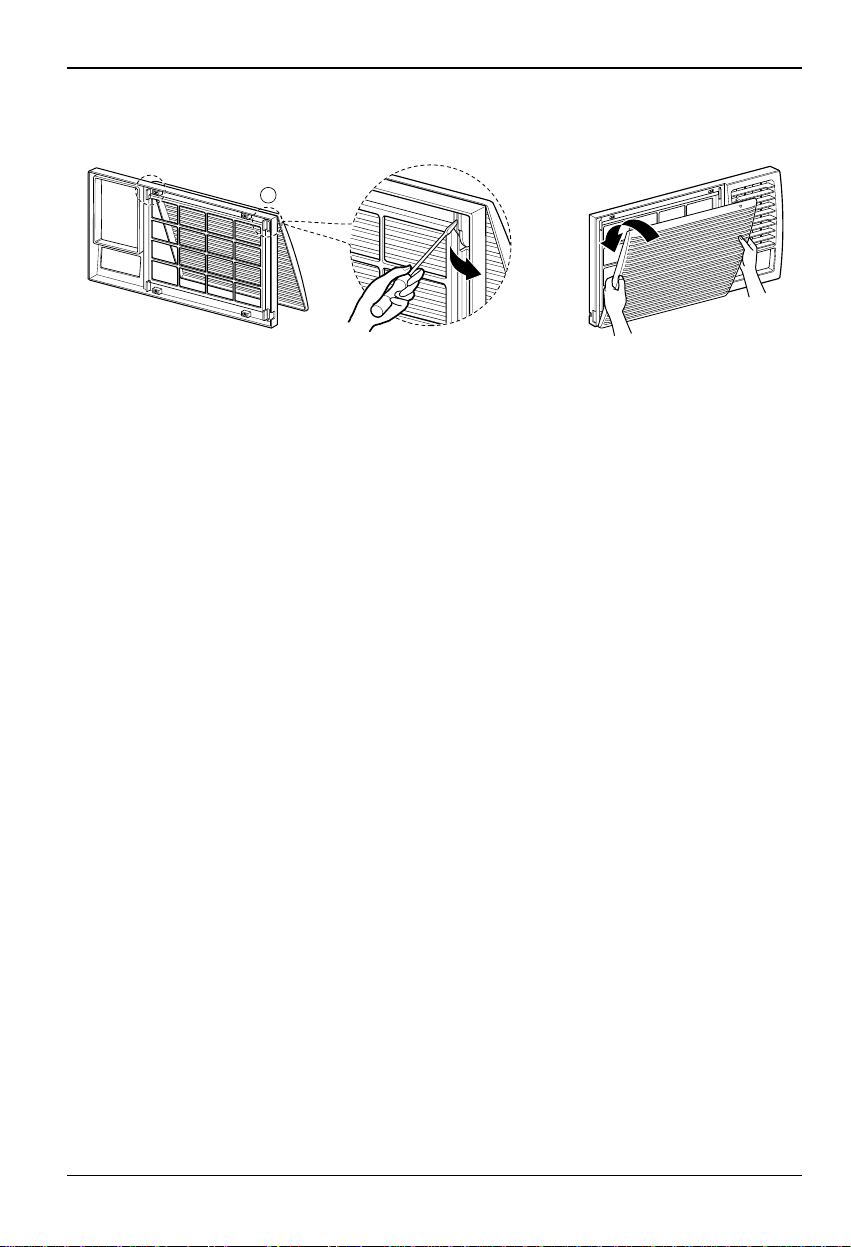

How to Use the Reversible Inlet Grille(For Some Models)
(b)
b
(a) (c)

Owner’s Manual 13
ENGLISH
Installation
Circuit Breaker Installation and Parts for Installation
•Read thoroughly and follow all directions provided.
•A circuit breaker must be installed between the power source and the unit if the plug is not used
(see illustration below).
Main Power source
Circuit Breaker
Use a circuit breaker
or time delay fuse.
Power Cord
L: BL(WH) N: BR(BK) G: GN/YL(GN)
Use 20A circuit breaker for some
models(21k~26k Btu/h).
NOTICE

14Room Air Conditioner
Operating Instructions
Operating Instructions
Controls
The controls will look like one of the following.
Thermostat Operation
OFF
MED FAN
LOW FAN
HIGH COOL
MED COOL
LOW COOL
:Turns the air conditioner off.
: Permits the medium fan speed
operation without cooling.
: Permits the low fan speed
operation without cooling.
: Permits cooling with the high fan
speed operation.
: Permits cooling with the
medium fan speed operation.
: Permits cooling with the low fan
speed operation.
LOW HEAT : Permits heating with the low
fan speed operation.
HIGH HEAT : Permits heating with the high
fan speed operation.
Turn the thermostat control to the desired
setting. The control position is a normal setting for
average conditions. You can change this setting, if
necessary, in accordance with your temperature
preference.
The thermostat automatically controls cooling or
heating, but the fan runs continuously
whenever the air conditioner is in operation. If the
room is too warm, turn the thermostat
control clockwise. If the room is too cool, turn the
thermostat control counterclockwise.

Operating Instructions
•When the air conditioner has been performed its cooling operation and is turned off or set to the
fan position, wait at least 3 minutes before resetting to the cooling operation again.
■COOLING DESCRIPTIONS
For Normal Cooling - Select High Cool or Med Cool with the Operation knob at the midpoint of
Thermostat knob.
For Maximum Cooling - Select High Cool with the Operation knob at the highest number available on
your Thermostat knob.
For Quieter & Nighttime Cooling - Select Low Cool with the Operation knob at the midpoint of
Thermostat knob.

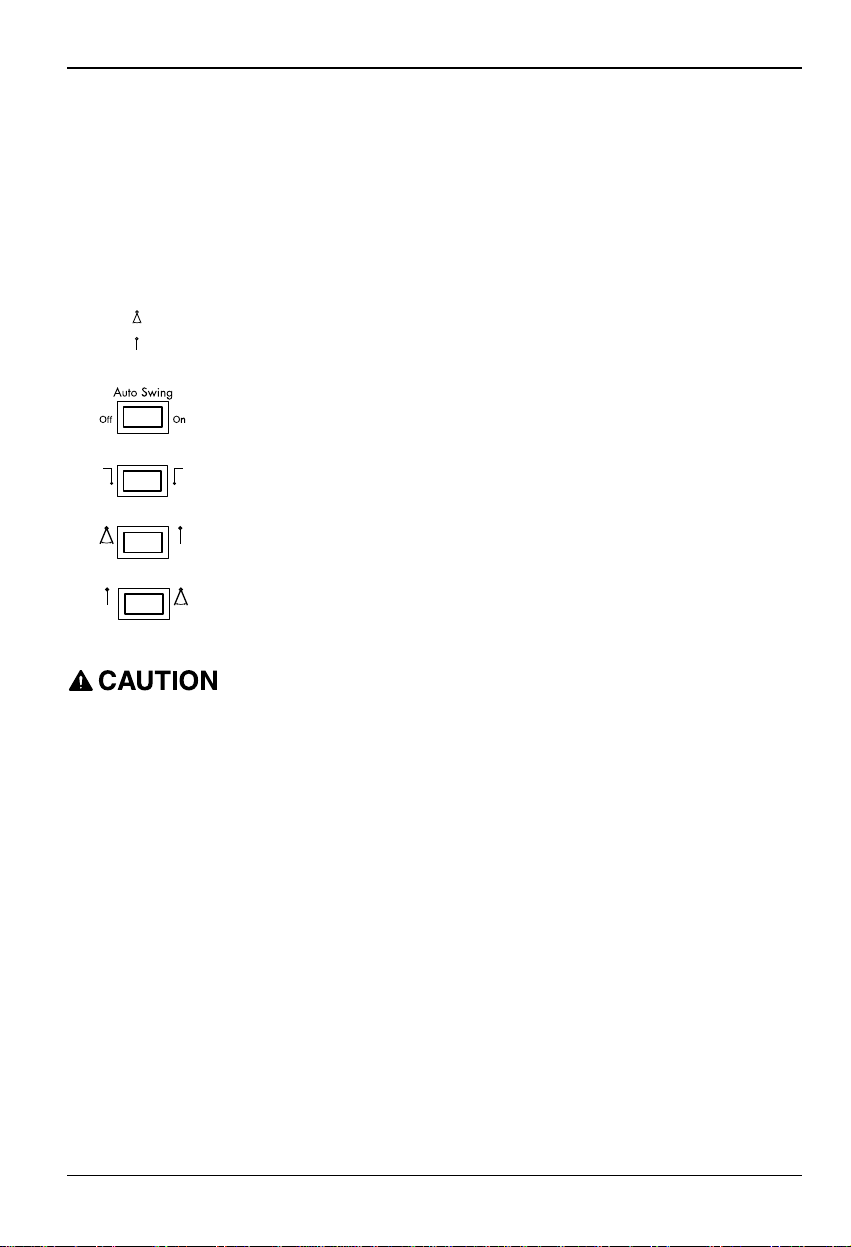

■AUTO SWING (available in some models)
ON ( , SI ) : Air swing is operated while OPERATION knob is set to the COOL position.
OFF( , NO ) : Stops the operation of air swing.
Auto Swing
On Off
Owner’s Manual 15

ENGLISH
Operating Instructions
Remote Control
The controls will look like the following.
REMOTE CONTROL
3
4
1
3
55
4
1
22
66
The Remote Control unit will not function properly if strong light strikes the sensor window of
the air conditioner or it there are obstacles between the Remote Control unit and the air
conditioner.
1. POWER BUTTON
Operation starts, when this button is pressed and stops when you press the button again.
2. OPERATION MODE SELECTION BUTTON
Select Cooling, Heating, Fan or Dehumidification(Dry) mode with this button.
3. ON/OFF TIMER BUTTON
Set the time of starting and stopping operation.
The timer is set by 1 hour.
4. FAN SPEED SELECTOR
Select the fan speed
- Cooling Model: High[F3] ➔Low[F1] ➔ Med[F2] ➔High[F3] ....
- Heating Model: High[F2] ➔Low[F1] ➔High[F2] ....
5. ROOM TEMPERATURE SETTING BUTTON
Control the room temperature within a range of 16°C to 30°C.
The unit takes an average of 30 minutes to adjust the room temperature by 1°C (1.8°F).
Temperature increases only by 2°C and no longer increase thereafter.
6. AUTO SWING
The vertical louver swings horizontally by the automatic system and stops when you press the
button again.
7. SIGNAL RECEIVER
1
3
456
7
2
4
1
23
56
7
16Room Air Conditioner

Operating Instructions
1. Push out the cover on the back of the remote control with your thumb
2. Pay attention to polarity and insert two new AAA 1.5V batteries.
3. Reattach the cover.
In case the power comes on again after a power failure, Auto Restarting Operation is the function to operate
procedures automatically to the previous operating conditions.
Do not use rechargeable batteries. Make sure that both batteries are new.
•In order to prevent discharge, remove the batteries from the remote control
if the air conditioner is not going to be used for an extended period of time
Keep the remote control away from extremely hot or humid places.
To maintain optimal operation of the remote control, the remote sensor
should not be exposed to direct sunlight.
•The remote control can be mounted on a wall using the mountable holder.
NOTICE
Inserting the Remote Control Batteries
Auto Restart
Owner’s Manual 17

Operating Instructions
Before using the ventilation feature,
position the lever, as shown. First, pull down
part to horizontal line with part .
NOTICE
The ventilation lever must be in the CLOSE position in order to maintain the best cooling conditions.
When fresh air is necessary in the room, set the ventilation lever to the OPEN position.
The damper is opened and room air is drawn out.
The direction of air can be controlled wherever you want to
cool by adjusting the horizontal louver and the vertical louver.
• HORIZONTAL AIR-DIRECTION CONTROL
To control horizontal direction of air flow, set to the ON
position the air-swing switch and the air flow will be swept
horizontally by the automatic air-swing system.
If you want to stop the air flow from moving, switch off the air
swing switch at the desired position of the vane.
• VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by moving the horizontal
louver.
The direction of air can be controlled wherever you want to
cool by adjusting the horizontal louver and the vertical louver.
• HORIZONTAL AIR-DIRECTION CONTROL
The horizontal air direction is adjusted by rotating the vertical
louver right or left.
• VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by rotating the horizontal
louver forward or backward.
Ventilation
Air Direction
Part A
Part B
VENTCLOSE OPEN
18Room Air Conditioner

Operating Instructions
DRAIN PIPE
DRAIN HOSE
DRAIN PIPE
DRAIN ELBOW
DRAIN HOSE
How to Connect a Drain Hose
A drain hole is provided at the rear of the air conditioner unit.
Select a drain method according to the following.
1. Remove the hole rubber from the base-pan. (for some models)
2. Connect a drain hose of 9/16" inside diameter to the drain pipe as shown in
Fig. 1.
3. Or connect a pipe elbow of 9/16" inside diameter to the drain pipe, then
connect a drain hose of 9/16" inside diameter to the pipe elbow as shown in
Fig. 2.
4. In humid weather, excess water may cause the BASE PAN to overflow.
To drain the water, remove the DRAIN CAP and secure the DRAIN PIPE
to the rear hole of the BASE PAN. (Fig. 3) Press the drain pipe into the hole
by pushing down and away from the fins to avoid injury
Fig. 1
Fig. 2
Owner’s Manual 19
Fig. 

ENGLISH
Maintenance and Service
Maintenance and Service
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.
The air filter should be checked at least twice a month to see if cleaning is necessary. Trapped particles
in the filter will build up and block the airflow. This reduces the cooling capacity and also causes an
accumulation of frost on the cooling coils.
1 Open the inlet grille upward by pulling out the bottom of the inlet grille.(a)
In another case, you can open the inlet grille downward by pulling out the top of the inlet grille.(b)
2. Remove the air filter from the front grille assembly by pulling the air filter up or down slightly.
3. Wash the filter using lukewarm water below 40°C (104°F).(c)
4. Gently shake the excess water from the filter completely. Replace the filter.
Mark ∆of inlet grille means opening direction.
NOTICE
Air Filter Cleaning
How to Attach Front Grille to Cabinet
1. Pull down front grille from the cabinet top.
2. Push front grille’s tips toward the cabinet in
order to insert front grille’s tabs into
the cabinet.
3. Open the inlet grille.
4. Tighten the screw through the front grille
into the plate of the evaporator or base
pan.
5. Close inlet grille.
20Room Air Conditioner
