Life Fitness FIT SERIES MULTI PRESS User manual

FIT SERIES
MULTIPRESS
Part # 7489101
RevA. Revision:5/06/031
ASSEMBLY INSTRUCTIONS

PARTS LIST
PART #
ACU04-1647
ACU02-0078
ACU04-1361
ACU04-1338
ACU04-1643
ACU04-1358
ACU04-1362
ACU04-1642
ACU04-1639
ACU04-1385
ACU02-1294
ACU01-2028
ACU04-1646
ACU04-1645
ACU04-1644
ACU07-0156
ACU07-0158
ACU05-0351
ACU06-0025
ACU06-0304
ACU01-2387
ACU72925
ACU02-1304
ACU10-0204ASY
ACU11-0067
ACU05-0212
ACU05-0348
ACU03-0536
ACU06-0371
ACU05-0356
ACU08-0085
KEY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
QTY
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
2
7
2
2
20
1
1
1
2
2
1
2
4
8
PART #
ACU08-0078
ACU08-0077
ACUDA1C03802516NU
ACUDA1C03803216NU
ACUDA1C03804316NU
ACUDA1C03804316YU
ACUDA1C03806116NU
ACUDA1C03806716NU
ACUDA1C03807016NU
ACUDA1C03807316NU
ACUDA1C03809016NU
ACUDA1C03810616NU
ACUDA1C03816416NU
ACUDAEC03802516YB
ACUDAEC03807616NB
ACUDAEC03809016NB
ACUDC1250100020B
ACUDB2E03807200U
ACUDC120010510U
ACU05-0310
ACU06-0357
ACU06-0357
ACU06-0357
ACU13-0170
ACU73086
ACU10-0229
ACU10-0227
ACU10-0230
ACUDB9E03813016B
ACUDC1250100020U
DESCRIPTION
3/8X3/4”FLANGESPACER
3/8X1”FLANGESPACER
3/8X25mmBOLT
3/8X32mmBOLT
3/8X43mmBOLT
3/8X43mmBOLTW/LOCTITE
3/8X61mmBOLT
3/8X67mmBOLT
3/8X70mmBOLT
3/8X73mmBOLT
3/8X90mmBOLT
3/8X106mmBOLT
3/8X164mmBOLT
3/8X25mmBUTTONHEADBOLT
3/8X76mmBUTTONHEADBOLT
3/8X90mmBUTTONHEADBOLT
3/8”BLACK FLATWASHER
3/8”LOWHEIGHTLOCKNUT
3/8”SAEWASHER
3/8”RHWASHER
BLACKRHCAP
WHITERHCAP
PLATINUMRHCAP
MULTIPRESSCABLE
WEIGHTSTACKLABEL
TOPSHROUD
FRONTSHROUD
REARSHROUD
3/8”ACORN NUT
3/8” FLATWASHER
DESCRIPTION
TOWER
3-1/2X1”CABLECLIP
SEATPAD SUPPORT
PRESSARM
PIVOTARM
MULTI PRESSSEATADJUST
BACKPAD SUPPORT
PRESSFRAME
GUIDERODSUPPORT
PRESSARMADJUSTPLATE
MULTIPRESSADJUSTPLATE
MULTIPRESSSLIDETUBE
BASE
UPPERSUPPORT
REARUPRIGHT
BACKPAD
SEAT PAD
PILLOWBLOCK
4-1/2”PULLEY
3/4X2”WEIGHTSTACKCUSHION
GUIDEROD
WEIGHTPLATE
2-7/8”X2-1/4”CABLECLIP
HEADPLATE
WEIGHTSTACKPIN
13/16”SHAFTCOLLAR
5-1/2”PIVOTSHAFT
5-1/2”TAPPEDSHAFT
ACCORDIANSLEEVE
PILLOWBLOCKSPACER
3/8X1/2”FLANGESPACER
2
KEY
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
OR
54
55
56
57
58
59
60
QTY
1
1
1
2
4
2
2
14
1
3
7
2
2
2
4
10
26
37
69
69
17
52
52
1
1
1
1
1
10
4
Tools Required forAssembly
* 9/16” wrench
* Ratchet with 9/16” socket
* MetricAllen wrench set

3

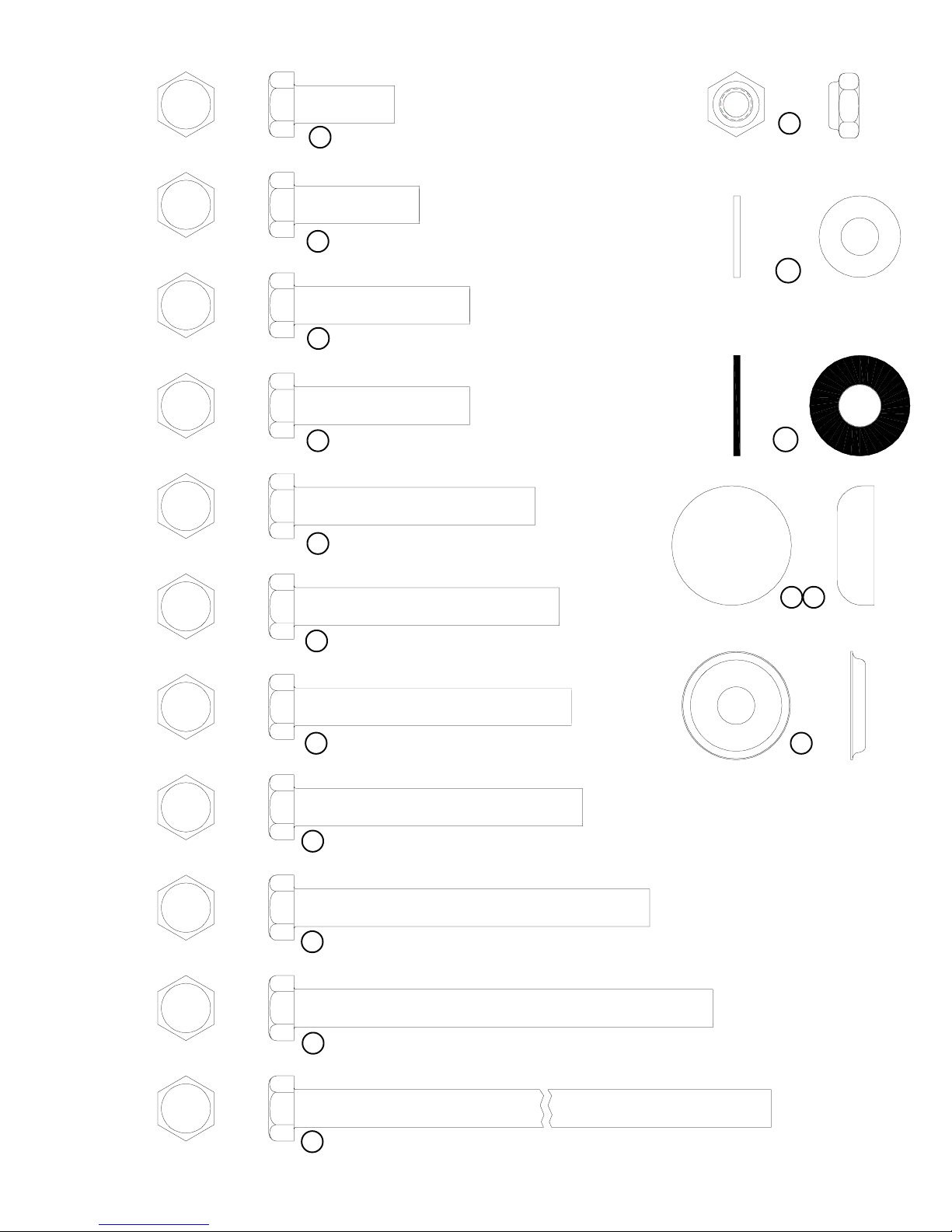

34 3/8X25mm BOLT
35 3/8X32mmBOLT
37 3/8X 43mmBOLTW/NYLOCK
38 3/8 X 61mm BOLT
39 3/8X67mm BOLT
42 3/8X90mmBOLT
44 3/8X 164mm BOLT
49
3/8” LOW
HEIGHTLOCK
NUT
50
3/8” SAE
WASHER
52
RHCAP
(WHITE/PLATINUM/BLACK)
51
RH
WASHER
41 3/8X73mm BOLT
43 3/8X106mmBOLT
53
36 3/8X43mmBOLT
48
3/8”BLACK
FLATWASHER
40 3/8X70mm BOLT

4

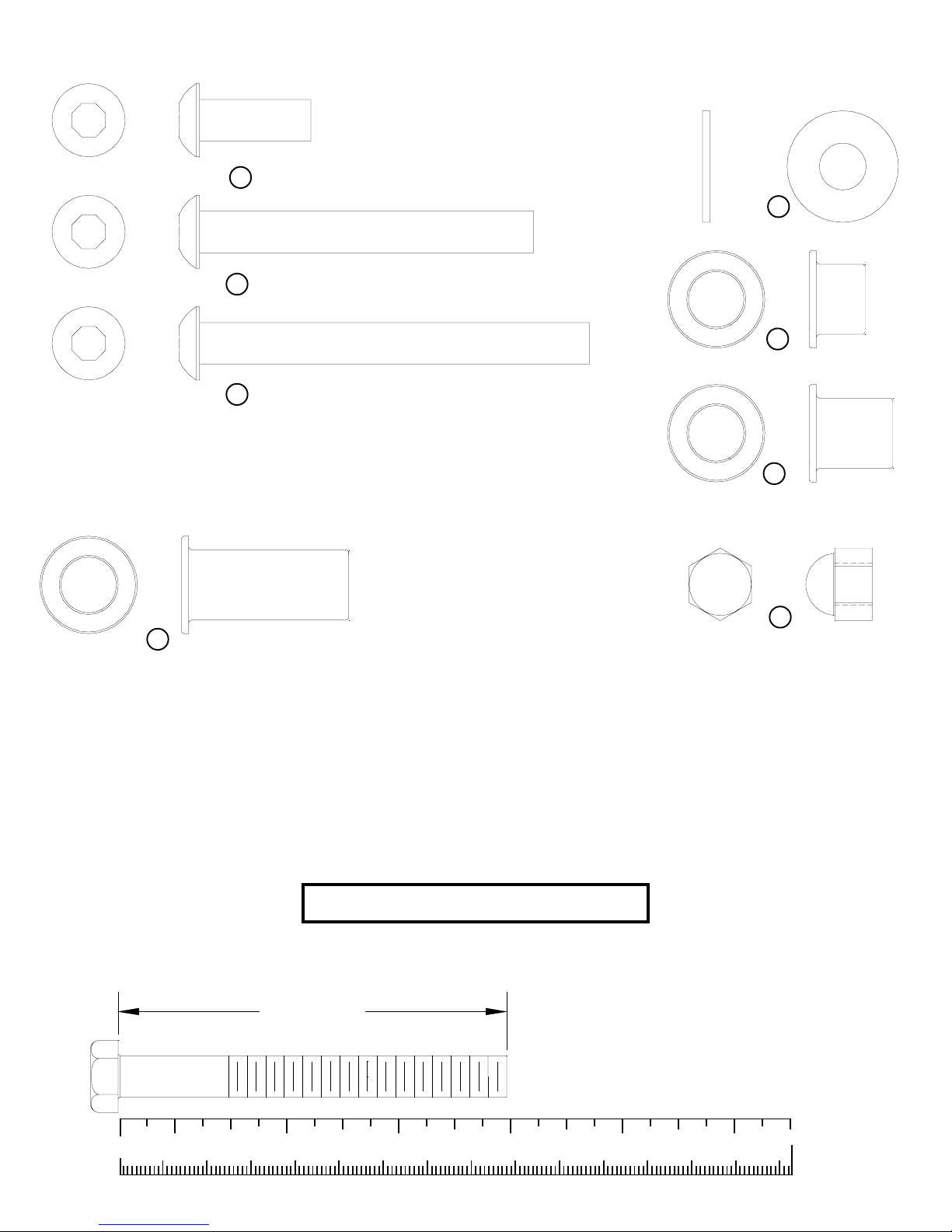

46 3/8X76mmBUTTONHEADBOLT
47 3/8X90mmBUTTONHEADBOLT
32
3/8X 3/4”
FLANGESPACER
45 3/8X25mmBUTTONHEADBOLT
60
3/8”
FLATWASHER
31
3/8X1/2”FLANGESPACER
59
3/8”
ACORNNUT
33
3/8X 1”
FLANGESPACER
BOLT LENGTH
NOTE:BOLTLENGTH ISMEASUREDFROMTHE UNDERSIDE OFTHEHEADOFTHEBOLT.
Bolt Length Ruler
01
1/2 1/2 1/2 1/2 1/2 1/2
23456
10 20 30 40 50 60 70 80 90 100 110 120 130 140 150

STEP 1:
FIGURE 1
5
• LOOSELY assemble the BASE (13) to the PRESS FRAME(8) andTOWER(1)using eight RH CAPS (53), four 3/8 X90mm BOLTS
(42),eight 3/8” SAEWASHERS (50), eight 3/8” RH WASHERS (51)and four 3/8” LOW HEIGHTLOCK NUTS (49) as shown in FIG-
URE1.
15
53
8
50
51
49
3/8X90mm 42
1
13
14
39 3/8X67mm
42 3/8X90mm
3/8X67mm 39
• LOOSELYassemble the REAR UPRIGHT(15)tothePRESSFRAME(8)andusingeight RH CAPS (53), two 3/8 X 90mmBOLTS(42),two
3/8X67mmBOLTS(39),eight 3/8” SAEWASHERS(50),eight3/8”RHWASHERS (51)andfour3/8”LOWHEIGHTLOCKNUTS(49)
as shown in FIGURE 1.
• LOOSELYassemble the UPPER SUPPORT(14) tothe REARUPRIGHT(15) andtheTOWER(1) and using eight RH CAPS (53), four 3/
8X 67mm BOLTS (39),eight 3/8”SAEWASHERS (50), eight 3/8”RHWASHERS (51) and four3/8” LOWHEIGHTLOCK NUTS (49)
as shown in FIGURE 1.

6
TIGHTEN!

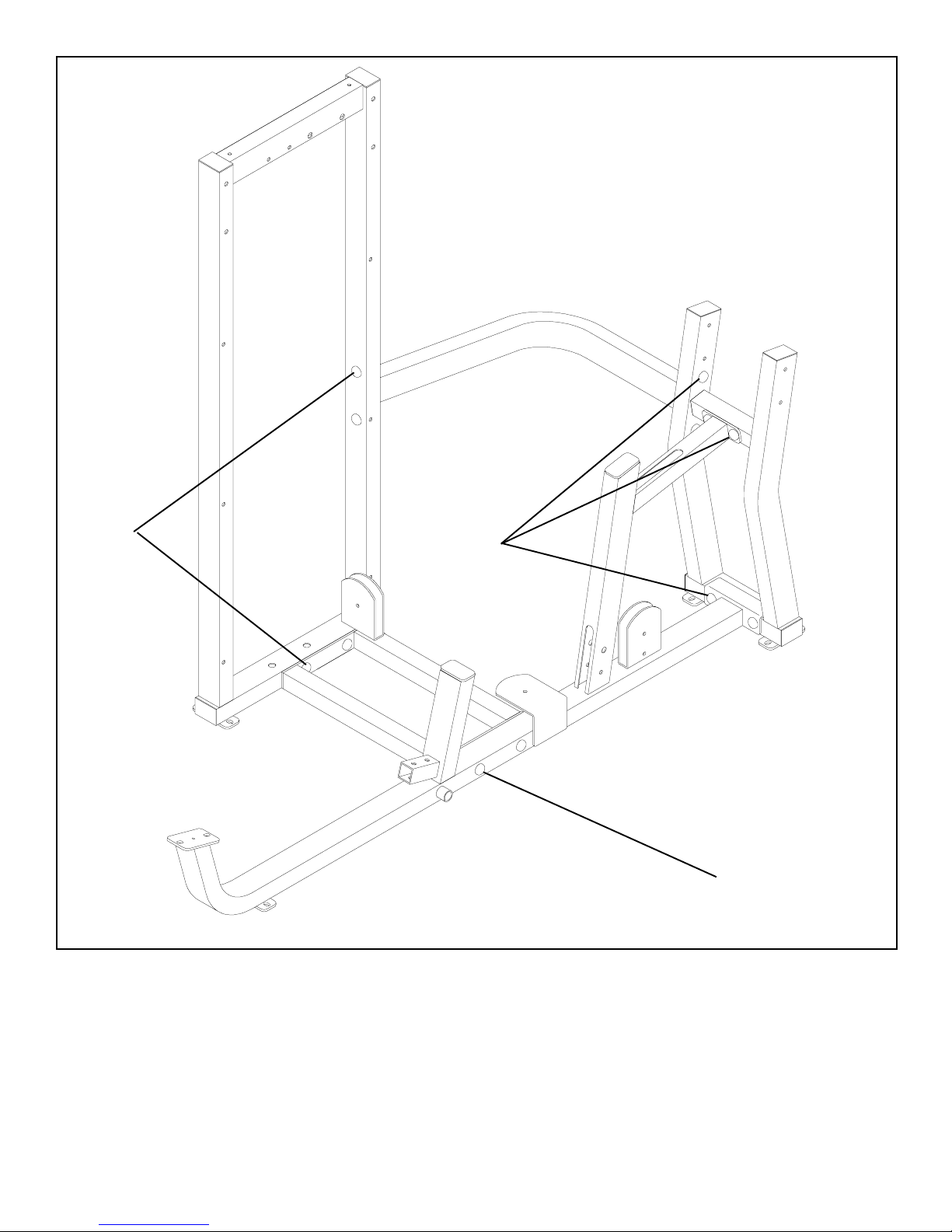

FIGURE 2
•Securely tighten all loose frame connections made to this point, then proceed to snap RH CAPS
(53) over the RH WASHERS (51) on all tightened connections.
TIGHTEN!
STEP2:
TIGHTEN!

STEP3:
FIGURE 3
7

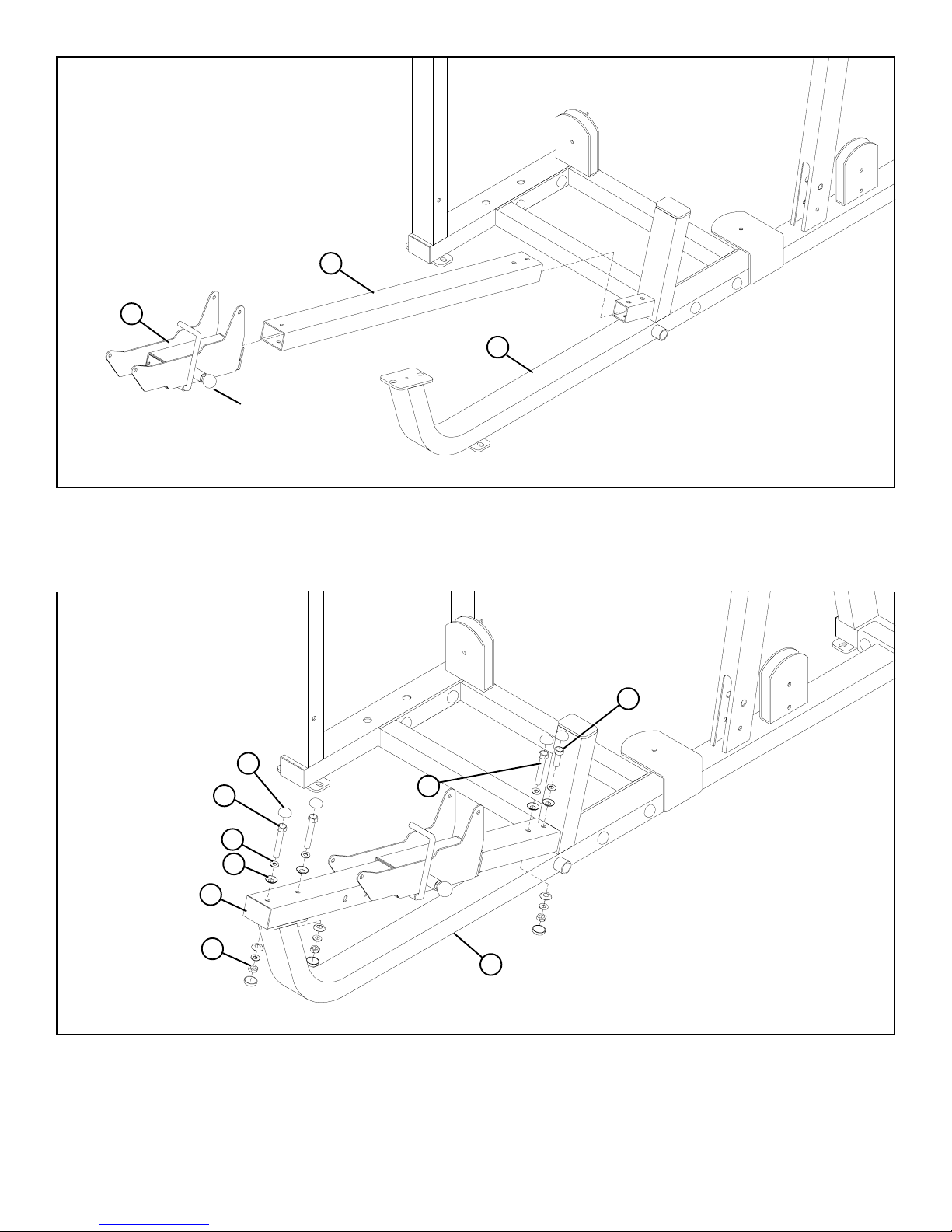

STEP4:
FIGURE 4
• Pull back on the SPRING PIN and slide the SEATADJUST(6) over the SLIDETUBE (12) as shown in FIGURE 3.
• SECURELYassemblethe SLIDETUBE(12) to the PRESSFRAME (8) using seven RH CAPS (53),two 3/8X 67mm BOLTS (39),one
3/8X 61mm BOLT(38), one3/8 X 25mmBOLT(34), seven3/8” SAEWASHERS (50), seven 3/8” RHWASHERS(51) and three3/8”
LOWHEIGHTLOCK NUTS (49)as shown inFIGURE4.
6
8
12
SPRINGPIN
• Assemble the SLIDE TUBE (12) to the PRESS FRAME (8) as shown in FIGURE 3.
12
51
50
8
49
34 3/8X25mm
3/8X67mm 39 3/8X61mm 38
53

STEP5:
FIGURE 5
8
STEP6:
FIGURE 6

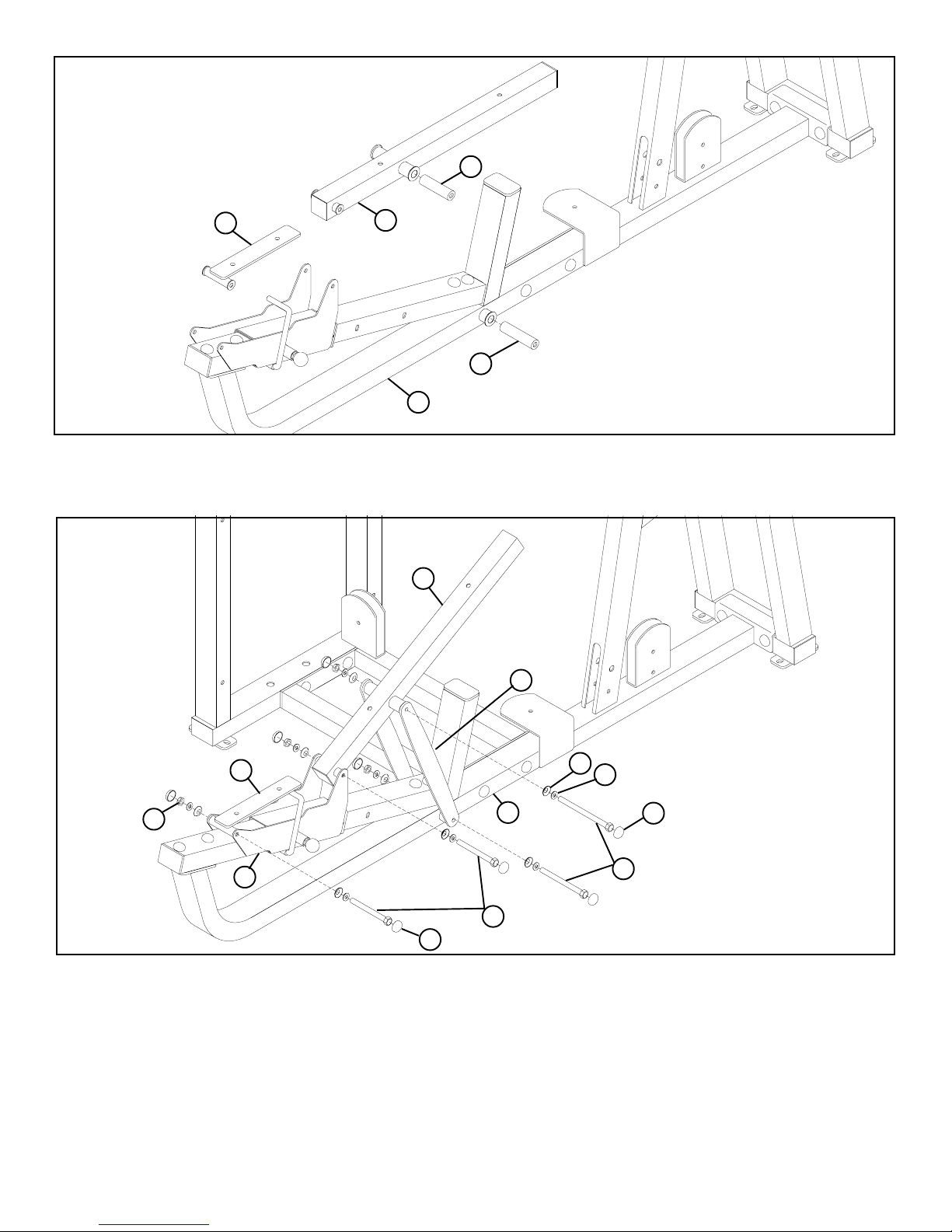

• Insertone 5-1/2” PIVOTSHAFT(27) intothe PRESS FRAME(8) andone 5-1/2” PIVOTSHAFT(27)intothe BACKPAD SUPPORT(7)
as shown in FIGURE 5.
7
27
8
27
3
• SECURELYassemble two MULTI PRESSADJUSTPLATES (11)tothe BACK PAD SUPPORT(7) and to the PRESS FRAME (8) using
fourBLACK RH CAPS(52), two 3/8X 164mm BOLTS(44),four 3/8”SAEWASHERS (50),four 3/8” RHWASHERS (51)and two 3/8”
LOWHEIGHTLOCK NUTS (49)as shown inFIGURE6.
• SECURELY assemblethe SEATPADSUPPORT(3)totheSEATADJUST(6)usingtwo BLACK RHCAPS(52), one 3/8 X106mmBOLT
(43),two 3/8” SAEWASHERS (50),two 3/8” RHWASHERS (51)and one 3/8”LOWHEIGHTLOCK NUT(49)asshown inFIGURE 6.
(NOTE:Tightenconnectionsenoughtoremoveslop, yetallow parttorotatefreely.)
43 3/8X106mm
44 3/8X164mm
11
49
51 50
8
7
3
52BLACK
52 BLACK
• SECURELYassemble theBACKPADSUPPORT(7)totheSEAT ADJUST(6)usingtwoBLACKRHCAPS(52), one3/8X106mmBOLT
(43),two 3/8” SAEWASHERS (50),two 3/8” RHWASHERS (51) andone 3/8”LOWHEIGHTLOCK NUT(49)as shownin FIGURE 6.
(NOTE:Tightenconnectionsenoughtoremoveslop, yetallow parttorotatefreely.)
6

STEP7:
FIGURE 7
9
STEP8:
FIGURE 8
• SECURELY assemble the BACK PAD (16) to the BACK
PAD SUPPORT (7) using two BLACK RH CAPS (52),
two 3/8 X 73mm BOLTS (41), two 3/8” SAE WASHERS
(50) and two 3/8” RHWASHERS (51) as shown in FIG-
URE7.
50
35 3/8X32mm
41 3/8X73mm
51
7
16
17
52
BLACK
• SECURELY assemble theSEAT PAD (17) to the SEAT
PAD SUPPORT (3) using two BLACK RH CAPS (52),
two 3/8 X 32mm BOLTS (35), two 3/8” SAE WASHERS
(50) and two 3/8” RHWASHERS (51) as shown in FIG-
URE7.
3/8 X 76mm 46
BUTTON HEAD
5
29
18
• Slide two ACCORIDIAN SLEEVES (29)
over the shafts of the PIVOTARM (5) as
shownin FIGURE 8.
• Slidetwo PILLOW BLOCKS(18) overthe
shafts of the PIVOTARM (5) as shown
inFIGURE8.
• Assemblefour 3/8 X 76mm BUTTON
HEADBOLTS(46), four 3/8”BLACK
FLATWASHERS (48) and four PIL-
LOWBLOCK SPACERS(30) tothe the
PILLOW BLOCKS (18) asshown in
FIGURE8.
BLACK 48
30
3

10
STEP9:
FIGURE 9
STEP10:
FIGURE 10
• SECURELYassemblethe PIVOTARM (5) to the REAR UPRIGHT(15)using four previously inserted 3/8 X 76mm BUTTONHEAD
BOLTS (46),four RH WASHERS (51),four 3/8”SAEWASHERS (50), four 3/8” LOWHEIGHTLOCKNUTS (49) and four RH CAPS
(53)as shown in FIGURE 9.
• IMPORTANT! When PIVOTARM (5) is centered and level in the PILLOW BLOCKS (18), tighten the PILLOW BLOCK set screws.
15
51 50 49
18
53

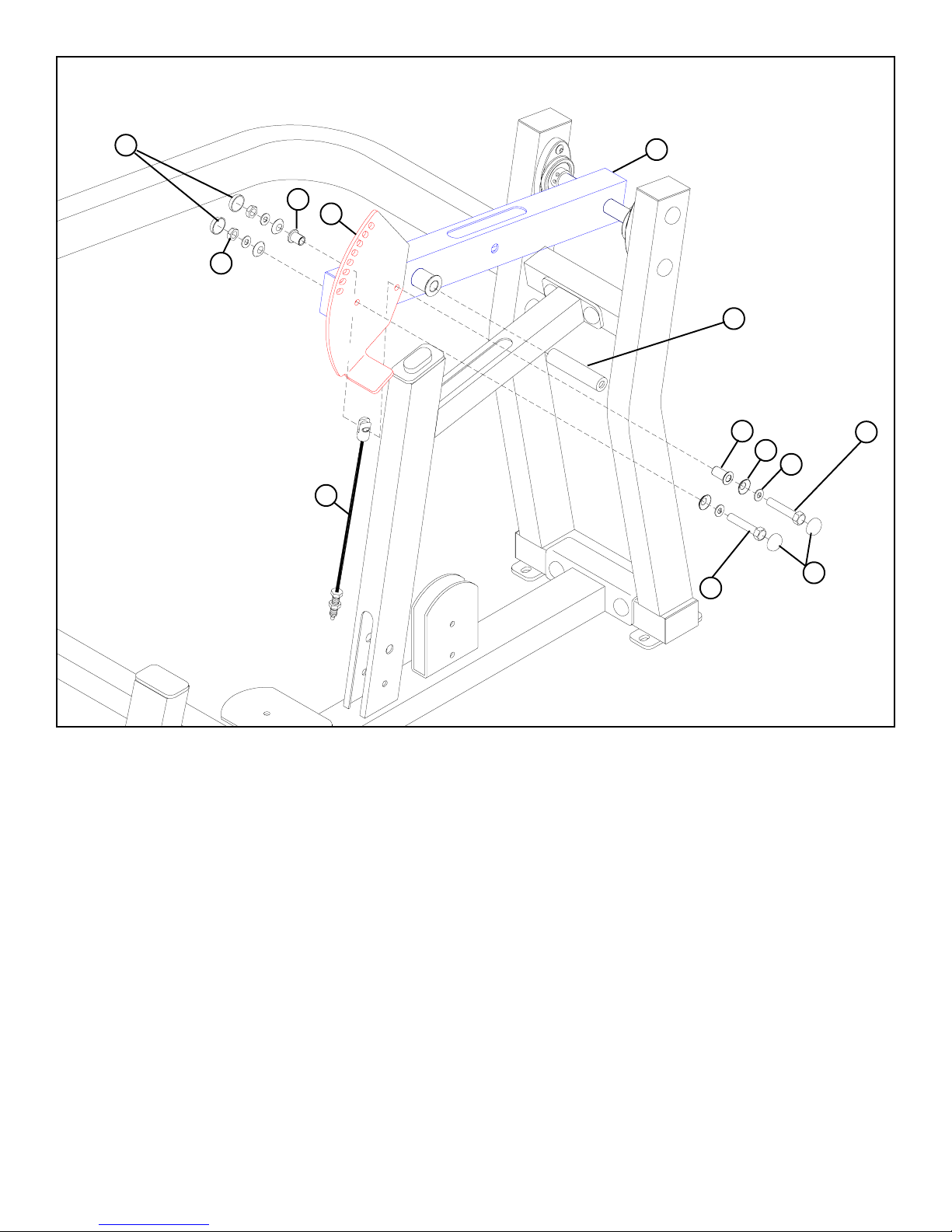

• LOOSELYassemble the PRESSARMADJUST PLATE (10) to the PIVOTARM (5) using one RH CAP (53), one BLACK RH CAP
(52),one 3/8X 90mmBOLT(42), two 3/8” SAEWASHERS(50), two3/8” RHWASHERS (51) and one 3/8”LOWHEIGHT LOCK
NUT(49) asshown in FIGURE 10.
53
8
49
10
51
50 42 3/8X90mm
TIGHTEN!
5
52 BLACK
46
5

11
STEP11:
FIGURE 11
• Insert one 5-1/2” TAPPED PIVOT SHAFT (28) into the PIVOTARM (5).
• Finish assembling the PRESSARMADJUST PLATE (10) to the PIVOTARM (5) using two RH CAPS (53), two BLACK RH CAPS
(52),one 3/8X 67mmBOLT(39),one 3/8X 73mmBOLT(41),four 3/8”SAEWASHERS (50), four 3/8” RHWASHERS (51), one 3/8 X
3/4”FLANGESPACER(32), one 3/8X 1” FLANGESPACER (33), oneMULTIPRESS CABLE (54)and two 3/8” LOWHEIGHT
LOCKNUTS (49) asshown in FIGURE11. (NOTE:Assemble theMULTIPRESSCABLE tothesecond setofholes.) (NOTE:When
finishedassembling, SECURELYtightenall threebolts.)
3/8X73mm 41
54
32
50
52BLACK
33
28
51
53
39 3/8X67mm
10
5
49

12
STEP12:
FIGURE 12
4
• SECURELYassemblethe PRESSARM(4) to the PIVOTARM (5) using two RHCAPS (53),two 3/8 X 43mm BOLTSW/LOCTITE
(37),two 3/8” SAEWASHERS (50) and two 3/8” RH WASHERS (51) as shown in FIGURE 12.
37 3/8X43mm
W/LOCTITE
51 50
53
5

STEP13:
FIGURE 13
50
54
53
51
19 8
5
31
3/8X61mm 38
49

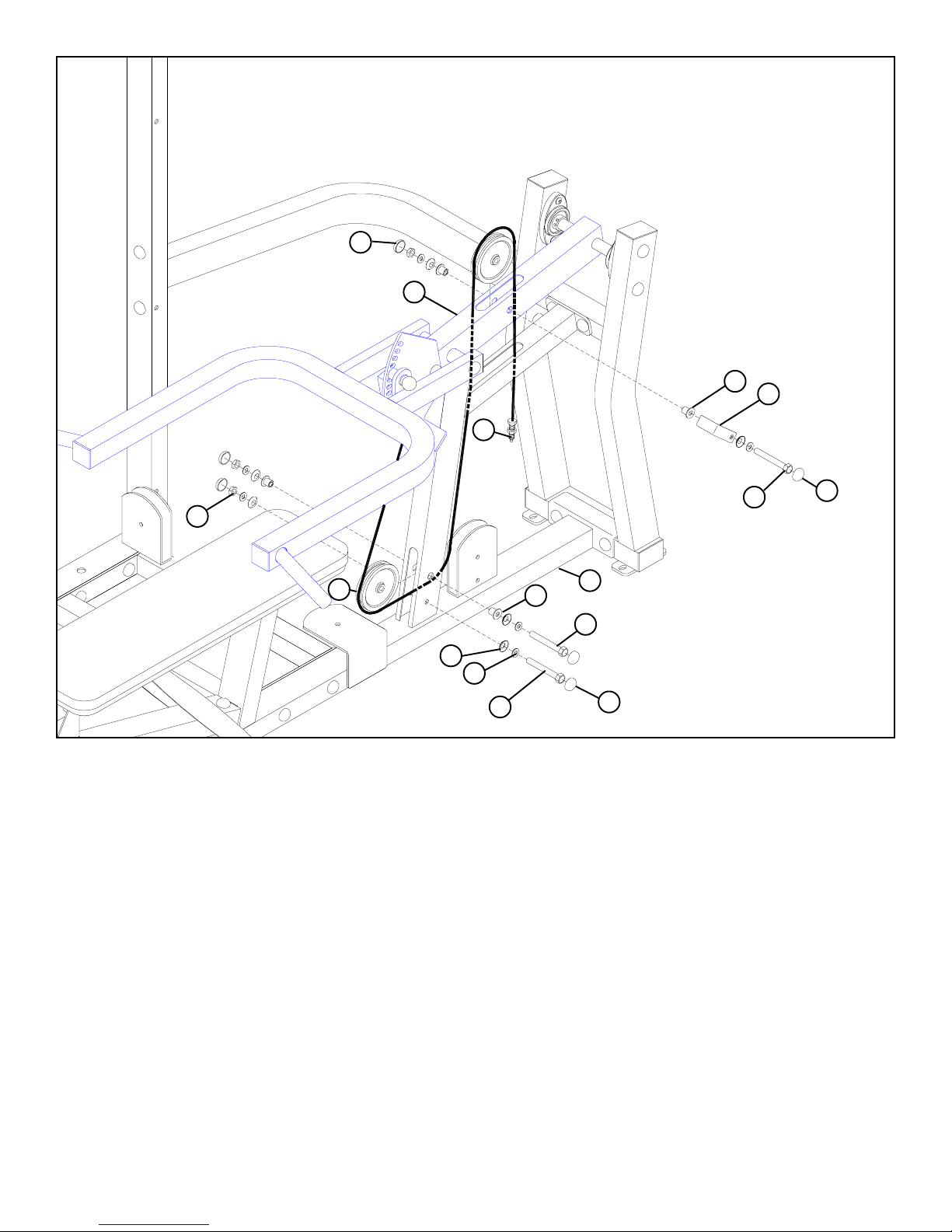

• Routethe MULTIPRESS CABLE (54) through thePRESS FRAME (8) and SECURELYassembleone 4-1/2” PULLEY(19)to the
PRESSFRAME (8)using fourRH CAPS(53), one3/8 X67mm BOLT(39), one3/8 X61mm BOLT(38), four 3/8” SAEWASHERS
(50),four 3/8”RHWASHERS (51), two 3/8 X 1/2” FLANGE SPACERS (31) and two 3/8” LOWHEIGHTLOCKNUTS (49) as shown
inFIGURE13.
• Route the MULTI PRESS CABLE (54) through the PRESS FRAME (8) and PIVOTARM (5) and SECURELY assemble one 4-1/2”
PULLEY(19) to the PIVOTARM (5) using one BLACK RH CAP (52), one RH CAP(53), one 3/8 X 70mm BOLT (40), two 3/8” SAE
WASHERS (50),two 3/8”RHWASHERS (51),one 2-7/8”X 2-1/4” CABLECLIP(23), two3/8 X1/2” FLANGE SPACERS(31) and one
3/8”LOWHEIGHT LOCK NUT(49) as shownin FIGURE 13.
3/8X70mm 40
23
53
52BLACK
39 3/8X67mm
31
13

14
STEP14:
FIGURE 14

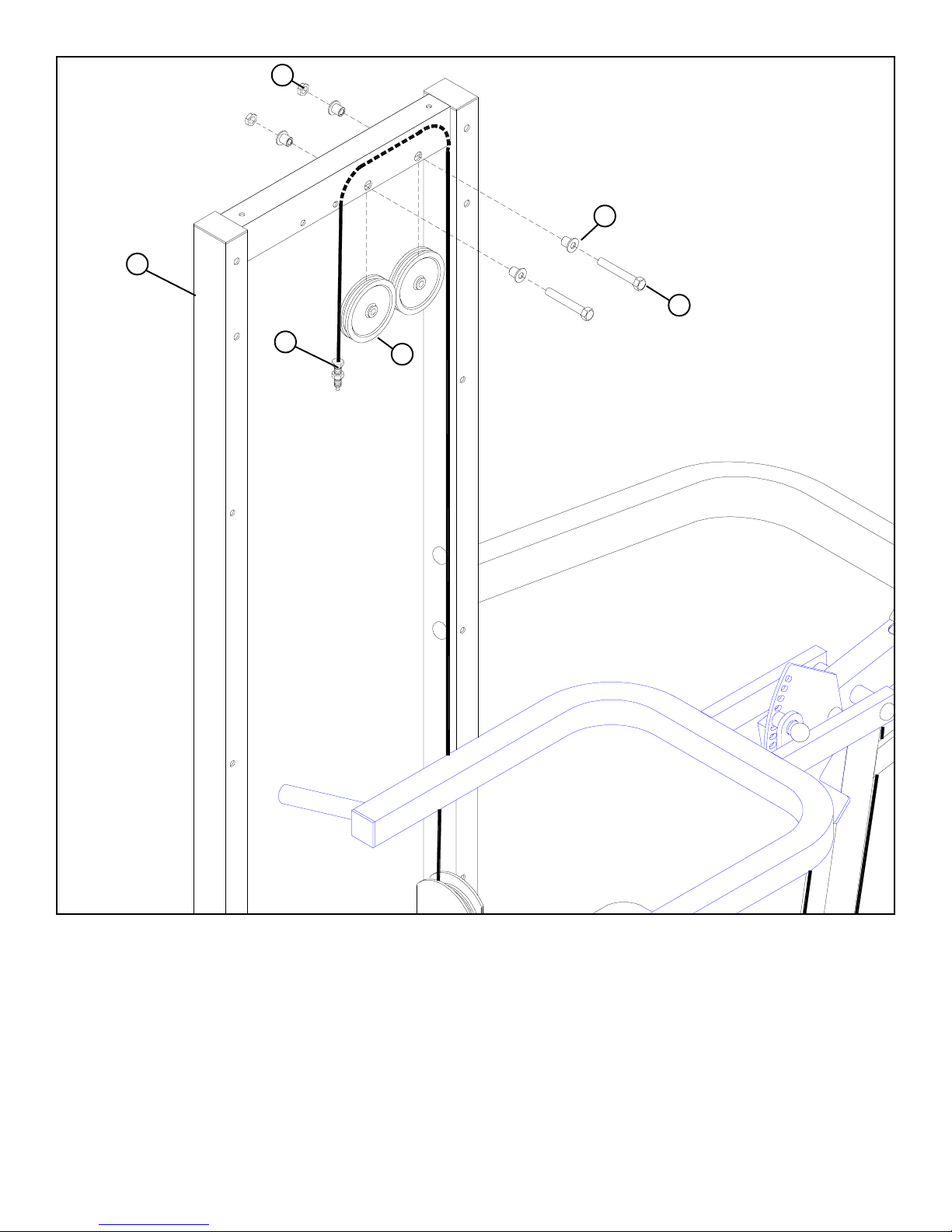

• Route the MULTI PRESS CABLE (54) through the vertical bracket on the PRESS FRAME (8) and SECURELYassemble one 4-1/2”
PULLEY(19) to the bracket using four RH CAPS (53), two 3/8 X 43mm BOLTS (36), four 3/8” SAEWASHERS (50), four 3/8” RH
WASHERS (51) and two 3/8” LOWHEIGHTLOCK NUTS (49) as shown in FIGURE 14.
• Route the MULTI PRESS CABLE (54) through the PRESS FRAME (8) and the horizontal bracket on the PRESS FRAME (8) and
SECURELYassembleone4-1/2”PULLEY(19) tothebracketusing one BLACKRHCAP(52),one RH CAP(53), one3/8X43mm BOLT
(36),two 3/8” SAEWASHERS (50),two 3/8”RHWASHERS (51), one 3-1/2 X 1” CABLE CLIP(2) andone 3/8”LOWHEIGHTLOCK
NUT(49) asshown in FIGURE 14.
36 3/8X43mm
3/8X43mm 36
51
54
52 BLACK
49
2
50
8
19
53
13
• Route the MULTI PRESS CABLE (54) through the vertical bracket on the BASE (13) and SECURELYassemble one4-1/2” PULLEY
(19) to the bracket using two RH CAPS (53), one 3/8 X 43mm BOLT (36), two 3/8” SAE WASHERS (50), two 3/8” RH WASHERS
(51)and one3/8” LOWHEIGHT LOCKNUT (49)as shownin FIGURE14.
3/8X43mm 36

15
• Route the MULTI PRESS CABLE (54) through theTOWER (1) and SECURELYassemble two 4-1/2”PULLEYS (19) to theTOWER
(1)using two 3/8 X 67mmBOLTS(39), four3/8 X 1/2” FLANGE SPACERS(31) andtwo 3/8” LOWHEIGHTLOCK NUTS(49) as
shownin FIGURE 15.
39 3/8X 67mm
49
1
19
54
STEP15:
FIGURE 15
31

STEP16:
FIGURE 16
16

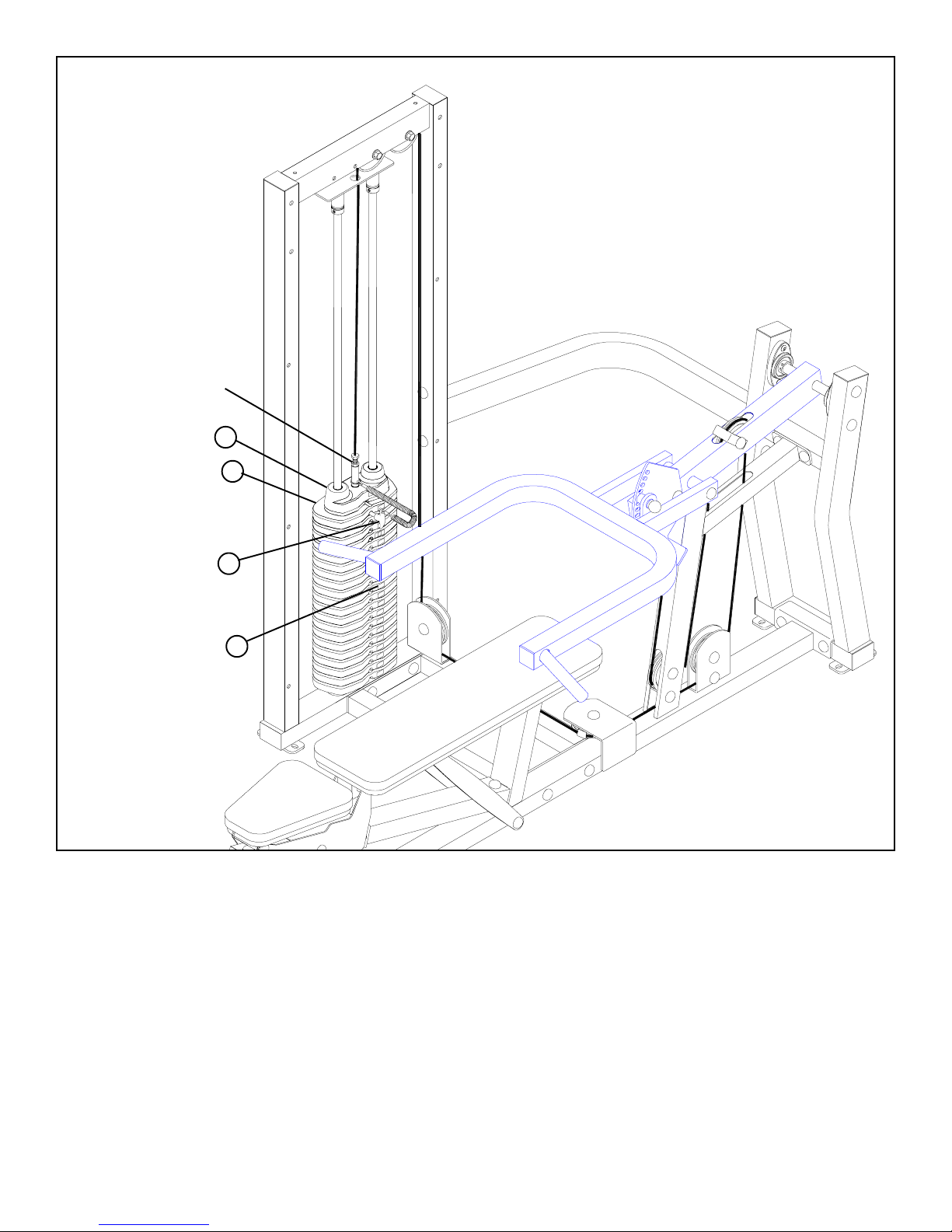

• Inserttwo GUIDE RODS (21) intothe TOWER (1) as shownon FIGURE 16.
• Slidetwo 3/4 X2”WEIGHTSTACK CUSHIONS(20) down overthe GUIDERODS (21)as shown inFIGURE 16.
• UsingEXTREMECAREslideall twentyWEIGHTPLATES (22) downovertheGUIDERODS(21)ontotheWEIGHTSTACKCUSHIONS
(20). Make sure that the WEIGHTPLATES (22) are all facing as shown.
• Slide the HEADPLATEASSEMBLY (24) downover the GUIDE RODS (21) onto theweight stack as shown in FIGURE16.
• Slidetwo13/16” SHAFTCOLLARS (26)and the GUIDEROD SUPPORT(9) over theGUIDE RODS (21)as shown inFIGURE 16.
21
1
22
24
26
20
9 LUBRICATION NOTE:
WhenfinishedassemblingtheWeight
Stack,openthelubePackprovided
withthisunitand applyathinfilmof
Lubricantaround thefirst2 to3
inchesof each GuideRod above the
HeadPlateAssembly. Afterthe
cablesare installed, useof the ma-
chinewillspreadthelubricantoverthe
lengthoftheGuideRodsandintothe
HeadPlatebushings

FIGURE 17
17
STEP17:
1
39 3/8X 67mm
54
49
9 60
TIGHTEN!
26
• Slide the 13/16” SHAFT COLLARS (26) up against the GUIDE ROD SUPPORT (9) and SECURELYtighten the set screws on the
SHAFTCOLLARS(26).SeeFIGURE 17.
• Routethethreaded end ofthe MULTI PRESS CABLE(54) throughthe GUIDE RODSUPPORT(9) andSECURELY assemblethe GUIDE
RODSUPPORT(9) to theTOWER (1)using two 3/8X67mm BOLTS (39), four3/8” FLATWASHERS (60)andtwo 3/8” LOWHEIGHT
LOCKNUTS (49) asshown in FIGURE17.
24
25
• Slide one WEIGHT STACK PIN (25) over the stem on the HEAD PLATE (24) as shown in FIGURE 12.
• LOOSELYthread the end of the MULTI PRESS CABLE (54) into the end of the stem on the HEAD PLATE (24). See FIGURE 17.

18
FIGURE 18
STEP18:
• Adjustments can be made in the above locations to set the correct amount of tension in the cables.
• If upon completion of assembly, the HEAD PLATE (24) does not sit on top of the first WEIGHTPLATE (22), push the HEAD PLATE
(24) down, insert the WEIGHT STACK PIN (25) and perform several repetitions. This will relax the cable system and prevent the
HEADPLATE(24)from liftingup.See FIGURE18.
• If after completing the previous step, the HEAD PLATE (24) still does not sit on top of the first WEIGHTPLATE (22) or if
there is excess slack in the cable system, adjust the threaded ends of the CABLES attached to the HEAD PLATE (24) accordingly and
retighten the jam nuts. See FIGURE 18.
• For maximum performance, the HEAD PLATE (24) should just barely sit on the top WEIGHTPLATE (22).
ADJUSTMENT
24
22
25
• ApplyWEIGHTSTACKLABELS(55)toWEIGHTPLATES (22) andHEADPLATE(24)asshownin FIGURE 18. Beginwithnumberone
at the HEAD PLATE (24) with larger numbers in consecutive order towards bottom of weight stack.
55

19
Thankyouforpurchasingthe LifeFitness FITSERIES MULTIPRESS. If unsureofproperuseofequip-
ment,callyourlocal LifeFitness distributor or call the LifeFitnesscustomerservicedepartment at
[phone].

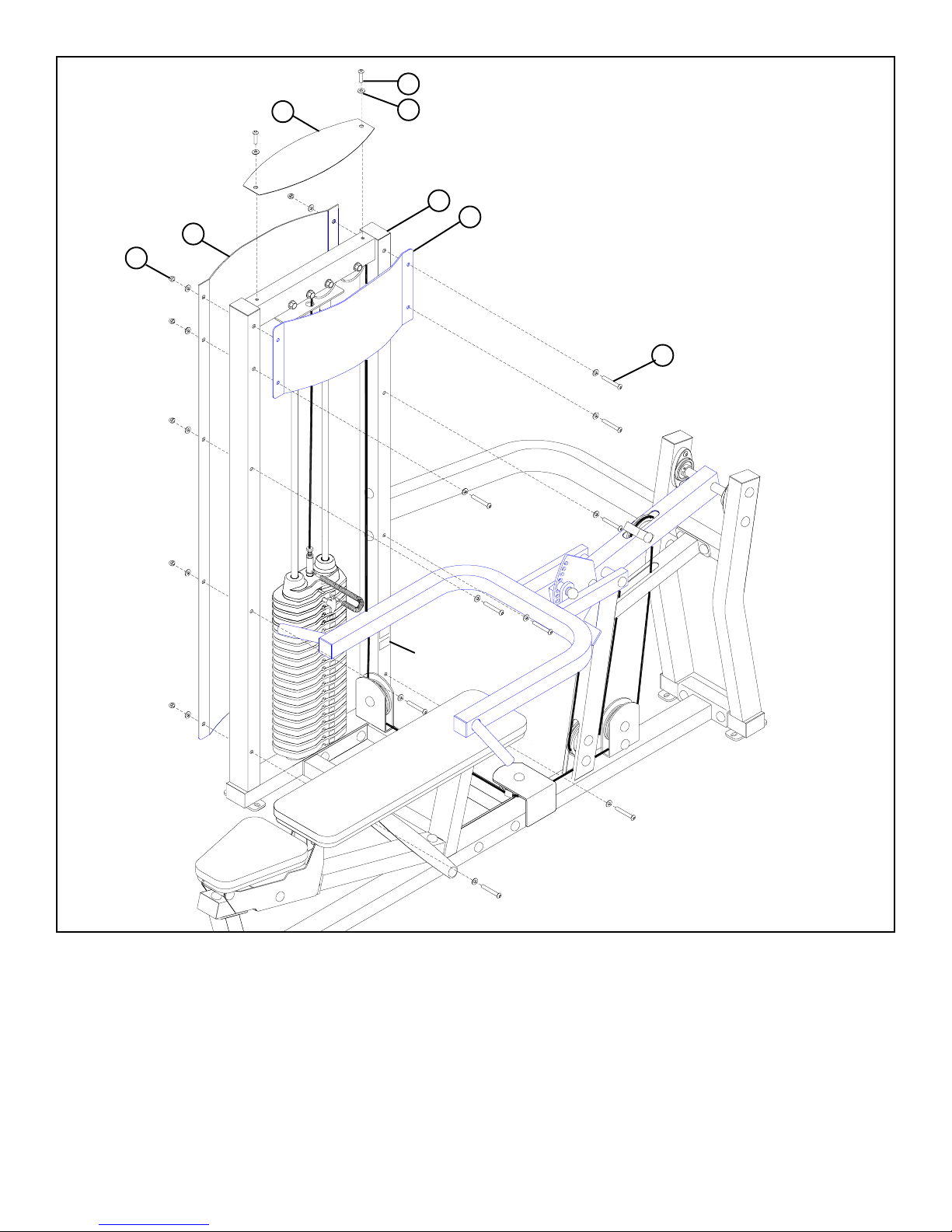

FIGURE 19
STEP19:
48
57
56
58
45 3/8X25mmBUTTON HEAD
1
• SECURELYassemble the TOP SHROUD (56) to the TOWER (1) using two 3/8 X 25mm BUTTON HEAD BOLTS (45) and two 3/8”
BLACK FLAT WASHERS (48) as shown above.
• SECURELYassembletheFRONTSHROUD (57) and theREARSHROUD(58)totheTOWER(1)using ten 3/8 X90mmBUTTONHEAD
BOLTS (47), twenty 3/8” BLACK FLATWASHERS (48) and ten 3/8”ACORN NUTS (59) as shown above.
59
47 3/8X90mmBUTTON HEAD
SERIAL#LOCATION

Clean:
• Upholstery with mild soap and water.
• Guide rods with a cotton cloth.
• Hand grips with mild soap and water.
• Frame damage can be repaired with touch-up paint can be purchased from your LifeFitness customer service representative at (800)
351-3737
Inspect:
• Cables for wear or damage and proper tension (should not exceed 3/4” deflection.) Pay close attention at bends and attachment
points.
• Hardware should be checked for looseness. Tighten as required.
• Frames should be inspected for wear or damage.
• Hand Grips should be checked for wear or damage
Lubricate:
• Lube the Guide Rods. Apply the lubricant to a cotton cloth, then run the cotton cloth up and down the guide rods as needed. Do not
spray lubricant directly on the Guide Rods.
PREVENTATIVE MAINTENANCETIPS
There is a risk assumed by individuals who use this type of equipment. To minimize risk, please
follow these rules:
2. Do not allow minors or children to play on or around this equipment.
1. Inspect equipment daily. Tighten all loose connections and replace worn parts immediately.
Failure to do so may result in serious injury.
3. Exercise with care to avoid injury.
4. Consult your physician before beginning any exercise program.
20
Thankyouforpurchasingthe LifeFitness FITSERIES MULTIPRESS. If unsureofproperuseofequip-
ment,callyourlocalLifeFitnessdistributor or call the LifeFitness customerservicedepartmentat
[phone].
CAUTION-PLEASE READ
Action DAILY WEEKLY QUARTERLY BI-ANNUALLY AS NEEDED
CLEAN
Upholstery X
Guide Rods X
Hand Grips X
INSPECT
Visual Overall X
Cables X
Hardware X
Frame X
Hand Grips X
LUBRICATE
Guide Rods X
WARRANTYINFORMATION
10YEARS STRUCTURUALFRAME
1YEAR PILLOWBLOCKS, PULLEYS,WEIGHT PLATESANDGUIDE RODS
1YEAR CABLES
90 DAYS UPHOLSTERY
