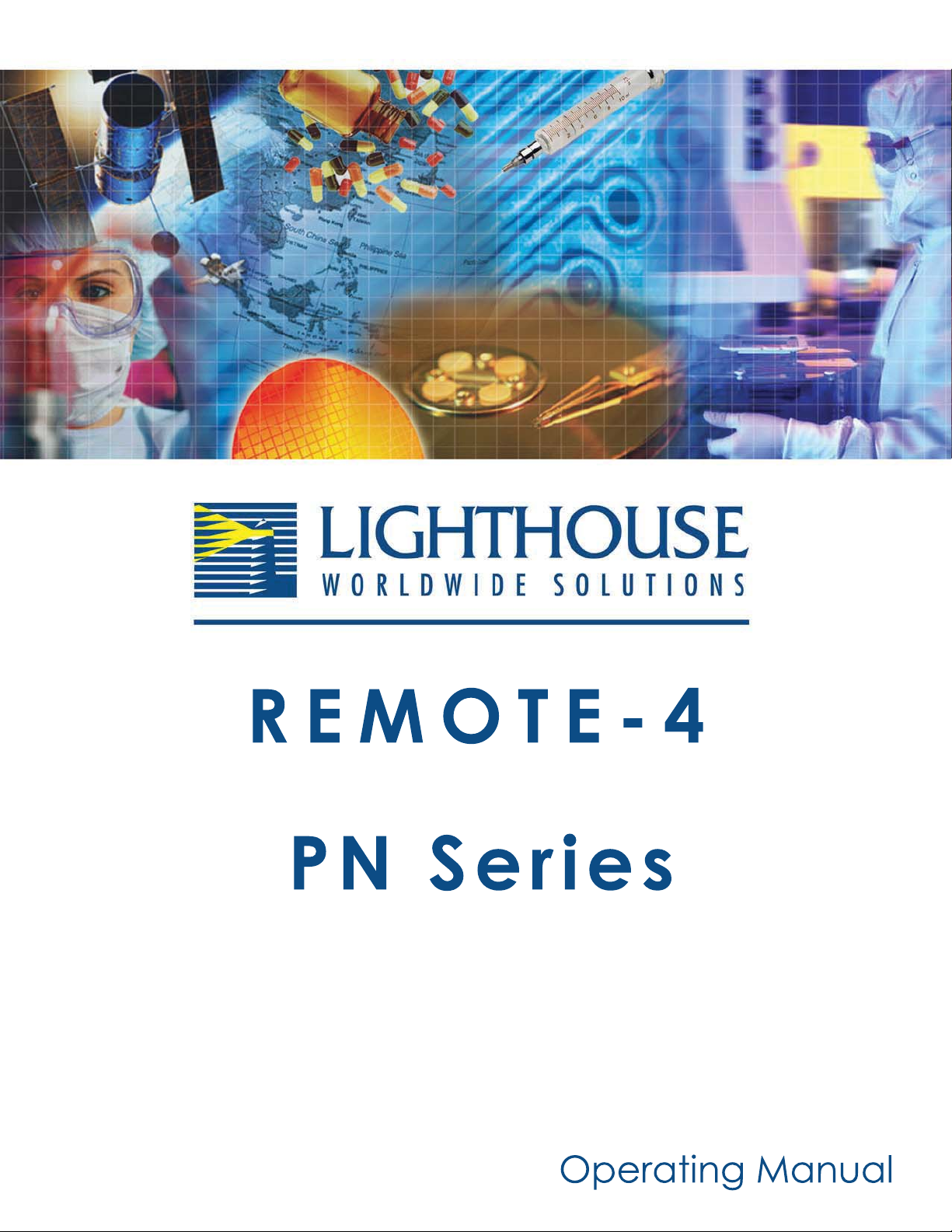

Lighthouse Remote 3014PN User manual

00

Lighthouse Worldwide Solutions
REMOTE-4 PN Series Airborne Particle Counter
Operating Manual

Copyright © 2007-2014 by Lighthouse Worldwide Solutions. All rights reserved. No part of this
document may be reproduced by any means except as permitted in writing by Lighthouse
Worldwide Solutions.
The information contained herein constitutes valuable trade secrets of Lighthouse Worldwide
Solutions. You are not permitted to disclose or allow to be disclosed such information except as
permitted in writing by Lighthouse Worldwide Solutions.
The information contained herein is subject to change without notice. Lighthouse Worldwide
Solutions is not responsible for any damages arising out of your use of the LMS program.
REMOTE 3014PN™, REMOTE 5014PN™, REMOTE 3104PN™, REMOTE 5104PN™ and
LMS™ are trademarks of Lighthouse Worldwide Solutions.
Microsoft®, Microsoft Windows™ and Excel™ are trademarks of Microsoft Corporation.
LWS Part Number 2489083317-1 Rev 4

EU DECLARATION OF CONFORMITY
Manufacturer’s Name: Lighthouse Worldwide Solutions, Inc.
Manufacturer’s Address: Lighthouse Worldwide Solutions, Inc.
1221 Disk Drive
Medford, OR 97501 USA
Declares that the product:
Product Name: REMOTE Airborne Particle Counter
Model Number(s): REMOTE 3014PN, 3104PN, 5014PN, 5104PN
Conforms to the following Product Specifications:
SAFETY EN61010-1:2001 Safety Requirements for Electrical Equipment for
Measurement, Control, and Laboratory Use Part 1:
General Requirements IEC 61010-1:2000
Safety Requirements for Electrical Equipment for
Measurement, Control and Laboratory Use, Part 1:
General Requirements
LASER SAFETY Guidance on Laser Products: Conforms to FDA 21 CFR
Chapter 1 Subchapter 1
EMC EN61326 Electrical Equipment for Measurement, Control and
Laboratory Use EMC Requirements Part 1: General
Requirements Includes Amendment A1:1998; IEC
61326:1997 + A1:1998
UL 61010A-1 - UL Standard for Safety Electrical Equipment for Laboratory Use; Part 1: General Requirements
Replaces UL 3101-1
Supplementary information
The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC amended by
Directive 93/68/EEC and the EMC Directive 89/336/EEC amended by Directive 93/68/EEC and carries the
CE marking accordingly.
William Shade - V.P. Engineering
Fremont, CA. May 15, 2007
CAN/CSA C22.2
No. 1010.1-1992
IEC 60825-1 Am. 2
IEC 60601-2-22
(Laser Notice 50)

00
248083317-1 Rev 4 t-i
Table of Contents
About This Manual
Text Conventions............................................................................................................................ i
Additional Help............................................................................................................................... i
Chapter 1 General Safety
Safety Considerations .................................................................................................... 1-1
Laser Safety Information ............................................................................................... 1-1
Electrostatic Safety Information .................................................................................... 1-2
LAN-connect Warning .................................................................................................. 1-2
Chapter 2 Introduction
Overview ........................................................................................................................ 2-1
Description ..................................................................................................................... 2-1
Accessories .................................................................................................................... 2-2
REMOTE 3014PN Specifications ................................................................................. 2-3
REMOTE 3104PN Specifications ................................................................................. 2-4
REMOTE 5014PN Specifications ................................................................................. 2-5
REMOTE 5104PN Specifications ................................................................................. 2-6
Interface Pin Assignments ............................................................................................. 2-7
Data Port ............................................................................................................ 2-7
Annual Calibration ............................................................................................. 2-8
Chapter 3 Getting Started
Unpacking and Initial Inspection ................................................................................... 3-1
Shipping Instructions ..................................................................................................... 3-1
Data Cable Build ............................................................................................................ 3-2
Requirements ..................................................................................................... 3-2
Site Preparation .................................................................................................. 3-2
Procedure ........................................................................................................... 3-3
Mount the REMOTE-4PN ............................................................................................. 3-9
Connect Interface and Power Cables ........................................................................... 3-10
Connections ..................................................................................................... 3-10
Communication Port (Data Port) ..................................................................... 3-11

Lighthouse REMOTE-4PN Series Operating Manual
t-ii 248083317-1 Rev 4
Data Cable Install ................................................................................. 3-12
Pump Remote Cable Install ................................................................. 3-14
Energize Connections .......................................................................... 3-14
Understanding the LEDs .................................................................................. 3-15
Chapter 4 Communication Set Up
Definitions of Terms Used ............................................................................................. 4-1
REMOTE-4PN Communication Modes ........................................................................ 4-2
Communicating with the Instrument .................................................... 4-2
Data Port ............................................................................................................ 4-2
RS232 Communications .................................................................................... 4-4
RS485 Communications .................................................................................... 4-4
Connecting to a PC ............................................................................................ 4-5
Ethernet Configuration .................................................................................................. 4-6
Lantronix Software Use ................................................................................................. 4-7
Preparing for Network Installation .............................................................................. 4-12
Equipment Required: ....................................................................................... 4-12
Software Required: .......................................................................................... 4-12
Additional Requirements: ................................................................................ 4-12
Configure Device ......................................................................................................... 4-12
Ethernet REMOTE-4PN Configuration ........................................................... 4-12
Straight-through Cat5/Cat6 Setup: ....................................................... 4-13
Cross-over Cat5/Cat6 Setup: ............................................................... 4-14
Program the Interface ................................................................................................... 4-14
Windows Telnet Programming: ....................................................................... 4-14
TIA568A and TIA568B wire Examples ...................................................................... 4-19
Connect REMOTE-4PN to Ethernet LAN .................................................................. 4-19
Connect Ethernet Cable to Instrument ............................................................. 4-19
Chapter 5 Programming with MODBUS Protocol
DIP Switches .................................................................................................................. 5-1
Protocol Settings ............................................................................................................ 5-1
Power On/Auto Start ...................................................................................................... 5-1
Running the Instrument Using MODBUS ..................................................................... 5-2
AUTOMATIC Counting Mode ......................................................................... 5-2
MANUAL Counting Mode ................................................................................ 5-3
Configuring with the MODBUS Protocol ..................................................................... 5-4
Setting the Real Time Clock .............................................................................. 5-4
Changing the Default Instrument Parameters .................................................... 5-5
Using Sensor Setting Registers .............................................................. 5-5
Location (Register 40026) ..................................................................... 5-6
Hold Time (Registers 40031, 40032) .................................................... 5-6
Sample Time (Registers 40033, 40034) ................................................ 5-6

Table of Contents
248083317-1 Rev 4 t-iii
Appendix A Limited Warranty
Limitation Of Warranties: ............................................................................................. A-1
Warranty Of Repairs After Initial Two (2) Year Warranty: ......................................... A-1
Appendix B MODBUS Register Map v1.44
COMM Settings ............................................................................................................. B-1
Supported MODBUS Commands .................................................................................. B-1
Sensor Settings Registers ................................................................................... B-2
Device Status ......................................................................................... B-4
Data Registers ................................................................................................................ B-6
Device Status Word ........................................................................................... B-8
Data Enable Registers ........................................................................................ B-9
Data Type Registers ........................................................................................... B-9
Data Units Registers ........................................................................................ B-10
Index

Lighthouse REMOTE-4PN Series Operating Manual
t-iv 248083317-1 Rev 4

00
248083317-1 Rev 4 i
About This Manual
This manual describes the detailed operation and use of the Lighthouse
REMOTE-4PN Series Airborne Particle Counters.
Text
Conventions
The following typefaces have the following meanings:
Note: A note appears in
the sidebar to give extra
information regarding a
feature or suggestion
italics Represents information not to be typed
or interpreted literally. For example, file
represents a file name. Manual titles are
also displayed in italics.
WARNING: A
warning appears in a
paragraph like this and
warns that doing
something incorrectly
could result in personal
injury, damage to the
instrument or loss and/or
improper storage of data.
boldface Introduces or emphasizes a term.
Courier font Indicates command syntax or text
displayed by the diagnostic terminal.
Bold Courier Indicates commands and information that
you type. You can use uppercase or
lowercase letters; in this manual,
commands are shown in uppercase.
Helvetica Italics Indicates a comment on a command or
text output.
Additional
Help
For more information about Lighthouse REMOTE-4PN Series
Airborne Particle Counters, contact Lighthouse Worldwide Solutions.
Service and Support
Tel: [phone] (USA Toll Free)
Tel: [phone] (Outside of USA)
[email protected]

Lighthouse REMOTE-4PN Series Operating Manual
ii 248083317-1 Rev 4

00
248083317-1 Rev 4 1-1
1General Safety
Safety
Considerations
Warnings and cautions are used throughout this manual. It is the
responsibility of the user to familiarize themselves with the meaning of
a warning before operating the particle counter. All warnings will
appear in the left margin of the page next to the subject or step to which
it applies. Take extreme care when doing any procedures preceded by
or containing a warning.
There are several classifications of Warnings defined as follows:
• Laser - pertaining to exposure to visible or invisible laser radiation
• Electrostatic - pertaining to electrostatic discharge
• LAN-Connect - pertaining to Ethernet LAN and instrument damage
Laser Safety
Information
This product contains a laser-based sensor that is a Class 1 product (as
defined by 21 CFR, Subchapter J of the Health and Safety Act of 1968)
when used under normal operation and maintenance. Service
procedures on the sensor can result in exposure to invisible radiation.
Service should be performed only by factory-authorized personnel.
The particle counter has been evaluated and tested in accordance with
EN 610109-1:1993, "Safety Requirements For Electrical Equipment
for Measurement, Control, and Laboratory Use" and IEC 825-1:1993,
"Safety of Laser Products". See Figure 1-1.
WARNING: The use
of controls, adjustments
or performance of
procedures other than
those specified within
this manual may result in
exposure to invisible
(infrared) radiation that
can quickly cause
blindness. Figure 1-1 Laser Warning Label Inside Unit
For further technical assistance, contact our Technical Support Team at
800-945-5905 (USA Toll Free) or 541-770-5905 (Outside of USA).

Lighthouse REMOTE-4PN Series Operating Manual
1-2 248083317-1 Rev 4
Electrostatic
Safety
Information
Electrostatic discharge (ESD) can damage or destroy electronic
components. Therefore, all service or maintenance work should be
done at a static-safe work station. A static-safe work station can be
created by doing the following:
WARNING: Using a
wrist-strap without an
isolation resistor will
increase the severity of
an electrical shock.
• Use a grounded conductive table mat and resistor-isolated wrist-
strap combination.
Earth-ground all test instruments to prevent a buildup of static charge.
LAN-connect
Warning
WARNING: Connect only Ethernet REMOTE-4PN Series
instruments to a standard Ethernet LAN (Local Area Network). An
RS485 MODBUS REMOTE-4PN may damage the instrument, LAN
hardware or both if its RJ45 port is connected to an Ethernet
network.
Failure to heed this warning will void the instrument warranty and
may void the associated warranties of any affected LAN
equipment.
Figure 1-2 is the warning label attached to the face of the REMOTE-
4PN Series:
Figure 1-2 Ethernet LAN Connect Notice

00
248083317-1 Rev 4 2-1
2Introduction
Overview This operating manual introduces the reader to the Lighthouse
REMOTE-4PN Series of four-channel Airborne Particle Counters.
Also included in this manual are instructions for inspecting, using and
maintaining the instrument. Any instrument design changes that may
affect its operation are covered at the back of this manual.
Description
Note: References in this
manual to the different
models of instruments may
be stated as REMOTE-
4PN Series or REMOTE-
4PN - they mean the same
and are specific to the
entire unit. References to
Rxxx4 are specific to the
counter within the NEMA
enclosure.
The REMOTE 3014PN (R3014PN) instrument incorporates up to four
particle-size channels starting at 0.3 microns; the REMOTE 5014PN
(R5014PN) shown in Figure 2-1 incorporates up to four particle-size
channels starting at 0.5 micron at 0.1 CFM. The REMOTE 3104PN
(R3104PN) incorporates up to four particle-size channels starting at 0.3
micron and the 5104PN (R5104PN) incorporates up to four particle-
size channels starting at 0.5 micron at 1.0 CFM.
Figure 2-1 REMOTE 5104PN Particle Counter

Lighthouse REMOTE-4PN Series Operating Manual
2-2 248083317-1 Rev 4
REMOTE-4PN instruments use a laser diode light source and
collection optics for particle detection. The collection optics collect and
focus light scattered by the particles onto a photo diode that converts
the bursts of light into electrical pulses. The pulse height is a measure
of particle size. Pulses are counted and their amplitude is measured for
particle sizing.
The REMOTE-4PN Series of particle counters were designed for
continuous trouble-free operation using an internal flow-controlled
vacuum pump and a standard NEMA style 316L stainless steel
enclosure. This design provides an industry standard mounting
configuration and can be installed where space is limited. REMOTE-
4PN Series instruments integrate seamlessly with large facility
monitoring and management systems and transfer up to 4 channels of
simultaneous particle count data using RS485 output.
Accessories The REMOTE-4PN Series instrument supports remote monitoring
when equipped with a tubing kit of 3 meters.
Several accessories can be ordered to tailor the instrument to specific
needs. Please contact a Sales Engineer for these options.

Introduction
248083317-1 Rev 4 2-3
REMOTE
3014PN
Specifications
The manufacturer recommends that the Lighthouse instrument be
calibrated annually by a Certified Lighthouse Service Provider to
ensure that it continues to perform within specification.
When Calibration comes due, the Service LED will illuminate and stay ON
during sampling mode until the instrument has been calibrated.
Table 2-1 REMOTE 3014PN Specifications
Size Ranges 0.3 - 25.0m
Channel Thresholds Standard: 0.3, 0.5m
Other sizes specified at time of order
Flow Rate 0.1 CFM (2.83 LPM)
Counting Efficiency 50% (per ISO 21501-4)
Laser Source Laser Diode
Zero Count Level <1 count/5 minutes (per ISO 21501-4)
Data Storage Rotating buffer, 2000 Records
Vacuum Internal flow-controlled pump
Calibration NIST Traceable
Communication Modes RS232/RS485 MODBUS
Alerts Calibration Due; Service Alert; Flow Alert
Enclosure 316L Stainless Steel, NEMA
Power Instrument Power: +6V to +30VDC
Chassis Power: 100-220VAC
Dimensions 10" (W) x 12" (H) x 6.9" (D) [25.4 x 30.4 x.
14.9 cm]
Weight 20 lbs (9.6 kg)
Operating Temp/RH 50° F to 104° F (10° C to 40° C) / 20% to 95%
non-condensing
Storage Temp/RH 14° F to 122° F (-10° C to 50° C) / Up to 98%
non-condensing

Lighthouse REMOTE-4PN Series Operating Manual
2-4 248083317-1 Rev 4
REMOTE
3104PN
Specifications
The manufacturer recommends that the Lighthouse instrument be
calibrated annually by a Certified Lighthouse Service Provider to
ensure that it continues to perform within specification.
When Calibration comes due, the Service LED will illuminate and stay ON
during sampling mode until the instrument has been calibrated.
Table 2-2 REMOTE 3104PN Specifications
Size Ranges 0.3 - 25.0m
Channel Thresholds Standard: 0.3, 0.5m
Other sizes specified at time of order
Flow Rate 1.0 CFM (28.3 LPM)
Counting Efficiency 50% (per ISO 21501-4)
Laser Source Laser Diode
Zero Count Level <1 count/5 minutes (per ISO 21501-4)
Data Storage Rotating buffer, 2000 Records
Vacuum Internal flow-controlled pump
Calibration NIST Traceable
Communication Modes RS232/RS485 MODBUS
Alerts Calibration Due; Service Alert; Flow Alert
Enclosure 316L Stainless Steel, NEMA
Power Instrument Power: +6V to +30VDC
Chassis Power: 100-220VAC
Dimensions 10" (W) x 12" (H) x 6.9" (D) [25.4 x 30.4 x.
14.9 cm]
Weight 20 lbs (9.6 kg)
Operating Temp/RH 50° F to 104° F (10° C to 40° C) / 20% to 95%
non-condensing
Storage Temp/RH 14° F to 122° F (-10° C to 50° C) / Up to 98%
non-condensing

Introduction
248083317-1 Rev 4 2-5
REMOTE
5014PN
Specifications
The manufacturer recommends that the Lighthouse instrument be
calibrated annually by a Certified Lighthouse Service Provider to
ensure that it continues to perform within specification.
When Calibration comes due, the Service LED will illuminate and stay ON
during sampling mode until the instrument has been calibrated.
Table 2-3 REMOTE 5014PN Specifications
Size Ranges 0.5 - 25.0m
Channel Thresholds Standard: 0.5, 5.0 or 0.5, 10.0m
Other sizes specified at time of order
Flow Rate 0.1 CFM (2.83 LPM)
Counting Efficiency 50% (per ISO 21501-4)
Laser Source Laser Diode
Zero Count Level <1 count/5 minutes (per ISO 21501-4)
Data Storage Rotating buffer, 2000 Records
Vacuum Internal flow-controlled pump
Calibration NIST Traceable
Communication Modes RS232/RS485 MODBUS
Alerts Calibration Due; Service Alert; Flow Alert
Enclosure 316L Stainless Steel, NEMA
Power Instrument Power: +6V to +30VDC
Chassis Power: 100-220VAC
Dimensions 10" (W) x 12" (H) x 6.9" (D) [25.4 x 30.4 x.
14.9 cm]
Weight 20 lbs (9.6 kg)
Operating Temp/RH 50° F to 104° F (10° C to 40° C) / 20% to 95%
non-condensing
Storage Temp/RH 14° F to 122° F (-10° C to 50° C) / Up to 98%
non-condensing

Lighthouse REMOTE-4PN Series Operating Manual
2-6 248083317-1 Rev 4
REMOTE
5104PN
Specifications
The manufacturer recommends that the Lighthouse instrument be
calibrated annually by a Certified Lighthouse Service Provider to
ensure that it continues to perform within specification.
When Calibration comes due, the Service LED will illuminate and stay ON
during sampling mode until the instrument has been calibrated.
Table 2-4 REMOTE 5104PN Specifications
Size Ranges 0.5 - 25.0m
Channel Thresholds Standard: 0.5, 5.0 or 0.5, 10.0m
Other sizes specified at time of order
Flow Rate 1.0 CFM (28.3 LPM)
Counting Efficiency 50% (per ISO 21501-4)
Laser Source Laser Diode
Zero Count Level <1 count/5 minutes (per ISO 21501-4)
Data Storage Rotating buffer, 2000 Records
Vacuum Internal flow-controlled pump
Calibration NIST Traceable
Communication Modes RS232/RS485 MODBUS
Alerts Calibration Due; Service Alert; Flow Alert
Enclosure 316L Stainless Steel, NEMA
Power Instrument Power: +6V to +30VDC
Chassis Power: 100-220VAC
Dimensions 10" (W) x 12" (H) x 6.9" (D) [25.4 x 30.4 x.
14.9 cm]
Weight 20 lbs (9.6 kg)
Operating Temp/RH 50° F to 104° F (10° C to 40° C) / 20% to 95%
non-condensing
Storage Temp/RH 14° F to 122° F (-10° C to 50° C) / Up to 98%
non-condensing
