Lightolier SORA-3 User manual

Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
"JSQPSU3PBE'BMM3JWFS."tt'BY
We reserve the right to change details of design, materials and finish.
XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt
Lighting Systems SORA-3
1BHFPG -JHIU51FS'PPU/PNJOBM4FDUJPO
#
Ordering Information
S 1
Body
S
Family Lamps Wattage Style Length Finish
Family Item Suspension Length Finish
* Intermediate only.
1= 1 Lamp Per 28 = 28 Watt
54 = 54 Watt without
Wings
CO = Suspended 4= 4 Foot
Nominal
SC = Platinum
WH = White
E= End Set
I= Intermediate
CO = Cable
SO = Stem
PO = Power Feed*
SC = Platinum
WH = White
Complete Ordering Instructions below.

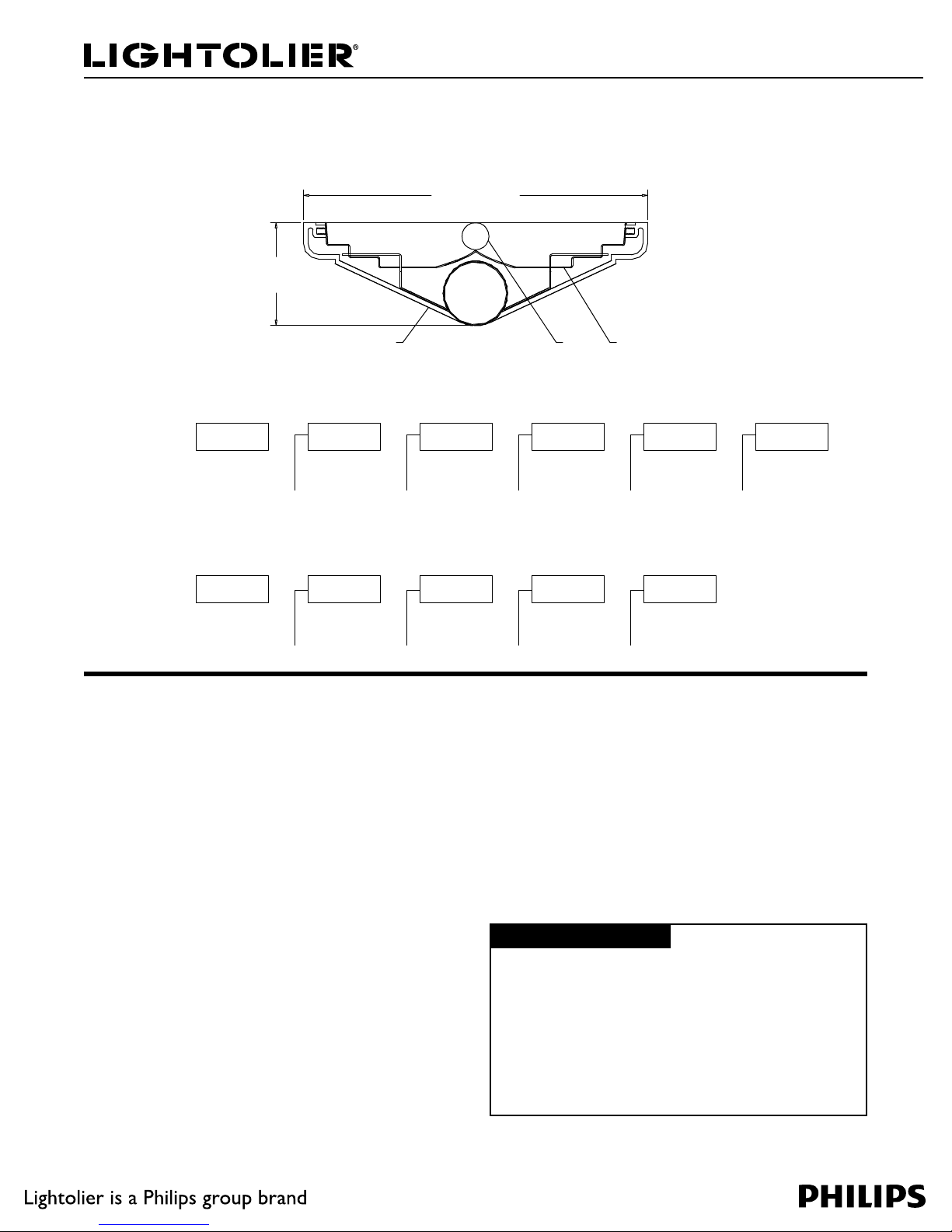

4-Foot Section
Features
1. Housing: Aluminumextruded upto 12-foot nominal lengths.
2. Lamp: T5 linear fluorescent, 28 or 54 watt. (by others).
3. Reflector: Die-formed high reflectance semi-specular aluminum.
Electrical
Ballast is electronic, low harmonic distortion, high power and ballast factor, uni-
versal voltage with two conductors and a ground. Mark X dimming (no extra control
wire required) is available. EM battery pack not available. Modules can be
continuously wired row mounted, but cannot exceed amperage limits of electrical
supply cords. Cable suspended fixtures have 18/3 SJT cord, stemproducts have
three 18 gauge wires provided in stem, and both versions must be hard wired.
Factory installed ballast disconnect allows the ballast to be disconnected fromand
reconnected to incoming power under load without turning the entire circuit off.
Mounting
Cable mounting utilize 1/16” (0.16cm) diameter SSTL aircraft cable, and are
continuously adjustable via a cable gripper. Stemmountings utilize 1/8 IP stems
(three wires only) with ball swivel mounting at ceiling line. Stems cannot be cut in
field and should be ordered to required length. 4-1/2” (11.43cm) diameter canopies
are used on both styles. 12-foot fixtures may have up to 1/4” (0.64) deflection in
luminaire housings.
Finish
Powder coated Steelcase Platinumor White baked enamel.
Customcolors available, consult factory.
Labels
UL (1598), cUL and I.B.E.W.
CO
Continuos Rows:
1. Determine run length.
2. Order the appropriate number of Modules to complete the run.
3. Order one End Set per run.
4. Order one Intermediate suspension per Module minus one per run.
5. For runs that exceed amperage limits, order the appropriate number of
Intermediate suspension Power (for cable suspended units only).
Ordering Instructions
Individual fixtures:
1. Order number of Modules required.
2. Order one End Set per module.
8= 8 Foot
Nominal
12 = 12 Foot
Nominal
Suspension
30 = 30” (76.20cm)
36 = 36” (91.44cm)
Stem
Cable
2.40”
(6.10cm)
8.00” (20.32cm)
1 2 3

Job Information Type:
"JSQPSU3PBE'BMM3JWFS."tt'BY
We reserve the right to change details of design, materials and finish.
XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt #
Lighting Systems SORA-3
1BHFPG -JHIU51FS'PPU/PNJOBM4FDUJPO
80% 70% 50%
70 50 30 70 50 30 50 30 10
0 808080 6868 68 474747
1 736966 6259 59 403938
2 666056 5652 48 353331
3 605347 5145 41 312826
4 554741 4740 35 272422
5 504135 4335 30 242119
6 463730 3932 26 221816
7 423327 3628 23 201614
8 393024 3325 20 181412
9 362721 3123 18 161311
10 34 24 19 29 21 16 15 11 9
CANDLEPOWER
ZONE 0 22 45 67 90
DEG. CANDELAS
180 646 646 646 646 646
175 658 644 641 637 635
165 626 616 621 626 630
155 580 577 601 623 635
145 512 524 573 625 649
135 425 454 544 666 737
125 322 387 574 933 1129
115 211 306 889 1464 1599
105 100 343 1087 1481 1545
95 21 380 462 482 443
90 00000
Performance
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
REPORT NO.: ITL53326
LAMPS: 1-F54T5
LUMENS: 5000
EFFICIENCY: 83.8%
CAT NO.: S154C04WH
CANDLEPOWER CURVE
WALL R EFLE CTANCE
Fixture Lengths & Mounting Locations
Mounting Accessories
Power Feed Cable End Set
Distance is fromthe ceiling
line to the top of the lumi-
naire housing.
36” (91.44cm) Platinum: SECO36SC
36” (91.44cm) White: SECO36WH
Stem End Set
Distance is fromthe ceiling
line to the top of the lumi-
naire housing.
30” (76.20cm) Platinum: SESO3
Ø SC
30” (76.20cm) White: SESO3 Ø WH
Intermediate Cable
Distance is fromthe ceiling
line to the top of the lumi-
naire housing.
36” (91.44cm) Platinum:SICO36SC
36” (91.44cm) White: SICO36WH
Notes: Suspended luminaires can be continuously
row mounted longer than 20-foot but the electrical
capacity of power cords cannot be exceeded.
Intermediate Stem
Distance is fromthe ceiling
line to the top of the lumi-
naire housing.
30” (76.20cm) Platinum: SISO3
Ø SC
30” (76.20cm) White: SISO3 Ø WH
Intermediate Cable/Cord
Distance is fromthe ceiling
line to the top of the lumi-
naire housing.
36” (91.44cm) Platinum: SIPO36SC
36” (91.44cm) White: SIPO36WH
4-Foot
8-Foot
12-Foot
16-Foot
20-Foot
20% FLOOR CAVITY REFLECTANCE
DISTRIBUTION
Zone Lumens % Lamp%Luminaire
0-90 0 0.0 0.0
90-180 4189 83.8 100.0
0-180 4189 83.8 100.0
4' 3-1/4” (130.15cm)
4' 2-1/8” (127.32cm)
8' 6-5/8” (260.67cm)
8' 5-3/8” (257.49cm)
12' 9-7/8” (390.84cm)
12' 8-3/4” (387.99cm)
12' 9-3/8” (389.57cm)
17' 1-1/4” (521.34cm)
12' 9-3/8” (389.57cm)
4' 2-3/4” (128.91cm)
21' 4-1/2” (651.51cm)8' 6" (259.08cm)
