Lilin iMEGAPRO IPD2220ES User manual

Instr uction Manual
66-IPD222CSE
IPD2220ES / LD2222E
MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
1080P HD Dome IP Camera

IMPORTANT SAFEGUARDS
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
shock to persons.
accompanying the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS

CAUTION
Do not drop or strike this equipment.
Do not install the equipment near any naked flames or heat
sources.
Do not expose this unit to rain or excessive moisture, avoid
smoke and dust.
Do not cover cloth or to install this unit in poorly ventilated
places.
Do not continue to operate if there appears to be fault.
Do not touch the power connection with wet hands.
Do not damage the power cord or leave it under pressure.
Sensitive electronics inside are vulnerable to excessive shock.
Excessive heat could damage this unit.
Please the camera in an environmental housing for protection.
If the camera gets wet, unplug it and have it checked by
qualified service personnel.
This may lead to overheating.
If the unit ceases to function, contact qualified service
personnel for help.
Risk of short circuit or electric shock.
Risk of fire or shock circuit.

CONGRATULATIONS
Thank you for purchasing this 2 Megapixel HD Dome IP Camera.
You now own one of the many fine network products we
manufactured. This product has been carefully inspected under
rigid quality control and should reach you in perfect condition.
With reasonable care, it will provide years of reliable performance.
We recommend that you read this installation and operation
manual thoroughly before installing and operation your new
system.
Here you will find all the information you need to set up and use
the system. If any questions are not answered in the manual,
please contact your dealer.
Before proceeding, please read and observe all instructions and
warnings contained in this manual. Retain this manual with the
original bill of sale for future reference and, if necessary, warranty
service.
When unpacking your new camera, check for missing or damaged
items. If any item is missing, or if damage is evident,
I . Contact your dealer for
assistance.
DO NOT
NSTALL OR OPERATE THIS PRODUCT

IPD2220ES & LD2222E series is an 2 Megapixel 1080P HD Dome
IP Camera, built-in H.264 AVC(Advanced Video Coding) video
compression. H.264 AVC video compression engine supports
high definition video quality, 1080P(1920x1080) resolution,
bandwidth efficiency with PPPoE and DDNS.
Also it provides higher bit rate of internet and diverse alarm
functions such as movement video detection e-mail or FTP.
Moreover, IPD2220ES & LD2222E series can do remote
surveillance with iPad, iPhone or Android cell phone. The
software R&D engineer can use HTTP protocol(HTTPAPI) or
ONVIF protocol to develop related software, and integrate them
with existing application software system.
IPD2220ES & LD2222E series is ideal solution for remote video
monitoring via internet.
Executive Summary

6
7
Unit: mm
PART DESCRIPTION & DIMENSION
1Bottom Chassis
DC12V Power Input Jack
RJ-45 Network Connector
Dome Cover
Microphone
Mask
Camera Body
Network Indicator LEDs
Green(LINK): Network cable connected, this LED lit.
Orange(ACT): Data communications, this LED flashes.
Micro SD Card Slot
Reset Key
To restore the server to factory default setting.
2
3
4
5
6
7
8
9
105
39
2
1
4
5
10
9
8
10
3

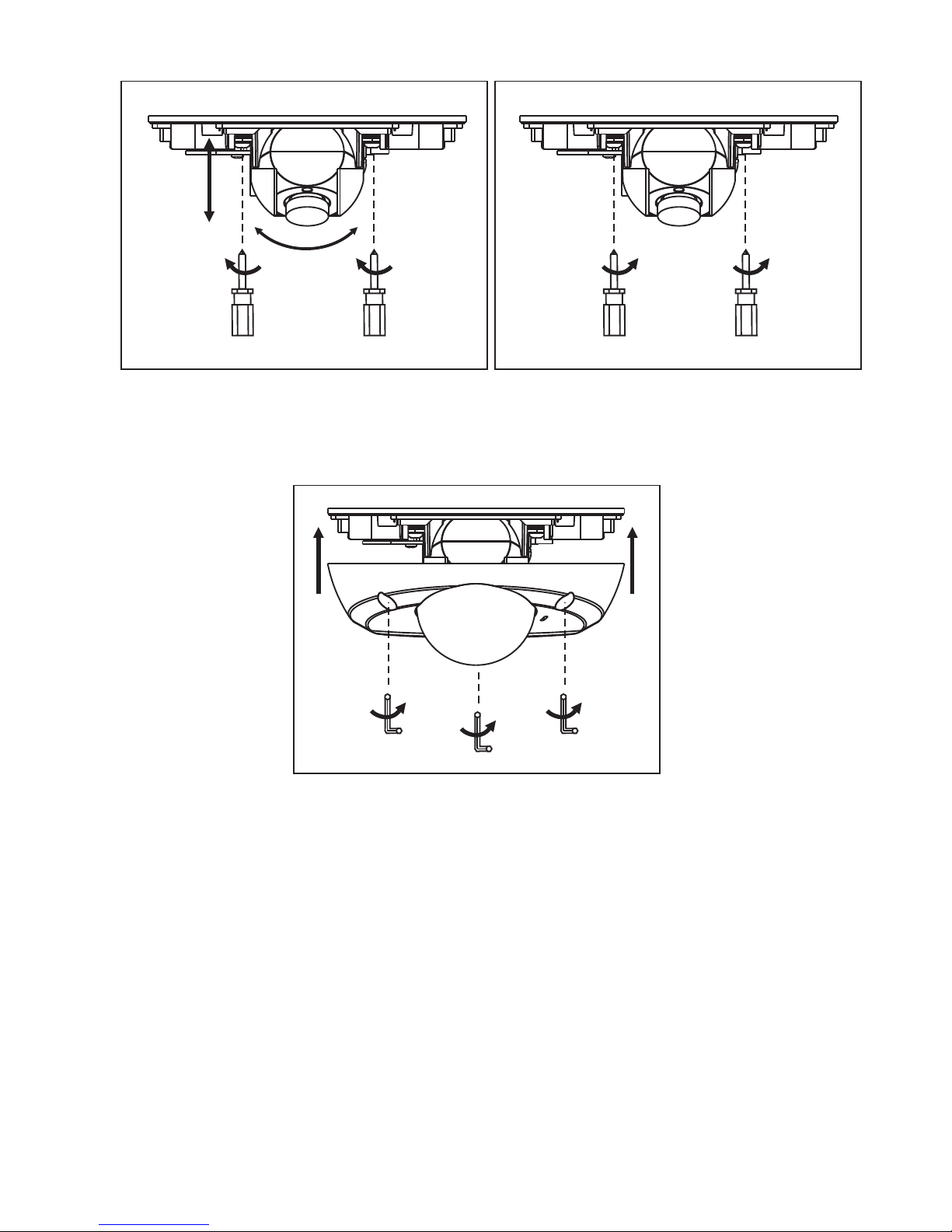

INSTALLATION
1. Please use the enclosed hexagon screw driver to untighten the 3 screws on the
dome cover (FIG.1).
FIG. 1
2. Put the provided screws (M3.0*25, wooden screw) through the holes marked as
"a", and fix the bottom chassis in the desired area (FIG.2 & FIG.3).
FIG. 2 FIG. 3
20°
a
a
62°62°
45.7
a
3. Loosen the screws on the camera body cover to rotate the camera body to the
desired angle and then tighten the screws (FIG.4 & FIG.5).

FIG. 4 FIG. 5
4. Put on the dome cover, use hexagon screw driver to screw dome cover into
bottom chassis and then tighten the screws (FIG.6).
FIG. 6

1. 2 Megapixel 1080P HD
Dome IP Camera
2. Instruction Manual
3. CD Software Pack
IPD552EX2.2/4.2 N/P
H.264 Full HD IP Cameras
INSTRUCTION MANUAL

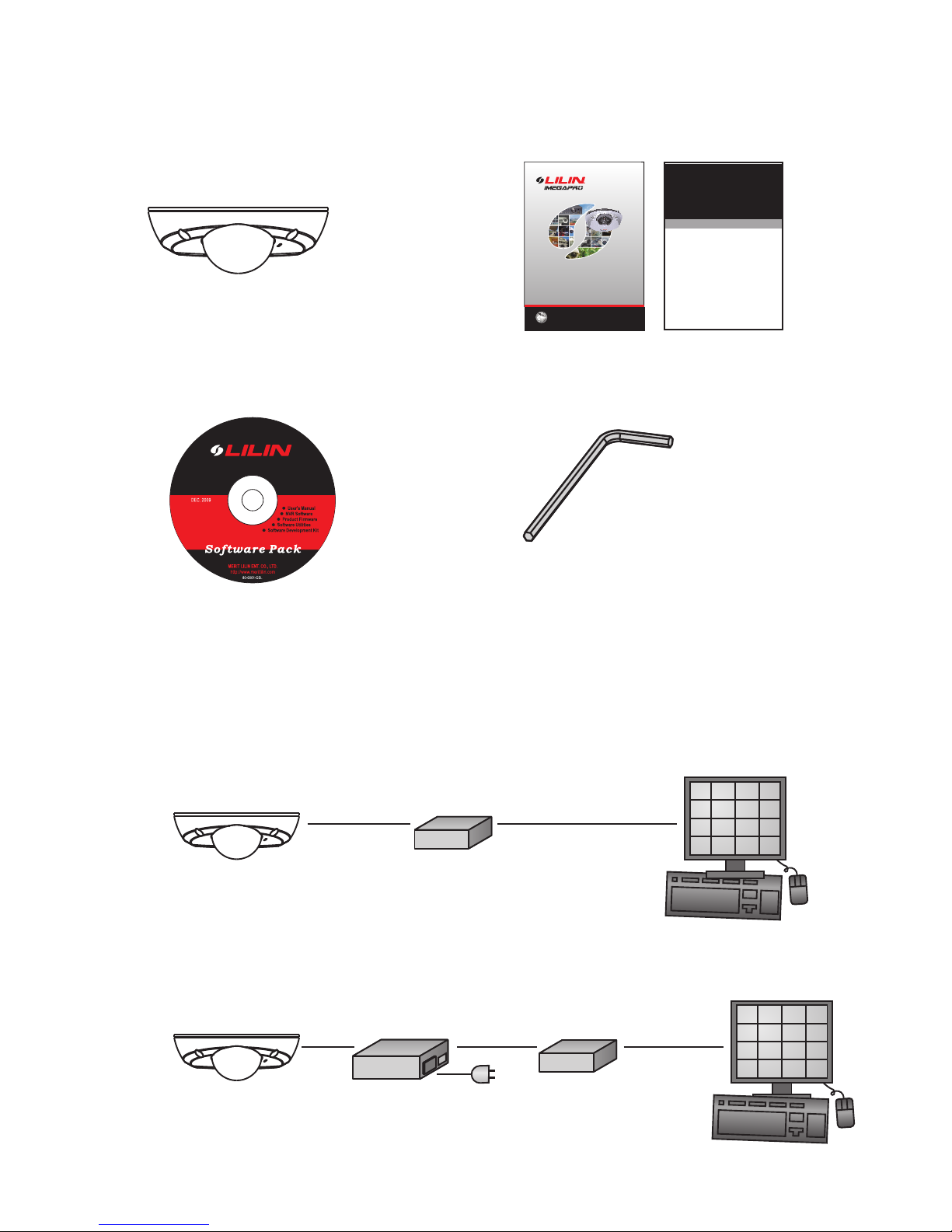

PRODUCTION COMPONENTS
4. L type Hex Key Wrench
In st r u ct i on M an u al
IPD2220ES / IPD2220ELS
1080P HD Dome IP Camera
(2). Use PoE power injector and the network switch connected to the network.
PoE Power Injector
PC
LAN LAN / Internet
AC
Non-PoE Switch
LAN
PC
1080P HD Dome
IP Camera
For connecting IPD2220ES & LD2222E series to the network, please follow one of the
system architectures:
(1). Use with PoE of the network switch connected to the network.
SYSTEM ARCHITECTURES
LAN LAN / Internet
PoE Switch
1080P HD Dome
IP Camera

Use hardware to restore factory default settings, follow these steps:
1. Hold "RESET Key" for 10 seconds, then release.
2. After about 40 seconds, the network LED light is off, and then lit.
3. This camera has completed the factory default settings, and then reboot.
4. Use IPScan software search for this IP device.
5. Using a Internet browser open the IP device.
6. Enter the default username "admin" and password "pass" to operate.
For the convenience of users, restore the factory default settings will revert to the
default IP address 192.168.0.200.
NOTE
EMERGENCY FACTORY DEFAULT
PC
LAN LAN / Internet
Non-PoE Switch
DC12V Adaptor

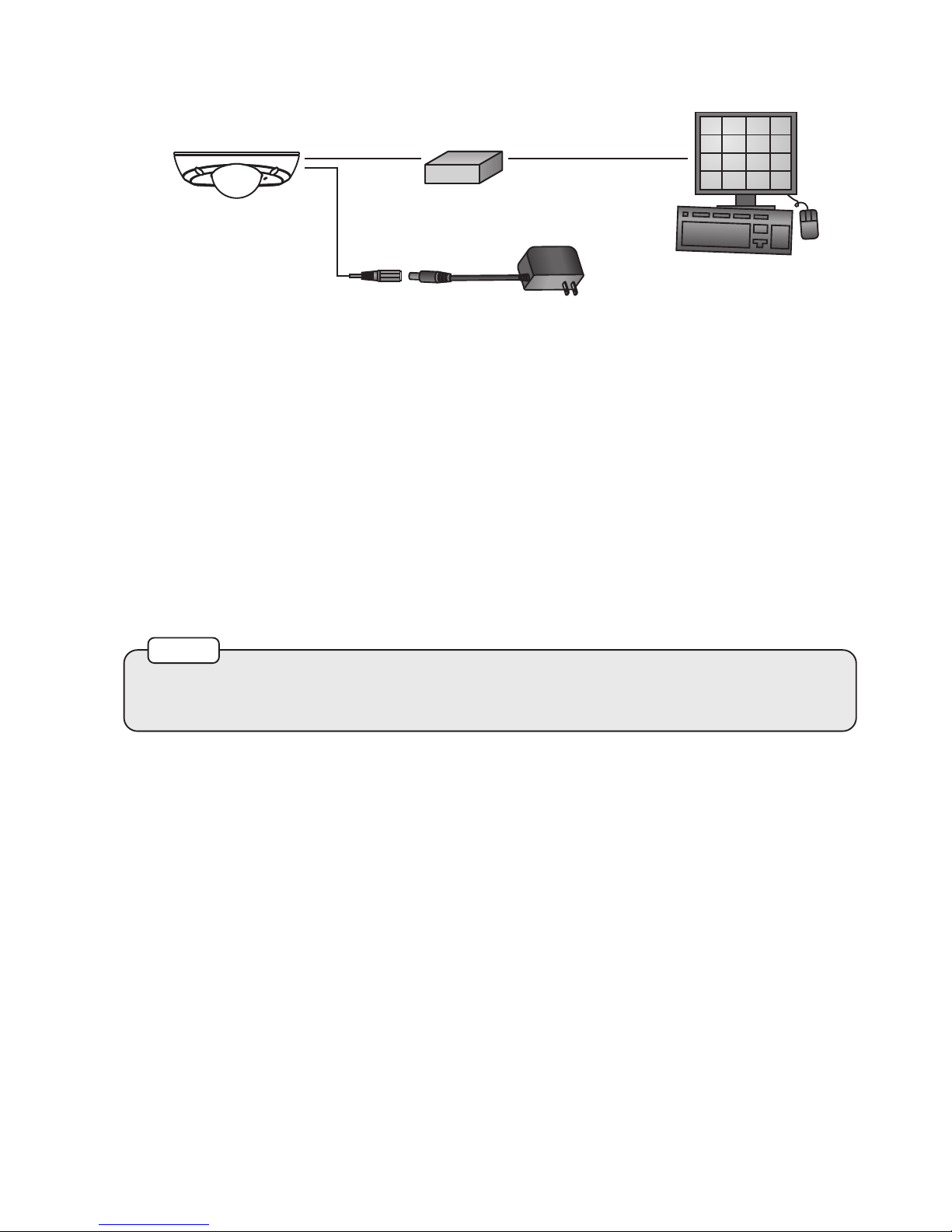

(3). Use DC12V power adapter and network switch connected to a network.
1080P HD Dome
IP Camera

SPECIFICATIONS
Lens
Effective Pixels
Pick Up Element
Model No.
Chip Size
Scanning System
Electronic Shutter
Sense Up
Sense Up Plus
Back Light Compensation
3D Noise Reduction
2D WDR
Privacy Masking
Image Effects
Minimum Illumination
Auto Gain Control
White Balance
Power SInput Voltage
Operating Temperature
Dimension
Power Consumption
Weight
Focal Length
Iris
Angle of view
4.3mm
F1.6
1920(H) x 1080(V) = 2,073,600(pixel)
1/2.7" CMOS Image Sensor
5.856mm(H) x 3.276mm(V)
Progressive Scan
1/30(25)s ~ 1/8000s
Off/ 1Frame/ 2Frames/ 3Frames/ 7Frames
Yes
Off/ On
Off/ 1~32 Selectable
Off/ On
Off/ On (4 zones)
Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip
0.6Lux at F1.6
36dB Variable Gain
Auto/ Tungsten/ Indoor/ Fluorescents1/ fluorescents2/ Outdoor1/ Outdoor2
PoE (IEEE 802.3af compliant)
-25 C ~ +50 C° ° ° °(-13 F ~ 122 F)
ψ105 x 39mm
5W
IPD2220ES4.3
70°(H), 51 (D), 89 (D)° °
Design and specifications are subject to change without notice.
1080P HD DOME IP CAMERA
250g
IPD2220ES (1080P 30fps)

Video Compression
Resolution
Profile #1
Profile #2
Profile #3
Profile #4
CPU, Memory
Network Protocols
Mobile Phone and PDA
PC Requirement
Security
Maintenance
Network Interface
System Integration
CMX
Video Display
OS
One-way Audio
SD Card Recording
H.264, Motion JPEG
H.264 up to 30fps @1280x720, MJPEG: up to 30fps @352x240
H.264 up to 30fps @1920x1080, MJPEG: up to 30fps @1280x720
H.264 up to 30fps @720x480, MJPEG: up to 15fps @1920x1080
H.264 up to 30fps @1920x1080, MJPEG: up to 30fps @720x480
1080P(1920x1080) / 720P(1280x720) / D1(720x480) / CIF(352x240)
Embedded SoC ARM11, 528MHz
256MB DDR2, 256MB flash memory
IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP,
DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ONVIF
iPad, iPhone and Android support
OS : Windows 2000, Windows XP, Windows Vista, Windows 7
Browser : Windows Internet Explorer 6, 7, 8
CPU : Intel Pentium 4 1.8GHz or above
RAM : 1GB or above, Independent Display Card
Base64 HTTP encryption
Multiple user access levels with password protection
10 user accounts available
Firmware update via HTTP, Firmware available at web site
10Mbps / 100Mbps Base-T, RJ-45
ONVIF & LILIN HTTP API
CMX HD3.6 support
LILIN Universal ActiveX & LILIN Java Applet
Embedded Linux 2.6.32
G.711 / PCM
Support Micro SD/SDHC card for circular recording (card is not included)
Design and specification are subject to change without notice.
NETWORK
Multiple profile
Video Streaming
Video Bitrate
RTP/HTTP, RTP/TCP, RTP/UDP
VBR/ CBR/ GOP supported
Frame rate and bit rate controllable on-the-fly
128Kbps ~ 5Mbps
Users
ePTZ & Digital Zoom
OSD
Alarm Functions
8 simultaneous users
Yes, ROI is supported
Text overlay for date, time, and camera name
Motion/ tampering/ face detection triggering into SD card
Image upload over FTP and E-mail by face/ tampering/ audio/ motion detection
1080P HD DOME IP CAMERA

Lens
Effective Pixels
Pick Up Element
Model No.
Chip Size
Scanning System
Electronic Shutter
Sense Up
Sense Up Plus
Back Light Compensation
3D Noise Reduction
2D WDR
Privacy Masking
Image Effects
Minimum Illumination
Auto Gain Control
White Balance
Power Supply
Operating Temperature
Dimension
Power Consumption
Weight
Focal Length
Iris
Angle of view
4mm
F1.6
1920(H) x 1080(V) = 2,073,600(pixel)
1/2.5" CMOS Image Sensor
5.70mm(H) x 4.28mm(V)
Progressive Scan
1/30(25)s ~ 1/8000s
Off/ 1Frame/ 2Frames/ 3Frames/ 7Frames
Yes
Off/ On
Off/ 1~32 Selectable
Off/ x2/ x3/ x4
Off/ On (4 zones)
Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip
1Lux at F1.6
36dB Variable Gain
Auto/ Tungsten/ Indoor/ Fluorescents1/ fluorescents2/ Outdoor1/ Outdoor2
DC12V 10% / PoE (IEEE 802.3af compliant)±
-25 C ~ +50 C° ° ° °(-13 F ~ 122 F)
ψ105 x 39mm
DC12V, 4.5W / PoE, 5W
LD2222E4
62.2°(H), 37.4 (D), 69.2 (D)° °
Design and specifications are subject to change without notice.
1080P HD DOME IP CAMERA
250g
LD2222E (1080P 15fps)

66-IPD222CSE-2
Video Compression
Resolution
CPU, Memory
Network Protocols
Mobile Phone and PDA
PC Requirement
Security
Maintenance
Network Interface
System Integration
CMX
Video Display
OS
One-way Audio
SD Card Recording
H.264, Motion JPEG
Motion JPEG: up to 15fps @1920x1080, 30fps @720x480, 30fps @352x240
H.264: up to 15fps @1920x1080, 30fps @1280x720, 30fps @720x480
1080P(1920x1080) / 720P(1280x720) / D1(720x480) / CIF(352x240)
Embedded SoC ARM11, 528MHz
256MB DDR2, 256MB flash memory
IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP,
DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ONVIF
iPad, iPhone and Android support
OS : Windows 2000, Windows XP, Windows Vista, Windows 7
Browser : Windows Internet Explorer 6, 7, 8
CPU : Intel Pentium 4 1.8GHz or above
RAM : 1GB or above, Independent Display Card
Base64 HTTP encryption
Multiple user access levels with password protection
10 user accounts available
Firmware update via HTTP, Firmware available at web site
10Mbps / 100Mbps Base-T, RJ-45
ONVIF & LILIN HTTP API
CMX HD3.6 support
LILIN Universal ActiveX & LILIN Java Applet
Embedded Linux 2.6.32
G.711 / PCM
Support Micro SD/SDHC card for circular recording (card is not included)
Design and specification are subject to change without notice.
NETWORK
Maximum Frame Rate
Video Streaming Protocol
Video Bitrate
RTP/HTTP, RTP/TCP, RTP/UDP
VBR/ CBR/ GOP supported
Frame rate and bit rate controllable on-the-fly
128Kbps ~ 5Mbps
Users
Digital Zoom
OSD
Alarm Functions
8 simultaneous users
Yes
Text overlay for date, time, and camera name
Motion detection triggering into SD card
Image upload over FTP and E-mail by audio/ motion detection
1080P HD DOME IP CAMERA

Instr uction Manual
66-IPD222CSE
IPD2220ES / LD2222E
MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
1080P HD Dome IP Camera
