Lilin IPS2102E User manual

66-IPS210CSE
MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
D/N 1080P HD Fast Dome IR IP Camera
IPS2102E
Instr uction Manual

IMPORTANT SAFEGUARDS
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
shock to persons.
accompanying the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS

PREFACE
IPS2102E with High resolution of HD/Full HD offer significant enhancement and refinements to bring
you the most innovative surveillance solutions.
IPS2102E are the leading product in the industry offering the most advanced features such as 10X optical
zoom lens, Digital Zoom, Auto Focus Control, Auto Iris Control, Day & Night Control, Infrared LED
Control, Wide Dynamic Range, Digital Noise Reduction , High Light Compensation and Digital Image
Stabilizer ... Etc.
IPS2102E measure only 135mm in diameter and is capable of making 360 degrees continuous rotation
with a speed range of 0.5 to 120 degrees per second, ensures direct and accurate target positioning. When
required the dome can be quickly spun through 180 degrees, an important feature when something passes
directly under the camera.
Up to 128 preset positions can be programmed and recalled with an accuracy of 0.25 degrees. Can be set
to auto-sequence mode, perform automatic monitoring presets.
IPS2102E H.264 AVC (Advanced Video Coding) video compression engine provides high video quality,
SXGA/1080P resolution, bandwidth efficiency, and real-time streaming. The cutting edge of H.264 AVC
main profile encoding technology can provide better compression rate and superior video quality at 56
Kbps to 3 Mbps bit rate. Dual streaming design, JPEG and H.264 AVC allow to stream video at low
bandwidth (Internet) and high bandwidth (LAN) for optimizing video quality. Low latency design for
both Intranet and Internet is a key factor of operating PTZ. Four PTZ web interfaces including lens
absolution positioning are designed for easy-to-use purpose.

FEATURES
Auto Focus Lens
Build-in 10X optical zoom lens with focal length 4.9 ~ 49mm
Day & Night (IR cut removable)
1920x1080(1080P) Horizontal TV lines
Automatic/Manual Iris Control
High efficiency infrared LED 850nm, radiant distance - 16meters
Private Mask
360 continuous rotation
Up to 128 programmable preset positions
Preset positions auto scanning
High speed rotation and tilt, speed range varies from 0.5 /sec ~ 120 /sec
180 Horizontal Instant Flip
1 alarm inputs, 1 alarm output for each Fast Dome IP Camera
Build in high resolution DSP color camera:
1. Color / Mono Switch (IR Cut Filter)
Day Color
Night Mono
Auto Switch from color to mono when light drops below 3 lux
2. x64 Digital Zoom
3. Digital effect: Mirror & Flip
4. Minimum Illumination: Color 0.5Lux at F1.8, Mono 0Lux [IR ON]
5. Sens. Up Function
6. Lens Iris: F1.8~F16/ Close
°
° °
°
7. Auto Gain Control : 0dB ~ 42dB
8. White Balance Control: Indoor, Outdoor, AWC, ATW, Manual
9. Sharpness
10. Privacy Zone: Off/ On (Up to 8 Zone Settings)
11. Digital noise reduction: Off/ On (2C, 3D)
12. Back Light Compensation: Off, BLC, WDR
Power supply options: PoE+ (IEEE 802.3at) or DC+12V 1.5A adaptor
In live monitoring: 1080P(1920x1080), 720P(1280x720), D1(720x480), CIF(352x240)
True H.264AVC/ MPEG-4 part 10 real-time video compression
Full duplex H.264 AVC and JPEG streaming
2-Way Audio supported
iPhone and Android Support
ONVIF Support
→
→
→

WARNINGS & CAUTIONS
Please read the manual before attempting installation or operation
1. Please be aware to the warnings and cautions notice.
2. Don't use any chemical detergent to clean the machine surface, use a damp cotton cloth only.
Regularly clean the dome cover to assure proper focus ability.
3. Please install the Fast Dome in a dry area, water and high humidity may cause damage on internal
parts. External housing should be used for outdoor installation.
4. Please use parts supplied by the manufacturer only, any unqualified part using in the equipment may
violate the warranty.
5. Avoid installing the equipment in an unstable area. Make sure the area is firm and stable.
Falling equipment may injure personnel and damage the equipment.
6. Do not install the equipment near any flammable gas. Violation may cause fire or injury.
7. Avoid running video cable and signal cable through or passing interference sources such as video
waves, broadcast station, power generator, elevator motor or high voltage area ..... etc.
Violation may cause interference.
8. Make sure the power cable is properly fixed. Un-suitably fixed cable may cause serious short circuit
or fire.
9. Correct cable connection is important. Do not place any object on the connection cable and change
the cable if there is damage on cable. Violation may cause short circuit, fire and injury.
10. Make sure ground is well connected to avoid damage caused by lightning.
11. Do not put any foreign objects inside the equipment and do not spray any liquid on equipment.
This will avoid short circuit damage.
12. Do not touch power connection with wet hands to avoid short circuit or electricity shock.
13. Do not apply smash-force on the equipment. Violation may cause damage.
14. Do not install the equipment in a location that may expose the equipment directly to sunlight.
Violation may cause colour fading or damage.
15. Do not install the equipment in high temperature or low temperature environment to avoid damage.
The normal operational temperature is between -10 C ~ +50 C.
16. Fast Dome contains high sensitive electric parts inside. Do not try to repair them without qualified
personnel.
17. Turn off the power immediately and contact the technician when the following occurs:
A. Damage on power cable or plug.
B. Water leak into the equipment.
C. Fast Dome can not be operated normally.
D. Equipment falling on ground or damage on external case.
E. Unusual occurrence.
18. Warning: Do not try to repair the equipment. Only a qualified technician may disassemble and repair
the equipment. Shut off the power before disassemble the equipment and don't put power on unless
the case is completely assembled.
。 。

RESET
ACT
LINK
SD CARD
STRUCTURAL ELEMENT
DC12V Power Cable
CAT5 Network Cable
Signal Shield Wire
Video Signal Cable
Signal Shield Wire
Camera Body
Camera Case
Bottom Chassis
Power In DC Jack (DC12V In DC Jack)
DC Input: DC12V 10%
Video Out BNC Jack
Video Signal Output: CVBS 1.0Vp-p 75 BNC
Recommend Signal Cable: 5C2V
Audio In RCA Jack (Red) & Audio Out RCA Jack (Green)
Audio: 1.4Vp-p(1 Vrms)
Recommend Signal Cable: Signal shield wire
RJ45 Network Connector (Support PoE+)
LAN: 10/100Mbps
Recommend Signal Cable: CAT5
Reset Key
To restore the server to factory default setting.
Network Indicator LEDs
Green(LINK): Network connection. This LED lit.
Orange(ACT): Data communications. This LED flashes.
Micro SD Card Slot: Support Micro SD/SDHC/SDXC
±
Ω

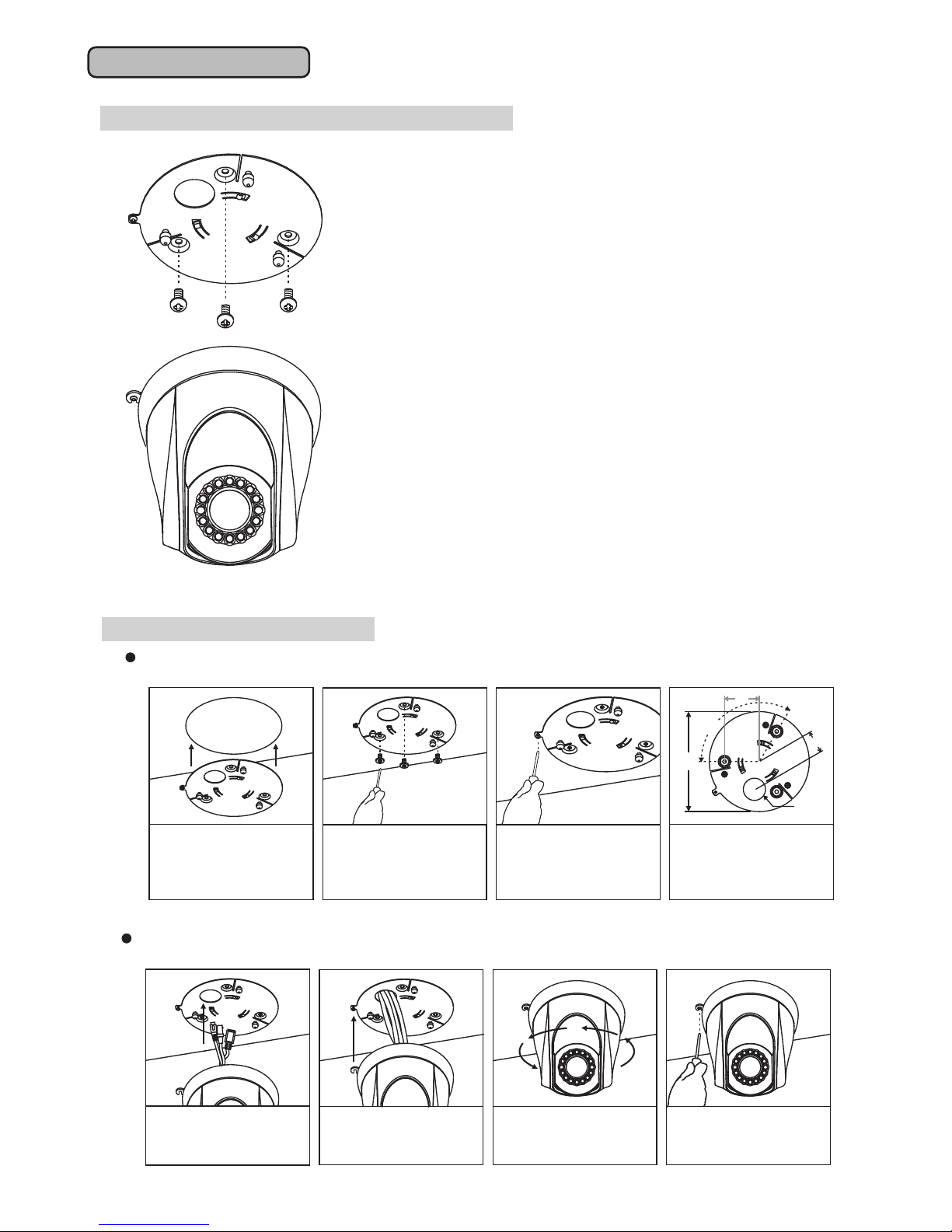

INSTALLATION
Attached Mounting Installation Structural Drawing
Step 2 Attach the Camera and Metal Clips
Put fixed metal clips on
installation position of
ceiling.
Tighten the three tapping
screws into the ceiling.
Loose the screw of bottom
chassis.
(Don't need taking out the
screw)
Base size and screw
location.
120°
47
38
ψ30
135
Attached Mounting (Fixed Ceiling)
Step 1 Fix The Metal Clips of ceiling
Attach dome camera body
to metal clips.
Turn camera body counter
clockwise to tight
position.
Tighten the screw to fix
camera body.
Set all of control cable on
middle position and
through the hole of ceiling

VIDEO OUT
Step 3 Connection
Connect Audio in/out
signal cable.
AUDIO OUT
AUDIO IN
Set all of control cable
through the hole of metal
clips.
Wall Mounting (Fixed Bracket)
Step 1 Fix The Bracket & Metal Clips of Bracket
Fixed bracket first, and
pull ethernet cable and
other cable from bracket
cable outlet.
Step 2 Attach the Camera and Metal Clips
Pull all of control cable
into the bracket and attach
dome camera body to
metal clips.
Tighten the three screws
to fix bracket.
Loose the screw of bottom
chassis.
(Don't need taking out the
screw)
Connect ethernet cable
and other cable with
connection cable model.
Turn camera body counter
clockwise to tight
position.
Tighten the screw to fix
camera body.
Connect Ethernet cable. Connect Video signal
cable.
Connect DC12V of power
cable. (Suggest to use the
ADAPTOR from the
factory)

SPECIFICATION
Model
Power Supply
General
Pan & Tilt
Lens
Main Function
Minimum illumination
Image Pick-up Device
Power Consumption
Total number of pixel
effective Pixels
Scanning System
Video Output
Ambient Operation Temperature
Operating Humidity
IR LED
Color: 0.5Lux at F1.8, Mono: 0Lux (IR ON)
1/3" MOS Sensor
1944(H) x 1092(V) = 2,122,848(pixel)
2010(H) x 1108(V) = 2,227,080(pixel)
Progressive Scan
CVBS 1.0Vp-p/ 75 BNCΩ
-10 C ~ +50 C° ° ° °(-14 F ~ 122 F)
0% ~ 90%
850nm
16M
30°
10X D/N 10 80P HD FAST DOME IR IP CAMERA
Dimensions
Weight
Panning Range
Zoom Ratio
Control Function
Digital Zoom Ratio
Zoom Speed
Focus Speed
Focus
Iris
Day & Night
Electronic Shutter Speed
Back Light Compensation
Sharpness
White Balance
Auto Gain Control
Digital Noise Reduce
Auto Mode
Privacy Function
Digital Effect
Schedule Setting
Focal Length
Minimum Aperture Ratio
Minimum Object Distance
Angle Field of View
Tilting Range
Panning Mode
Tilting Mode
Panning Speed
Tilting Speed
142mm(H) x 135mm(D)
1100g
360°Endless
10X Optical Zoom
Pan and Tilt/ Zoom and Focus/ Iris and ICR/ 128 Preset Position/ Home Position
x64
1~15 Selectable [15: approx. 5.0 second (In to Out) in manual mode]
Auto (Continue/ Zoom Trigger), Manual Focus
F1.8 ~ F16, Close
Day/ Night/ Auto
Auto/ manual (1/30(25) to 1/10,000)
OFF/ BLC/ WDR
Adjustable
Indoor/ Outdoor/ AWC/ ATW/ Manual(1800K~10500K)
0 ~ 42dB
Off/ On (2D, 3D)
Off/ AUTO/ SEQ/ TOUR/ PATROL
Off/ On (Up to 8 Zones Settings)
OFF/ Mirror
Off/ Auto Mode/ Preset Position
4.9mm ~ 49mm
1 : 1.8 (Wide) ~ 3.0(Tele)
1.0m (Tele)
Wide: 57.23°(H) 34.07°(V) , Tele: 6.25°(H) 3.51°(V)
Manual, Auto, Manual Position, Sequential Position
Manual, Auto, Manual Position, Sequential Position
Manual Approx. 0.5 /s ~ 90° ° ° °/s 8Steps, Preset Approx. 1 /s ~ 120 /s 8Steps
Manual Approx. 0.5 /s ~ 90° ° ° °/s 8Steps, Preset Approx. 1 /s ~ 120 /s 8Steps
0° °~ +90
Design and specification are subject to change without notice.
DC12V
IPS2102E
13W
PoE+ (IEEE 802.3at)
15.5W
1~15 Selectable [15: approx. 5.0 second (Far to Near) in manual mode]
Peak Wavelength
Radiant Distance
Beam Spread

Ne tw o r k F u n c t i o n
Video compression
Resolution
Frame rate
Video streaming
Alarm Function
OSD
Users
CPU, memory
Security
Video bitrate
Network protocols
Mobile phone and PDA
Client PC requirement
Mintenance
PTZ preset scheduling
Web PTZ control
Network Interface
System integration
CMX
Video display
OS
Two-way Audio
SD Card Recording
H.264, Motion JPEG
1080P(1920x1080), 720P(1280x720), D1(720x480), CIF(352x240)
H.264: up to 30FPS at 1080P(1920x1080)
Motion JPEG: Up to 30/25FPS at Full D1resolution
RTP/HTTP, RTP/TCP, RTP/UDP, Multicast
Image upload over FTP and E mail by alarm/ motion detection-
Text overlay for date, time, and camera name, and PTZ position
8 simultaneous users
OS : Windows 2000, Windows XP, Windows Vista, Windows 7
Browser : Windows Internet Explorer 6, 7, 8
CPU : Intel Pentium 4 1.8GHz or above
RAM : 1GB or above, Independent Display Card
Embedded SoC ARM11, 528MHz, 256MB DDR2, 256MB flash memory
Base64 HTTP encryption
128Kbps ~ 5Mbps
Multiple user access levels with password protection
Frame rate and bitrate controllable on-the-fly
10 user accounts available
VBR/ CBR/ GOP supported
IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP,
DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ONVIF, ICMP, IGMP
iPhone, iPad and Android support
Firmware available at web site
Firmware update via HTTP
Yes, via web interface
Pan, tilt, zoom in/ out, absolute position, and video-click-n-move
10Mbps / 100Mbps, RJ-45
ONVIF & LILIN HTTP API
CMX HD3.6 support
LILIN Universal ActiveX & LILIN Java Applet
Embedded Linux 2.6.32
G.711
Support Micro SD/SDHC card for circular recording(card is not included)
Design and specification are subject to change without notice.
66-IPS210CSE-1

66-IPS210CSE
MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
Indoor D/N 1080P HD Fast Dome IR IP Camera
IPS2102EM, IPS2108M
Instruction Manual
Table of contents
Other Lilin IP Camera manuals

Lilin
Lilin AHD701A3.6 User manual

Lilin
Lilin IPR414/418ESX3 User manual

Lilin
Lilin IPR732ES User manual

Lilin
Lilin IRS1308 User manual

Lilin
Lilin iMEGAPRO IPD/R2322ES User manual

Lilin
Lilin IPD6220ES3.6 User manual

Lilin
Lilin FD2452E User manual

Lilin
Lilin IPG1022ELS User manual

Lilin
Lilin ZG1232E User manual

Lilin
Lilin IPR7424 User manual

Lilin
Lilin iMEGAPRO IPR722ES User manual

Lilin
Lilin IPG012ES User manual

Lilin
Lilin IPG1022ESX3 User manual

Lilin
Lilin iMEGALITE series User manual

Lilin
Lilin IRS1204 User manual

Lilin
Lilin IPD2122S4.3 User manual

Lilin
Lilin iMEGAPRO IPD2220ES User manual

Lilin
Lilin H.264 User manual

Lilin
Lilin AHD DOME User manual

Lilin
Lilin IPS622M User manual
