Lilin ipg1022esx User manual

Instruction Manual
66-IPG1022CSE
IPG1022ESX3
MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
Day & Night 1080P HD IP Camera

IMPORTANT SAFEGUARDS
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
shock to persons.
accompanying the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS

CAUTION
Do not drop or strike this equipment.
Do not install the equipment near any naked flames or heat
sources.
Do not expose this unit to rain or excessive moisture, avoid
smoke and dust.
Do not cover cloth or to install this unit in poorly ventilated
places.
Do not continue to operate if there appears to be fault.
Do not touch the power connection with wet hands.
Do not damage the power cord or leave it under pressure.
Sensitive electronics inside are vulnerable to excessive shock.
Excessive heat could damage this unit.
Please the camera in an environmental housing for protection.
If the camera gets wet, unplug it and have it checked by
qualified service personnel.
This may lead to overheating.
If the unit ceases to function, contact qualified service
personnel for help.
Risk of short circuit or electric shock.
Risk of fire or shock circuit.

CONGRATULATIONS
Thank you for purchasing this D/N Megapixel HD IP Camera. You
now own one of the many fine network products we manufactured.
This product has been carefully inspected under rigid quality
control and should reach you in perfect condition. With reasonable
care, it will provide years of reliable performance.
We recommend that you read this installation and operation
manual thoroughly before installing and operation your new
system.
Here you will find all the information you need to set up and use
the system. If any questions are not answered in the manual,
please contact your dealer.
Before proceeding, please read and observe all instructions and
warnings contained in this manual. Retain this manual with the
original bill of sale for future reference and, if necessary, warranty
service.
When unpacking your new camera, check for missing or damaged
items. If any item is missing, or if damage is evident,
I . Contact your dealer for
assistance.
DO NOT
NSTALL OR OPERATE THIS PRODUCT

IPG1022ESX3 is an 2 megapixel D/N 1080P HD IP Camera,
built-in H.264 AVC(Advanced Video Coding) video compression.
H.264 AVC video compression engine supports high definition
video quality, 1080P(1920x1080) resolution, bandwidth efficiency
with PPPoE and DDNS.
Also it provides higher bit rate of internet and diverse alarm
functions such as movement video detection e-mail or FTP.
Moreover, IPG1022ESX3 can do remote surveillance with iPad,
iPhone or Android cell phone. The software R&D engineer can
use HTTP protocol(HTTPAPI) or ONVIF protocol to develop
related software, and integrate them with existing application
software system.
IPG1022ESX3 is ideal solution for remote video monitoring via
internet.
Executive Summary

PART DESCRIPTION & DIMENSION
5
2
1
122mm
50mm
3
4
SD CARD
EXTINGND
DIN
COM
NO
..
+5V
RESET
LAN
VIDEO OUT
POWER
DC12V
AUDIO INAUDIO OUT
6
70mm
11
12
13
9
714 8
10

1. LENS MOUNT CAP
FOCAL LENGTH ADJUSTMENT RING AND LOCKING SCREW
MICROPHONE
AUTO IRIS CONNECTOR(DC Type)
Supplies control signals to an auto iris lens(jack not supplied).
6. POWER LED
Power ON/OFF indicator.
7. LIVE VIDEO BNC JACK
Plug the video input of monitor to the BNC jack and adjust focus and zoom.
8. RESET KEY
To restore the server to factory default setting.
9. RJ-45 NETWORK CONNECTOR AND INDICATOR LEDS
Green(LINK): While cable of network is connecting the LED is light.
Orange(ACT): When data is communicating, the LED is flashed.
(This network camera support PoE.)
10. AUDIO INPUT 3.5mm PHONE JACK
Can be accessed by an external microphone or audio input signal.
(Choose from the audio settings menu to switch)
Prevent damages to the image sensor and to keep dust away.
2.
Use this ring to adjusts the back-focal distance or picture focus. Rotate this
ring clockwise or counterclockwise for a CS-mount lens.
3.
Built-in highly sensitive capacitive microphone.
4. LIGHT SENSOR
Day and night function auto mode detect.
5.

11. AUDIO OUTPUT 3.5mm PHONE JACK
12. DC12V POWER INPUT JACK
DC12V ( 10%) power input.
13. SD CARD SLOT
This network camera is compliant with SD/SDHC card.
14. ALARM IN/OUT & EXTIN TERMINAL
±
+5V COM. GND
N.O. DIN
123456
EXTIN
+5V Output: Max. output 50mA.
N.O./COM.: Max. load +60V/100mA.
DIN terminal can be set either N.O. (normally open) or N.C. (normally
close) mode.
EXTIN: IR cut removable external control input.

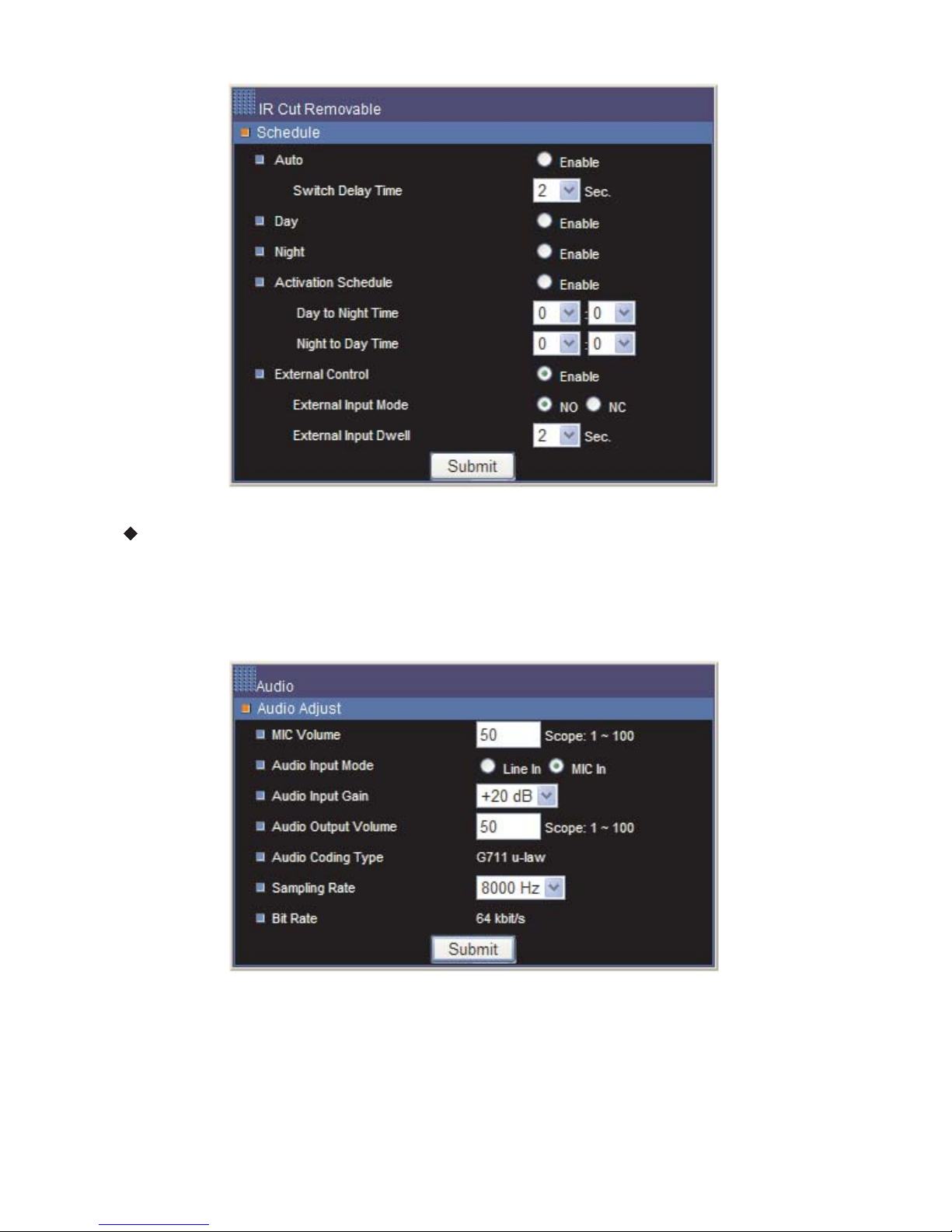

IR CUT REMOVABLE EXTERNAL CONTROL SETUP
Access into web page setup menu, under schedule menu, enable External
Control option.
External input mode: normally open(NO) or normally closed(NC) mode is
selectable.
External input dwell: may select 1, 2, 5, 10, 15, 20, 30 seconds delay time
interval to avoid wrong operation caused by headlight
of the front light.

AUDIO INPUT MODE SETUP
Access into web page setup menu, under audio adjustment setup menu,
may select Audio Input mode to either camera front microphone or rear's
Audio In (Line IN).

INSTALLATION

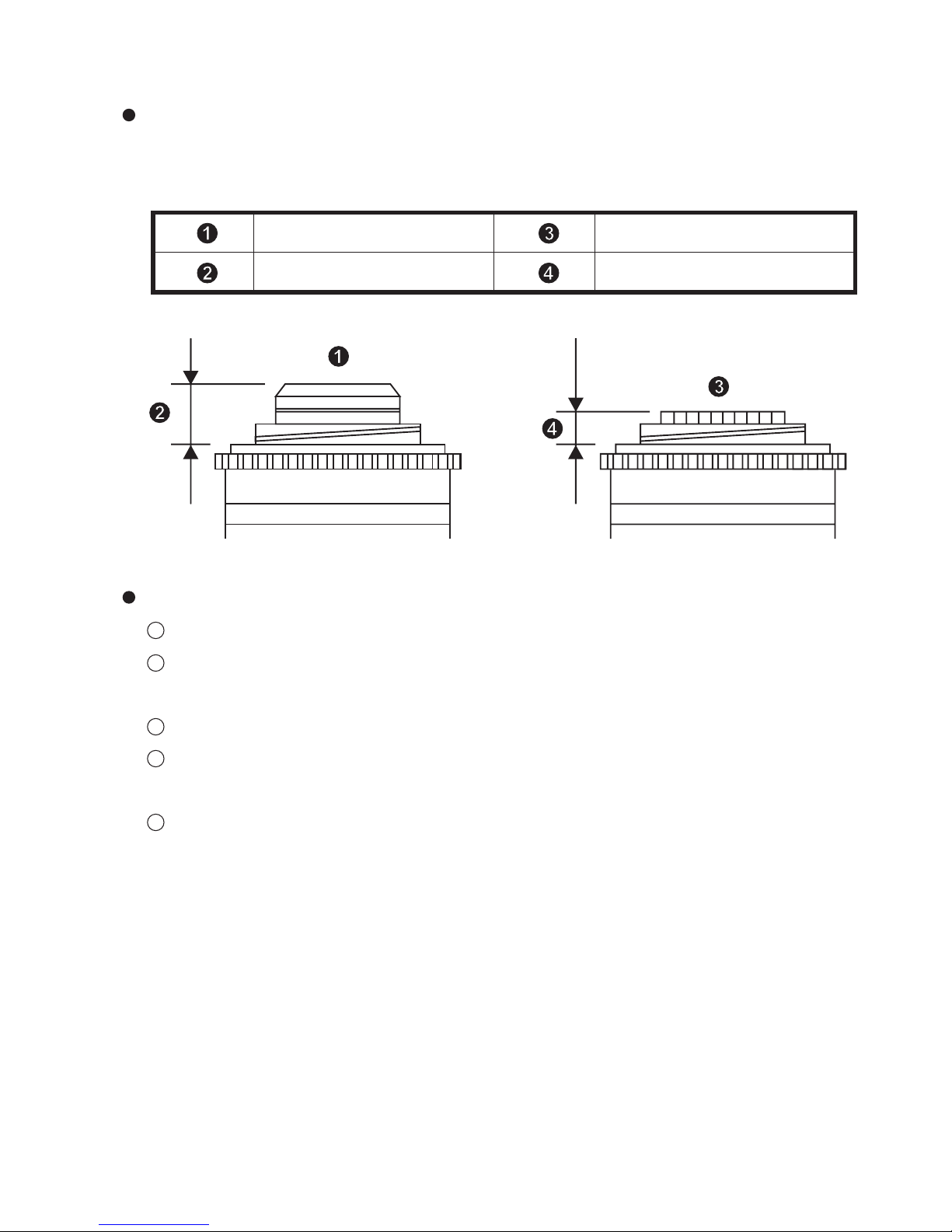

The lens must be either a C or CS mount type. The protrusion behind the
mounting surface must be within the following limits:
SUITABLE LENSES
C - mount lens CS - mount lens
9mm or less 4mm or less
FITTING THE LENS
Remove the lens mount cap.
Screw in the C mount ring(not supplied), until it is secured. When using a
CS mount lens skip step2.
Screw in the lens, until it is secured.
Insert the lens plug in the AUTO IRIS connector, when fitting a manual-
iris lens, skip step4.
Adjust the focal length by turning the focal length adjustment ring.
(Using hexagon screw driver, loose and tighten the screw.)
1
2
3
4
5

CAUTION
Keep the lens mount cap on the camera when not attaching a lens.
1. The mounting hole on the top or bottom of the camera.
2. Tighten the screw to the mounting hole. Please refer to the following
drawing.
FITTING THE CAMERA

Instruction Manual
IPG1022ESX3
Day & Night 1080P HD IP Camera
1. D/N 1080P HD IP Camera 2. Instruction Manual
3. CD Software Pack
IPD552EX2.2/4.2 N/P
FULL HD H.264 IP Cameras
INSTRUCTION MANUAL
PRODUCTION COMPONENTS
4. Lens and Bracket
For connecting IPG1022ESX3 to the network, please follow one of the system architectures:
(1). Hardware Installation using a PoE Switch.
PoE Switch
PC
LAN LAN / Internet
(2). Hardware Installation using a non-PoE Switch.
PoE Power Injector
PC
LAN LAN / Internet
AC
Non-PoE Switch
LAN
SYSTEM ARCHITECTURES
IPG1022ESX3
IPG1022ESX3

(3). Hardware Installation using DC12V Adaptor.
PC
LAN LAN / Internet
Non-PoE Switch
DC12V Adaptor
For the convenience of users, restore the factory default settings will revert to the
default IP address 192.168.0.200.
NOTE
EMERGENCY FACTORY DEFAULT
Use hardware to restore factory default settings, follow these steps:
1. Hold "RESET" key 10 seconds, then release.
2. After about 40 seconds, the network LED light is off, and then lit.
3. This camera has completed the factory default settings, and then reboot.
4. Use IPScan software search for this IP device.
5. Using a Internet browser open the IP device.
6. Enter the default username "admin" and password "pass" to operate.
IPG1022ESX3

100.1 ~ 35.8°°
72.9 ~ 26.9°°
123.8 ~ 44.8°°
Pick Up Element
Effective Pixels
Chip Size
Scanning System
Infrared Cut Filter
Min. Illumination
White Balance
Electrical Shutter
Sense Up
SenseUpPlus
Auto Gain Control
3D Noise Reduction
2D WDR
Privacy Masking
Image Effects
Live Video Output
Operating Temperature
Dimension
Weight
Power Input Voltage
Power Consumption
Model No.
Focal Length
Iris
AngleofView
1/2.7" CMOS Image sensor
1920(H) x 1080(V) = 2,073,600(pixel)
5.856mm(H) x 3.276mm(V)
Progressive Scan
Auto / Schedule / Day(Color) / Night(Mono) / External control
Color: 0.2Lux at F1.2 , Mono: 0.05Lux at F1.2
Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2
1/30(25)s ~ 1/8,000s
Off/ 1Frame/ 2Frames/ 3Frames/ 7Frames
Yes
36dB Variable Gain
Off/ Low/ Middle/ High
Off/ On
Off/ On (4 zones)
Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip
CVBS 1.0Vp-p, 75ohm
-10 ~ +50℃℃℉℉(14 ~ 122 )
70mm(W) x 50mm(H) x 122mm(D)
550g
DC12V 10% / PoE (IEEE 802.3af compliant)±
DC12V, 6W / PoE, 7.5W
Design and specification are subject to change without notice.
Day/Night 1080P HD IP CAMERA
IPG1022ESX3
2.8 ~ 8mm (CS Mount)
F1.2
Lens
SPECIFICATIONS
H
V
D

66-IPG1022CSE-1
Video Compression
Resolution
Profile #1
Profile #2
Profile #3
Profile #4
CPU, Memory
Network Protocols
Mobile Phone and PDA
Support
PC Requirement
Security
Maintenance
Network Interface
System Integration
CMX
Video Display
OS
Two-way Audio
SD Card Recording
Alarm Input / Output
H.264, Motion JPEG
H.264 1280x720 @30fps, H.264 720x480 @30fps, JPEG 352x240 @25fps
H.264 1920x1080 @30fps, H.264 720x480 @30fps, JPEG 1280x720 @25fps
H.264 1920x1080 @30fps, H.264 720x480 @30fps, JPEG 720x480 @25fps
1080P(1920x1080) / 720P(1280x720) / D1(720x480) / CIF(352x240)
H.264 1920x1080 @30fps, H.264 720x480 @30fps, JPEG 720x480 @25fps, JPEG352x240 @25fps
Embedded SoC ARM11, 528MHz
256MB DDR2, 256MB flash memory
IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP,
DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ONVIF
iPad, iPhone and Android support
OS : Windows 2000, Windows XP, Windows Vista, Windows 7
Browser : Windows Internet Explore 6, 7, 8
CPU : Intel Pentium 4 1.8GHz or above
RAM : 1GB or above, Independent Display Card
Base64 HTTP encryption
Multiple user access levels with password protection
10 user accounts available
Firmware update via HTTP, Firmware available at web site
10Mbps / 100Mbps Base-T, RJ-45
ONVIF & LILIN HTTP API
Free CMX HD3.6 support
LILIN Universal ActiveX & LILIN Java Applet
Embedded Linux 2.6.32
G.711
Support SD/SDHC card for circular recording (card is not included)
Digital 1 input (TTL, +3~5V)/1Output (N.O.)
Design and specification are subject to change without notice.
NETWORK
Multiple profile
Video Streaming
Video Bitrate
RTP/HTTP, RTP/TCP, RTP/UDP
VBR/ CBR/ GOP supported
Frame rate and bit rate controllable on-the-fly
128Kbps ~ 5Mbps
Users
ePTZ & Digital Zoom
OSD
Alarm Functions
8 simultaneous users
Yes, ROI is supported
Text overlay for date, time, and camera name
Alarm / motion / tampering / face detection triggering recording into SD card
Image upload over FTP and E-mail by face/ tampering/ motion detection

Instruction Manual
66-IPG1022CSE
IPG1022ESX3
MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
Day & Night 1080P HD IP Camera
