Lilin IPR712S User manual

Instruction Manual
66-IPR712CSE
IPR712S / IPR712M / IPR722S 4.3/6
MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
D/N Megapixel HD Infrared IP Camera

IMPORTANT SAFEGUARDS
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
shock to persons.
accompanying the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS

CAUTION
Do not drop or strike this equipment.
Do not install the equipment near any naked flames or heat
sources.
Do not expose this unit to rain or excessive moisture, avoid
smoke and dust.
Do not cover cloth or to install this unit in poorly ventilated
places.
Do not continue to operate if there appears to be fault.
Do not touch the power connection with wet hands.
Do not damage the power cord or leave it under pressure.
Sensitive electronics inside are vulnerable to excessive shock.
Excessive heat could damage this unit.
Please the camera in an environmental housing for protection.
If the camera gets wet, unplug it and have it checked by
qualified service personnel.
This may lead to overheating.
If the unit ceases to function, contact qualified service
personnel for help.
Risk of short circuit or electric shock.
Risk of fire or shock circuit.

CONGRATULATIONS
Thank you for purchasing this D/N Megapixel HD Infrared IP
Camera. You now own one of the many fine network products
we manufactured. This product has been carefully inspected
under rigid quality control and should reach you in perfect
condition. With reasonable care, it will provide years of reliable
performance.
We recommend that you read this installation and operation
manual thoroughly before installing and operation your new
system.
Here you will find all the information you need to set up and use
the system. If any questions are not answered in the manual,
please contact your dealer.
Before proceeding, please read and observe all instructions and
warnings contained in this manual. Retain this manual with the
original bill of sale for future reference and, if necessary, warranty
service.
When unpacking your new camera, check for missing or damaged
items. If any item is missing, or if damage is evident,
I . Contact your dealer for
assistance.
DO NOT
NSTALL OR OPERATE THIS PRODUCT

IPR712S(720P)/ IPR712M(1.3MP)/ IPR722S(1080P) series is an
D/N Megapixel HD Infrared IP Camera, built-in H.264 AVC
(Advanced Video Coding) video compression. H.264 AVC video
compression engine supports high definition video quality, 720P
(1280x768)/ SXGA(1280x1024)/ 1080P(1920x1080) resolution,
bandwidth efficiency with PPPoE and DDNS.
Also it provides higher bit rate of internet and diverse alarm
functions such as movement video detection e-mail or FTP.
Moreover, IPR712S / IPR712M/ IPR722S can do remote
surveillance with iPad, iPhone or Android cell phone. The
software R&D engineer can use HTTP protocol(HTTPAPI) or
ONVIF protocol to develop related software, and integrate them
with existing application software system.
D/N Megapixel HD Infrared IP Camera is ideal solution for remote
video monitoring via internet.
Executive Summary

PART DESCRIPTION & DIMENSION
154
101
72.5
67
82
IPR712S
Unit: mm

154
101
72.5
67
82
IPR712M / IPR722S
Unit: mm

TOP COVER
BOTTOM CHASSIS
BRACKET
PAN ADJUSTMENT SCREW
TILT ADJUSTMENT SCREW
WINDOW
RJ-45 NETWORK CONNECTOR
DC POWER INPUT JACK (DC12V 10%)
SD CARD SLOT (IPR712S Support)
This network camera is compliant with SD/SDHC card.
RESET KEY
To restore the server to factory default setting.
NETWORK INDICATOR LEDS
Green (LINK): While cable of network is connecting the LED is light.
Orange (ACT): When data is communicating, the LED is flashed.
±
INSTALLATION
IPR712S
DC power input
Network cable
FIG. 1 FIG. 2
1. Take out the IP camera from the inner box first. Plug the network cable and
power cable to RJ-45 network connector and DC power input jack of the IP
camera(FIG.1). Then fix bracket to the wall(FIG.2).

FIG. 3

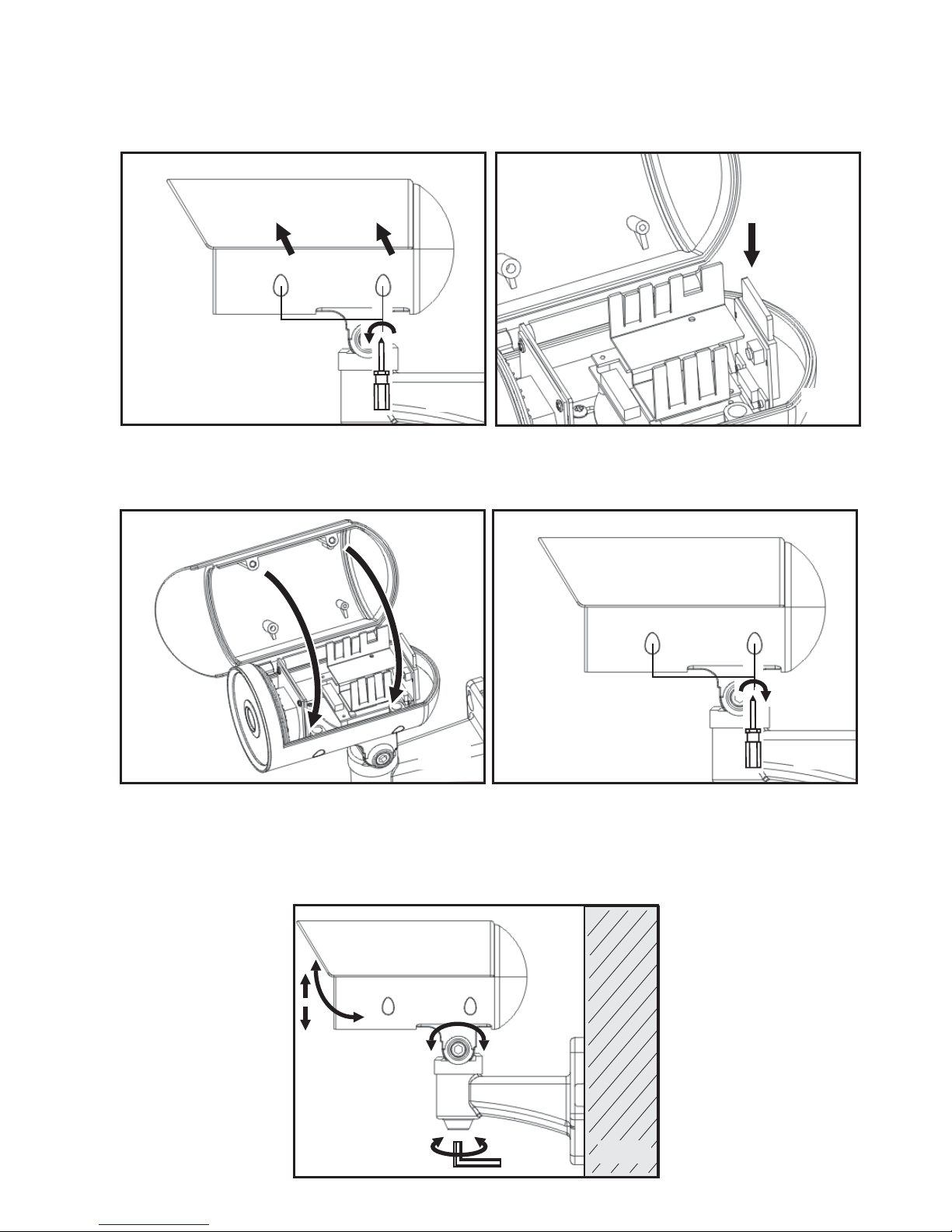

2. Installation SD card, please loosen the screws of top cover with screw driver
(FIG.3). Put the SD card to SD card slot(FIG.4).
FIG. 4
3. Replace the top cover and tighten the screws(FIG.5&FIG.6).
FIG. 6
FIG. 5
FIG. 7
4. Loosen the pan and tilt adjustment screw on the bracket to turn the camera
body to the desired angle and then tighten the screws(FIG.7).

IPR712M / IPR722S
1. Take out the IP camera from the inner box first. Loosen the pan adjustment screw
with hexagon screw driver. Then, separated the bracket from the camera body
(FIG.1). Put the power cable and network cable through the bracket and then
fix it to the wall(FIG.2&FIG.3).
FIG.1
FIG.3
FIG.2
FIG.4
2. Open the top cover with screw driver(FIG.4).

4. Assemble the cable with the accessory connector and terminal(FIG.7). Plug the
power cable to the terminal and plug the network cable to RJ-45 connector of
the IP camera(FIG.8).
FIG.6
FIG.5
3. Next, put the power cable and network cable through the bottom chassis and
rubble(FIG.5) and then fix the camera body on the bracket(FIG.6).
FIG.8
FIG.7
REDBLACK
10BASE-T or 100BASE-TX
RJ 45 Plug-
Pin
Signal
Pair
Color
White Orange
stripe
/
BI_DB+ BI_DB- BI_DA+ BI_DA-
12345678
22311344
Pins on plug face
1
2
3
4
5
6
7
8
Network cable
Power cable
2 Pin Terminal
Orange
solid White Green stripe
/Blue
solid White Blue stripe
/Green
Solid White Brown stripe
/Brown
Solid

FIG.9
5. Replace the top cover and tighten the screws(FIG.9&FIG.10).
FIG. 10
FIG. 11
6. Loosen the pan and tilt adjustment screw on the bracket to turn the camera
body to the desired angle and then tighten the screws(FIG.11).

Instruction Manual
IPR712S / IPR712M / IPR722S 4.3/6
D/N Megapixel HD Infrared IP Camera
1. D/N Megapixel HD Infrared
IP Camera
2. Instruction Manual
3. CD Software Pack
IPD552EX2.2/4.2 N/P
H.264 HD IP Cameras
INSTRUCTION MANUAL
PRODUCTION COMPONENTS
SYSTEM ARCHITECTURES
4. Power Adaptor
PC
LAN LAN / Internet
Non-PoE Switch
HD Infrared
IP Camera
DC12V Adaptor

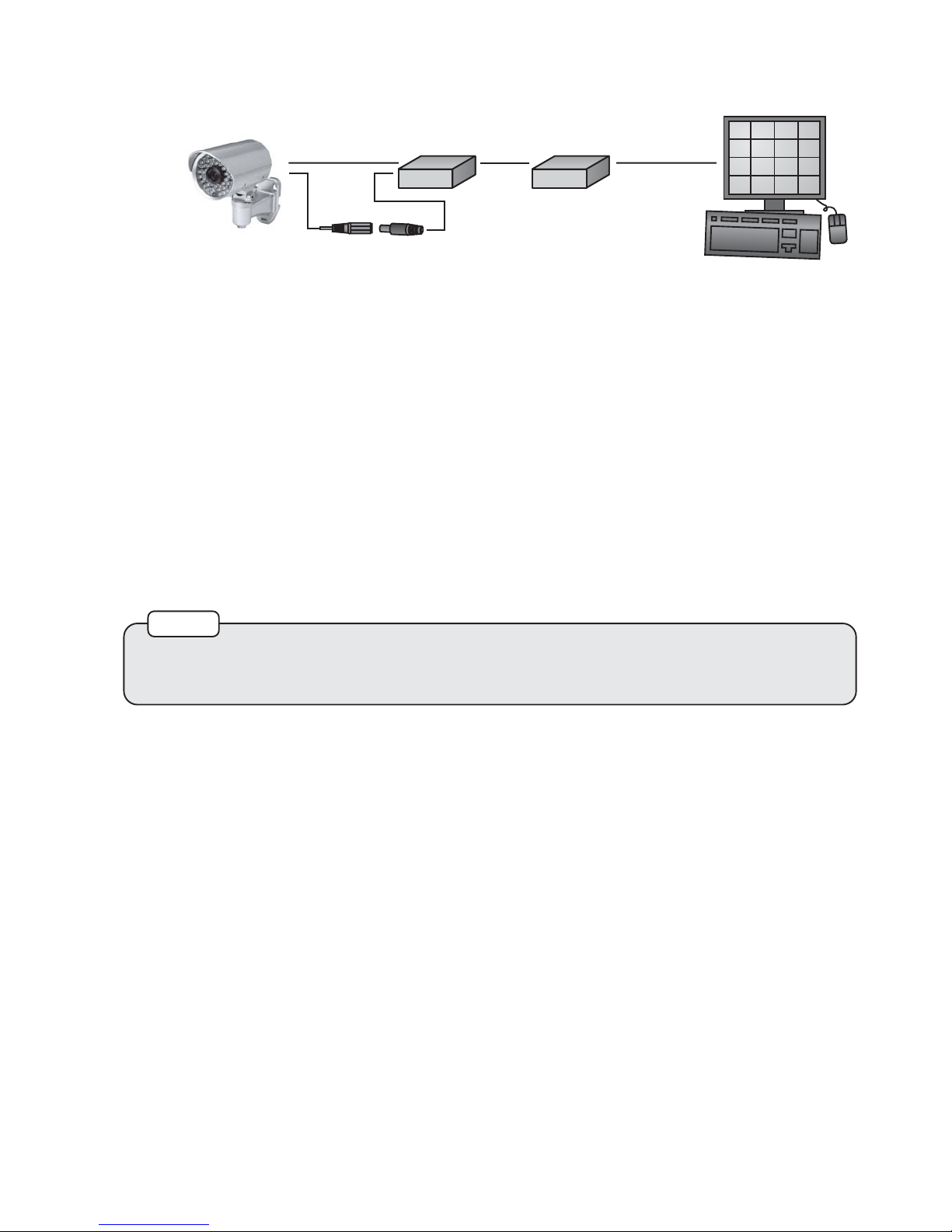

For connecting IPR712S/ IPR712M/ IPR722S to the network, please follow one of the
system architectures:
(1). Use DC12V power adapter and network switch connected to a network.

HD Infrared
IP Camera
PoE Splitter
(DC12V) PC
LAN LAN / Internet
PoE Switch
LAN
(2). Use with PoE-powered network switch and the PoE splitter connected to a network.
For the convenience of users, restore the factory default settings will revert to the
default IP address 192.168.0.200.
NOTE
EMERGENCY FACTORY DEFAULT
Use hardware to restore factory default settings, follow these steps:
1. Hold "RESET" key 10 seconds, then release.
2. After about 40 seconds, the network LED light is off, and then lit.
3. This camera has completed the factory default settings, and then reboot.
4. Use IPScan software search for this IP device.
5. Using a Internet browser open the IP device.
6. Enter the default username "admin" and password "pass" to operate.

SPECIFICATIONS
IPR712S
49.8 (H), 36.8°°(V), 63.6 (D)°
Pick Up Element
Effective Pixels
Chip Size
Scanning System
Infrared Cut Filter
Min. Illumination
White Balance
Back Light Compensation
Electrical Shutter
Sense Up
IP Rating
Window
Operating Temperature
Dimension
Weight
Power Input Voltage
Power Consumption
Model No.
Focal Length
Peak Wavelength
Iris
Beam Spread
AngleofView
Radiant Distance
IPR712S6
6mm
F1.8
1/4" Progressive scan CMOS sensor
1280(H) x 800(V) = 1,024,000(pixel)
3.88mm(H) x 2.43mm(V)
Progressive Scan
Auto / Schedule / Day(Color) / Night(Mono)
Color: 3Lux at F1.8 / Mono: 0.6Lux at F1.8 / 0 Lux with IR
Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2
Auto
1/30(25)s ~ 1/20,000s
Off/ 1Frame/ 2Frames/ 3Frames/ 7Frames
IP66
ψ 65 Heat Resistant Glass
850nm
30°
16M
-10 ~ +50℃℃℉℉(14 ~ 122 )
Body: 82mm(W) x 72.5mm(H) x 154mm(D) / Bracket: 101mm(L)
600g
DC12V 10%±
10W
Design and specification are subject to change without notice.
D/N 720P HD INFRARED IP CAMERA
IPR712S4.3
4.3mm
F1.8
Lens
Infrared
LED
35.8 (H), 26.5°°(V), 45.7 (D)°

Video Compression
Resolution
CPU, Memory
Network Protocols
Mobile Phone and PDA
Support
PC Requirement
Security
Maintenance
Network Interface
System Integration
CMX
Video Display
OS
SD Card recording
H.264/AVC, Motion JPEG
720P (1280x768) / VGA (640x384) / CIF (320x192)
Embedded SoC ARM9, 500MHz
64MB DDR, 8MB flash memory
IP, TCP, UDP, HTTP, SMTP, ESMTP, NTP, DDNS, FTP, ARP,
DHCP, PPPoE, DNS, RTSP, RTCP, Telnet
iPad, iPhone and Android support
OS : Windows 2000, Windows XP, Windows Vista, Windows 7
Browser : Windows Internet Explore 6, 7, 8
CPU : Intel Pentium 4 1.8GHz or above
RAM : 1GB or above, Independent Display Card
Base64 HTTP encryption
Multiple user access levels with password protection
10 user accounts available
Firmware update via HTTP, Firmware available at web site
10Mbps / 100Mbps Base-T, RJ-45
ONVIF
Free CMX HD3.2 support
LILIN Universal ActiveX
Embedded Linux 2.4.19
Support SD/SDHC card for circular recording(card is not included)
Design and specification are subject to change without notice.
NETWORK
Multiple profile Stream 4 profiles: H.264 at 720P, JPEG at 720P,
H.264 at VGA, JPEG at CIF
Frame Rate
Video Streaming
Video Bitrate
H.264: Up to 20fps at 720P, MJPEG: Up to 10fps at 720P
RTSP: RTP/HTTP, RTP/TCP, RTP/UDP
128Kbps ~ 5Mbps
Users
Digital Zoom
8 simultaneous users
Yes
Motion Detection
Events triggered by built-in motion detection
Motion triggering recording into SD card
Image upload over FTP, e-mail by motion detection
D/N 720P HD INFRARED IP CAMERA

IPR712M
71 (H), 49.5°°(V), 89 (D)°
Pick Up Element
Effective Pixels
Chip Size
Scanning System
Infrared Cut Filter
Min. Illumination
White Balance
Electrical Shutter
Sense Up
IP Rating
Window
Operating Temperature
Dimension
Weight
Power Input Voltage
Power Consumption
Model No.
Focal Length
Peak Wavelength
Iris
Beam Spread
AngleofView
Radiant Distance
IPR712M6
6mm
F1.8
1/3" MOS Image sensor
1280(H) x 1024(V) = 1,310,720(pixel)
4.8mm(H) x 3.84mm(V)
Progressive Scan
Auto / Schedule / Day(Color) / Night(Mono)
Color: 0.5Lux at F1.8 / Mono: 0.1Lux at F1.8 / 0 Lux with IR
Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2
1/30(25)s ~ 1/10,000s
Off/ 1Frame/ 2Frames/ 3Frames/ 7Frames
IP66
ψ 65 Heat Resistant Glass
850nm
30°
21M
-10 ~ +50℃℃℉℉(14 ~ 122 )
Body: 82mm(W) x 72.5mm(H) x 154mm(D) / Bracket: 101mm(L)
600g
DC12V 10%±
10W
Design and specification are subject to change without notice.
D/N MOS 1.3MP HD INFRARED IP CAMERA
IPR712M4.3
4.3mm
F1.8
Lens
Infrared
LED
49.3 (H), 35.9°°(V), 64.5 (D)°

Video Compression
Resolution
CPU, Memory
Network Protocols
Mobile Phone and PDA
Support
PC Requirement
Security
Maintenance
Network Interface
System Integration
CMX
Video Display
OS
H.264/AVC, Motion JPEG
SXGA (1280x1024) / VGA (640x480)
Embedded SoC dual ARM32C, 132MHz
128MB DDR2 memory, 32MB flash memory
IP, TCP, UDP, HTTP, SMTP, ESMTP, NTP, FTP, ARP,
DHCP, DNS, RTP, RTSP, RTCP, ONVIF
iPad, iPhone and Android support
OS : Windows 2000, Windows XP, Windows Vista, Windows 7
Browser : Windows Internet Explore 6, 7, 8
CPU : Intel Pentium 4 1.8GHz or above
RAM : 1GB or above, Independent Display Card
Base64 HTTP encryption
Multiple user access levels with password protection
10 user accounts available
Firmware update via HTTP, Firmware available at web site
10Mbps / 100Mbps Base-T, RJ-45
ONVIF
Free CMX HD3.2 support
LILIN Universal ActiveX
Embedded ulTRON 4.0
Design and specification are subject to change without notice.
NETWORK
Frame Rate H.264: Up to 30fps at 1280x1024
MJPEG: Up to 5fps at 640x480
Video Streaming
Video Bitrate
Simultaneous H.264 and Motion JPEG, RTSP
256Kbps~3Mbps, Frame rate and bitrate controllable on-the-fly
Users
Digital Zoom
8 simultaneous users
Yes
Motion Detection Events triggered by built-in motion detection
Image upload over FTP, e-mail by motion detection
D/N MOS 1.3MP HD INFRARED IP CAMERA

IPR722S
70 (H), 51°°(V), 89 (D)°
Pick Up Element
Effective Pixels
Chip Size
Scanning System
Infrared Cut Filter
Min. Illumination
White Balance
Electrical Shutter
Sense Up
SenseUpPlus
Auto Gain Control
3D Noise Reduction
2D WDR
Privacy Masking
Image Effects
IP Rating
Window
Operating Temperature
Dimension
Weight
Power Input Voltage
Power Consumption
Model No.
Focal Length
Peak Wavelength
Iris
Beam Spread
AngleofView
Radiant Distance
IPR722S6
6mm
F1.8
1/2.7" CMOS Image sensor
1920(H) x 1080(V) = 2,073,600(pixel)
5.856mm(H) x 3.276mm(V)
Progressive Scan
Auto / Schedule / Day(Color) / Night(Mono)
Color: 0.6Lux at F1.6
Mono: 0.15Lux at F1.6 / 0 Lux with IR
Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2
1/30(25)s ~ 1/8,000s
Off/ 1Frame/ 2Frames/ 3Frames/ 7Frames
Yes
36dB Variable Gain
Off/ Low/ Middle/ High
Off/ On
Off/ On (4 zones)
Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip
IP66
ψ 65 Heat Resistant Glass
850nm
30°
21M
-10 ~ +50℃℃℉℉(14 ~ 122 )
Body: 82mm(W) x 72.5mm(H) x 154mm(D) / Bracket: 101mm(L)
600g
DC12V 10%±
10W
Design and specification are subject to change without notice.
D/N 1080P HD INFRARED IP CAMERA
IPR722S4.3
4.3mm
F1.6
Lens
Infrared
LED
49.3 (H), 35.9°°(V), 64.5 (D)°
Color: 0.8Lux at F1.8
Mono: 0.2Lux at F1.8 / 0 Lux with IR

66-IPR712CSE-2
Video Compression
Resolution
Profile #1
Profile #2
Profile #3
Profile #4
CPU, Memory
Network Protocols
Mobile Phone and PDA
Support
PC Requirement
Security
Maintenance
Network Interface
System Integration
CMX
Video Display
OS
H.264, Motion JPEG
H.264 1280x720 @30fps, H.264 720x480 @30fps, JPEG 352x240 @25fps
H.264 1920x1080 @30fps, H.264 720x480 @30fps, JPEG 1280x720 @25fps
H.264 1920x1080 @30fps, H.264 720x480 @30fps, JPEG 720x480 @25fps
1080P(1920x1080) / 720P(1280x720) / D1(720x480) / CIF(352x240)
H.264 1920x1080 @30fps, H.264 720x480 @30fps, JPEG 720x480 @25fps, JPEG352x240 @25fps
Embedded SoC ARM11, 528MHz
256MB DDR2, 256MB flash memory
IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP,
DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ONVIF
iPad, iPhone and Android support
OS : Windows 2000, Windows XP, Windows Vista, Windows 7
Browser : Windows Internet Explore 6, 7, 8
CPU : Intel Pentium 4 1.8GHz or above
RAM : 1GB or above, Independent Display Card
Base64 HTTP encryption
Multiple user access levels with password protection
10 user accounts available
Firmware update via HTTP, Firmware available at web site
10Mbps / 100Mbps Base-T, RJ-45
ONVIF & LILIN HTTP API
Free CMX HD3.6 support
LILIN Universal ActiveX & LILIN Java Applet
Embedded Linux 2.6.32
Design and specification are subject to change without notice.
NETWORK
Multiple profile
Video Streaming
Video Bitrate
RTP/HTTP, RTP/TCP, RTP/UDP
VBR/ CBR/ GOP supported
Frame rate and bit rate controllable on-the-fly
128Kbps ~ 5Mbps
Users
ePTZ & Digital Zoom
OSD
Alarm Functions
8 simultaneous users
Yes, ROI is supported
Text overlay for date, time, and camera name
Image upload over FTP and E-mail by face/ tampering/ motion detection
D/N 1080P HD INFRARED IP CAMERA
