Lilin IRS1308 User manual

LILIN IR IP Camera User Manual Page1
Table of Contents
Summary ................................................................................................................................................ 4
Key Features ........................................................................................................................................... 4
Trademark Acknowledgments ............................................................................................................... 4
Other References ................................................................................................................................... 5
Mob le dev ces ............................................................................................................................... 5
LILIN Un versal Act veX Control ...................................................................................................... 5
LILIN HTTP API ................................................................................................................................ 5
Caut on ................................................................................................................................................... 5
Chapter 1 System Overv ew ................................................................................................................... 6
Chapter 1-1 System Requ rements ................................................................................................ 6
Chapter 1-2 Software Requ rements ............................................................................................. 6
Chapter 2 Before Access ng IP Cameras ................................................................................................ 7
Chapter 2-1 Conf gure IP Addresses us ng the IPScan Ut l ty ........................................................ 7
Chapter 2-2 Conf gure IP Addresses through HTML Connect on................................................... 7
Chapter 2-3 Web Browser Sett ngs & Software Components Requ red ........................................ 7
Chapter 2-4 Log n ........................................................................................................................... 8
Chapter 3 LILIN IP Camera Operat ons................................................................................................... 9
Chapter 3-1 HTML Operat ons ....................................................................................................... 9
Chapter 3-2 PTZ Funct ons ............................................................................................................. 9
Chapter 3-2 IP Camera Ma n Controls ......................................................................................... 10
Chapter 3-2-1 Two-way Aud o (only ava lable for aud o-ready cameras) .................................... 11
Chapter 3-2-2 Record to a Local PC .............................................................................................. 11
Chapter 4 Bas c Sett ngs ....................................................................................................................... 12
Chapter 4-1 System ...................................................................................................................... 12
Chapter 4-1-1 General .................................................................................................................. 12
Chapter 4-1-2 User ....................................................................................................................... 13
Chapter 4-1-3 T me ...................................................................................................................... 14
Chapter 4-2 V deo / Aud o ........................................................................................................... 14
Chapter 4-2-1 General .................................................................................................................. 14
Chapter 4-2-2 Qual ty Tuner ........................................................................................................ 16

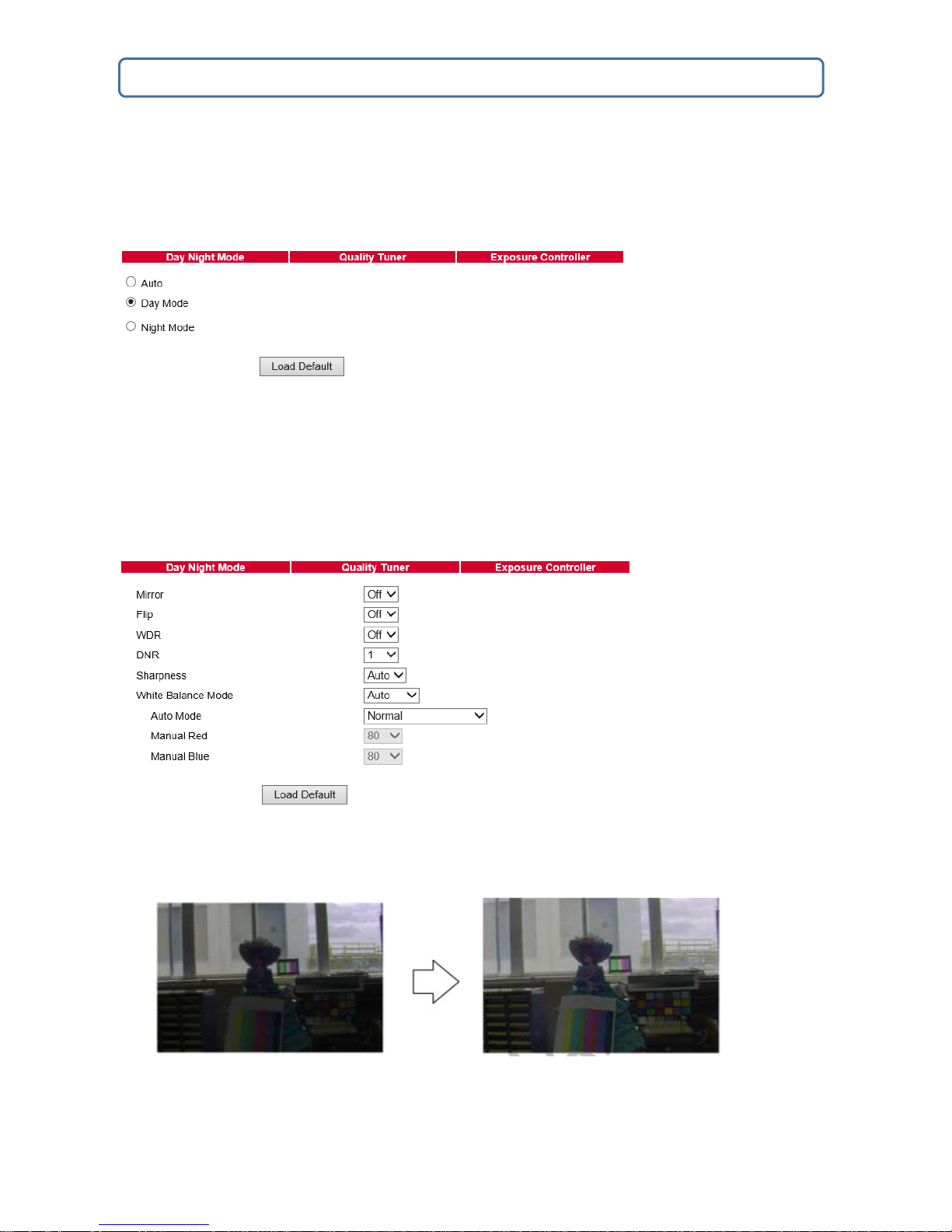

Day N ght Mode ........................................................................................................................... 16

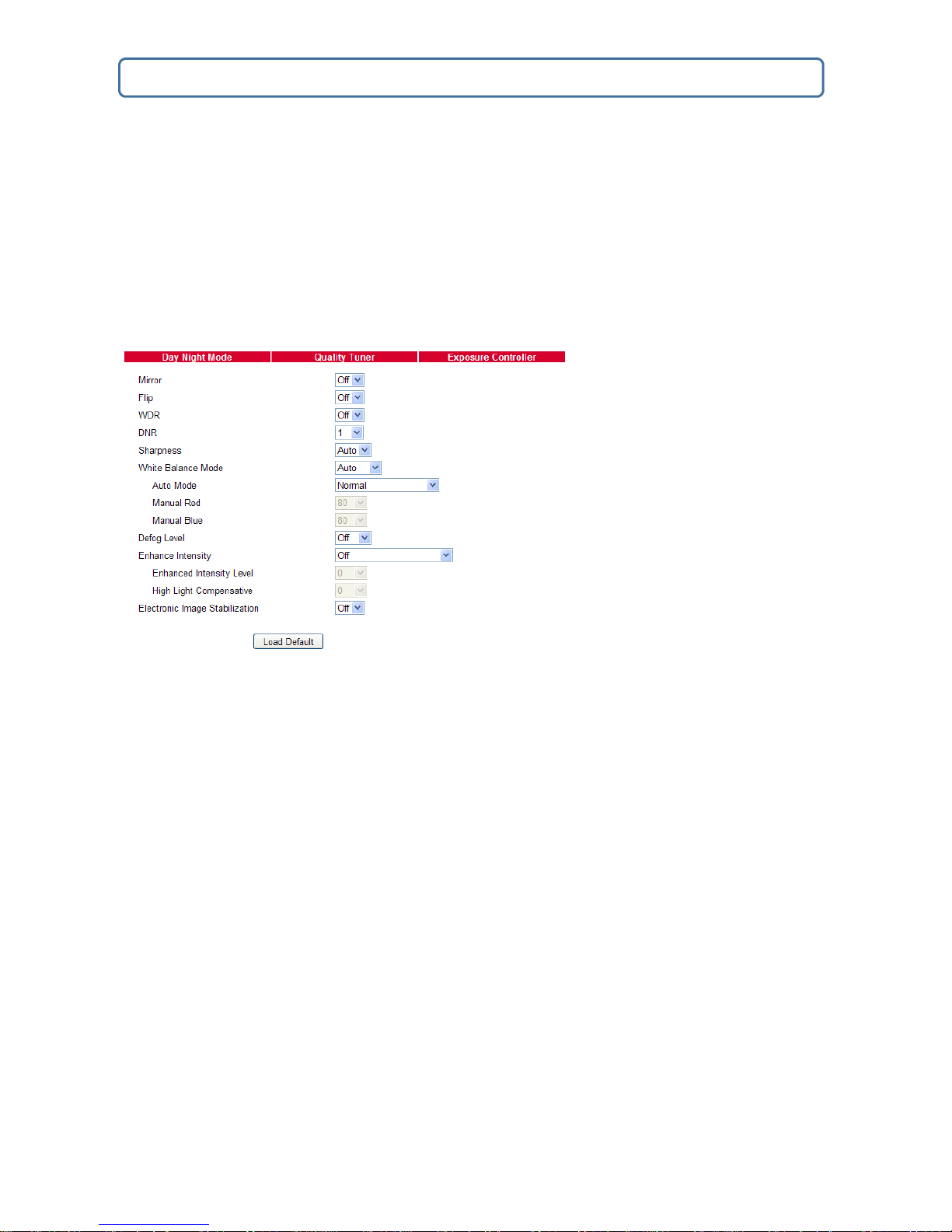

Qual ty Tuner ................................................................................................................................ 16
Exposure Controller ..................................................................................................................... 18
Chapter 4-3 Network.................................................................................................................... 19
Chapter 4-3-1 General .................................................................................................................. 19
Chapter 4-3-2 HTTP/RTSP Serv ce ................................................................................................ 19
Chapter 4-3-3 DDNS ..................................................................................................................... 20

LILIN IR IP Camera User Manual Page2
Chapter 4-3-4 SNMP .................................................................................................................... 21
Chapter 4-4 Ma ntenance ............................................................................................................ 22
Chapter 4-5 PTZ ............................................................................................................................ 23
Chapter 4-5-1 General .................................................................................................................. 23
Chapter 4-5-2 Advance ................................................................................................................ 24
Lens Advance ............................................................................................................................... 24
Pan-T lt Setup ............................................................................................................................... 24
Auto Scan Setup ........................................................................................................................... 25
Tour Setup .................................................................................................................................... 25
Patrol Mode ................................................................................................................................. 25
Chapter 4-5-3 Schedule ................................................................................................................ 26
Chapter 5 Advanced Mode .................................................................................................................. 27
Chapter 5-1 System ...................................................................................................................... 27
Chapter 5-1-1 System Log ............................................................................................................ 27
Chapter 5-2 V deo/Aud o Sett ngs ............................................................................................... 27
Chapter 5-2-1 SPD Pr vacy Mask Solut on.................................................................................... 27
Chapter5-2-2 Aud o Adjust .......................................................................................................... 28
Chapter 5-3 Network.................................................................................................................... 28
Chapter 5-3-1 Mult cast ............................................................................................................... 28
Chapter 5-3-2 IP Address F lter ng ............................................................................................... 29
Chapter 5-3-3 UPnP Sett ngs ........................................................................................................ 29
Chapter 5-3-4 Bonjour ................................................................................................................. 30
Chapter 5-3-5 SDDP/Heartbeat .................................................................................................... 30
Chapter 5-4 Event......................................................................................................................... 30
Chapter 5-4-1 Mot on Detect on.................................................................................................. 32
Chapter 5-4-2 Aud o Detect on (aud o models only) ................................................................... 33
Chapter 5-4-3 Alarm Detect on .................................................................................................... 33
Chapter 5-4-4 Network Detect on................................................................................................ 34
Chapter 5-5 Not f cat on .............................................................................................................. 34
Chapter 5-5-1 FTP Serv ce ............................................................................................................ 34
Chapter 5-5-2 SMTP (Ema l) Serv ce ............................................................................................ 34
Chapter 5-5-3 HTTP POST Serv ce ................................................................................................ 35
Chapter 5-5-4 SD Card Serv ce ..................................................................................................... 35
Chapter 5-5-5 SD Card Backup ..................................................................................................... 36
Append x .............................................................................................................................................. 37
DDNS and PPPoE Network Sett ngs ............................................................................................. 37
Advanced Port Forward ng Technology ....................................................................................... 37
Restore to Factory Default ........................................................................................................... 38

LILIN IR IP Camera User Manual Page3
SD Card Compat b l ty .................................................................................................................. 38
For Phone Users .......................................................................................................................... 38
For Andro d Users ........................................................................................................................ 39

LILIN IR IP Camera User Manual Page4
Summary
LILIN’s IRS1204/8 & 1304/8 series feature day/night 2MP H PTZ dome IR IP cameras. These cameras adopt
the latest compression technologies, which allow four simultaneous 1080p streams (Quadruple Streaming) in
H.264 or MJPEG formats in different resolutions. LILIN’s multiple compression technology allows transmission
of high-quality videos in various resolutions such as 2MP, 1, and CIF to suit both high and low bandwidth
network environments.
Our dome IR IP cameras are equipped with an intelligent video analytics engine that features sound detection
and motion detection, which can send advanced alarm information that is compatible with other software and
hardware. Moreover, the cameras provide two-way audio, S card recording, mobile device live access, email
notification with JPEG snapshots, and JPEG-to-FTP upload. Other features include progressive-scan, H.264
high-quality compressed video, and ONVIF compliancy.
LILIN’s IRS1204/8 & 1304/8 series also supports LILIN Navigator, a video management application that
maximizes the capabilities of the cameras and provides you with a comprehensive video management solution.
Key Features
 Supports various encoding formats (H.264 and MJPEG)
 Multiple Streaming technology, supporting up to four concurrent streams
 Built-in intelligent video analytics engine that can send Email or FTP snapshot alarms
 ay/night video quality scheduling
 Audio and motion detection
 Two-way audio (select models only)
 Bit rate and frame rate on-the-fly adjustment
 Supports Android, iPad, and iPhone mobile live monitoring
 Supports dynamic NS ( NS) and network time protocol (NTP)
 Supports HTTPAPI integration
 Supports G.711 (select models only)
 Supports ONVIF protocol
 Supports LILIN Navigator
Trademark Acknowledgments
Microsoft, Windows 2000, Windows XP, Windows Vista, Windows 7, ActiveX, and Internet Explorer are
registered trademarks of Microsoft Corporation in the U.S. and/or other countries. Java and all Java-based
trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States
and other countries. Flash, Macromedia, and Macromedia Flash Player are either trademarks or registered
trademarks of Adobe Systems Incorporated in the United States and/or other countries. Linux and yn NS
are registered trademarks of the respective holders. Intel, Pentium, and Intel® Core™ 2 uo are registered
trademarks of Intel Corporation. FFmpeg is a trademark of Fabrice Bellard, originator of the FFmpeg project.
QuickTime and the QuickTime logo are trademarks or registered trademarks of Apple Computer, Inc., used

LILIN IR IP Camera User Manual Page5
under license there from. Other names of companies and their products mentioned in this manual may be
trademarks or registered trademarks of their respective owners.
Other References
Mobile devices
For mobile surveillance, refer to the detail page of LILINViewer on Apple App Store or Google Play.
I IN Universal ActiveX Control
Sample codes and documents are included in the product C and can be downloaded from our company
website.
I IN HTTP API
For non-ONVIF integration, see the LILIN HTTP API document. HTTP API is used in all LILIN IP cameras.
Caution
 o not drop or damage the equipment
 o not install the equipment near fire or heat sources
 Keep the equipment from rain, moisture, smoke, or dust
 o not cover the opening of the cabinet with cloth and/or plastic or install the unit in poorly ventilated
places. Allow 10cm between this unit and its surroundings
 o not continue to operate the unit under abnormal conditions such as smoke, odor, or loss of signal
whilst power is turned on
 o not touch the power cord with wet hands
 o not damage the power cord or leave it under pressure
 To avoid unnecessary magnetic interference, do not operate this unit near magnets, speaker systems,
etc.
 All connection cables should be grounded properly

LILIN IR IP Camera User Manual Page6
Chapter 1 System Overview
Chapter 1-1 System Requirements
LILIN’s IP cameras adopt compression technology that provide high compression rate and superior video
quality. However, video performance depends highly on CPU power and network bandwidth for video
streaming. The following sections specify the system requirements for using LILIN IP cameras.
Chapter 1-2 Software Requirements
Merit LILIN Universal ActiveX software components or QuickTime are required for a web browser to display
MJPEG or H.264 video. When you first log in to our IP camera, you may see a prompt box as below:
Click Install and follow the onscreen instructions to install necessary components.
Also, if necessary, download Flash Player in order to control the PTZ at
http://www.adobe.com/products/flashplayer

LILIN IR IP Camera User Manual Page7
Chapter 2 Before Accessing IP Cameras
Before accessing the IP cameras, make sure that the camera’s RJ-45 network connector, audio cable, and
power cable are properly connected. To set the IP address, consult your network administrator. The default IP
address for each IP camera is 192.168.0.200. Users can use the default IP address to verify the camera’s
network connection.
Chapter 2-1 Configure IP Addresses using the IPScan Utility
To configure the IP address of your cameras, download IPScan from our official website:
http://www.meritlilin.com/webe/html/download. Or, you can execute the IPScan installer from the installation C
directly. To change the IP address, subnet mask, gateway, or HTTP port of your cameras, follow the steps
below:
 Run the IPScan utility
 Click Refresh. All available devices will be listed on the screen
 Select the device item from the device list
 To edit or modify IP address, subnet mask, gateway, or HTTP port, use the box
 Click Apply for the changes to take effect
 Click Refresh again to verify the changed settings
Chapter 2-2 Configure IP Addresses through HTM Connection
To change an IP address on a webpage, type the default IP address (192.168.0.200) into the browser address
bar and follow the steps below:
 Log in to your LILIN IP camera using the default username admin and default password pass
 Click Setup→
→→

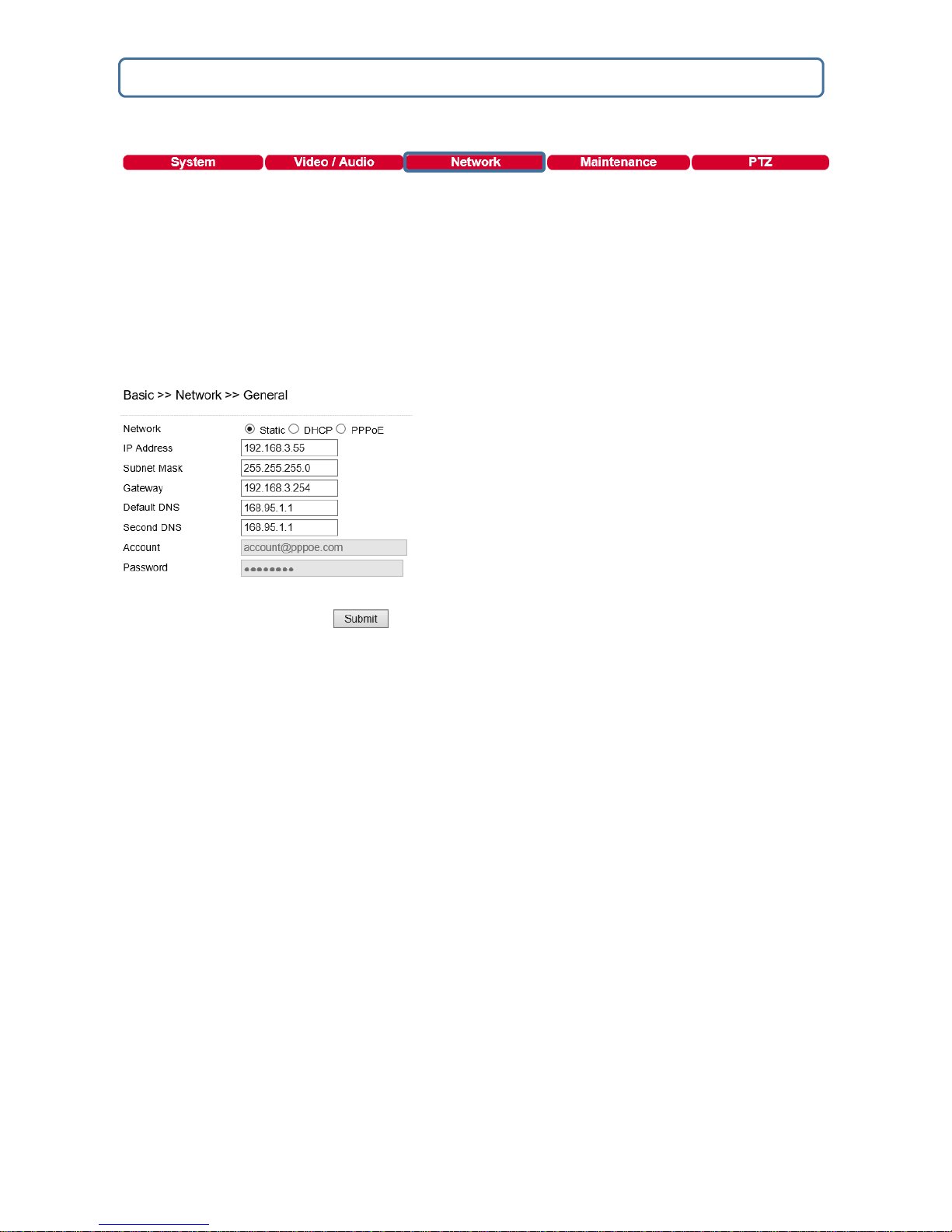

→Network to edit or modify IP address, subnet mask, gateway, or HTTP port
 Click Submit for the changes to take effect.
Chapter 2-3 Web Browser Settings & Software Components Required

LILIN IR IP Camera User Manual Page8

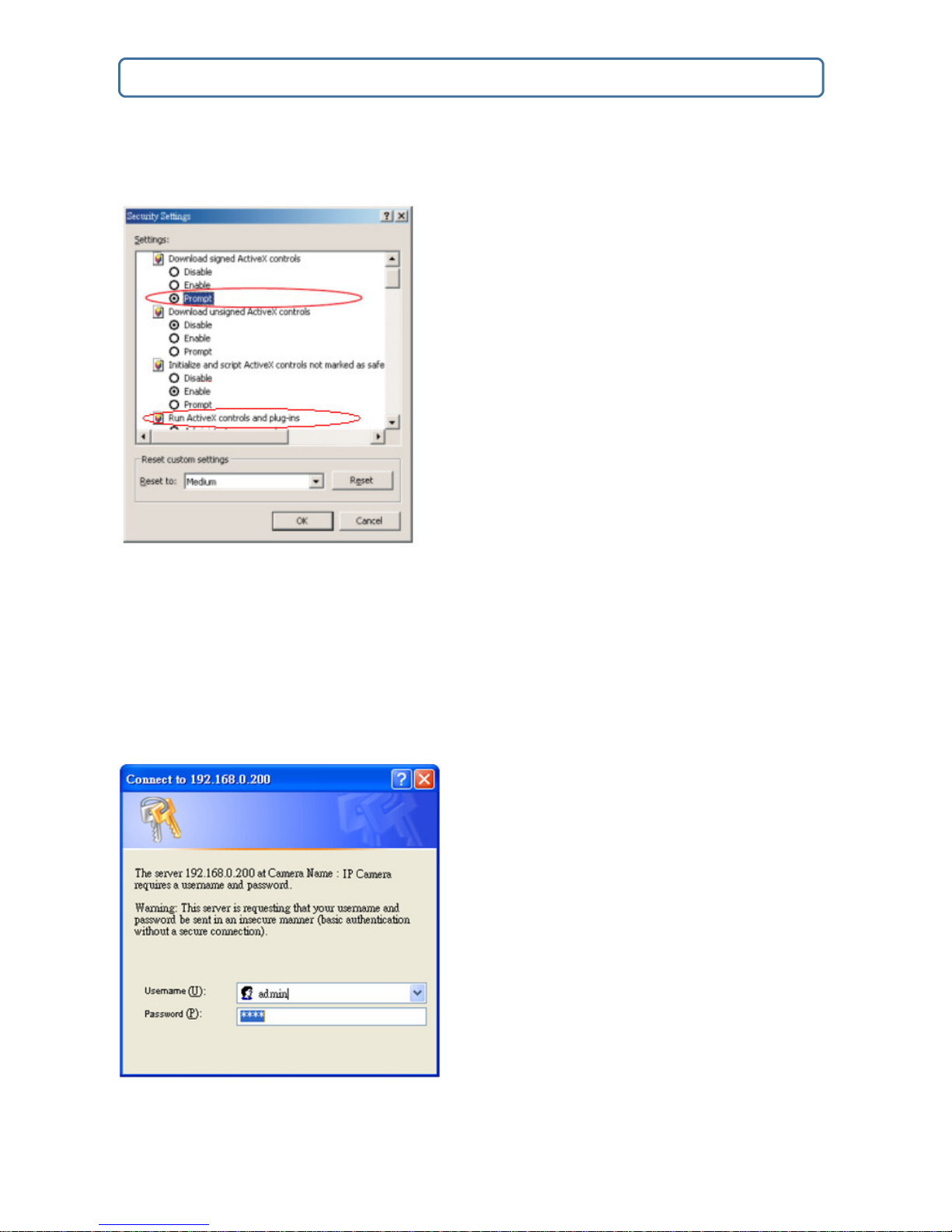

Make sure your Internet browser allows signed ActiveX plug-in to run on your PC. Set ownload Signed
ActiveX plug-in controls to Prompt and enable Run ActiveX control and plug-in. You can set this in Internet
Explorer→
→→
→Tools→
→→
→Internet Options→
→→
→Security→
→→
→Custom Settings.
Once completed, you can access the IP camera’s live video by entering the default IP address into your web
browser. A security warning dialog box will appear. Click OK to download the ActiveX directly from the IP
camera.
Chapter 2-4 ogin
You can log in to the camera as administrator or guest. The default username for administrator is admin, and
the password pass. Then press submit to log in.

LILIN IR IP Camera User Manual Page9
Chapter 3 I IN IP Camera Operations
When logged in as an administrator, two main features are available: 1) camera operations and 2)
configurations.

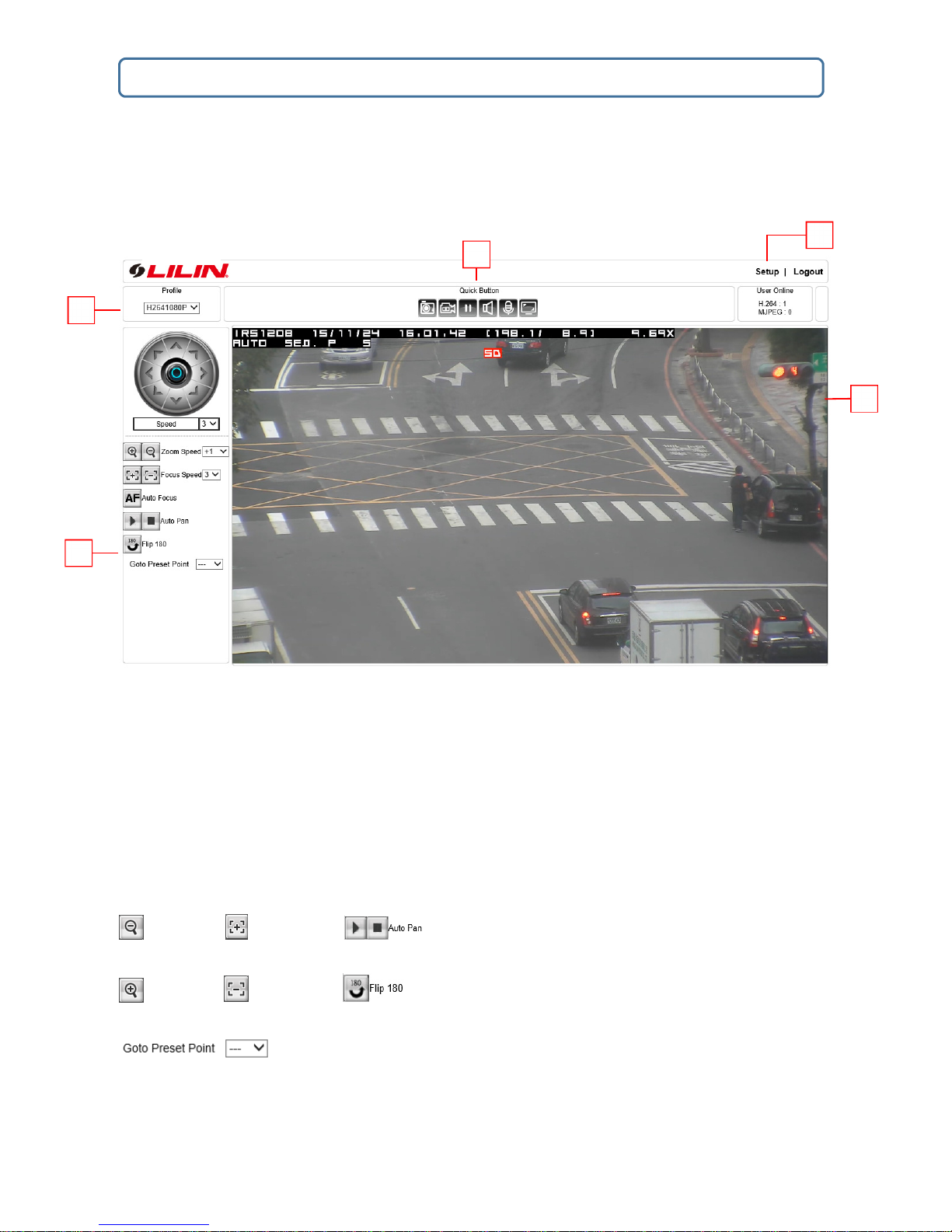

Chapter 3-1 HTM Operations
1. Quick buttons—IP camera shortcuts
2. ActiveX display screen— isplay RTSP H.264 or MJPEG streaming video
3. Profile switching menu—Switching from one profile to another
4. Setup buttons—IP camera setup menu
5. PTZ control panel
Chapter 3-2 PTZ Functions
Zoom out Focus far Enable/disable auto pan
Zoom in Focus near Quickly flip the screen horizontally
Switch to any preset point
3
5
2
4
1

LILIN IR IP Camera User Manual Page10
Move your cursor to the PIP window and drag inside it to perform ePan and eTilt actions. The scroll wheel can
be used to zoom in and zoom out.
Right-click to exit the ePTZ mode.
Chapter 3-2 IP Camera Main Controls
The quick control panel buttons are described below:
Take a snapshot of the video
Start recording
Pause recording

LILIN IR IP Camera User Manual Page11

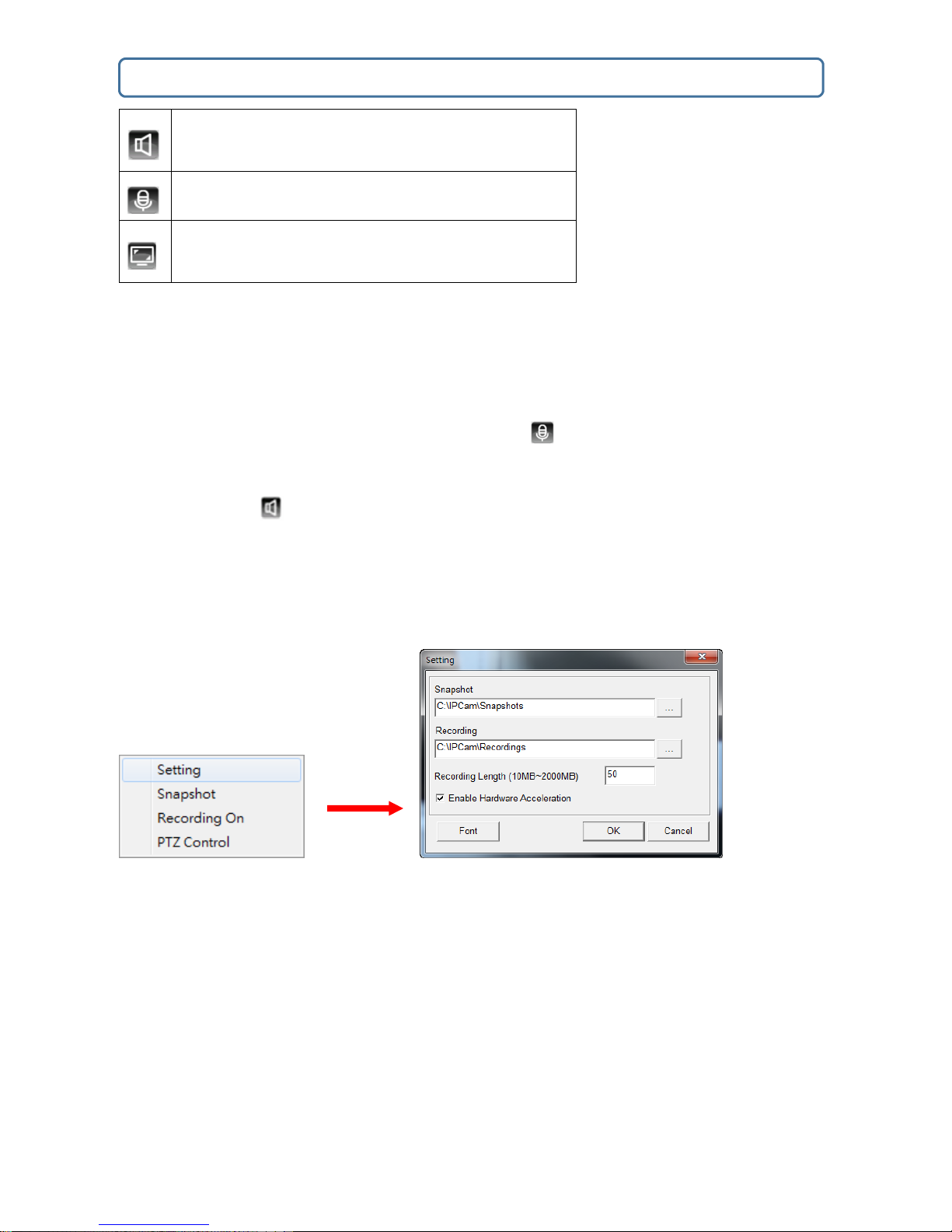

Chapter 3-2-1 Two-way Audio (only available for audio-ready cameras)
For models supporting two-way audio, click the microphone icon to speak to a remote site. Click the icon
again to turn the microphone off.
Click the speaker icon to monitor the audio of a remote site. Click the icon again to turn the speaker off.
Chapter 3-2-2 Record to a ocal PC
To record to a local PC, right-click anywhere on the screen. Choose Setting to specify the recording paths and
recording sizes, and choose Recording On to start recording.
Speaker on/off (for audio models only)
Microphone on/off (for audio model only)
Enlarge the live view

LILIN IR IP Camera User Manual Page12
Chapter 4 Basic Settings
As an administrator, you can configure the IP camera via a standard HTML webpage. Click Setup at the top-
right corner of the screen after you log in to the camera.
Chapter 4-1 System
Chapter 4-1-1 General
Under System Settings→
→→
→General, you will see server system information, such as MAC address, firmware
version, user settings, and system time settings. To modify these options, follow the below instructions.
 MAC Address: The MAC address of your camera.
 Firmware, Pan-Tilt Firmware, and CC Firmware Version: Here you can see the version of your camera
firmware, pan-tilt firmware, and CC firmware. To update the firmware, see Chapter 4-10
Maintenance.

LILIN IR IP Camera User Manual Page13
 OS Version: The version number of your operating system.
 System Reboot Time: The last time your system was rebooted.
 evice Name: The device name can be found using the IPscan utility, which allows you to identify IP
cameras. To change the device name, enter a new name for the IP camera and click Submit.
 Language: Change the language of the camera interface.
 isplay evice Name: Enable/disable to show/hide the name determined in Device Name
 isplay Time Status: Enable/disable to show/hide camera time on the OS .
 isplay PTZ OS : Enable/disable to show/hide the PTZ position on the OS .
 isplay AutoPan OS : Enable/disable to show/hide the AutoPan string on the OS .
 ActiveX OS isplay: Enable/disable to display/hide the device name.
 ActiveX OS Name: The name you enter here will be displayed on the top-right corner of the ActiveX
screen.
 Web Title Name: Enter the name to be displayed on the web browser.
 Low Latency Mode: Enable to reduce latency, if any.
Chapter 4-1-2 User
Our camera supports up to 10 user accounts. Each account can be individually configured for access rights. To
add/edit a user, click Add/Edit User. To access an IP camera without authentication, switch the Bypass
ogon option to On. Enable IPScan Bypass ogon to log in the camera through IPScan without
authentication. To add a user, press Add User, and you will see the following screen:
Enter the account name and password for the new account, and then check to assign the access rights for this

LILIN IR IP Camera User Manual Page14
account.
To edit account information, click Edit User. To delete a user, click Remove User. Click Submit to update the
settings.
Chapter 4-1-3 Time
You can change the time of your camera through a HTML web page. Simply select the date and time in the
drop-down menus, and click Submit to apply. You may also set the daylight saving time in this page.
Synchronize with an NTP server
To synchronize with an NTP server, change the Synchronize with NTP to Every Hour. The camera will
synchronize its system time with a time server every hour.
Chapter 4-2 Video / Audio

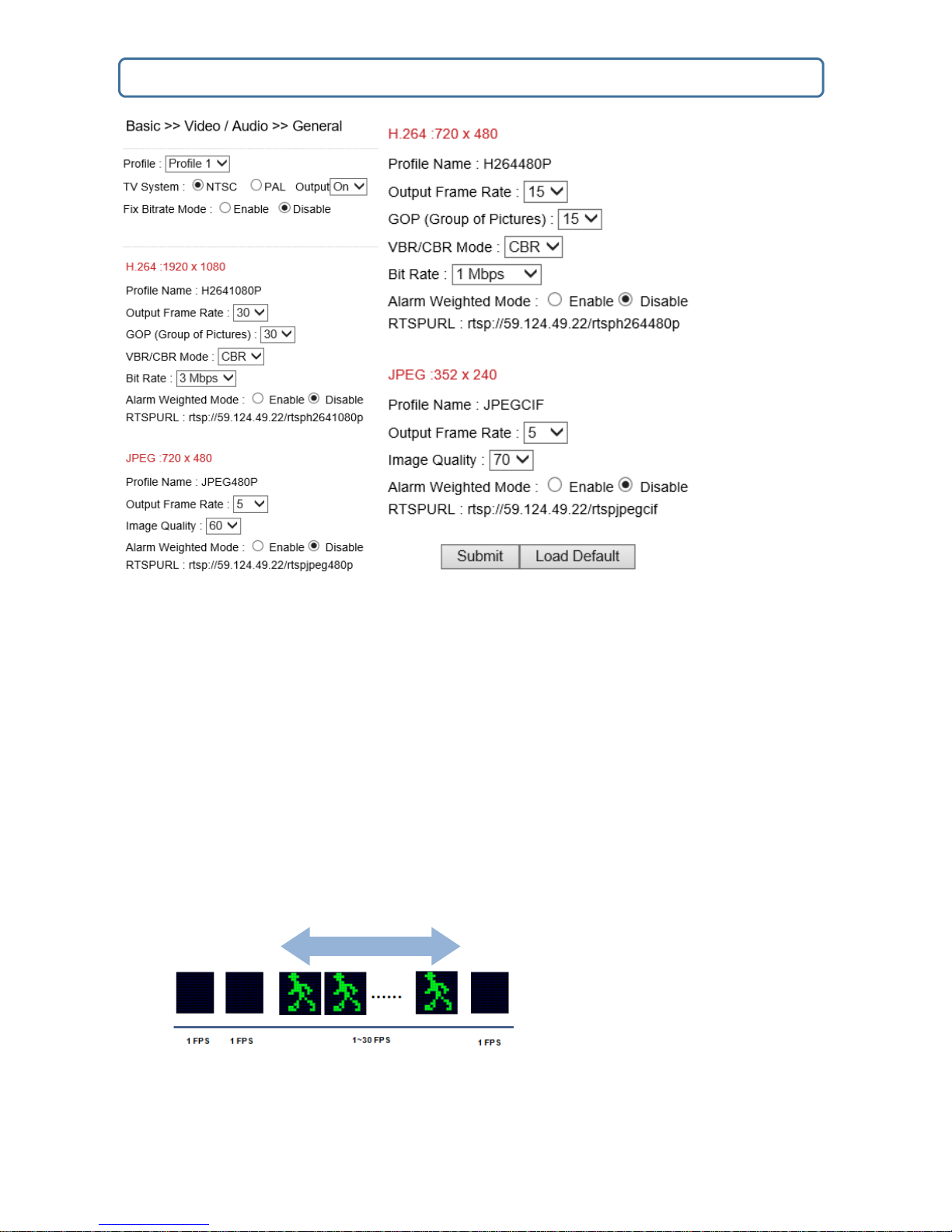

Chapter 4-2-1 General
To transmit video over a low bandwidth network such as the Internet, set the bit rate close to the actual upload
bandwidth. The camera will encode frames based on the bit rate setting.
Note: This function requires Internet connection.

LILIN IR IP Camera User Manual Page15
Alarm Interval
 Profiles: 6 customizable profiles
 TV Out: NTSC/PAL video systems
 Entropy Coding Mode: Choose between standard- (Main Profile) and good-quality (High Profile)
encoders
 Fixed Bitrate Mode: Enable to set the bitrate to a fixed constant
 Output frame rate: The frame rate of the video
 GOP: The number of I-frames to be displayed in one second
 VBR: Variable bit rate, an encoding mode that reduces the use of bandwidth; CBR: constant bit rate, an
encoding mode that consumes more bandwidth
 Bit rate: The maximum bit rate available for your network connection.
 Alarm Weighted Mode: Weighted mode is activated when an alarm is triggered, and the stream rate will
increase to the maximum rate (this may differ depending on the model you use). If there is no alarm
activity, the stream remains at 1 FPS to save bandwidth and storage.
 RTSP URL: Allows you to see the video stream through the Real Time Streaming Protocol.
 Image Quality: Adjust the compression rate of the MJPEG.

LILIN IR IP Camera User Manual Page16
Chapter 4-2-2 Quality Tuner
This menu allows you to adjust brightness, auto contrast, contrast, hue, saturation, and sharpness both for the
ay Mode and Night Mode. Individual day/night settings ensure the camera to provide optimal video quality.
Day Night Mode
 Auto: Automatically switches between Day Mode or Night Mode based on sensor signals.
 ay Mode: Set to colored video mode.
 Night Mode: Set to black-and-white video mode.
Quality Tuner
IRS1204/1208
 Mirror: Turn On to invert the screen horizontally.
 Flip: Turn On to invert the screen vertically.
 W R: The Wide ynamic Range function enhances back-lighted subjects to capture more details.
 NR: The igital Noise Reduction function can reduce the noise occurred when shooting under low-
W R turned on

LILIN IR IP Camera User Manual Page17
light environments or using slow shutter. The settings are Off or 1–3, with a default of 1.
 Sharpness: Intensifies the contour of subjects. The settings are Auto or 1–16, with a default of Auto.
 White Balance Mode: Choose Auto to switch between three white balance options (Normal, Sodium
Vapour ight, and Mercury Vapour ight). Choose Manual to adjust the gain of red and blue
elements.
 Manual Red: Adjust the intensity of red (1–160).
 Manual Blue: Adjust the intensity of blue (1–160).
IRS1304/8
 efog Level: The settings are Off, 1–3, or Auto. Auto allows the camera to automatically determine the
thickness of fog. Larger number means better fog removal. The default settings are Off.
 Enhance Intensity (EI)：The settings are Off, On, and High ight Compensative.
 After EI is enabled, the drop-down menu of EI will become available. This function improves the
quality in low-light conditions. It refrains from activating the black-and-white mode and attempts to
produce colored videos in low-light conditions. High ight Compensative can reduce glare occurred
under bright light.
 Enhanced Intensity Level (EIL): Only one of EI /Defog/WDR can be activated at one time. The priority
is EIL > efog > W R. The settings are 0, 32, 64, 96, 128, 160, 192, 224, and 256, with a default of 0.
 High Light Compensation: The settings are 0, 32, 64, 96, 128, 160, 192, 224, and 256, with a default of
0.
 Electronic Image Stabilization (EIS)：EIS is limited to the actual sources and forms of vibration. When
EIS is activated, the camera will automatically disable SS. Once EIS is disabled, the camera will turn
SS back on. Also, when EIS is on, all settings related to shutter priority will be paused, and these
settings will be resumed the moment when EIS is turned off. Motion detection and W R are also
disabled when EIS is enabled, but these two functions have to be manually turned on after EIS is
disabled.

LILIN IR IP Camera User Manual Page18
Exposure Controller
 Auto Gain Control (SENSE UP+): The settings are Off, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB,
24dB, 27dB, 30dB, 33dB, 36dB, 39dB, 42dB, and 45dB, with a default of 30dB.
 Exposure Controller: The settings are Full Auto, Shutter Priority, Iris Priority, and Manual.
 Full Auto: Automatically control the exposure by metering the brightness of subjects. The settings are
Auto Slow Shutter (ASS) and Back-light Compensation.
 Auto Slow Shutter: Enable to automatically adjust the speed of slow shutter under low-light conditions.
The settings are Off, x2, x4, x8, x16, and x32, with a default of 8.
 Back-light Compensation: When the subject is too dark to be visible, this function will adjust the
exposure value, enhance the brightness of the scene, and make the subject clearer. Only one of Back-
light Compensation or WDR can be activated at one time.
 Sutter Priority: After you select the shutter speed, the iris value will be determined automatically by the
camera.
 Sutter Speed:1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/180, 1/250, 1/500, 1/k, 1/2k, 1/4k,
1/10k, and 1/30k, with a default of 1/30.
 Iris Priority: After you select the aperture value, the shutter speed will be determined automatically by
the camera.
 Iris Position: F1.6, F2.3, F3.2, F4.5, F6.4, F9.0, F12.8, F18.1, F25.6, and F36.2, with a default of F1.6.
 Manual Mode: Manually adjust the shutter speed, aperture value, and gain level.
 Fix Shutter Speed: Select and fix the shutter speed manually to 1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60,
1/100, 1/120, 1/180, 1/250, 1/500, 1/k, 1/2k, 1/4k, 1/10k, and 1/30k, with a default of 1/30.
 Fix Iris Position: Select and fix the aperture manually to F1.6, F2.3, F3.2, F4.5, F6.4, F9.0, F12.8,
F18.1, F25.6, and F36.2, with a default of F1.6.
 Fix Gain Position: Select and fix the gain level manually to 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB,
24dB, 27dB, 30dB, 33dB, 36dB, 39dB, 42dB, and 45dB, with a default of 30dB.

LILIN IR IP Camera User Manual Page19
Chapter 4-3 Network
Chapter 4-3-1 General
Network settings are the basic settings that connect LILIN IP cameras to the network. The default IP address of
our IP cameras is 192.168.0.200. Enter this IP address into your web browser to verify the network connection
between a local PC and your IP camera.
To set up a local area network, enter the IP address, subnet mask, gateway, and NS. Also enter account
name and password if you are using PPPoE to connect to the network. Click Submit to update the settings.
To acquire Internet access, contact your local Internet Service Provider (ISP) for a global IP address. Enter the
IP address (global), subnet mask, and gateway IP provided by your ISP.
 Default DNS—The IP address of the default and first NS server
 Second DNS IP Address—The IP address of the backup and second NS server to the default NS
 PPPoE Account—Username of the PPPoE service
 PPPoE Password—Password of the PPPoE service
A router, gateway, or other HCP software server can remotely assign an IP address to your IP camera. There
is no need to manually configure the IP address, subnet mask, and gateway. However, every time the HCP
service is rebooted, the IP address of the IP camera may vary. You may need to use IPscan to search for the
IP camera. To enable HCP, click the DHCP option and click Submit.
Chapter 4-3-2 HTTP/RTSP Service
HTTP and RTSP are two reliable protocol for video streaming. With correct port forwarding, videos can be sent
over the Internet. etails are described in the appendix. To change the HTTP port number, consult your
network administrator. Choose the streaming type you want to use (HTTP or RTSP/U P). Click Submit for the
changes to take effect.
