Lilin PIH-802 User manual

MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
INSTRUCTION MANUAL
PIH-802/804/808 Series
66-802CSE
DAY&NIGHT CAMERA

IMPORTANT SAFEGUARDS
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
shock to persons.
accompanying the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

CAUTION
Do not drop or strike this equipment.
Do not install the equipment near any naked flames or heat
sources.
Do not expose this unit to rain or excessive moisture, avoid
smoke and dust.
Do not cover cloth or to install this unit in poorly ventilated
places.
Do not continue to operate if there appears to be fault.
Do not touch the power connection with wet hands.
Do not damage the power cord or leave it under pressure.
Sensitive electronics inside are vulnerable to excessive shock.
Excessive heat could damage this unit.
Please the camera in an environmental housing for protection.
If the camera gets wet, unplug it and have it checked by
qualified service personnel.
This may lead to overheating.
If the unit ceases to function, contact qualified service
personnel for help.
Risk of short circuit or electric shock.
Risk of fire or shock circuit.

CONGRATULATIONS
Thank you for purchasing this high quality color camera. You now
own one of the many fine CCTV products we manufactured. This
product has been carefully inspected under rigid quality control
and should reach you in perfect condition. With reasonable care,
it will provide years of reliable performance.
We recommend that you read this installation and operation
manual thoroughly before installing and operation your new
system.
Here you will find all the information you need to set up and use
the system. If any questions are not answered in the manual,
please contact your dealer.
Before proceeding, please read and observe all instructions and
warnings contained in this manual. Retain this manual with the
original bill of sale for future reference and, if necessary, warranty
service.
When unpacking your new camera, check for missing or damaged
items. If any item is missing, or if damage is evident,
I . Contact your dealer for
assistance.
DO NOT
NSTALL OR OPERATE THIS PRODUCT

WARRANTY INFORMATION
Please complete the following product purchase information. The
factory will requests this information when contacted for technical
support, or warranty repair. It is also valuable in case of loss or
theft.
Purchase Date
Serial Number
Model Number
TABLE OF CONTENTS
FEATURES
PART DESCRIPTION
INSTALLATION
SPECIFICATIONS
1
2
8
13

1
FEATURES
The PIH-802/804/808 series Day&Night Camera introduces a new level of high
quality picture. The compact full performance, general purpose color DSP camera,
which use high sensitive 1/3" interline transfer CCD. It delivers high resolution
superior color images in day condition, and clear sharp monochrome pictures in
night condition. The evolution 2-in-1 intelligent video camera brings your security
surveillance system to a new digital era.
DAY&NIGHT
SENSITIVITY
ELECTRONIC SHUTTER
BACK LIGHT COMPENSATION
WHITE BALANCE
APERTURE CORRECTION
The camera provides automatic mode changeover by sensing day or night
conditions.
It can change color mode in the day condition for optimal color and mono mode
in night condition for clear identification.
This is a highly sensitive camera with minimum scene illumination, ensuring
good quality images in low light environments.
When using manual or fixed iris lenses, the electronic shutter function controls
the amount of light captured by the CCD by altering the shutter speed between
1/50(1/60) ~ 100,000 of a second.
Subjects lit from behind can be automatically enhanced through DSP control of
the iris and shutter speeds, compensating for poorly illuminated scenes.
Automatic adjustment of the light source color temperature in order to maintain
perfect picture color. This camera provides 7 "White Balance" control mode.
You can select the most suitable one.
Refining captured image outlines for sharper video image.

LINE-LOCK / INTERNAL
ACCEPT VIDEO OR DC DRIVE AUTO IRIS LENS
AUDIO OUTPUT
FOCAL LENGTH ADJUSTMENT RING
With AC camera the Line Lock facility enables roll free picture switching. The
Internal Sync. Function uses a crystal to control the camera frequency
independently of the AC supply.
(DC cameras have only Internal Sync, AC cameras have Line Lock.)
Both types of Auto Iris lens can be used; video and direct (DC) drive.
Built-in highly sensitive capacitive microphone allows setting up of audio
monitoring system.
Use this ring to adjusts the back focal distance or picture focus.
2
PART DESCRIPTION
DAY NIGHT
DAY NIGHT

3
VIDEO
POWER
IRIS
LEVEL
PIH-8026N
LL.PHASE
AC24V/DC12V
IRCUT
AES
AGC
DC
AWB1
AWB2
AWB3
ON
ON
ON
VS
AUDIO
LL INT
VIDEO
POWER
IRIS
LEVEL
PIH-8028N
LL.PHASE
IRCUT
AES
AGC
DC
AWB1
AWB2
AWB3
ON
ON
ON
VS
AUDIO
LL INT
AC90~260V
15
16
17
18
19
20
12
13
14
PIH-8028/8048/8088
PIH-8026/8046/8086

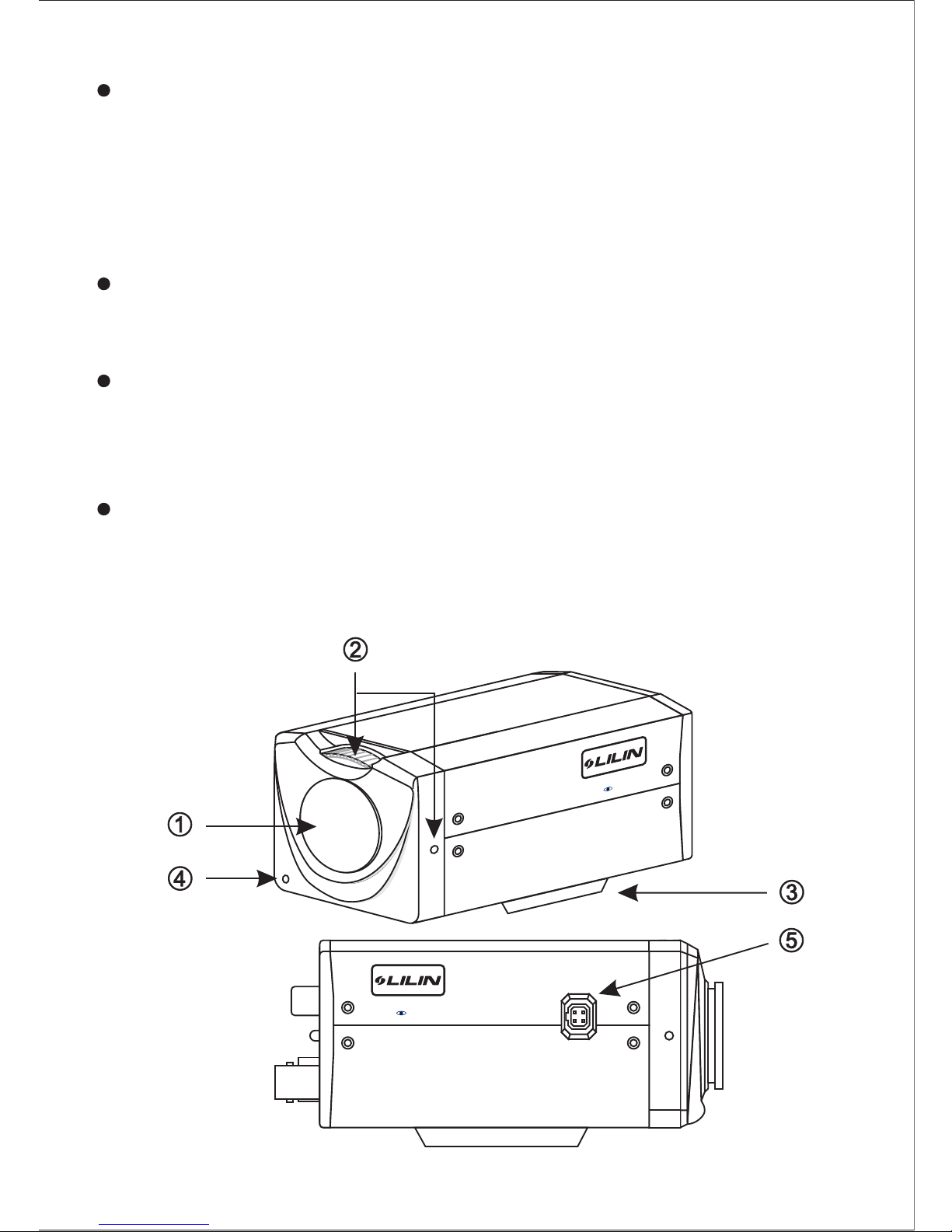

LENS MOUNT CAP
FOCAL LENGTH ADJUSTMENT RING AND LOCKING SCREW
CAMERA MOUNTING BRACKET
MICROPHONE HOLE
AUTO IRIS CONNECTOR (4PIN SOCKET)
POWER LED
IR CUT FILTER ON/AUTO SWITCH
Prevent damages to the image sensor and to keep dust away.
Use this ring to adjusts the back-focal distance or picture focus. Rotate this ring
clockwise or counterclockwise for a CS-mount lens.
Use the locking screw to lock the focal length.
The mounting bracket can be attached to either the top or bottom of the camera
using the two attached screws(M2.6x5.0). The camera mounting bracket is
attached underneath the main body.
Built-in highly sensitive capacitive microphone.
Supplies power and control signals to an auto iris lens (not supplied).
Power ON/OFF Indicator.
ON
AUTO
1
2
3
4
5
4
: Color mode is kept up.
: Automatic switch from Color mode to Monochrome.
It changes to Color mode in day conditions for optimal color and to
Monochrome mode in night conditions.
The object may be more out of focus when using a source of infrared light than using
the visible light.
NOTE
6
7

AES (AUTOMATIC ELECTRONIC SHUTTER) ON/OFF SWITCH
AGC (AUTOMATIC GAIN CONTROL) ON/OFF SWITCH
AWB1 AWB2 AWB3 SWITCH
When using a manual iris lens or fixed iris lens, set this switch to ON. Switching
the switch to the OFF while the auto iris lens in use.
The AGC function automatically adjusts picture gain in accordance with the
brighness of the subject.
ON
OFF
8
9
10 11 12
5
: Gain is increased or decreased form Min. to Max. automatically.
: Deactivation.
When AGC set to OFF, Color/Monochrome do not change over automatically, Color
mode is kept up.
NOTE
AWB1 AWB2 AWB3 Setting Set Color Temperature (K)Mode
AWB1
AWB2
AWB3
AWB1
AWB2
AWB3
AWB1
AWB2
AWB3
AWB1
AWB2
AWB3
AWB1
AWB2
AWB3
AWB1
AWB2
AWB3
AWB1
AWB2
AWB3
ATW
Push
Hold
Indoor Fixed Value
Fluorescent Light
Fixed Value
User
Outdoor Fixed Value
Approximately
2500 ~ 9500
Approximately
2500 ~ 9500
Approximately
2500 ~ 9500
Approximately
3200
Approximately
4200
Approximately
4700
Approximately
6300

HOLD
Indoor Fixed Value
Fluorescent Light Fixed Value
User
Outdoor Fixed Value
: Convergence Operation is stopped when shifting to Hold mode, as the
color temperature is 2500K~9500K.
: Indoor Fixed Value mode should be set as color
temperature 3200K.
: : Fluorescent Light Fixed Value mode should be
set as color temperature 4200K.
: User mode should be set as color temperature 4700K.
: Outdoor Fixed Value mode should be set as color
temperature 6300K.
LL (LINE-LOCK) / INT (INTERNAL SYNC.) SELECTION SWITCH
Selects the camera synchronization mode from internal sync. mode(INT) or
line-lock mode (LL).
LL
INT
: Set to line-lock mode. Make the vertical phase of the camera video signal
matched to the phase of AC power.
: Sets to internal 2:1 interlace.
14
When you use auto iris lens, do not set the level on the lens to too low, Color/Mono may
not change over automatically.
NOTE
AUTO IRIS LENS SELECTION SWITCH (DC/VS)
Switch for selecting the control signal for auto iris lens.
DC
VS
: For auto iris lenses controlled by DC (Direct drive) signals.
: For auto iris lenses controlled by Video signals.
13
Sync. mode is fixed to "INT" in DC12V input power.
NOTE
ATW
PUSH
: ATW is the Auto Trace White Balance mode that automatically aligns
the white balance, as the color temperature is 2500K~9500K.
: Push mode is performed at a faster operating speed than ATW without
and operation frame, as the color temperature is 2500K~9500K.
6

AUDIO OUT CONNECTOR
IRIS LEVEL ADJUSTMENT VOLUME
VIDEO OUTPUT CONNECTOR
LL (LINE-LOCK) PHASE ADJUSTMENT PUSH BUTTON
AC24V/DC12V COMPATIBLE INPUT TERMINAL
AC INPUT
Audio signal output.
Adjusts the signal level when DC control type auto iris lens is in use.
Composite vide signal output.
Adjusts the line-lock delay phase. Press or to match the vertical phase for
both video output signals as closely as possible.
AC24V(AC24V 10%) or DC12V(DC12V 10%, Non-Polarity) power input.
AC90~260V maximum power input.
17
18
19
15
16
20
8
INSTALLATION

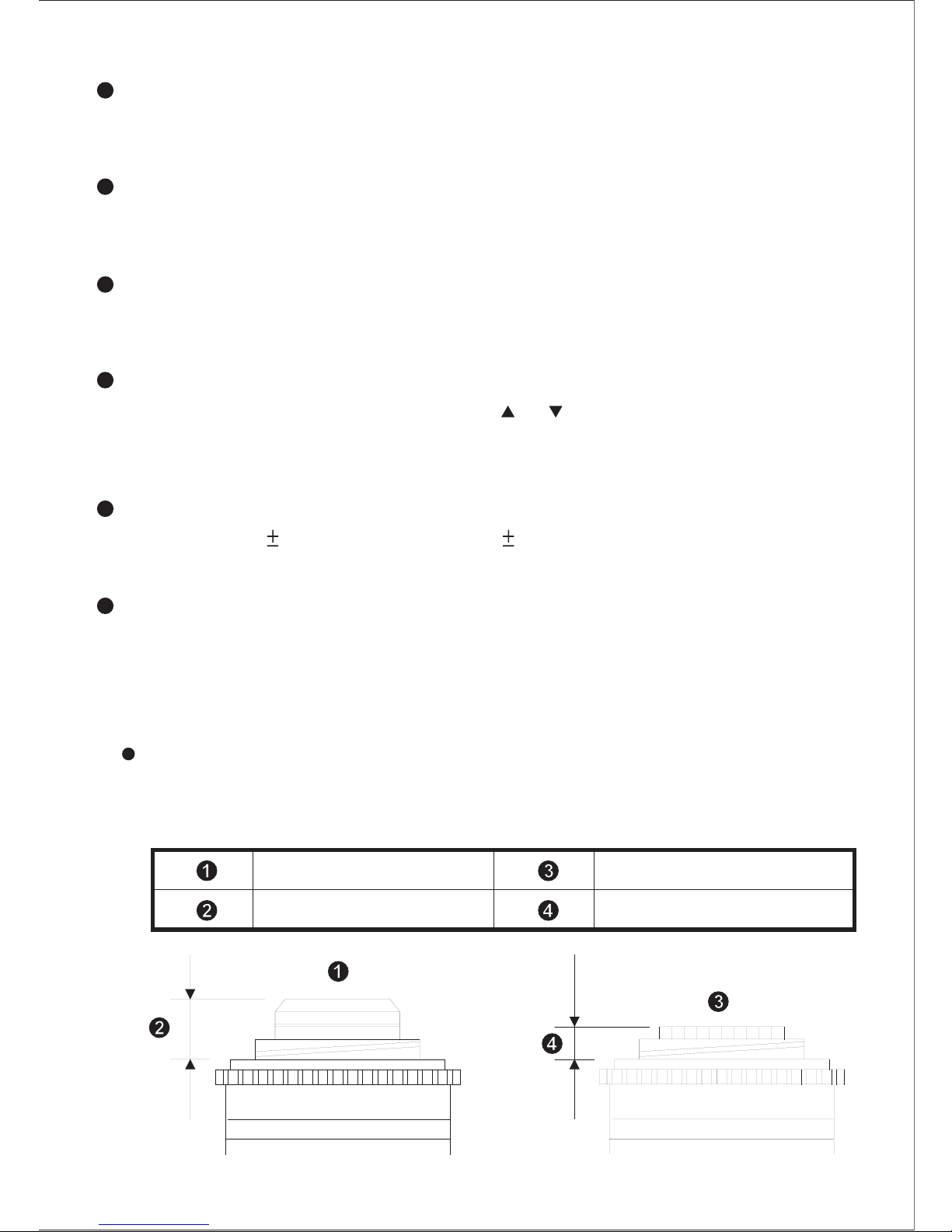

ThelensmustbeeitheraCorCSmount type. The protrusion behind the
mounting surface must be within the following limits:
SUITABLE LENSES
C - mount lens CS - mount lens
9mmorless 4mmorless
7

The camera is supplied with a plug to fit the AUTO IRIS connector. To connect
an auto iris lens, first replace the plug on the lens cable with the supplied plug.
Solder the lens cable to the pins of the supplied plug (For cable pin
assignment, refer to the instruction manual for the lens.).
CHANGING THE PLUG ON AN AUTO IRIS LENS CABLE
Cover
Lens cable
Rib (If the cable is thick, cut this off.)
Plug (Unit accessory)
Pin 4
Pin 2
Pin 1
Pin 3
Video signal control
DC control
Video signal control
DC control
Video signal control
DC control
Video signal control
DC control
Ground
Drive -
Vcc
Control +
Not used
Control -
Video signal
Drive +
8

FITTING THE LENS
Remove the lens mount cap.
Screw in the C mount ring(not supplied), unit it is secured. When using a
CS mount lens skip step2.
Screw in the lens, unit it is secured.
Insert the lens plug in the AUTO IRIS connector, when fitting a manual-
iris lens, skip step4.
Adjust the focal length by turning the focal length adjustment ring.
(Using hexagon screw driver, loose and tighten the screw on side of the
camera)
1
2
3
4
5
CAUTION
Keep the lens mount cap on the camera when not attaching a lens.
9
DAY NIGHT

DAY NIGHT
DAY NIGHT

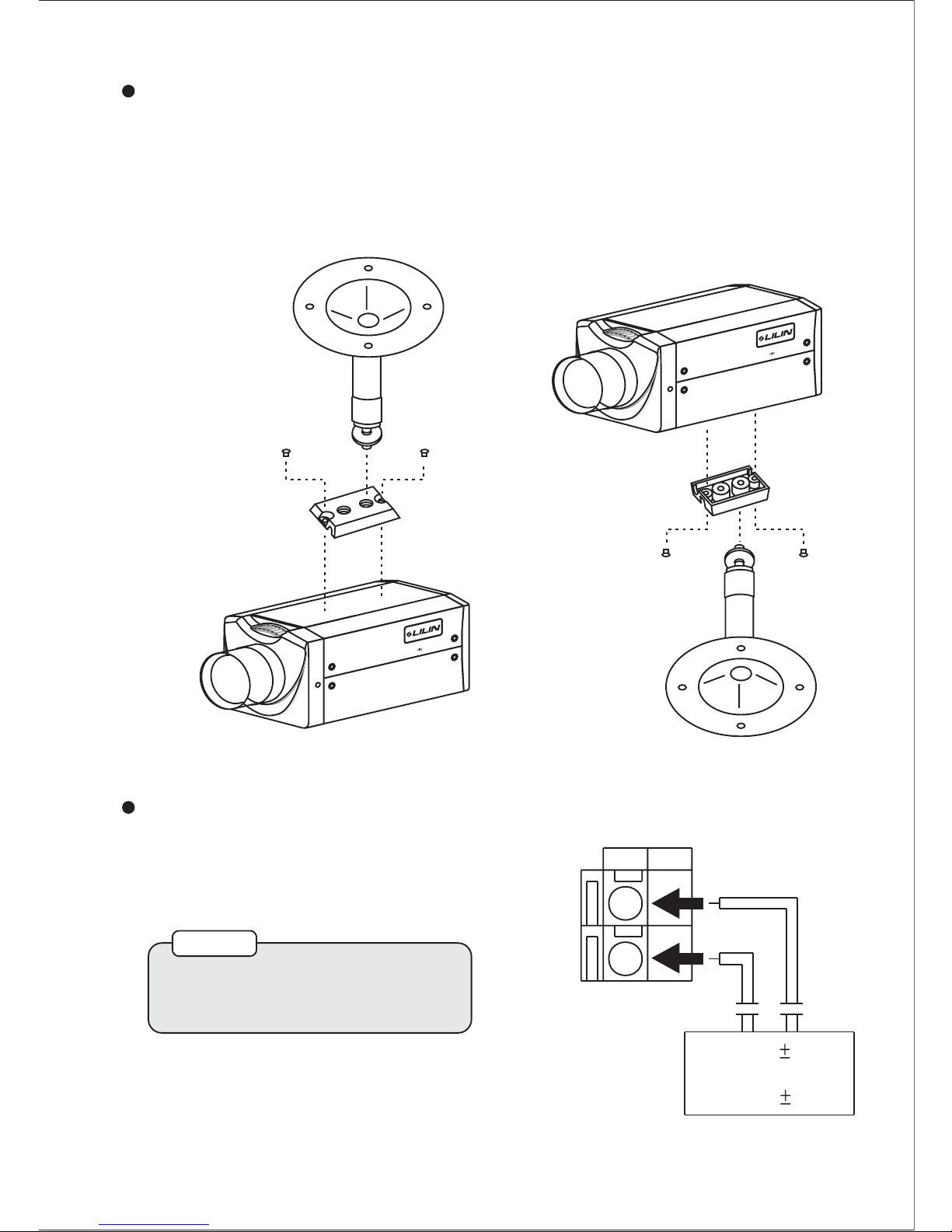

1. The mounting base can be attached to either the top or bottom of the
camera.
2. Tighten the screw to attach the mounting base. Please refer to the
following drawing.
FITTING THE CAMERA
Connect to the power supply.
Please refer to the right drawing.
CONNECTION OF POWER SUPPLY CABLE (AC24V or DC12V)
AC24V ( 10%)
or
DC12V ( 10%)
AC24V / DC12V
10
NOTE
Make sure to use AC24V or DC12V
(Non-Polarity input) power supply.

IRIS
LEVEL
AUDIO
Adjust DC iris level manually.
Please refer to the above drawing.
DC IRIS LEVEL ADJUSTMENT
ATTENTION
Adjust this VR with care so as not to cause damage to the unit.
11

DAY & NIGHT CAMERA
Model No.
Power Input Voltage
System
Sync. Mode
Pick Up Element
Effective Pixels
Chip Size
Scanning System
Resolution
Minimum Illumination
S/N Ratio
Auto Gain Control
White Balance
Aperture Correction
Back Light Compensation
Video Output
Gamma Characteristic
Operating Temperature
Weight
Dimension
PIH-8028 N
DC12V/AC24V
NTSC or PAL
Line-Lock/Internal Selectable
DC12V : Sync. Mode is fixed to Internal
1/3" Super HAD CCD Sensor
5.59mm (H) x 4.68mm (V)
2 1 Interlace
Color : 380TV Lines , Mono : 450TV Lines
Color : 0.08Lux at F1.2 ; 0Lux with IR
Mono : 0.01Lux at F1.2
More than 50dB (AGC OFF)
On/Off Selectable
ATW / PUSH / HOLD / 3200K / 4200K / 4700K / 6300K
Horizontal , Vertical
Yes
CVBS 1.0Vp-p , 75ohm
=0.45
-10 ~ +50 (14 ~ 122 )
510g
56mm(W) x 54mm(H) x 112mm(D)
510(H) x 492(V) [NTSC]
500(H) x 582(V) [PAL]
15.734KHz / 59.94Hz [NTSC]
15.625KHz / 50Hz [PAL]
Horizontal & Vertical
Sync. Frequency
PIH-8026 N/P
Audio Output
Auto
Power Consumption 5.3W
Design and specifications are subject to change without notice.
PIH-8028 P
AC90V ~ 260V
5.0W(DC12V)
4.0W(AC24V)
PALNTSC
Infrared Cut Filter On/Auto Selectable ,
On: Color Mode ; Auto: Automatic Switch From Color Mode To Monochrome
Shutter 1/60(1/50)S ~ 1/100,000S (Auto or Off)
C or CS MountLens Mount
Direct Drive(DC) or Video DriveAuto Iris Drive
SPECIFICATIONS
12

HIGH RESOLUTION DAY & NIGHT CAMERA
Model No.
Power Input Voltage
System
Sync. Mode
Pick Up Element
Effective Pixels
Chip Size
Scanning System
Resolution
Minimum Illumination
S/N Ratio
Auto Gain Control
White Balance
Aperture Correction
Back Light Compensation
Video Output
Gamma Characteristic
Operating Temperature
Weight
Dimension
PIH-8048 N
DC12V/AC24V
NTSC or PAL
1/3" Super HAD CCD Sensor
5.59mm (H) x 4.68mm (V)
2 1 Interlace
Color : 480TV Lines , Mono : 550TV Lines
Color : 0.1Lux at F1.2 ; 0Lux with IR
Mono : 0.02Lux at F1.2
More than 50dB (AGC OFF)
On/Off Selectable
ATW / PUSH / HOLD / 3200K / 4200K / 4700K / 6300K
Horizontal , Vertical
Yes
CVBS 1.0Vp-p , 75ohm
=0.45
-10 ~ +50 (14 ~ 122 )
510g
56mm(W) x 54mm(H) x 112mm(D)
768(H) x 494(V) [NTSC]
752(H) x 582(V) [PAL]
15.734KHz / 59.94Hz [NTSC]
15.625KHz / 50Hz [PAL]
Horizontal & Vertical
Sync. Frequency
PIH-8046 N/P
Audio Output
Auto
Power Consumption 5.3W
Design and specifications are subject to change without notice.
PIH-8048 P
AC90V ~ 260V
5.0W(DC12V)
4.0W(AC24V)
PALNTSC
Infrared Cut Filter On/Auto Selectable ,
On: Color Mode ; Auto: Automatic Switch From Color Mode To Monochrome
Shutter 1/60(1/50)S ~ 1/100,000S (Auto or Off)
C or CS MountLens Mount
Direct Drive(DC) or Video DriveAuto Iris Drive
Line-Lock/Internal Selectable
DC12V : Sync. Mode is fixed to Internal
13

SUPER EYE HIGH RESOLUTION DAY & NIGHT CAMERA
Model No.
Power Input Voltage
System
Sync. Mode
Pick Up Element
Effective Pixels
Chip Size
Scanning System
Resolution
Minimum Illumination
S/N Ratio
Auto Gain Control
White Balance
Aperture Correction
Back Light Compensation
Video Output
Gamma Characteristic
Operating Temperature
Weight
Dimension
PIH-8088 N
DC12V/AC24V
NTSC or PAL
1/3" Exview HAD CCD Sensor
6.00mm (H) x 4.96mm (V)
2 1 Interlace
Color : 480TV Lines , Mono : 550TV Lines
Color : 0.05Lux at F1.2 ; 0Lux with IR
Mono : 0.01Lux at F1.2
More than 50dB (AGC OFF)
On/Off Selectable
ATW / PUSH / HOLD / 3200K / 4200K / 4700K / 6300K
Horizontal , Vertical
Yes
CVBS 1.0Vp-p , 75ohm
=0.45
-10 ~ +50 (14 ~ 122 )
510g
56mm(W) x 54mm(H) x 112mm(D)
768(H) x 494(V) [NTSC]
752(H) x 582(V) [PAL]
15.734KHz / 59.94Hz [NTSC]
15.625KHz / 50Hz [PAL]
Horizontal & Vertical
Sync. Frequency
PIH-8086 N/P
Audio Output
Auto
Power Consumption 5.3W
Design and specifications are subject to change without notice.
PIH-8088 P
AC90V ~ 260V
5.0W(DC12V)
4.0W(AC24V)
PALNTSC
Infrared Cut Filter On/Auto Selectable ,
On: Color Mode ; Auto: Automatic Switch From Color Mode To Monochrome
Shutter 1/60(1/50)S ~ 1/100,000S (Auto or Off)
C or CS MountLens Mount
Direct Drive(DC) or Video DriveAuto Iris Drive
Line-Lock/Internal Selectable
DC12V : Sync. Mode is fixed to Internal
66-802CSE-4
14

MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
INSTRUCTION MANUAL
PIH-802/804/808 Series
66-802CSE
DAY&NIGHT CAMERA
