Lindy 73399 User manual

© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (September 2015)
16 Port USB Charging Station
User Manual English
Benutzerhandbuch Deutsch
Manuel Utilisateur Français
Manuale Italiano
No. 73399
www.lindy.com
Tested to Comply with
FCC Standards
For Home and Office Use!

User Manual English
Introduction
Thank you for purchasing the LINDY 16 Port USB Charging Station. This device allows you to charge up
to 16 USB powered devices in one easy to manage location. The charging station is also rack mountable
to allow you to install it in a cabinet for easy management. With the added benefit of the included rack
shelf you can also house up to 16 devices in a neat and organized way.
Package Contents
16 port USB station
16 port divider module
Rackmount brackets
Screw and screwdriver
IEC Mains power cables (country specific)
LINDY User manual
Features
16 USB Type A charging ports @ 2.1A per port
LED status showing current charge per port
LED display showing port number and amperage with auto scan function
Intelligent power saving
Operation

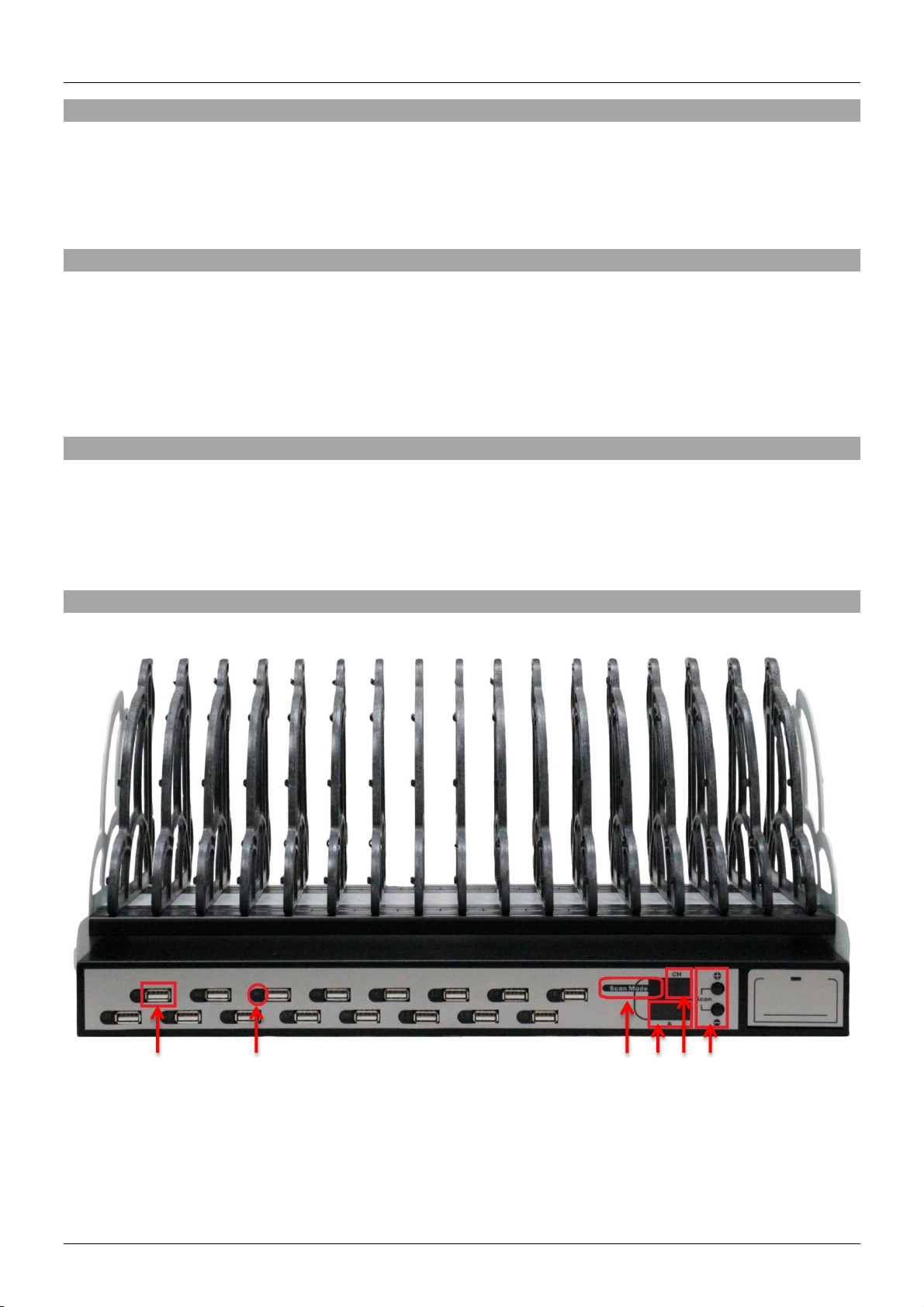

Front View:
A. Charging and data sync ports
B. LED Status:
a. Off: No device connected or selected
b. Fast green flashing: Device in in quick charging mode
c. Slow green flashing: Device is in slow charging mode
d. Green: Device is fully charged
e. Red: Port is selected on the channel display
A B C D E F

User Manual English
f. Fast orange flashing: Port is selected and fast charging
g. Slow orange flashing: Port is selected and slow charging
C. Autoscan mode LED
D. 3 digit amperage display
E. Channel display
F. Buttons:
a. +: Cycle up through ports
b. -: Cycle down through ports
c. Both: Press for 1 second to start autoscan. Press either to stop autoscan

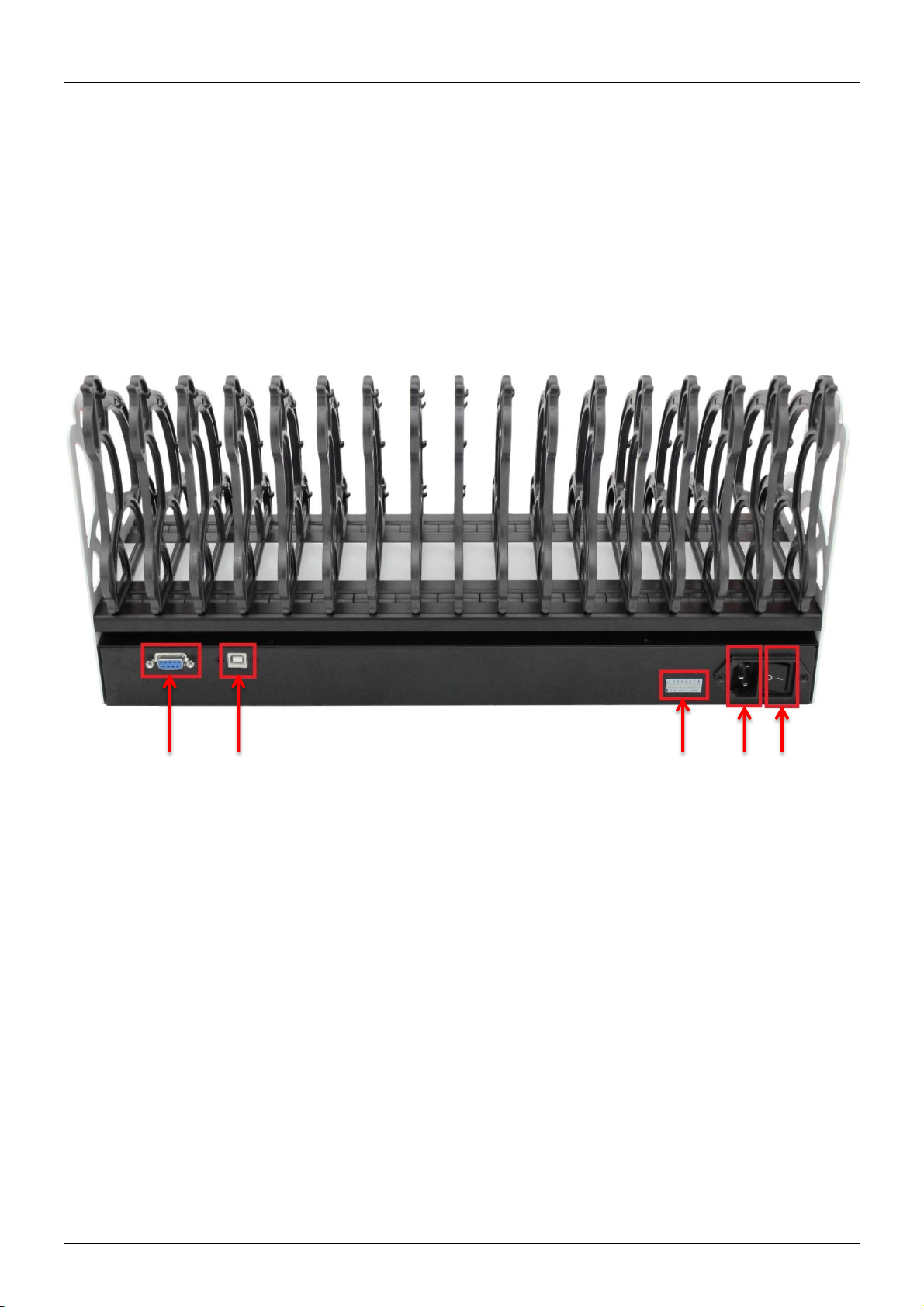

Rear View:
A. RS485 port
B. USB Type B Data sync port
C. Dip switch: (up=on / down=off)
1. Autoscan mode
2. Standby mode
3. Not used
4. Autoscan time enable: Using the front +/- buttons, set to 1/3/5/10/15/20/25/30 seconds
5. Fast charge setting: Using the front +/- buttons, set to 500mA~1.2A
6. Slow charge setting: Using the front +/- buttons, set to 100mA~480mA
7. Standby threshold: Using the front +/- buttons, set to 20mA~90mA
8. Not used
D. Power socket
E. Power on/off switch
Sync function
When connecting iOS based devices you are able to sync with each device to back up, duplicate and
refresh the installed software. To perform this function you will need to download the “configurator”
software from the Apple App store.
A B C D E

User Manual English

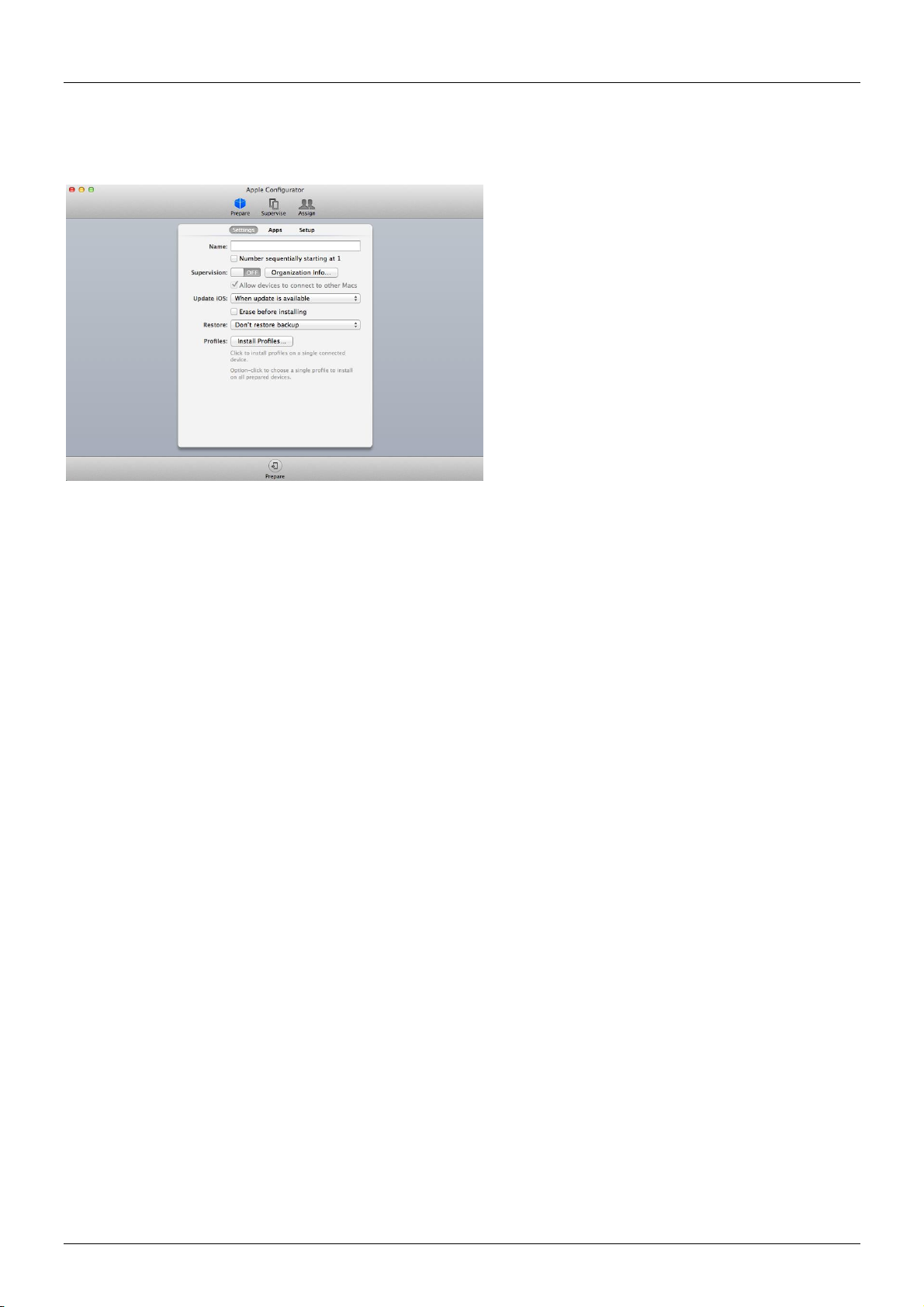

The software has three basic modes of operation:
Prepare devices: duplicate the settings to all the connected devices at the same time. (one time
operation)
If the device is connected and you have not created a profile with the latest system update or selection of
apps, then you will need to create a new profile. When you have the device connected that you want to
use as the master copy, select create backup in the “Restore” drop down. When preparing the other
devices, select the profile with the backup from the “Restore” section.
1. Choose a device name
2. Select the setting needed in all three tabs. Settings / Apps / Setup
3. Click the “Install Profiles” and connect the devices to be configured
4. Click next and then either select the profile name, add a new profile name or Import a profile.
5. Click next on the connected device press install. Make sure you have the pass code and input it
when requested. After agreeing to the terms, press next and then install.
6. Once you have the completed message, close the configurator software
Supervise devices: configure each connected device to the same settings every time they are
connected.
1. Select or add the supervise devices group
2. Verify the setting and Apps tabs content as required.
3. Select the profile to use on the devices
4. The icon will change from “refresh” to “apply”, click “apply” and follow the instructions to
completion
Assign devices: backup each device to a server when they are connected.
1. Assign a device and associate a user group to supervise the devices
2. Click on the “assign” icon to add or select the user group
3. Each user group can assign or add a different user in the next pane.

User Manual English
Assembling the Dividers
1.1 Introduction
Thank you for purchasing the LINDY 16 Port USB Charger with Rack Shelf. We recommend that you
read these instructions thoroughly and retain them for future reference.
1.2 Overview
The Rack Shelf is designed to provide a system of placement for smart devices (Tablets, Smart Phones,
Power Packs) in a clean, neat, and organized manner. It can be used as a standalone unit when the
USB charger is rack mounted or attached to the charger when the charger is positioned on a shelf or
desk.
1.3 Safety Information
Please read, understand, and follow all the safety information contained in this guide prior to using our
product.
2.1 Indoor Use
This product is intended for indoor use. Any misuses could damage the product and/or create unsafe
operating conditions.
2.2 Location
Select a location where the airflow is not obstructed.
Place the product on a flat, level surface at least two feet from any heat source.
Keep all liquids away from the product.
2.3 Cleaning
Turn the product off and unplug it before cleaning.
Use only a dry, soft cloth to wipe the outside of the product.
2.4 Smart Devices
Please properly place your smart devices or power pack on a surface so that it will not fall or drop.
3 Assembly
Please read, understand, and follow all the safety information contained in this guide prior to using our
product.

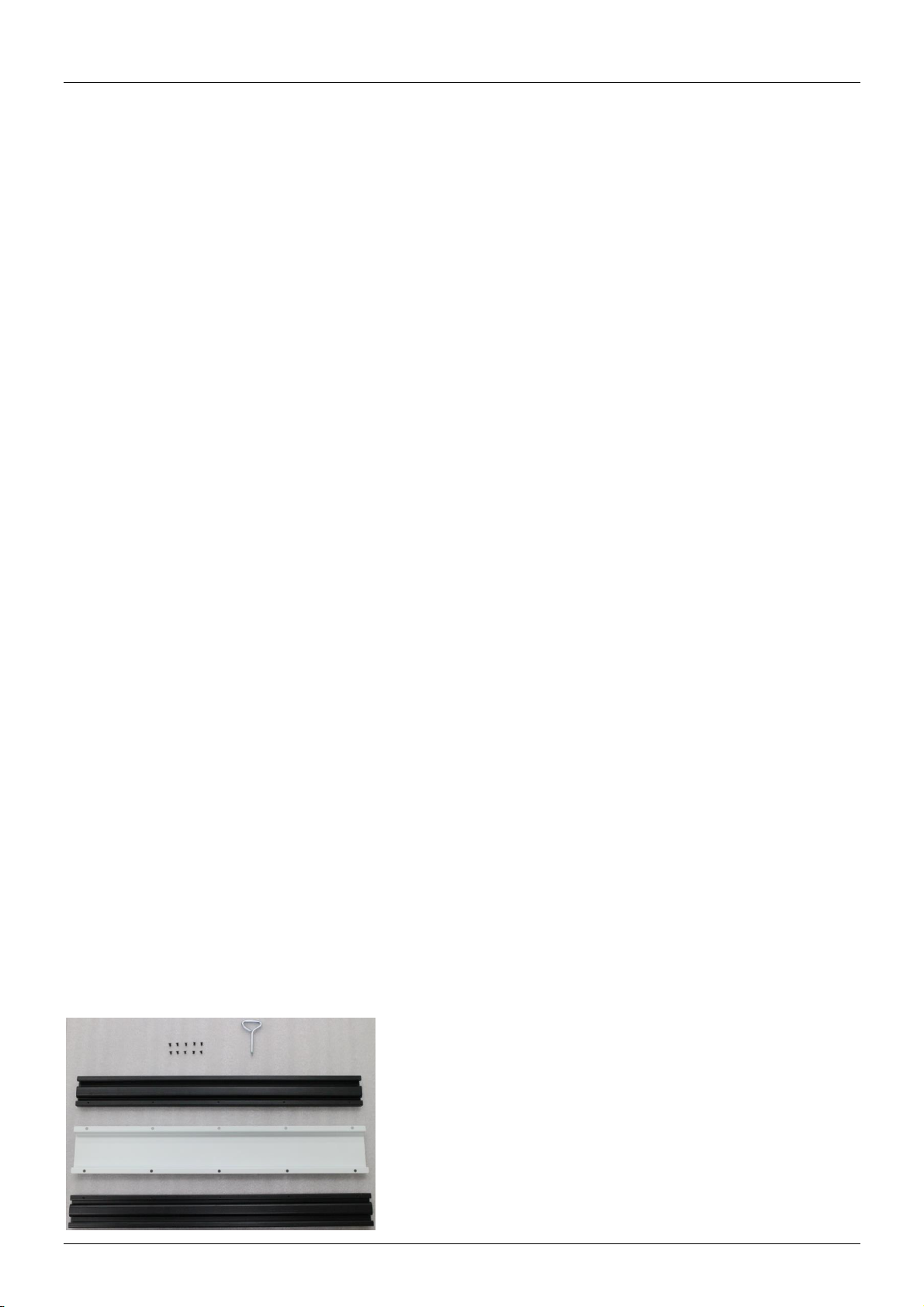

4.1 Package Contents
Please check package contents before starting the installation. If any component is missing or defective,
please contact LINDY.
2 x Black Track Plates
1 x White Centre Plate
2 x Shelf Ends
17 x Shelf Dividers
18 x screws
1 x Phillips screwdriver

User Manual English

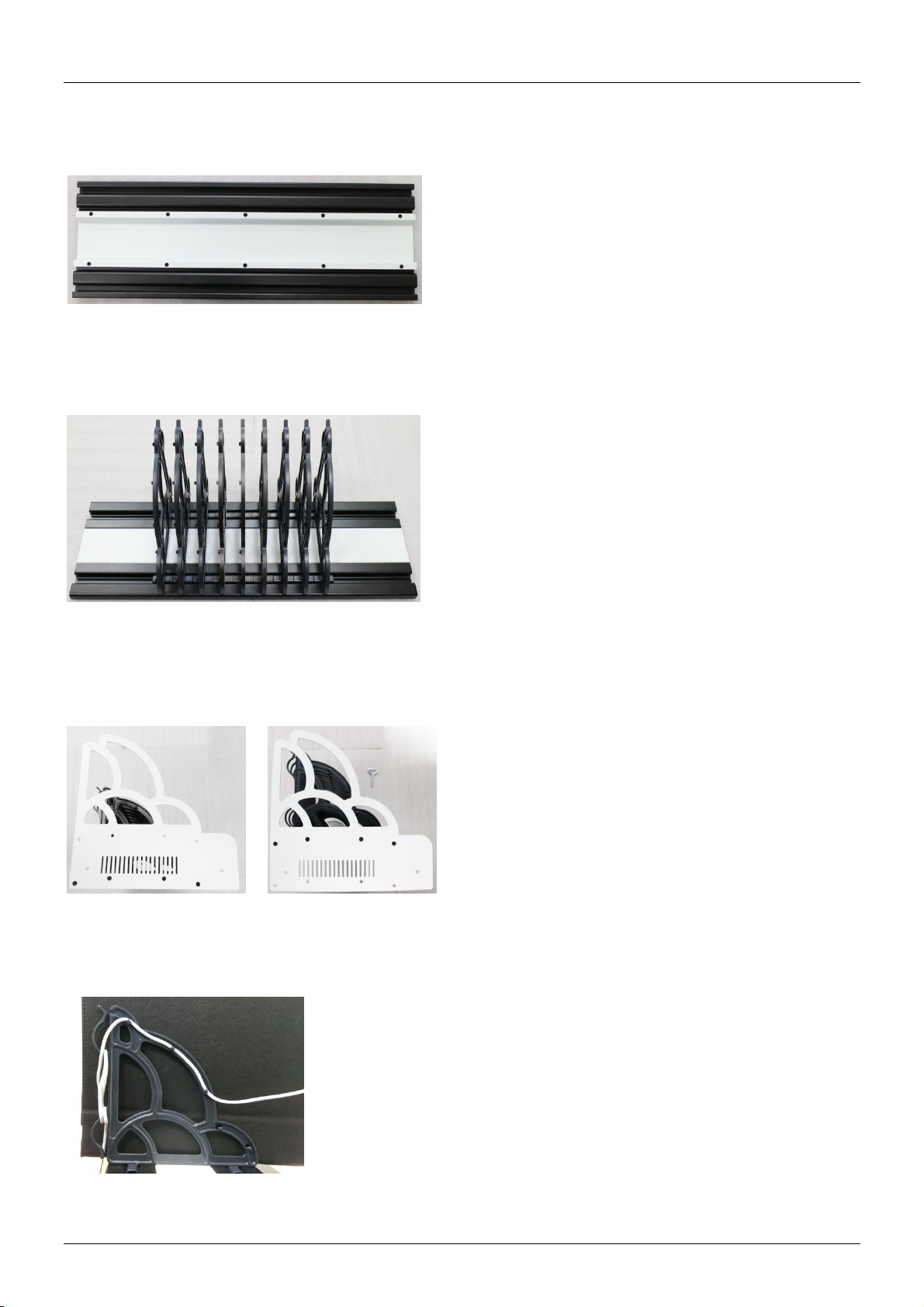

4.2 Base
Looking at the bottom of the Black Track Plate, screw on each side of the White Metal Assembly using
10 screws and the Phillips screwdriver.
4.3 Shelf Dividers
Looking at the top of the base, slide in the plastic shelf dividers from the end with the cable clip pointing
towards the rear.
4.4 Shelf Ends
The lower set of holes is for the standalone configuration and the top set of holes is for using with
charging station. Screw in the Shelf Ends in the same direction as the Rack Brackets depending on
standalone or with the charging station.
.
4.5 Cable Routing
The cable can be routed from the charger to the device. Use the integrated cable clips and the cable tie
at the rear of the bracket as shown below.

User Manual English

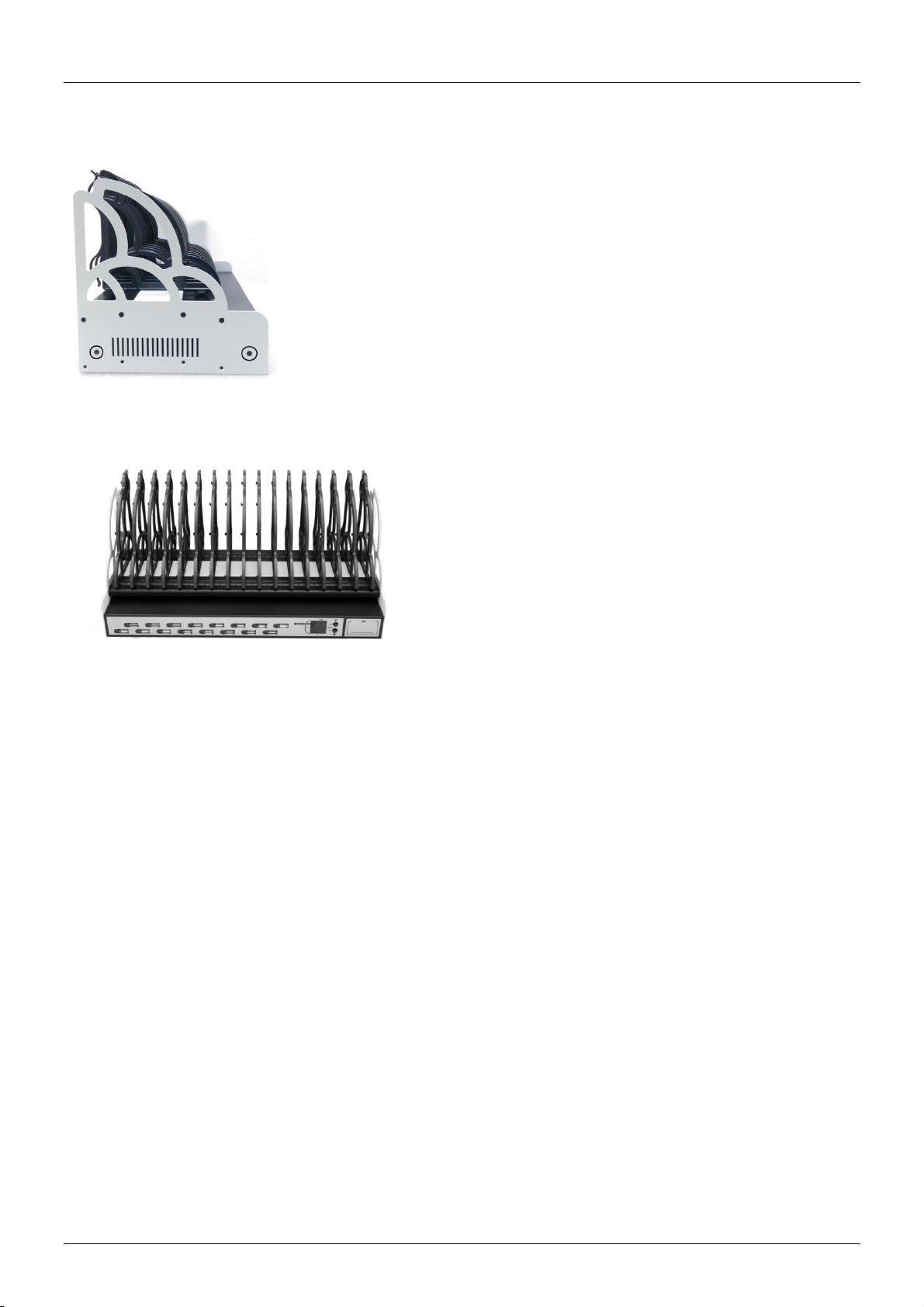

4.6 Fastening Charger
After securing the Base to the top sets of holes, align the Charger as shown below by the circle, screw in
to fasten the charger to the USB Charger Rack Shelf.
5 Operation
The operation of the Rack Shelf is the same for both standalone and with the USB Charging unit.
6 Technical Support
Please contact LINDY for any technical support issues.

CE/FCC Statement
CE Certification
This equipment complies with the requirements relating to Electromagnetic Compatibility Standards
EN55022/EN55024 and the further standards cited therein. It must be used with shielded cables only.
It has been manufactured under the scope of RoHS compliance.
CE Konformitätserklärung
Dieses Produkt entspricht den einschlägigen EMV Richtlinien der EU für IT-Equipment und darf nur
zusammen mit abgeschirmten Kabeln verwendet werden.
Diese Geräte wurden unter Berücksichtigung der RoHS Vorgaben hergestellt.
Die formelle Konformitätserklärung können wir Ihnen auf Anforderung zur Verfügung stellen
FCC Certification
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
LINDY Herstellergarantie –Hinweis für Kunden in Deutschland
LINDY gewährt für dieses Produkt über die gesetzliche Regelung in Deutschland hinaus eine zweijährige
Herstellergarantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website
aufgelistet bei den AGBs.
Hersteller EU / EU Manufacturers
LINDY-Elektronik GmbH
Markircher Str. 20
DE-68229 Mannheim
GERMANY
T: [phone]
[e-mail]
LINDY Electronics Ltd.
Sadler Forster Way
Teesside Industrial Estate, Thornaby
Stockton-on-Tees, TS17 9JY
United Kingdom
T: [phone]
[e-mail]

Recycling Information
WEEE (Waste of Electrical and Electronic Equipment),
Recycling of Electronic Products
Europe, United Kingdom
In 2006 the European Union introduced regulations (WEEE) for the collection and recycling of all waste electrical
and electronic equipment. It is no longer allowable to simply throw away electrical and electronic equipment.
Instead, these products must enter the recycling process.
Each individual EU member state has implemented the WEEE regulations into national law in slightly different
ways. Please follow your national law when you want to dispose of any electrical or electronic products. More
details can be obtained from your nationalWEEE recycling agency.
Germany / Deutschland
Die Europäische Union hat mit der WEEE Direktive Regelungen für die Verschrottung und das Recycling von
Elektro- und Elektronikprodukten geschaffen. Diese wurden im Elektro- und Elektronikgerätegesetz –ElektroG in
deutsches Recht umgesetzt. Dieses Gesetz verbietet das Entsorgen von entsprechenden, auch alten, Elektro- und
Elektronikgeräten über die Hausmülltonne! Diese Geräte müssen den lokalen Sammelsystemen bzw. örtlichen
Sammelstellen zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren
Recyclingprozess übernimmt die Gesamtheit der Gerätehersteller.
France
En 2006, l'union Européenne a introduit la nouvelle réglementation (DEEE) pour le recyclage de tout équipement
électrique et électronique.
Chaque Etat membre de l’ Union Européenne a mis en application la nouvelle réglementation DEEE de manières
légèrement différentes. Veuillez suivre le décret d’application correspondant à l’élimination des déchets électriques
ou électroniques de votre pays.
Italy
Nel 2006 l’unione europea ha introdotto regolamentazioni (WEEE) per la raccolta e il riciclo di apparecchi elettrici
ed elettronici. Non è più consentito semplicemente gettare queste apparecchiature, devono essere riciclate. Ogni
stato membro dell’ EU ha tramutato le direttive WEEE in leggi statali in varie misure. Fare riferimento alle leggi del
proprio Stato quando si dispone di un apparecchio elettrico o elettronico.
Per ulteriori dettagli fare riferimento alla direttivaWEEE sul riciclaggio del proprio Stato.
LINDY No. 73399
1st Edition, September 2015
www.lindy.com
Tested to Comply with
FCC Standards
For Home and Office Use!
