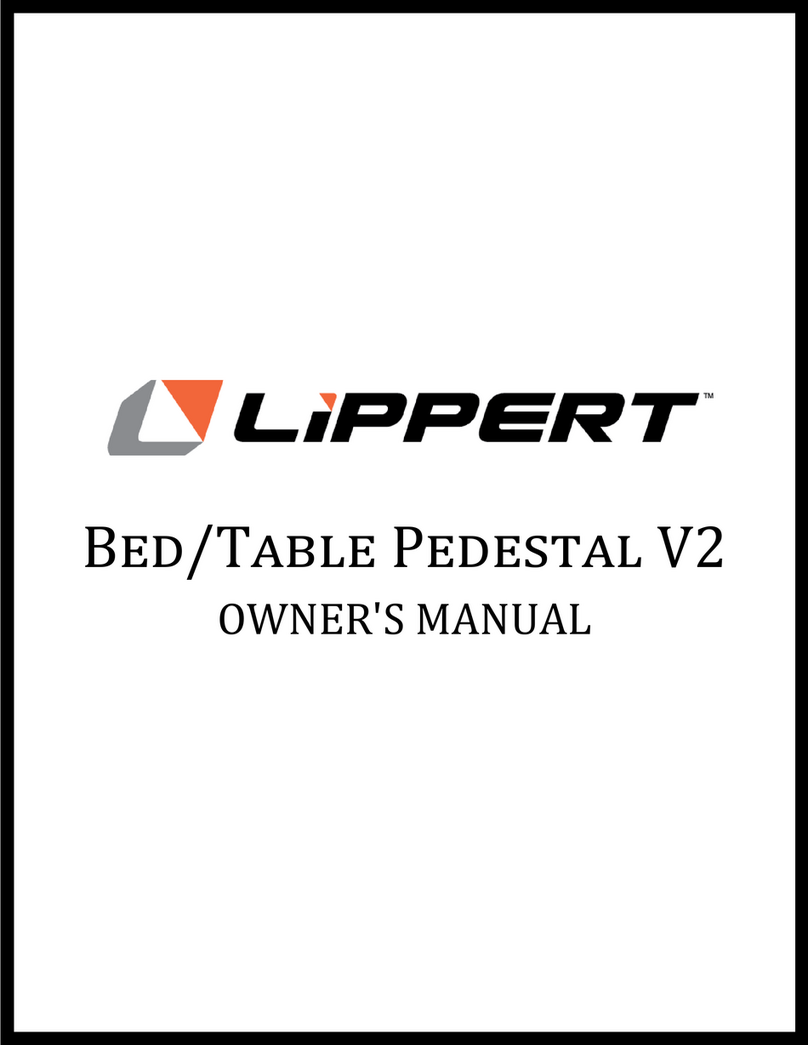

Lippert Bed/Table Pedestal V2 User manual

Bed/Table Pedestal V2
OEM INSTALLATION MANUAL

Rev: 07.12.22 Page 2 CCD-0004371
TABLE OF CONTENTS
Introduction 2
Safety 2
Resources Required 3
Installation 3
Operation 4
Introduction
The Bed/Table Pedestal V2 is used for a table with an OEM-supplied tabletop attached, and then can be
retracted for use as part of a system to create another bed.
For information on the assembly or individual components of this product, please visit:
https://support.lci1.com/lci-interiors
NOTE: Images used in this document are for reference only when assembling, installing and/or operating
this product. Actual appearance of provided and/or purchased parts and assemblies may differ.
The "WARNING" symbol above is a sign that a procedure has a safety risk involved and may cause death
or serious personal injury if not performed safely and within the parameters set forth in this manual.
Failure to follow instructions provided in this manual may result in death, serious personal injury and/or
severe product and property damage, including voiding of the component warranty.
Moving parts can pinch, crush or cut. Keep clear and use caution.
The “CAUTION” symbol above is a sign that a safety risk is involved and may cause personal injury and/or
product or property damage if not safely adhered to and within the parameters set forth
in this manual.
Safety
Read and understand all instructions before installing or operating this product. Adhere to all safety labels.
This manual provides general instructions. Many variables can change the circumstances of the instructions,
i.e., the degree of difficulty, operation and ability of the individual performing the instructions. This
manual cannot begin to plot out instructions for every possibility, but provides the general instructions,
as necessary, for effectively interfacing with the device, product or system. Failure to correctly follow the
provided instructions may result in death, serious personal injury, severe product and/or property damage,
including voiding of the Lippert limited warranty.

Rev: 07.12.22 Page 3 CCD-0004371
Resources Required
• Fastening hardware
• Tabletop material
• Cordless or electric drill
• Appropriate drive bits
• Tape measure
Installation
1. Place OEM-supplied tabletop material squarely on pedestal base.
2. Use tape measure to make sure the tabletop material is centered on the pedestal base.
3. Secure tabletop to the base with OEM-supplied fasteners appropriate for the material and thickness of
the tabletop.
NOTE: The pedestal base is able to support 75 pounds in the up position.
Fig. 1

Rev: 07.12.22 Page 4 CCD-0004371
Operation
Retract the table so the tabletop can function as a base in converting the area to a bed.
NOTE: The tabletop must be supported underneath in order to place a mattress on it to create a bed. The
weight rating is dependent on the support structures used by the OEM.
1. Locate the latch on the side of the assembly (Fig. 2).
Fig. 2
Latch

Rev: 07.12.22 Page 5 CCD-0004371
Fig. 3 Fig. 4
2. Move the latch to the side (Fig. 2) and then push down on the tabletop (Fig. 3).
3. The retracted table can now function as a bed base (Fig. 4).
4. To move back to the table position, lift up on tabletop. The latch is spring loaded so it will snap into
place to hold the tabletop when the top is returned to the up position.
