Little Giant 2E-NDVR User manual

INTRODUCTION
This instruction sheet provides you with the information required to
safely own and operate your Little Giant pump. Retain these
instructions for future reference.
The Little Giant pump you have purchased is of the highest quality
workmanship and material, and has been engineered to give you long
and reliable service. Little Giant pumps are carefully tested, inspected,
and packaged to ensure safe delivery and operation. Please examine
your pump carefully to ensure that no damage occurred during
shipment. If damage has occurred, please contact the place of
purchase. They will assist you in replacement or repair, if required.
READ THESE INSTRUCTIONS CAREFULLY BEFORE
ATTEMPTING TO INSTALL, OPERATE, OR SERVICE YOUR
LITTLE GIANT PUMP. KNOW THE PUMP’S APPLICATION,
LIMITATIONS, AND POTENTIAL HAZARDS. PROTECT
YOURSELF AND OTHERS BY OBSERVING ALL SAFETY
INFORMATION. FAILURE TO COMPLY WITH THESE
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/
OR PROPERTY DAMAGE!
SAFETY GUIDELINES
During installation, follow all local electrical and safety codes, as
well as the National Electrical Code (NEC) and the Occupational
Safety and Health Act (OSHA).
For maximum safety, this pump should be connected to a three-
prong grounded outlet equipped with a ground fault circuit
interrupter (GFCI) device.
Do not use to pump flammable or explosive fluids such as
gasoline, fuel oil, or kerosene. Pump should only be used with
liquids compatible with pump component materials.
Do not handle a pump or pump motor with wet hands or when
standing on a wet or damp surface, or in water. Do not stand in
water while changing fuses or insert your finger into the fuse socket.
Failure to follow this warning can result in fatal electrical shock.
PUMP CONSTRUCTION
The Little Giant 2E-NDVR is designed for in-line use. The pump
consists of an aluminum diecast housing, aluminum seal plate,
nylon impeller and volute, stainless steel backplate, and Viton®
gasket. The pump uses a two-seal design. The seals are double lip
radial design type. One is mounted in the aluminum pump housing,
the other is in the aluminum seal plate. The exposed motor shaft is
stainless steel. The discharge is threaded (1/4” MNPT), the intake
is also threaded (3/8” FNPT). An adapter is included for the intake
for 1/2” ID tubing.
The pump is designed for weak acids, mild chemicals, cleaning
solvents, antifreeze, and potable fluids compatible with pump
materials.

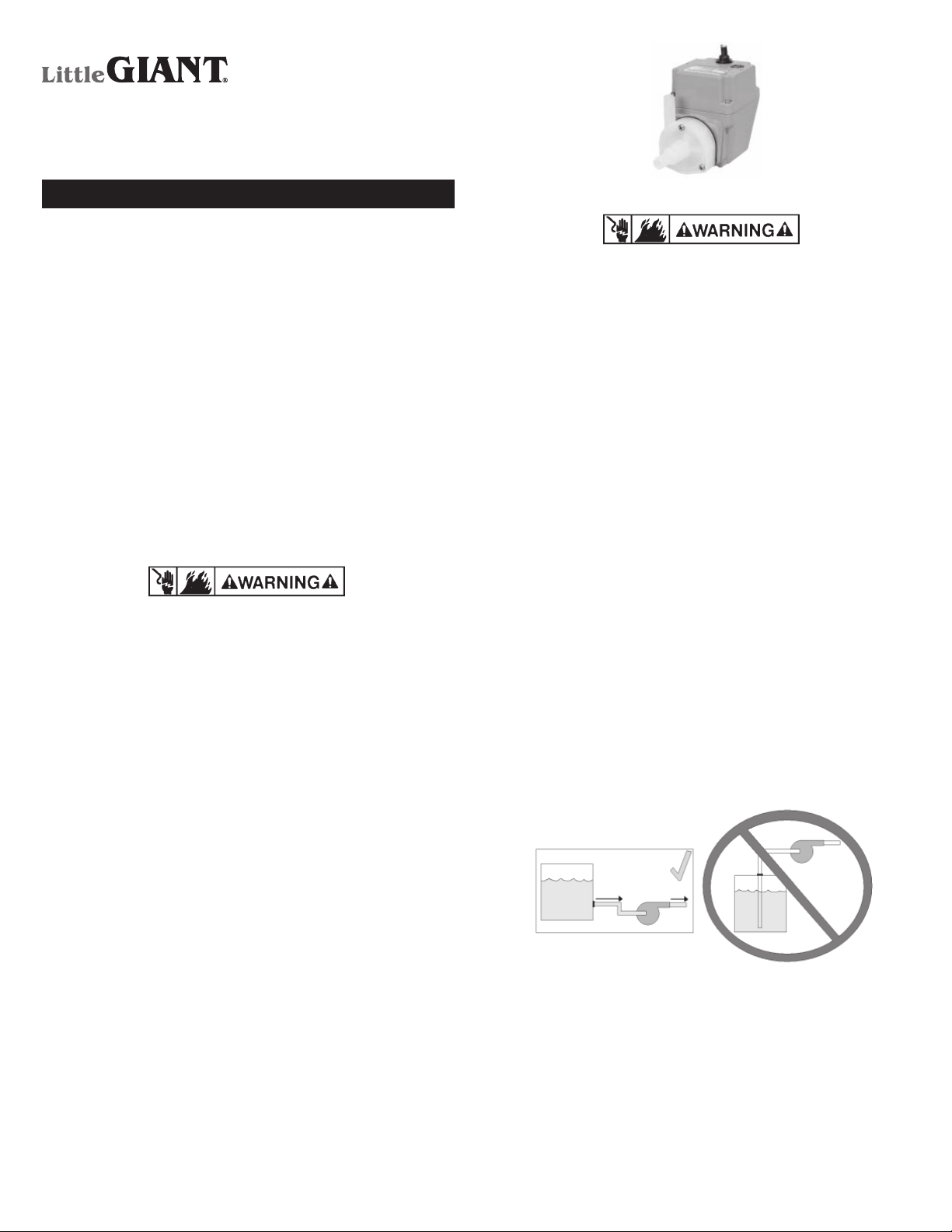

The 2E-NDVR can be used submerged when pumping water or
machine oils and should only be used in-line (not submerged)
when pumping weak acids. This pump is not self priming; it must
be installed so that the pump head (volute) is flooded when the
pump is started. That is, the inlet of the pump must be below the
level of the surface of the liquid being pumped (Figure 1).
SERVICE INSTRUCTIONS
CAUTION: Before servicing the pump, disconnect it from electrical
service by unplugging the power cord, removing the fuse, or
turning off the disconnect box.
1. If your pump fails to operate properly, remove it from water
and try it at another electrical outlet to make sure that power is
getting to unit.
2. If the pump does not start:
a) Disconnect it from electrical service and remove the screen
from the pump.
b) Remove the 3 screws (item #5) in Figure 2. DO NOT remove
any other screws.
c) Remove the volute.
d) Lightly clean any corrosion or debris which may have
clogged the impeller. Use a brush and penetrating oil and
lightly scrape to remove encrusted material.
e) Turn the impeller by hand to make sure that it turns freely.
f) Plug the unit in to see if the impeller will turn.
3. If the pump operates properly, replace the parts in reverse
order and test the unit in water. The unit should operate
properly when connected to correct voltage.
4. If the pump still does not operate properly, call your dealer or
service person.
DO NOT open the sealed portion of the unit or remove screws
other than those indicated above. DO NOT cut the electric cord
off short when removing the unit from the application. Disconnect
the pump from its regular connections. Failure to follow these
guidelines may void the warranty.
2E-NDVR
Franklin Electric Co., Inc.
P. O. Box 12010
Oklahoma City, OK 73157-2010
405.947.2511 • Fax: [phone]
www.LittleGiantPump.com
[email protected]
Figure 1

REPLACEMENT PARTS
ITEM NO. PART NO. DESCRIPTION QTY.
1 102334 Volute, 3/8” NPT 1
2 102437 Impeller assembly 1
3 102507 Backplate 1
4 102601 Gasket, front 1
5 901409 Screw #8-32 x 15/8“ 3
6 941005 Adaptor, 3/8” MNPT x 1/2” O.D. 1
7 102512 Plate, seal 1
8 924005 Seal, O-ring 1
NOTE: Parts list applies to products shown. Other models are available,
however, parts may vary. For other models, contact parts depot, factory or
distributor for replacement parts. Be sure to give the six digit product number
and model number when requesting parts.
Form 993353 - 11/2007
© 2007 Franklin Electric Co., Inc.
Little Giant® is a registered trademark of Franklin Electric Co., Inc.
For parts or repair, please contact . . . . . . . . . . . . . . . . . . . . 1.888.572.9933
For technical assistance, please contact . . . . . . . . . . . . . . . 1.888.956.0000
www.LittleGiantPump.com
[email protected]
intended use, and user assumes all risk of liability whatsoever in
connection therewith. The warranty and remedy described in this
limited warranty is an EXCLUSIVE warranty and remedy and is
IN LIEU OF any other warranty or remedy, expressed or implied,
which other warranties and remedies are hereby expressly
EXCLUDED, including but not limited to any implied warranty of
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Some states do not allow the exclusive or limitation of incidental
or consequential damages, so the above limitation or exclusion
may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights which vary from state to state.
Warranty will be VOID if any of the following conditions are found:
1. Sealed motor housing opened.
2. Product connected to voltage other than indicated on name
plate.
3. Cord cut off to a length less than three feet.
4. Pump allowed to operate dry (fluid supply cut off).
5. Pump used to circulate anything other than fresh water, light
oils, or other mild liquids at approximately room temperature.
6. Product abuse by customer.
The National Electric Code requires a ground fault circuit interrupter
(GFCI) be installed in the branch circuit supplying fountain
equipment rated above 15 volts. Little Giant offers a variety of
GFCI’s and recommends each pump be used with a GFCI.
LITTLE GIANT WARRANTY STATEMENT
Your Little Giant product is guaranteed to be in perfect condition
when it leaves our factory. It is warranted against defective
materials and workmanship for a period of 12 months (90 day
warranty on Models: 1-AA-OM, GKPK-SC, PP-1, PPS-1, PP-12,
PPS-12 , PP-230 and Cooler King) from date of purchase by the
user. No warranty on brush wear in Model 35-OM and impeller
or cam in Models PP-1, PP-12, and PP-230. Any product that
should fail for either of the above two reasons and is still within the
warranty period, will be repaired or replaced if returned prepaid
to our factory. All defective products returned under warranty will
be fully inspected to determine “CAUSE OF FAILURE” before any
warranty is approved. Little Giant will honor the warranty within
the warranty time period specified on satisfactory written proof of
purchase. DISCLAIMER: Any oral statements about the product
made by the seller, the manufacturer, the representatives or any
other parties, do not constitute warranties, shall not be relied upon
by the user, and are not part of the contract for sale. Seller’s and
manufacturer’s only obligation, and buyer’s only remedy, shall
be the replacement and/or repair by the manufacturer of the
product as described above. Neither seller nor the manufacturer
shall be liable for any injury, loss or damage, direct, incidental
or consequential (including, but not limited to, incidental or
consequential damages for lost profits, lost sales, injury to person
or property, or any other incidental or consequential loss), arising
out of the use or the inability to use the product, and the user
agrees that no other remedy shall be available to it. Before using,
the user shall determine the suitability of the product for his
Figure 2
