Operating Manual
VoluDrop Dispenser UV
97650

2
Contents
English....................................................................................................................3 - 16

3
Contents
1 Please observe the following......................................................................................4
1.1 Emphasized Sections.....................................................................................................4
1.2 Items Supplied................................................................................................................4
1.3 For Your Safety..............................................................................................................5
1.4 Field of Application (Intended Usage)............................................................................5
2 Description....................................................................................................................6
2.1 Theory of Operation .......................................................................................................6
2.2 Operating Elements and Connections............................................................................6
3 Technical Data..............................................................................................................7
4 Installation ....................................................................................................................8
4.1 Connecting to the Product Reservoir .............................................................................8
4.2 Connecting to the Controller...........................................................................................8
4.3 Selection of the Required Dispensing Needle..............................................................10
5 Dispensing..................................................................................................................11
5.1 Flushing........................................................................................................................11
5.2 Adjusting the Dispensing Quantity ...............................................................................12
5.3 Shutdown .....................................................................................................................12
5.4 Returning to Operation.................................................................................................12
6 Maintenance................................................................................................................13
7 Troubleshooting.........................................................................................................14
8 Annex ..........................................................................................................................15
8.1 Accessories and Spare Parts.......................................................................................15
8.2 Manufacturer’s Declaration ..........................................................................................16
8.3 Warranty (excluding Germany) ....................................................................................16

4
1 Please observe the following
1.1 Emphasized Sections
Warning! Refers to safety regulations and requires safety measures that protect the operator or
other persons from injury or danger to life.
Caution! Emphasizes what must be done or avoided so that the unit or other property is not
damaged.
Notice Gives recommendations for better handling of the unit during operation or adjustment as
well as for service activities.
The numbers printed in bold in the text refer to the corresponding position numbers in
the illustration on page 7.
•The point emphasizes an instruction
step.
Instruction steps in the illustrations are
indicated with arrows.
When several instruction steps are
indicated in an illustration, the shading of
the arrow has the following meaning:
Black arrow = 1st step
Grey arrow = 2nd step
White arrow = 3rd step
1.2 Items Supplied
– 1 VoluDrop Dispenser 97650
– 1 Needle Variety Kit 97262;
– 1 Product Feedline, length 2 m, including Valve Fitting ¼”
– 1 Instruction Manual 97650
– 1 Assembly Tool for Maintenance
– 1 Air Pressure Hose OD 4 mm calibrated, length 1 m
As a result of technical development, the illustrations and descriptions in this operating
manual can deviate in detail from the actual unit delivered.
+
+

5
1 Please observe the following
1.3 For Your Safety
For safe and successful operation of the unit, read these instructions completely.
If the instructions are not observed, the manufacturer can assume no responsibility.
Be sure to retain this manual for future reference.
When working with pressurized air, wear protective glasses!
Observe general safety regulations and manufacturer’s instructions for the
handling of chemicals.
If chemical products are not properly handled, damage to health can result!
Request a safety data sheet for the LOCTITE®-adhesive used!
1.4 Field of Application (Intended Usage)
The VoluDrop Dispenser is suitable only for the exact drop application of
LOCTITE UV acrylics up to a viscosity of 15,000 mPas.
It is not suitable to dispense UV acrylics with anaerobic component,
cyanoacrylates, abrasive adhesives and anaerobics.
Only drop dispensing is possible.
Up to a viscosity of 5,000 mPas the dispenser is able to spit adhesives.
Spitting is possible form 3 µl up to 15 µl, non-spitting from 0.8 µl up to 3 µl.
Within a distance of 50 mm a feed motion of the workpiece is not necessary. The
dispenser should be mounted with the dispensing needle downwards.
The dispenser is used as a stationary applicator unit. It is mounted directly at the
dispensing position. The free end of the product feedline is connected to the product
reservoir.
For product reservoirs, 0.5 l and 2 l versions are available.
The control of the dispenser is provided by a control unit of the LOCTITE equipment line.

6
2 Description
2.1 Theory of Operation
The LOCTITE adhesive is transported through a product feedline to the dispenser by the
dispensing pressure in the product reservoir. This feedline has a PTFE-liner to prevent
curing of adhesives in this area.
When the ejector piston moves back the dispensing chamber will be filled. The adhesive
is spat under high pressure by very fast movement of the piston. During dispensing a
non-return valve prevents back-flow of adhesive to the reservoir.
The amount of product dispensed is controlled by the volume of the dispensing chamber.
Via a stroke adjustment the amount can be limited between 0.8 µl to 15 µl per shot.
As a matter of principle, spitting is possible with each LOCTITE dispensing needle. An
exact spitting is only possible with the conical needles.
Generally, the size of the needle should be adapted to the required amount.
2.2 Operating Elements and Connections
1 Luer-Lock Adapter to mount a dispensing needle.
2 Integrated Non-Return Valve prevents dripping of adhesive due to the
reservoir pressure.
3 Non-Return Valve to prevent back-flow of adhesive to the reservoir during
dispensing.
4 Feedline Connector to connect a feedline (OD 1/4" or 6 mm) to the reservoir.
5 Dispenser
6 Lock Nut to fix the stroke adjustment knob.
7 Stroke Adjustment Knob to reduce stroke and therewith the dispensed
quantity.
8 Compressed Air Connector, to connect pneumatic tube, OD see section 3.
9 Assembly Tool for maintenance, see section 6
13457
8
6
2
9

7
3 Technical Data
Pneumatic supply min. 6 bar (87 psi)
Quality
If required quality is not achieved, install a
LOCTITE filter regulator
Filtered 10 µm, oil-free, non-condensing
Accessory Order No. 97120
Pneumatic hose size, control air
connection External dia. 4 mm calibrated; Internal dia. 2.5 mm
Dispensing Rate 4 shot/s, depends on viscosity of adhesive,
in continuous mode up to 15 µl.
Product Feedline Standard: ¼” OD, or 6 mm OD
Reservoir Pressure 0.6 bar (8.7 psi) - 0.8 bar (11.6 psi)
Flushing Pressure > 7 bar (100 psi) < 8 bar (116 psi)
Weight 260 g
25.5 mm
1"
52 mm
1.05"
26.5 mm
1.04"
71 mm
2.8"
2 mm
0.08"
~162.5 mm
~6.4"
20 mm
0.78"
42 mm
1.65"
35 mm
1.38"
8.5 mm
0.33"
M4, depth 5 mm (0.2")
Clamping
Area
42.5 mm
16.7 "

8
4 Installation
–Keep the pressure hose as short as possible. Short switch-on and switch-off times for
the dispenser are within reach.
–Keep product feedlines as short as possible. The shorter the feedline the smaller the
specific resistance and the lower the dispensing pressure can be.
–Avoid kinking of feedlines and pressure hoses.
–Typically, the pressure hose and product feedline should not be longer than 2 m.
–Do not use inflexible hoses and feedlines, so that unnecessary loads on the fittings will
be avoided.
–Keep all fittings tight.
–No direct sunlight; no UV light!

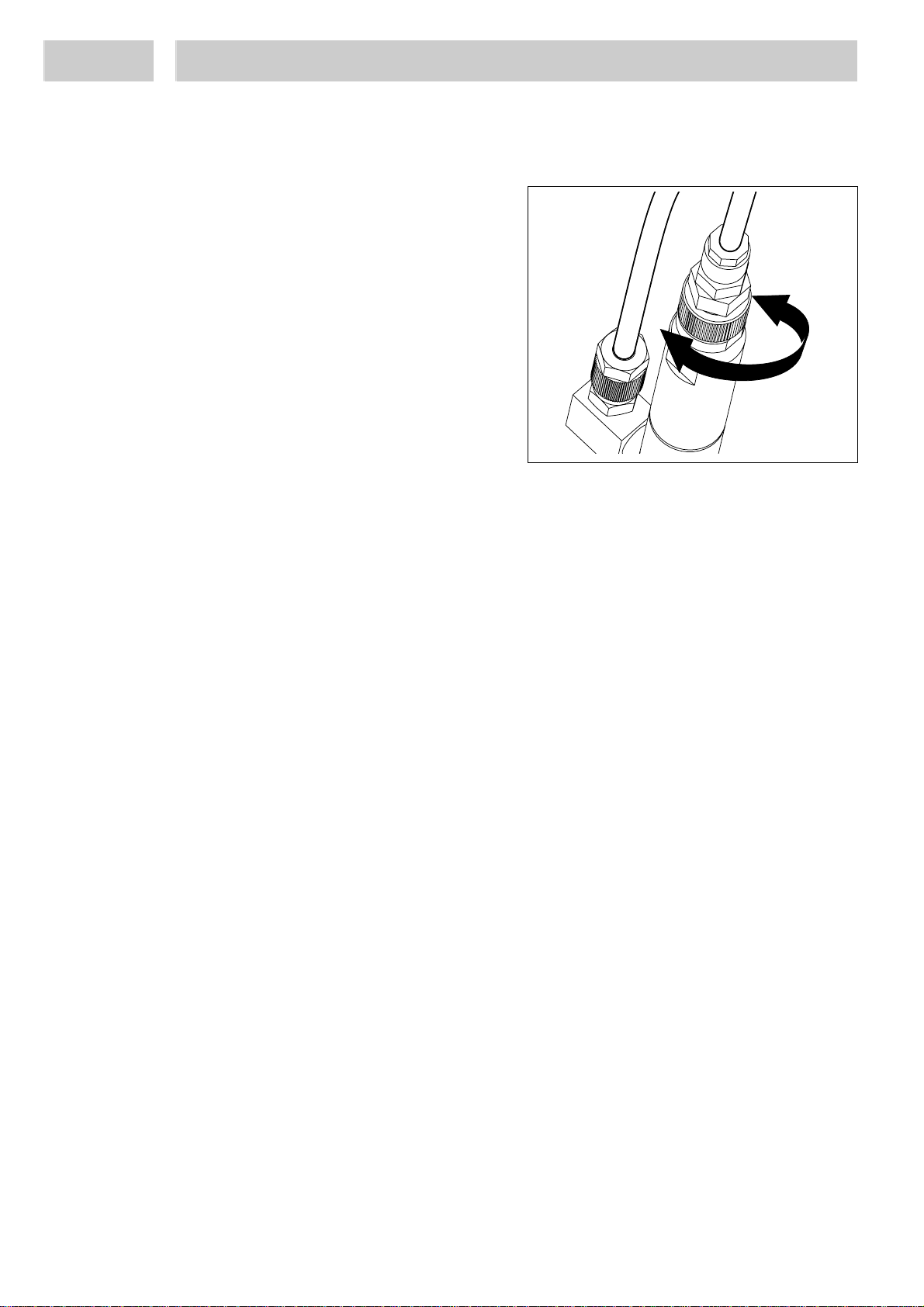

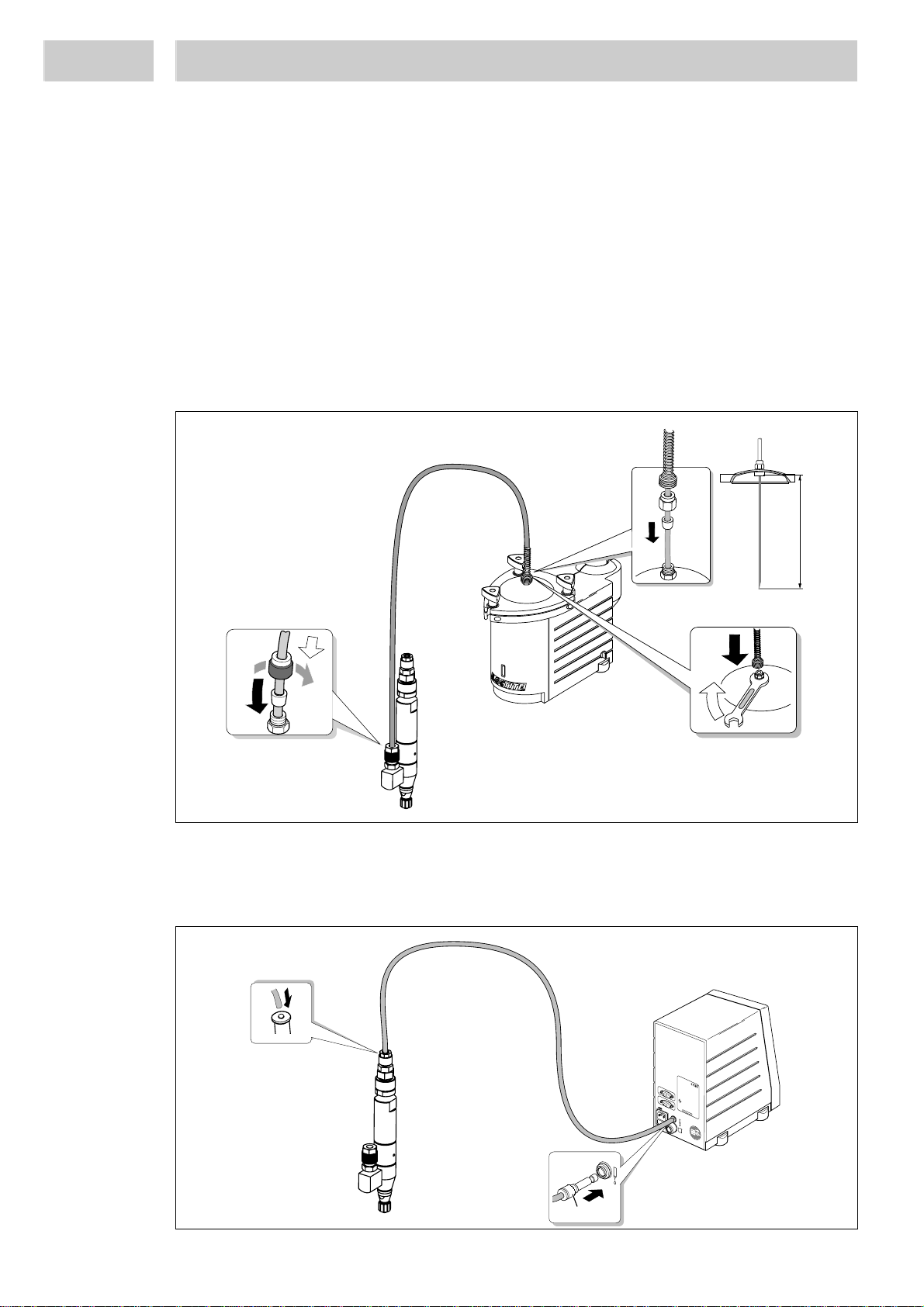

4.1 Connecting to the Product Reservoir
4.2 Connecting to the Controller
97102
R
0.5 ltr.: length 200 mm
2 ltr.: length 275 mm
90–260VAC/47–63 Hz
2 AM
XS1
XS1: Start
XS2: Reservoir
Loctite (Ireland) Ltd.
Madein Germany
cat.no.97102
XS2
8900102

9
4 Installation
97103/97204
97123
97009
AB
85–264VAC/50–440 Hz
2AM
XS1: Start
XS2: Reservoir
XS3: Turntable
XS4: DC Motor
XS5: Monitor A
XS6: Monitor B
XS7: RS232 Master
XS8: RS232 Slave
XS9: PLC Interface
XS10: I/O port
XS11: Servo A/B
XS12: Channel A/B
Loctite (Ireland) Ltd.
MadeinGermany
cat.no.97103
XS1 XS2
XS3
XS4
XS5
XS12 XS11 XS10 XS9
XS6
XS7
XS8
O
I
O
I
Coax
Coax
O
I
90-260VAC
47-63Hz
Phase = 1
XS1Start
XS2Reservoir
XS3FlowMonitor
XS5PLCInterface
XS4RS232
2 AM
cat. no. 97123
Loctite(Ireland)Ltd.
TallaghtBusinessPark
Whitestown
Tallaght,Dublin24,Ireland
MadeinGermany
Powerconsumptionmax.60W
XS6XS7XS8
A
B
Pin6-8bar
0
1
O
I
R
888
CONT
CONT
2
0
30
60 90
120
6
8
10
psi
bar
I
0

10
4 Installation
4.3 Selection of the Required Dispensing Needle
For each product and corresponding application of the
dispenser, various dispensing
needle types and sizes are available:
–Conical dispensing needles of polyethylene for viscous products and large
dispensed quantities.
–Stainless steel needles for thin fluids and UV curing products (especially suitable
for spot applications).
–Flexible dispensing needles of polypropylene (especially for dispensing on
damageable surfaces).
–PTFE-lined stainless steel needles (especially for fast curing products).
As a matter of principle, spitting is possible with each LOCTITE dispensing needle.
An exact spitting is only possible with the conical dispensing needles.
With same dispensing quantity certain correlation determines the selection of the
needle.
The table below shows these correlation.
Dispensing Needle Pressure Loss
along the Needle Risk of Dripping Spitting
Conical
dispensing
needles PE
97221 –97224
small small possible
Stainless Steel
needle SSS
97225 - 97228
Flexible
dispensing
needles PP
97229 –97232 high
high not possible
Important for spitting applications:
- conical needles are recommended
- smallest dispense volume is about 3 µl
- inner needle diameter must be adapted to the product viscosity
