Loepfe YarnMaster PRISMA User manual

Operating instructions
YarnMaster® PRISMA
51318003_en
Original manual
Version 1.0 / 12.2021

Gebrüder Loepfe AG
Kastellstrasse 10
8623 Wetzikon / Switzerland
Phone [phone]
Fax [phone]
e-mail [email protected]
Internet www.loepfe.com
Document title: Operating instructions
Language version: English
Subject to technical changes.
This Instruction Manual is protected by copyright.
Reproduction of this Instruction Manual in whole or in part, dissemination to third parties, and use and/or
disclosure of its contents without the written permission of Loepfe Brothers Ltd. is prohibited, except for
internal purposes.
is a registered trademark of Loepfe Brothers Ltd. in Switzerland and/or in other countries.
© 2021 Loepfe Brothers Ltd., Switzerland
YarnMaster PRISMA www.loepfe.com 3

Table of Contents
Table of Contents
1 General Information 7
1.1 About this document 7
1.1.1 Validity 7
1.1.2 Target group 7
1.1.3 Note 7
1.2 Additional documents 7
2 Safety 8
2.1 General safety information 8
2.2 Intended use 8
2.3 Target group 8
2.3.1 Qualified personnel 8
2.4 Safety regulations and warnings 9
2.4.1 Description of symbol 9
2.5 Safety design 11
2.5.1 Safety features 11
3 Products and functions 12
3.1 Product description 12
3.1.1 Loepfe Central Unit (LZE) 12
3.1.2 Spindle adapter 12
3.1.3 Sensing head 13
3.2 Scope of delivery 14
3.3 Functionality 15
3.3.1 DM clearing 16
3.3.2 LabPack (Option) 17
3.3.3 F clearing 18
3.3.4 OffColor (option) 18
3.3.5 P clearing 18
3.3.6 Data selection filters 19
3.3.7 System monitoring 19
4 Startup 20
4.1 Installation 20
4.2 Startup after an upgrade or software update 21
4.3 Startup after an interruption in operations 21
4.4 Installation overview 22
4.5 LZE-6 connections 23
4.6 Installing the sensing head 24
4.7 Software installation wizard 25
4.7.1 Set basic settings 25
5 Maintenance 32
5.1 Cleaning 32
YarnMaster PRISMA www.loepfe.com 5

Table of Contents
5.1.1 Cleaning agents 32
5.1.2 Cleaning sensors 33
5.2 Replacing sensing head 34
5.3 Replacing spindle adapter 34
6 Troubleshooting 36
6.1 Alarms and messages 36
6.1.1 Alarm levels 36
6.1.2 Messages that require action 36
6.1.3 Messages 38
6.2 Technical Alarm 39
7 Packing, transport and storage 42
7.1 Packing the devices 42
7.2 Transport inspection 42
7.3 Storage of devices 42
8 Technical Data 43
8.1 System 43
8.2 Loepfe Central Unit (LZE) 43
8.3 Spindle adapter 44
8.4 Sensing head 44
9 Dismantling and Removal 45
9.1 Dismantling 45
9.2 Removal 45
9.2.1 Hazardous Waste 45
10 Spare parts and accessories 46
10.1 Non-original spare parts or non-approved accessories 46
10.2 Order Information 46
10.3 Spare parts 47
6 www.loepfe.com YarnMaster PRISMA

General Information
YarnMaster PRISMA www.loepfe.com 7
1 General Information
1.1 About this document
Before using this device, read these instructions completely and always keep them accessible.
If there are operation ambiguities or uncertainties, please consult the supplier!
1.1.1 Validity
This document applies to:
1.1.2 Target group
This document is intended exclusively for the operators. The descriptions require qualified personnel
trained by the manufacturer. The descriptions do not replace product training.
1.1.3 Note
Information symbol
This symbol indicates additional information for the user.
Illustrations in the document
The user interface (screen copies) illustrations in these operating instructions are
examples and make no claim to relevant data.
1.2 Additional documents
The following additional document is available for :
nOperating the YarnMaster PRISMA

Safety
8 www.loepfe.com YarnMaster PRISMA
2 Safety
2.1 General safety information
nRead all safety and installation instructions before installation or maintenance.
nFollow all safety and operating instructions precisely.
nRetain all documentation for later reference.
nTake note of all warnings on the device and in the documentation for the machine in which this device
is installed or repaired.
2.2 Intended use
The yarn clearer system is designed solely for use in yarn monitoring and for clearing undesired yarn faults
on winders from various manufacturers. Any other use, or any use that goes beyond the intended purpose,
is considered improper. Loepfe Brothers Ltd. shall not be liable for any damages that result from improper
use.
No claims of any kind may be made for damages arising from improper use.
2.3 Target group
The yarn clearer system may only be operated by qualified personnel, defined as an operator who meets
the necessary training and knowledge requirements and is authorized to perform the associated task.
2.3.1 Qualified personnel
The device and software manufacturer defines qualified personnel as follows:
n«Foreman»
– The foreman can guide the operator and specify settings and configurations for devices and
software.
n«Electrician»
– The electrician is responsible for installing the devices and connecting them to a network.
Electricians are professionally trained and qualified to work with electrical equipment, and are
familiar with the rules and safety regulations for working with electrical equipment.
n«Service technician»
– Service technicians are responsible for the repair and maintenance of the devices and software.
They are trained and qualified Loepfe employees, or expressly authorized by Loepfe to perform
service operations.
n«Network administrator»
– Network administrators are responsible for connecting the devices and software to a computer
network. They are professionally trained and qualified to work with IT networks, and have
administrator rights for the installed network.

Safety
YarnMaster PRISMA www.loepfe.com 9

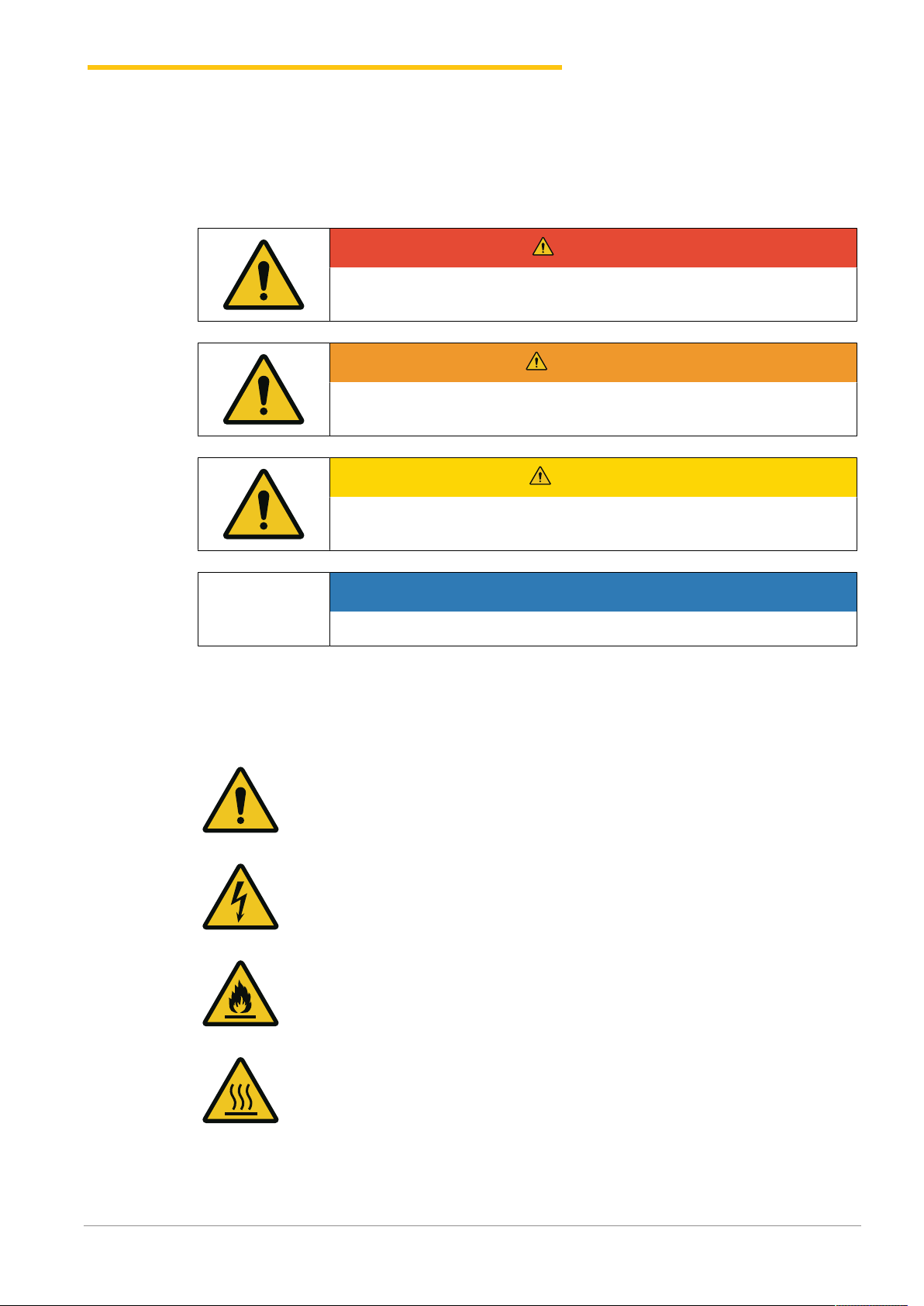

2.4 Safety regulations and warnings
The safety regulations and warnings call attention to residual risks and are identified by symbols and
provided with signal words expressing the extent of the hazard.
DANGER
Indicates an imminently hazardous situation that will lead to death or severe injury.
WARNING
Indicates a potentially hazardous situation that can lead to death or severe injury.
CAUTION
Indicates a potentially hazardous situation that can lead to minor or moderate
injury.
NOTE
Indicates a potentially hazardous situation that can lead to property damage.
2.4.1 Description of symbol
Warning symbols
General warning symbol
Electric voltage warning
Flammable substances warning
Hot surfaces warning

Safety
10 www.loepfe.com YarnMaster PRISMA

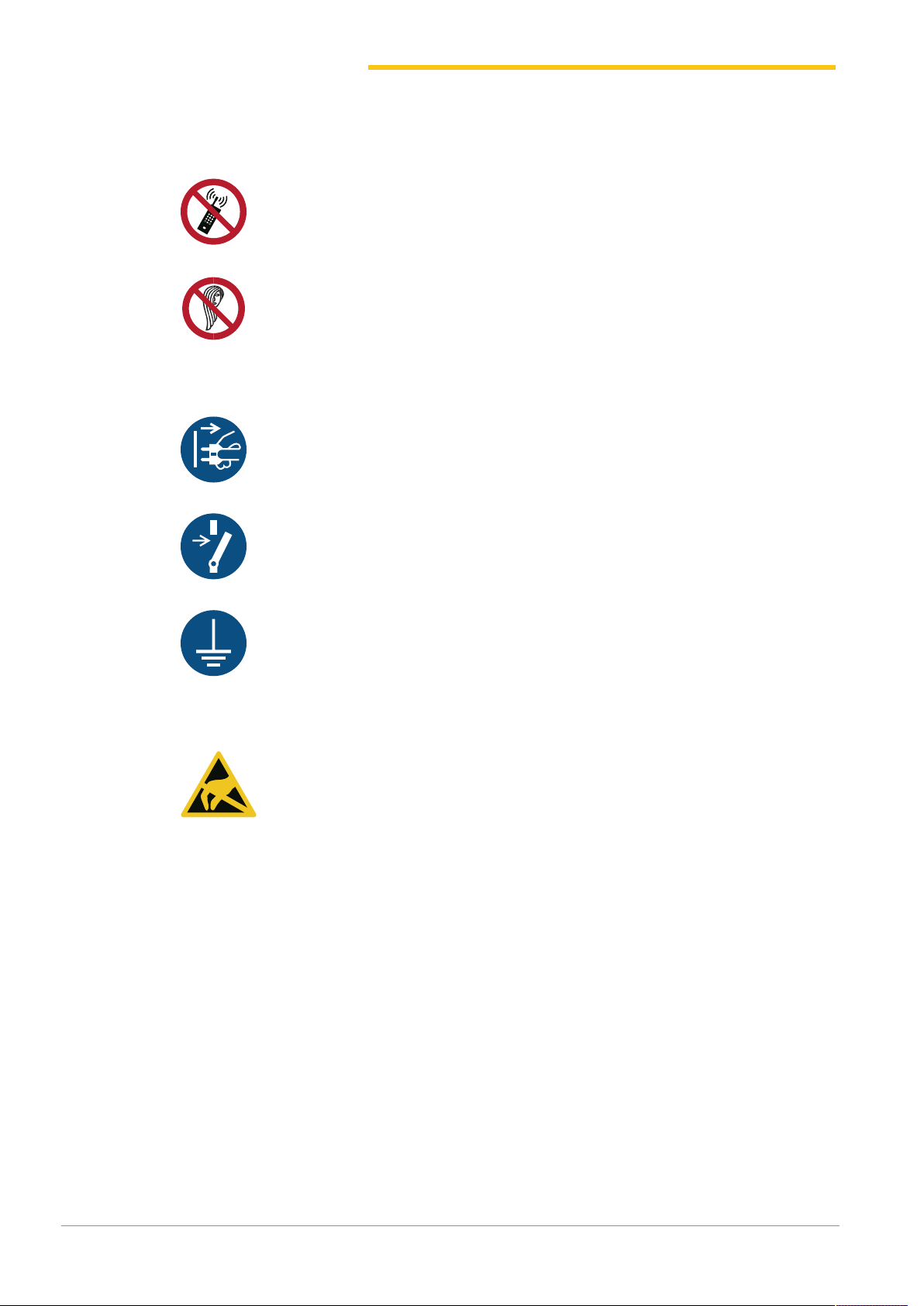

Prohibition symbols
Switched on mobile phones not permitted
Operation with long hair not permitted
Instruction symbols
Disconnect power plug
Disconnect before maintenance or repair (disconnect power supply)
Ground before using
ESD symbol
Electrostatically sensitive components

Safety
YarnMaster PRISMA www.loepfe.com 11
2.5 Safety design
This section describes the yarn clearer system’s safety design to protect against risks to users and
property damage.
WARNING
Danger from incorrect installation and operation
Risk of injury and property damage through custom modifications to the yarn
clearer system.
4Only authorized service technicians may perform installation and operation of
the yarn clearer system or individual system parts, or perform upgrades.
2.5.1 Safety features
is integrated into a winder and has no additional safety features.
For more information about safety features like the emergency off switch, see the
operating instructions for the winder.

Products and functions
12 www.loepfe.com YarnMaster PRISMA
3 Products and functions
3.1 Product description
The yarn clearer system is used to clear yarn faults and foreign matter, and for quality monitoring during
winding. It is installed on winders from various manufacturers. Yarn faults are detected by means of a dual
measurement system. The yarn clearer system can be combined with the MillMaster TOP data evaluation
and administration system.
3.1.1 Loepfe Central Unit (LZE)
LZE-6 central unit
The central unit consists of the following components:
nComputer
nTouchscreen display
nUSB port
nYarn clearer software
Functions:
nCommunication with sensing heads
nYarn clearing control and monitoring
nProcessing, logging and storage of process and quality data
3.1.2 Spindle adapter
The spindle adapter (SA) is the interface between the central unit, the sensing heads and the spindles to
supply power to the sensing head and adapt the connections.

Products and functions
YarnMaster PRISMA www.loepfe.com 13
3.1.3 Sensing head
All processing and evaluation of the yarn signal is carried out in the sensing head (TK). Events outside of
the specified yarn clearer settings are removed with the integrated cutter.
The sensing head consists of the following components:
nSensors to detect yarn diameter, yarn mass and foreign matter
nIntegrated evaluation electronics
nYarn clearer software
1
2
3
5
7 8
4
6
Prisma sensing head
1M sensor, for detecting yarn mass
(capacitive)
5P sensor, for detecting synthetic foreign matter
(triboelectric)
2F sensor, for detecting foreign matter
(optical, RGB)
6Side limiters
3D sensor, for detecting yarn diameter (optical) 7Test button/Reset
nCut —> short press
nReset TK —> long press > 5 s
nReset technical alarm —> long press > 5 s
4Cutter 8Sensing head 7-segment display

Products and functions
14 www.loepfe.com YarnMaster PRISMA
Sensing head variants
TK YM PRISMA DM Detection of diameter/mass
faults
TK YM PRISMA DMF Detection of diameter/mass
faults and foreign matter
TK YM PRISMA DMFP Detection of diameter/mass
faults, foreign matter and syn-
thetic foreign matter
Yarn count range
TK YM PRISMA DM Threshold range (coarse): Nm 4.0 – 10.0/Nec 2.4 – 5.9
Threshold range (fine): Nm 430 – 540/Nec 255 – 320
TK YM PRISMA DMF
TK YM PRISMA DMFP
Threshold range (coarse): Nm 7.0 – 10.0/Nec 4.1 – 5.9
Threshold range (fine): Nm 430 – 540/Nec 255 – 320
3.2 Scope of delivery
The following components are included in the scope of delivery:
nsensing head
nLoepfe Central Unit (LZE)
– with touchscreen or
– without touchscreen
nSpindle adapter
nYarn clearer software
nInstruction manual

Products and functions
YarnMaster PRISMA www.loepfe.com 15
3.3 Functionality
P clearing
nClearing and classification of synthetic foreign
matter (PP/PE/PES)
OffColor (option)
nOffColor
– dark
– light
F clearing
nClearing and classification of foreign matter
– dark
– light
nOrganic Filter
nClearing of foreign matter clusters
– dark
– light
LabPack (Option)
nSFI/D clearing and classification
– SFI/D short
– SFI/D long
nSFI surface index
nImperfections
– IPI and IPI alarm
DM clearing
nNSLT clearing
nNSLT cluster clearing
nYarn count clearing
nShort count clearing
nCore clearing
– OffCentric Core
– Missing core
nSplice clearing and classification
nOffLimit alarm
nClass alarm
nDetection of OffStandard bobbins
PRISMA DM PRISMA DMF PRISMA DMFP

Products and functions
16 www.loepfe.com YarnMaster PRISMA
3.3.1 DM clearing
NSLT
Thick
Diameter threshold value ID 0–15 1.04 – 10
Threshold value for fault length ID 0–15 0 – 128 cm
Thin
Diameter threshold value ID 0–7 0.30 – 0.96
Threshold value for fault length ID 0–7 1.0 – 128 cm
NSLT cluster
Thick
Diameter threshold value ID 0–4 1.04 – 10.0
Threshold value for fault length ID 0–4 0 – 128 cm
Thin
Diameter threshold value ID 0–4 0.3 – 0.96
Threshold value for fault length ID 0–4 1.0 – 128 cm
Yarn count channel
Mass deviation ID 0–4 ±3 – ±50 %
Threshold value for fault length ID 0–4 10 – 50 m
Short count channel
Mass deviation ID 0–4 ±3 – ±50 %
Threshold value for fault length ID 0–4 1 – 10 m
OffLimit alarm
Monitoring of textile and technical events
5 different “alarm” settings can be defined
Class alarm
Monitoring of NSLT classes
“Alarm” setting can be defined for all yarn fault classes

Products and functions
YarnMaster PRISMA www.loepfe.com 17
Trend
Graph representation of the trend curve over a period of 72 hours
5 different settings can be defined for group or spindle
3.3.2 LabPack (Option)
SFI/D clearing
SFI/D short Intensity
Threshold value for fault
length
±5 – ±100 %
1 – 10 m
SFI/D long Intensity
Threshold value for fault
length
±5 – ±100 %
10 – 50 m
Imperfections (IPI)
Count of the most frequent yarn faults by diameter threshold value per 1000 m
Neps Diameter threshold value >1.80
Thick Diameter threshold value >1.30 – (<1.80)
Thin Diameter threshold value <0.8
Count of the most frequent yarn faults by diameter threshold value per m
Small Positive deviation
diameter threshold value
1.20 – 1.30
Negative deviation
diameter threshold value
0.83 – 0.8
Count of the most frequent yarn faults by length threshold values per 1000 m
4 yarn fault classes in the range of 2 – 70 cm
Positive and negative deviation with di-
ameter threshold values
>1.30 or < 0.80
IPI alarm
Monitoring of IPI diameter and IPI length
8 different “alarm” settings can be defined for group or spindle

Products and functions
18 www.loepfe.com YarnMaster PRISMA
3.3.3 F clearing
F clearing
Detection of 70 foreign matter classes
each
ndark
nlight
Intensity 1 – 100
-1 – (-100)
Organic Filter
ndark
nlight
Intensity 1 – 100
-1 – (-100)
Threshold value for fault length 0 – 12.8 cm
F clusters
Detection of 70 foreign matter classes
each
ndark
nlight
Threshold value for fault length 1 – 80 m
Maximum foreign matter count, based on
the monitoring length specified in the set-
tings
1 – 9999
3.3.4 OffColor (option)
OffColor
Limit
ndark
nlight
Intensity 0.1 – 10
−1 – (−10)
Threshold value for fault length 0.2 – 50 m
3.3.5 P clearing
P matrix
Intensity of charge P-ID 0–7 0 – 100
Threshold value for fault length 0 – 8.0 cm

Products and functions
YarnMaster PRISMA www.loepfe.com 19
3.3.6 Data selection filters
Data views of Cut/quality data
Production First for the first 100/1000 km
Last for the last 100/1000 km
Cone for the wound length;
data is deleted when cone is changed!
Current shift absolute, per 100 km or per kg
Last shift for the last 5 shifts per 100 km or per kg
3.3.7 System monitoring
Function alarm
Automatic alarm if central unit malfunctions
Automatic alarm if spindle adapter and sensing head are defective or malfunction

Startup
20 www.loepfe.com YarnMaster PRISMA
4 Startup
4.1 Installation
DANGER
Electric voltage hazard
Contact with live parts poses an imminent risk of fatal injury.
4All electrical work on a yarn clearer system must be performed exclusively by
qualified personnel specifically authorized to do so.
4Work on electrical components may only be performed when the system is
switched off and disconnected from power.
DANGER
Danger due to electric shock
Touching live components and electrical connections can lead to serious physical
injury or death.
4Disconnect the unit from the power supply before performing maintenance or
repair work.
4Disconnect the device from the power supply before removing the covers or
opening the side panels.
WARNING
Danger from incorrect installation and operation
Risk of injury and property damage through custom modifications to the yarn
clearer system.
4Only authorized service technicians may perform installation and operation of
the yarn clearer system or individual system parts, or perform upgrades.
WARNING
Working on running machines poses a risk of severe physical
injury.
4Switch off machines and wait until they have come to a complete stop.
4Work on electrical components may only be performed when the system is
switched off and disconnected from power.
4Before installing or performing maintenance on machines, disconnect the
compressed air supply and release the pressure from the machines’
compressed air system.
4Before operating, ensure that all appropriate covers are in place.
