Logic B3G User manual

PAGES 2-25 PÁGINAS 26-51

LOGIC B3G 2
!
Content
Welcome
.………………………………………………………………………………..……………………….…
3
General Information
……………………………………………………..………………………….…
3
Safety Information
……………………………………………………..…………………………….…
3
Warnings and Precautions
…………………………………………….……………………..
4
Getting to Know Your LOGIC B3G
.……………………...…..…………………………………..
6
Icon Bar
………………………………………………………………………………..…..………………………..
8
Basic Functions
……………………………………………………………………………………………..
8
Using the Modem
…………………………………………………………………………………………
9
Messages
…………………………...…………........................................................................
17
Games
………………………………..…………........................................................................
18
Claro
.………………………………………………………………….……………………………….…………….
18
Contacts
…………………………..……………………………………………………………….…………….…
18
Portal Mobil
……………….……………………………………..…………………………………………….…
18
Multimedia
……………....……………………………………………………………………………………...
18
Ideas
……………………..……………………..…….......................................................................
19
Tools
..…………………………………….………………………………………………………………………………
19
Phone Settings
…………..........................................................................................
21
Troubleshooting
…………….....................................................................................
22

LOGIC B3G 3
!
Welcome
Thank you for purchasing this innovative Logic Device. We invite
you to read the instructions contained in this user manual so you
can configure and utilize all the functions your new Device has to
offer. For additional information visit us at: logicmobility.com.
General Information
The specifications in this manual are subject to change without
prior notice. Logic, Inc. reserves the final right to interpret the
performance of this mobile device. While the utmost care was
taken and the latest information compiled in the production of
this manual neither Logic, nor any other affiliated company,
assumes responsibility for any mistakes or errors that may be
contained in this document.
Screen captures, images, diagrams or representations
presented in this manual are for reference purposes. The actual
screens or functions may vary due to different software versions
or other factors. Please refer to your Device for the correct
details.
Logic and the Logic logo are registered trademarks of Logic, Inc.
Other trademarks are the property of their respective owners.
Safety Information
If your Device is lost or stolen, notify your carrier so that your SIM
card can be disabled (must be done by network operator). This
can avoid economic loss due to unauthorized use.
Please take the following precautions to avoid unauthorized use
of your Device:
· Set PIN code for SIM card
· Set Device password

LOGIC B3G 4
!
Warnings and Precautions
Safety warning
SAFE OPERATION IN A VEHICLE
Do not use a hand-held Device while driving. Always use a hands-
free kit to make/take calls when driving. In some states and
countries, making or receiving calls while driving is illegal!
SWITCH OFF WHEN ON AN AIRCRAFT
Wireless devices can cause interference in an aircraft. Using a
Device in flight is illegal and risky. Please make sure your Device
is turned off while in flight.
SWITCH OFF BEFORE ENTERING POSTED FACILITIES
Strictly observe the relevant laws, codes, and regulations
regarding the use of Devices in areas where posted notices
require you to do so. Turn off your Device before entering any
area with a potentially explosive atmosphere, such as a gas
station, oil tank, chemical plant or location where a blasting
process is under way.
OBSERVE ALL SPECIAL REGULATIONS
Follow any special regulations that are enforced in locations such
as hospitals. Always switch off your Device whenever Device use
is forbidden or when it may cause interference or danger. Use
caution when using your Device near medical devices, such as
pacemakers, hearing aids and other electronic medical devices,
as it may cause interference and not allow these devices to
perform properly.
INTERFERENCE
The conversation quality of any Device may be affected by radio
interference. An antenna is built-in to the Device and is located
below the microphone. Do not touch the antenna area during a
conversation because this will cause the conversation quality to
deteriorate.

LOGIC B3G 5
!
QUALIFIED SERVICE
Only qualified personnel may install or repair the Device. Installing
or repairing the Device yourself may cause great harm and it
violates the product warranty.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries.
USE CORRECTLY
This device is designed to be used in a normal and proper
manner.
EMERGENCY CALLS
Ensure the Device is switched on and in service, enter the
emergency number, e.g. 112, then press the Dial key. Give your
location and state your situation briefly. Do not end the call until
told to do so.
Note: Just like all other Devices, this Device may not necessarily support
all the features described in this manual due to network or radio
transmission issues. Some networks may not support the emergency call
service. Therefore, do not rely solely on this Device for critical
communications such as first aid. Please consult your local network
operator.
Precautions
This Device is an advanced digital device. Please exercise special
care when using it. The following suggestions will help you use your
Device properly and obtain the maximum benefit from it:
!Keep the Device and all its accessories out of the reach of
children.
!Keep the Device dry. Keep away from rain, moisture, liquid or
other substances that may corrode the electronic circuits.
!Do not use or store the Device in dusty environments to avoid
damaging its mechanical parts.

LOGIC B3G 6
!
Excessive use of headphones at high volume may cause
permanent hearing damage.
Do not store the Device under high-temperatures. High
temperatures will shorten the life of the electronic circuits;
damage the battery and some plastic parts.
Do not store the Device under extremely low temperatures.
Condensation will form inside and damage the electronic circuits
when the Device is moved to a higher temperature.
Do not throw, knock or shock the Device, as that will damage
or destroy the internal circuits and high-precision components.
Getting to Know Your LOGIC B3G

LOGIC B3G 7
!
Name
Description
(1) Multimedia keys
Previous, Play/Pause, Stop and
Next.
(2) Left soft key
Execute functions that the left-
down corner indicator shows.
Press left soft key to unlock
keypad.
(3) Right soft key
Execute function that the right-
down corner indicator shows.
(4) Dial key
To dial or receive an incoming call.
To check All calls in standby mode.
(5) End/Power key
Long press: Power on/off the
phone.
Short press: Return to standby
mode directly.
(6) OK key
Press the key for confirmation.
(7) Navigation key
Enter shortcut functions in
standby mode.
In menu function, press the key to
navigate to desired option.
(8) Keypad
To input letters, symbols, or
numbers.
In standby mode, long press 5 key
to turn on/off torch light.
(9) * key
In standby mode, short press * key
to input symbol *
(10) # key
In standby mode, long press # key
to activate silent mode.
(11)
Receiver/Speaker Receiver / Speaker
(12) USB/Charger
connector
Plug the data cable into the
charger connector.
(13) Earphone
Earphone jack

LOGIC B3G 8
(14) Counterfeit
detector Counterfeit detector system.
(15) Camera
Take photos or videos
(15) Flash
Rear camera’s flash
Note:
-Long press means pressing the key for more than 2 seconds.
-Device doesn’t have vibrator
Icon Bar
Name
Description
Indicates signal strength
New messages
Indicates battery power level
Indicates Silent mode
Indicates Airplane mode
Indicates you have missed calls
Indicates Bluetooth is activated
Indicates the alarm clock is set
Indicates Call-Forwarding is activated
Indicates the keypad is locked

LOGIC B3G 9
!
Basic Functions
Powering the Phone On/Off
To turn on the phone, press and hold the End/Power key until the
screen turns on. If the phone is on, press and hold the End/Power
key until the phone turns off.
Making Calls
With the phone in standby mode, press the number keys to input
the desired area code and telephone number you wish to dial.
Press the Dial key to initiate the call.Press the End key to end the
call.
Answering Incoming Calls
Press the Dial key or the Left soft key to answer an incoming call.
Press the End key to end the current conversation.
To reject an incoming call, press the End key or the Right soft key.
U
sing the Modem
System Requirements
Your Logic B3G has a built-in modem that is compatible with most
Windows PC operating system: Windows 7, Windows 8, Windows
10. To use the modem a data plan is required. You can obtain the
necessary details from your local carrier.
Installation
1. Driver SC7701Driver
a. Download the driver file SC7701Driver from the link:
www.logicmobility.com/b3g-feature-phone/

LOGIC B3G 10
!
b. Unzip the file SC7701Driver.
c. Choose the folder that corresponds to your operating
system (32bit / x86 or 64bit / amd64) and run the file
"DPInst.exe"

LOGIC B3G 11
!
d. When the installation wizard opens, select the following:
e. Install driver software anyway.

LOGIC B3G 12
!
f. The wizard will install the drivers and display the following
menu:
Should any problems arise, disable the mandatory use of
signed drivers and try again (reference link:
https://www.youtube.com/watch?v=3KKgW-tDKF8).
2. Create new connection
a. Connect your phone to a PC via the USB cable, select
"Modem USB" from your phone.

LOGIC B3G 13
!

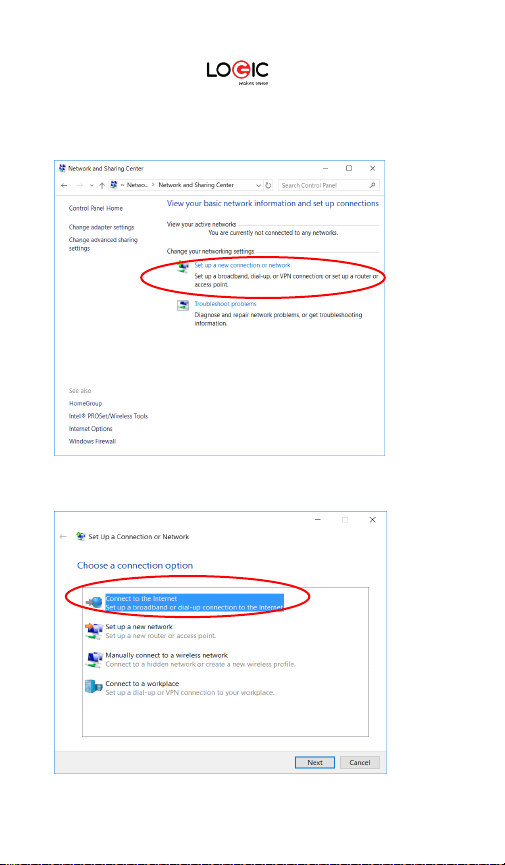

b. On your computer open: Control Panel> All Control Panel
Items> Network and Sharing. The the following screen (Select
set up a new connection or network) will appear:
c. Select Dialup (Connect to the Internet)

LOGIC B3G 14
!
d. Use *99 # as the phone number provided by the ISP.

LOGIC B3G 15
!

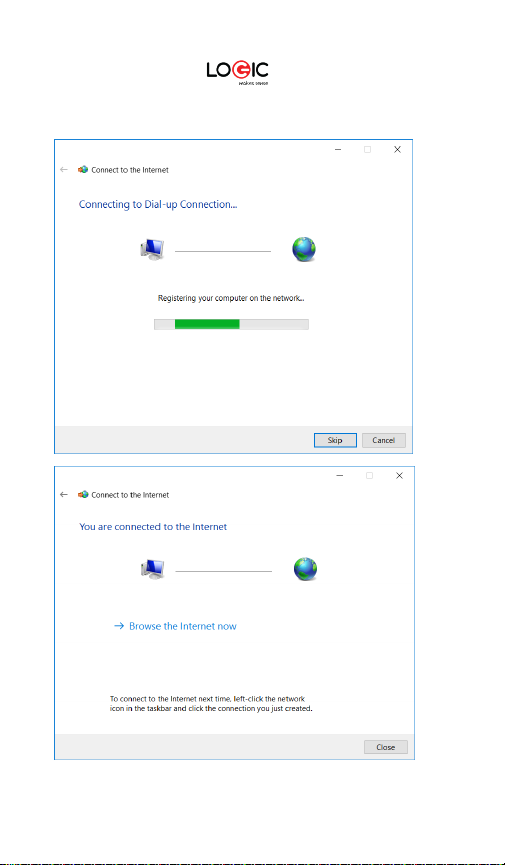

e. Select the Connect option and the following connecting
screen will be displayed:

LOGIC B3G 16
!

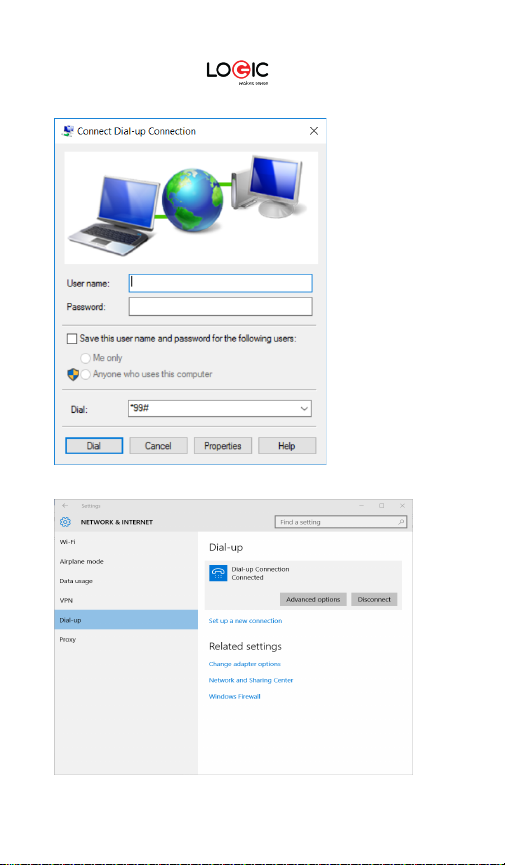

3. Connect or Disconnect
a. From the Control Panel you can select Network and Internet
and go to the Network Connections screen to view the
Connect/.Disconnect options:
b. To connect, choose: Dial-up> Connect> Dial

LOGIC B3G 17
!
c. To disconnect, choose Disconnect the following options

LOGIC B3G 18
Messages
From the main menu select “Messages” to access the messaging
function.
Write message
Through this function, you can create a new text message. You
can type a message, and you're also able to insert a pre-defined
message from “Templates”.
Inbox
This folder displays all your received messages.
Outbox
Messages that failed to send are stored in this folder.
Drafts
This folder contains messages you have started to write but
haven’t sent.
Sent box
This folder contains messages that were sent successfully.
M
M a a i i l l
The device has synchronization and default settings only for iClaro
email accounts.
Games
Games comes preloaded on the phone.
Claro
The STK service is the tool kit for managing the SIM card. This phone supports
the service functions but the specific functions available are dependent on
the SIM card and network. The Service menu will be automatically added to
the phone when supported by the network and SIM card.

LOGIC B3G 19
!
Contacts
The mobile phone can store contacts (names and phone
numbers) on the phone or the SIM card memory.
Portal Móvil
This function enables you to surf the Internet using the mobile
phone.
Note: Consult your local network operator for related fees and settings.
Multimedia
Camera
This function enables you to take pictures. You can press OK key
to capture video clips; left soft key to access Options; right soft
key to exit capture interface.
Audio
You can use this function to play audio files. By pressing the
navigation key you can control playback: play/pause OK key),
last song/next song press the navigation key left or right), fast
forward (press and hold navigation key right) and rewind (press
and hold navigation key left). From the audio player interface, you
can press the navigation key up or down to adjust the volume.
V
ideo
This function enables you to play video files. By pressing the
navigation key you can control the playback of videos:
play/pause/OK key, last video/next video (press the navigation
key left or right , fast forward (press and hold navigation key
right) and rewind (press and hold navigation key left). From the
video player interface, you can press the navigation key up or
down to adjust the volume, and the number 2 key to switch to full
screen playback.

LOGIC B3G 20
!
FM Radio
This is a traditional FM radio with automatic tuning and saved
stations. From the FM radio interface, you can press the
navigation key left or right to tune stations manually; you can
press up or down to adjust the volume. Press the right soft key to
enter Options.
You can view pictures or images through this function.
Ideas
This feature allows you to access the Claro website quickly.
Tools
Call logs
Missed calls
You can view a list of the latest missed calls.
Note: When the mobile phone indicates there are missed calls, you can
select Details to enter the missed calls list. Navigate to a missed call and
press the Dial key to dial that number.
Dialed calls
You can view the latest dialed calls. Choose Dialed calls and then
select a number to call, delete or delete all (or send an SMS) etc.
Received calls
You can view the latest received calls. Choose Received calls and
select a number to call, delete or delete all (or send an SMS) etc.
