PRODUCT CARE
Your new Loll furniture is a no maintenance product. You’ll never need to paint or stain it and it can be
left outside all year regardless of the season. It will not rot, even if left standing in water. Nonetheless,
we’re pretty sure your Loll furniture will get a lot of use and will at some point need cleaning. We
recommend a garden hose and incorporating a soft bristle brush. Adding a tablespoon or two of your
favorite eco-friendly soap to the wash will get everything squeaky clean. Mineral deposits left over
from hard water can be removed with a solution of vinegar and water. Loll offers a cleaning kit that has
everything you need for great results. Also see our cleaning video at lolldesigns.com/videos.
5 YR WARRANTY
Loll Designs strives to build long-term relationships based on confidence and trust with our customers.
We sit beside, on top, and beneath the quality of our fine furniture and will make things right if you
are not completely satisfied with your purchase. Loll Designs hereby guarantees that the piece will be
of good quality and workmanship, free from faults and defects. Loll warrants that all components will
not fail, under normal use, for five years from the year mark on the piece or the date of purchase. *For
commercial orders the warranty is three years.
SHARE YOUR LOLL
ASSEMBLY INSTRUCTIONS & PRODUCT INFO:
We want you to love your Loll.
Reach out if you need
lollygagging assistance.
877-740-3387
[email protected]
5912 Waseca Street | Duluth, Minnesota 55807
DAMAGED PRODUCT
Sometimes accidents occur. Please inspect your Loll furniture when you receive it to make sure that
it has not been damaged during shipping. If damage has occurred please take digital pictures of the
damaged furniture and the box it was shipped in, and email them to [email protected] or call
Customer Service using our toll free number: 877.740.3387, ext. 1. The damage will be assessed and
you will be contacted with a solution to the problem. It may be helpful to save all of your packaging
material in case a return is necessary.
ASSEMBLY TIPS
*Please read before beginning assembly!
To avoid damaging furniture perform the assembly of your Loll furniture on a clean
soft surface like a blanket, carpet, or the flattened cardboard box the furniture
was shipped in. Components should not be unnecessarily forced together! If
it seems parts aren’t fitting together you likely have something wrong and you
should reread the instructions to ensure you are aligning the proper components.
If your piece of furniture requires “Blocks” for assembly one side may have
protective film on it. This surface is hidden after assembly so the film can remain
on the block or it can be removed. Use a Cordless Screw Gun if you have one
and know how to use it. Set the clutch setting at medium torque. We do not
recommend using an electric drill with a cord and without a clutch to install bolts
in inserts as you can easily overtighten and damage the product. All bolts come
standard with a thread coating to reduce bolts loosening after assembly while
still allowing removal and reuse of the bolt. Start all bolts by hand, with the Allen
Key, or the Loll Tool and tighten firmly until parts are drawn tight together and
you can’t muscle the bolt any tighter. It’s virtually impossible to over tighten by
hand. Watch the assembly videos at www.lolldesigns.com/videos for even more
information and visual aids. If you have more questions please contact your Loll
Sales Associate or Customer Service for support at 877.740.3387. A
Pro Tool Kit
can also be purchased from Loll for multi piece assembly jobs.
** Please Recycle the BOX and paper packaging. The green plastic stretch
wrap we use is compostable.
LOLL TOOL
Locate the box marked
“Tool Included”
before beginning assembly.

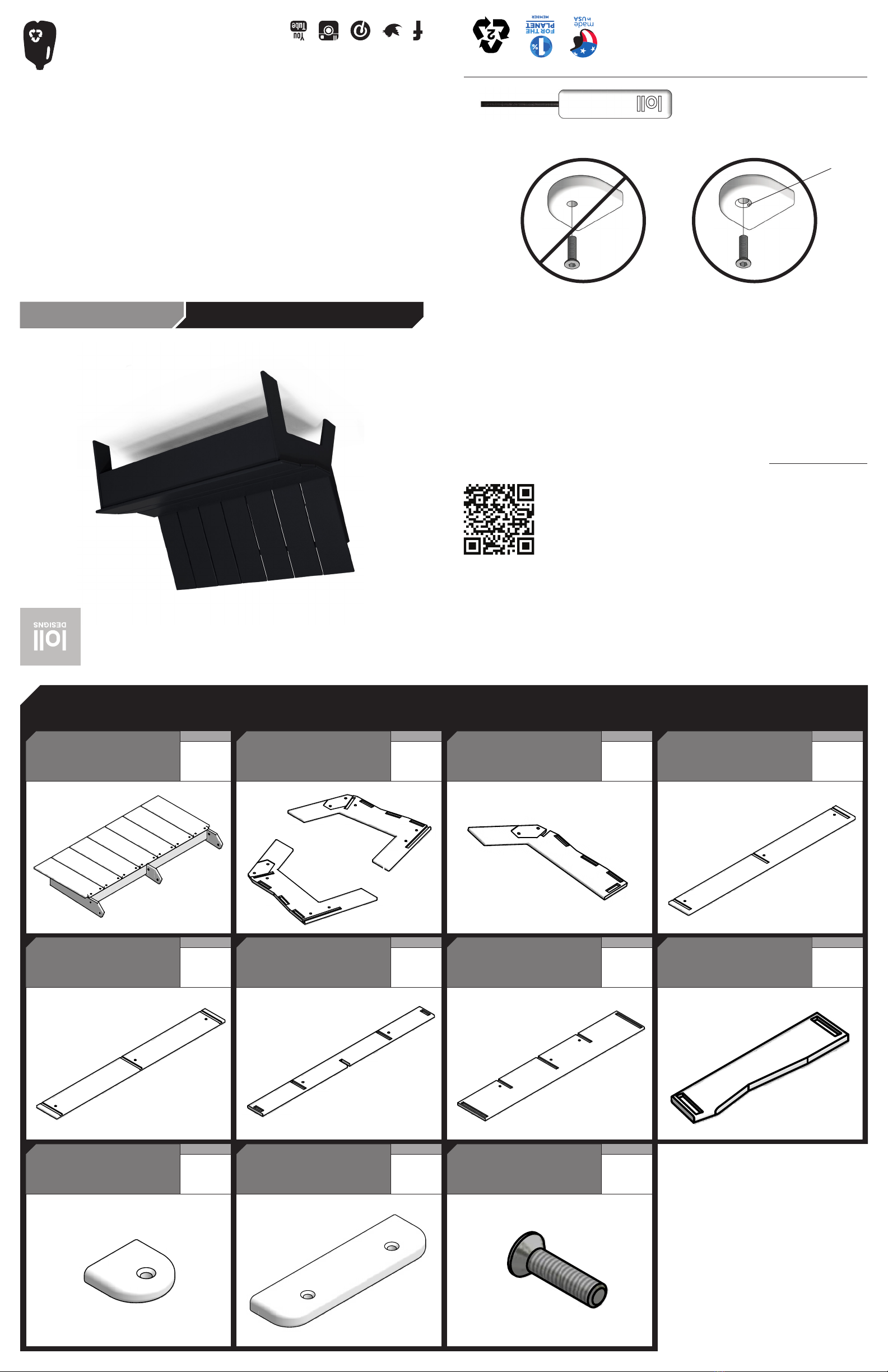

BLOCK & BOLT INSTALLATION
Insert bolts through countersunk hole side of blocks as shown below.
CORRECT INCORRECT
Countersunk
Hole
Scan for assembly
tips and videos
lolldesigns.com
877.740.3387
Loll Designs inspires people to appreciate the outdoors.
2
COUNT
SEAT SLAT 2
1
COUNT
BACK ASSEMBLY
16
COUNT
BLOCK G
INCLUDED PARTS
2 1
1
COUNT
1
COUNT
COUNT COUNT
1
COUNT
BACK PLATE
LEFT AND RIGHT LEG
FACE PLATE
CENTER LEG
SEAT BRACE
SEAT SLAT 1
BLOCK B
Back
Left Leg
Right Leg
3rd Leg
Seat Slat 1
Seat Slat 2 (X2)
Back Plate
Face Plate
Seat Brace (X2)
Small Block (X2)
Double Block (X2)
Single Block (X14)
1" Bolt (X26)
Back
Left Leg
Right Leg
3rd Leg
Seat Slat 1
Seat Slat 2 (X2)
Back Plate
Face Plate
Seat Brace (X2)
Small Block (X2)
Double Block (X2)
Single Block (X14)
1" Bolt (X26)
Back
Left Leg
Right Leg
3rd Leg
Seat Slat 1
Seat Slat 2 (X2)
Back Plate
Face Plate
Seat Brace (X2)
Small Block (X2)
Double Block (X2)
Single Block (X14)
1" Bolt (X26)
Back
Left Leg
Right Leg
3rd Leg
Seat Slat 1
Seat Slat 2 (X2)
Back Plate
Face Plate
Seat Brace (X2)
Small Block (X2)
Double Block (X2)
Single Block (X14)
1" Bolt (X26)
Back
Left Leg
Right Leg
3rd Leg
Seat Slat 1
Seat Slat 2 (X2)
Back Plate
Face Plate
Seat Brace (X2)
Small Block (X2)
Double Block (X2)
Single Block (X14)
1" Bolt (X26)
Back
Left Leg
Right Leg
3rd Leg
Seat Slat 1
Seat Slat 2 (X2)
Back Plate
Face Plate
Seat Brace (X2)
Small Block (X2)
Double Block (X2)
Single Block (X14)
1" Bolt (X26)
Back
Left Leg
Right Leg
3rd Leg
Seat Slat 1
Seat Slat 2 (X2)
Back Plate
Face Plate
Seat Brace (X2)
Small Block (X2)
Double Block (X2)
Single Block (X14)
1" Bolt (X26)
Back
Left Leg
Righ
t Leg
3rd Leg
Seat Slat 1
Seat Slat 2 (X2)
Back Plate
Face Plate
Seat Brace (X2)
Small Block (X2)
Double Block (X2)
Single Block (X14)
1" Bolt (X26)
2
COUNT
2
COUNT
Left
Right
Back
Left Leg
Right Leg
3rd Leg
Seat Slat 1
Seat Slat 2 (X2)
Back Plate
Face Plate
Seat Brace (X2)
Small Block (X2)
Double Block (X2)
Single Block (X14)
1" Bolt (X26)
Lock Block A
Lock Block B
Lock Block D
Lock Block G
7/8" Blot
1" Bolt
1 1/4" Bolt
1˝ BOLT 29
COUNT
Lock Block A
Lock Block B
Lock Block D
Lock Block G
7/8" Blot
1" Bolt
1 1/4" Bolt
Lock Block A
Lock Block B
Lock Block D
Lock Block G
7/8" Blot
1" Bolt
1 1/4" Bolt
PICKET BENCH

ASSEMBLY INSTRUCTIONS
ATTACH 3RD LEG AND SEAT BRACES
ATTACH RIGHT & LEFT LEGS
ATTACH SEAT SLATS B
ATTACH BACK PLATE
ATTACH SEAT SLAT A
ATTACH BACK
1
3
5
2
4
6
*Please read Assembly Tips before beginning assembly.
A. Fit the short edge of the Center Leg with the Face Plate center groove track cut
out. Place a Block G into the Center Leg cut out. Insert a bolt through the block into
the Face Plate and nger tighten.
B. Repeat step A to attach the Seat Braces on both sides of the Center Leg.
Fit the Left and Right Legs with the ends of the Back and Face Plates. Place Blocks
G into the Back Plate cut outs and Blocks B into the Face Plate cut outs. Insert bolts
through the blocks into the corresponding plate and nger tighten.
Fit Seat Slat 2 cut outs with the assembled Legs and align over the middle cut outs
in the legs. Place Blocks G into the Leg cut outs. Fit the second Seat Slat 2 cut outs
with the assembled Legs and align over the rear cut outs in the legs. Place Blocks G
into the Leg cut outs. Insert bolts through all the blocks into the seat slats and nger
tighten.
Slide the Back Plate over the Center Leg notched cut out and t the Seat Brace
ends into the Back Plate cut outs. Place Blocks G into the Seat Bracke cut outs and
insert bolts through the blocks into the Back Plate and nger tighten.
Fit Seat Slat 1 cut outs with the assembled Legs on Face Plate end. Place Blocks G
into the Left, Right, and Center Leg cut outs. Insert bolts through the blocks into the
seat slat and nger tighten.
Align Back with seat assembly by tting Back ends between the legs tting into
notched cut outs of the legs. Align the holes in the back with threaded holes in the
Legs and insert bolts. Finger tighten.
*Using provided wrench securely tighten all bolts.
* It is very important that you nger tighten all bolts into inserts to ensure that you do not cross-thread bolts and inserts before tightening. It
will also be easier if you wait to tighten bolts until you have all bolts installed and the piece completely assembled. This will allow for more
movement of individual pieces and help in aligning holes with inserts. Use the Allen Tool provided to nish tighten bolt until snug.
Small Block
Small Block
Small Block
Small Block
Small Block
Small Block
Small Block
Small Block
Small Block
Small Block
Small Block
Small Block
Small Block
Small Block
A.
B.
BLOCK G
BLOCK G
