Longshine GFT-150 Series User manual

Flexible / Classy / High Performance

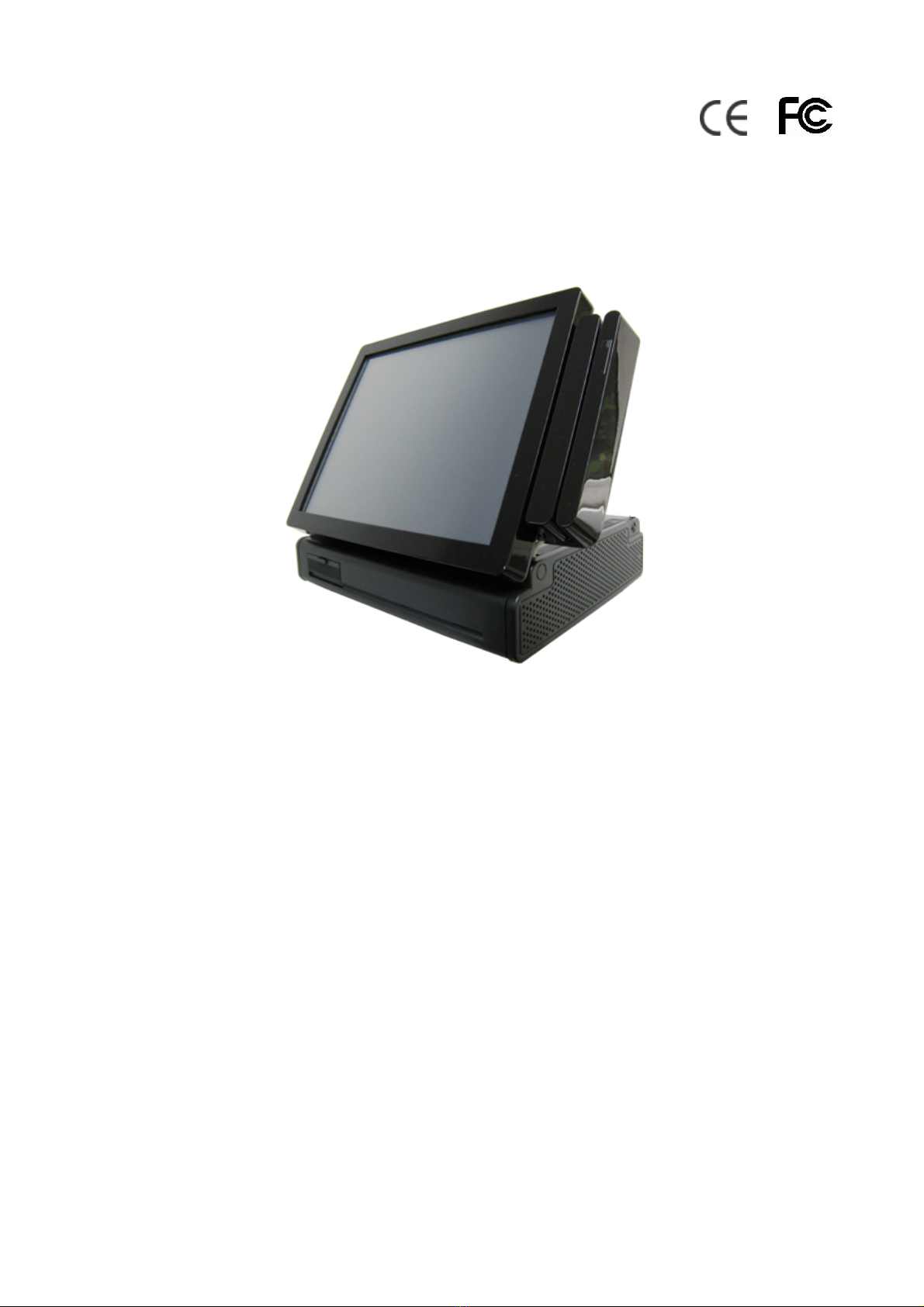

POS GFT-150 Series
USER’S MANUAL
Windows POS System
Intel Chipset Motherboard, 15 inches LCD Monitor
Available in BLACK & SILVER colors
Version: 1.1
Date: February 15, 2016

Preface
2016/02/15 Version: 1.1
ii
About this Manual
Thank you for purchasing POS GFT-150 Series All-in-One system. This terminal offers all the
enhanced features and is easy to connect to various optional devices for optimal performance.
This user manual describes how you setup and connect your terminal.
Copyright
The information in this guide is subject to change without prior notice.© Copyright 2015
All rights reserved. This product and related documentation are protected by copyright and are
distributed under licenses restricting their use, copying, and distribution. No part of this
documentation may be reproduced in any form by any means without prior written
authorization of the manufacturer and its licensors, if any.

Preface
2016/02/15 Version: 1.1
iii
Federal Communications Commission (FCC)
Declaration of Conformity
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesirable operation.
This equipment has been tested and found to comply within the limit of a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the interference receiving antenna.
 Increase the distance of separation between the equipment and interference receiver.
 Connect the equipment to a power outlet on a circuit different from that to which the
interference receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
WARNING:
Use the included AC power cord so as not to interfere with radio and television reception.
If you use other cables, it may cause interference with radio and television reception.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
WARNING:
This is a equipment of Class A. This device could cause interferences in residential areas; in the case of interferences
it can be demand from the user to provide appropriate solutions for it.
WARNING:
The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with
FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
RoHS

Important Safety Information
2016/02/15 Version: 1.1
iv
BEFORE YOU PROCEED
 Read the safety notices and the User’s Manual carefully before using the product.
 Keep the box and packaging in case the product needs to be shipped in the future.
 Follow the product and warning label instructions.
 For safety reasons, only qualified service personnel should open the terminal.
 Any changes or modifications that do not follow the instructions in this manual will void
this product/s warranty.
SAFETY PRECAUTIONS
In the interest of safety, please observe the following precautions:
POWER REQUIREMENT:
This product is designed to operate on 110~240V AC 50/60Hz in Europe and U.S.A.
Never connect to any outlet or power supply having a different voltage or frequency.
POWER SUPPLY SAFETY NOTICE
 Disconnect this terminal from the AC outlet before cleaning. Use only a moistened cloth for
cleaning.
 Check the voltage of the power source when connecting the equipment to the power
outlet. Make sure the voltage of the power outlet conforms within voltage range of the
terminal. Failure to comply may cause the electric shock or damage to the terminal. If you
are not sure of the electricity voltage that you are using, contact your local electricity
company.
 To avoid electric shocks, disconnect the power cord from the electrical outlet before
relocating the system.
 Do not overload electric power outlets to avoid fire or electric shocks.
 Protect the power cord from being walked on or pinched particularly at plug.
 If the equipment is not used for a long time, disconnect the equipment from the mains to
avoid damage.
 Never allow liquid into ventilation openings. This could cause fire or electrical shock.

Important Safety Information
2016/02/15 Version: 1.1
v
OPERATING INSTRUCTIONS
 Keep the User’s Manual for future reference.
 Follow the product label instructions.
 Lay this terminal on a stable surface when installing. Heavy objects placed on the product
can cause damage or obstruct proper ventilation.
 If one of the following situations arises, notify a qualified service technician immediately:
a. The power cord or plug is damaged.
b. Liquid has been split on to the terminal.
c. The terminal has been dropped and damaged.
d. The terminal does not function according to the user manual.
e. The terminal has obvious signs of damage.
 Ventilation slots and holes are provided on the sides of this unit. Do not block any
ventilation openings to prevent the equipment from overheat.
 Do not place the unit locations with high humidity and dust. They can cause extensive
damage. Avoid places where unit is likely to be exposed to oily fumes and vapors.
 Places exposed to direct sunlight, or near heating appliances can attain extremely high
temperatures, which may deform the cabinet, or can become a prime cause of damage.
 The operating ambient temperature range is 0°C ~ 40°C (32°F ~ 104°F), and humidity of 10%
- 90%. When using the unit on the system rack, be sure to keep this ambient temperature
inside the range.
 Avoid shaky places or hot-springs areas where hydrogen sulfide and acidic ions are likely to
be generated.
 When transporting this unit, make sure it is not likely to be subjected to impacts. They can
be a prime cause for damage.

Index
2016/02/15 Version: 1.1
vi
CONTENTS
1. INTRODUCTION....................................................................................................................... 7
1.1 PACKAGE CONTENTS ........................................................................................................................ 7
1.2 FEATURE ........................................................................................................................................ 9
1.3 OUTLOOK .....................................................................................................................................10
1.4 DIMENSION AND OPERATION ANGLE ..................................................................................................12
1.5 CONNECTOR PANEL .........................................................................................................................14
1.6 CONTROL BUTTONS ........................................................................................................................14
2. HARDWARE SETUP ................................................................................................................ 16
2.1 PRE-INSTALLATION NOTICE ...............................................................................................................16
2.2 HARDWARE ASSEMBLY.....................................................................................................................16
2.2-1 Motherboard Introduction ...................................................................................................................16
2.2-2 MSR Installation ..................................................................................................................................20
2.2-3 2-in-1 Reader Installation .....................................................................................................................22
2.2-4 VFD Customer Display Installation ........................................................................................................24
2.2-5 HDD/ SDD Kit Installation .................................................................................................................... 27
3. SOFTWARE SETUP ................................................................................................................. 29
3.1 TOUCH PANEL CALIBRATION ..............................................................................................................29
4. SPECIFICATIONS .................................................................................................................... 34

Introduction
2016/02/15 Version: 1.1
7
1. Introduction
Thank you for purchasing POS GFT-150 Series Terminal. Read this chapter to know
about your POS RDT-150F Series Terminal package contents, outlook and dimensions.
1.1 Package Contents
Before using POS GFT-150, please check your package contents to ensure that all standard items
have been included. If any of the listed items are missing, please contact your reseller from
where you purchased GFT-150 system terminal for assistance.
The package includes:
1. Main system with LCD panel * 1
2. Power adapter with AC power cord * 1
3. Product User Manual Touch Kits Peripherals Drivers & Utilities CD
4. Motherboard chipset driver and user’s manual CD
5. Parallel port extension cable x 1 + COM port extension cable x 2
Besides above standard items with POS GFT-150 Series terminal, we also provide MSR, VFD
customer display, 2-in-1 Reader and peripheral accessories as an optional. Please refer to below
for more info of optional items:
POS GFT-150 with MSR or 2-in-1 Reader
POS GFT-150 with Second Monitor

Introduction
2016/02/15 Version: 1.1
8

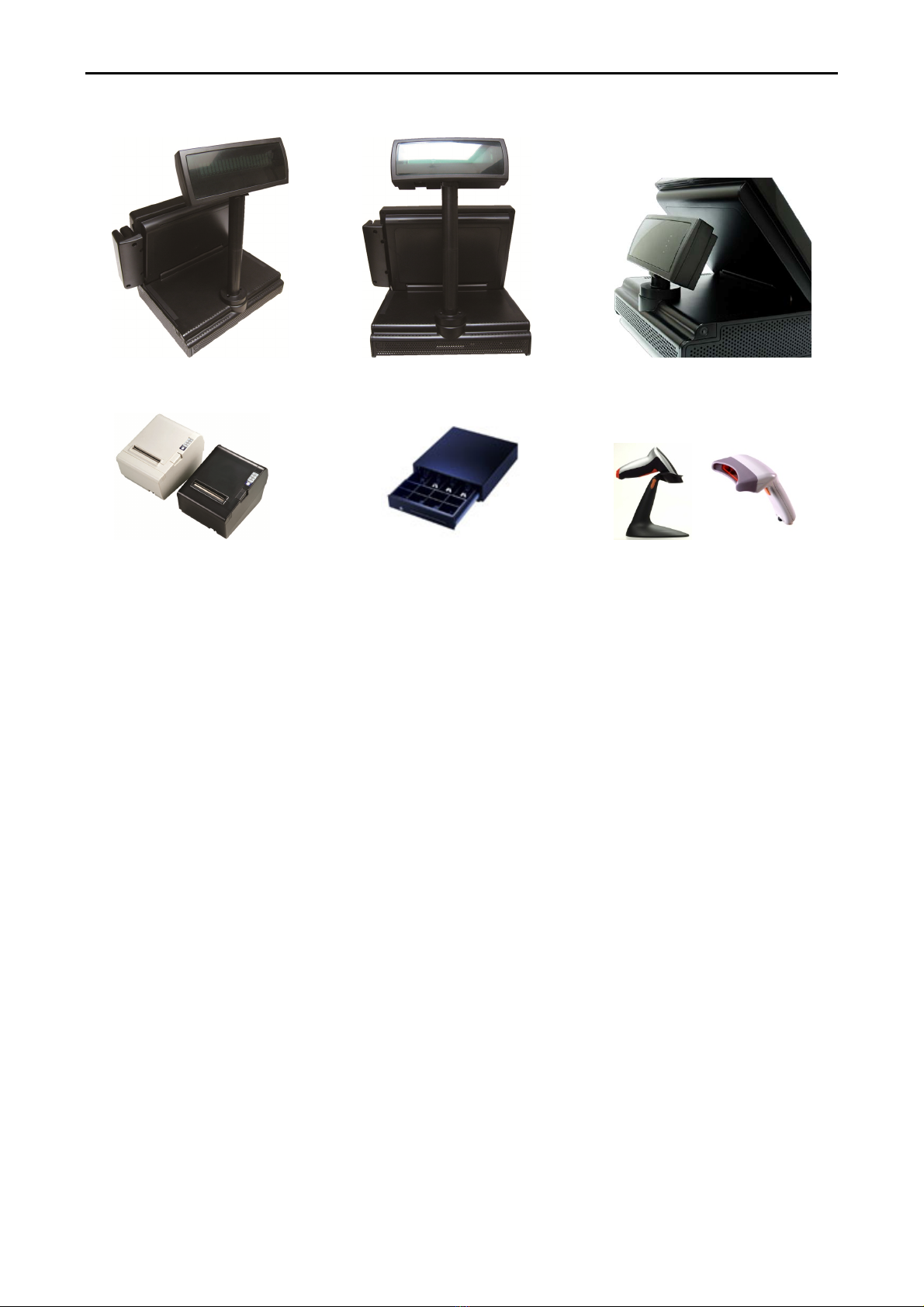

VFD Customer Display
Peripherals
Receipt Printer Cash Register Barcode Scanner

Introduction
2016/02/15 Version: 1.1
9
1.2 Feature
POS GFT-150 Series terminal comes equipped with the following features:
 Low power consumption Low Voltage design of the device is embedded with a
unique chipset and CPU renders power saving
function.
 Saving cost of ownership Modular design provides the owner with the
following benefits:
(a) cost effectiveness,
(b) customization flexibility, and
(c) Easy maintenance.
 Compact size/Aesthetic design Slimmest in the POS industry standard [Open: 351(W)
x 288(D) x 329(H) mm, Close: 351(W) x 281(D) x
140(H) mm]. This elegant, economic POS system
feathers a sleek, compact design base that saves
counter space and adds appeal to the service
environment.
 Dust/water proof GFT-150 features a highly durable, rigorously tested
design that is reliable and dependable in rugged
environments.
 Environment protection
Environmental friendly, RoHS compliant
product.
 High Stability The GFT-150 has a longer overall system MTBF to
provide a higher stability during operation.

Introduction
2016/02/15 Version: 1.1
10
1.3 Outlook
GFT-150 POS terminal is easy-to-use and designed to enhance user business flexibility by offering a
superior customer experience. Please follow the below instructions for more info of GFT-150
Series Terminal outlook and dimension.
Easy to reach I/O Connector Ports
(Back Side of Machine)
Elegant, Solid, Fashionable Compact Design
VFD Mounting Cover
Main Unit
MSR / 2-in-1 Reader Mounting

Introduction
2016/02/15 Version: 1.1
11
MSR
or
2-in-1 Reader
Available in 15
”
TFT LCD Touch
Monitor
Air Vent
(on both left and right sides)
Finger print
-
Free
Front Bezel Design
Auto Power Switch,
Bright Control Cover
Speak Hole

Introduction
2016/02/15 Version: 1.1
12
1.4 Dimension and Operation Angle
15” POS GFT-150 Terminal
Dimensions:
15” POS GFT-150 Terminal
and MSR Dimensions:
15” POS GFT-150 Terminal
and VFD customer display:
15” POS GFT-150 Terminal
and second 8” or 10” LCD monitor:

Introduction
2016/02/15 Version: 1.1
13

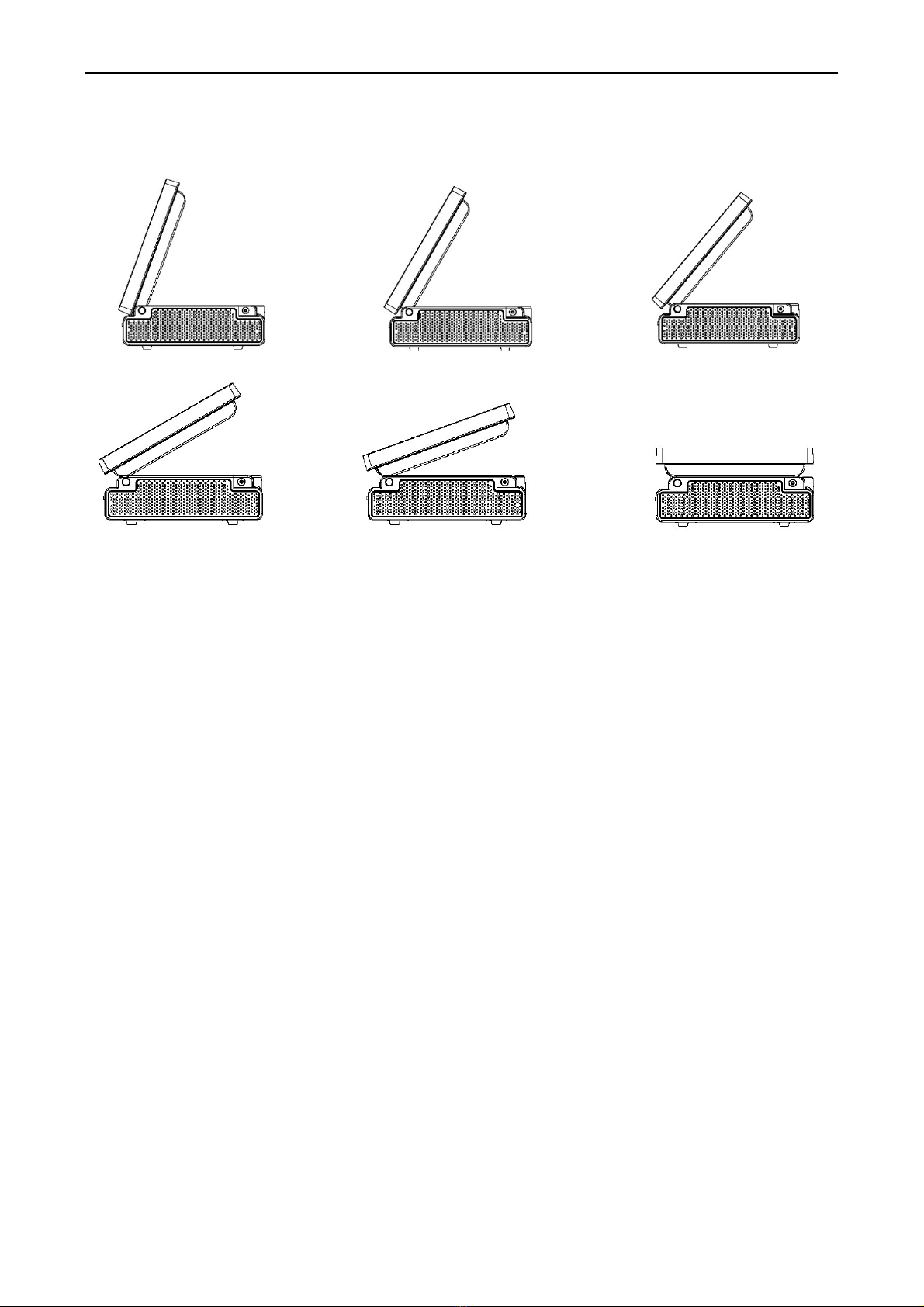

Adjustable LCD Operation Angle
“Super Firm and Perfectly Secured LCD display Angles from 0 ~ 75 degree.”

Hardware Setup
2016/02/15 Version: 1.1
14
1.5 Connector Panel
The connector panel is located at the back of the machine. Please refer to below for more info of
connector I/O ports.
Chart of the connector panel:
I/O Port Connector Type Description
COM Port RJ-11 Connector COM 1, COM2 / COM3 / COM4 Serial Ports with 5V/12V
power selectable
VGA VGA Connector The VGA port is for external LCD or CRT monitor
LAN 10/100/1000Mbps
Ethernet Connect GFT-150F to network
USB USB 2.0 Connect to USB 2.0 device
Printer Parallel Connect to receipt printer
Cash
Drawer RJ-11 (12V/24V) Connect to cash drawer
Power
Connector DC 12V IN
Supply power to GFT-150F
Please note that if DC 12V power connector is not well
connected, the system will not start or be damaged.
Audio I/O MIC & Line out For audio purpose
1.6 Control Buttons
The control buttons are located at the front side of machine. Please open the cover to reach the

Hardware Setup
2016/02/15 Version: 1.1
15
control buttons.
Push Button Description of Function
Power On/Off switch button & Power Indicator
Power LED Indicator Steady Green: The system is on.
Off: The system is off.
HDD LED Indicator Blinking Red: The device is read/write data on hard disk.
Off: No action on the device.
▲ ▼ Change and Selection for Detail of Each Setting
Reset. Press this button to reboot the device.
USB The USB (Universal Serial Bus) port can be used to connect
USB devices.
HDD LED Power LED
USB

Hardware Setup
2016/02/15 Version: 1.1
16
2. Hardware Setup
This chapter introduces how to setup and assemble optional accessories for POS
GFT-150
2.1 Pre-installation Notice
Please read the following notice carefully before you start to setup POS GFT-150 terminal:
1. The POS GFT-150 terminal supports POS Ready 7 , Win 7 and Win8.1 OS.
2. The POS GFT-150 terminal does not support PCI slot.
3. Please do not plug in or unplug any interior devices, such as function card, when powered on.
4. Please do not insert or remove any devices or components from POS GFT-150 terminal when
power is on.
5. For installation and compatibility, please use DDR3L SO-DIMM RAM which the Maximum
memory support to 8G.
2.2 Hardware Assembly
POS GFT-150 terminal supports optional accessories such as MSR, 2-in-1 Reader, VFD, customer 2nd
display… based on customized requirements. This chapter will introduce how to assemble optional
accessories. Soft remind that the system power must be off and disconnect to power supply
during assembling hardware.
2.2-1 Motherboard Introduction
POS GFT-150 series are embedded main board which support to adjust power electricity and setup
optional accessories to the device. Please follow the below steps for motherboard setting.

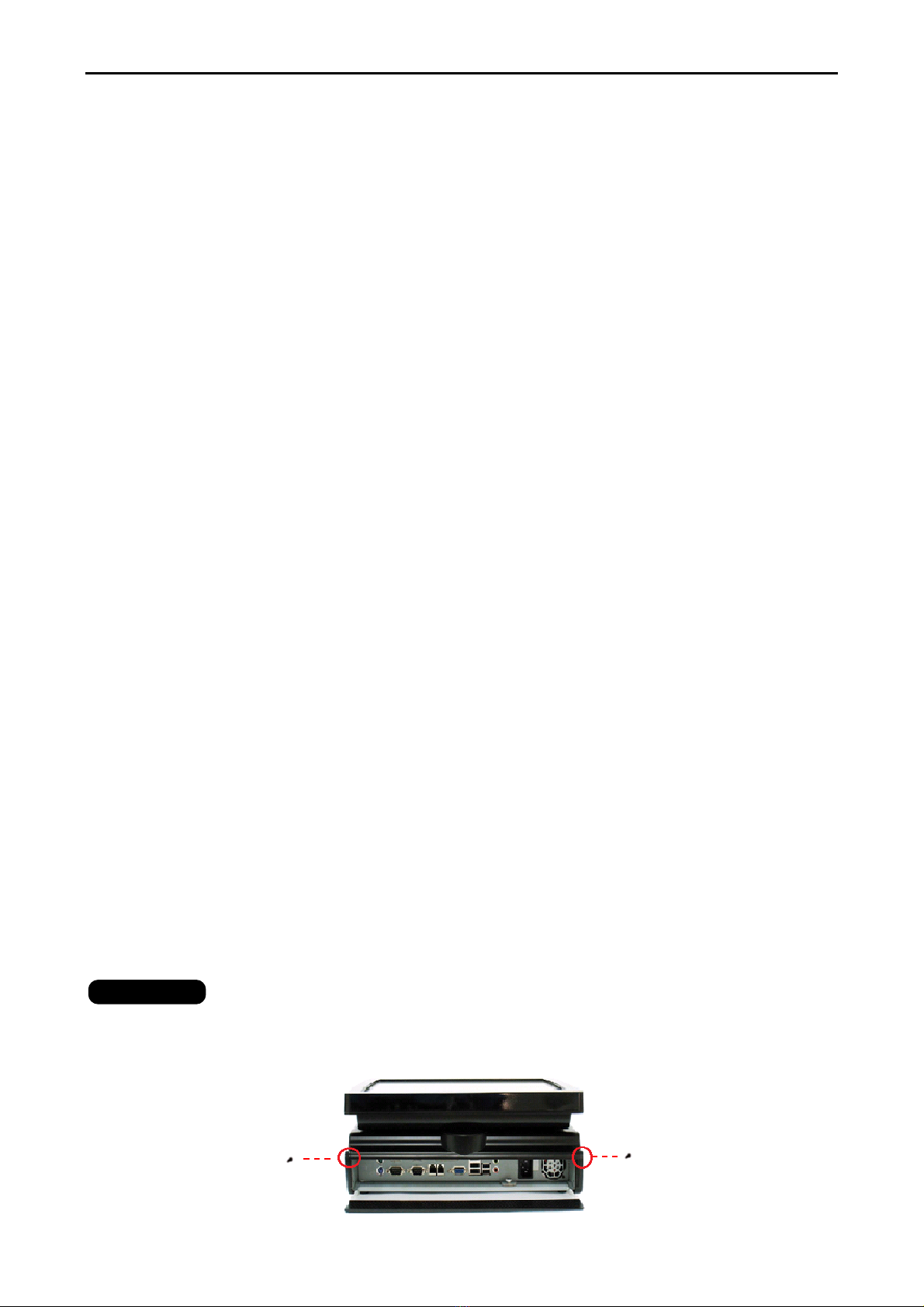

Please Loosen the two screws on both sides as the picture shown below.
STEP 1

Hardware Setup
2016/02/15 Version: 1.1
17
2.
Slide out the rear plate
Loosen below screw at the button of I/O connector panel and slide the case outwards.
Remove the monitor cover.
STEP 2
STEP 4
STEP 3

Hardware Setup
2016/02/15 Version: 1.1
18
When successfully unscrew POS GFT-150 mental piece and reach main board, kindly refer to
below table for main board introduction.
Item
Function
1 DC_JACK
2 USB 2.0 Port
3 LAN RJ_45 Port
4 VGA Port (VGA1)
5 USB 2.0 Port
6 HDMI Port (HDMI1)
7 Line Out (Green)
8 Microphone (Pink)
9
PWR_COM3 Jumper
STEP 5

Hardware Setup
2016/02/15 Version: 1.1
19
10
PWR_COM4 Jumper
11
PWR_COM6 Jumper
12
Internal COM Port Headers
COM 1, 2, 3, 4, 6 (RS232)
13
Printer Port Header
14 USB 2.0 Connector
15
mSATA Select
1-2: SATA2_2 + mini PCIe
2-3: mSATA, SATA2_2 no function
16
USB 2.0 Connector for MSR / 2-in-1 Reader
Important Notice:
The default power electricity for GFT-150 COM port is 0, please follow item 9, 10, 11
intructions to change the power electricity.

Hardware Setup
2016/02/15 Version: 1.1
20
2.2-2 MSR Installation
An optional Magnetic Stripe Reader (MSR) can be installed on the right side of GFT-150 Terminal.
This chapter will indicate how to install MSR on your device. Before installing, kindly check the
package content first.
The MSR package content includes:
1. An MSR with cable clip
2. Screw * 2
Install MSR for your GFT-150:
Please turn off the system power.
Please screws MSR on the back side of the monitor.
Please remove GFT-150 cover to reach the main board and plug MSR cable to USB pin header.
(Please refer to 2.2-1 Motherboard introduction for more info of removing GFT-150 cover)
STEP 1
STEP 2
STEP 3
