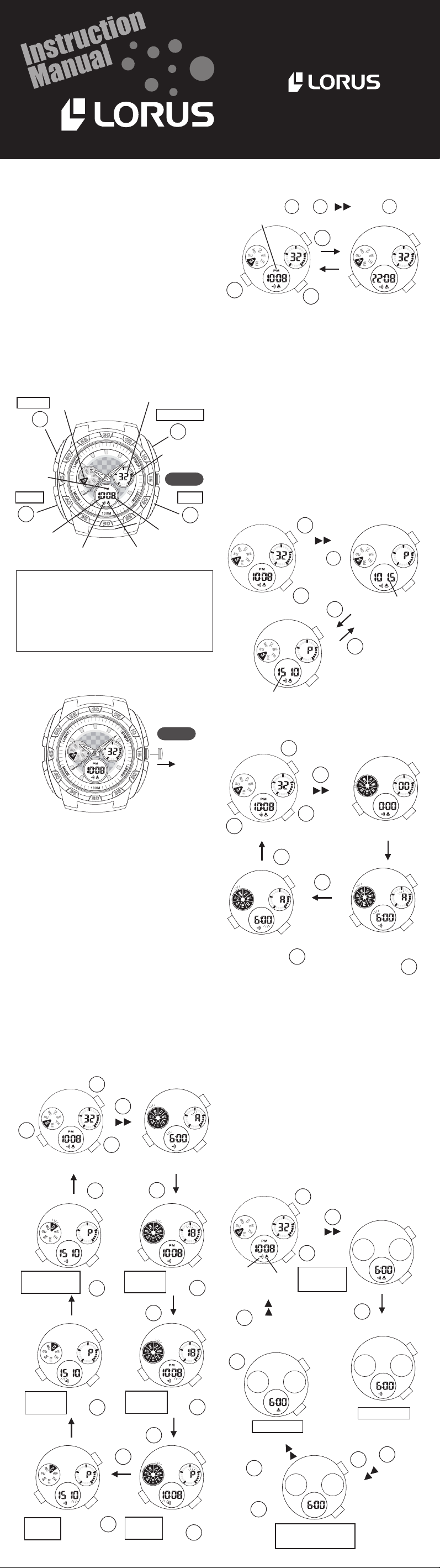

LORUS R23 Series User manual

■CHARACTERISTICS
1. Analogue & digital time displays: Hour,
Minute, Second, Month, Date and day of the
week.
2. Time Indication: 12-hour display format with
PM indicator and 24-hour display format are
available.
3. Daily alarm: The alarm can be set to sound
at the designated time on a 24-hour basis.
4. Chime: The chime can be set to sound every
hour on the hour with a single beep.
5. Stopwatch: The stopwatch can measure
up to 23 hours 59 minutes and 59 seconds in
1/100-second increments. Lap time measure-
ment is available.
6. 100 M Water Resistant
7. Illuminating light: The built-in electro-
luminescent (EL) backlight illuminates the
display for easy viewing in darkness.
■DISPLAY AND BUTTON OPERATION
■
HOW T O S E T NORMAL TIME
■HOW T O S E T A L A R M T I M E
1. From NORMAL TIME display, press and hold S3
button for 2 seconds to show the ALARM TIME
display. The hour digits start flashing.
* The display is changed automatically to the
ALARM TIME after 2 seconds.
2. Press S3 button again to move on to SECONDS
setting. The second digits start flashing.
3. Press S2 button to set SECONDS setting.
4. Press S1 button to move on to MINUTES setting.
* Selection of the digits to be adjusted (flashing)
is made in the order below by pressing S1 but-
ton and then pressing S2 button to be set.
5. After all the adjustment are completed, press
S3 button to return to the NORMAL TIME display.
NREZ014 8-2010
CAL. Z014 (R23 SERIES)
■HOW TO D I S P L AY MONTH/DAT E
* Press S2 button and hold to show the ALARM
TIME. Release S2 button to return to the NOR-
MAL TIME display.
* Press S1 button and hold to show the MONTH/
DATE or DATE/MONTH. Release S2 button to re-
turn to the NORMAL TIME display.
* Press S3 button at any time to retur n to the
NORMAL TIME display.
■ SETTING THE TIME (ANALOGUE)
1. Pull the crown out one step, the second hand
will stop.
2. Set the correct time by turning the crown.
3. Push the crown back to the original position.
The watch will start running again.
* The analogue indication and digital display of
the time setting can be adjusted separately.
1. From NORMAL TIME display, press and hold S3
button for 2 seconds to show the ALARM TIME
display. The hour digits start flashing.
* The display is changed automatically to the
ALARM TIME after 2 seconds.
2. Press S2 button to set HOURS setting.
3. Press S1 button to move on to MINUTES setting.
4. Press S2 button to set MINUTES setting.
5. After all the setting are completed, press S3
button to return to the NORMAL TIME display.
■
HOW TO SWITCH 12-HOUR/24-HOUR
FORMAT
HOURS
DAY O F
WEEK
CHIME
SIGNAL
MINUTES
SECONDS
ALARM
SIGNAL
ANIMATION
DOT S
MONTH/DATE
NORMAL TIME
MINUTES
SETTING
SECONDS
SETTING
Engagement/Disengagement of ALARM &
CHIME
* Press S2 button and hold it, and then press S1
button, the ALARM and CHIME can be en-
gaged or disengaged in the order below.
* The ALARM signal and/or CHIME signal appear
or disappear on the display accordingly.
1. Press S1 or S2 button and hold it. Then press S3
button to switch the display.
* The time display format in either 12-hour indi-
cation or in 24-hour indication can be selected
alternately.
* Under the 12-hour indication format, "PM" mark
appears in the afternoon, but no AM mark ap-
pears in the morning. Under the 24-hour indi-
cation format, no mark appears on the display.
S3
S1
S2
S3
S4
CROWN
CROWN
AFTER-
NOON
PRESS AND
HOLD
S3
ALARM
S2
PRESS
PRESS
S1
S1
S2
S3
PRESS
S2
PRESS
PRESS
S1
HOURS
SETTING
S2
PRESS
PRESS
S1
MONTH
SETTING
S2
PRESS
DATE
SETTING
S2
PRESS
DAY OF WEEK
SETTING
S2
PRESS
S1
S2
12 HOUR
S3
24 HOUR
PRESS
AND HOLD
S1
S2
OR
S3
PRESS
1. From NORMAL TIME display, press S1 button
and hold it to show the MONTH/DATE display.
2. Press S2 button to switch to the DATE/MONTH
display.
3. Press S2 button again to switch back to the
MONTH/DATE display.
* The display format in either DATE/MONTH in-
dication or in MONTH/DATE indication can be
selected alternately by pressing S2 button.
PRESS
AND HOLD
S1
S2
S1
NORMAL TIME
DATE/MONTH
S2
S2
NORMAL TIME
S3
PRESS AND
HOLD
ALARM MODE
S1
S2
S3
2 SECONDS
LATER
HOURS
SETTING
S2
PRESS
PRESS
S1
S3
PRESS
S3
PRESS
MINUTES
SETTING
S2
PRESS
NORMAL TIME
S1
S2
PRESS AND
HOLD
S2
ALARM
AL AR M &
CHIME ON
CHIME
SIGNAL
ALARM
SIGNAL
PRESS
S1
CHIME OFF
ALARM & CHIME
OFF
CHIME
OFF
PRESS AND
HOLD
S2
PRESS
S1
ALARM
OFF
PRESS AND
HOLD
S2
PRESS
S1
CHIME ON
CHIME
ON
PRESS AND
HOLD
S2
PRESS
S1
CHIME ON
ALARM ON
AFTER
NOON
PRESS
PRESS
Start/Stop
Set
Mode
Light

* From NORMAL TIME display, press S3 button to
go to the STOPWATCH mode.
■HOW TO USE STOPWATCH
SECONDS
Standard Measurement
S1
Start Stop Reset
S1 S2
* Press S3 button to return to the NORMAL TIME
display.
NORMAL TIME
START
S2
PRESS
S1
S3
S1
S3
STOPWATCH
PRESS
S1
STOPWATCH MODE
Start/Stop
Reset/Lap
1. Press S1 to start and stop the STOPWATCH.
2. Press S2 button to reset the STOPWATCH to
"0:00: 00."
Mode
HOUR/MINUTES
PRESS
S3
PRESS
RETURN
Lap Time Measurement
* While the stopwatch is measuring, press S2
button to take lap times.
* Measurement and release of lap times can
be repeated when S2 button is pressed.
HOW TO RECALL THE LAP TIME DATA
Lap time data obtained in the STOPWATCH
mode can be recalled after measurement.
After stopping the stopwatch, press S2 button
to view the recorded lap times.
The lap times will be displayed one after an-
other with each press of the button.
NORMAL TIME
START PRESS
S1
S3
STOPWATCH
PRESS
S3
PRESS RETURN
STOP
PRESS
RESET
S2
RECALL LAP
MEMORY
PRESS
S1
LAP
PRESS
RESET
S2
* In NORMAL TIME display, press S4 button to
il luminate the display.
PRESS
PRESS
S2
STOP
PRESS
S2
LAP
Start Lap 1 Reset
Stop
S1 S2 S2 S2 S1
Lap 2
This watch contains precise electronic
components. Never attempt to open the case or
remove the back cover.
• BATTERY
CAUTION
Do not expose the old battery to fire
or recharge it. Keep it at a place be-
yond the reach of children. If a child
swallows it, consult a doctor immedi-
ately.
• WATER RESISTANT
Condition
of u s e Accidental
contact
wi t h wat e r,
su c h a s
splashes
an d ra i n
Swimming
and taking
a sh owe r
Skin
diving
Scuba
diving
Indication
on the dial/
case back
No
Indication
* If your watch is 200 M/20 BAR, 100 M/10 BAR or
50 M/5 BAR water resistant, it is so indicated on
the dial/case back.
• Do not operate the buttons when the watch is
wet.
• If the watch is exposed to salt water, rinse it in
fresh water and then wipe it thoroughly dry.
• Should you find any water or condensation in-
side the watch, immediately have it checked.
Water can corrode electric parts inside the
case.
NO NO N O
YES YES NO NO
YES YES NO
NO N O N O
YES
WATE R R E-
SISTANT
WATE R R E-
SISTANT
(50M/5 BAR )
WATE R R E-
SISTANT
100M/10 BAR
or a b ove
(
NO
(
Caution:
Leather straps are not water resistant except so
indicated, even if the watch head is water resist-
ant.
• ALLERGIC REACTION
Because the case and band touch the skin di-
rectly, it is important to clean them regularly. If
not, shirt sleeves may be stained and those with
delicate skin may develop a rash. Please wear
the watch with some play to avoid any possible
allergic reaction. If you develop a rash on your
wrist, stop wearing and consult a physician.
• MAGNETISM
Your watch will be adversely affected by strong
magnetism. Keep it away from close contact with
magnetic objects.
• SHOCKS AND VIBRATIONS
Your watch may be worn for normal sports activi-
ties, but be careful not to drop it or hit it on hard
surfaces.
• TEMPERATURE
Your watch is preadjusted so that constant accu-
racy may be insured at normal temperature.
• CLEANING
Use only a soft cloth and clean water for cleaning
your watch. Never use chemicals, as the water-
proof gasket will corrode.
Printed in China
YES
■CARE OF YOUR LORUS WATCH
■SERVICE
When your LORUS watch requires repair or servic-
ing, please see the enclosed WARRANTY/GUAR-
ANTEE.
■HOW TO USE EL BACKLIGHT
Note:
1. The backlight of the watch employs an elec-
tro-luminescent (EL) light, which tends to lose
illuminating power after very long use.
2. The illumination provided by backlight may be
hard to see when viewed under direct sunlight.
* When the illuminating light becomes dim, re-
place the batteries with new ones.
■BATTERY CHANGE
1. The miniature battery SEIKO CR2016, Maxell
CR2016 or SONY CR2016, which powers your
watch, should last approximately 2 years. How-
ever, because it is inserted at the factory, the
actual life of the battery once in your posses-
sion may be less than 2 years.
2. Be sure to replace the battery to prevent any
possible malfunction as soon as it runs down.
3. To replace the battery we recommend taking
the watch to a local watch repair shop.
Note:
If the alarm is used for more than 20 seconds a
day and/or the illuminating light for more than
8 seconds a day, the battery life may be less
than the specified period.
S4
