LS ELECTRIC XGT Series User manual

Programmable Logic Control
XGB Rnet I/F
Module
XGT Series
XBL-RMEA
GOL
-RR8T

Table of Content
Before using the product …
For your safety and effective operation, please read the safetyinstructions thoroughlybefore using the product.
►Safety Instructions should always be observed in order to prevent accident or risk with the safe and
properuse the product.
►Instructionsare dividedinto “Warning” and “Caution”, and the meaning of the terms isasfollows.
This symbol indicates the possibility of serious injury or death if some applicable
instructionis violated.
This symbol indicates the possibility of severe or slight injury, and property
damagesifsomeapplicableinstructionisviolated.
Moreover, even classified events under its caution category may develop into serious accidents relying on
situations. Therefore westronglyadvise users to observe all precautionsproperlyjustlike warnings.
►The marks displayed on the product and in the user’s manual have the following meanings.
Becareful!Dangermaybeexpected.
Becareful!Electric shockmayoccur.
►The user’s manual even after read shall be kept available and accessible toanyuser of the product.
Warning
Caution

Table of Content
Safety Instructions for Design Process
Safety Instructions on Installation Process
Use PLC onlyin the environment specified in PLC manual or general standard of datasheet.
If not, electric shock,fire, abnormal operation of the product maybe caused.
Before install or remove the module, be sure PLC power is off. If not, electricshockor damage
ontheproductmaybe caused.
Be sure that every module is securely attached after adding a module or an extension
connector. If the product is installed loosely or incorrectly, abnormal operation, error or dropping
may be caused. In addition, contact failures under poor cable installation will be causing
malfunctions as well.
Makesure that the I / O connector is securely fastened. It maycause wrong input or output.
Caution
Design the analog input / output signal or pulse input / output line at least 100mm away
from high voltage line or power line so that it is not affected by noise or magnetic field
change. It maycausemalfunction dueto noise.
If there is a lot of vibrationin the installation environment, take measures to prevent
direct vibration from being applied to the PLC. It maycauseelectricshock,fire ormalfunction.
If metallic dustis present in the installationenvironment, take measures to prevent
metallic dust from entering the product. Itmaycauseelectricshock,fireormalfunction.
Caution

Table of Content
Safety Instructions for Wiring Process
Check rated voltages and terminal arrangements in each product prior to its wiring
process. Applying incorrect voltages other than rated voltages and misarrangement among
terminalsmaycausefire or malfunctions.
Secure terminal screws tightlyapplying with specified torque.If thescrewsgetloose,short
circuit, fire or abnormal operation may be caused. Securing screws too tightly will cause
damagestothemoduleormalfunctions,shortcircuit,anddropping.
Be sure to earth to the ground using Class 3wires for PE terminals which is exclusively
used for PLC. If the terminals not grounded correctly, abnormal operation or electric shock
maybecaused.
Don’t let any foreign materials such as wiring waste inside the module while wiring,
whichmaycausefire,damageonthe product orabnormaloperation.
Caution
Prior to wiring works, make sure that every power is turned off. If not, electric shock or
damageontheproductmaybe caused.
Warning

Table of Content
Safety Instructions for Test-Operation and Maintenance
Safety Instructions for Waste Disposal
Product or battery waste shall be processed as industrialwaste. The waste may discharge
toxicmaterialsorexplodeitself.
Caution
Do notmakemodificationsordisassembleeachmodule.
Fire,electricshock orabnormaloperationmayoccur.
Prior to installing or disassembling the module, let all the external power off including
PLC power. Ifnot,electric shockorabnormal operationmayoccur.
Keep any wireless equipment such as walkie-talkie or cell phones at least 30cm away
from PLC.Ifnot,abnormaloperationmaybecaused.
Caution
Don’t touch the terminal when powered.Electric shock orabnormaloperation mayoccur.
Prior to cleaning or tightening the terminal screws, let all the external power off including
PLC power. Ifnot,electric shockorabnormal operationmayoccur.
Warning

Revision History
1
Revision History
Version Date Contents Chapter
V 1.0 ’15.09 First edition -
V 1.1 ’19.06 GOL-RR8T Module added CH1, 2, 4,A.3
V1.2 ’20.06 Corporate Identity Changed (LSIS→LS ELECTRIC) Entire
V1.3 ’21.03 Cable specifications updated 2-7

About User’s manual
Thank youforpurchasing PLCofLSELECTRICCo.,Ltd.
Before use, make sure to carefully read and understand the User’s Manual about the functions, performances, installation and
programming of the product you purchased in order for correct use and importantly, let the end user and maintenance
administrator to be provided with the User’s Manual.
The User’s Manual describes the product. If necessary, you may refer to the following description and order accordingly. In
addition, youmayconnectourwebsite(http://www.lselectric.co.kr/)anddownloadtheinformationasaPDFfile.
Relevant User’s Manuals
Title
Description
No. of User’s
Manual
XG5000 User’s
Manual
It describes how to use XG5000 software especially about online
functions such as programming, printing, monitoring and debugging by
usingXGTseriesproducts.
10310000512
XG5000User’s
Manual
It describes how to use XG5000 software especially about online
functions such as programming, printing, monitoring and debugging by
usingXGB(IEC)
10130000834
XGK/XGBSeries
Instruction
Itdescribes howtousetheinstructions for programmingusingXGK/XGB
series.
10310000510
XGI/XGR/XECSeries
Instruction
It describes howtouse the instructionsforprogramming using XGB(IEC)
series.
10130000833
XGBHardware
User’sManual
It describes howtouse the specification of power/input/output/expansion
modules, system configuration and built-in High-speed counter for XGB
basic unit.
10310000926
XGBHardware
User’s Manual(IEC)
It describes howtouse the specification of power/input/output/expansion
modules, system configuration and built-in High-speed counter for XGB
basic unit.
10130001059
XGBAnalog
User’sManual
It describes how to use the specification of analog input/analog
output/temperature input module, system configuration and built-in PID
controlforXGBbasicunit.
10310000920
XGBPosition
User’sManual
Itdescribes howtousebuilt-inpositioningfunctionforXGBunit.
10310000927

◎Contents ◎
Chapter 1 Introduction……………………………………………………………………………… 1-1 ~ 1-4
1.1 What is Rnet………………………………………………………………………… 1-1
1.2 Characteristics of the Module …………………………………………………………… 1-2
1.3 Information for Module Operation ………………………………………………………… 1-3
1.4 Configuration of for Rnet ………………………………………………………………… 1-4
Chapter 2 Specifications …………………………………………………………………………… 2-1 ~ 2-8
2.1 General Specifications …………………………………………………………………… 2-1
2.2 Performance Specifications ……………………………………………………………… 2-2
2.3 Part names and Structure ………………………………………………………………… 2-5
2.4 Cable Specifications ……………………………………………………………………… 2-7
2.5 Terminating Resistances…………………………………………………………………… 2-8
Chapter 3 Installation and Test Operation……………………………………………………… 3-1 ~ 3-2
3.1 Installation …………………………………………………………………………………… 3-1
3.1.1 Precautions for installation……………………………………………………… 3-1
3.1.2 Materials necessary for installation…………………………………………… 3-1
3.2 From Setting to Operation………………………………………………………… 3-2
Chapter 4 System Configuration………………………………………………………………… 4-1 ~ 4-2
4.1 System with Rnet I/F module used ……………………………………………………… 4-1
4.1.1 Rnet System with Smart I/O …………………………………………………… 4-1
4.1.2 Mixed configuration 1 between XBL-RMEA + repeater + Rnet slave …4-1
4.1.3 Mixed configuration 2 between XBL-RMEA + repeater + Rnet slave… 4-2
Chapter 5 High-speed Link Setting……………………………………………………………… 5-1 ~ 5-17
5.1 Introduction……………………………………………………………………………… 5-1
5.2 How to use XG5000…………………………………………………………………… 5-2
5.3 High-speed Link Editing………………………………………………………………… 5-3
5.4 Read and Write of High-speed Link…………………………………………………… 5-9
5.5 Enable Link………………………………………………………………………………… 5-11
5.6 System Diagnosis……………………………………………………………………… 5-12
5.7 High-speed Link Flag…………………………………………………………………… 5-15
Chapter 6 Communication Program…………………………………………………………… 6-1 ~ 6-6
6.1 Example Program…………………………………………………………………………… 6-1

Chapter 7 Troubleshooting…………………………………………………………………………7-1 ~ 7-6
7.1 Symptoms and Management by LED Status…………………………………………… 7-1
7.2 System Diagnosis in XG5000……………………………………………………………… 7-1
7.2.1 Communication module information…………………………………………… 7-2
7.2.2 High-speed link…………………………………………………………………… 7-3
7.3 Diagnosis of Communication Module through XG5000………………………………… 7-4
7.4 Trouble shooting for Respective Error…………………………………………………… 7-5
7.4.1 XG5000 abnormal connection ………………………………………………… 7-5
7.4.2 Communication error with Master module……………………………………… 7-6
Appendix …………………………………………………………………………………………… A-1 ~ A-17
A.1 List of Flags ………………………………………………………………………………… A-1
A.1.1 Special register for data link …………………………………………………… A-1
A.1.2 Special relays …………………………………………………………………… A-3
A.2 Terminology………………………………………………………………………………… A-11
A.3 External Dimensions……………………………………………………………………… A-13

Chapter 1 Introduction
1-1
Chapter 1 Introduction
1.1 What is Rnet?
This manual of Rnet I/F module is prepared to describe XGB of dedicated remote net (here in after
referred to as Rnet I/F module). XGB Rnet I/F module is composed of data link layer and physical layer
in OSI 7 layers. Rnet system controls I/O data from the sensor of field level and manages the data
conveniently. Rnet I/F module supports a speed of 1Mbps by using dedicated cable for Rnet, up to 32
stations (including master) and provides convenience of data Tx/Rx for users by means of XG5000
parameters setting, through LS dedicated network.
.

Chapter 1 Introduction
1-2
1.2 Characteristics of the Module
Rnet Master I/F module has features as follows;
Rnet I/F module :
▶LS dedicated network
▶Convenient with High-speed link parameters setting is available.
▶Reduced wiring, easy installation
▶Smart I/O + Rnet system configuration is available.
▶1 Mbps fixed communication speed is supported.
▶One master module can control 31 slave modules.
Rnet Repeater Hub module has features as follows;
Rnet Repeater Hub module :
▶LS dedicated network
▶Reduced wiring, easy installation
▶Various system configuration by network separation
▶Long distance communication possible
▶Maximum station Communication possible

Chapter 1 Introduction
1-3
1.3 Information for Module Operation
1) It describes required components to operate the product.
Classification
Type
Description
Reference
Product name
XBL-RMEA
Rnet Master I/F module.
Master
Software
XG 5000
Software for PLC programming
-
Note
XG5000 program can be downloaded at our company website. If you do not have an access to
the internet, contact the nearest agency for CD-ROM about XG 5000. EDS file related to our
slave module (Smart Link) can be downloaded at http://www.lselectric.co.kr
2) It describes about the number of module and position that can be installed in a single CPU module.
Rnet master I / F module can be mounted up to two modules, regardless of main unit type.
Eight kinds of main units (XBC-U, XBC-H, XBC-SU, XEC-U, XEC-H, XEC-SU, XBM-S,XBM-H)
can use Rnet master I / F module. Please consider the supported number of communication
modules per main unit when PLC sytem is organized. In addition, high-speed link function is only
used and P2P function is not used in XG5000.
Classification
Description
Attachable
Number
A maximum of 2
High-speed link
number
A maximum of 2
3) Please refer to below User Manuals to write communication program with Rnet I/F module.
XGB Instruction Manual / XEC Instruction Manual
XG 5000 User Manual
LS ELECTRIC Rnet master User Manual
Other company’s User Manual which is related to Rnet master
XGB Main Unit User Manual

Chapter 1 Introduction
1-4
1.4 Configuration of Smart I/O for Rnet
1) Rnet I / F products are as follows.
Classific-
ation
Connection
cable
Model
Product code
Description
Remarks
Master
module
Twisted pair
(electric)
XBL-RMEA
47230204
-
XGB Rnet master
module
Master
module
Twisted pair
(electric)
XGL-RMEB
47200185
-
XGT Rnet master
module
Slave
Module
Twisted pair
(electric)
G6L-RREA
46640104
Installed on GM6/K200S CPU position
Rack type
Remote system
GRL-D22C
47060133
DC input 16 points
Smart I/O Rnet series
- Fixed terminal block
- 5-pin communication
connector
Smart I/O Rnet
GRL-D24C
47060134
DC input 32 points
GRL-TR2C
47060135
TR output 16 points
GRL-TR2C1
47060138
TR output 16 points
GRL-TR4C
47060137
TR output 32 points
GRL-TR4C1
47060138
TR output 32 points
GRL-DT4C
47060139
DC input16 points/ TR output 16 points
GRL-DT4C1
47060140
DC input16 points/ TR output 16 points
GRL-RY2C
47060141
Relay output 16 points
iS7 Rnet
64110007
iS7dedicated Rnet I/F adaptor
XRL-BSSA
47060158
Digital input/ouput 512point
Extendable
Smart I/O Rnet
Repeater
module
Twisted pair
(electric)
GOL-RR8T
47060192
-
Rnet repeater hub
8 ports module
Note
1) XGB Rnet Master I/F module can control 31 slave modules.

Chapter 2 Specifications
2-1
Chapter 2 Specifications
General specifications of XGB series are as below.
No.
Item
Specification
Related specifications
1
Operating
temp.
0℃∼ +55℃
-
2
Storage temp.
-25℃∼ +70℃
-
3
Operating
humidity
5∼95%RH, no dew allowed
-
4
Storage
humidity
5∼95%RH, no dew allowed
-
5
Vibration
immunity
For discontinuous vibration
-
Frequency
Acceleration
Amplitude
Number
IEC61131-2
5≤f< 8.4 ㎐
-
3.5mm
Each 10 times in
X,Y,Z directions
8.4≤f≤150 ㎐
9.8 ㎨(1G)
-
For continuous vibration
Frequency
Acceleration
Amplitude
5≤f< 8.4 ㎐
-
1.75mm
8.4≤f≤150 ㎐
4.9 ㎨(0.5G)
-
6
Impact
immunity
* Max. impact acceleration: 147 ㎨(15G)
* Authorized time: 11 ㎳
* Pulse wave : Sign half-wave pulse
(Each 3 times in X,Y,Z directions)
IEC61131-2
7
Noise
immunity
Square wave
impulse noise
AC: ±1,500V
DC: ±900V
LS ELECTRIC
Standard
Static electric
discharging
Voltage : 4kV
(contact discharging)
IEC 61131-2,
IEC 61000-4-2
Radiation electromagnetic
field noise
80 ~ 1000MHz, 10 V/m
IEC 61131-2,
IEC 61000-4-3
Fast
Transient
/burst
noise
Class
Power
module
Digital/Analog I/O
communication interface
IEC 61131-2,
IEC 61000-4-4
Voltage
2kV
1kV
8
Ambient
conditions
No corrosive gas or dust
9
Operating
height
2,000m or less
10
Pollution level
2 or less
11
Cooling type
Natural air cooling
Notes
1) IEC (International Electrotechnical Commission):
An international nongovernmental organization which promotes internationally cooperated standardization
in electric/electronic field, publishes international standards and manages applicable estimation system
related with.
2) Pollution level:
An index indicating pollution level of the operating environment which decides insulation performance of
the devices. For instance, Pollution level 2 indicates the state generally that only non-conductive pollution
occurs. However, this state contains temporary conduction due to dew produced.
2.1 General Specifications

Chapter 2 Specifications
2-2
2.2 Performance Specifications
1) Performance specifications
Performance specifications of Rnet master I/F module are as described below.
Item
Specifications
Transmission Speed
1Mbps
(Rnet I/F modules common)
Max. Tx distance
Max. 750m
Connection Cable
Twisted pair shielded cable
Maximum stations
connected
Network
Master station 1[station no:0(fixed)] +
Slave stations up to 31[station no:1~63], Note 1)
- Only 1 master is available in the network.
Diagnostic function
XG5000 : High Speed Link Monitoring
Terminal resistance()
110Ω(±5%), 1/2W
Master/Slave operation
Only available as Master
XG5000
(HS Link)
Data Processing unit
Byte
Tx/Rx cycle
Selection among 20ms, 50ms, 100ms,
200ms(default), 500ms, 1s, 5s, 10s
Max. Communication
points.
3,780 Bytes (slave 31stations * 120Bytes/station)
Max. Block number
64 (setting range : 0~63)
Max. points by Block
120 Byte (60words)
Auto scanning
Supported
Specification
Max. module mounted
2 modules
1) XGB Rnet master I/F module can communicate with up to 31 slave stations.
Note

Chapter 2 Specifications
2-3
2)GOL-RR8T Performance Specifications
- Communication Specifications
Item
GOL-RR8T
Communication method
Rnet
Communication ports (Master : Slave)
1 : 8
Max. Slave stations / All repeaters
32 Stations
Number of Max. slaves when using repeater /a Network
XGL-RMEB
XBL-RMEA
63 Stations
31 Stations
Max. repeaters / Network
(Repeaters can be connected to trunk line only)
2 Modules
Communication speed
1Mbps
Max. transmission distance /
Each repeater port
LIREV-AMESB 1Px22AWG
(7/0.254)_LS Cable
300m
CAN Bus Drag Chain, UL
(1x2x0.34mm²)_Helukable
600m
Master Max. transmission distance
(Master + Slave or Master + Repeater)
750m
Network max. transmission distance
(Master + Repeater + Slave)
- LIREV-AMESB 1Px22AWG: 1.05km
- CAN Bus Drag Chain: 1.35km
Weight
580g

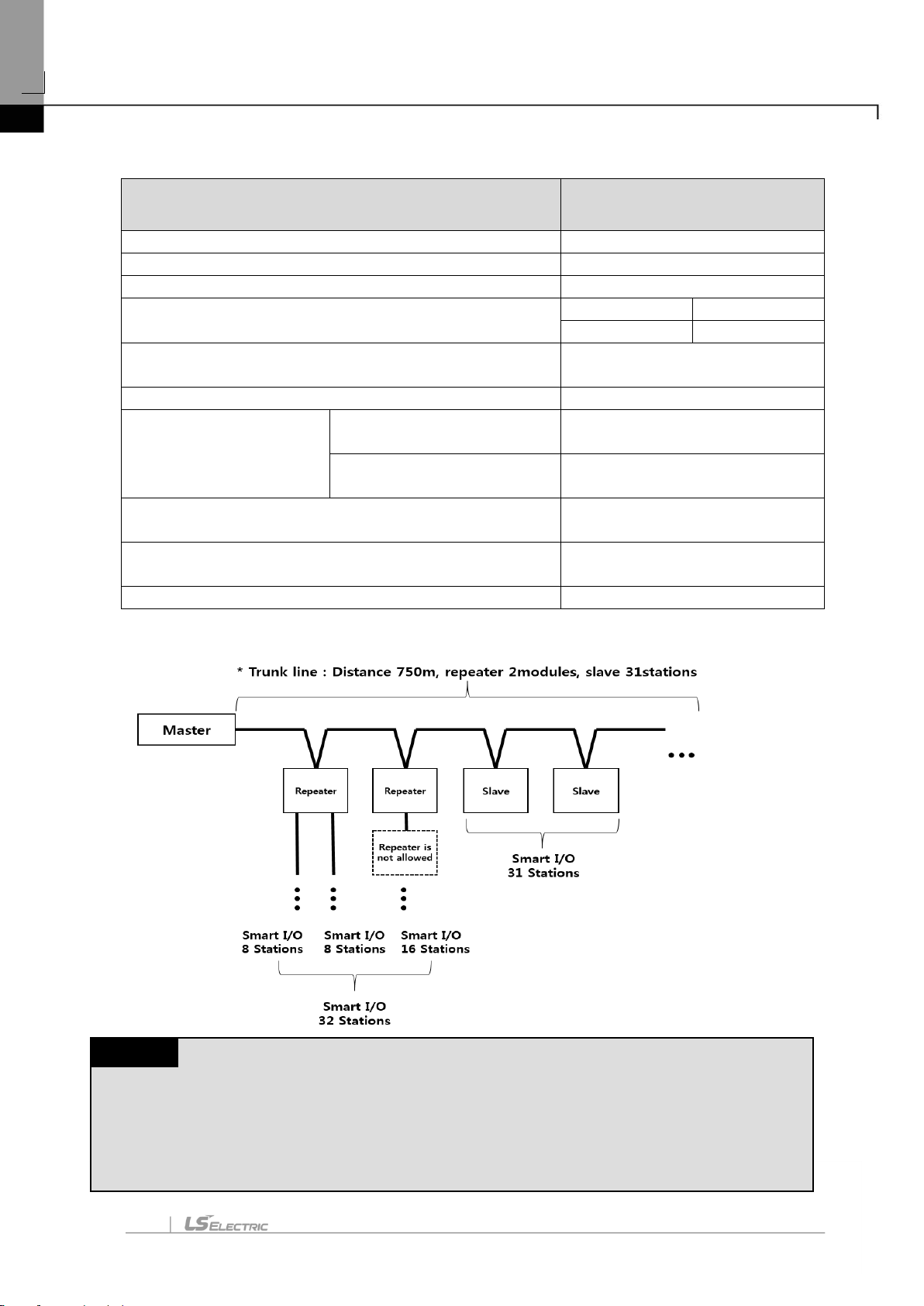

<Network configuration using repeaters >
2)
1) In order to minimize the reflected wave, the line connecting with the repeater should
Use more than 1m cable.
2) Repeater hub 8port module in the user's manual is called a repeater module for
convenience.
Note

Chapter 2 Specifications
2-4
- Power Specifications
Items
Specifications
reference
Input
Input voltage range
DC20.4~28.8V(-15%, +20%)
-
Rated voltage
DC24V
-
Input current
1A or less
Input +DC28.8V, Max.load
Inrush current
70A peak or less
Input +DC28.8V, Max.load
Efficiency
60% or more
Input +DC28.8V, Max.load
Permitted
momentary
power failure
10ms or less
Input +DC28.8V, Max.load
Output
Output voltage
DC5V(±2%)
-
Output current
Max. 2.0A
-
Power supply status indication
LED On when power supply is normal
-
Cable specification
0.75 ~ 2mm2
-

Chapter 2 Specifications
2-5
(1) LED display

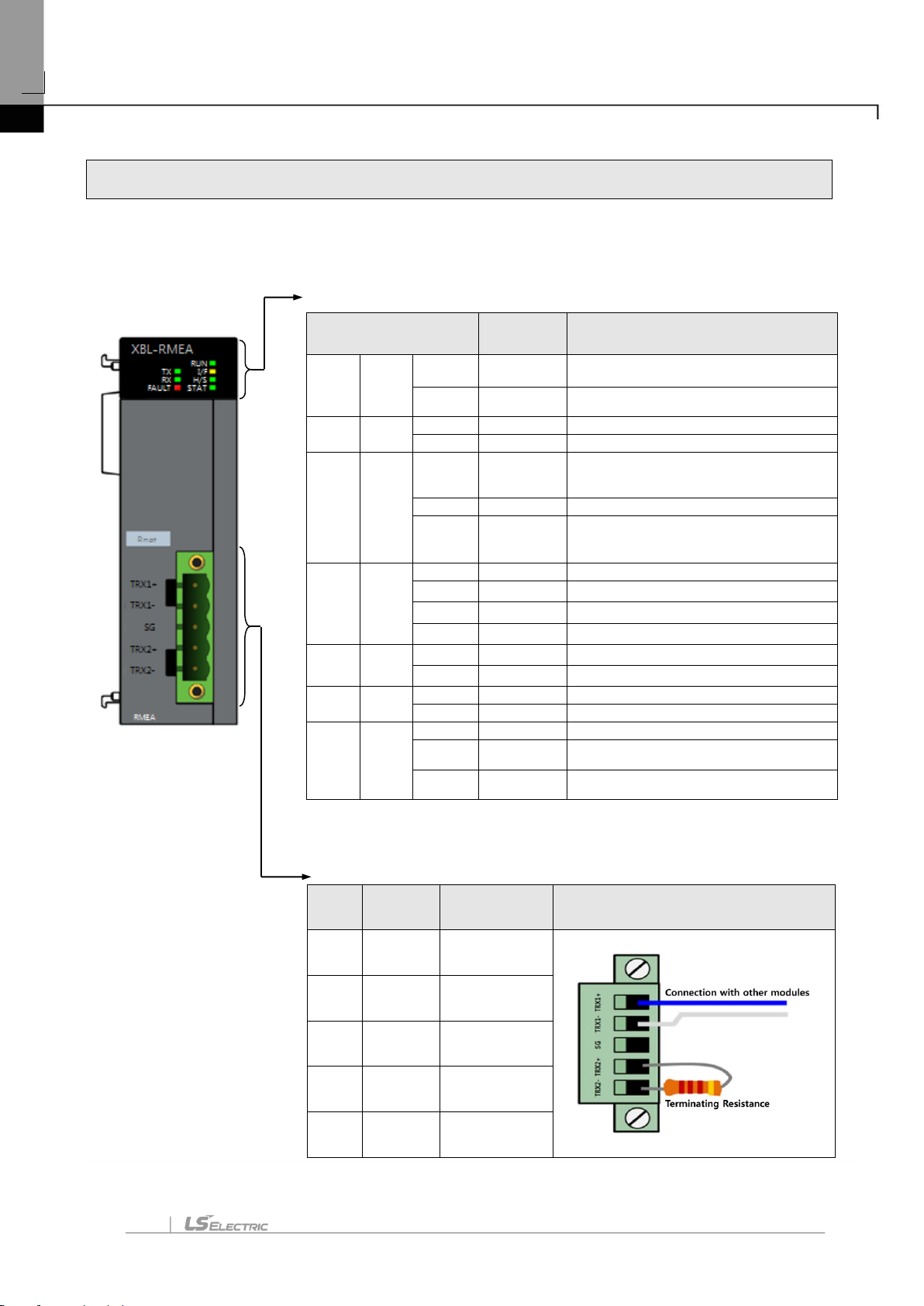

2.3 Part names and Structure
1) XBL-RMEA
(2) 5pin connector (for external connection)
Color
Signal
Service
5 pin connector
1
TRX1+
Signal wire
2
TRX1-
Signal wire
3
SG
SG
4
TRX2+
Signal wire
5
TRX2-
Signal wire
LED
Status
LED display description
RUN
Green
On
Normal
Completion of initializing.
Off
Error
Fatal error is occurred.
I/F
Yellow
Flickering
Normal
Normal status of interface in Main unit.
Off
Error
Error status of interface in Main unit .
H/S
Green
On
Normal
Normal status of downloaded parameters from
XG5000 and High-speed link is normally
enabled.
Flickering
Standby
I/O Connection is not accepted.
Off
Error
Abnormal status of downloaded parameters
from XG5000 or High-speed link is not
enabled.
STAT
Green
On
Normal
Normal status
Flickering
1s cycle
HW Initialization error
Flickering
100ms cycle
Duplicated master modules in same network
Off
Malfunction
Fatal error is occurred.
TX
Green
On
Normal
Normal communication status
Off
Error
Check the communication parameter
RX
Green
On
Normal
Normal communication status
Off
Error
Check the communication parameter
FAULT
Red
Flickering
1s cycle
Transmitting error is occurred.
ON
Error
Check wiring and connector
OFF
Normal
Normal status

Chapter 2 Specifications
2-6

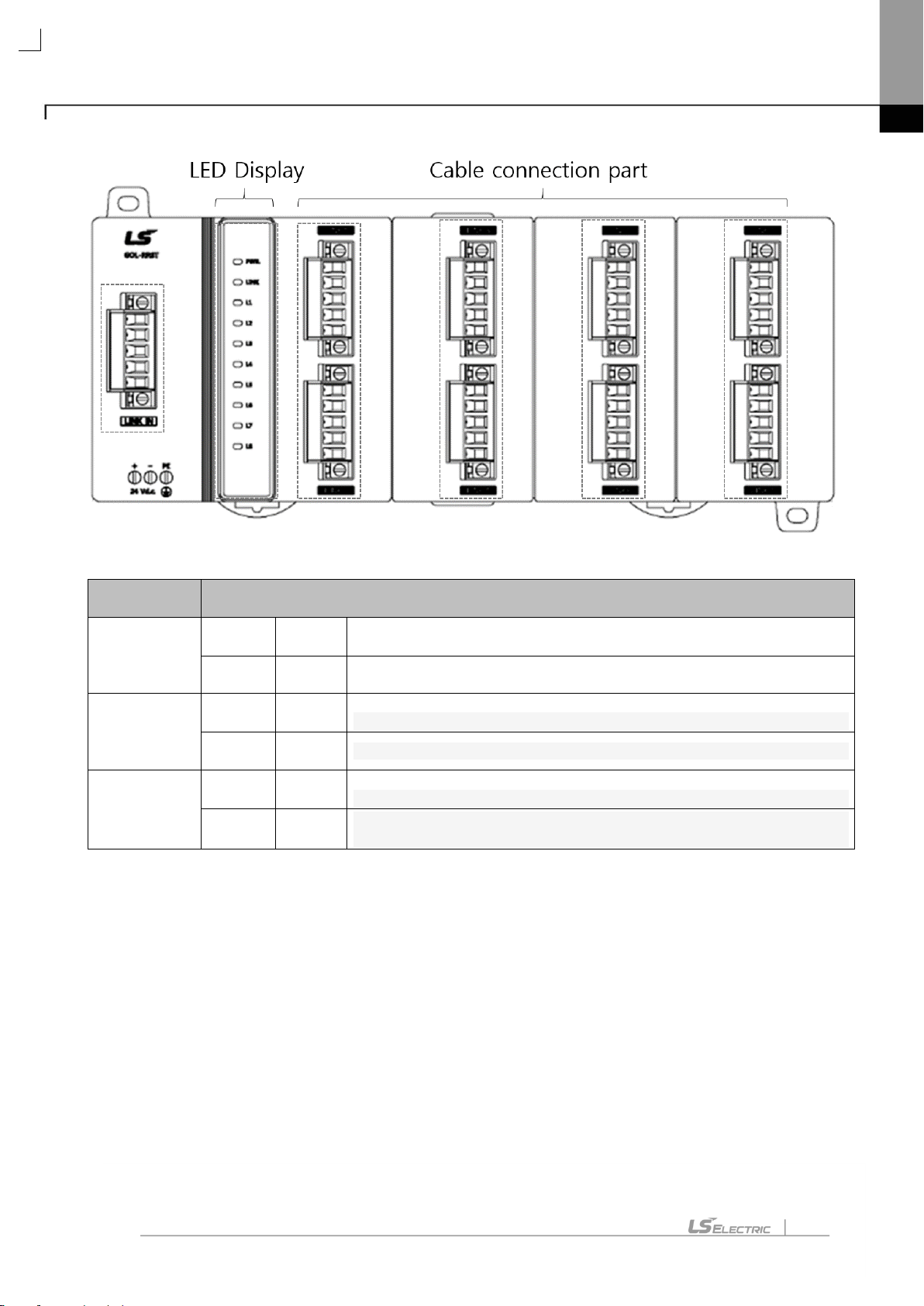

2) GOL-RR8T
(1) LED Display
SILK display
LED Description
PWR
On
Normal
DC 24V power is connected normally.
Off
Error
DC 24V power is not connected.
LINK
Blink
Normal
LINK IN port is working normally
(Rnet master must be connected to LINK IN.)
Off
Error
LINK IN port is malfunctioned or Rnet master signal has problem.
L1~8
Blink
Normal
Each port of LINK1~8 is working normally
(Rnet master must be connected to LINK IN.)
Off
Error
Each port of LINK1~8 is malfunctioned or Rnet master signal has
problem.

Chapter 2 Specifications
2-7
2.4 Cable Specifications
1) Cable specifications
- For fixed system
Designations Type A Type B
Impedance
135~160Ω(freq. 3~20MHz)
100~130Ω(freq. > 100kHz)
Capacity
< 30 pF/m
< 60 pF/m
Resistance
< 110 Ω
-
Conductor Area
> 0.34 mm2(22 AWG)
> 0.22 mm2(24 AWG)
- For moving system
Designations
CAN Bus Drag Chain, UL
(1x2x0.34mm²)
Structure
Manufacturer
Helukable
Cable type
twisted pair
Conductor resistance
56Ω/
㎞
(normal temperature)
Insulated resistance
5,000
㏁
/
㎞
or more
Capacitance
40
㎊
/m or less(1
㎑
)
Characteristic impedance
120Ω±15% (10
㎒
)
Number of cores
2 Core
2) Cable connection
XBL-RMEA Smart I/O 5Pin Wiring
TRX1+/TRX2+ TRX+
TRX1-/TRX2- TRX-
SG Colorless (SG)
Note
1) Use the repeater module for branching Rnet network.
2) There are two types of Rnet communication cable but, type A is recommended to use for
new installation.
please contact to the cable maker for model names corresponding to type A and type B
Insulated
C
onductor
