LUCCI AIRFUSION BANKSIA 4675856 Installation guide

V1.0- M u t i L E D ( 0 9 / 2 0 1 8 ）
LUCCI
AIRFUSION BANKSIA
DC CEILING FAN
INSTALLATION
OPERATION
MAINTENANCE
WARRANTY INFORMATION
CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.

Banksia Fan Installation Instructions
1 | P a g e
CONTENTS
GB
Installation Instruction Manual .......................................................................................... 2
D
Installationsanleitung ........................................................................................................12
F
Guide d’installation............................................................................................................22
E
Manual de instrucciones de instalación............................................................................32
I
Manuale delle istruzioni di installazione............................................................................42
NL
Installatiehandleiding.........................................................................................................52
EL
Εγχειρίδιο οδηγιών εγκατάστασης ....................................................................................62

Banksia Fan Installation Instructions
2 | P a g e
CONGRATULATIONS ON YOUR PURCHASE
Congratulations on purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which
gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation.
Energy Saving - The DC motor is the latest technology in fan design. Its highly efficient motor saves up to 65% more
energy than ceiling fans with traditional AC motors.
Silent operation –This DC fan motor is programmed with a stabilised current which efficiently reduces motor noise.
Low operating temperature –The DC power is managed effectively which brings down the motor operating temperature
to less than 50℃. This results in a much cooler motor than a standardAC fan and increases the longevity of the motor.
5 speed remote control - Regular AC ceiling fans usually come with only 3 speeds, this DC fan comes complete with a
5 speed remote, which gives greater choice of comfort levels.
SAFETY PRECAUTIONS
1. In Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledgeif they havebeen given supervision or instruction
concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance
shall not be undertaken by children without supervision.
2. In Australia: The appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local wiring rules.
IN AUSTRALIA
WARNING:
FOR SAFE USE OF THIS FAN AN ALL-POLE DISCONNECTION
MUST BE INCORPORATED INTO THE FIXED WIRING IN
ACCORDANCE WITH THE WIRING RULES.
As outline in clause 7.12.2 of AS/NZS 60335-1 for meeting the minimum
electrical safety of this standard.
Please note warranty will be void if installation is without a means for an
all-pole disconnection incorporated in the fixed wiring in accordance with

Banksia Fan Installation Instructions
3 | P a g e
the wiring rules.
Example: If a fan is connected to a circuit that can be isolated via an all-
pole safety switch at the switchboard, then this is considered to be an
all-pole disconnection to the ceiling fan electrical circuit, meeting the
requirements of clause 7.12.2 of AS/NZS 60335.1.
A single-pole switch on the active of the receiver input of remote
control must also be included in the wiring, and located the same
room as the ceiling fan.
5. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact
your local government for information regarding the collection systems available. If electrical appliances are
disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain,
damaging your health and well-being.
6. The structure to which the fan is to be mounted must be capable of supporting a weight of 30kg.
7. The fan should be mounted so that the blades are at least 2.3m above the floor in Europe or 2.1m above the floor
in Australia.
8. This fan is suitable for indoor,alfresco and coastal areas where the fan is fully undercover with a minimum of 1 walls.
This fan is not waterproof. When installed in an alfresco or coastal area, the ceiling fan must be positioned in a
location protected from water, wind and dust. Exposure to these elements will void the warranty. Mounting the fan
in a situation where it is subject to water or moisture is dangerous.
9. Only a licensed electrician should execute the installation.

Banksia Fan Installation Instructions
4 | P a g e

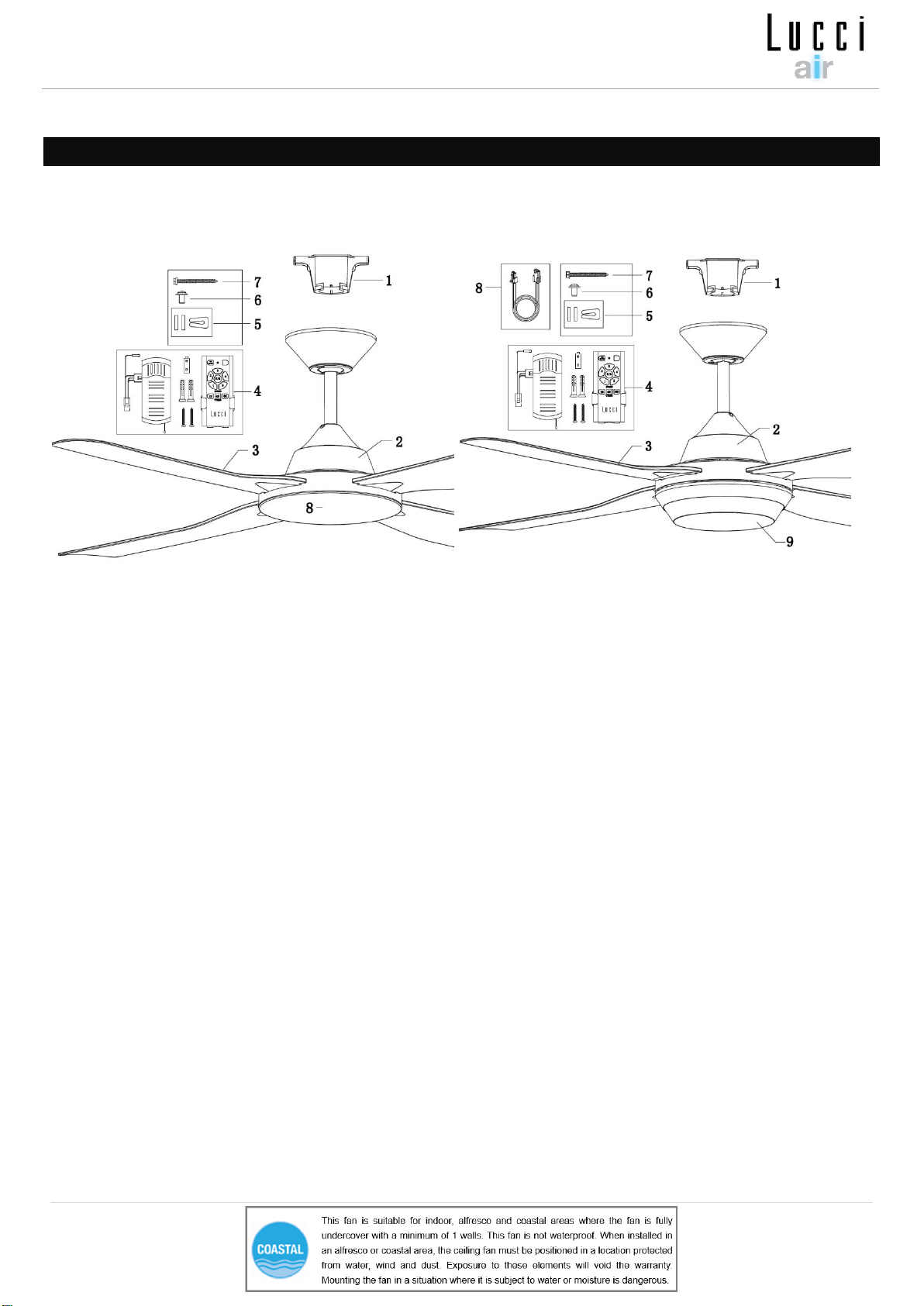

PARTS LIST
Unpack your fan and check the contents. You should have the following:
FAN WITHOUT LIGHT
FAN WITH LED LIGHT
1.
Mounting bracket x 1
1.
Mounting bracket x 1
2.
Pre-assembled fan motor, down rod, canopy
and bottom cover x 1
2.
Pre-assembled fan motor, down rod, canopy
and light kit x 1
3.
Blades x 4
3.
Blades x 4
4.
Remote x 1 set
4.
Remote x 1 set
5.
Balancing kit x 1 set
5.
Balancing kit x 1 set
6.
Blade screws x 9
6.
Blade screws x 9
7.
Wooden screws for mounting bracket x 2
7.
Wooden screws for mounting bracket x 2
8.
Bottom cover x 1
8.
Light kit extension wire for long down rod
9.
Light kit x 1
Fig. 1

Banksia Fan Installation Instructions
5 | P a g e

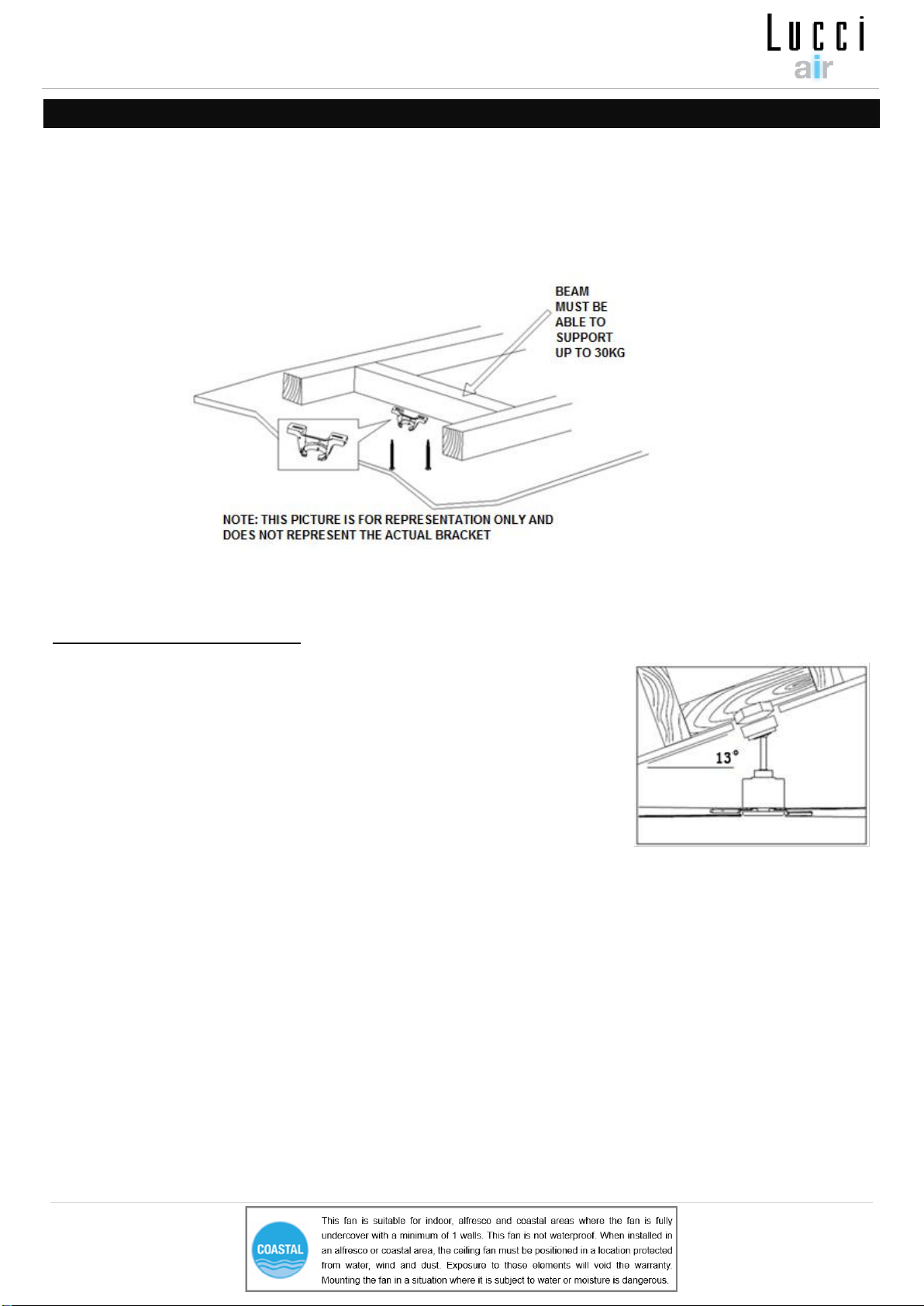

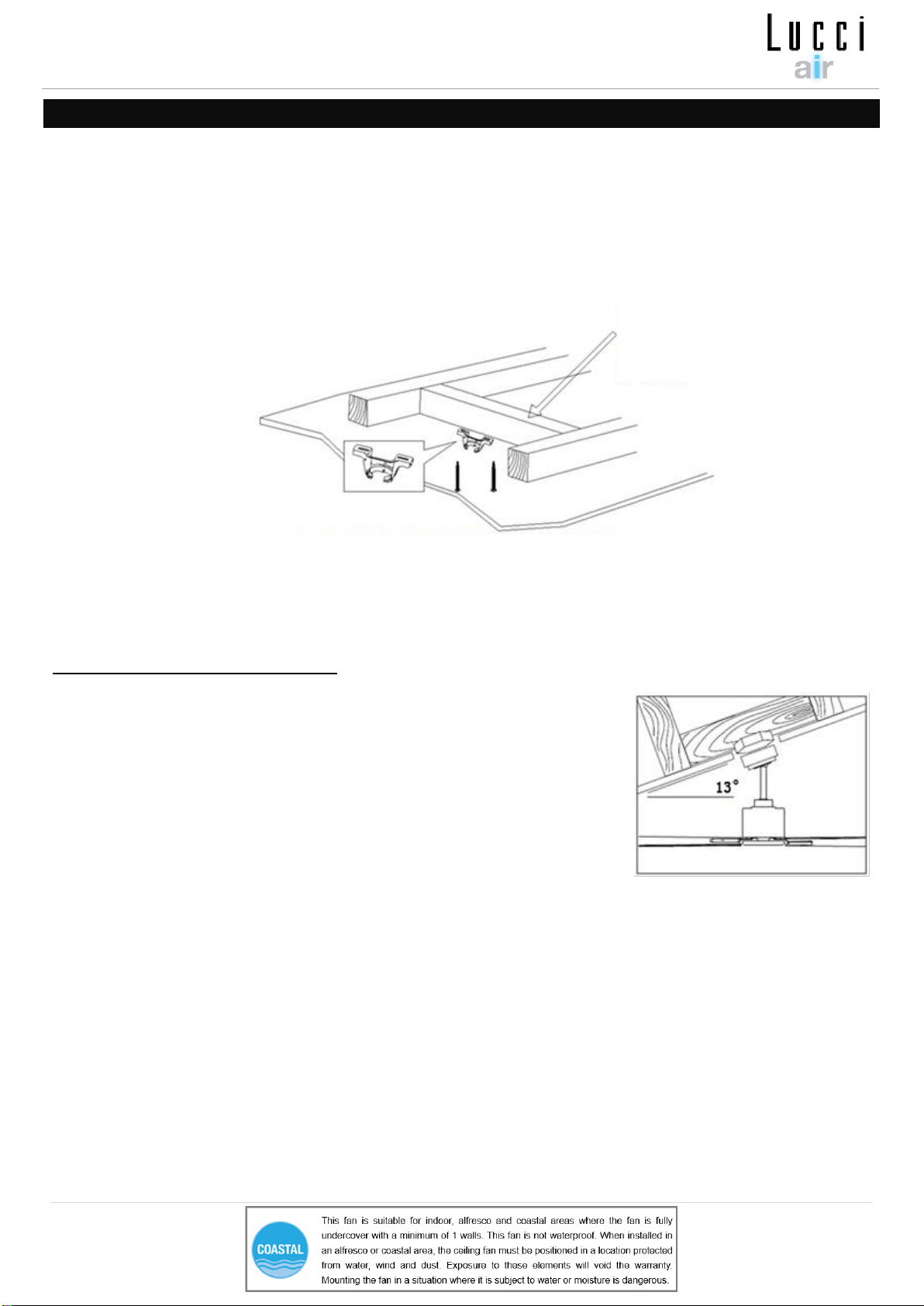

INSTALLING THE MOUNTING BRAKCET
The ceiling fan must be installed in a location so that the blades are 300mm spacing from the tip of the blade to the
nearest objects or walls.
Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with two
long screws provided. Ensure at least 30mm of the screw is threaded into the support.
NOTE: The bracket screws provided are for use with wooden structures only. For structures other than wood,
the appropriate screw type MUST be used.
ANGLED CEILING INSTALLATION
This fan hanging system supports a maximum 13 degree angled ceiling installation.
Fig. 2
Fig. 3

Banksia Fan Installation Instructions
6 | P a g e

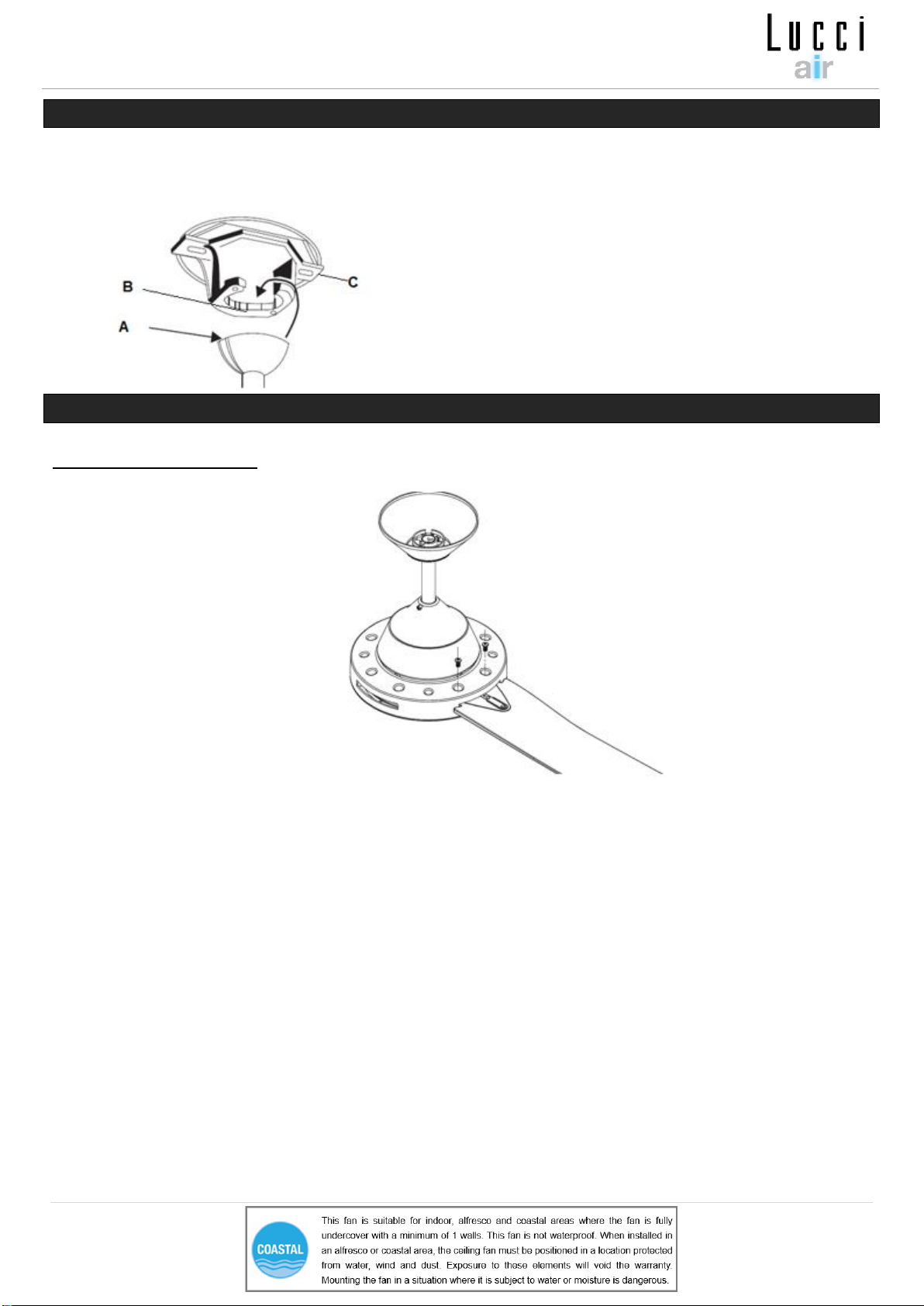

HANGING THE FAN
Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is positioned
on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig.4)
BLADE INSTALLATION
BLADE ATTACHMENT
1. Insert the blade into the square slot of the motor.
2. Secure the blade on the bracket by using 2 motor screws, ensuring they are tightened simultaneously.
3. Once completed, repeat the process on the remaining blades.
Fig. 4
Fig. 5

Banksia Fan Installation Instructions
7 | P a g e
ELECTRICAL WIRING DIAGRAM
WARNING: For youre safety all electrical connection must be undertaken by a licensed electrician.
NOTE: An additional all pole disconnection switch must be included in the fixed wiring. Please make sure the
main switch has been turned off before connecting.
NOTE: If there are two or more DC ceiling fans installed in the one location, an isolation switch is required for
each ceiling fan. This is required when programming the remote and receiver to pair together.
NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram is omitted when no light kit is
used with the ceiling fan.
Wiring requirement: (Fig.6)
Connect the power supply Live wire to the “L” terminal; connect the power supply Neutral wire to “N”
terminal; connect ground wire to “ ” terminal.
Insert the DC motor receiver into the mounting bracket.
Insert the 3-ports fixed wire quick connector (1) to the DC motor receiver power input socket (2).
Insert the DC motor receiver output wire connector (3) to the DC motor receiver power output socket (4).
Connect the DC motor receiver output wire and the motor power input wires via the 4-ports quick
connectors (5).
Insert the LED driver power input wire connector (6) to the DC motor receiver light output socket (7). For
fan model without light, ignore this LED driver power input wire (9) connection.
Connect the earthing conectors together via the 1-port quick connectors (8).
Fig. 6

Banksia Fan Installation Instructions
8 | P a g e
FINISHING THE INSTALLATION
Loosen the 2 screws from the bottom of the mounting bracket.
Slide the canopy up to the mounting bracket and place the key hole on the canopy over the screw on the
mounting bracket, turn the canopy until it locks in place at the narrow section of the key holes and secure
it by tightening the two set screws. Avoid damaging the electrical wiring prepared previously.
How to replace the LED driver (For models with light kit)
NOTE: Always turn Off the power at the mains switch before attempting to replace the LED driver.
Loosen the screw (A) to lift the top housing (B). Replace the LED driver by unplugging the connectors (C, D).
Reposition the top housing and secure it on the down rod by screw.
Fig. 7
Fig. 8

Banksia Fan Installation Instructions
9 | P a g e
USING YOUR CEILING FAN
BATTERY INSTALLATION
1 x 23A 12V battery is required to operate the remote control. Pull out the
battery cover and install the battery. Ensure the polarity is correct as shown
in the battery compartment.
OPERATING THE REMOTE
Before you start using the remote, take the time to read through this section and get familiar with the buttons
and function of each button.
NOTE: when you turn on the fan for the first time or switch the main power to the controller, you need to start
the fan on hight “5” speed first and then choose a lower speed. A 5-10 seconds is required to allow the DC
fan to respond to the remote each speed.
NOTE: when you change the fan running direction, a 30-40 seconds is required to allow the DC fan to respond
to the remote.
: FAN ON/OFF BUTTON (1):
Press the button to turn the fan on/off.
Press and hold the button for 5 seconds within 30 seconds
of switching the power to the receiver for pairing the
transmitter and receiver.
: LIGHT CONTROL BUTTON (2): Press the button to
turn on/off the light.
～: FAN SPEED CONTORL BUTTON (3):
Press the speed buttons from 5 to 1, the fan will running at
following order: Extra-high speed (5) → High speed (4) →
Medium speed (3) → Low speed (2) → Extra-low speed (1).
: REVERSE FUNCTION BUTTON (4): Press the
button to activate the reverse running function. The fan must be operating to activate the reverse function.
Fig. 10
Fig. 9
