Lucent Technologies 6402 User manual

Contents
The 6402 Single-line Telephone . . . . . . . . . . . . . . . . . . . . . 1
Headsets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Headpieces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Call-Handling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Getting Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Selecting a Personalized Ring . . . . . . . . . . . . . . . . . . . . . . 8
Voice Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
How to Access a Voice Feature on the 6402
and 6402D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using the Display on the 6402D . . . . . . . . . . . . . . . . . . . . 18
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Desktop Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Wall Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Removing the Telephone Tray . . . . . . . . . . . . . . . . . . . 23
Installing the Telephone Number Card. . . . . . . . . . . . . 24
Tones and Their Meaning . . . . . . . . . . . . . . . . . . . . . . . . . 26
Line and Feature Button Lights . . . . . . . . . . . . . . . . . . . . 27
555-230-738
Comcode 108138819
Issue 2
September 1997
6400 Series Single-line Telephones
User’s Guide

NOTICE
While reasonable efforts were made to ensure that the information in this
document was complete and accurate at the time of printing, Lucent
Technologies can assume no responsibility for any errors. Changes or
corrections to the information contained in this document may be incorporated
into future issues.
TO ORDER COPIES OF THIS DOCUMENT
Contact: Lucent Technologies Publications Center
P.O. Box 4100
Crawfordsville, IN 47933
Domestic: 1 800 457-1235 International: 1 765 361-5353
Domestic Fax: [phone] International Fax: [phone]
Order: Document No. 555-230-738
Issue 2, September 1997
HEARING AID COMPATIBILITY
This voice terminal is Hearing Aid Compatible (HAC). In addition, some units
have “HAC” printed on them.
YOUR RESPONSIBILITY FOR YOUR SYSTEM’S SECURITY
You are responsible for the security of your system. Lucent Technologies does
not warrant that this product is immune from or will prevent unauthorized use
of common-carrier telecommunication services or facilities accessed through
or connected to it. LucentTechnologies will notbe responsible for any charges
that result from such unauthorized use. Product administration to prevent
unauthorized use is your responsibility and your system manager should read
all documents provided with this product to fully understand the features
available that may reduce your risk of incurring charges.
TRADEMARKS
DEFINITY and AUDIX are registered trademarks of Lucent Technologies.
Mirage, Star Set, and Supra are registered trademarks of Plantronics, Inc.
OBTAINING PRODUCTS
To learn more about Lucent Technologies products and to order any of these
products, contact Lucent Direct, the direct-market organization of Lucent
Technologies Business Communications System. Access their web site at
www.lucentdirect.com or call the following numbers: customers should call
1 800 451-2100 or account executives can contact Lucent Direct at
1 800 778 1880 (voice) or 1 800 778-1881 (fax).
THE “CE” MARK
If the “CE” mark is affixed to this equipment. it means that it conforms to the
European Union Electromagnetic Compatibility Directive (89/336/EEC) and
the Low Voltage Directive (73/23/EEC).
Prepared by © 1997 Lucent Technologies
BCS Product Documentation Development All Rights Reserved
Middletown, New Jersey 07748-9972 Printed in USA

IMPORTANT USER SAFETY
INSTRUCTIONS
The most careful attention has been devoted to quality standards in the
manufacture of your new telephone. Safety is a major factor in the design of
every set. But, safety is YOUR responsibility too.
Please read carefully the helpful tips listed below and on the next page. These
suggestions will enable you to take full advantage of your new voice terminal.
Then, retain these tips for later use.
!CAUTION:
This telephone is NOT for residential use. It is for business systems
applications ONLY. Use in a residential environment could result in
an electrical short circuit when the telephone wiring is set up to
provide other applications, for example, for appliance control or
power transformers. The AC power used in these applications may
create a safety hazard by placing a direct short circuit across the
telephone wiring.
Use
When using your telephone equipment, the following safety precautions
should always be followed to reduce the risk of fire, electricshock, and injury to
persons.
•Read and understand all instructions.
•Follow all warnings and instructions marked on the telephone.
•This telephone can be hazardous if immersed in water. To avoid the
possibility of electric shock, do not use it while you are wet. If you
accidentally drop the telephone into water, do not retrieve it until you have
first unplugged the line cord from the modular jack. Then, call service
personnel to ask about a replacement.
•Avoid using the telephoneduring electrical storms in your immediate area.
There is a risk of electric shock from lightning. Urgent calls should be
brief. Even though protective measures may have been installed to limit
electrical surges from entering your business, absolute protection from
lightning is impossible.
•If you suspect a natural gas leak, report it immediately, but use a
telephone away from the area in question. The telephone’s electrical
contacts could generate a tiny spark. While unlikely, it is possible that this
spark could ignite heavy concentrations of gas.

•Never push objects of any kind into the equipment through housing slots
since they may touch hazardous voltage points or short out parts that
could result in a risk of electric shock. Never spill liquid of any kind on the
telephone. If liquid is spilled, however, refer servicing to proper service
personnel.
•To reduce the risk of electric shock, do not disassemble this telephone.
There are no user serviceable parts. Opening or removing covers may
expose you to hazardous voltages. Incorrect reassembly can cause
electric shock when the telephone is subsequently used.
Service
1. Before cleaning, unplug the telephone from the modular wall jack.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
2. Unplug the telephone from the modular wall jack. Be sure to refer
servicing to qualified service personnel when these conditions exist:
— If liquid has been spilled into the telephone.
— If the telephone has been exposed to rain or water.
— If the telephone has been dropped or the housing has been
damaged.
— If you note a distinct change in the performance of the telephone.
SAVE THESE INSTRUCTIONS
When you see this warning symbol onthe product, refer
to this instructions booklet packed with the product for
more information before proceeding.
!

1
The 6402 Single-line Telephone
There are two 6402 single-line telephones: the basic 6402 telephone and the
6402D, which has a 2-line, 16-character display. Familiarize yourself with the
features on the 6402 and 6402D telephone, shown in Figure 1 below and
described on the next page.
Note: Only the 6402D has a display.

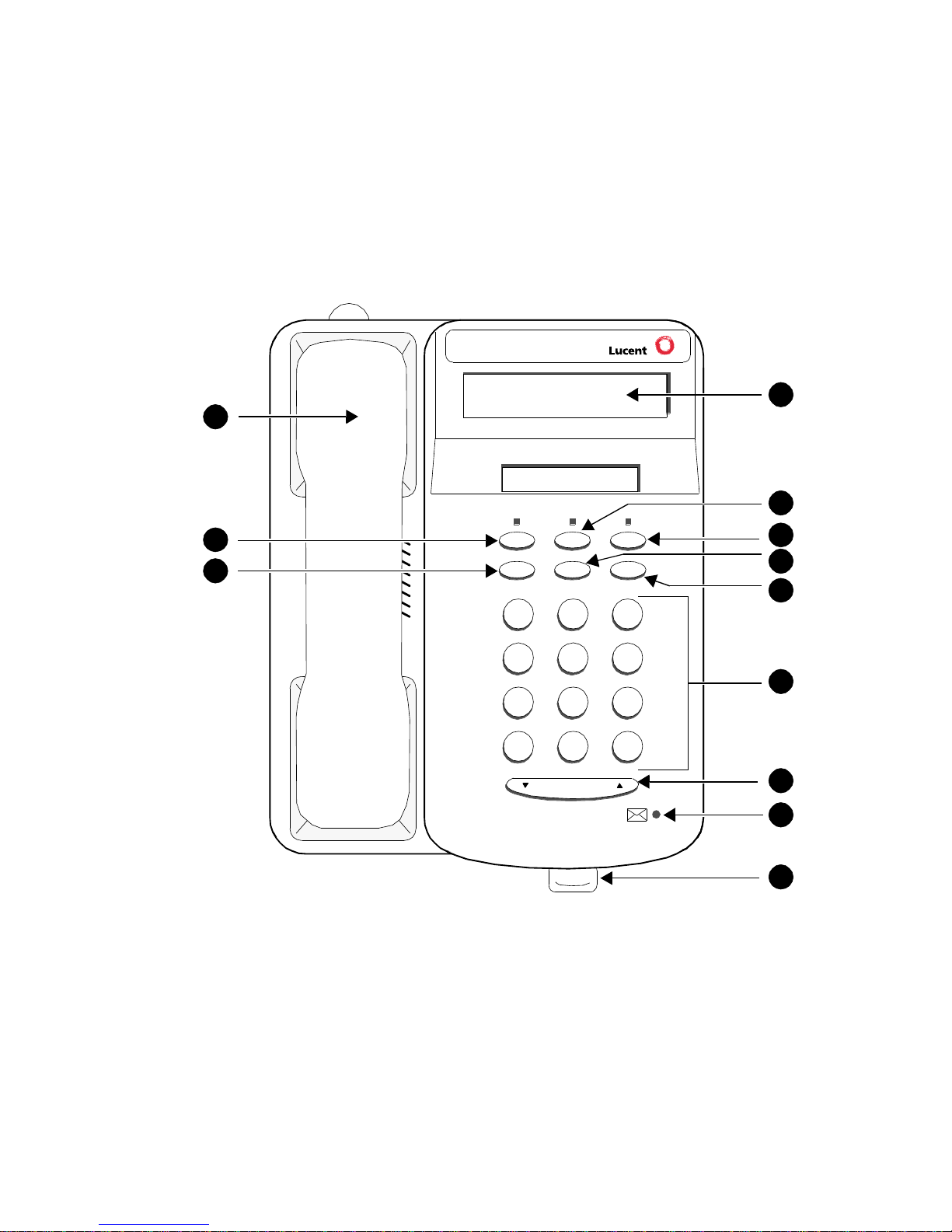

FIGURE 1 The 6402D Telephone
7
PQRS
3
DEF
Speaker Feature Hold
Redial Transfer Conf
Test Ring
2
ABC
1
4
GHI
*
56
89
MNOJKL
TUV WXYZ
O#
Volume
1
6
2
3
4
5
7
8
9
12
11
10
Tel #

2
The following features correspond to the numbers in Figure 1.
1) Display — The 6402D has a 2-line by 16-character display.
2) Feature Button — A button used with the 12 dial pad keys for accessing up
to 12 system features. Write the names of these features on the Feature
Directory card in the tray under the base of the telephone. (When is
active, the red light next to the button is on.)
3) Hold button — A red button for putting a call on hold. The red light next to
blinks to remind you that a call is on hold.
4) Transfer/Test button — For transferring a call to another telephone. (Use
this feature while off-hook.)
Test is printed below to remind you that by
pressing while on-hook, you can test the lights and the display (if the
telephone has one)
5) Conf/Ring button — For setting up conference calls. (Use this feature while
off-hook.)
Ring is printed below to remind you that by pressing
while on-hook, you can select a personalized ringing pattern for your
telephone. You can choose from among eight possible ringing patterns.
6) Dial pad — The standard 12-button pad for dialing phone numbers and
accessing features. The letters “Q” and “Z” have been added to the
appropriate dial pad keys for directory access, and the “5” button on your dial
pad has raised bars for visually-impaired users.
7) Volume control button — For adjusting the volume of the following:
•The speaker volume when the speaker is on.
•The handset receiver level while a call is in progress using the handset
and the speaker is off.
•The tone ringer when the telephone is on-hook or the telephone is ringing
and the speaker is off.
8) Message light — A red light which goes on steadily when a message has
been left for you.
9) Tray handle — Five cards are provided in the tray locatedunder the base of
every 6400 Series telephone:
Card 1: Quick reference procedures for using Conference, Hold, and
Transfer.
Card 2: Quick reference procedures for using Test, Speaker, and Redial.
Card 3: A Feature Directory on which you can list the features administered
on your dial pad keys. (To use these features,press and thenthe dial
pad key on which the feature is administered).
Card 4: A list on which you can write the 2- or 3-digit feature access codes
for your telephone system.
Card 5: A list on which you can write numbers or names associated with
Abbreviated Dialing personal lists, and on which you can list trunk codes and
frequently-used extensions in your telephone system such as the number for
AUDIX (or your voice mail system) or your system attendant.
Note: You may wish to remove the tray from the telephone, especially if you
are wall-mounting the telephone. For this purpose, use the directions
Feature
Hold
Transfer
Transfer
Conf Conf
Feature

3
titled “Removing the Telephone Tray” in the Installation section of this
guide.
10) Redial button — For redialing the last number that you dialed using the
dial pad.
11) Speaker button — For accessing theSpeaker feature. Thisfeature can be
used for
listening only . If you want to speak to the other party, you must use the
handset.
Note: With the Group Listen feature, you can activate the speaker while you
are using the handset, and both can be active at the same time.
12) Handset — A handset is provided for placing and receiving calls. In most
cases, you must lift the handset (go off-hook) before you can use a feature.
Headsets
Headsets for 6400 Series telephones allow one-touch hands-free operation.
To answer a call, press and then the dial pad key on which the
Headset feature is administered. (For more information on using and
the dial pad keys to access features, see “Voice Features” later in this
manual.)To disconnect, press again and then the dial pad key on
which the Headset feature is administered.
Headsets consist of a headpiece (1in Figure 2 below) and modular base unit
(2). The base unit plugs into the Handset jack (3).
FIGURE 2 The Headset Attached to a 6400 Series Telephone
Feature Feature
Feature
7
321
4
*
56
89
O#
Volume
12
3

4
Headpieces
The following headpieces can be used with these telephones:
—Mirage®— Receiver fits over either ear. Not for noisy environments.
—StarSet®— Eartip fits in ear canal.
—Supra®Monaural — Adjustable headband and soft ear cushion.
—Supra Monaural Noise-Canceling (NC) — Same as above with
noise-canceling microphone that reduces background noise transmission
by up to 75 percent.
—Supra Binaural — Sound in both ears.
—Supra Binaural Noise-Canceling (NC) — Same as above with
noise-canceling microphone on flexible boom; features windscreen and
reduces background noise transmission by up to 75 percent.
Note: The privacy of the Whisper Page announcement cannot be
guaranteed when telephones have headset adapters other than the
M10L-8400 plugged into the Handset jack. The M10L-8400
(Comcode: 407639715; PEC: 3122-022) is the only headset adapter
that should be used for the 6400 Series terminals.For more
information, see the Whisper Page instructions in the Voice Features
section.
Call-Handling Features
Conference
The Conference feature allows you to conference up to six parties
(including yourself) on a call.
To add another party to a call (for a total of six parties)
1. Press .
Present call is put on hold.
2. Dial the number of the new party and wait for an answer.
3. When you want to add the new person, press again.
All parties are now connected.
4. Repeat Steps 1 through 3 for additional conference connections.
To add a call you have put on hold to another call you are
connected to
1. Press .
Red light next to blinks.
2. Press and then release the switchhook.
3. Press again.
All parties are now connected.
Conf
Conf
Conf
Hold
Conf

5
Hold
The Hold feature puts a call on hold until you can return to it.
To keep a call on hold while you answer another call or perform
another task
1. Press .
Red light next to blinks.
To answer a new call while active on another
1. Press .
Red light next to blinks, and the first call is put on hold.
2. To be connected to the incoming call, press and then release the
switchhook.
To return to the held call
1. Press and then release the switchhook again.
Redial
The Redial (or Last Number Dialed) feature automatically redials the last
extension or outside number you dialed.
To redial the last number that you dialed
1. While off-hook, press .
The last number you dialed is automatically redialed.
Note: The redialed number can be an outside number (up to 24
digits), an extension, or a trunk or feature access code.
Hold
Hold
Hold
Hold
Redial

6
Speaker (Listen-Only) and Group Listen
Note: The Speaker feature allows you to place calls or access other
features without lifting the handset. However, in order to speak to
the other party, you must use the handset.
With the Group Listen feature, you can turn on the speaker while
active on the handset, and both are active at the same time.
To place a call without lifting the handset or for any listening-only
feature (such as monitoring a call on which you have been put on
hold or for group listening)
1. Press .
Red light next to goes on.
2. Place a call or access the selected feature.
3. Adjust the speaker volume if necessary:
To raise the volume, press the right half of the Volume control button
labeled ; to lower the volume, press the left half of the Volume
control button labeled . If you have a display, it shows the
volume level:
To change from the speaker to the handset
1. Lift the handset and talk.
Speaker goes off when you lift the handset.
Red light next to goes off.
To change from the handset to the speaker
1. While handset is off-hook, press
Red light next to goes on.
You can now hang up handset (within 10 seconds) and the call will
remain active on the speaker. However, in order to talk to the other
party, you must use the handset.
With the Group Listen feature, you can turn on the speaker while the
handset is off-hook, and both the handset and speakerphone are
active at the same time. However, again, you must talk through the
handset for the other person on the call to hear you.
To end a call (while the handset is on-hook and only the speaker is
active)
1. With the handset on-hook, press .
Red light next to goes off.
Speaker
Speaker
->>>>>> +
Speaker
Speaker
Speaker
Speaker
Speaker
