Lucent Technologies 954 User manual

Part 2
Please read Part 1 — Important Product
Information, included in your package.
User’s Manual for
Four-Line Intercom/
Speakerphone 954
Lucent 0954 cover.L1 5/9/98, 12:17 PM3

© 1998 Philips Consumer Communications L.P. All rights reserved.
Printed in Mexico. Issue L1
Lucent 0954 cover.L1 5/9/98, 12:17 PM2

1
CONTENTS
BEFORE YOU BEGIN ........................ 3
INSTALLATION................................. 4
Table/Desk Installation.......................... 4
Wall Installation..................................... 6
TELEPHONE FEATURE SETUP .........10
Assign Intercom Number ....................10
Set the Clock. ...................................... 10
Set Dial Mode ...................................... 10
Set forTwo orThree Phone Lines........11
Set Up for a Private Line...................... 11
Change BATTERY Display ...................11
OPERATION................................... 12
Making a Call....................................... 13
Call Privacy ......................................... 13
Line-In-Use Lights ................................ 13
Volume ................................................ 14
Redial .................................................. 15
Auto Redial.......................................... 15
Hold .................................................... 15
Switch Between Lines .........................15
Mute .................................................... 16
Flash .................................................... 16
TemporaryTone Dialing ...................... 16
Conference Calls ................................. 16
Do Not Disturb.................................... 17
Transfer a Call...................................... 17
Timer................................................... 18
TELEPHONE MEMORY ....................19
Directory Card .................................... 20
Storing Numbers in Memory...............20
Storing a Pause in a
Memory Number ............................. 20
Storing aTemporaryTone Signal
in a Memory Number ...................... 20
Storing Flash in a Memory Number ....20
Erasing Memory Numbers................... 20
INTERCOM OPERATION ..................21
Basic Intercom Operations..................22
Making an Intercom Call or Page ........22
Answering an Intercom Call or Page...22
Ending an Intercom Call or Page.........22
PagingAll Phones ................................ 23
Answering anALLPAGE ....................... 23
Making an Intercom
Conference Call ............................... 23
Room Monitor ..................................... 23
CheckingYour Station Number...........23
IN CASE OF DIFFICULTY .................24
EXPANDING THE 954 SYSTEM........26
CENTREX OPERATION ....................27
Setup Checklist ................................... 27
Setting Up a Fourth Line
for Each Station ............................... 27
Enabling/DisablingAttendant Station..27
Attendant Operation ........................... 28
Setting Ring Delay Duration................28
Answering a Delayed Ring .................. 28
Picking UpAnother Station’s Line .......29
Lucent 0954 book.L1 5/7/98, 10:34 AM1

2
Lucent 0954 book.L1 5/7/98, 10:34 AM2

3
BEFORE YOU BEGIN
• You must have a modular telephone jack and electrical outlet near
where you’re installing the phone.
• The total length of telephone line cord used in this system is
important. If the total length of telephone line cord is more than
600 feet,you may need to use a special filter device. You can call
1 800 PCC–9125 for information about this filter. You’ll need to
contact a professional to install this filter.
• Identify the number of phone lines you’ll use.
• All connected phones must have the same Line 1 phone number for
Intercom and Paging to work.
• Assign a different Intercom Extension Number (11 through 22) to
each 954 telephone. You’ll need to do this individually at each
telephone.
• Decide if you want a private line. A private line does not appear on
all connected phones.
Lucent 0954 book.L1 5/7/98, 10:34 AM3

4

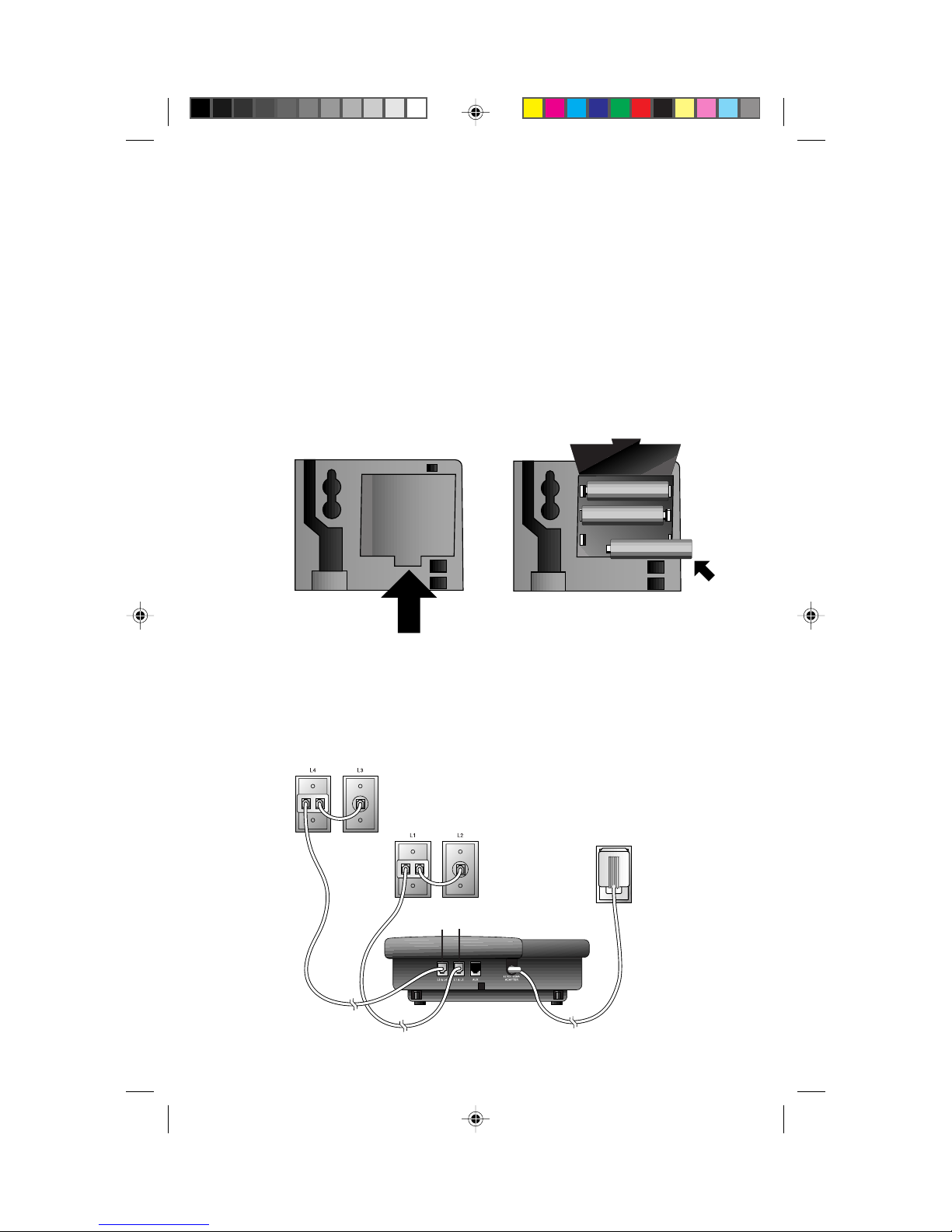

Table/Desk Installation
1 Install 3 AAA batteries.
• Press in on the tabs and remove the telephone base.
• Press in on the tabs on the battery door,and remove it.
• Insert 3AAA batteries,and replace the battery door.
• Replace the telephone base.
NOTE: Batteries retain telephone memory in the event of a power failure.
If power fails, this phone will not work.
INSTALLATION
2 Connect the telephone line cords to the telephone.
NOTE: If the phone rings when you first connect the line cords, you need
to set the phone’s intercom number. See “Assign Intercom Number”in the
TELEPHONE FEATURE SETUP section of this manual.
•Four One-Line Jacks
Modular
Telephone Jacks
Lines 1 and 2
Modular
Telephone Jacks
Lines 3 and 4
Telephone Jacks
Power Cord
Telephone
Line Cords
Standard
Electrical
Outlet
Lucent 0954 book.L1 5/7/98, 10:34 AM4

5

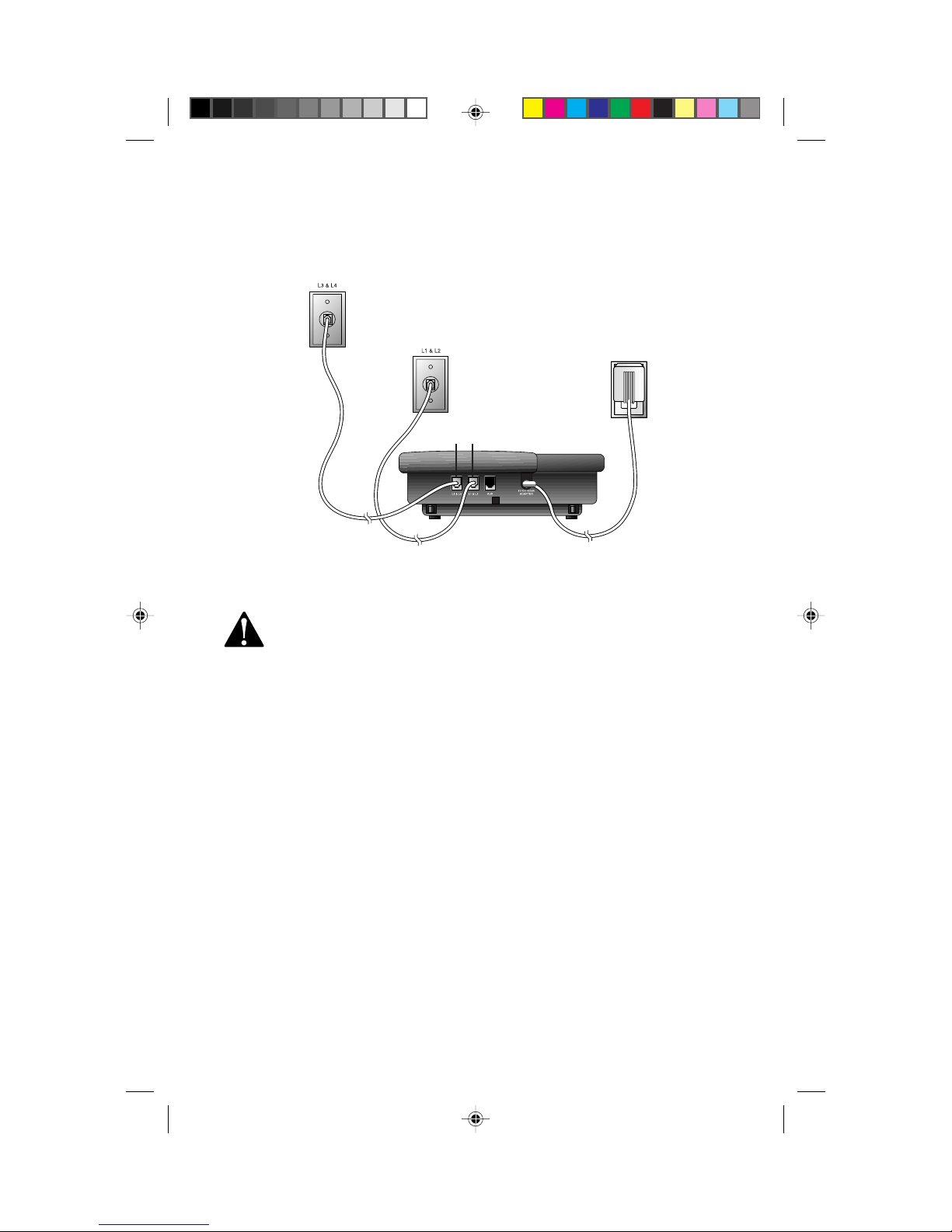

•Two Two-Line Jacks
INSTALLATION
Telephone
Line Cords
Telephone Jacks
Modular
Telephone Jack
Lines 1 and 2
Modular
Telephone Jack
Lines 3 and 4
Power Cord
Standard
Electrical
Outlet
3 Connect the power adapter.
Use only the power adapter provided with this product. To obtain a
replacement,call 1 800 PCC–9125.
Plug one end of the power adapter into the jack labeled ADAPTER
on the back of the phone. Plug the other end into a standard
electrical outlet.
4 Connect the handset cord.
Plug one end of the coiled handset cord into the jack on the bottom
of the phone. Plug the other end into the handset, and hang up.
5 Check for dial tone.
Lift the handset and listen for a dial tone. If you cannot hear a dial
tone,turn to IN CASE OF DIFFICULTY in this manual.
Lucent 0954 book.L1 5/7/98, 10:34 AM5

6
Wall Installation
1 Reverse the handset tab.
Hold down the switchhook,then pull the tab out and rotate it 180
degrees. Release the tab so it settles into position.
2 Install 3 AAA batteries.
• Press in on the tabs and remove the telephone base.
• Press in on the tabs on the battery door,and remove it.
• Insert 3AAA batteries,and replace the battery door.
3 Turn the base, as shown, and attach it to the bottom of the
phone.
INSTALLATION
Lucent 0954 book.L1 5/7/98, 10:34 AM6

7

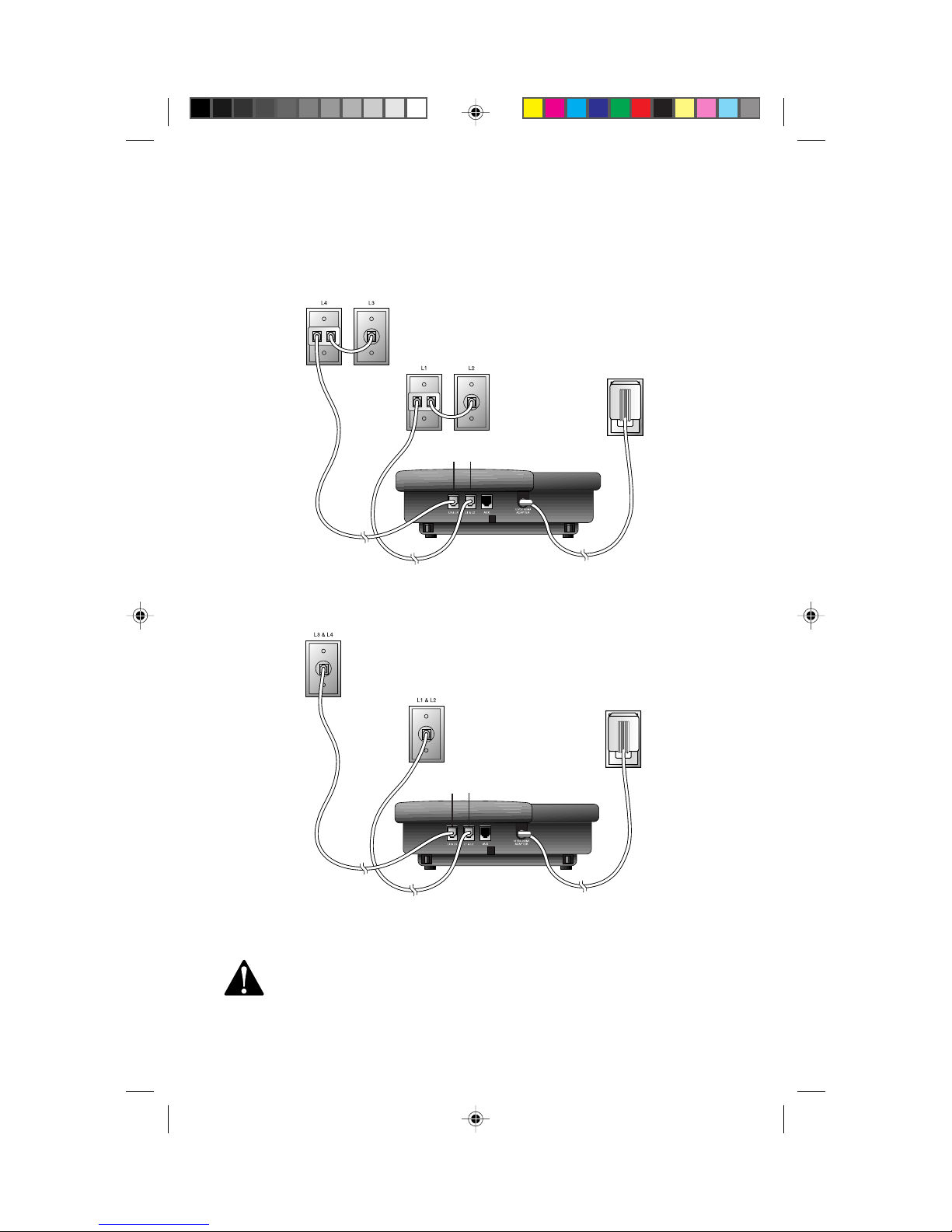

4 Connect the telephone line cords to the telephone.
•Four One-Line Jacks
•Two Two-Line Jacks
5 Connect the power adapter to the telephone.
Use only the power adapter provided with this product. To obtain a
replacement,call 1 800 PCC–9125.
Plug one end of the power adapter into the jack labeled ADAPTER
on the back of the phone.
Telephone
Line Cords
Telephone Jacks
Modular
Telephone Jack
Lines 1 and 2
Modular
Telephone Jack
Lines 3 and 4
Power Cord
Standard
Electrical
Outlet
INSTALLATION
Standard
Electrical
Outlet
Modular
Telephone Jacks
Lines 1 and 2
Modular
Telephone Jacks
Lines 3 and 4
Telephone Jacks
Power CordTelephone
Line Cords
Lucent 0954 book.L1 5/7/98, 10:35 AM7

8

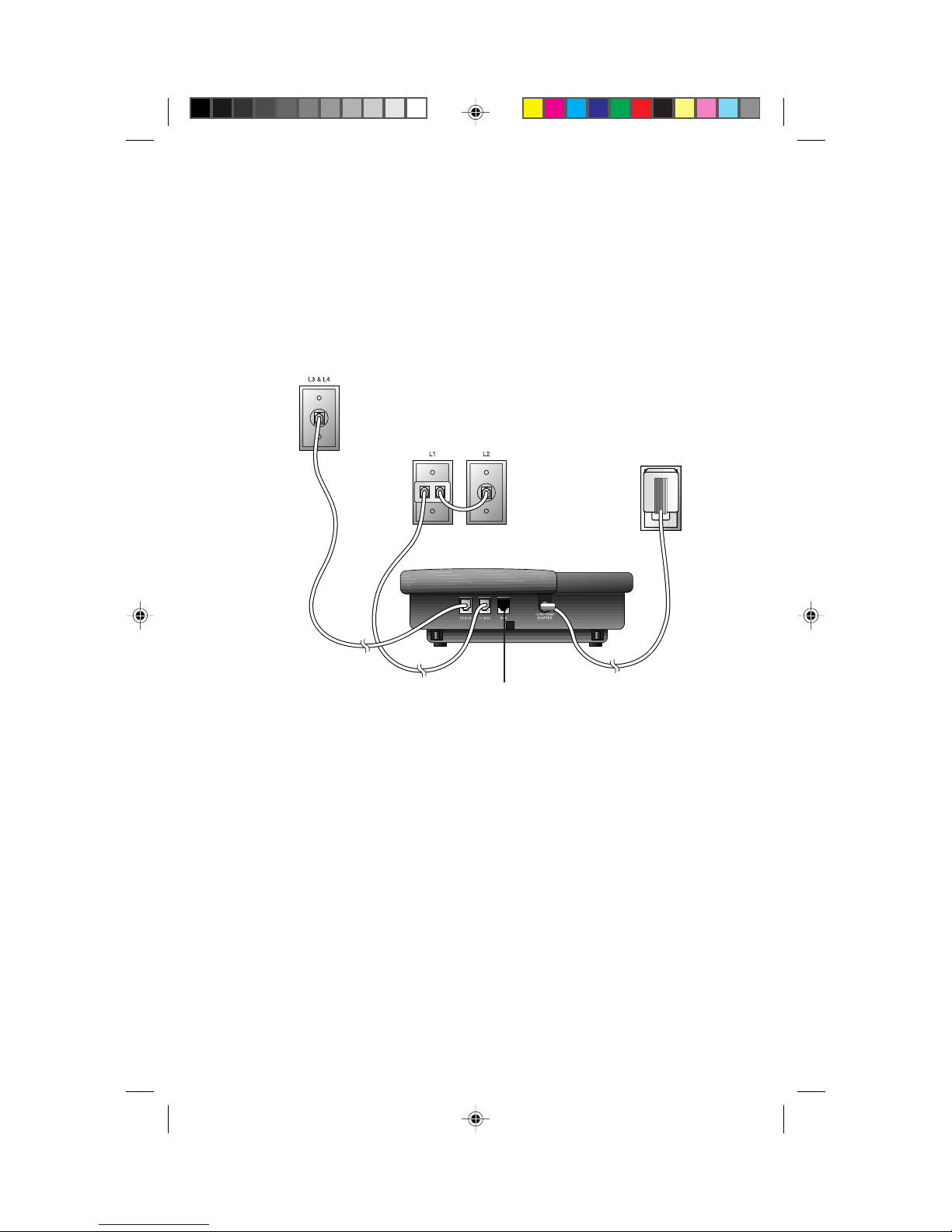

6 Mount the phone on the wall.
•Four One-Line Jacks
•Two Two-Line Jacks
NOTE: If you have three modular telephone jacks, mount the phone onto
a jack without a wall-mounting adapter. If you have four modular
telephone jacks, mount the phone onto a jack without a wall-mounting
adapter.
INSTALLATION
Modular
Telephone
Jack Line 1
Modular
Telephone
Jacks Lines
3 and 4 Telephone
Line Cord
Telephone
Line Cord
Standard
Electrical
Outlet
Modular
Telephone
Jack Line 2
Power Cord
Telephone
Line Cord
Standard
Electrical
Outlet
Modular
Telephone
Jack Lines
3 and 4
Modular
Telephone Jack
Lines 1 and 2
Power Cord
Lucent 0954 book.L1 5/7/98, 10:35 AM8

9
7 Plug the power adapter into a standard electrical outlet.
Convenience Port: If you want to connect another device (such as
an answering machine or fax machine) to the wall jack,you can use
the jack on the phone labeled AUX. This convenience port will
always use Line 2;a call picked up on Line 2 at another extension
may interrupt a fax,modem,or message transmission.
Convenience Port
INSTALLATION
Standard
Electrical
Outlet
Lucent 0954 book.L1 5/7/98, 10:35 AM9

10
Assign Intercom Number
1Do not lift the handset.
2Press G, *, #.
3Enter two digits (11–22).
4Press I. You will hear a confirmation ring.
NOTE: If you duplicate an intercom number, you’ll hear a warning tone.
Repeat Steps 1–4 and assign a different number.
5Pry up the intercom number card cover,write the intercom number
on the card,and replace the cover.
Set the Clock.
NOTE: You’ll hear a confirmation tone when you enter numbers correctly.
If you make a mistake, press and release Sto start over.
1Press and release S. The screen displays zeros.
2Press and release *forAM or #for PM
— OR —
Go on to Step 3 if you want the clock set to military/European time.
3Enter two digits to set the month (for example,press 03for
March).
4Enter two digits to set the date (for example,press 09for the
ninth).
5Enter one digit for the day of the week (for example,press 1for
Sunday or 5forThursday).
6Enter two digits for the hour (for example,press 01for one
o’clock,or 11for eleven o’clock).
7Enter two digits for the minutes (for example,press 31for :31).
Set Dial Mode
1Press G, *, #, *.
2Press and release 2for tone dialing
— OR —
Press and release 3for pulse dialing.
3Press and release M. You’ll hear a confirmation ring if you’ve
entered information correctly.
TELEPHONE FEATURE SETUP
Lucent 0954 book.L1 5/7/98, 10:35 AM10

11
Set for Two or Three Phone Lines
If you’re not using all four phone lines,you need to turn off the line status
for the unused line. If you expand to a third or fourth line,turn the line
status back on. You cannot turn off line status for Line 1.
1Press G, *, #.
2Press 2for Line 2
— OR —
Press 3for Line 3
— OR —
Press 4for Line 4.
3Press 0to turn off line status
— OR —
Press 1to turn on line status.
4Press T. You’ll hear a confirmation ring.
Set Up for a Private Line
This feature works only if you have three phone lines connected. Line 4 may
vary from phone to phone,so you can consider this a private line that other
954 phones cannot access.
NOTE: The phone number for Line 1 must be the same on all phones for
the intercom and paging features to work.
1Press G, *, #.
2Enter a different line number (05–08) for each private line.
3Press and release H. You’ll hear a confirmation ring.
Change BATTERY Display
When battery power is low,the screen flashes BATTERY. Replace the
batteries promptly to prevent memory loss (see the INSTALLATION section
in this manual). You can set the phone so the screen won’t display the
BATTERY message.
1Press G, *, #, *.
2Press and release 0to prevent BATTERY display
— OR —
Press and release 1to enable BATTERY display.
3Press and release C. You’ll hear a confirmation ring.
TELEPHONE FEATURE SETUP
Lucent 0954 book.L1 5/7/98, 10:35 AM11

12
OPERATION
Prevents
interruptions
during a call
Activate custom-
calling services
Redial last
number called
Put a caller
on hold
Mute the
microphone
Activate
speakerphone
Adjust Ringer and
Handset/Speakerphone
volume
Line-in-use
lights
Redirect an
incoming call
to any other
954 phone
Automatically
redials a
number when
the line you’re
calling is busy
Displays the
elapsed call
time in minutes
and seconds
Lucent 0954 book.L1 5/7/98, 10:35 AM12

13
NOTE: When you make a call, the phone selects the first available line.
When you answer a call, the phone automatically selects the ringing line.
If you have a private line, the phone automatically selects that line.
Making a Call
Handset
To make a call, lift the handset. You can dial your call manually or use the
memory dialing feature.
To answer a call, lift the handset. Replace the handset to end the call.
To override automatic line selection, press and release a LINE button
(this activates the speakerphone),then lift the handset.
Speakerphone
To make a call, press and release K. The SPEAKER light goes on. Wait
for a dial tone,then dial the call manually or by using memory dialing.
To answer a call, press K. Press Kagain to end the call.
To switch from handset to speakerphone, press K,then replace
the handset.
To switch from speakerphone to handset, lift the handset.
To override automatic line selection, press and release a LINE button
(this activates the speakerphone).
Call Privacy
To ensure call privacy,the phone allows only one set at a time to use a line.
Canceling Call Privacy
During the call,press the line button for the call. You’ll hear a short ringing
tone. Others can now join the call.
Restoring Call Privacy
Press the line button again during the call. You’ll hear a double-ring. The
other phones will be dropped from the call.
NOTE: Call privacy is automatically restored when you end the call.
Line-In-Use Lights
Whenever a line is in use,the light flashes slowly on the phone using that
line. On the other phones,the light stays on steadily to indicate someone
else is using the line.
OPERATION
Lucent 0954 book.L1 5/7/98, 10:35 AM13

14
Volume
Handset/Speakerphone Volume Control
When you are on a call,press +to increase handset or speakerphone
volume. Press -to decrease volume.
Ringer Volume
You can adjust the ringer volume while the phone is ringing. While the line
is ringing,press +or -to reach the desired level. If more than one line is
ringing at the same time,both will be adjusted.
This phone has four ringer volume levels. Each time you adjust the ringer,
you will hear a sample indicating the volume level. To adjust ringer volume
when the line is not ringing,follow the steps below.
1Press and release C.
2Choose the line for ringer adjustment. Press and release 1for
Line 1
— OR —
Press and release 1for Line 2
— OR —
Press and release 3for Line 3
— OR —
Press and release 4for Line 4.
3Press +to increase volume
— OR —
Press -to decrease volume.
Turning Ringer Off
1Press and release C.
2Choose the line for ringer adjustment. Press and release 1for
Line 1
— OR —
Press and release 2for Line 2
— OR —
Press and release 3for Line 3
— OR —
Press and release 4for Line 4.
3Press -until you no longer hear a tone.
OPERATION
Lucent 0954 book.L1 5/7/98, 10:35 AM14

15
Redial
The last number dialed on this phone is stored in redial memory until you
dial another number. To dial the same number again,lift the handset or press
K,listen for the dial tone,then press R.
Auto Redial
Select a line and press A. The screen displays BUSYDIAL as long as
the number you’re calling is busy. The phone redials the number you just
called,and will continue up to 10 times or until the other line rings or you
cancel Auto Redial.
When you hear the line ringing,lift the handset or press Kto complete
the call;if you don’t,the phone disconnects the call after 15 seconds. To
cancelAuto Redial,press A,or lift the handset,or press K.
Hold
Press and release H. The light of the line on hold flashes,and a double
beep sounds every 30 seconds to remind you the call is on hold. You can
replace the handset in the cradle without disconnecting the call. The
speakerphone is automatically turned off.
To release Hold,press and release the LINE button of the call on hold.
NOTE: You cannot put an intercom call on hold.
Disabling Hold Reminder
This phone comes programmed to remind you every 30 seconds when you
have a call on hold. You can turn this feature off following the directions
below.
1Press G, *, #, *.
2Press and release 4to turn off the alert beep
— OR —
Press and release 5to turn on the alert beep.
3Press and release M. You will hear a confirmation ring.
Switch Between Lines
1Press and release Hto keep a call on the first line.
2Press and release the LINE button of another line to make or answer
another call.
NOTE: If you switch lines without pressing Hfirst, you will drop
the call.
OPERATION
Lucent 0954 book.L1 5/7/98, 10:35 AM15

16
Mute
This feature lets you mute the telephone so that you can hear the other
party,but the other party can’t hear you.
To activate this feature,press and release M. The MUTE light goes on.
To return to the conversation,press and release Magain.
NOTE: Switching from handset to speakerphone or from speakerphone to
handset, changing lines, and putting a call on hold also cancel Mute.
Flash
Use Finstead of the switchhook to activate telephone company
subscriber services such as CallWaiting orThree-Way Calling.
Temporary Tone Dialing
If you have dial pulse (rotary) service,you can change from dial pulse to
touch tone dialing during a call by pressing *. This is useful if you need to
send touch tone signals for access to telephone banking or long-distance
services.
1Dial the number.
2Press and release *. Buttons pressed after this send touch tone signals.
3After you hang up,the phone automatically returns to rotary service.
Conference Calls
This feature lets you set up a three-party call by using two lines at the same
time. You can also join an intercom call with a call on an outside line.
1Make or answer a call.
2Press and release H.
3Call someone on another line.
4When this call is answered,press C. The three-party conference
begins immediately.
5To end a conference call,hang up. All parties will disconnect.
To talk privately with one party:
1Press Hto place both lines on hold.
2Press a LINE button to talk privately with the person on that line.
3Press Cto resume conference call.
OPERATION
Lucent 0954 book.L1 5/7/98, 10:35 AM16

17
To drop one line:
Press the LINE button of the party you want to keep. The other line will be
dropped.
NOTE: Occasionally, the far-end parties on a conference call might not
hear one another.
Do Not Disturb
Use this feature to prevent interruptions during a call. When you activate
this feature you will not hear paging tones,voice paging,or incoming call
rings.Instead,the LINE light flashes and the INTERCOM light goes on to
signal a call or page. If you receive an intercom call,the INTERCOM light
flashes,and the intercom number calling you appears on the display.
1Press dto prevent interruptions.
2Press dagain to resume normal call alerts.
Transfer a Call
You can transfer a call you answer to any other 954 phone. Once you
transfer a call,it can be picked up at any other 954 phone,not just at the
intercom number you called. Transfer calls fall into two categories:
announced and unannounced. Announced calls let you alert the other
person verbally that they have a transferred call. Unannounced calls alert
the other person by ringing.
Your phone reminds you every 30 seconds when a transferred call has not
been answered.
Transferring an Announced Call
1Press por I.
2Enter the intercom number where you’re transferring the call.
3Begin speaking to alert the other person there’s a call.
To answer a transferred announced call,press the LINE button of the call.
Transferring an Unannounced Call
1PressT.
2Enter the intercom number where you’re transferring the call.
3Hang up.
To answer a transferred unannounced call,pick up the handset or press the
LINE button of the call to use the speakerphone.
OPERATION
Lucent 0954 book.L1 5/7/98, 10:35 AM17

18
Timer
The screen displays the elapsed time in minutes and seconds for the first
hour (up to 59 minutes,59 seconds),then begins at zero again. The timer
automatically stops when you hang up. The screen displays the recorded
time for about six seconds.
Press Dto start the timer. Press Dagain to stop timing.
OPERATION
Lucent 0954 book.L1 5/7/98, 10:35 AM18
