Luggie FR168-4 (IT) Operator's manual

FR168-4 (IT)
uggiR
USERS INSTRUCTION MANUAL
~Smart Fold, Easy Go~

Using your Luggie product safely depends upon your
diligence in following the warnings, cautions and instructions
in this manual. Using your Luggie Scooter safely also
depends upon your good judgement and/or common sense,
as well as that of your Provider, Carer or Health Professional.
Always think safety!Always think safety!
Transporting your Luggie. . . . . . . . . . . . . . . . . . . . . . .
Batteries and battery charging . . . . . . . . . . . . . . . . . . .
Care and maintenance. . . . . . . . . . . . . . . . . . . . . . . . .
Basic fault finding. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical specification. . . . . . . . . . . . . . . . . . . . . . . . .
Size specification-Luggie . . . . . . . . . . . . . . . . . . . . . . .
Circuit diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Advisory safety notice. . . . . . . . . . . . . . . . . . . . . . . . .
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . .
Guarantee terms. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service history. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggie
Luggie
Congratulations on the purchase of your Luggie .
Please read this User Instruction Manual carefully before you
attempt to operate your Scooter. Your User Instruction
Manual will assist you to get the most from your machine.
This manual contains important information regarding the
safe operation and maintenance of your scooter.
Before beginning to use your Scooter, make sure
you completely read and understand all instructions
thoroughly. Please observe the "Rules for safe use" and the
Safety Instructions outlined on page 4.5.6.9.10.13 of this
owner's manual. If you have any queries concerning operation
or maintenance, consult your authorised Luggie dealer.
Please keep in mind that the operator of the Scooter is
responsible for accidents or hazards occurring to other
people or their property.
Luggie .
Please read this User Instruction Manual carefully before you
attempt to operate your Scooter. Your User Instruction
Manual will assist you to get the most from your machine.
This manual contains important information regarding the
safe operation and maintenance of your scooter.
Before beginning to use your Scooter, make sure
you completely read and understand all instructions
thoroughly. Please observe the "Rules for safe use" and the
Safety Instructions outlined on page 4.5.6.9.10.13 of this
owner's manual. If you have any queries concerning operation
or maintenance, consult your authorised Luggie dealer.
Please keep in mind that the operator of the Scooter is
responsible for accidents or hazards occurring to other
people or their property.
Please read and follow all instructions in this Users
Instruction Manual before attempting to operate your
Luggie Scooter for the first time. If there is anything in this
manual that you do not understand, or if you require
additional assistance for the operation please, contact your
Authorised Luggie Agent.
Luggie
Luggie
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggie feature guide . . . . . . . . . . . . . . . . . . . . . . . . . . .
Purpose of your Luggie Scooter . . . . . . . . . . . . . . . . . . .
Guildelines for safe use . . . . . . . . . . . . . . . . . . . . . . . . .
Getting to know your Luggie . . . . . . . . . . . . . . . . . . . .
Operating your Luggie . . . . . . . . . . . . . . . . . . . . . . . . .
Freewheeling your Luggie. . . . . . . . . . . . . . . . . . . . . . . .
Safety instructions and warnings . . . . . . . . . . . . . . . . . .
Safety warnings andinstruction lables . .. .. .. .. .. .. .
Learning toget about. . . . . . . . . . . . . . . . . . . . . . . . . .
Luggie
Luggie
Luggie
Luggie
Luggie
Your Luggie has numberous features not found on other power
Scooters. With proper care and maintenance, you will enjoy
many years of dependable service.
Your Luggie Scooter needs to receive maintenance
at regular intervals and should be inspected frequently for
proper mechanical operation. Trouble shooting guidelines,
methods of detecting improper operation and making minor
adjustments are included in this manual.
Follow all recommendations to obtain trouble free, safe and
enjoyable operation of your Luggie scooter.
Please remember that when it comes to service and repairs,
your authorised Luggie dealer knows your Luggie Scooter best.
Luggie
proper mechanical operation. Trouble shooting guidelines,
methods of detecting improper operation and making minor
adjustments are included in this manual.
Follow all recommendations to obtain trouble free, safe and
enjoyable operation of your Luggie scooter.
Luggie Luggie
Your Luggie Scooter needs to receive maintenance
at regular intervals and should be inspected frequently for
16
17
20
23
25
26
26
27
27
28
29
FOREWORD
CONTENTS
INTRODUCTION
2
2
3
3
4
4
5
6
9
10
13
14

The three wheel Luggie supplied has fitted as standard the
following features:
Rear-wheel drive via sealed drive axle.
18 A/H sealed non-maintenance lead-acid batteries or
8.5AH/10AH Lithium Battery.
Manual charging system.
Off-Board charging facility.
Seat with folding backrest, height adjustment and
adjustable width arm-rests (option).
A multi-positional handlebar for greater comfort.
A simple 'wig-wag' type control lever situated on the
handlebar, controls speed, braking and direction.
Steering is controlled by a handlebar attached to a fork
system containing the twin front wheel.
Independent braking systems.
'State of the art' micro-controller electronics ensures a
smooth , comfortable and safe drive on most surfaces
and gradients.
Luggie One piece Alloy Aluminum chassis for ease of transporting.
Your Scooter can be direct folding.
without the use of tools for ease of transporting.
However, your Scooter is not designed to transport the
user in a moving vehicle; for advice on transporting
consult your selling agent.
Simple to remove battery pack.
The product should be serviced as recommended by an
approved Luggie distributor in order to ensure safe, reliable
operation. For details and list of options available for users,
refer to the accessories section of this manual.
However, your Scooter is not designed to transport the
user in a moving vehicle
The product should be serviced as recommended by an
approved Luggie distributor in order to ensure safe, reliable
operation. For details and list of options available for users,
refer to the accessories section of this manual.
1.
2.
3.
4.
12.
13.
14.
15.
16.
17.
18.
19.

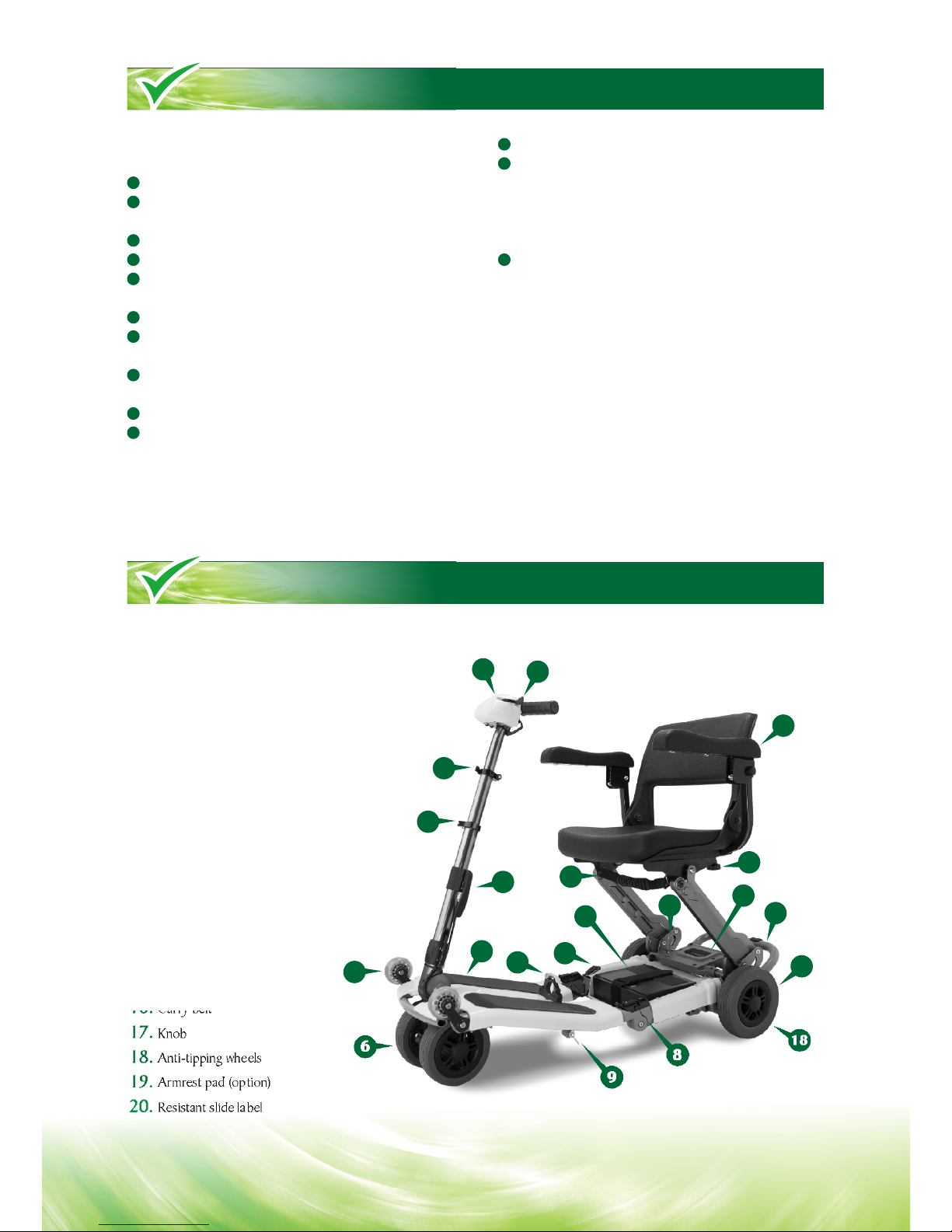

Top console
Wig-Wag lever
Clamp
Trigger
Transporting wheels
Front solid tires
Tiller locking clamp
Chassis hook
Chassis locking pin

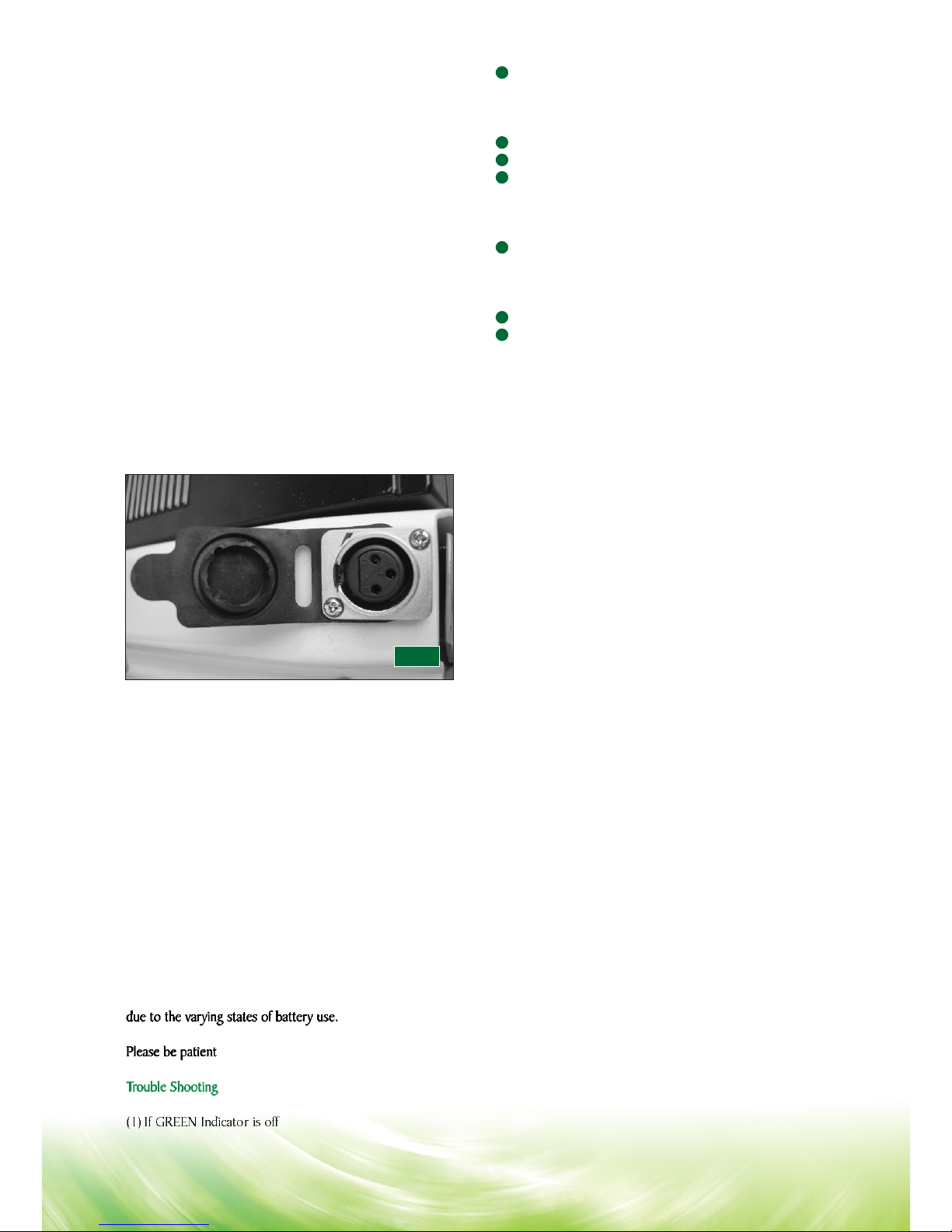

Charging socket
Battery pack
Disengage lever
Seat lock
Rear bumper
Rear solid tires
Carry belt
Knob
Anti-tipping wheels
Armrest pad (option)
Resistant slide label
5.
6.
7.
8.
9.
10.
11.
20.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
2
1
8
3
3
4
5
6
7
9
10
11 12 13
14
15
16
17
18
19
20
PRODUCT DESCRIPTION
Luggie FEATURE GUIDE
3

Your Luggie Scooter is suitable for persons
who require independent mobility or
pre-mobility people combined with comfort,
maneuvrerability, reliability and a product
that needs a minimal amount of maintenance.
The intended user should posses some degree of ability with
the use of both arms and hands, reasonable balance and
eyesight, and a degree of spatial awareness. The user should
have received training in the use of the product, preferably
in their normal environment. The maximum user weight for
the Luggie can be found in the rear of this manual,under
'Technical Specification'.
Your Luggie is suitable for use indoors in shopping
malls or precincts for example, or outdoors on dry, smooth
level surfaces. It climbs slopes safely up to 6 and over
obstacles up to 2.5cm (1"). Your Scooter should not be
used in torrential rain or snow, on loose slippery surface and
slopes or on wet grass etc., which could become a danger
to the rider and scooter.
Your Luggie is a 'Class 2' (B) * vehicle and designed for
pavement use only. The Luggie must Only be used on the
road with caution if a pavement is not available.
Luggie
Luggie
Luggie
Your Luggie is a 'Class 2' (B) * vehicle and designed for
pavement use only. The Luggie must Only be used on the
road with caution if a pavement is not available.
It is designed for a single occupant who experiences
difficulty or discomfort when walking for prolonged periods,
but has the use of both legs and the physical, visual and
cognitive ability to operate the Scooter safely.
Do not drive your Luggie if you are under the influence of
alcohol, drugs or medication that may affect your ability.
If in doubt consult your doctor.
As a pavement user you should familiarise yourself with the
current legislation contained within the Highway Code.
Electrically powered scooter are classified in the following
categories :
Class 2 as defined in "The use of invalid carriages on the
Highways Regulations 1988". A scooter type invalid carriage
designed for the use on the footway, with maximum speed up
to 4 M.P.H.
Class 'B', as defined in The European Standard EN12184 :
1999. A scooter sufficiently compact and manoeuvrable for
some indoor environments and capable of travelling over
longer distances and negotiating outdoor obstacles.
* DEFINITION
It is designed for a single occupant who experiences
difficulty or discomfort when walking for prolonged periods,
but has the use of both legs and the physical, visual and
cognitive ability to operate the Scooter safely.
Do not drive your Luggie if you are under the influence of
alcohol, drugs or medication that may affect your ability.
If in doubt consult your doctor.
As a pavement user you should familiarise yourself with the
current legislation contained within the Highway Code.
* DEFINITION
PURPOSE OF YOUR Luggie SCOOTER
4
GUILDELINES FOR SAFE USE
These symbols below are used in this owners manual to
identify warnings and cautions. It is very important for
you to read and understand them.
Failure to note the warnings in this
users manual may result in personal injury.
Failure to observe the cautions in this
users manual may result in damage to your Scooter.
Your Luggie is a powerful machine, for your safety
and the safety of bystanders, please read all of the instructions
in this manual before operating your Scooter, they have been
prepared from years of experience with this type of equipment.
Follow notes carefully to ensure safety at all times.
Always make certain your machine is in full working
order before starting your journey.
1. Do not ride your Luggie without reading this instruction
manual. Also read all of the safety instructions and
Warning :
Caution :
Warning :
Caution :
Luggie
Do not ride your Luggie without reading this instruction
manual. Also read all of the safety instructions and
Always make certain your machine is in full working
order before starting your journey.
Warnings starting on page 10 of this manual.
2. Only drive your Luggie if your health condition will allow
you to be safe.
3. Do not exceed the maximum safe gradient outlined for
your vehicle (see Technical Specification, page 25).
Warning: Always have the anti-tipping wheels fitted
when outdoors or on ramps indoors ( Fig 12,page 15 ).
4. Do not carry passengers or exceed the maximum
carrying weight. (See Technical Specifications page 25).
5. Do not mount or dismount your Luggie unless it is
switched off with the freewheel device fully engaged.
6. Do not switch your Luggie 'on' with the forward/reverse
lever depressed.
Do not hang bags etc over your steering
handlebars. Failure to observe this warning may interfere
with your controls and put you and others at risk.
Warning :
Warnings starting on page 10 of this manual.
Luggie
Luggie
Luggie
Warning :

8. Do not reverse your Luggie onto uneven inclines or
surfaces. Be cautious when traversing slopes.
9. Do not drive your Luggie in a confined space unless
the speed lever is set low.
10. Do not turn suddenly at full speed, especially on uneven
or sloping ground.
11. Do not drive your Luggie where you cannot safely or
legally walk. Obey the Highway Code.
Do not drive your Luggie unless the seat is
locked into the driving position.
12. Do not drive your Luggie with the handlebar adjustment
lock, in the unlocked position.
13. Do not drive your Luggie over deep, soft terrain
(eg. soft earth, deep grass, loose gravel, snow).
14. Do not drive when under the influence of alcohol or
certain drugs which may impair your safety.
15. Avoid climbing or descending kerbs, you may damase
permanently your scooter.
16. Always approach small obstacles "straight on" and at
slow speed. Do not attempt to climb or descend kerbs.
This may damage your scooter.
17. Always stop fully before changing direction (forward or
reverse).
18. Always keep your feet on the vehicle when driving.
Luggie
Luggie
Luggie
Luggie
Luggie
Luggie
5
19. Always proceed carefully while riding, especially as you
approach the downgrade of a ramp.
20. Always avoid uneven surfaces.
21. Always consult your physician or a therapist if in doubt
about your ability to operate a Scooter.
22. Transport - Do not sit on your Luggie while it is in a
moving vehicle. Always strap down your Luggie then
transfer to the vehicle seat.
23. The batteries fitted to your Luggie are maintenance
free and do not require topping up with distilled water.
Do not attempt to remove the safety valves situated
in the top of the battery. Failure to observe this warning
will invalidate your battery guarantee.
24. Do not drive your Luggie through deep water or clean
with a high pressure hose.
25. Do not drive your Luggie through sand or sea water,
this is very corrosive. Always wash salt splashing
from the metal parts of your Scooter with hot soapy
water as soon as possible. This is also important
during the winter months when roads and pavements
have been treated with salt water to prevent icing.
Please remember you are a motorised pedestrian and
must observe all rules and regulations of other pedestrians
wherever possible. Your Luggie has not been designed for
use on normal roads, except for crossing between
pavements and where a pavement is not available.
Please have a safe journey
Transport - Do not sit on your Luggie while it is in a
moving vehicle. Always strap down your Luggie then
transfer to the vehicle seat.
Luggie
Luggie
Luggie
Please remember you are a motorised pedestrian and
must observe all rules and regulations of other pedestrians
wherever possible. Your Luggie has not been designed for
use on normal roads, except for crossing between
pavements and where a pavement is not available.
Please have a safe journey
GETTING TO KNOW YOUR Luggie
uggiRuggiR
Your Luggie Scooter is delivered in a strong tri-wall carton
or suitcase(option). When unpacking the carton, first remove
all of the sharp metal staples which are located in the top.
Carefully dispose of the staples to avoid injury. Remove all
packing
Luggie materials, avoid using sharp instruments as this may damage
the Scooter. Carefully remove the Scooter from the carton;
to minimise damage to the Scooter and the operator, two
people should be used for this operation.

Safely dispose of all packaging materials, your local waste
disposal authority can advise you on this procedure.
Your Luggie Scooter is delivered fully folding, fitting the
battery pack together with some minor adjustments are
detailed on the following pages, under 'Operating your
Luggie'. A full technical specification for your Luggie
can be found at the rear of this manual.
A great deal of thought and consultation has gone into the
design of your state-of-the-art, life-changing Scooter. Your
Luggie Scooter will help to increase your mobility and the
refore give you more time and energy to enjoy life.
The Luggie Scooter is a small sized, three wheeled/
four wheeled vehicle which will allow you to negotiate
obstacles found in confined shopping areas. This is just one
of the features you will find on your Luggie Scooter.
Others are:
contoured seat helps cushion you from
the vibrations of a journey, giving you maximum comfort. A
fully proportional speed-controller with a speed restriction
facility allows you a smooth jerk-free ride. Automatic
braking system gives system you that added peace of mind.
The fold down seat, together
with a facility to fully lower the steering handlebar, allows
your Luggie to be easily transported in an average
COMFORT -
VERSATILITY -
The
Luggie
Luggie
Luggie
Luggie
Luggie
Luggie
COMFORT -
VERSATILITY -
saloon or hatchback car for those days when you travel
further afield.
Your Luggie has been designed to be service
friendly. Sealed batteries which are virtually
maintenance-free will give your Luggie the power it requires.
Should you need to take your battery pack on an aircraft,
then you can have peace of mind because the batteries are
totally spill-free. (Please consult your carrier for details).
The advanced speed controller has been designed
with extensive self-checking circuits to give you the maximum
'state-of-the-art' safety technology. Fully automatic braking
system gives system the driver confidence in any environment.
Do not switch off when you are moving;
this will automatically apply the motor parking brake suddenly
and could place you in a dangerous situation.
Your Luggie is fitted with anti-tipping wheels. Do not remove
these anti-tipping wheels, they are an important part of the
Luggie design provided specifically for your safety. They help
protect against backwards tipping on excessively sharp
inclines.
CHARGING - Your Luggie is fitted with a battery level
indicator. Charging is straight forward. Your charger is fully
automatic and will reduce to a top-up charge mode when
the re-charge cycle is complete. (See Batteries and Battery
Charging section of this manual).
SERVICE -
SAFETY -
CAUTION -
SERVICE
SAFETY -
-
Luggie
Luggie
CAUTION -
6
OPERATING YOUR Luggie
OPERATING YOUR Luggie
UNFOLD LUGGIE SCOOTER
Before setting out on your Luggie, you need to make
sure that your seat is in the correct riding position. Set the
seat to the correct height for your individual needs.
The seat has 2 basic adjustments to assist your comfort.

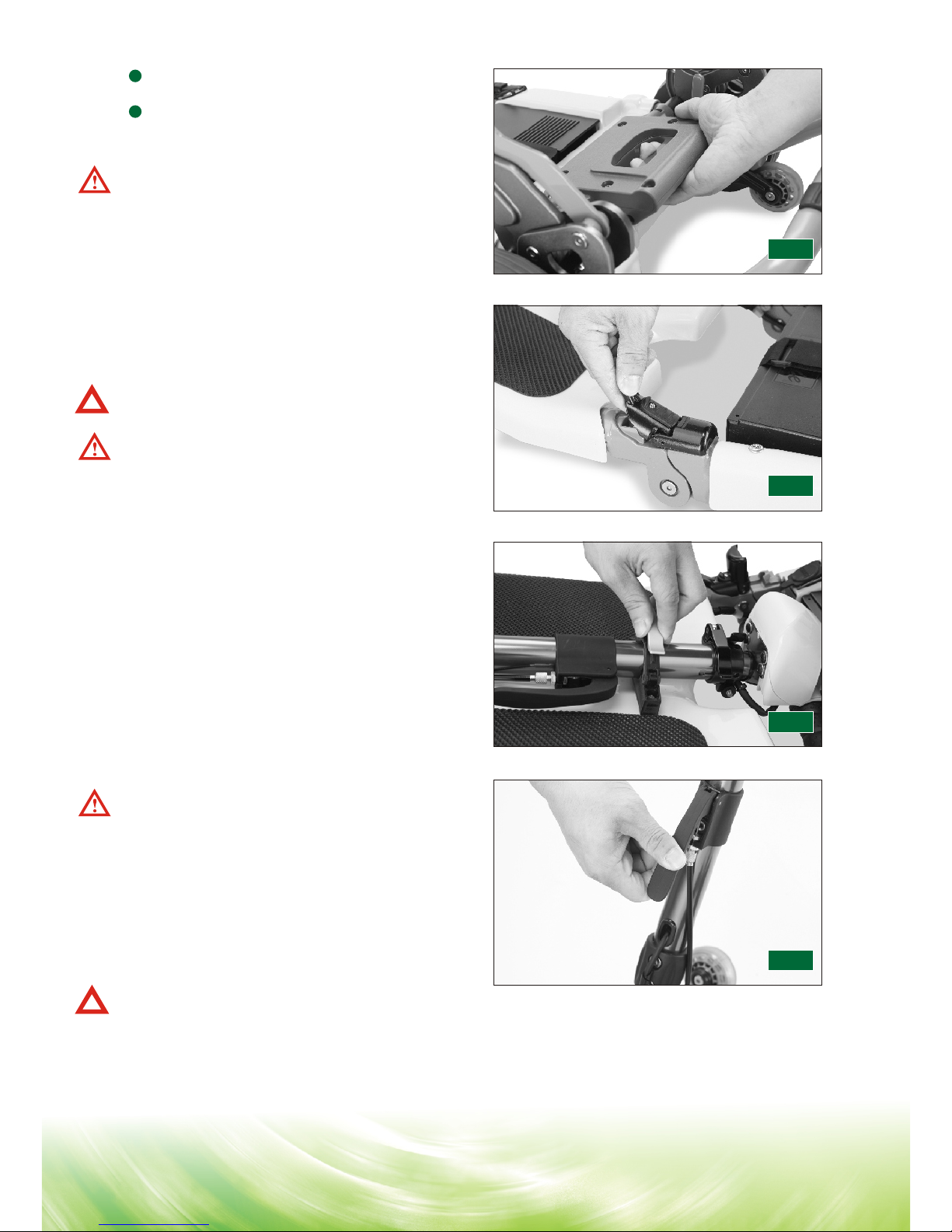

1. Pull unfolding ring and carefully use two hands to make
certain your Luggie that are flatting on the ground
( Fig 1,Fig 2 ).
2. Pull-backward to release the seat-lock ( Fig 3 ).
3. Fasten security lock in the joint of front and rear chassis
on two sides ( Fig 4 ).
4. Release the tiller locking clamp ( Fig 5 ).
( Fig 6 )
( Fig 5 ).
6. Seat:
Pull-backward to release the seat-lock ( Fig 3 ).
Lift up the seat with another hand simultaneously.
5. Release the trigger to raise the tiller until the handlebars
are at comfortable position , then fasten the tiller
locking clamp
OPERATING YOUR Luggie
UNFOLD LUGGIE SCOOTER
FIG 2
FIG 1

FIG 4
FIG 5
FIG 6
Let the seat release go and locate the seat at the
first-stage height.
Repeat the above steps to up-lift the second-stage height
7. Stretch the seat back.
8. Install the battery, no matter it's the very first time or
usual use for travel.
attery-installed Luggie has been
idled for a long period, it might discharge and at low
power level. (2) It's better to take out the battery
when folding and un-folding. If not, be careful not to
touch the power switch to prevent any danger.
9. Armrest Width Adjustment(option): On each side at the
rear of the seat you will find a large black knob.
By simply loosening this knob you are able to slide the
armrests in or out to whatever width you desire.
Re-tighten the knobs fully. You may need a friend to assist
you with this initial setting up operation. This may extend
the width of your Scooter.
The backrest of your seat will not fully fold
forwards if the armrests are positioned too closely
towards one another.
Do not drive your Luggie with the arms
removed or in the raised position.
1.The handlebar of your Luggie is designed to allow you to
position it in a comfortable driving position. It can be locked
into numerous positions or unlocked to move freely for
transportation.
2.The handlebar lock is operated by a black lever positioned
on the right hand side of the handlebar ( see Fig 6 ).
To release the handlebar from a locked position pull the
black lever upwards, the handlebar will now move freely,
but under mild tension. To lock the handlebar into a
comfortable driving position, simply push the black lever
downwards until the handlebar is locked firmly into
position.
3.With the combination of the height adjustment together with
the handlebar movement, you should find a suitably
comfortable driving position.
Always make certain the handlebar locking lever is
fully down and the handlebar is securely clamped onto the
chrome support plates before driving your Scooter. To make
service adjustment of this part, refer to the Care and
Maintenance section of this manual.

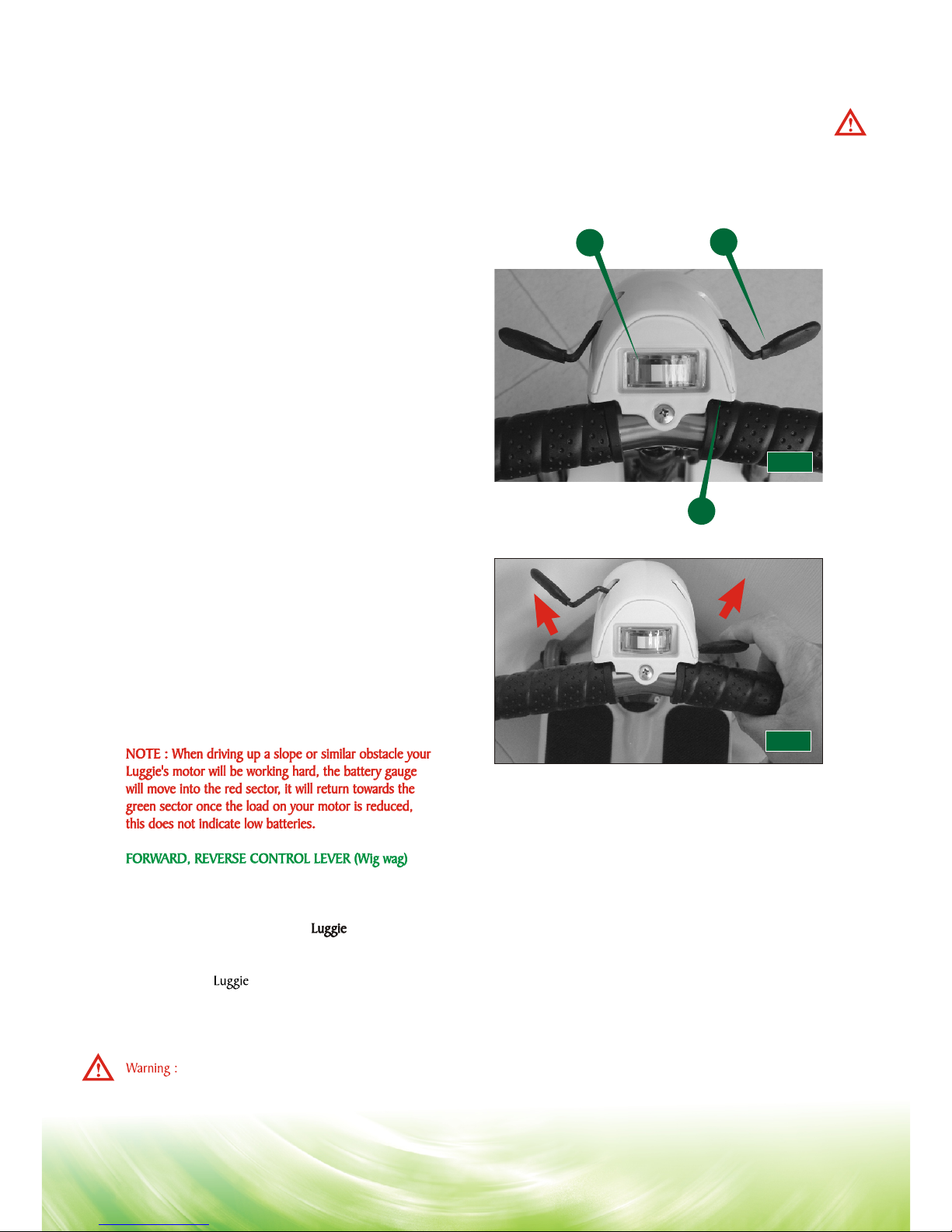

Your controls are located on the handlebar console
( see Fig 7 ) they are :
Do Not switch to 'off' when your
You should only switch 'off' when in motion in the case of
an emergency. Continual use in this mode may cause undue
stress to the drive system and damage the main electronic
Warning : (1) If b
Luggie
Caution :
Warning :
Warning :
Caution :
HANDLEBAR ADJUSTMENT
CONTROL FEATURES
is moving.
Failure to observe this warning will result in the motor
brake being applied suddenly and placing you in a dangerous
situation.
Warning :
Armrest Width Adjustment(option):
Luggie
Caution :
Warning :
HANDLEBAR ADJUSTMENT
CONTROL FEATURES
Warning :
Caution :
Luggie
You should only switch 'off' when in motion in the case of
an emergency. Continual use in this mode may cause undue
stress to the drive system and damage the main electronic
Luggie
FIG 3
7
speed control unit.
Be extremely cautious on slopes. Sit upright in your seat or
your machine could become less stable.
Sleep Time: When you rest your Luggie Scooter with
the electronics switched 'on' you are using valuable battery
power.Our Luggie Scooter will automatically go into a
speed control unit.
Be extremely cautious on slopes. Sit upright in your seat or
your machine could become less stable.
Sleep Time: When you rest your Luggie Scooter with
the electronics switched 'on' you are using valuable battery
power.Our Luggie Scooter will automatically go into a

22Battery Condition
Indicator
Speed
Adjustment Dial
11
On-Off Power
Switch & status light
33
FIG 8
FIG 7
sleep mode to preserve battery energy after approximately 15
minutes, the battery indicator and green status light goes off.
To start your Scooter again simply switch off and back to on
again, your Scooter is now ready to go.
4. Status Light: When you turn your Luggie Scooter
on, the light on your console will illuminate at a
constant rate. The status light is connected to a very
sophisticated diagnostic system which can identify faults
which could occur on the main speed control system or
some other part of your Scooter's electronic drive system.
For instance if your batteries run low in power, the status
light will flash slowly at one flash a second; this indicates
your batteries need recharging.
If you notice the status light flashing at two flashes per
second, you are being notified that the battery voltage is too
low and you must stop using your Scooter at the earliest
opportunity. Your status light has nine similar flashing
diagnostic signals, reference to these diagnostic codes is
found under 'Fault Finding' at the rear of this manual.
5.Battery Condition Indicator: Located at power switch.
When your Scooter is switched on, the needles on
the gauge will move across the scale from the left 'red'
sector towards the 'green' sector, indicating the state of
charge in your batteries. As the power is used up in your
batteries the needle will move towards the red sector
indicating the state of charge at that precise time. When the
needle is fully over to the right (green sector), the batteries
are fully charged. When the needle falls towards the red
sector your batteries are losing power, but you will still have
power to spare. When the needle falls into the red sector
your batteries are low in power and need to be re-charged,
although you will still have approximately half-an-hours
normal flat pavement driving in reserve. It is not
recommended to use this power regularly as it will shorten
battery life. It is wise to re-charge your batteries when the
needle enters the red zone (see Batteries and Battery
Charging section of this manual).
Located front of the handlebar grips ( Fig 7 ). Your speed for
forwards and reverse motion and braking is controlled here.
The right thumb lever moves your in a forwards
direction and also controls the rate of speed by the
proportional amount of pressure applied. The left thumb
lever moves the in a reverse direction and controls
the rate of speed by the pressure applied. The lever
when released will return itself, and you will gently stop.
You will note that you can obtain the reverse of this
procedure by pulling the levers backwards with your thumb.
Do not hang bags etc over the steering handlebars
which could interfere with the movement of your control
lever. Failure to observe this warning could put you in a
dangerous situation.
sleep mode to preserve battery energy after approximately 15
minutes, the battery indicator and green status light goes off.
To start your Scooter again simply switch off and back to on
again, your Scooter is now ready to go.
Status Light: Luggie
Battery Condition Indicator:
Luggie
Warning :
8
FIG 8
ReverseReverse
ForwardForward
Note : Your approved Luggie distributor can modify your
vehicle for left-hand forward operation use.
If you are not an accomplished outdoors powered
vehicle driver, we strongly recommend that you first practice
in an open, safe area, free from traffic, preferably with a
Luggie who can assist you.
Warning :
Luggie
Luggie
Warning :

FIG 9
If for reasons of convenience, you require to push your
Luggie Scooter for a short distance, the drive system can be
put into 'freewheel mode'. This will allow your Luggie to
roll freely.
The freewheel device is a red handled lever located at the
top, rear right hand side of your Scooter ( Fig 9 ). Access is
available from under your seat. To freewheel your Luggie
first switch off the power switch located on the Luggie's
control console ( Fig 7 ). Push forward the red handled
lever ( Fig 9 ) until a distinct click is felt (disengage).
You can now push your Luggie with ease. Please note,
in this mode with the power switch in the off position,
the braking safety system is automatically activated when
the Scooter is pushed quicker than a slow walking speed.
By switching on the console power switch at this stage you
will introduce some heavy motor braking, you will note the
green status light on your console is now flashing five times.
This indicates that your Luggie is in a freewheel
mode and you cannot drive your Scooter. Note, the quicker
you push your Scooter the heavier the brake will be applied.
To re-engage the drive system, simply pull backwards on the
red handled lever until a distinct click is felt (engage).
Switch the power switch on your console off and then on,
the green status light will be fully illuminated and you will
be able to drive your Luggie once again.
Do not sit on your Luggie Scooter with
the freewheel device in the disengage position. Your
Luggie Scooter has limited braking and will not
drive in this mode, the status light on your console will
flash five times.
If your Luggie Scooter is in the freewheel
Luggie FREEWHEEL PROCEDURE
Warning:
Warning:
uggie
Luggie
Luggie
Luggie's
Luggie
Luggie
Luggie
Do not sit on your Luggie Scooter with
the freewheel device in the disengage position. Your
Luggie Scooter has limited braking and will not
drive in this mode, the status light on your console will
flash five times.
Luggie
Luggie FREEWHEEL PROCEDURE
Warning:
Warning:
mode when you switch on and press forward - reverse lever,
you will not be able to move Under motor power.
Dismount and re-engage the drive system by pulling
backwards on the red handled lever(engage). Remount your
Scooter, switch the power switch off and on again until the
green status light fully illuminated, your Luggie will now
drive under motor power again.
Always check that the freewheel device is in the
drive position before attempting to drive your Scooter after
it has been left unattended for a period of time. Failure to
observe this warning may result in an accident.
If you are able to push your Luggie the drive
system is disconnected. Do not attempt to drive your
Scooter. Please check once again the above mentioned
procedure for re-engaging the drive.
Warning:
Warning: If your batteries are disconnected from your
Scooter there will be no brake function in the freewheel
mode. Do not leave your Scooter unattended in this
situation as it could roll away causing damage to other
parties or property. Always re-engage the drive system when
left unattended.
General note:
Luggie
Warning:
Failure to
observe this warning may result in an accident.
General note: Luggie
Please take extreme carePlease take extreme care
FREEWHEELING YOUR Luggie
9

Warning :
Warning :
Warning :
Do not carry passengers on your Luggie.
Your Scooter is designed for a single occupant which
complies with legal requirements for pavement vehicles.
Carrying passengers on your Scooter may result in personal
injury and/or property damage.
Your Luggie Scooter is designed for a maximum user weight
limit of 114kg (252lbs)(18 stone).
Exceeding the weight limit will void your warranty
and may result in personal injury and damage to your scooter.
Luggie will not be held responsible for injuries and/or property
damage resulting from failure to observe these weight
limitations. Please also remember when carrying heavy objects
that this will increase your total weight and may make your
Scooter unstable.
Excessively high cornering speeds can create the possibility
of tipping. Factors which affect the possibility of tipping
include, but are not limited to, cornering speed, steering
angle (how sharply you are turning), uneven surfaces,
inclined surfaces (such as heavily cambered pavements),
riding from an area of low traction to an area of high traction
(such as passing from grass areas to a paved area - especially
at high speed while turning), and abrupt directional changes.
Do not corner at high speed! If you feel that you may tip
over in a corner, reduce your speed and steering angle to
prevent your Scooter from tipping.
When cornering sharply, reduce your speed. When
using your Luggie at higher speeds, anticipate changes in the
road surface. This will greatly reduce the possibility of a tip
or fall. To avoid personal injury or property damage, always
exercise common sense when cornering.
Your Luggie Scooter is equipped with two powerful
brake systems:
1. Regenerative: Uses the electricity generated in your
Luggie drive motor to rapidly slow your Scooter when
the thumb direction lever (wig-wag lever) is returned
to the centre (zero drive) stop position.
2. Electric/Mechanical Disc Park Brake: Located on the end
of your drive motor it activates mechanically after the
regenerative brake slows your Scooter to a near stop, or
when power is removed from the drive system for any
reason, as in the case of switching your machine off!
Brake engagement is far more abrupt at higher speeds. It is
important that you anticipate when the brakes will engage
and that you are braced for the resulting deceleration.
WEIGHT LIMIT
CORNERING
BRAKING
Warning :
Warning :
Luggie
Luggie
Luggie
WEIGHT LIMIT
CORNERING
Warning :
Luggie
Luggie
Luggie
BRAKING
GENERAL
SAFETY CHECK
Warning : Do not attempt to operate your new Luggie
Scooter for the first time without completely reading
and understanding all of the facts in this Users Instruction
Manual.
Your Luggie Scooter is a state-of-the-art device designed to
enhance and increase your mobility. Luggie provides a range
of Scooters to best suit the individual needs and
circumstance of the Scooter user. Please be aware that the
final selection and purchasing decision regarding the model
of Scooter to be used is the responsibility of the Scooter
user who is capable of making such a decision with assistance
from his/her healthcare professional (i.e. medical doctor,
physical therapist etc.) The contents of this Users Instruction
Manual are based on the expectation that the mobility
device expert has properly fitted the Scooter to the user
and has assisted the prescribing healthcare professional
and/or the authorised Luggie Distributor in the instruction
process for the safe use of the scooter.
There are certain situations, including some medical
conditions, where the Scooter user will need to practice
operating the Luggie in the presence of a trained attendant.
A trained attendant can be defined as a family member or
care professional specially trained in assisting a Scooter
user in various daily living activities.
When you begin to use your Luggie Scooter, you will
probably encounter situations in which you will need
some practice. Simply take your time and you will soon
become confident and in control as you manoeuvre through
doorways,on and off elevators, up and down ramps and over
moderate terrain. Below are some tips, precautions and
other safety measures that will help you to become
accustomed to the safe operation of your Luggie Scooter.
Your Luggie Scooter is fitted with a number of safety
Warning Instruction" label ( see page13 ).
These labels communicate important warnings or instructions
Please familiarise yourself with their location.
Get to know the feel of your Luggie Scooter and it's
capabilities. Luggie recommends that you perform a safety
check before each use to make certain your Scooter operates
smoothly and safely. For details on how to perform these
necessary inspections, see the Care and Maintenance section
of this manual. Perform the following inspection prior to
using your Luggie Scooter.
Check all battery connections, make certain they are
serviceable and not corroded.
Check batteries have been fully charged.
Check operation of brakes.
GENERAL
Warning :
Luggie
Luggie
Luggie
Luggie
Luggie
Luggie
Luggie
Luggie
Luggie
SAFETY CHECK
SAFETY INSTRUCTIONS & WARNINGS
10

good traction, caution should be considered before driving
on this type of surface to prevent stability problems resulting
in injury or Damage to your Scooter.
Reduce your Scooters speed when driving on uneven
terrain or soft surfaces.
Avoid long and unsafe grass that can become tangles in
the running gear or may hide debris and holes.
Avoid snow, this can quickly build up around your wheels.
Avoid loosely packed sand and gravel.
If you feel unsure about a driving surface, please
anticipate and avoid that surface.
Your Luggie Scooter has not been designed for
operation on public streets and roads. It is designed for
operation on pedestrian pavements and traffic free shopping
areas.
Your Luggie Scooter must be driven with due care and
compliance with the Road Traffic Acts and conditions of
the Highway Code. Always obey all local pedestrian traffic
rules. Wait until your path is clear of traffic, and then proceed
with extreme caution. Note: Always wear light or illuminating
clothing when driving your Scooter. Be aware that it may be
difficult for traffic to see you when you are seated on your
Scooter. Only drive your Scooter on the road when a public
pavement is not available (i.e. in the countryside) or when
crossing the roadway from one pavement to another.
Although it is not a legal requirement for accident insurance
cover (third party), it is a sensible precaution. Your Luggie
Authorised Agent will be able to give you details of specialist
insurance companies or you own insurance company will be
able to advise you.
Warning :
Never drive down slopes at full speed, always adjust your
speed to the driving condition and allow for gradual descents
on inclines.
Warning :
Your Scooter can decelerate very quickly. Do not
decelerate or turn abruptly when travelling at high speed
unless absolutely necessary. If it is necessary to decelerate
or turn abruptly when driving at high speed, brace yourself by
Gripping the steering handlebar tightly and positioning your
feet firmly on the floorboard. Users who cannot grip the
handlebar tightly and/or place their feet firmly against the
footboard should avoid deceleration from or turning abruptly
at high speed, and therefore should avoid travelling at high
speed. Failure to observe this warning could result in serious
personal injury and property damage. Always brace yourself
firmly when decelerating your Luggie Scooter.
Your Luggie Scooter is designed to provide optimum stability
under normal driving conditions i.e. dry, level surfaces
composed of concrete or asphalt. However Luggie recognizes
that there will be times when you will encounter other
surfaces such as packed soil, grass and gravel. These surfaces
may not be sound and fail to give
OUTDOOR DRIVING SURFACES
STREET AND ROADWAY DRIVING
INSURANCE
Warning :
Warning :
Luggie
Luggie
Luggie
Luggie
Luggie
Never drive down slopes at full speed, always adjust your
speed to the driving condition and allow for gradual descents
on inclines.
OUTDOOR DRIVING SURFACES
STREET AND ROADWAY DRIVING
INSURANCE
Luggie
Do not use your Scooter in the freewheel mode
without an attendant present. Personal injury may result.
Do not attempt to personally disengage your
scooter in the freewheel mode while seated on it. Personal
injury may result. Ask an attendant for assistance if necessary.
Do not place your Scooter in freewheel mode
while on an incline. The Scooter could roll uncontrollably on
its own, causing personal injury.
Currently there are no standards approved for "tie down"
systems in a moving vehicle of any type to transport a person
while seated in a Scooter.
Do not sit on your Scooter while it is in a moving
vehicle. Personal injury may result. Warning: Always make
certain that your Luggie is properly secured when being
transported. Failure to comply may result in personal injury
and/or damage to your Scooter.
Getting on and off your Scooter requires a good sense of
balance. Please observe the following tips when getting on or
off your Scooter:
WEATHER PRECAUTIONS
FREEWHEEL YOUR Luggie
MOTOR VEHICLE TRANSPORTATION
ACCESSING YOUR SCOOTER
Luggie recommends that you do not operate your
Luggie Scooter in icy or slippery conditions or on salted
surfaces i.e. Roads and Pavements etc. Such use may result
in accident, personal injury or adversely affect the
performance and safety of your Scooter.
Luggie recommends that you do not expose your
Scooter to any type of heavy moisture at any time i.e. rain,
snow or power washer. Such exposure can damage your
Scooter. Never drive through deep water or expose your
Scooter to sea water. Do not operate your Scooter if it has
been exposed to heavy moisture until it has been thoroughly
dried out.
Your Scooter is equipped with a manual freewheel device for
convenience when you need to push it. See the Freewheeling
your Luggie section on page 9 of this manual.
Make certain your Luggie Scooter is switched off at the
power switch.
Ensure your Luggie is not in the freewheel mode
(Page 9 freewheeling your Luggie).
Make certain the seat and handlebars are locked firmly
into position.
The seat armrests can be lifted up to make access easier.
Make certain you do not attempt to drive with the
armrests raised (option).
Warning :
Warning :
Warning :
Warning :
Warning :
Warning :
WEATHER PRECAUTIONS
FREEWHEEL YOUR Luggie
MOTOR VEHICLE TRANSPORTATION
ACCESSING YOUR SCOOTER
Luggie
Luggie
Luggie
Luggie
Do not
Do not
Luggie
Luggie
Warning :
Warning :
Warning :
Warning :
Warning :
Warning :
Luggie
11

Position yourself as far back into the Scooter seat
as possible to prevent tipping and causing injury.
Avoid using the a
Avoid putting weight onto the steering handlebars,
such use may cause the Scooter to tip and cause personal
injury and/or damage to the Scooter.
Avoid putting all of your weight onto the footboard,
such use may cause the Scooter to tip and cause personal
injury.
Luggie has designed your Luggie Scooter to provide
maximum mobility. A range of accessories are available
from Authorised Luggie Agents, to further customise your
Scooter needs. However, under no circumstances should you
modify, add, remove or disable any feature, part or function
of your machine. Failure to observe this warning
may result in personal injury and/or damage to your Scooter.
More and more modern buildings are designed with disability
access in mind. Ramps have specified percentage of
inclination, designed for easy and safe access. Some ramps
may have turning switchbacks (180 degree turns) that require
you to have good cornering skills on your Scooter.
Proceed with extreme caution as you approach the
downgrade of a ramp or other incline, sit right back in
your seat, brace your arms on the handlebars and your
feet on the floorboard
Take a wide arc with your Luggie's front wheel around
tight corners, your rear wheels will follow preventing you
from cutting the corner short and bumping or getting
hung up on raised kerbs.
When descending an incline keep your speed adjustment
set to the slowest speed setting to ensure a safely
controlled descent and driving in a forward direction
only. If your Scooter descent is quicker than you
anticipated allow the Scooter to completely stop, then
progress at a slower speed setting.
When climbing an incline, try to keep your Scooter
moving, if you must stop, start up again slowly and then
accelerate smoothly with caution. Avoid sudden stop
starts, lean forward towards your handlebars to increase
stability and prevent rearward tipping.
When climbing an incline, do not zig-zag or drive
at an angle up the face of the incline. Drive your Scooter
smoothly up the incline without stopping, this greatly reduces
the possibility of a tip or fall.
You should not travel over a potentially hazardous
incline i.e. areas covered with ice or snow, cut grass or wet
leaves or any unstable surface.
Warning :
Warning :
Warning :
Warning :
Warning :
Warning: Never drive down an incline at full speed.
Warning :
Warning :
rmrests for weight bearing
purposes, such use may cause the Scooter to tip and cause
personal injury and/or damage to the Scooter.
MODIFICATIONS
INCLINES
Warning :
Warning :
Warning :
Warning :
Warning :
Warning:
Warning :
Warning :
Luggie Luggie
Luggie
Luggie's
MODIFICATIONS
INCLINES
Any attempt to climb or descend an incline steeper
than shown in the Scooter Specification at the rear of this
manual may put your Scooter in an unstable position and
cause it to tip, resulting in personal injury.
Never remove the anti-tip wheels of your Scooter, they are
animportant part of your Scooters design. See also Control
on an Incline.
Scooters are not designed to travel up or down
stairs or escalators. Always use an elevator. Failure to
observe this warning may result in injury to yourself and
others and damage your Scooter.
If you anticipate being seated in a stationary
position for an extended period of time switch off the power,
this will prevent unexpected motion due to inadvertent
movement of the direction control (wig-wag) lever. Failure to
observe this warning may result in personal injury.
In time when your Scooter becomes unusable it must be
disposed of in accordance with the laws implemented at that
time. For further information regarding the recycling
arrangements for this type of vehicle and its batteries,
contact your local authority or government department,
details of this can be found in your telephone directory .
Do not overload your Scooter at the rear when
climbing an incline. Always lean forward to provide the best
stability and prevent rearward tipping.
Warning :
Warning :
Warning :
Warning :
STAIRS AND ESCALATORS
PREVENTING UNINTENDED MOVEMENT
DISPOSAL OF ELECTRO-MOBILE SCOOTER
Warning :
Warning :
Warning :
Warning :
STAIRS AND ESCALATORS
PREVENTING UNINTENDED MOVEMENT
DISPOSAL OF ELECTRO-MOBILE SCOOTER
6 degress maximum incline 6 degress maximum incline
12

The following labels are positioned on your Luggie,
they communicate important warnings or instructions regarding
the safe operation of you scooter - Please familiarize yourself with their location.
Located on right side of battery
Located on middle of chassis
SAFETY WARNING & INSTRUCTION LABLES
13
Located on front of the Scooter's chassis
Located on top of locking of pull lever
Located on middle of
folding chassis
Located at the left hand rear
cover of scooter Located on middle of handlebars tiller
Data serial plate located on front wheel cross member.
uggi R
CORP. SERIAL NO:
TAIWAN
BRAND NAME:
TYPE:168-4(IT)
Located on front of the Scooter's chassis

When you start using your Luggie you will meet some
obstacles that will require some practice to drive through
smoothly.
Here are some common problems, with tips that will help
you master them quickly. You will soon be in control through
doors and up and down ramps with surprising ease by
following these tips.
Approach an unfamiliar door slowly, sizing it up. Does it
have a knob or push bar? Does it open toward you or away?
Think in terms of using the power of the Luggie to
do the work for you! You need not strain.
Hold the doorknob or bar in one hand and apply power with
the other hand. (Remember that you can drive forwards by
using your left thumb to move the wig-wag lever towards
you.) If the door is self closing, you can go through, allowing
the door to close behind you, if you go quickly enough. If
not, just stop when you're clear of the door and push it
closed.
If the door opens toward you, hold the knob or bar with one
hand and gently let the reverse power do the work. When the
door is open wide enough, go ahead quickly, leaving the
hand on the door to keep it free of the Scooter and letting go
as you pass the doorjamb. It is an easy technique. Practice
makes perfect. Remember - your Luggie can do the
work without wearing you out!
Going through doors, with the back wheels: If you're not
moving, your rear wheel is probably caught. Reverse and try
again. Take your time - relax - enjoy yourself.
More and more buildings have ramps for wheelchair access.
Some have a change of direction in the middle, and good
cornering is required.
Make a wide manoeuvre with your front wheel around tight
corners, so that your back wheels follow a wide arc to stay
clear of the corner.
If you stop while facing uphill, the automatic parking brake
will hold you safe. To start again, slowly push the forward
direction lever, the parking brake will release and you will
start to move.
When you approach an incline, it is best to lean forward,
( Fig 10,Fig11 ,page 15 ). This moves the centre of gravity
of your Luggie towards the front of the Scooter for improved
stability.
CONTROL THROUGH TIGHT SPOTS
CONTROL THROUGH DOORS
CONTROL ON AN INCLINE
CONTROL THROUGH TIGHT SPOTS
CONTROL ON AN INCLINE
Luggie
Luggie
CONTROL THROUGH DOORS
Luggie
Luggie
Warning :
Warning :
Warning :
Warning:
If you are not an accomplished outdoors mobility
product driver, we strongly recommend that you first
practice in an open area, free from traffic and preferably
with an attendant who can assist you.
Next, switch on (The battery state indicator will move and
the status light will illuminate).
Gently press the right thumb control lever ( Fig 8, page 8 )
to start you in a forward direction. To stop simply release
the lever, the brakes will be automatically applied.
Please take care not to have your thumb on the
forward/reverse control lever when you switch 'on' your
Luggie; this will result in your machine going into a
fault mode. Switch 'off' then 'on' again to clear the fault.
If your Luggie has been adapted for left
hand, forward operation then this procedure will be
reversed: i.e. pressing with the left thumb for forward
direction and the right thumb for reverse direction.
DISMOUNTING
LEARNING TO GET ABOUT
REMEMBER :
that a back wheel will go off the pavement, causing a stability
problem. Avoid this at all times by steering an exaggerated
wide arc around the obstacle.
If you must steer in a tight spot, such as entering a doorway
or when turning around, stop, turn the handlebars to where
you want to go, then apply the power gently. This will make
the Luggie turn sharply. It will still go gently, and with
complete stability. Practice in an open area, until you are
Proficient. Reversing requires attention ( Fig 8,page 8 ).
Remember, when you reverse you have to steer in the
opposite direction to the way you want to go. Practice is
required here, again use that open space. Please note as a
safety requirement reverse speed is half of forward speed.
Note: If your Luggie is set up for left forward driving the
afore mentioned description is reversed.
If it is a tight turn, turn your steering column
before applying power. Steer wide of all corners and obstacles,
please move slowly and with care.
Do not switch off when your Luggie is in motion,
failure to observe this warning may irreparably damage the
main electronic speed control unit or drive transmission.
Always first slow your Luggie down to a stationery position
before you switch your Scooter off.
Warning :
Warning :
Warning :
Warning:
Luggie
Luggie
DISMOUNTING
REMEMBER :
that a back wheel will go off the pavement, causing a stability
problem. Avoid this at all times by steering an exaggerated
wide arc around the obstacle.
LEARNING TO GET ABOUT
Luggie
Luggie
Do not switch off when your Luggie is in motion,
failure to observe this warning may irreparably damage the
main electronic speed control unit or drive transmission.
Always first slow your Luggie down to a stationery position
before you switch your Scooter off.
LEARNING TO GET ABOUT
14

FIGURE 11 : Normal driving position
FIGURE 12 : Increased stability driving position
Most new pavements have wheelchair access ramps at
intersections, use these at all times. Plan your route where
possible to avoid poor and uneven surfaces. Do not attempt
to ride up or down kerbs as you may ground your Scooter
and damage it's construction.
Care must be taken when attempting to drive over soft
surfaces such as those found in parks etc. The surface may
look level, but this can be deceiving and hidden dangers may
make your Luggie become unstable or grounded.
CONTROL OVER GRASS & GRAVEL ETC.CONTROL OVER GRASS & GRAVEL ETC.
Luggie
FIG 12
Anti-tipping wheelsAnti-tipping wheels
Do not attempt to turn when negotiating an incline, only turn
when all wheels are fully on or off the incline; failure to
observe this warning could result in the machine becoming
unstable and toppling over.
Always lean forward when ascending an incline and
backwards when decending an incline. This will enable you
to maintain good stability and will eliminate any chance of
an upset.
PLEASE NOTE: The rear stability of your Scooter is
dependent on a number of factors which you should consider
before attempting to climb an incline or other obstacle:
(a) your height; (b) the height of your seat; (c) your weight
and (d) the angle of the incline you are attempting to climb.
All of these factors can affect the rear stability of your
Luggie Scooter. If you are unsure of your capability to climb
an obstacle, then try another route - always think 'safety first'.
Please take care and be safe
PLEASE NOTE: The rear stability of your Scooter is
dependent on a number of factors which you should consider
before attempting to climb an incline or other obstacle:
(a) your height; (b) the height of your seat; (c) your weight
and (d) the angle of the incline you are attempting to climb.
All of these factors can affect the rear stability of your
Luggie Scooter. If you are unsure of your capability to climb
an obstacle, then try another route - always think 'safety first'.
Please take care and be safe
FIG 10
FIG 11
When going down an incline, keep your speed slow. This will
keep you in a safely controlled descent. It is best to lean
backwards, this moves the centre of gravity of your Luggie
towards the rear of the scooter for improved stability.
If you wish to stop completely, release the control lever,
and you will come to a gentle stop, avoid sudden stop starts.
Do not exceed the incline guidelines or any other
specifications presented in this manual.
Stationery obstacles (steps, kerbs etc) must be avoided where
possible. Your Luggie has small wheels and a ground
clearance of 4.0cm. Proceed with extreme caution when
driving near raised surfaces, unprotected ledges and/or
dropoffs such as kerbs, porches, stairs etc.
Warning :
CONTROL OVER STATIONARY OBSTACLES
Luggie
Luggie
Warning :
CONTROL OVER STATIONARY OBSTACLES
Avoid unkept grass, loose deep gravel or sand, do not exceed
the capabilities of your Scooter.
Always have an attendant to assist you in circumstances
where you are not certain of the terrain. Always anticipate
and think safety.
Because of the power of your Luggie , you will be
able to climb inclines. But the maximum safe gradient limit
is 6 degrees. The reason for this is to ensure good stability.
Always have the anti-tipping wheels fitted to your machine
( Fig 12 ) when climbing angles or obstacles. Always avoid
turning on slopes or climbing kerbs.
Always make certain that your Luggie is in full working order
before attempting to drive.
Never attempt to drive beyond the design capability of your
Luggie. Observe weather conditions.
Tyres can slip on wet or icy surfaces.
DO NOT DRIVE THROUGH DEEP WATER OR LEAVE
YOUR Luggie EXPOSED TO
HEAVY RAIN.
i.e. During or after a thunderstorm.
Caution :Caution : Luggie
Luggie
DO NOT DRIVE THROUGH DEEP WATER OR LEAVE
YOUR Luggie EXPOSED TO
HEAVY RAIN
15

Whether it is for a holiday, a day out to visit family or
friends, or a trip to the shops, your Luggie can be taken
along too.
Depending on the size or model of your car you will be able
to load your Luggie in one of the following methods.
1. With the aid of a car hoist. Your dealer will be able to
advise on suitable equipment.
2. With the aid of ramps. Ramps will aid you to drive your
Luggie Scooter straight into a people carrier or
estate car. If the rear opening is low you may have to
remove your Luggie seat and lower the handlebars.
3. With the seat and batteries removed to reduce weight, lift
the scooter in one piece into a small hatchback or estate
car ( see fig 14 ).
To enable your Luggie Scooter to be carried in a
suitable estate or hatchback car ( Fig 14 ), follow these
simple instructions for dismantling your scooter. This
procedure can be carried out quickly and without tools
(Operating you Luggie see page 6).
Place the batteries on a firm and safe surface. Your batteries
are sealed and cannot spill if tipped over. Always carry
the batteries upright.
Do not place metal objects over open battery
terminals. BEWARE of short circuits.
You must never attempt to drive your
Luggie Scooter with the steering pin fitted.
Failure to observe this warning will put you in a
dangerous situation.
Protect clothing when lifting Scooter parts, some
components may have lubricating fluids on their surfaces.
Work out the best position to stow each part of your
machine, this will vary with different car designs. An old
blanket can be used to stop the various parts rubbing against
each other. It is good practice to stand batteries upright and
locate them so they do not move and touch the battery posts
on any metal framework. Your Luggie will increase
the load in your car, please remember this and adjust your
driving to suit this condition.
Note: In some small cars the seat my meed to be stowed on
the rear seat of the vehicle. Use the cars safety belt to secure
the seat in position.
When using access ramps to load your Luggie into a car,
always keep your body clear of your scooter to prevent
FOLDING YOUR Luggie FOR JOURNEYS WAY.
Warning :
Warning :
Caution :
Luggie
Luggie
ggie
Luggie
Luggie
Luggie
Note:
Luggie
FOLDING YOUR Luggie FOR JOURNEYS WAY.
Warning :
Warning :
Luggie
Caution :
FIG 14
Pictrued in aVW GolfPictrued in aVW Golf
TRANSPORTING YOUR Luggie
entrapment. Never ride your scooter when loading it into a
vehicle, failure to observe this warning could put you into a
dangerous situation.
Always make certain your scooter and any ancillary parts are
correctly tied down in the carrying vehicle to prevent
movement during acceleration and braking. Most modern cars
have anchor points in the floor for this procedure.
Remember you have increased the load in your car, please
take account of this and modify your driving accordingly.
Always make certain that your scooter is stored in
the carrying vehicle with the 'Freewheel' system in the
engaged position.
Warning :Warning :
FIG 13
16

The battery charger supplied ( Fig 16,Fig 18 ), is special to
your Luggie and it may not be suitable for any other powered
mobility product. Only use the charger supplied with your
Luggie; other makes of charger may permanently damage
your batteries and would invalidate the Guarantee.
BATTERY CHARGERBATTERY CHARGER
Luggie
Luggie
FIG 15
FIG 18
17
BATTERIES & BATTERY CHARING
BATTERY INSTALLATION
BATTERY CONNECTIONS
BATTERY PACK
BATTERIES
Your Luggie Scooter is equipped a battery pack with two
maintenance free 12 volt 18Amp/hr batteries.
Lithium battery optional. The batteries are linked together
by wiring cables to supply the electronic system with 24
volts of Power.
1. Position battery pack onto the Scooter frame as the
diagram below.
to show the state of charge in the batteries and your
Scooter is ready to drive 3.
3. Switch off your Scooter, fit the seat.
Batteries are heavy (14 Kgs), always handle with
two hands. Do not allow metal tools to touch both battery
terminal together, this will cause an electrical short and may
damage the battery and injure you. Failure to observe this
warning may cause an explosion, short circuit, fire or
injury to your person.
Your Luggie has a lot of power for a small Scooter. Keeping
it working to its maximum potential means that its two
batteries must be maintained with full power. Nightly
recharging, after use, will help you to give them a longer
life and will ensure your Luggie is always ready to go when
you are.
Your Luggie is fitted with two sealed maintenance-free
batteries, especially designed for motive traction use.
This means that you do not have to worry about topping
up the cells.
Do not attempt to remove the safety valves
situated in the top of the battery. Failure to observe this
warning will invalidate your battery guarantee. Your Luggie
batteries are virtually maintenance-free because the
electrolyte is immobilized in a special form and therefore
will not leak out, even if the battery is accidentally
Overturned.
Because your Luggie batteries are sealed they are more
likely to be accepted for carriage on aircraft. Please consult
your carrier prior to departure, as they will need advance
warning that you wish them to carry batteries.
Please note: Each carrier reserves the right not to carry what
may be termed 'HAZARDOUS CARGO'. Luggie cannot be
held responsible for their final decision.
Warning : It is imperative that the two batteries are connected
correctly to prevent a short circuit between the two batteries.
Warning :
Warning :
2. Switch on your Scooter, the battery meter will now move
BATTERY INSTALLATION
BATTERY CONNECTIONS
BATTERY PACK
BATTERIES
Warning :
Warning :
Warning :
Luggie
Luggie
Luggie
Luggie
Luggie
Luggie
Luggie
FIG 16
FIG 17

3. Plug the 3-pin mains plug from the Charger into a
convenient wall socket and switch the wall socket on.
Note: If you need to use an extension lead for your
mains supply, make certain that it is safe and suitable for
the charge current.
NOTE: Your Luggie will not drive if the charger is connected.
Orange Mains Charging.
Green Mains Charge Complete
GENERAL
Depending on the depth of discharge, the minimum time
taken to re-charge serviceable batteries fully will vary from
4 hours up to 6 hours. Please note that recharge time will
vary between the minimum and maximum times indicated
due to the varying states of battery use.
Please be patient
(1) If GREEN Indicator is off
CHARGING STATUS INDICATION
SYMBOL LIGHT COLOUR STATE OF CHARGER
Trouble Shooting
Luggie
CHARGING STATUS INDICATION
SYMBOL LIGHT COLOUR STATE OF CHARGER
Trouble Shooting
FIG 19
18
CHARGING THE BATTERIES
Your Luggie batteries will need to be recharged when the
battery condition indicator gauge located on the handlebar
console ( Fig 7,page 8 ), is reading in the far left of the
green scale or into the red sector. 'Green' indicates a full
charge (to the far right), down to half charge (to the far left
of the scale). 'Red' indicates that less than half charge
is remaining in the batteries.
NOTE: The batteries will have a longer life if you do not
use up all of the battery's power and recharge as soon
as the battery condition gauge enters the red sector of
the scale, rather than letting it go right over to the far
left of the red scale. To charge your batteries follow
these simple steps:
1. Switch off your Luggie.
2. Your Charger has two leads exiting from it. One lead
has a 3-pin mains plug fitted to it. The second lead
has a 3-pin round charging connector on its end.
Connect the round 3-pin charging connector to the
3-pin charge socket, which is located in the centre rear
body cover and marked "CHARGE" ( Fig 19 ).
CHARGING THE BATTERIES
Luggie
NOTE:
Luggie.
Check AC input .If it works normally, the battery
charger may be defective.
(2) If GREEN is working normally but Charging
Indicator (ORANGE) is off
The polarity connection may be reversed.
The output connection may be short or open.
If the Charging Indicator (ORANGE) is still off, the
battery charger may be defective.
(3) If the Charging Indicator (ORANGE) does not turn
Green (Fully Charged)
The battery is not charged normally, please stop
charging and have the battery repaired.
(4) If the Charging Indicator (ORNGE) turn Green
(Fully Charged) immediately
The battery may be in well-charged condition.
If the battery is not fully charged, it may be defective.
Please have it repaired.
1. Disconnect from the mains supply before removing
the 3-pin charge plug from the charge socket..
2. The Luggie Charger is for indoor use only:
3. Do not smoke or use naked flame near your batteries
while they are being charged.
4. Do not use an extension lead unless absolutely
necessary.Use of an improper extension lead could
result in a risk of fire and electric shock.
5. Do not use the Charger if it has received a sharp blow,
been dropped or otherwise mis-used in anyway. Return
Charger to your Authorised Luggie Agent.
6. Do not dismantle the Charger, poke or drop objects
through the slots in the Charger case.
7. Do not switch off, unplug or interrupt the re-charge
cycle until the charging cycle has completed. Failure to
observe this instruction can result in overcharging of
the batteries
8. There is a drive inhibit function on your Scooter. The
Scooter cannot be driven when the Charger is plugged
into your Luggie.
9. Slight heat on the exterior while charging. Avoid exposure
to heat.
1. For longest life, your batteries should be re-charged
after use. Preferably over night.
2. If your Luggie is not used for a period of time, a refreshing
charge should be given every month.
Never leave your batteries in a discharged condition.
This is particularly important with sealed batteries as
fitted to your Luggie. If your batteries discharge below
a total terminal voltage of 12 volts (6 volts per battery),
the charger supplied with your Scooter will not
operate. Please consult your Luggie dealer.
3. If your Luggie has been stored away for
some time,re-charge your batteries before re-using it.
4. Every six months, check the connections on the battery
pack, making sure they are clean.
ADVISORY NOTES
YOUR GUIDE TO SAFE AND LASTING BATTERIES
DO NOT EXPOSE TO RAIN OR MOISTURE.
ADVISORY NOTES
YOUR GUIDE TO SAFE AND LASTING BATTERIES
Luggie
Luggie
Luggie
Luggie
Luggie
Luggie
Luggie

battery life. The length of time to re-charge your batteries will
vary from 4 up to 6 hours. This variation in time is due to
the following factors:
1. Depth of discharge - The amount of energy you have
removed from your batteries when driving your Scooter.
2. Battery age - This is due to the changes in their internal
electrical resistance. Note very old batteries may take
longer to fully recharge.
In most safe domestic environments, i.e. your house, garage
or shed. Do not expose to rain or spray - for indoor use only.
Later on in this information, there is reference to the way
temperature variations can affect The performance of your
vehicle. When charging your batteries where reasonably
practicable, ensure that the battery Charger is close to the
vehicle being charged so That the temperature of the battery
charger and batteries are almost compatible. For example,
a vehicle may be outside whilst the battery charger is inside.
It is possible in this situation that the battery Charger will
sense the inside temperature, whereas the batteries on
the vehicle will be at the outside temperature, resulting
in an undercharged situation. This situation must be avoided.
Many factors come into play when deciding how often to
charge your batteries. You may use your vehicle all day on a
daily basis or you may not use it for weeks at a time. Other
factors such as driver and baggage weight, smooth or rough
terrain, flat areas or inclines and speed must all be considered.
With these variables you should concern yourself with two
questions: HOW OFTEN should I charge and for HOW
LONG? The Charger is designed so that it is impossible to
overcharge your batteries. If you follow the guidelines below,
your batteries will provide safe and reliable operation.
1. If you use your vehicle during the day. put it on charge
as soon as you have finished using it. The Charger is
fully automatic so it will not overcharge your batteries.
Your vehicle will be ready each morning to give you
several hours use. It is recommended that you charge
your batteries after daily use until the green 'Charge
Complete' light illuminates.
2. If you use your vehicle infrequently (once a week or less)
you should charge it at least once per week until the
green light illuminates. Remember: Keep your batteries
fully charged and avoid deeply discharging them.
3. Storing batteries : Batteries should always be stored fully
charged. Check once a month and recharge fully if needed.
Sealed batteries can hold their charge for approx.
6 months. If they are left connected on the Scooter,
remember key switches, meters and electronic circuits can
drain the batteries rapidly. It is advisable to disconnect the
batteries for prolonged storage. Store in a warm, dry room.
Simply put, a fully charged battery is a happy battery!
A fully charged battery will provide reliable performance and
extended battery life, so keep your batteries fully charged
Where can I re-charge my batteries?
How often must I re-charge my batteries?
How can I ensure maximum battery life?
Where can I re-charge my batteries?
How often must I re-charge my batteries?
How can I ensure maximum battery life?
19
5. Batteries carry a limited guarantee from the original
manufacturer which is subject to a stringent wear and
tear clause. Any battery faults due to a defect in the
original manufacture will normally become obvious
within the first two months. Any gradual deterioration
in performance after this period is normally associated
with fair wear and tear, mis-use or accidental damage
and, as such, is not covered by the manufacturer's
warranty. (This does not affect your statutory rights).
Note: If one battery becomes faulty during the guarantee
period only that battery from the pair will be replaced.
In circumstances when your Scooter is stowed in your car
etc., your batteries can be recharged away from your Scooter
with charging cable. The cable links together your battery
pack and Charger. Simply connect the 3-pin plug on your
battery pack ,Connect your Charger to a convenient wall
socket, switch on, your batteries are now being recharged
away from your Scooter.
Batteries are the fuel tank for your Scooter. They provide
the vital energy to power your vehicle. When you ride your
Scooter, the drive motor consumes the energy stored in
the batteries. The battery's energy is gradually reduced
over the period of driving time and will need to be replaced
before you can use your Scooter again. Similar to the
situation with a motor car, in that you need to replenish the
petrol as it is used up as energy, likewise with your Scooter,
you need to replace the used battery energy by re-charging
the discharged battery cells.
Your battery Charger is an intelligent automatic charging
instrument. Your Charger's robust framework contains a
number of quality components; namely a transformer, rectifier
and complex control circuitry. The Charger receives the 230
volts domestic electricity supply via a standard 3-pin wall plug
and reduces this voltage down to 24volts via a transformer.
At the same time it rectifies the A.C., alternating domestic
current into D.C., direct current. This matches exactly, the
voltage characteristics stored by your Scooter's batteries.
Your Charger automatically controls the re-charge cycle
from the moment that you switch it on to the moment the
green 'Charge Complete' light on the face of your Charger
illuminates. When your battery's voltage is very low, the
Charger will work extremely hard to replenish the spent energy.
This is called the 'Bulk Charging' stage. As the battery voltage
approaches 90% of the full charge capacity, the Charger
reduces its output for the final stage of the re-charge cycle.
The time taken from switch-on to the end of the bulk
charging will vary, depending on the amount that the batteries
have been used, or in time their age. At this point a timer is
automatically started, to regulate the final stage of the
charging cycle, this set time ensures maximum capacity and
CHARGING YOUR BATTERIES AWAY FROM YOUR
SCOOTER
FREQUENTLY ASKED QUESTIONS
Why do my batteries require recharging?
How does my Charger work?
CHARGING YOUR BATTERIES AWAY FROM YOUR
SCOOTER
FREQUENTLY ASKED QUESTIONS
Why do my batteries require recharging?
How does my Charger work?

again. The batteries will now perform to over 90% of their
full potential.
4. After ten to fifteen charging cycles, the batteries will top
off at 100% charge and last for an extended period due to
your patience and care in the first few days of operation.
Rarely do we have an ideal driving situation such as a smooth,
flat, hard terrain with no wind or curves and warm
temperatures. More often, we are presented with hills,
uneven and loosely packed surfaces, curves, wind, cold and
heavy loads. All of these factors will affect the distance or
running time per battery charge.
Here are a few suggestions for obtaining the maximum range
per charge:
1. Always charge your batteries fully prior to your trip.
It is a good idea to keep your Charger connected when
the Charge Complete' (green) light is illuminated in the
'Top-Up' maintance mode.
2. Plan your trip in advance to avoid inclines, kerbs and
soft surfaces.
3. Limit your baggage weight to essential items.
4. Try to maintain an even speed to avoid stop and start
driving.
5. Ensure recommended routine servicing of the vehicle's
components, i.e. motors, brakes, electrical connections
etc., is carried out as instructed in this Users Instruction
Manual.
When working or disposing of your batteries
1.Do not allow metal objects to short out the terminals,
your battery could explode causing you injury.
2. Do not allow your batteries to freeze. If frozen allow
them to naturally thaw out before charging, failure to
observe this warning may damage the batteries.
3. If you need to replace your batteries, contact your Luggie
Agent. Only batteries supplied as original equipment on
your machine will give you the best performance. When
charging batteries make certain the positive and negative
terminals are correctly assembled. Failure to observe
this warning may cause an explosion, short circuit or fire.
4. Always handle batteries carefully, they are heavy.
Wear protective gloves and glasses when handling.
5. Dispose of worn out batteries carefully, contact your local
waste disposal authority.
How can I get the maximum operating time per charge?
Warning :
How can I get the maximum operating time per charge?
Warning :
Luggie
whenever possible. Handling your batteries Extra care must
be taken when handling batteries, if you decide to fold your
vehicle for transportation etc. Dropped batteries, even from
a very small height, can lead to damage of the internal
components, causing premature cell failure.
Your batteries are sealed and do not require maintenance.
Do not force open the valves in the battery top.
Used batteries must not be disposed of by
means of a domestic refuse disposal unit (dustbin) etc.
Please contact your Dealer to dispose of used batteries.
Please note, he may charge for this service.
The batteries fitted to your vehicle are guaranteed against a
manufacturing or material defect for 6 months. Any battery
faults due to a defect in manufacture or materials will be
obvious within a few weeks of use. Your batteries are not
guaranteed to perform to full capacity for 6 months. This will,
of course be dependent on the actual use of the vehicle
and how often the batteries are cycled i.e. discharged and
charged. Gradual deterioration in performance and reduction
in range is normal and associated with fair wear-and-tear,
misuse or accidental damage. Under these circumstances,
the warranty will not apply. It is a fact that some users due to
their hectic lifestyle, weight or operating conditions, may
wear their batteries out during the original battery
manufacturer's guarantee period due to extensive use of
their Scooter. This is termed 'Cycle Life'. Batteries have a
defined number of discharge cycles they can make i.e. the
more times you use your Scooter the more cycles your
battery will make- the shorter their life span.If you take
time to run-in your batteries properly, it will be worth it.
Remember: how long your batteries will provide service is
quite often a reflection of the care they receive. This is
how to run-in your new batteries:
1. Fully recharge any new batteries prior to your initial use.
This will bring your battery up to about 88% performance.
2. Ride your vehicle around the house or garden. Do
not venture too far away until you become accustomed
to the controls and feel of the vehicle. This will gently
run-in your batteries.
3. Give your batteries another full charge and run the vehicle
Disposal
Caution :
BATTERY WARRANTIES
Disposal
Caution :
BATTERY WARRANTIES
20
CARE & MAINTENANCE
Your Luggie like any other electro-mechanical machine
will benefit from regular servicing by your Luggie dealer.
You too, can help keep your Luggie in tip-top condition by
following a simple guide to home maintenance.
Note: Only competent people should carry out service work.
A damp cloth and a little soapy water will keep your seat,
SEAT UPHOLSTERY
Luggie
Luggie
Luggie
SEAT UPHOLSTERY
backrest and arms looking smart. Do not use abrasive
cleaners as this will damage the coating. Upholstery can be
damaged by chemical cleaners. The coating material can also
by natural
oils in the hair and skin. Ultra-violet light can also reduce the
life of the upholstery coating material. This is a normal ageing
process and cannot be guaranteed (see exclusions in the
Guarantee Terms page 28).
degrade over a period of time due to contamination
