Lutron Electronics RadioRA-SR User manual

Setup guide
A detailed guide for programming and operating a Lutron®
RadioRA-SR wireless single room lighting control system
English Français
Español

English
24/7 Technical Support—800.523.9466
Español
Français
Lutron 24/7 Technical Support—800.523.9466
If you have any questions, the Lutron®Technical Support Hotline is ready to help 24 hours a day,
7 days a week. Call us at 800.523.9466 for immediate assistance.
For Installation Guides, Setup Tools, or more information concerning your RadioRA®-SR system,
please visit http://www.lutron.com/radiorasr.

Lutron |1www.lutron.com/radiorasr
English Français
Español
Table of contents
Overview
About RadioRA-SR .........................................................................................................................2
Planning and design
System planning ............................................................................................................................3
Programming keypads
Assigning devices to a keypad ........................................................................................................5
Default zone control levels and window treatment positions ............................................................8
Adjusting default levels/positions from a keypad.............................................................................9
Programming occupancy / vacancy sensors
Assigning sensors.........................................................................................................................11
Integration
Assigning devices to the Integrated Scene Controller....................................................................12
Adjusting default levels/positions from an Integrated Scene Controller..........................................13
Protocol
Basics ........................................................................................................................................16
Communication setup.................................................................................................................19
Verify assignments and set up Integration IDs .............................................................................20
Control/Command.....................................................................................................................22
Monitor.......................................................................................................................................25
Error reporting ............................................................................................................................26
Advanced programming .............................................................................................................27
Table of integration operations ....................................................................................................29
Resetting devices to factory settings
About resetting devices to factory settings....................................................................................30
Resetting zone controls to factory settings....................................................................................30
Resetting keypads to factory settings............................................................................................30
Resetting Pico wireless controls to factory settings .......................................................................30
Resetting sensors to factory settings.............................................................................................31
Resetting Integrated Scene Controller to factory settings .............................................................31
Resetting window treatments to factory settings ...........................................................................31
Programming worksheets
Programming worksheets .............................................................................................................32
Troubleshooting
Troubleshooting guide...................................................................................................................33
Contact Lutron
Contact information.........................................................................................................Back Cover

2 |Lutron
English
24/7 Technical Support—800.523.9466
Español
Français
Overview
About RadioRA®-SR
RadioRA-SR is a system of lighting controls, window treatments, keypads, and sensors that
communicate wirelessly to provide total control of electric and natural light in a single room.
RadioRA-SR adds the magic of light control to any home entertainment area. Lutron provides
uncompromising reliability through innovative wireless communication technology. Lutron ensures
that your system will work every time by combining RF technology, patented by Lutron, with
unrivaled quality.
System components
Zone controls
Dimmers
Replace existing switches to control individual lights in your room.
Remote dimmers available for 3-way dimming.
SRD-6D-*
SRD-10D-*
SRD-10ND-*
SD-RD-*
Switches
Replace existing switches to control individual lights in your room.
Remote switches available for 3-way switching.
SRD-8ANS-*
SD-RS-*
Table lamp dimmers
Plug in lamp dimmers to control table lamps.
SRD-3LD-**
Keypads
Wall-mount keypads
Backlit and engravable wall-mount keypads control zone controls, window
treatments, and scenes at the touch of a button.
SRD-W3B-*
SRD-W5BRL-*
SRD-W7B-*
Off
AD
JUST
O
N
PicoTM wireless control
Battery-powered, retrofit, portable keypads for zone controls and window
treatments.
SRD-P3BRL-L*
SRD-P3BRL-S*
System enhancements
Integrated Scene Controller
Communicates with devices such as universal remote controls and touch
screens. This allows you to adjust the levels of zone controls and window
treatment positions at the same time as your audio and video gear.
SR-NWK-E
Occupancy and vacancy sensors
Provides energy savings by turning lights off when room is unoccupied and
turns lights on automatically when you enter the room.
LRF2-OCRB-P-WH
LRF2-VCRB-P-WH
Window treatments
Sivoia®QS Wireless roller shades
Improve your viewing experience by quietly covering windows to eliminate glare and reflections.
Sivoia QS Wireless drapery track
Showcase your projection screen, adjust the aspect ratio of the viewing area, and enhance the room’s
décor with curtains controlled by a Lutron®drapery track.
Note: The minimum system requirement is one (1) zone control or window treatment, and one (1) keypad or Integrated Scene Controller.
* For available colors and finishes please visit www.lutron.com/radiorasr.
** Available in Snow (SW) and Midnight (MN).
24/7 Technical Support—800.523.9466

Lutron |3www.lutron.com/radiorasr
English Français
Español
Planning and design
System planning
A properly planned RadioRA®-SR system is easy to use and provides the maximum benefits.
Planning a system involves making a number of important decisions. Here are some of them:
Where will I install the dimmers and switches?•
Where will I install the keypads?•
Where will I install the Integrated Scene Controller?•
What universal remotes will control this system?•
How will I program the system to control the lights and window treatments?•
How will I label the keypad buttons?•
Select locations of keypads, dimmers, and window treatments
Drapery tracks for
windows
Integrated Scene Controller
near Audio Visual (AV)
equipment for easy integration
All system components
must be within this area.
30 ft (9 m)
Dimmers for sconces
and downlights
Tabletop dimmer for
reading lamp
Keypads at entrance
for lights and window
treatments
System capacities
Maximum devices per system 10 (including the Integrated Scene Controller)
Maximum Integrated Scene
Controllers per system
1
RF Range Devices must be within 30 ft (9 m) of each other (except remote
dimmers SD-RD and switches SD-RS)
Installation
After planning and designing the layout of the system, install the system devices according to the
installation instructions that were packaged with each device.

4 |Lutron
English
24/7 Technical Support—800.523.9466
Español
Français
Planning and design
AMX•
HomeLogic• ®
NetStreams• ®
RTI•
Universal Electronics• ®
ELAN• ®
Life|ware• TM
Philips• ®
Savant•
Universal Remote Control•
Philips remote shown Names listed above are trademarks of their respective companies.
Identify universal remote control
If you choose to integrate your system with your audio-visual (AV) equipment, you will need to:
select a universal remote control to integrate with RadioRA• ®-SR
add the Integrated Scene Controller to your system•

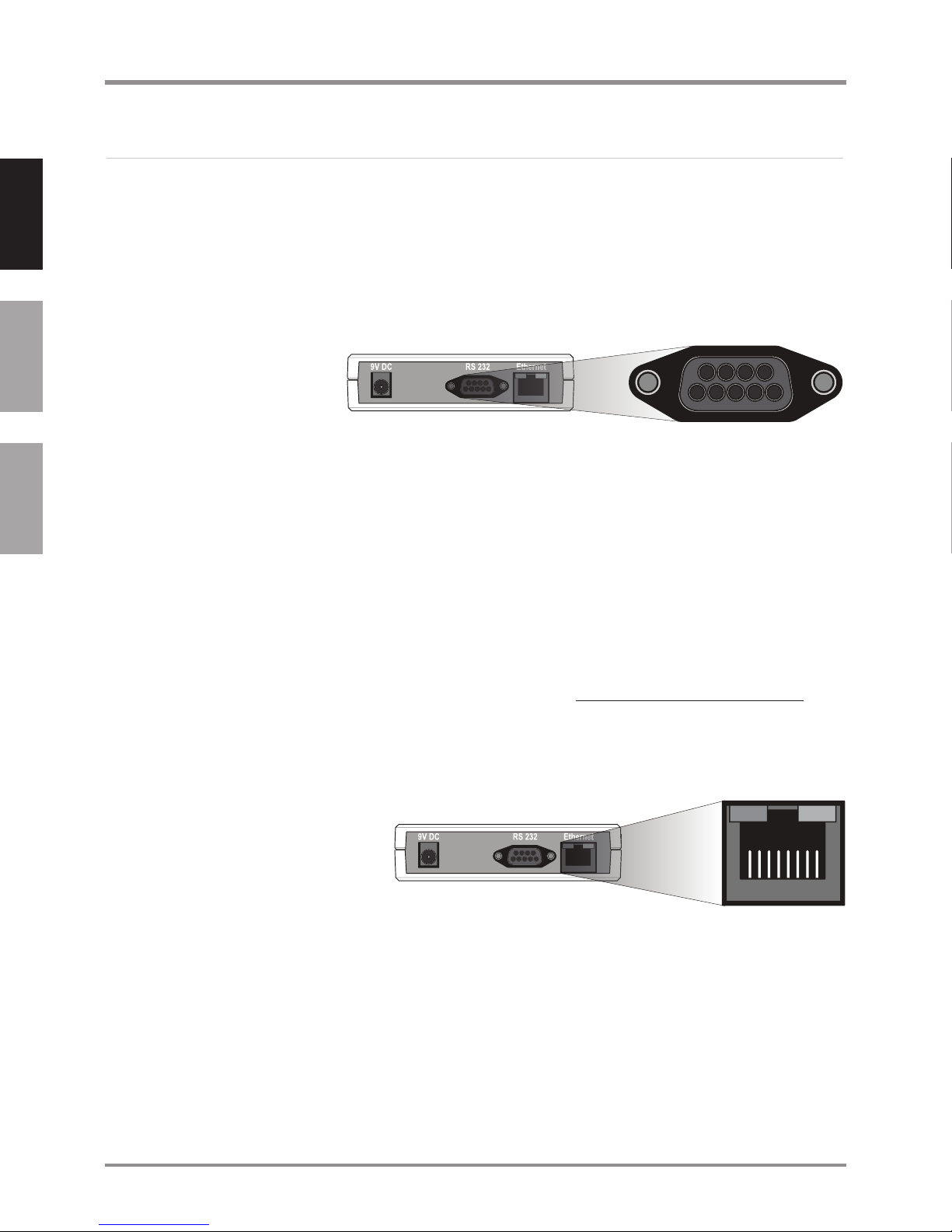

The Integrated Scene Controller provides RS232 or Ethernet control of the RadioRA-SR system. A
detailed explanation is provided in the Protocol section on page 16 of this guide. The manufacturers
listed below offer products that are compatible with the RadioRA-SR system.
System planning (continued)
Define scenes and engraving

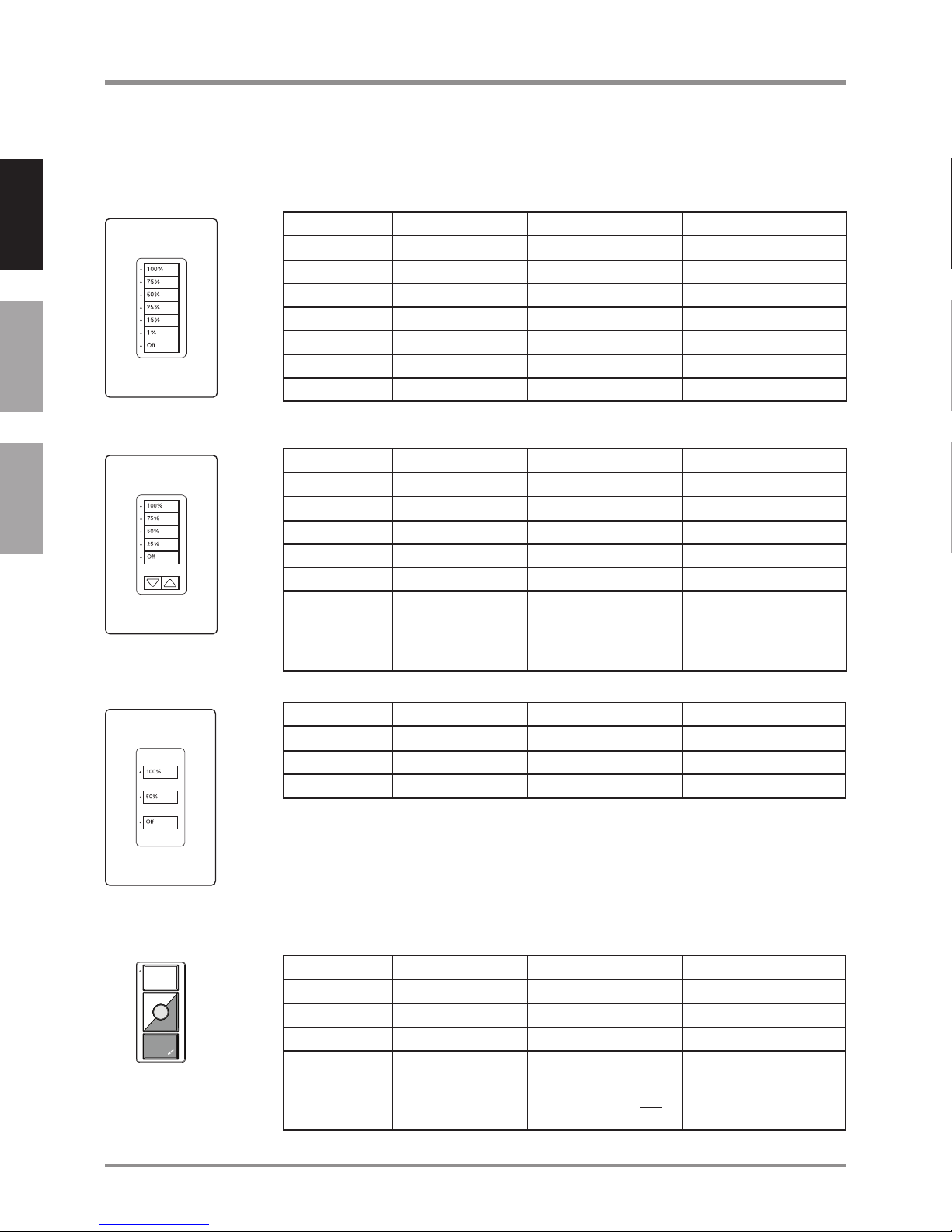

Use the Programming worksheets section on page 32 of this guide to help define your
programming. Below is a sample worksheet.
Keypad Type: 5 button with raise/lower wall mount
Location: Entrance doorway
Serial Number: 0000040224456
(Located on the Keypad)
Zones
123456
Scene Engraving
Downlights Accents Lamp Drapery
1Relax 50% 25% 10% Unaffected
2Gaming 60% 50% 70% Unaffected
3Sports 30% 10% 65% Unaffected
4Movie off 1% 1% closed
5All Off off off off closed
6
7
Raise/Lower Always raises/lowers lights while being
pressed
24/7 Technical Support—800.523.9466

LUTR O N
Lutron |5www.lutron.com/radiorasr
English Français
Español
About assigning devices to a keypad
After all RadioRA®-SR devices have been installed, the keypads must be programmed to control a
set of zone controls and/or window treatments. When a button is pressed on a keypad, the assigned
controls and window treatments go to specific levels or positions. The combined levels of zone
controls and positions of window treatments for a particular scenario are called scenes.
Example:
When watching a movie you would like to dim the lights so that the screen can be viewed easily.
Once all the keypads are programmed, the preferred light levels for watching a movie can be recalled
by pressing one scene button on a keypad column.
Each RadioRA-SR system contains 16 programmable scenes and one Off scene. The Off scene,
when activated, will send all assigned zone controls to the Off state and close all window treatments.
Unlike the 16 programmable scenes, the Off scene may not be edited. A keypad can only access
a limited number of scenes based on how many scene buttons are part of the keypad column. The
Integrated Scene Controler can access all 16 scenes through the RS232 or Ethernet ports.
Keypad Examples:
- 3 button columns can only access scenes 1,3 and Off
- 5 button columns can only access scenes 1,2,3,4 and Off
- 7 button columns can only access scenes 1,2,3,4,5,6 and Off
Note: Scenes 7-16 can be accessed through the Integrated Scene Controller by using Integration
commands. See the Protocol section starting on page 16.
Programming a keypad column consists of:
1) Assigning zone controls, keypads and window treatments to a keypad column according to
the Assigning devices to a keypad section below.
2) Saving the desired zone control levels and window treatment positions for each scene button
according to the Adjusting default levels/positions from a keypad section on page 9.
Note: Once the keypads are programmed, assign all zone controls, keypads, and window treatments
to the Integrated Scene Controller according to the Assigning devices to the Integrated Scene
Controller section on page 12.
Assigning devices to a keypad
1. Enter assign mode – press and hold the top and bottom button
of the desired column until the Light Emitting Diode(s) (LED)
begin(s) to flash (approximately 6 seconds). If a keypad column
was previously programmed, all of the LEDs in the column will
scroll sequentially. If this is the first time a keypad column is
programmed, only the top and bottom LEDs will flash alternately.
The LED on the PicoTM wireless control will continue to flash while it
is in assign mode.
Note: The keypad will automatically exit assign mode after 10
minutes.
Note: If assigning devices to a Pico wireless control, skip step 2
and proceed directly to step 3.
Programming keypads

6 |Lutron
English
24/7 Technical Support—800.523.9466
Español
Français
Assigning devices to a keypad (continued)
2. Press each keypad button between the top and bottom buttons
to add the buttons to the column. Once pressed, the LED next to a
button will flash in sequence with the other LEDs, indicating that it
is now part of the keypad column.
3. Assign zone controls and window treatments to the keypad
column
a. Assign dimmers / switches – press and hold the tapswitch
on the device until the load flashes 3 times (approximately
6 seconds). The LEDs on assigned dimmers/switches will
continue to flash while the keypad is in assign mode.
b. Assign window treatments – press any button on the drive
and the green LED will flash.
Note: For consistent operation, it is recommended that all zone
controls and window treatments in a single room be assigned to
every keypad in that room.
Note: If assigning devices to a PicoTM wireless control, skip step 4
and proceed directly to step 5.
4. Assign other keypad columns – press and hold the bottom
button of the keypad column to be assigned until all the LEDs on
it begin to flash (approximately 6 seconds). While the first keypad
is in assign mode, its LEDs will scroll and the LEDs on assigned
keypads will continue to flash simultaneously.Assigning a keypad
column to another keypad column is useful for making the LEDs
on all keypad columns track each other. All keypads in a room
should have the same set of zone controls and window treatments
assigned to them.
5. Assign the Integrated Scene Controller - press the Assign
button of Column 1 or 2 of the Integrated Scene Controller. The
corresponding Assign LED will flash red when Column 1 or 2 on
the Integrated Scene Controller has been assigned to a keypad.
To assign Column 3 or 4 of the Integrate Scene Controller to a
keypad, please refer to the Assign Column 3 or 4 to a keypad
that is in assign mode section on page 27. Assigning the
Integrated Scene Controller to a keypad allows the LEDs on the
keypad to track when a scene is selected on Column 1, 2, 3 or
4 of the Integrated Scene Controller. When an Integrated Scene
Controller column is assigned to a keypad, the Assign LED on the
Integrated Scene Controller will flash green several times to signify
that there is a button press occurring on that keypad.
Note: To unassign a device that is assigned, use the same method
to assign it as described in the Assigning devices to a keypad
section starting on page 5.
Programming keypads
24/7 Technical Support—800.523.9466

LUTR O N
LUTR O N
Lutron |7www.lutron.com/radiorasr
English Français
Español
Programming keypads
Assigning devices to a keypad (continued)
6. When all devices have been assigned, exit assign mode by
holding the top and bottom buttons of the selected column until
the LED(s) stop(s) scrolling or flashing (approximately 3 seconds).
7. Program all keypads – repeat steps 1-4 of Assigning devices to
a keypad, starting on page 5, for every keypad in the RadioRA®-
SR system. When a second keypad column is assigned to the
first keypad column, pressing a scene button on the first keypad
column will activate the corresponding LEDs on both the first and
second keypad columns. Pressing a scene button on the second
keypad column will only activate the corresponding LED on the
second keypad column. The first keypad column must also be
assigned to the second keypad column in order to allow the LEDs
on both keypad columns to be activated when a scene button is
pressed on either keypad column.
8. Confirm assignment by individually pressing every button on a
keypad. Assigned devices respond to the button press by going to
the default level for that scene. During keypad operation, the LED
next to the button is illuminated when the corresponding button is
pressed. The LED turns off after another button is pressed on that
keypad column, on another assigned keypad column, or if a level
of a zone control assigned to the keypad column changes.
After a button is pressed on a PicoTM wireless control, the LED next
to the top button will flash for 1-2 seconds and turn off to conserve
battery power.

8 |Lutron
English
24/7 Technical Support—800.523.9466
Español
Français
Default zone control levels and window treatment positions
After lights and/or window treatments are assigned to keypad columns, the assigned devices will
default to the levels listed below.
Default levels and positions for a 5 button wall-mount keypad
Scene Dimmers Switches Window Treatments
1 100% On Open
2 75% On 3/4 open
3 50% On 1/2 open
4 25% On 1/4 open
Off 0% Off Closed
Raise/ Lower
Buttons
Lights
raise/ lower.
Raise will turn the
load on immediately
if off. Lower will not
turn the load off.
Window treatments
will NOT raise/ lower
from a scene keypad.
Default levels and positions for a 7 button wall-mount keypad
Scene Dimmers Switches Window Treatments
1 100% On Open
2 75% On 3/4 open
3 50% On 1/2 open
4 25% On 1/4 open
5 15% On Closed
6 1% On Closed
Off 0% Off Closed
Default levels and positions for a 3 button wall-mount keypad
Scene Dimmers Switches Window Treatments
1 100% On Open
3 50% On 1/2 open
Off 0% Off Closed
Default levels and positions for a PicoTM wireless control
LUTRO N
100%
50%
Off
Button Dimmers Switches Window Treatments
On/ Open 100% On Open
Center 50% On 1/2 open
Off/Closed 0% Off Closed
Raise/ Lower
Buttons
Lights
raise/ lower.
Raise will turn the
load on immediately
if off. Lower will not
turn the load off.
Window treatments
raise/ lower.
Programming keypads
24/7 Technical Support—800.523.9466

LUTR O N
Lutron |9www.lutron.com/radiorasr
English Français
Español
About adjusting default levels/positions from a keypad
You can customize the default levels or positions of the devices assigned to a keypad column by
using the steps below. All other keypad columns or Integrated Scene Controller columns that have
those devices assigned to them will access the same, newly customized levels or positions. The
column containing the button to be customized must have already been programmed according to
the Assigning devices to a keypad section on page 5.
Programming keypads
Adjusting default levels/positions from a keypad
1. Press the button you wish to customize. The lights will dim and
the window treatments will move to the default level associated
with this button. Wait until the lights and window treatments stop
dimming and moving.
Note: The bottom scene button of a keypad column is the OFF
scene and will turn off all the devices assigned to that column. The
OFF scene cannot be modified or saved to a different scene.
2. Adjust each light and window treatment assigned to that column
as follows:
a. Set levels on dimmers – use the tapswitch to toggle the lights
on or off. Use the raise or lower button on the right side of the
dimmer to make adjustments to the desired light levels.
b. Set switches – use the tapswitch to toggle the lights on or off.
d. Set window treatment position – use the clockwise or
counter-clockwise buttons on the window treatment drive to
adjust the position.
3. Making zone controls and window treatments ‘unaffected’
(optional) – To make assigned devices not respond to a keypad
button press, you may make the devices ‘unaffected’. During
normal operation when you press a keypad button, a device that is
‘unaffected’ will ignore the button press. The light level or window
treatment position will not change. To make devices ‘unaffected’,
follow the corresponding step on the next page based on the type
of device to be made ‘unaffected’.

LUTR O N
10 |Lutron
English
24/7 Technical Support—800.523.9466
Español
Français
** After a device becomes ‘unaffected’, you have 10 minutes to complete the level save for all zone
controls and window treatments.
Note: To change the ‘unaffected’ status of a zone control or window treatment, follow steps 1, 2,
and 4 in Adjusting default levels/positions from a keypad starting on page 9.
Programming keypads
Adjusting default levels/positions from a keypad (continued)
a. Make a dimmer ‘unaffected’ – if the dimmer is on, press the
tapswitch once to turn it off. After the dimmer is completely
off, hold the lower rocker until the three middle LEDs turn on
(approximately 6 seconds), signifying that the next level save will
be ignored. **
b. Make a switch ‘unaffected’ – if the switch is on, turn it off
using the tapswitch. Pull the FASSTM switch out. Press and hold
the tapswitch. While still holding the tapswitch, push the FASS
switch in. Continue holding the tapswitch until the LED flashes,
signifying that the next level save will be ignored. **
d. Make a window treatment ‘unaffected’ – if the window
treatment is open, close it using either the clockwise or counter-
clockwise button. Release the button. After the window
treatment is closed, press and hold the same button used to
close the window treatment until the green LED blinks quickly
(approximately 10 seconds), signifying that the next position save
will be ignored. **
4. Press and hold the selected keypad button until the LED
flashes (approximately 6 seconds) to save the current levels. The
LED will blink rapidly for 1-2 seconds to confirm that the save was
successful. On keypad columns, the LED will turn back on. On
PicoTM wireless controls, the LED will turn off.
24/7 Technical Support—800.523.9466

Lutron |11www.lutron.com/radiorasr
English Français
Español
About assigning sensors
Sensors may be assigned to single or multiple dimmers or switches. When the occupancy sensor
detects a person entering the room, the dimmer(s) fade on quickly and the switch(es) turn on. The
level that the dimmer(s) turn on to may be programmed to a customized level.
When the occupancy sensor detects that everyone has left the room, the dimmer(s) and/or
switch(es) will turn off.
Vacancy sensors can only turn off the dimmer(s) and/or switch(es) when the room is unoccupied.
The person must manually turn on the dimmer(s) and / or switch(es) when entering the room.
Programming occupancy/vacancy sensors
Assigning sensors
1. Enter assign mode on the sensor by pressing and holding the
Lights On and Lights Off buttons on the sensor simultaneously until
the orange LED inside the lens flashes (approximately 6 seconds),
then release the buttons. While in program mode, the LED will flash
once every 2 seconds, indicating the sensor is in assign mode.
2. Assign dimmers / switches by pressing and holding the
tapswitch on the dimmer/switch until the LED(s) on the device
flash and the load flashes three times (approximately 6 seconds).
Note: to unassign a previously assigned dimmer/switch, repeat
steps 1-3.
3. Exit assign mode on the sensor by pressing and holding the
Lights On and Lights Off buttons on the sensor simultaneously until
the LED inside the lens stops flashing (approximately 6 seconds).
4. Program the level that the dimmers will turn on to when the room
is entered.
a. Adjust the level(s) of the dimmer(s) – adjust the level(s) of the
dimmer(s) using the raise or lower rocker on each dimmer.
Note: switches cannot be adjusted, they always turn on if assigned
to an occupancy sensor.
b. Save the level(s) of the dimmer(s) – press and hold the Lights
On button on the sensor for 6 seconds to save the level(s) that
the dimmer(s) will turn on to when someone enters the room.
c. Verify the level(s) of the dimmer(s) were saved correctly
– press and release the Lights Off button on the sensor to turn
the dimmer(s) and/or switch(es) off. Then press and release the
Lights On button and verify that the dimmer(s) turned on to the
desired level(s).
Note: Please refer to the installation instructions provided with the
sensor for additional features.

12 |Lutron
English
24/7 Technical Support—800.523.9466
Español
Français

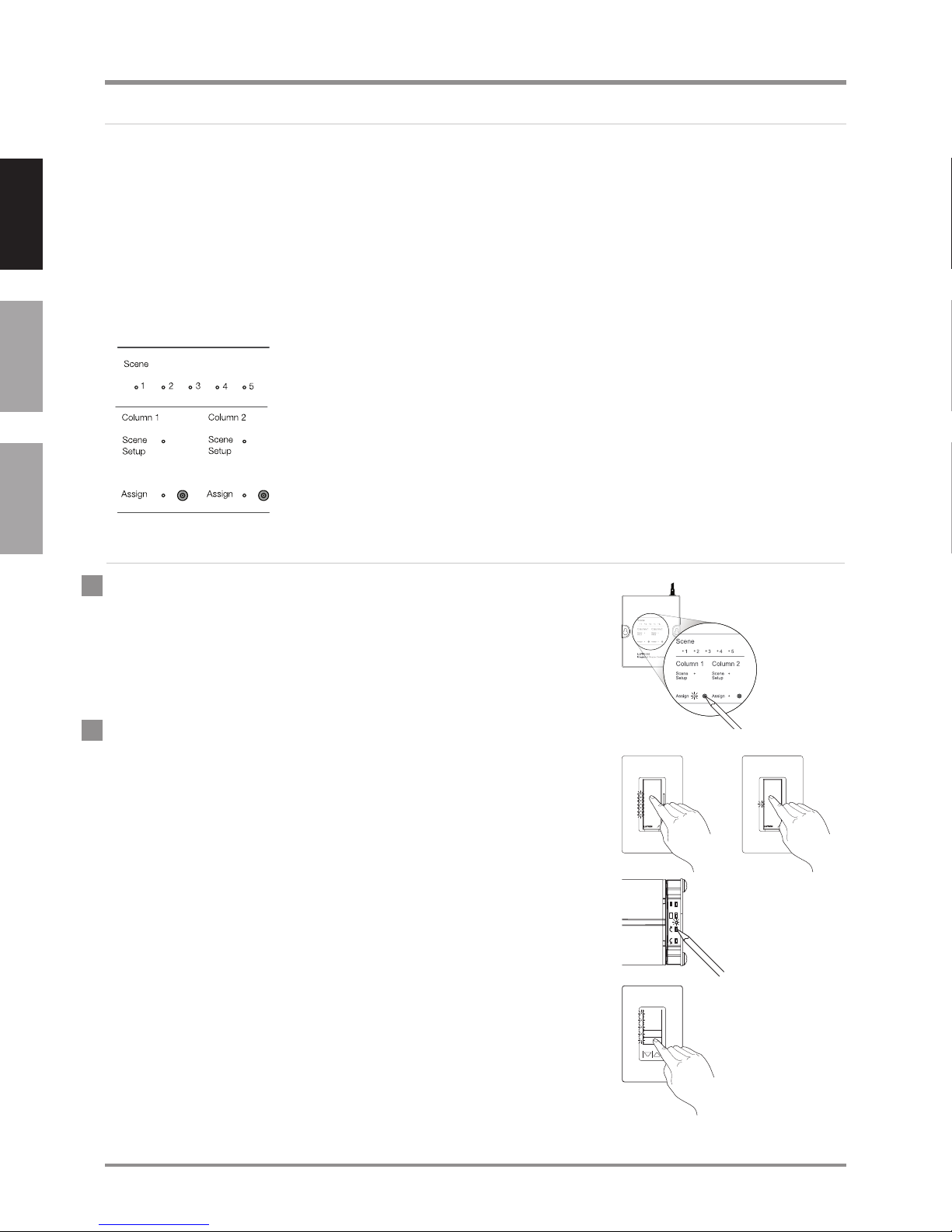

About assigning devices to the Integrated Scene Controller
The Integrated Scene Controller provides a single integration point into a RadioRA®-SR system.
The Integrated Scene Controller is able to control up to 9 RadioRA-SR zone controls or window
treatments. The Integrated Scene Controller can be used to activate scenes in the system and set
or get zone control levels and window treatment positions. Each RadioRA-SR system contains 16
programmable scenes and one OFF scene. A keypad can only access a limited number of these
scenes based on how many scene buttons are part of the keypad column. The Integrated Scene
Controller can access all 16 scenes through the RS232 or Ethernet ports. This allows 3rd party
remote controls or touch panels to control RadioRA-SR devices.

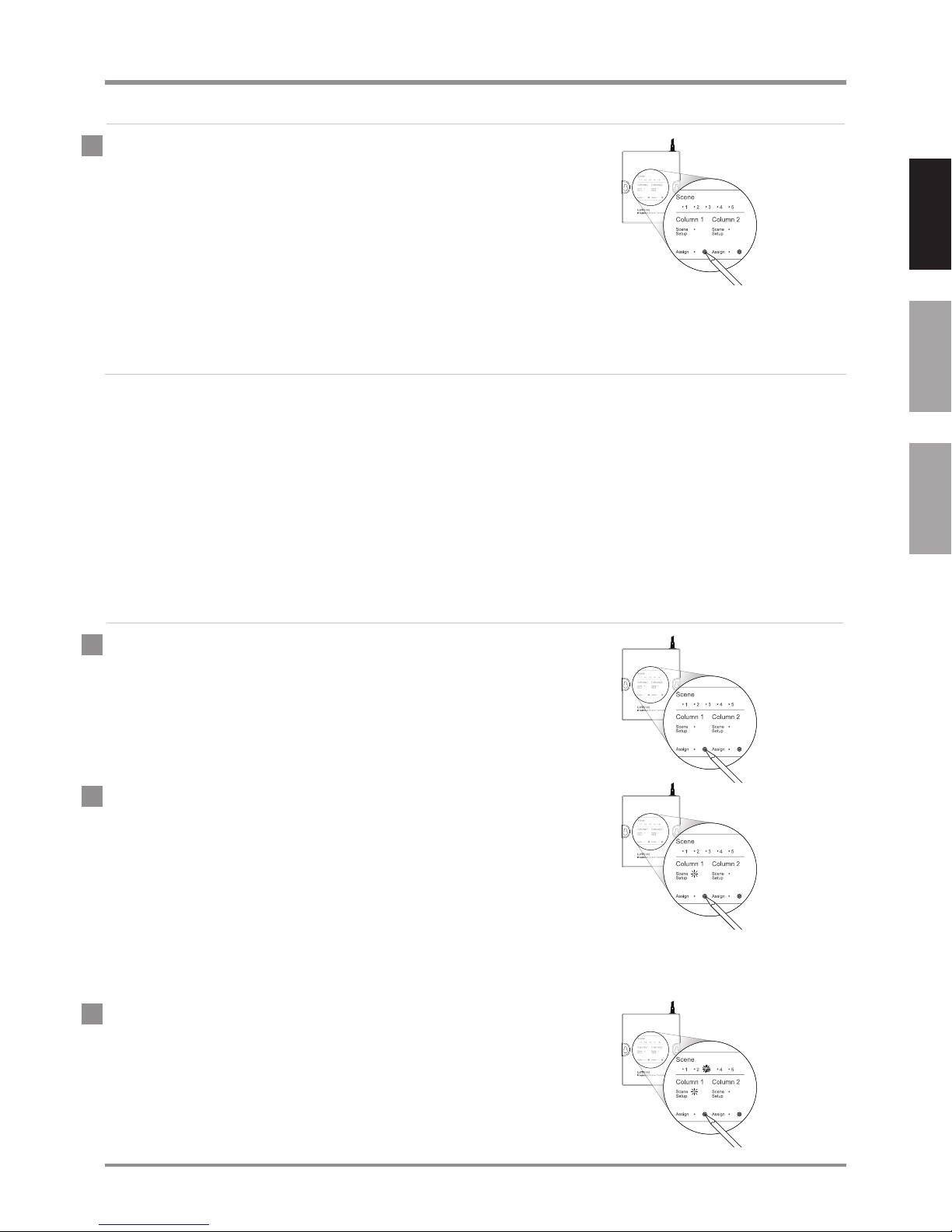

Assigning devices to the Integrated Scene Controller
1. Enter assign mode on the Integrated Scene Controller by
pressing and holding the Assign button of column 1 or 2 until the
column’s Assign LED flashes rapidly (approximately 3 seconds).
When the LED flashes once per second, the column is in assign
mode.
2. Assign devices to the Integrated Scene Controller column
a. Assign dimmers / switches – press and hold the tapswitch
on the device until the LED(s) on the device flash and the load
flashes 3 times (approximately 6 seconds). The LED(s) on
assigned dimmers/switches will continue to flash while in assign
mode.
b. Assign window treatments – press any button on the window
treatment drive and the green LED will flash.
c. Assign keypad columns – press and hold the bottom button
of the column until the LEDs blink (approximately 6 seconds).
Complete the Assigning devices to a keypad section, starting
on page 5, before assigning the keypad to the Integrated Scene
Controller. The LED(s) on assigned keypads will continue to blink
while the Integrated Scene Controller is in assign mode.
Integration
The Integrated scene controller has four internal columns (Columns 1,
2, 3, and 4) that can be programmed like keypad columns. Third-party
devices can access these internal keypads to control RadioRA-SR
devices. These internal keypads are accessible through integration
commands explained in the Protocol section starting on page 16.
The front of the Integrated Scene Controller is shown on the left. Use
the steps below to program Columns 1 and 2. To program Columns 3
and 4, see Advanced programming on page 27.
24/7 Technical Support—800.523.9466

Lutron |13www.lutron.com/radiorasr
English Français
Español
About adjusting default levels/positions from an Integrated
Scene Controller
When the Assign button for Column 1 or 2 is pressed or when a command is sent through RS232
or Ethernet to the Integrated Scene Controller, all of the assigned devices go to a default level or
position. The default levels or positions of the devices assigned to an Integrated Scene Controller
column can be customized by using the steps below. All other keypad columns or Integrated
Scene Controller columns that have those devices assigned to them will access the same, newly
customized levels or positions. The column to be adjusted on the Integrated Scene Controller must
already have all zone controls, window treatments, and keypads in the system assigned to it.
Integration
Adjusting default levels/positions from an Integrated Scene
Controller
1. The Integrated Scene Controller must not be in assign mode before
entering scene setup mode. The Scene Setup and Assign LEDs
should be off. If they are not, press and hold the Assign button until
the LEDs stop flashing (approximately 3 seconds).
2. Enter scene setup mode on the Integrated Scene Controller by
pressing and holding the Assign button on the desired column until
the column’s Scene Setup LED flashes rapidly (approximately 6
seconds).
Note: Pressing and holding the Assign button on the Integrated
Scene Controller for 3 seconds will enter assign mode. Continuing
to hold the Assign button for an additional 3 seconds (6 seconds
total) will enter the scene setup mode.
3. Select the scene to save by tapping (press and release) the
Assign button on the desired column multiple times to cycle
through the Scene LEDs until the LED corresponding to the scene
being programmed turns on solid. This will set the zone controls
and window treatments in the room to the corresponding scene.
Assigning devices to the Integrated Scene Controller (continued)
3. Exit assign mode by pressing and holding the Assign button on
the selected column until the column’s Assign LED stops flashing
and is off (approximately 3 seconds).

14 |Lutron
English
24/7 Technical Support—800.523.9466
Español
Français
Integration
Adjusting default levels/positions from an Integrated Scene
Controller (continued)
4. Adjust each zone control and window treatment assigned to that
keypad column as follows:
a. Set levels on dimmers – use the tapswitch to adjust the lights
to go on or off. Use the raise or lower button on the right side of
the dimmer to make adjustments to the desired light levels.
b. Set switches – use the tapswitch to adjust the lights to go on
or off.
c. Set window treatment position – use the clockwise or
counter-clockwise buttons on the window treatment drive to
adjust the window treatment position.
5. Making zone controls and window treatments ‘unaffected’
(optional) – To make assigned devices not respond to a keypad
button press, you may make the devices ‘unaffected’. During
normal operation when you press a keypad button, a device that is
‘unaffected’ will ignore the button press. The light level or window
treatment position will not change. To make devices ‘unaffected’,
follow the corresponding step below based on the type of device
to be made ‘unaffected’.
a. Make a dimmer ‘unaffected’ – if the dimmer is on, press the
tapswitch once to turn it off. After the dimmer is completely
off, hold the lower rocker until the three middle LEDs flash
(approximately 6 seconds), signifying that the next level save will
be ignored. **
b. Make a switch ‘unaffected’ – if the switch is on, turn it off
using the tapswitch. Pull the FASSTM switch out. Press and hold
the tapswitch. While still holding the tapswitch, push the FASS
switch in. Continue holding the tapswitch until the LED flashes,
signifying that the next level save will be ignored. **
** After a device becomes ‘unaffected’, you have 10 minutes
to complete the level save for all zone controls and window
treatments.
24/7 Technical Support—800.523.9466

Lutron |15www.lutron.com/radiorasr
English Français
Español
Adjusting default levels/positions from an Integrated Scene
Controller (continued)
d. Make a window treatment ‘unaffected’ – if the window
treatment is open, close it using either the clockwise or counter-
clockwise button. Release the button. After the window
treatment is closed, press and hold the same button used to
close the window treatment until the green LED blinks quickly
(approximately 10 seconds), signifying that the next position
save will be ignored. **
6. Save the levels by pressing and holding the column’s Assign
button until the Scene LED turns off to indicate that the scene
levels have been saved (approximately 3 seconds).
7. Exit scene setup mode on the Integrated Scene Controller by
pressing and holding the Assign button of the selected column
until the column’s Scene Setup LED stops flashing and turns off
(approximately 6 seconds).
8. Confirm scene setup by tapping (press and release) the Assign
button several times until the LED next to the desired scene turns
on to confirm which scene will be activated. All of the assigned
devices should go to the appropriate levels or positions for that
scene.
** After a device becomes ‘unaffected’, you have 10 minutes to complete the level save for all zone
controls and window treatments.
Note: To change the ‘unaffected’ status of a zone control or window treatment, follow steps 1-4, 6,
and 7 in Adjusting default levels/positions from an Integrated Scene Controller starting on
page 13.
Integration

12345
6789
87654321
16 |Lutron
English
24/7 Technical Support—800.523.9466
Español
Français
Protocol
Basics
Connection Information
The Integrated Scene Controller provides both RS232 and Ethernet connections to communicate
with external equipment.
RS232
The RS232 connection has the following communication settings:
Baud rate - 38400 (default)•
Data bits - 8•
No parity bit•
1 stop bit•
No flow control/handshaking•
Ethernet
Configuring the Integrated Scene Controller to communicate over a network takes not only
knowledge of the RadioRA®-SR system, but of networking as well. Installers with limited networking
knowledge are advised to contact a networking professional before attempting to connect to the
Integrated Scene Controller over a network. The information below will help an installer communicate
the Integrated Scene Controller configurations to a network professional. The network professional
can make any necessary changes to the networking equipment.
The installer will make any necessary changes to the Integrated Scene Controller using the setup
command or Device IP program. The Device IP program will allow the installer to detect the
Integrated Scene Controller that is either directly connected to a computer or on the same network.
The installer will be able to see and change the IP address of the Integrated Scene Controller. The
Device IP program is available on the RadioRA Resource Site at http://resi.lutron.com/radiora.
After entering the address into your web browser, you will be prompted to log in or register (if this
is your first time accessing the site). Registration is quick and easy, and you will have immediate
access once registered. After you are logged in, go to the Support menu and select Device IP.
Follow the instructions posted to download and set up the Device IP program.
Single Ethernet port
IEEE 802.3 Auto-Sensing•
10BaseT/100BaseTX
Supports MDI/MDIX auto-crossover•
(no crossover cable needed)
Female 8P8C “Computer RJ-45”•
socket
Green Connect LED, Amber Activity•
LED
Use Cat 5 cabling or better•
Protocols Used
TCP, UDP, IP, ARP, ICMP, TELNET•
TCP/IP Settings
IP Address: 192.168.250.1 (default)•
Subnet: 255.255.0.0•
Gateway: 0.0.0.0•
Integration
24/7 Technical Support—800.523.9466

Lutron |17www.lutron.com/radiorasr
English Français
Español
Protocol
Basics (continued)
Telnet Server
Used by third party equipment (i.e. universal remote control)•
Limited to transferring 7bit ASCII characters•
Telnet Port number is 23•
The login name is ‘nwk’•
There is no password•
UDP Multicast Messaging
Used by the Device IP tool during device configuration•
There are no user modifiable settings for UDP messaging•
Rate Limiting
To ensure that the Integrated Scene Controller processes all commands and queries correctly, the
integration device must adhere to the following:
a. Two-way devices should only send a command after receiving a prompt from the Integrated Scene
Controller.
b. One-way devices that cannot detect the prompt should only send one command every second.
Note: A raise command followed by a stopraise command, or a lower command followed by a
stoplower command, are considered one command when used together.
Integration Operations
The Lutron®integration protocol allows third-party equipment, such as universal remote controls and
software applications, to control, monitor, and query a RadioRA®-SR system.
The protocol supports three basic types of integration operations in a RadioRA-SR system:
Command — executes an action•
Query• — requests the current status
Monitor• — returns responses
Note: Please see Table of integration operations on page 29 for a list of available integration
operations in a RadioRA-SR system.
Operation Characters
To help create and manage the different integration operations, three distinct operation characters
have been selected to begin each command. All protocol messages will start with one of the
following operation characters:
#Command — executes an action (e.g. turn a dimmer on/off)
?Query — requests the current status of the system (e.g. determine on/off status of a dimmer)
~Monitor — returns responses from the system when a change has occurred
(e.g. if someone turns on a dimmer locally a response is sent out to indicate the change)
Note to Integrator: Operation characters are not used in any other location in the protocol command
string. Therefore, the driver can search for these characters to determine the start of a new
command string.
Integration

18 |Lutron
English
24/7 Technical Support—800.523.9466
Español
Français
Protocol
Basics (continued)
Operation Types
Operation characters will be followed by operation types. The three most common operation types
are setupisc, output and device:
Sent to the Integrated Scene Controller
Integration
Operation
Operation
Character
Operation
Type Explanation Example
Command #
setupisc
Allows control and monitoring of
various settings for the Integrated
Scene Controller
#setupisc,list prg
output
Allows control and monitoring of
device outputs such as zone controls
and window treatments
#output,12,1,75
device
Allows control and monitoring of
device inputs such as button presses
and releases
#device,12,50,3
refresh Lists out current device levels #refresh,255,255
Query ?
output Requests device outputs such as
zone controls and window treatments
?output,12
firmwarerev Request the software revision number
of the Integrated Scene Controller
?rmwarerev
Feedback from the Integrated Scene Controller
Monitor ~
output
Reports the levels of zone controls
and window treatments that are
assigned to the Integrated Scene
Controller
~output,12,1,100
device
Reports the levels of zone controls
and window treatments in the active
scene on the Integrated Scene
Controller
~device,12,3,3
error
Reports when an incorrect command
or query is sent to the Integrated
Scene Controller
~error,1,(null),
command not found
Operation Structure
The protocol structure of the integration operations is made up of three parts, followed by a carriage
return.
1. The Operation is made up of the operation character and type.
2. The Integration ID is assigned to each device in the system during the integration set up, providing a
unique user-assigned address for each system device. By default the Integration ID of a device is the
serial number found on each device.
3. The Operation-specific Fields contain additional information relevant to the type of operation used.
4. The entire command string must always be followed by a carriage return to execute the operation.
Integration
Operation Integration ID Operation-specific Fields
24/7 Technical Support—800.523.9466
