Thank you for purchasing the Macnaught BOP battery operated pump.
PLEASE READ THIS SAFETY INFORMATION CAREFULLY BEFORE USE.
Read and retain this instruction manual to assist you in the operation of your new product.
INTRODUCTION
WARNING
Macnaught has designed and manufactured this pump to the highest quality standards using premium
quality materials and workmanship.
 Visually inspect pump, charger and battery prior to use for any signs of damage, loose or missing parts. If
equipment is worn or damaged, remove it from service (Replace if required).
Failure to follow all instructions listed below may result in electric shock, fire, serious injury and/or dam-
age to the power tool. The term “power tool” in all of the warnings listed refers to your battery operated
(cordless) power tool.
Please read this important information carefully before use.
 Make sure all operators have adequate access to the following instructions.
 ‘WARNING’ listed throughout this manual to advise of actions which may cause damage to your equipment.
 The BOP Battery operated pump must be used strictly in accordance with Macnaught’s terms and condi-
tions.
GENERAL SAFETY
DO NOT operate power tools in explosive areas, e.g; close to flammable liquids, gases or dust.
ELECTRICAL SAFETY
 Never modify electrical connections.
 DO NOT expose power tool to rain or wet conditions.
 DO NOT use product if the product is damaged or the switch does not turn the pump on.
 If “battery-pack” case is damaged DO NOT use - Danger of electric shock or electrocution.
BATTERY and CHARGER SAFETY
Please follow instructions from battery and charger owners manual
 Battery charger MUST ONLY be used for charging the rechargeable batteries supplied with the BOP.
 DO NOT operate charger if charger, power cord or plug is damaged - replace immediately.
 DO NOT disassemble charger or battery.
 DO NOT store battery pack in locations where the temperature may reach or exceed 40°C/104°F.
 DO NOT use charger on any other voltage than designated on the charger.
 Only use “ORIGINAL” Macnaught replacement parts, battery or charger.
This product should only be used with automotive oils and lubricants.

Instruction Manual Page 3
 Always place gun on hanger when pump is not in use, as oil spillage can cause a slipping hazard.
 Keep plastic bag away from babies and children.
 Do not lift the power head with locking lever. Handle power head with care. DO NOT DROP.
 Make sure the power head is securely connected/attached to the stem.
 Do not leave the power head sitting on top of the stem unlocked.
 Stop operating the battery oil pump if any leakings at the joints are noticed.
 Do not modify the pump in any way.
 Only use a genuine Macnaught dispensing gun. Hand tighten the hose till its firm and check for any signs of
leakage before use.
 Do not use flammable fluid in this product. Only use fluid specified in this instruction manual.
 Wear appropriate PPE for protection.
 Do not use the product in potentially explosive atmosphere.
 Do not expose the product to fire and source of heat.
 Users should refer to MSDS of the fluid from supplier being used.
 Use product in well ventilated area.
 Never leave your dispensing gun unattended in open position. Do not attempt to use any means to lock the
lever. Always ensure the switch is in off position after dispensing the oil.
 Use pump in adequate lighting condition for safe operation. Do not use the product under poor illumination.
 Avoid spillage of oil near water source as it may be harmful to the environment.
 When moving drum, check area for spillage and clean up any liquid on floor as this will cause a slippery
hazard
 Only use genuine Macnaught battery and chargers with this product.
 Battery pack, charger and power head should be protected from water.
* Do not expose the power head to a nearby magnet as its performance will be adversely affected.
 The battery operated pump should always be used in a vertical position.
 The dispensing gun should always be facing up when dispensing fluid.
 If the noise level changes check the hose to see if there is air present, if air is present stop the pump imme-
diately as this indicates the drum is empty. Switch over to a new drum.
WARNING
CAUTION
DISCLAIMER
Your product is designed to use with non-flammable automotive oil/lubricants only, with viscosity grades from
0W-40 to SAE85W-140. Usage with different fluids may cause performance degradation and render the war-
ranty void. Improper use of liquid may lead to machine failure and malfunction.
Use of any flammable fluids can cause sparks to explode and create a fire hazard. Macnaught bears no liabil-
ity to the consequence of fluid misuse by customers.

Instruction Manual Page 4
BATTERY DISPOSAL
NOTE: Dispose of old batteries properly. The battery contains rechargeable
Lithium-ion and must be recycled or disposed of properly. Please refer to the
local authorities for the correct method of battery disposal.
DO NOT incinerate the battery pack. The battery can
explode in a fire
DO NOT attempt to disassemble any battery.

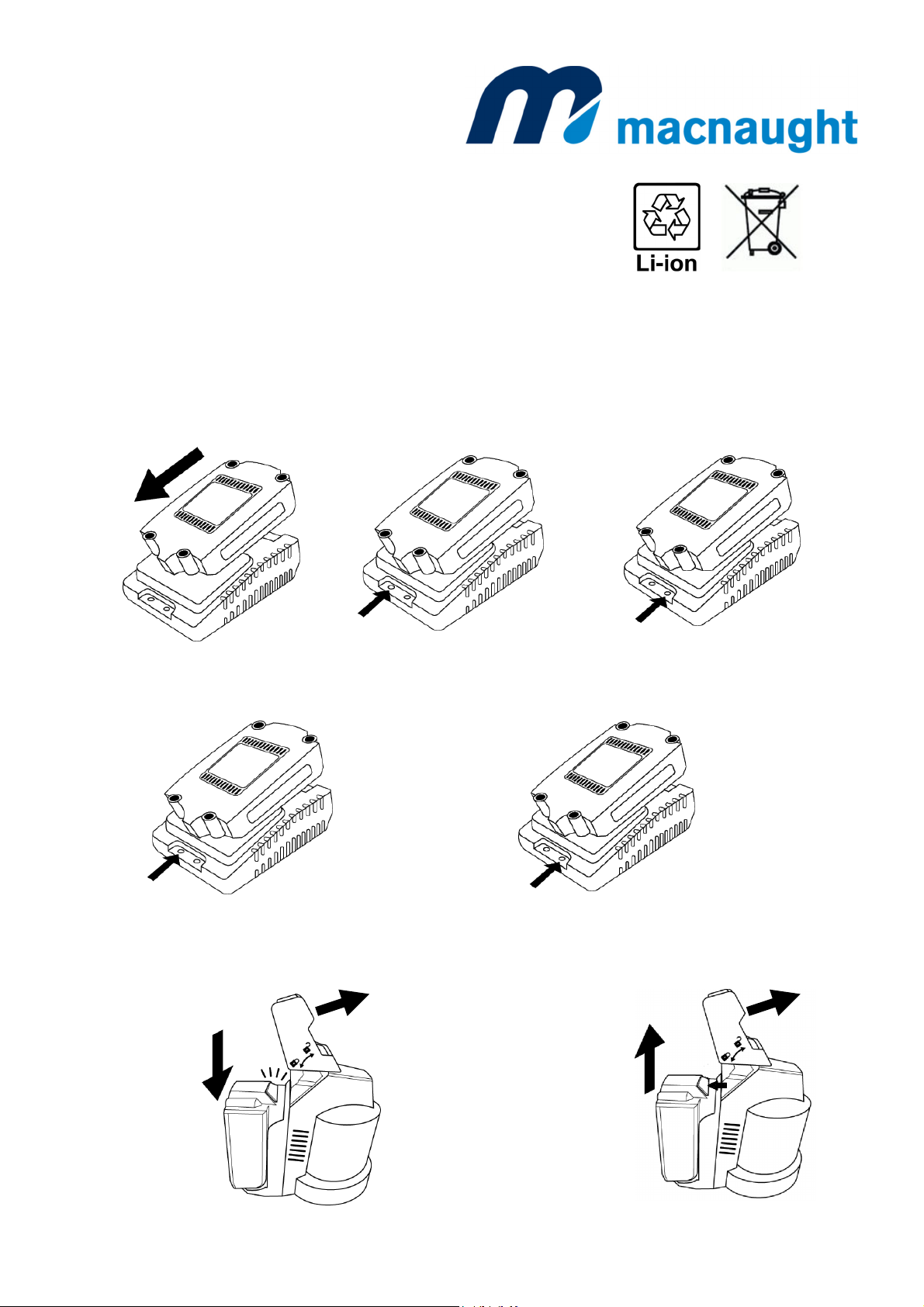

1) Insert battery 2) Power on
(green light only)
3) Battery charging
(red light only)
4) Battery charged
(green light only)
Note: Red light flashes when battery voltage is low
(trickle charging to prevent battery damage)
CHARGE BATTERY
INSERT / REMOVE BATTERY
1) Insert battery
a) lift handle
b) push down
2) Remove battery
a) lift handle
b) press button
c) pull up
a)
b)
a)
b)
c)

Instruction Manual Page 5

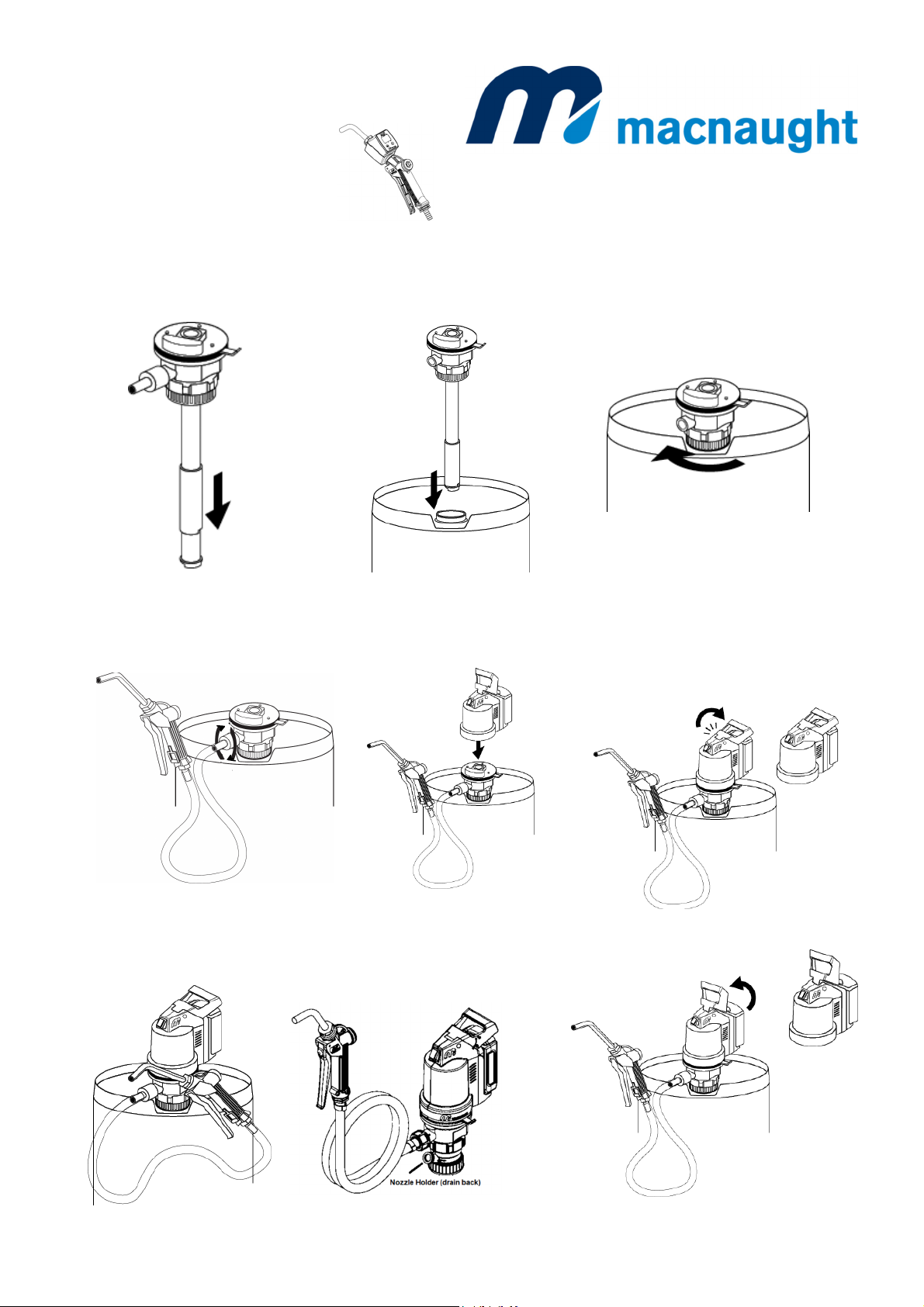

ASSEMBLY
2) Pull down extender tube 3) Push the pump stem
into container
4) Tighten bung adapter to
secure pump stem
5) Attach hose and gun
(ensure end gasket is in place)
6) Ensure switch is off, then
place power head onto pump
stem
7) Press handle down to lock power head
9) To remove power head, lift handle.
8) Place gun onto hanger when finished
Note: If nozzle holder is fitted, place
nozzle into holder when finished.
1) Remove both the inlet and outlet plugs from the pump stem before use.
Note: Power head will not oprerate unless
locked correctly into position.
Note: For models supplied with a
flow meter, refer to meter
assembly instructions on
page13

Instruction Manual Page 6

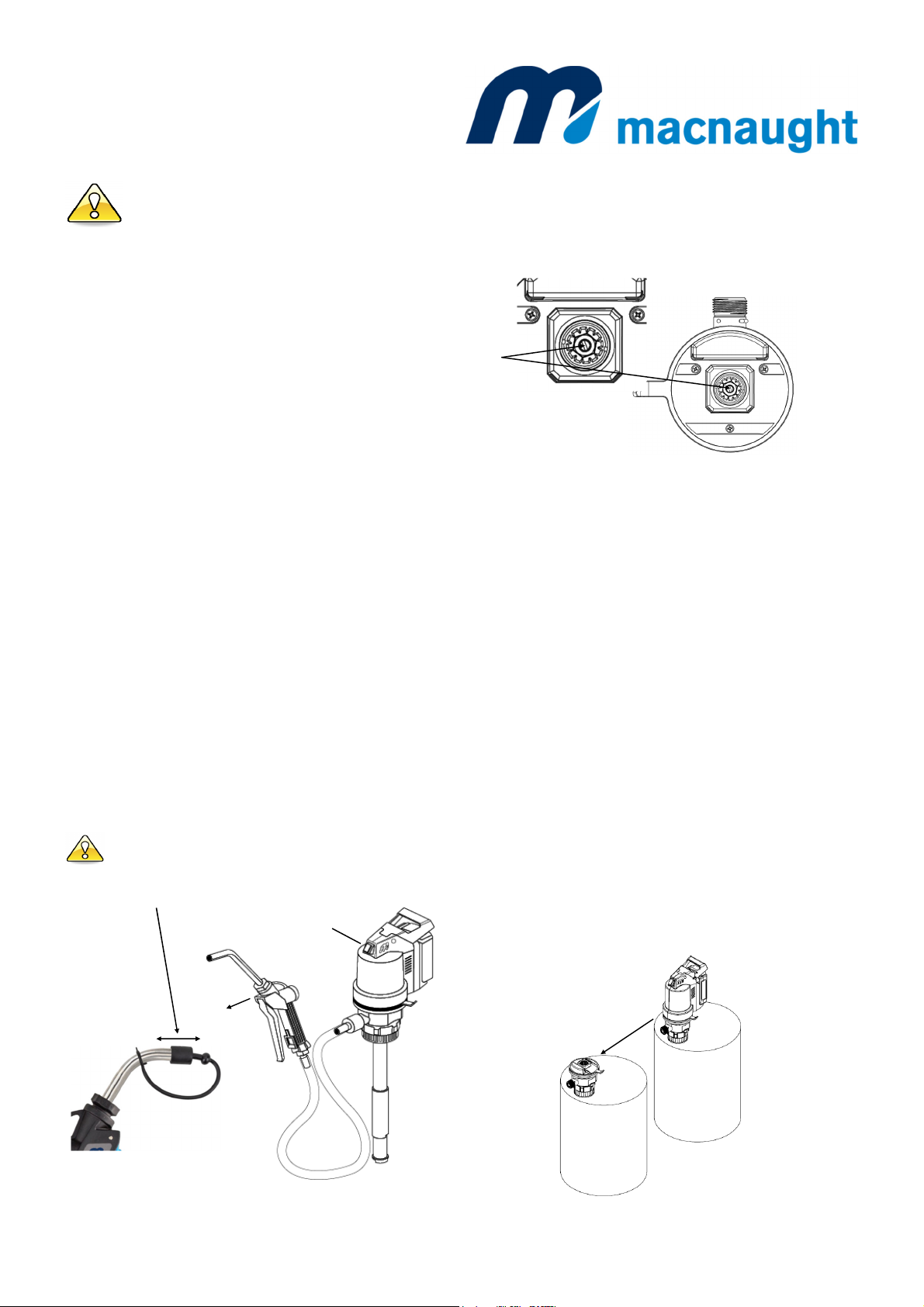

OPERATING INSTRUCTIONS
CAUTION
OPERATION
NOTE: Do not allow the pump to run dry or pump damage can occur
4) Power head can be moved from pump assembly to pump assembly.
5) Long storage periods :
a) Turn slot shaft 2 full turns counter clockwise using a flat head screwdriver.
b) When starting pump after a long storage period, turn slot shaft clockwise with a flat head screwdriver.
1
3
4
IMPORTANT:
For initial operation
1) Turn slot in shaft clockwise one complete turn with a flat
head screwdriver.
2) First press the trigger on gun and then turn on the pump to prime.
3) Release trigger when primed (fluid flows from gun).
Note:
Pump will not run when power head is not attached to pump stem correctly.
Pressure sensor will turn motor off when trigger is released and stall pressure is reached.
For low viscosity oils you may need to manually prime the system before use
Note: There may be a delay in the pump turning off when the trigger on the gun is released,
this is normal as the pump is priming to stall pressure.
4) Lift handle to transfer power head from
stem to stem
1) Attach power head to stem
3) Press or Release trigger to adjust flow
GENERAL OPERATION
NOTE
Remove nozzle cover before use
Replace nozzle cover after use
2) Remove nozzle cover before use
CAUTION

Instruction Manual Page 7
DIAPHRAGM AND SPRING REPLACEMENT
1) Turn anti-clockwise,
remove drive gear
2) Remove 3 screws, pump cover
and dispensing gun hanger 3) Remove 2 screws.
4) Remove assembly. 5) Remove circlip. 6) Replace spring. 7) Re-fit circlip.
8) Remove old diaphragm. 9) Fit new diaphragm.
(ensure correct orientation) 10) Fit valve switch assembly.
11) Fit 2 screws. 12) Fit pump cover and dispensing
gun hanger, using 3 screws. 13) Fit drive gear, turn
clockwise to secure.

Instruction Manual Page 8

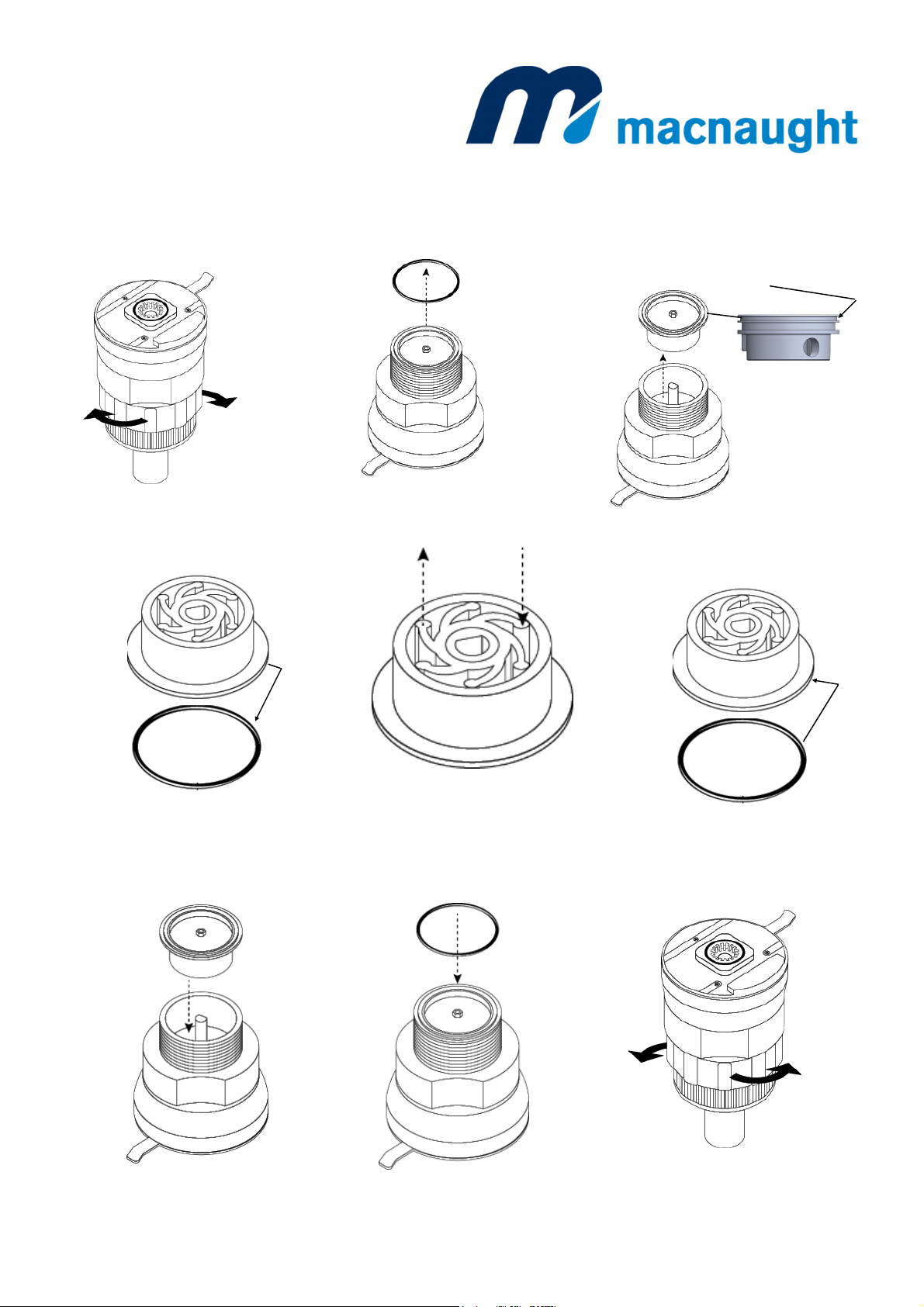

IMPELLER AND O’RING REPLACEMENT
1) Unscrew adapter 2) Remove o’ring.
4) Remove o’ring.
5) Carefully remove and replace impeller.
6) Replace o’ring.
7) Carefully insert impeller housing.
(Note correct orientation of grooves) 8) Replace o’ring. 9) Firmly hand tighten pump tube.
Note: Impeller must be lubricated with
oil or grease during assembly.
3) To assist in the removal of the impeller
carefully use a small flat edged
screwdriver in the small groove

Instruction Manual Page 9

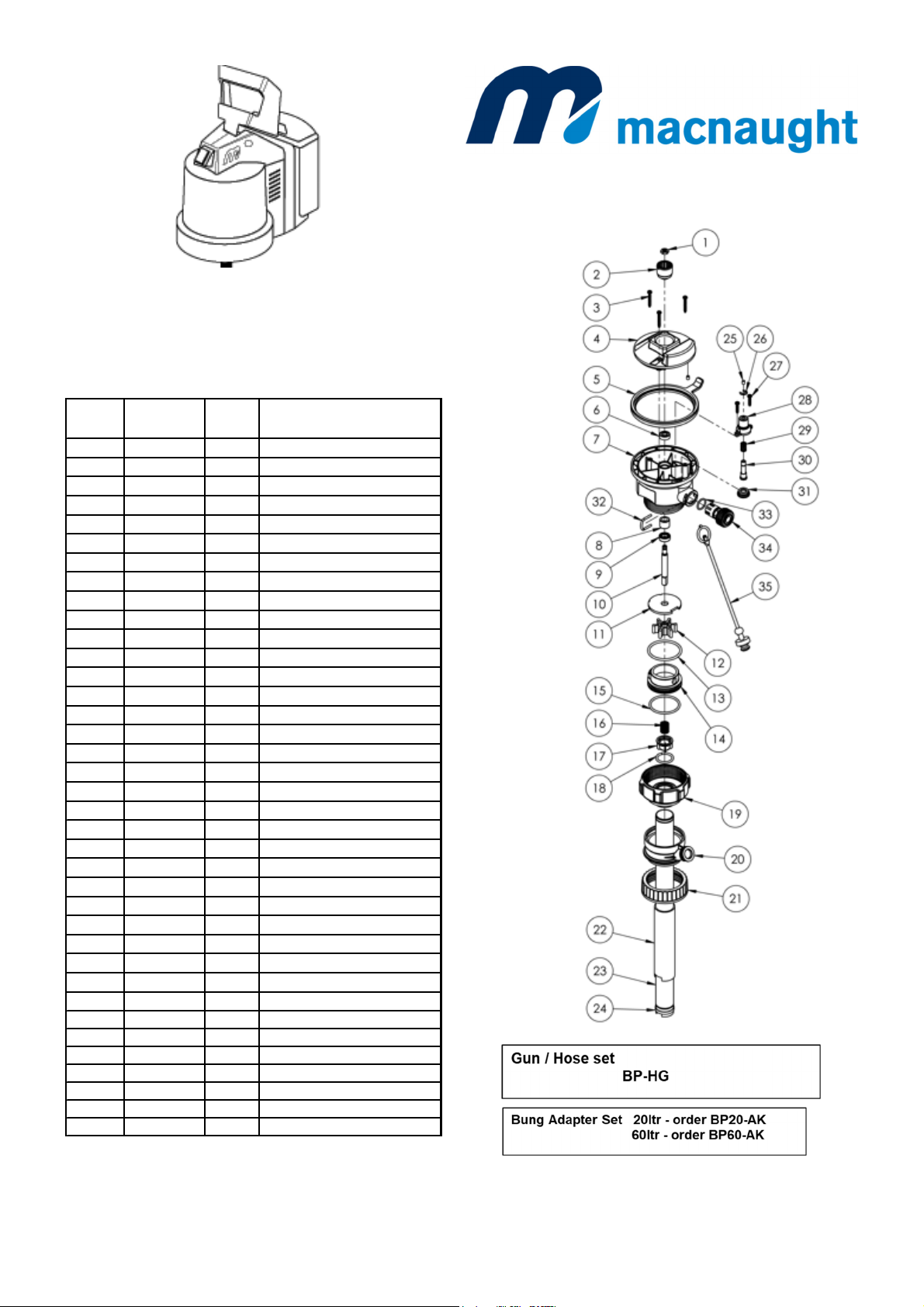

EXPLODED DIAGRAM
Note: Power head is factory sealed and
would need to be replaced if found to be
damaged internally or externally.
Spare parts list
Bung Adapter for 20ltr drum with pull out spout - order BP037s
Item no Pump Kit
Ref (A) No off Description
BP-1K Pump Seal Kit
11Nut(M6)
2 1 Connector
3 3 Screws (3.5 x 25)
4 1 Pump Stem Top Cover
5 1 Hook - Dispensing Gun
6 1 Ball Bearing
7 1 Housing - Pump Stem
8 1 Roller Bearing
91OilSeal
10 1 Drive Shaft
11 A 1 Cover Impeller Chamber
12 A 1 Flexible Impeller
13 A 1 O'Ring
14 A 1 Housing - Impeller Chamber
15 A 1 O'Ring
16 1 Spring
17 1 Check Valve
18 A 1 O.Ring
19 1 Nut - Pump Stem
20 1 Drain Back Adaptor
21 1 Bung adapter (type C)
22 1 Tube Cover
23 1 Outer Tube
24 1 Base
25 A 2 Magnet
26 A 1 Circlip E-Clip
27 2 Screw - 3.5x16
28 1 Housing - Pressure Switch
29 A 1 Spring
30 A 1 Plunger
31 A 1 Diaphragm
32 1 U-Clip
33 A 1 O.Ring
34 1 Connector
35 1 Dust Cover

Instruction Manual Page 10

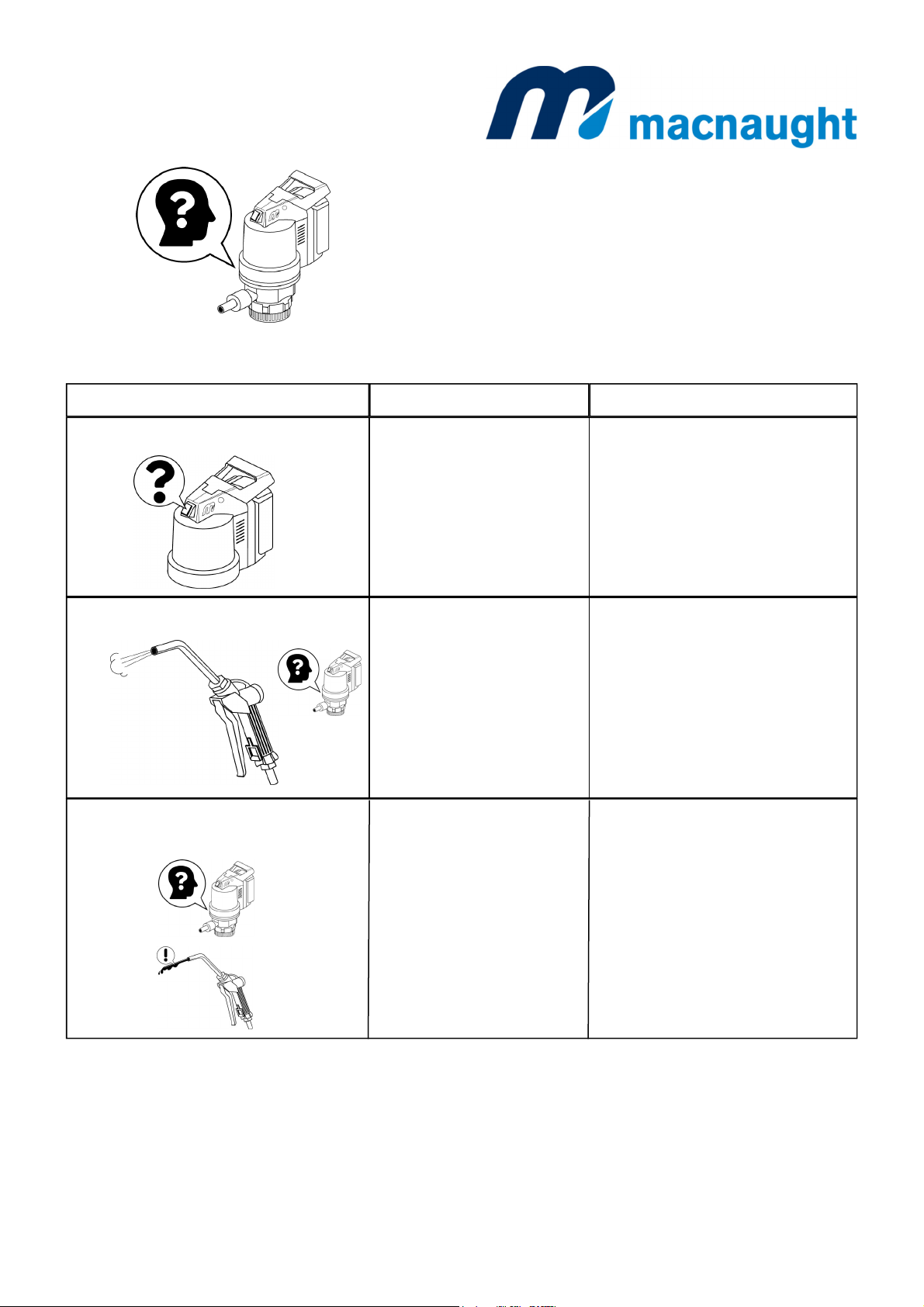

TROUBLESHOOTING GUIDE
Pump does not turn on
Pump will not prime
Power head does not stop
when gun trigger is released
c) Contact supplier
b) Power head not attached
correctly to pump
b) Damaged or worn impeller
a) Damaged diaphragm
or spring
a) Recharge battery
b) Fit new impeller
Note: Do not let the impeller run dry
a) Replace damaged diaphragm or
spring
b) Re-fit power head correctly
c) Faulty switch
a) Flat battery
d) Replace gun
c) Gun leaking
c) Check oil level in container
c) Replace gun
TROUBLE CAUSE REMEDY
a) Remove tube plug
a) Pump tube plug has not
been removed before use.
b) Damaged or worn impeller b) Replace impeller
d) Pump stem failure d) Contact supplier
d) Damaged gun or hose
c) No oil in container
e) Damaged diaphragm e) Replace diaphragm
d) Damaged hose d) Replace hose

Instruction Manual Page 11
PUMP SPECIFICATIONS
Flowrate - Low to Medium Viscosity Oil * 3.5 l/min (0W-40 @ 20 deg C)
Flowrate - High Viscosity Oil * 2 l/min (85W-140 @ 20 deg C)
Flowrate - ATF * 4.5 l/min (ATF @ 20 deg C
Flowrate - Coolant * 5.8 l/min @ 20 deg C
Operating Temperature 0°C - 40°C (32°F - 104°F)
Container Size Models available to suit 20ltr and 60ltr containers
Fluid compatibility Automotive oils / Lubricants / ATF / Coolant
Max Viscosity up to SAE 85W-140
Self Priming Yes
Shut off Pressure 20psi
Hose 19mm x 1.5m (5ft) wire reinforced PVC
Warranty - Pump and Power Head 2 Years
Warranty - Battery 12 Months
Wetted components Nitrile rubber, Mild steel, Stainless steel, Aluminium, Nylon, Brass, Pol-
ypropylene, Zinc plated steel
Relative humidity 50% - 90%
Hook Colour Black
* Flowrates are a guide only and any variations can depend on temperatture and fluid viscosity

Instruction Manual Page 12
Available Kits and Packs
Pump Stem Lengths
20ltr - 297mm (extended 395mm)
60ltr - 520mm (extended 618mm)
BOP Universal Starter Kits
BP20S‐UNA BOP20UNSTARTERKITAU BP60S‐UNA BOP60UNSTARTERKITAU
BP20S‐UNB BOP20UNSTARTERKITUK BP60S‐UNB BOP60UNSTARTERKITUK
BP20S‐UNE BOP20UNSTARTERKITEU BP60S‐UNE BOP60UNSTARTERKITEU
BP20S‐UNJ BOP20UNSTARTERKITJP BP60S‐UNJ BOP20UNSTARTERKITJP
BP20S‐UNU BOP20UNSTARTERKITUS BP60S‐UNU BOP20UNSTARTERKITUS
BOP Universal Stem Kits
BP20X‐UNA BOP20UNSTEMKITAU BP60S‐UNA BOP60UNSTEMKITAU
BP20S‐UNE BOP20UNSTEMKITEU/UK
BP20S‐UNJ BOP20UNSTEMKITJP
BOPSEALKIT
BP‐1K
60L20L
20L 60L

Instruction Manual Page 13
INSTRUCTION MANUAL
IM012EB-01 ELECTRONIC METER
This meter is designed specifically for the Macnaught BOP Battery Operated Pump Series

Instruction Manual Page 14
INTRODUCTION
IMPORTANT INFORMATION
PLEASE READ THIS INFORMATION CAREFULLY
BEFORE USE.
Read and retain this instruction manual to assist you
in the operation of this product.
If you have any problems with the meter, refer to the
maintenance and trouble shooting sections of this
manual.
If you need further assistance, please contact your
local representative or distributor for advice.
OPERATING PRINCIPAL
WARNING
This Flow Meter has incorporated the oval rotor prin-
cipal into its design. This has proven to be a reliable
and accurate method of measuring flow.
Exceptional repeatability is the feature of the oval
rotor design.
This product should only be used with automo-
tive oils and lubricants

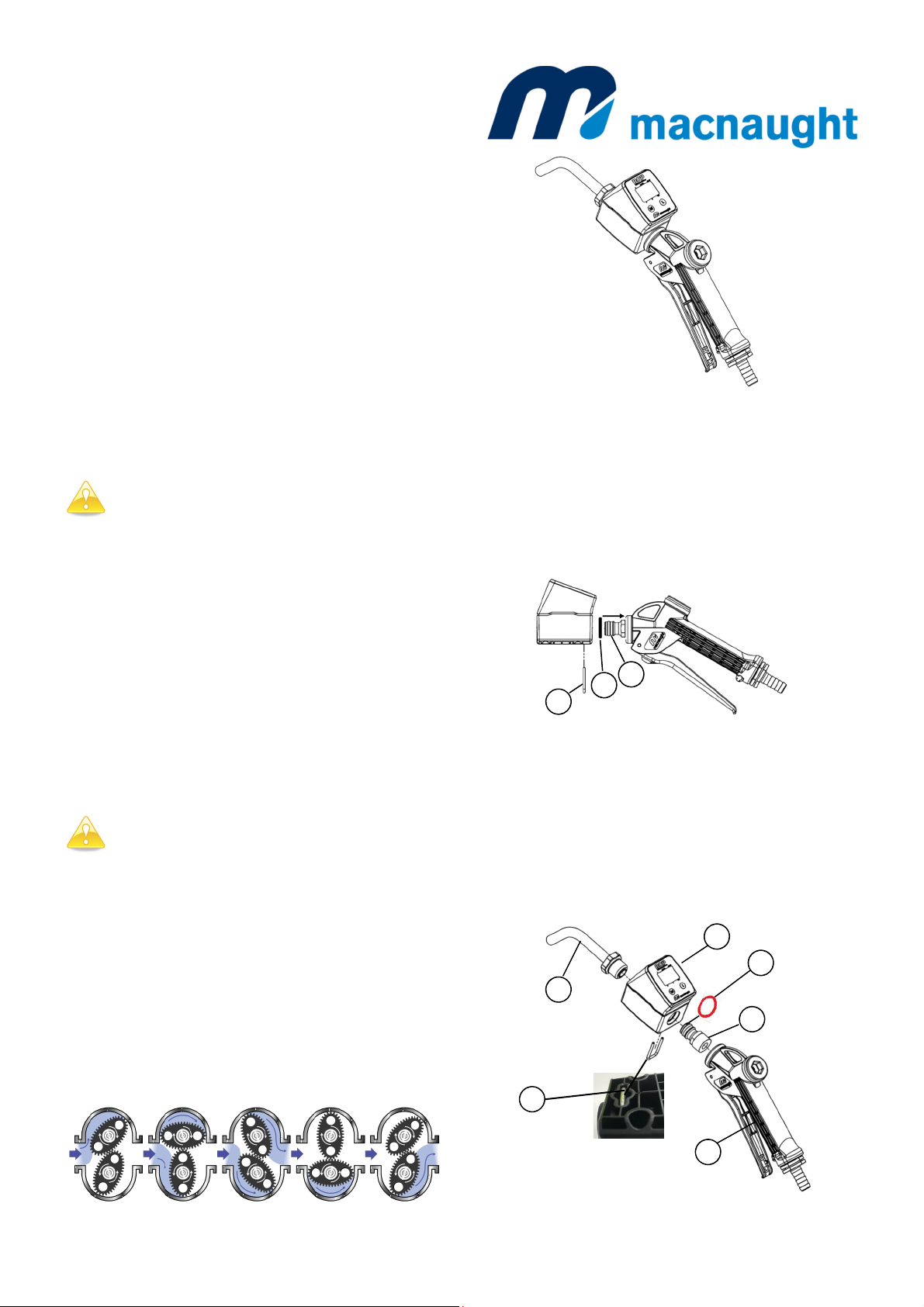

When fluid passes through the meter the rotors
turn, as shown below. The magnets which are
located in the rotors will pass across the PCB sen-
sors.
A signal is generated which is then sent by the PCB
to the LCD as a Pulse Output.
* Macnaught recommends the use of PPE
equipment such as safety glasses, protective
gloves, safety shoes etc before handling or
using this product.
* Do not modify or alter this product any way
* Ensure that any fluid spillage is cleaned up
immediately to prevent slipping or injury.
* Firmly tighten all connections and check for
any sign of leakage before use.
CAUTION
METER TO GUN ASSEMBLY
2
3
1
4
5
1) Prior to assembling connector (2) to the gun (1)
remove item (5) from the gun (1).
2) Screw item (2) to the gun outlet (1) - Do not over
tighten.
3) Slide O’ring (6) all the way onto screw (2)
6
4) Remove the ‘U’clip (3) from the meter (4)
5) Insert the meter inlet (4) onto the connector (2)
apply light pressure to the meter, this will slightly
compress the O’ring (6) then firmly press in the ‘U’
clip until flush with the body (3) as shown
6) Carefully screw the outlet tube (5) onto the meter
outlet (4) - Do not over tigthen
6 2
3

Instruction Manual Page 15
OPERATING INSTRUCTIONS

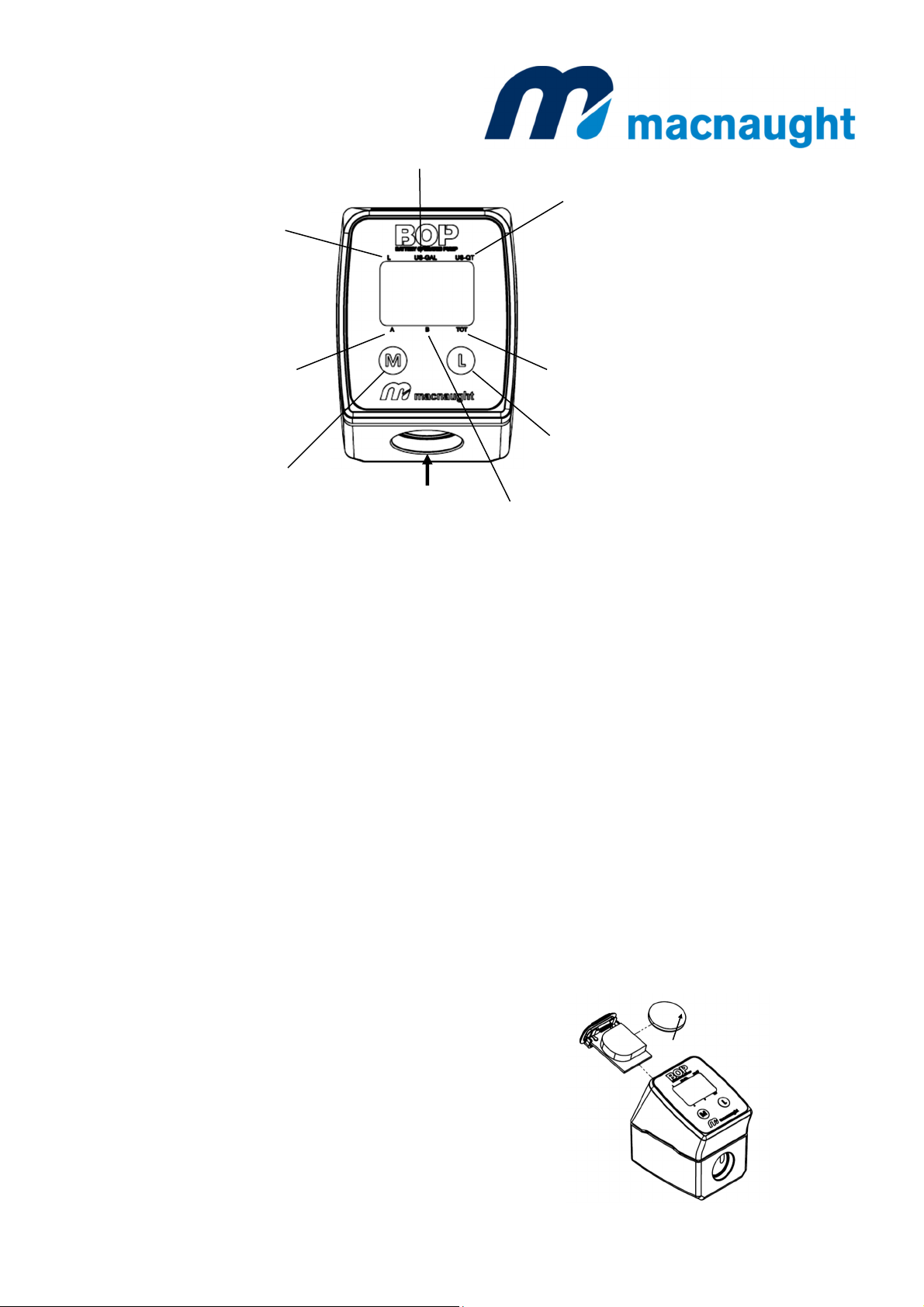

LITRE
US GAL
US QT
RESET BATCH TOTAL
RESET ACCUMULATIVE TOTAL
NON RESET TOTAL
INLET
SELECT UNITS
BACK LIGHT
The display wakens when flluid passes through the
meter or either the “M”or “L”button is pressed.
Note: The display will go to sleep after 3 seconds if
no flow is detected
BACK LIGHT
To turn on the backlight press “L“ button
Change Units Setting
1) Waken display by pressing either the ‘M”or “L”
button
2) Press and hold down the “L” button until the
arrow moves to the next unit setting
a) Press and hold down button to change from
L to US-GAL
b) Press and hold down button to change from
US-GAL to US-Qt
c) Press and hold down button to change from
US-Qt to L
Change Batch and Total Setting
1) Waken display by pressing either the ‘M”or “L”
button
2) Press and release “M” button to move arrow
to desired batch or total setting
A = Resettable batch total
B = Resettable accumulative total
C = Non ressettable accumulative total
REPLACE BATTERY
1) Carefully pull open the battery drawer as shown
2) Carefully slide the old battery from the PCB
3) Carefully insert the new CR2450 Lithium Coin
battery.
Note:
Ensure the battery is fitted with the + on the battery
pointing up as shown below.
4) Slide the battery drawer shut firmly to ensure the
O’ring seals the drawer opening correctly,
+
Reset batch or accumulative totals to zero
1) Waken display by pressing either the ‘M”or “L”
Button
2) Press and release “M” button to move arrow
to desired batch (A) or total (B) setting
3) Simultaneously press and release the “M”and
“L”buttons to reset the numbers to zero.

Instruction Manual Page 16
METER TROUBLE SHOOTING
TROUBLE CAUSE REMEDY
Meter not reading a) Damaged or faulty PCB a) Replace meter
b) Damaged or jammed rotors b) Replace meter
No display a) Flat battery a) Replace battery (Lithium CR2450)
b) Damaged or faulty PCB b) Replace meter
Meter not accurate a) Air in the oil a) Ensure the system is fully primed and air free
b) Leakage b) Check and ensure all connections are properly
assembled and sealed, otherwise replace meter
as required.
c) Flowrate too high c) See specification for maximum flowrate
METER SPECIFICATIONS
FLOWRATEUpto10LPM
OPERATINGTEMPERATURE‐20degCto+70degC
OPERATINGPRESSURE20psi(Max60psi)
ACCURACY+/‐2%ofreading
IPRATINGIP65
INLETCONNECTION½”inletconnectorsupplied
OUTLETCONNECTION1/2"BSPP(F)
POWER1xCR2450‐3VLithiumCoinBaery

Instruction Manual Page 17
WEEE Directive - Waste Electrical and Electronic Equipment
The WEEE Directive requires the recycling of waste electrical and electronic equip-
ment in the European Union.
Whilst the WEEE Directive does not apply to some of Macnaught’s products, we sup-
port its policy and ask you to be aware of how to dispose of this product.
The crossed out wheelie bin symbol illustrated and found on our products signifies that
this product should not be disposed of in general waste or landfill.
Please contact your local dealer national distributor or Macnaught Technical Services
for information on product disposal.

Instruction Manual Page 18
WEEE Directive - Waste Electrical and Electronic Equipment
The WEEE Directive requires the recycling of waste electrical and electronic equip-
ment in the European Union.
Whilst the WEEE Directive does not apply to some of Macnaught’s products, we sup-
port its policy and ask you to be aware of how to dispose of this product.
The crossed out wheelie bin symbol illustrated and found on our products signifies that
this product should not be disposed of in general waste or landfill.
Please contact your local dealer national distributor or Macnaught Technical Services
for information on product disposal.

Instruction Manual Page 19
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursu-
ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installa-
tion. If this equipment does cause harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
FCC:

Instruction Manual Page 20
