Macnaught BOP60 User manual

Instruction Manual Page 1
Owners Manual
BP-inst-issue1
Starter Kit
“Original Instruction”
&
Starter Kit BOP20 BOP60
Australia BP20S-OLA BP60S-0LA
US BP20S-OLU BP60S-0LU
UK BP20S-OLB BP60S-0LB
EU BP20S-OLE BP60S-0LE

Instruction Manual Page 2
Thank you for purchasing the Macnaught BOP battery operate pump.
PLEASE READ THIS SAFETY INFORMATION CAREFULLY BEFORE USE.
Read and retain this instruction manual to assist you in the o eration of your new roduct.
INTRODUCTION
WARNING
Macnaught has esigne an manufacture this pump to the highest quality stan ar s using premium
quality materials an workmanship.
• Visually ins ect um , charger and battery rior to use for any signs of damage, loose or missing arts. If
equi ment is worn or damaged, remove it from service (Re lace if required).
Failure to follow all instructions liste below may result in electric shock, fire, serious injury an /or
amage to the power tool. The term “power tool” in all of the warnings liste refers to your battery
operate (cor less) power tool.
Please rea this important information carefully before use.
• Make sure all o erators have adequate access to the following instructions.
• ‘WARNING’ listed throughout this manual to advise of actions which may cause damage to your equi ment.
• The BOP Battery o erated um must be used strictly in accordance with Macnaught’s terms and
conditions.
GENERAL SAFETY
DO NOT o erate ower tools in ex losive areas, e.g; close to flammable liquids, gases or dust.
ELECTRICAL SAFETY
• Never modify electrical connections.
• DO NOT ex ose ower tool to rain or wet conditions.
• DO NOT use roduct if the roduct is damaged or the switch does not turn the um on.
• If “battery- ack” case is damaged DO NOT use - Danger of electric shock or electrocution.
BATTERY an CHARGER SAFETY
Please follow instructions from battery an charger owners manual
• Battery charger MUST ONLY be used for charging the rechargeable batteries su lied with the BOP.
• DO NOT o erate charger if charger, ower cord or lug is damaged - re lace immediately.
• DO NOT disassemble charger or battery.
• DO NOT store battery ack in locations where the tem erature may reach or exceed 40°C/104°F.
• DO NOT use charger on any other voltage than designated on the charger.
• Only use “ORIGINAL” Macnaught replacement parts, battery or charger.
This pro uct shoul only be use with automotive oils an lubricants.

Instruction Manual Page 3
• Always lace gun on hanger when um is not in use, as oil s illage can cause a sli ing hazzard.
• Kee lastic bag away from babies and children.
• Do not lift the ower head with locking lever. Handle ower head with care. DO NOT DROP.
• Make sure the ower head is securely connected/attached to the stem.
• Do not leave the ower head sitting on to of the stem unlocked.
• Sto o erating the battery oil um if any leakings at the joints are noticed.
• Do not modify the um in any way.
• Only use a genuine Macnaught dis ensing gun. Hand tighten the hose till its firm and check for any signs of
leakage before use.
• Do not use flammable fluid in this roduct. Only use fluid s ecified in this instruction manual.
• Wear a ro rate PPE for rotection.
• Do not use the roduct in otentially ex losive atmos here.
• Do not ex ose the roduct to fire and source of heat.
• Users should refer to MSDS of the fluid from su lier being used.
• Use roduct in well ventilated area.
• Never leave your dis ensing gun unattended in o en osition. Do not attem t to use any means to lock the
lever. Always ensure the switch is in off osition after dis ensing the oil.
• Use um in adequate lighting condition for safe o eration. Do not use the roduct under oor illumination.
• Avoid s illage of oil near water source as it may be harmful to the environment.
• Only use genuine Macnaught battery and chargers with this roduct.
• Battery ack, charger and ower head should be rotected from water.
* Do not ex ose the ower head to a nearby magnet as its erformance will be adversely affected.
• The battery o erated um should always be used in a vertical osition.
• The dis ensing gun should always be facing u when dis ensing fluid.
• If the noise level changes check the hose to see if there is air resent, if air is resent sto the um
immediately as this indicates the drum is em ty. Switch over to a new drum.
WARNING
CAUTION
DISCLAIMER
Your roduct is designed to use with non-flammable automotive oil/lubricants only, with viscosity grades from
0W-40 to SAE90. Usage with different fluids may cause erformance degradation and render the warranty
void. Im ro er use of liquid may lead to machine failure and malfunction.
Use of any flammable fluids can cause s arks to ex lode and create a fire hazard. Macnaught bears no
liability to the consequence of fluid misuse by customers.

Instruction Manual Page 4
BATTERY DISPOSAL
NOTE: Dis ose of old batteries ro erly. The battery contains rechargeable
Lithium-ion and must be recycled or dis osed of ro erly. Please refer to the
local authorities for the correct method of battery dis osal.
DO NOT incinerate the battery ack. The battery can
ex lode in a fire
DO NOT attem t to disassemble any battery.

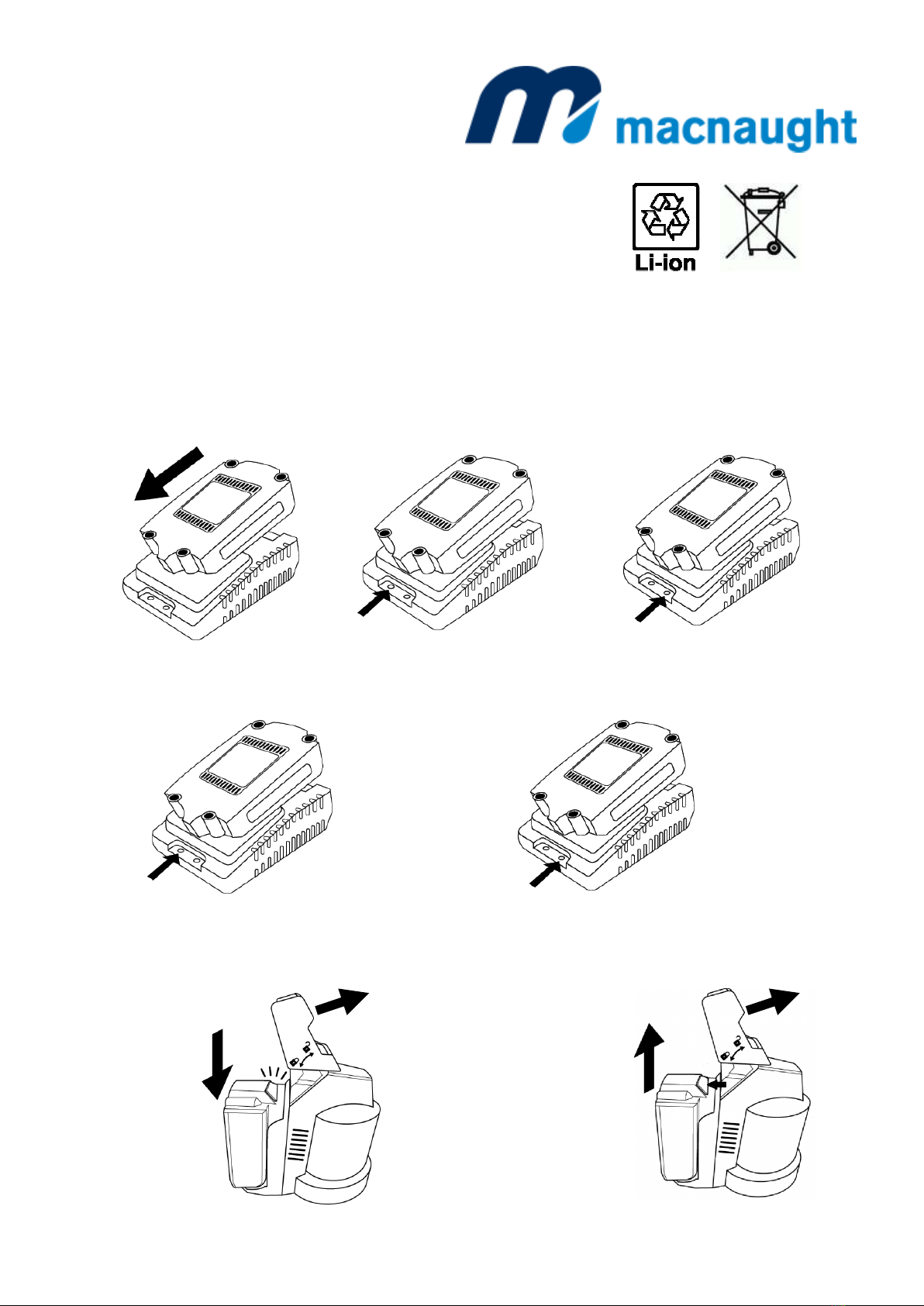

1) Insert battery 2) Power on
(green light only)
3) Battery charging
(red light only)
4) Battery charged
(green light only)
Note: Red light flashes when battery voltage is low
(trickle charging to revent battery damage)
CHARGE BATTERY
INSERT / REMOVE BATTERY
1) Insert battery
a) lift handle
b) ush down
2) Remove battery
a) lift handle
b) ress button
c) ull u
a)
b)
a)
b)
c)

Instruction Manual Page 5
ASSEMBLY
1) Pull down extender tube 2) Push the um stem
into container
3) Tighten bung ada ter to
secure um stem
4) Attach hose and gun
(ensure end gasket is in lace)
5) Ensure switch is off, then
lace ower head onto um
stem
6) Press handle down to lock ower head
8) To remove ower head, lift handle.
7) Place gun onto hanger when finished
Note: Remove both the inlet and outlet lugs from the
um stem befor use.
Note: Power head will not o rerate unless
locked correctly into osition.

Instruction Manual Page 6
OPERATING INSTRUCTIONS
CAUTION
OPERATION
NOTE: Do not allow the pump to run ry or pump amage can occur
4) Power head can be moved from um assembly to um assembly.
5) Long storage eriods :
a) Turn slot shaft 2 full turns counter clockwise using a flat head screwdriver.
b) When starting um after a long storage eriod, turn slot shaft clockwise with a flat head screwdriver.
1
3
4
IMPORTANT:
For initial o eration
1) Turn slot in shaft clockwise one com lete turn with a flat
head screwdriver.
2) First ress the trigger on gun and then turn on the um to rime.
Release trigger when rimed (fluid flows from gun).
Note:
Pum will not run when ower head is not attached to um stem correctly.
Pressure sensor will turn motor off when trigger is released and stall ressure is reached.
4) Lift handle to transfer ower head from
stem to stem
1) Attach ower head to stem 3) Press or Release trigger to adjust flow
GENERAL OPERATION
NOTE
Remove nozzle cover before use
Replace nozzle cover after use
2) Remove nozzle cover before use
CAUTION

Instruction Manual Page 7

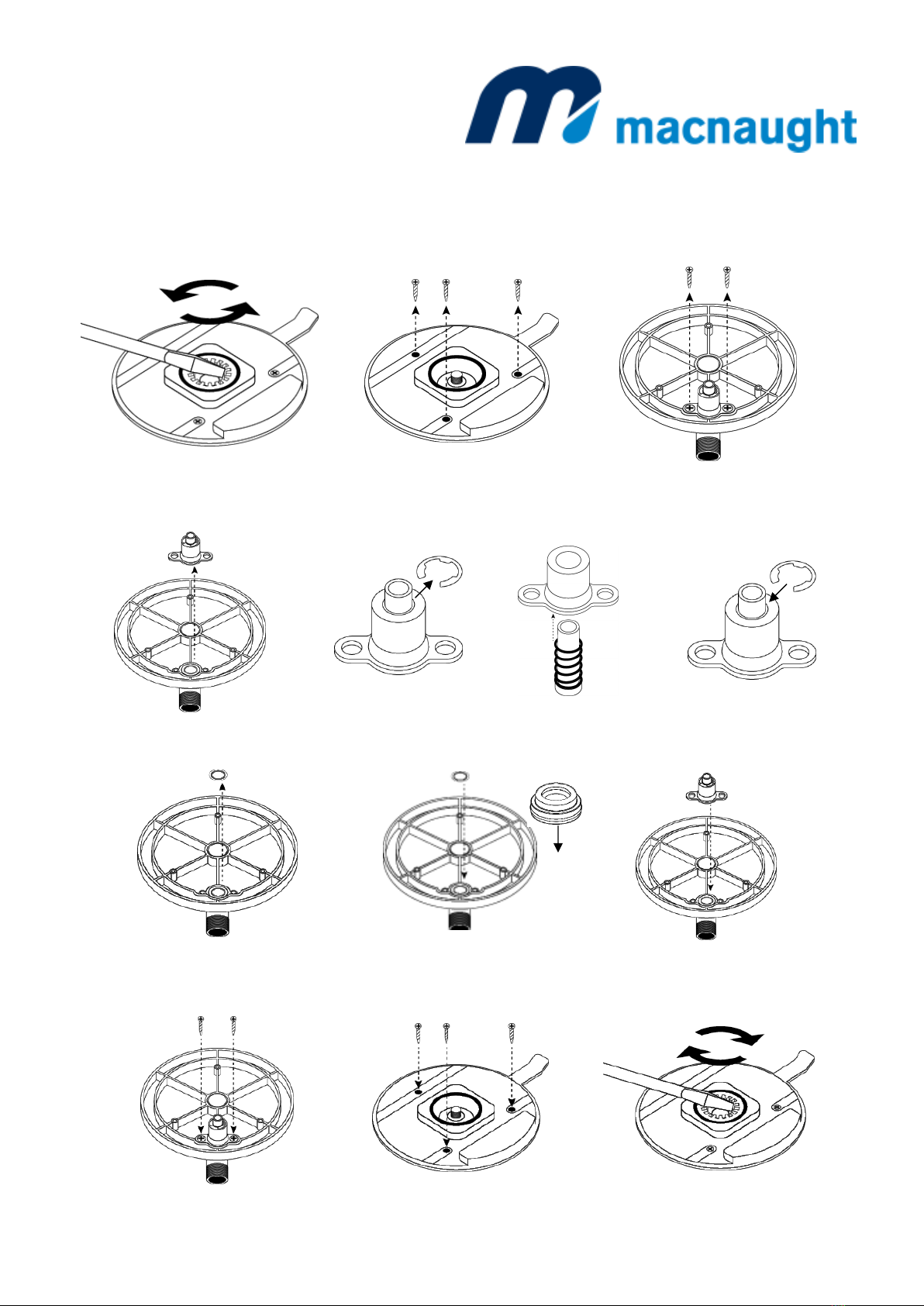

DIAPHRAGM AND SPRING REPLACEMENT
1) Turn anti-clockwise,
remove drive gear
2) Remove 3 screws, um cover
and dis ensing gun hanger 3) Remove 2 screws.
4) Remove assembly. 5) Remove circli . 6) Re lace s ring. 7) Re-fit circli .
8) Remove old dia hragm. 9) Fit new dia hragm.
(ensure correct orientation) 10) Fit valve switch assembly.
11) Fit 2 screws. 12) Fit um cover and dis ensing
gun hanger, using 3 screws. 13) Fit drive gear, turn
clockwise to secure.

Instruction Manual Page 8

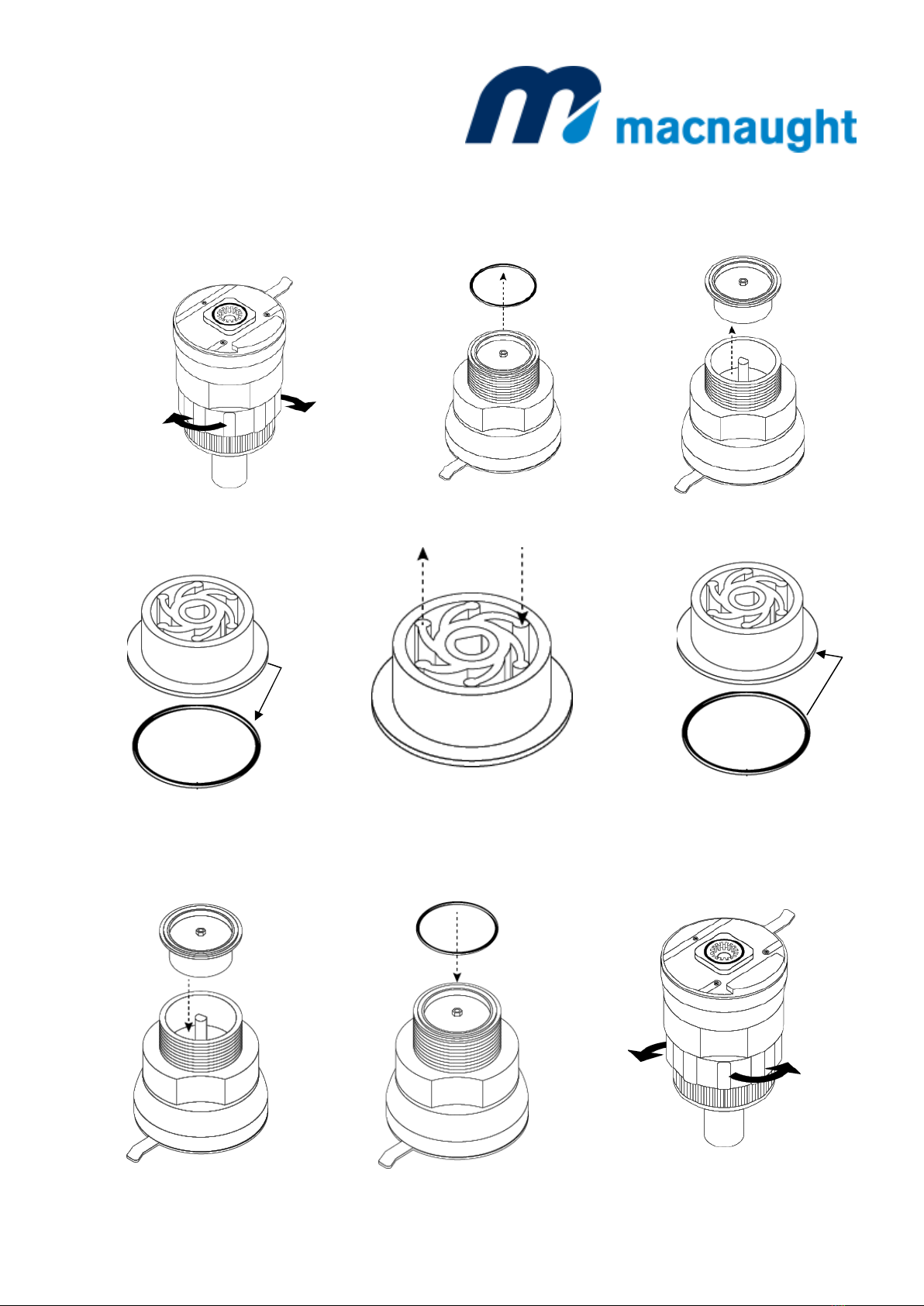

IMPELLER AND O’RING REPLACEMENT
1) Unscrew ada ter 2) Remove o’ring. 3) Remove im eller housing.
4) Remove o’ring. 5) Carefully remove and re lace im eller. 6) Re lace o’ring.
7) Carefully insert im eller housing.
(Note correct orientation of grooves) 8) Re lace o’ring. 9) Firmly hand tighten um tube.
Note: Impeller must be lubricate with
oil or grease uring assembly.

Instruction Manual Page 9
EXPLODED DIAGRAM
Note: Power head is factory sealed and
would need to be re laced if found to be
damaged internally or externally.
8
5
4
3
6
7
9 10
20
11
2
12
13
1
14 15
21
16
17
18
19
22
23
Note: Parts liste (A) are inclu e in BP20-1K
Spare parts list
25
Item no Kit Ref No off Description
BP20-1K A Pump Seal Kit
1 1 Nut (M6)
2 1 Connector
3 3 Screws (3.5 x 25)
4 1 To um stem cover
5 1 Dis ensing gun hanger
6 A 1 Circli
7 2 Screws (3.6 x 16)
8 A 1 S ring
9 A 1 Plunger
10 A 1 Dia hragm
11 1 Pressure switch housing
12 1 Housing - um stem
13 1 Ball
14 1 S ring
15 1 Connector (outlet body)
16 1 U-Cli
17 A 1 Im eller cover
18 A 1 Im eller
19 A 1 O'ring
20 A 1 Im eller housing
21 A 1 O'ring
22 1 Bung ada ter (ty e C)
23 1 Suction tube assembly
24 BP-HG 1 Gun and hose set (not shown)
25 1 Drive shaft
Bung A apter set 20ltr - or er BP20-AK
Bung A apter set 60ltr - or er BP60-AK

Instruction Manual Page 10
TROUBLESHOOTING GUIDE
Pump oes not turn on
Pump will not prime
Power hea oes not stop
when gun trigger is release
c) Contact su lier
b) Power head not attached
correctly to um
b) Damaged or worn im eller
Damaged dia hragm
or s ring
a) Recharge battery
b) Fit new im eller
Note: Do not let the impeller run ry
Re lace damaged dia hragm or
s ring
b) Re-fit ower head correctly
c) Faulty switch
a) Flat battery
d) Re lace gun
Gun leaking
c) Check oil level in container
Re lace gun
TROUBLE CAUSE REMEDY
TROUBLE CAUSE REMEDY
TROUBLE CAUSE REMEDY
a) Remove tube lug
a) Pum tube lug has not
been removed before use.
Damaged or worn im eller Re lace im eller
d) Pum stem failure d) Contact su lier
d) Damaged gun or hose
c) No oil in container
e) Damaged dia hragm e) Re lace dia hragm
Damaged hose Re lace hose

Instruction Manual Page 11
SPECIFICATIONS
Available Kits an Packs
Flowrate 3.5 l/min (0W-40 @ 20 deg C)
O erating Tem erature 0°C - 40°C (32°F - 104°F)
Container Size BOP20 (20ltr) / BOP60 (60ltr)
Fluid com atibility Automotive oils / Lubricants
Max Viscosity 0W40 to 75W90
Self Priming Yes
Shut off Pressure 20 si
Hose 12.5mm x 1.5m (5ft) wire reinforced PVC
Warranty - Pum and Power Head 2 Years
Warranty - Battery 12 Months
Wetted com onents Nitrile rubber, Mild steel, Stainless steel,
Nylon, Brass, Poly ro ylene, Zinc lated steel
Relative humidity 50% - 90%
Australia US UK EU
Starter Kit - 20ltr BP20S-OLA BP20S-OLU BP20S-OLB BP20S-OLE
Starter Kit - 60ltr BP60S-OLA BP60S-OLU BP60S-OLB BP60S-OLE
Pum Stem - 20ltr
BP20X-OLA
BP20X-OLB BP20X-OLE
Pum Stem - 60ltr
BP60X-OLA
Battery BPB-20AH
Power Head
BP20-PH
Battery Charger BPC-A BPC-U BPC-B BPC-U

Instruction Manual Page 12
This device com lies with Part 15 of the FCC Rules. O eration is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must acce t any interference received,
including interference that may cause undesired o eration.
Warning: Changes or modifications to this unit not ex ressly a roved by the arty res onsible for com liance could
void the user's authority to o erate the equi ment.
NOTE: This equi ment has been tested and found to com ly with the limits for a Class B digital device,
ursuant to Part 15 of the FCC Rules. These limits are designed to rovide reasonable rotection against
harmful interference in a residential installation. This equi ment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
articular installation. If this equi ment does cause harmful interference to radio or television rece tion,
which can be determined by turning the equi ment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the se aration between the equi ment and receiver.
- Connect the equi ment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an ex erienced radio/ TV technician for hel .
COMPLIANCE
FCC:

Instruction Manual Page 13

Instruction Manual Page 14
Notes:

Instruction Manual Page 15
Notes:

Instruction Manual Page 16
For Warranty Terms an Con itions see macnaught.com.au
For a list of Australian Service Centres see macnaught.com.au
Note:
This roduct should be dis osed of according to all a licable
local and national government environment regulations and
guidelines.
