MADDALENA ElecTo SJ Parts list manual

Code 5000090C - 03/2023 - R5
INSTRUCTIONS FOR INSTALLATION, USE
AND MAINTENANCE
ElecTo SJ
Translation of the original instructions.
Before installing and using the device, carefully read this manual and store
it together with the product.
Electronic single jet meter
EN
Code

2
Symbols used in this manual
and relative meaning
lWARNING!
Indicates particularly important infor-
mation.
aDANGER!
Identies actions that may lead to
injury or damage to the device if not
performed correctly.
dPROHIBITED
Indicates actions that MUST NOT be
performed.
Compliance
Maddalena S.p.A. declares that ElecTo SJ
is compliant with the mandatory require-
ments of the following directives and stand-
ards:
– Directive 2014/32 MID (Measurement and
adjustment devices)
– Radio Equipment Directive (RED) 2014/53/
EU
– Directive 2011/65/UE and subsequent re-
visions (RoHS)
The full text of the Declaration of Conform-
ity can be found on page 17 "Compliance
declaration".
Images for demonstration purposes only:
elements may vary
Warranty
Conditions of sale and warranty
The conditions of sale and warranty are avail-
able on the website www.maddalena.it.
Warranty limitations
Maddalena S.p.A. declines all responsibili-
ty, with immediate invalidation of the war-
ranty in relation to:
– Damage or defects caused by transport or
loading/unloading
– Incorrect installation caused by a failure
to observe the instructions provided
– Use for purposes other than those indi-
cated in this manual
– Use by unqualied or untrained person-
nel
Contents
1 General information . . . . . . . . . . . . . . . . . . . . . . . . .3
1.1 Warnings and safety rules ..........................3
1.2 Restrictions ...................................................4
1.3 Device description........................................4
1.4 Usage limits...................................................5
1.5 Structure .......................................................5
1.5.1 Dimensions ..............................................5
1.6 Identification.................................................6
1.7 Display...........................................................6
1.7.1 Main view..................................................7
1.7.2 Periodic readings.....................................7
1.7.3 Display test and firmware version.........7
1.8 Alarms ...........................................................7
1.9 Technical specifications...............................8
1.10 Additional technical specifications.............9
1.10.1 Pressure drop ..........................................9
1.10.2 Typical error curve...................................9
1.11 Technical specifications for electronic
timing device...............................................10
1.12 Radio technical specifications...................10
2 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.1 Receipt of the product...............................11
2.2 Assembly.....................................................11
3 Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4 Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Programming the radio. . . . . . . . . . . . . . . . . . . . . .14
6 Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7 Test mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
8 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8.1 Battery (default) .........................................16
8.2 Cleaning.......................................................16
8.3 Disposal.......................................................16
9 Compliance declaration . . . . . . . . . . . . . . . . . . . . .17

3
1 General information
1.1 Warnings and safety rules
lWARNINGS
– This manual is the property of
Maddalena S.p.A. and reproduc-
tion or transfer to third parties of
the contents of this document is
prohibited. All rights reserved. This
document represents an integral
part of the product; ensure that it
is always together with the product,
even in case of sale/transfer to an-
other owner, allowing its consulta-
tion by the user or authorised main-
tenance or repair personnel.
– Read this manual carefully before
using the device to ensure safe op-
eration.
– The device must be used as intend-
ed by Maddalena S.p.A., which
is not liable for damage caused to
persons, animals or property by
installation, adjustment or mainte-
nance errors or improper use of the
device.
– After unpacking, ensure the deliv-
ery is intact and complete. If it does
not correspond to what was or-
dered, contact the local distributor
who sold you the device.
– The device must be installed and
used in an area protected from
freezing.
– The device must always be pro-
tected from extreme humidity and
heat. Penetration of humidity and
intense heat may damage the bat-
tery and the device. The maximum
allowed operating temperature is
55°C.
– If in doubt about the condition and/
or functionality of the device and its
parts, please contact your local dis-
tributor for further information.
– Once the device has been commis-
sioned, report any faults or mal-
functions found to the product sup-
plier.
– In the event of complete destruc-
tion of the device, with the electro-
lyte escaping, avoid skin and eye
contact with the electrolyte, do not
inhale the vapours produced and
ventilate the room adequately.
– This device is not intended for use
by persons with reduced mental or
motor capacities, or lack of experi-
ence and knowledge (including chil-
dren), unless they are supervised by
a person responsible for their safe-
ty and given appropriate instruction
on how to use the device.

4
1.2 Restrictions
dPROHIBITED
– Modify and/or attempt to repair the
product. All repairs must be per-
formed exclusively by authorised
personnel.
– Leave the device exposed to the
weather.
– Place the device near heat sources
and expose it to direct sunlight.
– Place the device close to sources of
electromagnetic interference.
– Use the device in environments
where the temperature drops be-
low 0°C.
– Open the device and/or replace the
battery.
– Use solvents to clean the device.
– Incorrectly dispose of packaging
material and keep it out of children’s
reach as it may represent a hazard.
Disposal must be performed in line
with applicable laws.
– Dispose of the device with house-
hold waste.
1.3 Device description
ElecTo SJ is a single-jet meter with mechan-
ical movement and fully electronic timing
devices designed for measuring hot and
cold water in residential applications.
ElecTo SJ measures the ow of water using
a turbine and a magnetic drive (protected).
ElecTo SJ is equipped with an electronic me-
tering unit with a display showing the vol-
ume, ow rate and any active alarms.
ElecTo SJ is equipped with an integrated ra-
dio which uses Wireless M-Bus technology
allowing remote data transmission. Data
can be received using a special mobile read-
ing kit or via concentrators and a xed net-
work.
The main technical features of ElecTo SJ are:
– Single electronic jet;
– Available in both cold and hot water
versions;
– Accuracy class up to R160;
– Electronic timing device for calculating
consumption, fully rotatable (360°);
– LCD display;
– Integrated wM-Bus radio operating in
the 868MHz band;
– Integrated lithium battery guarantee-
ing a minimum service life of 7, 13 (de-
fault) or 15 years.

5
1.4 Usage limits
The product may only be used in accord-
ance with the corresponding limits of use
(see "Technical specications").
1.5 Structure
1
2
3
4
1
Timing device
2
Display
3
Meter housing
4
Coloured water-temperature indicator
(optional)
1.5.1 Dimensions
H
B
h
L
DN 15 20
inches 1/2 3/4
Thread inches G 3/4 B - G
1 B G 1 B
Lmm 80 / 110 / 115
/ 120 / 130 115 / 130
Hmm 72
hmm 11,7 16,7
Bmm 65

6
1.6 Identication

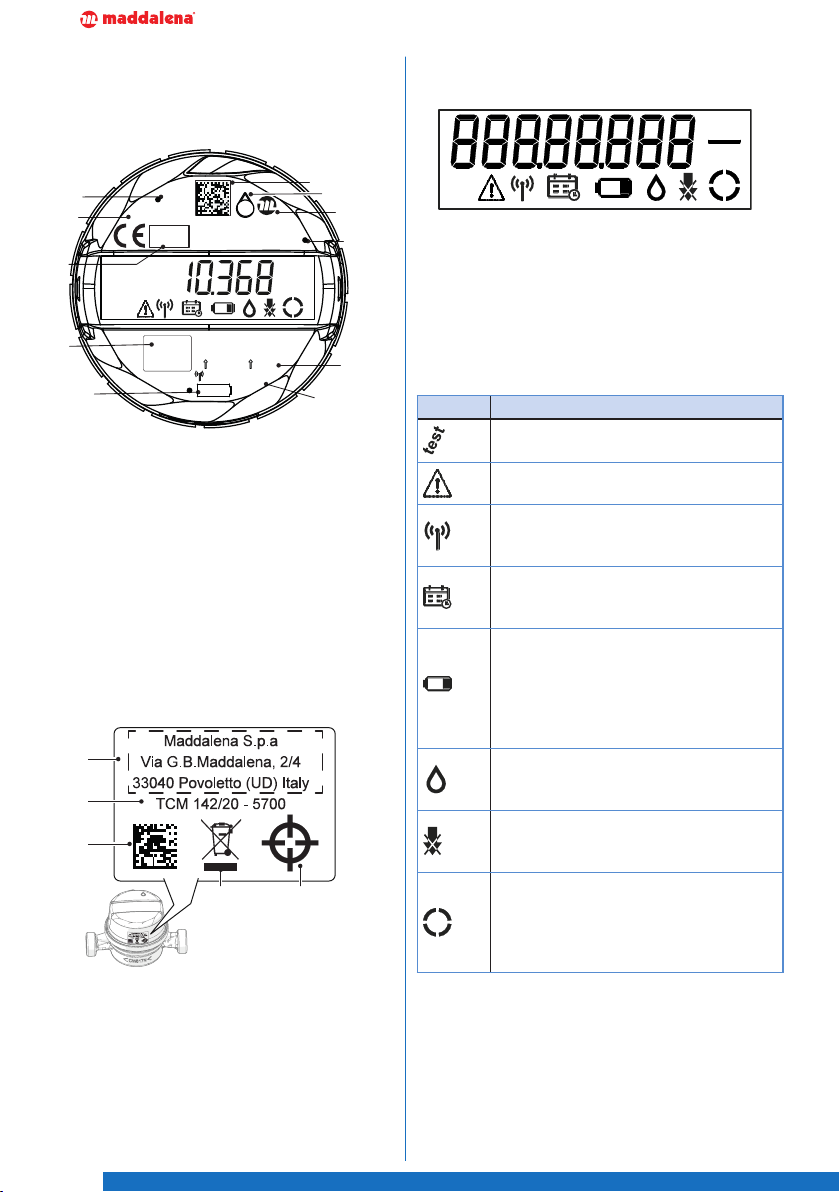

The ElecTo SJ meter has its identication
data marked on it.
11
10
4
5
6
1
7
2
3
8
9
2022
H R100 V R63
2034
CL.2.5 O E2 U0D0 MAP16
Q
3
2.5 m
3
/h T50 ΔP63
2212345678
1383
M 22
ELECTO SJ
22001122
m3
1
QR code
2
LED
3
Manufacturer
4
Meter serial number
5
Measurements
6
Wireless serial number
7
Battery expiration date
8
Space for customer’s logo (optional)
9
MID approval
10
Product name
11
Year of manufacture
1
5
3
2
4
1
Manufacturer’s address
2
Type-approval number (certicate)
3
QR traceability
4
WEEE marking
5
Magnetic key symbol
1.7 Display
m3
h
test
l
The display is a passive LCD.
The display is set in xed mode with the fol-
lowing automatic display cycle:
– for 60 seconds, the Main view;
– for 12 seconds, the Periodic readings;
– for a further 12 seconds, the Display Test
and rmware version.
Icon Description
Test
Activated during test mode
Error
Activated when an error is displayed
Transmission antenna
Signals radio transmission or radio
enabled
Calendar
Activated when billing dates are
displayed
Battery
Activated when the calculated service
life is coming to an end or when the
voltage drops below the minimum
value (in which case the error icon
also lights up)
Leakage
Activated when the leakage alarm is
triggered
Backow
Activated when the reverse ow
alarm is triggered
Star indicator
The indicator, consisting of 2 arc
segments, follows the ow by ro-
tating clockwise for direct ow and
anticlockwise for reverse ow

7
1.7.1 Main view
The display cycle is automatically repeated 4
times, for a total of 60 seconds.
Volume measured
It is displayed for 12 seconds and is ex-
pressed in m3. The value displays the deci-
mal point for litres, therefore 5 digits for m3
and 3 digits for litres.
The presence of a ow and its direction is
displayed by the star indicator.
Range
It is displayed for 3 seconds and the value
always displayed is expressed in m3/h to 3
decimal places. If no ow is detected, the
value displayed is 0.
The presence of a ow and its direction is
displayed by the star indicator.
1.7.2 Periodic readings
Following an automatic sequence, billing
date references are displayed:
– Billing date 1: displays the date for 3
seconds (e.g. 12.05.21 indicates 12 May
2021);
– Billing value 1: displays the volume re-
corded on the billing date for 3 seconds;
– Billing date 2: displays the date for 3 sec-
onds (e.g. 02.09.21 indicates 2 September
2021);
– Billing value 2: displays the volume re-
corded on the billing date for 3 seconds.
Billing date 1 is set, by default, to 31/12 each
year;
Billing date 2 is set, by default, to the end of
each month.
1.7.3 Display test and rmware version
The display is presented as follows:
– all segments on the display are illuminat-
ed for 3 seconds;
– all segments on the display are turned o
for 3 seconds;
– the installed rmware version is dis-
played for 3 seconds. The displayed for-
mat is MM.mmF, in which MM indicates
the number (2 digits) of the main version,
mm indicates the number (2 digits) of the
secondary version and Frepresents the
rmware (e.g. 01.68F);
– the rmware CRC for 3 seconds. The for-
mat displayed, using all 8 digits of the
display, is 32-bit hexadecimal using both
digits and letters (0-9/A-F);
– any error codes for 3 seconds (e.g. Err
XXXX, where XXXX is the hexadecimal code
for the error). See table "Error codes".
1.8 Alarms
ElecTo SJ is able to detect, store, and trans-
mit the following alarms via radio:
– magnetic tampering;
– suspected leak;
– ow rate limit exceeded;
– backow;
– meter blocked;
– reversed meter.

8
1.9 Technical specications
Description DN 15 DN 20 U.M.
Accuracy class 2
Maximum reading 99999.999 m3
Maximum work-
ing pressure 16 bar
Temperature
classes
T30: from +0.1 to +30
T50: from +0.1 to +50
T30/90: from +30 to +90
°C
Sensitivity class
for installation
conditions
U0-D0
Protection class IP68*
Power supply Lithium battery 3.6 VDC (<1g - capacity varies based on type) V
Useful battery life 7, 13 (default), or 15 years
Environmental
class O
Electromagnetic
class E2
Rated ow Q3 1,6 2,5 2,5 4,0 m³/h
Installation posi-
tions and R (Q3/
Q1)
H ≤100 - H ;
V ≤50 - V
≤40;
H ≤160 - H ;
V ≤80 - V
≤63;
H ≤100 - H ;
V ≤50 - V
≤40;
H ≤160 - H ;
V ≤80 - V
≤63;
Pressure drop 0,63 bar
Pressure range from 0.3 bar to 16 bar
* 96h under 1 m3of water at ambient temperature.

9
1.10 Additional technical specications
1.10.1 Pressure drop
0,01
0,10
1,00
01
10
10 0
Pressure loss[bar]
Pressure loss -Model: SJ
DN15
DN20
∆p <= 0,63
0,01
0,010,11,0
Flowrate[m3/h]
1.10.2 Typical error curve

10
1.11 Technical specications for electronic timing device
Features Description
Environmental class 0
Mechanical class M1
Electronic class E2
Temperature range for storage from -10 °C to +60 °C
Ambient temperature range from -25 °C to +55 °C
1.12 Radio technical specications
Features Description
Standard Wireless M-Bus (EN13757), OMS
Modes T1 (Default), C1
Operating frequency range 868.0 - 868.6 / 868.7 - 869.2 MHz
Radiated power 14dBm max
Antenna gain 1 dB
Range 500 m in open air
Device class Radio class 1
Certications/Approvals
CE in compliance with European standards
RED 2014/53/EU, 2011/65/UE and subsequent
revisions (RoHS)
Data sent Meter serial number, total volume, instant ow,
date, alarms
Conguration By radio, through the Android app
Data transmission frequency (default) Every 2 minutes, from Monday to Friday, from 08:00
to 18:00
Encryption AES mode 5, not active
Alarms (default)
Magnetic tampering
Suspected leak (consumption of at least 1 litre every
15 minutes for 48 hours)
Flow rate limit exceeded (disabled)
Backow (reverse ow for more than 100 litres)
Meter blocked (no consumption for at least 30 days)
Reversed meter (reverse ow lasts for more than 10
days)
Note: The limits can be modied using the settings
kit

11
2 Installation
2.1 Receipt of the product
10x
– Seal + gasket kit + coloured indicator
– Fittings kit (optional)
lWARNING!
The instruction manual is an inte-
gral part of the device and should
therefore be read and stored
carefully.
dPROHIBITED
Packaging material must be prop-
erly disposed of and kept out of
children’s reach as it may repre-
sent a hazard. Disposal must be
performed in line with applicable
laws.
2.2 Assembly
Authorised personnel: specialised installer
or plumber, assigned by the metering oper-
ator.
lWARNING!
Only authorised and suitably
trained personnel with sucient
technical experience may install
and operate the device.
Before installing the device, make sure that
the two sections of tube are even to prevent
mechanical stress, clean them with care (es-
pecially in the case of empty tubes) and let
water run for a while, using a stub pipe on
the tube instead of the meter.
If there is no water in the pipeline, open the
valve upstream of the device before install-
ing it. This is necessary because opening
the valve after installation is complete may
cause air suction that could damage the de-
vice.
Before using the meter, rst fully remove air
from the pipe and the device itself. The in-
terception/adjustment valves must be fully
open when doing this. Open the valve at the
start rst and then the valve at the end.
When replacing the meter, it is recommend-
ed to replace the gasket on the tting. Rec-
ommended gasket hardness: minimum 80
Shore A.

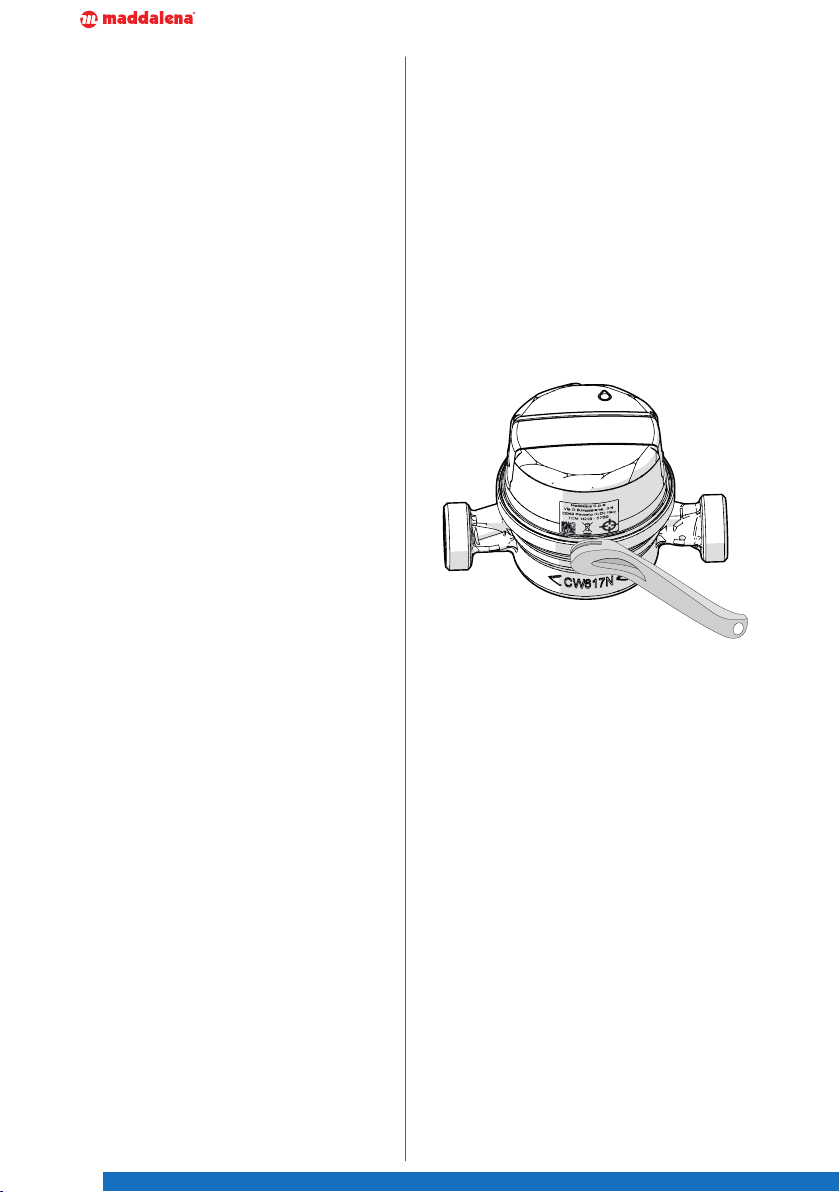

Tighten the nut with a torque wrench and
use a counter wrench to hold the meter in
position. Maximum tightening torque: 40
Nm.

12

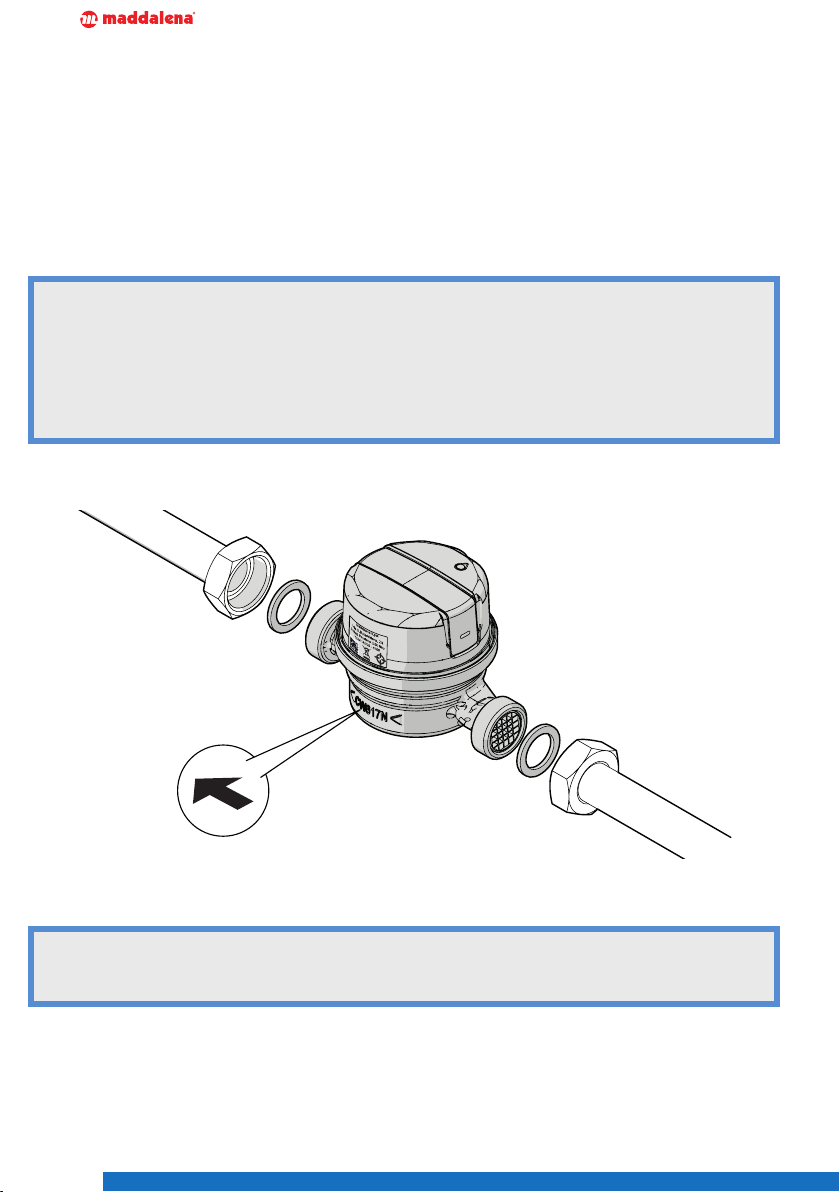

Install the meter:
– protected from frost (insulate it if necessary with insulation material) and in the lower
part of the system to prevent air accumulation;
– protected from blows and tampering, where readings are easy to make;
– so that the direction of the arrow on the device coincides with the ow direction.
Install proper interception valves upstream and downstream of the meter to permit main-
tenance operations and inspections on the device, as well as to check the system.
The installation of a non-return valve inside or outside the meter is also recommended (see
dedicated data sheet).
lWARNING!
Before positioning the seal, make sure that it is not damaged.
Make sure that the seal is not damaged during installation.
Make sure that the level of the seal matches that of the tubing.
Check that the seal does not protrude from the tube.
Make sure that the surfaces of the ange are clean and undamaged.
lWARNING!
Check the seal hold to prevent leakage.

13
Installation position
Observe the indications on the dial (letters
H and V):
– H: the meter must be installed with the
dial in a horizontal position;
– V: the meter must be installed with the
dial in a vertical position;
– H and V: the meter may be installed with
the dial in either a horizontal or vertical
position;
– If not shown, avoid vertical installations
with downward ow, or with the dial fac-
ing downwards.
Straight sections and ow straighteners
When using straight sections upstream and/
or downstream of the meter, refer to letters
U and D on the dial. If the letters U and/or
D are followed by the letter S, install a ow
straightener.
Allowable water pressure (ISO 4064-1)
The maximum allowable pressure (MAP) is
16 bar, and is displayed on the meter dial. If
not indicated on the dial, it must be 10 bar.
These values must never be exceeded.
The maximum allowable pressure (MAP)
downstream of the meter must be greater
than or equal to 0.03 Mpa (0,3 bar).
Commissioning
Before putting the meter into operation,
completely vent the air from both the pipe
and the meter itself (rotate it if necessary).
The interception/adjustment valves must be
fully open when doing this. Open the valve
at the start rst and then the valve at the
end.

14
3 Seals
A seal is applied to the meter: it cannot be
opened without breaking it. Any interven-
tion must therefore be carried out by a cen-
tre authorised by the manufacturer.
4 Use
ElecTo SJ is ideal for both cold and hot wa-
ter residential use where compactness, ex-
ibility and the availability of an integrated
radio reading make the dierence.
5 Programming the radio
ElecTo SJ is supplied with factory-set setup
data.
The radio is activated after the passage of
10 litres of water.
Programming mode is activated by tapping
the magnetic key symbol with the magnetic
key.
The cumulative time for this mode is 120
minutes.
The radio settings, such as the type of ra-
dio frame and data transmission frequency,
have a default factory setting. However, if
necessary, they can be changed using the
specic programming kit after enabling pro-
gramming mode.
For further information, contact the manu-
facturer.
The app allows the following parameters to
be read and programmed:
– Radio settings
– Radio AES key
– Periodic reading
– Alarms setting
– Alarms reset
– Date/time synchronization
– Delivery point

15
6 Error codes
The error code is displayed in hexadecimal
format.
The instrument identies 4 errors which
may also occur simultaneously.
Hexadecimal format Description
0080 Out Of Operating
Temperature
0400 Low Battery Voltage
1000
Metrological
verication period
expired
4000 Metrological Wrong
Checksum
Example of simultaneous errors
Low battery voltage + Metrological verica-
tion period expired: Err 1400
7 Test mode
ElecTo SJ can be temporarily set to a high
resolution in order to carry out measure-
ment tests.
Contact the manufacturer for further infor-
mation.

16
8 Maintenance
8.1 Battery (default)
The meter is tted with a 3.6V manganese
lithium battery that cannot be recharged or
replaced.
The estimated lifespan of the battery is 13
years, calculated using factory set-up and
with the following operating conditions:
– from -10°C to +0°C for 10% of the lifespan
– from 0°C to +30°C for 80% of the lifespan
– from +31°C to +55°C for 10% of the
lifespan
lWARNING!
Humidity and intense heat may
damage the battery and reduce
its lifespan.
The device calculates the useful remaining
life of the battery based on memorized pa-
rameters, for example, estimated consump-
tion of the electronic board in standby, con-
sumption in transmission and the number
of transmissions made.
Battery life depends on the data transmis-
sion frequency you choose to set.
8.2 Cleaning
No particular cleaning procedures are re-
quired. However, the installation area
should be kept clean and periodic checks
should be performed to ensure the required
environmental conditions are met.
dPROHIBITED
It is forbidden to use abrasive
products, methyl alcohol, hy-
drochloric acid (35%), sodium
bicarbonate (10%), tricresyl phos-
phate, benzol, concentrated eth-
anol, toluol, industrial petrol,
methylisobutylketone, acryloni-
trile, cosmetic solvents, sodium
hydrate (10%), ammonium hy-
drate (10%), nitric acid (40%), po-
tassium dichromate, acetone,
diesel naphtha, petrol.
8.3 Disposal
The device is made from various materials
such as: metal and plastic materials, electri-
cal and electronic components. It must be
disposed of in accordance with current local
regulations on industrial and special waste.
It must not be disposed of with household
waste.
The device does not contain any toxic/haz-
ardous substances or elements, including
lead, mercury, cadmium, hexavalent chro-
mium, polybrominated biphenyl.
At the end of the product’s life, ensure safe
removal and responsible disposal of com-
ponents, including recycling of batteries, in
compliance with applicable environmental
laws in the country of installation.

17
9 Compliance declaration
� maddalcna®
1
DICHIARAZIONE DI CONFORMITÀ UE
Eleo SJ
._

18
� maddalena®
IL SIDENTE
�at,
Jh�

19
NOTES

MADDALENA spa
Via G.B. Maddalena 2/4 - 33040 Povoletto (Udine)
Tel. +39 0432 634811
www.maddalena.it
Maddalena S.p.A. reserves the right to change its products at any time and
without prior notice, with the aim of improving them and without compromising
primary features. All the graphic illustrations and/or photographs appearing in
this document can be represented with optional accessories that vary in relation
to the country where the device is used.
Other manuals for ElecTo SJ
2
Table of contents
Other MADDALENA Measuring Instrument manuals

MADDALENA
MADDALENA SensoStar C User manual

MADDALENA
MADDALENA QuadraPlus User manual

MADDALENA
MADDALENA ArrowEVO Parts list manual

MADDALENA
MADDALENA ElecTo SJ Parts list manual

MADDALENA
MADDALENA microCLIMA U User manual

MADDALENA
MADDALENA microCLIMA/SENSOSTAR 2+ MSH User manual

MADDALENA
MADDALENA ElecTo Bulk Parts list manual

MADDALENA
MADDALENA SJ PLUS User manual

MADDALENA
MADDALENA Arrow Mobile Android User manual

MADDALENA
MADDALENA E-Bulk Parts list manual
