MadgeTech UltraShock-5-EB User manual

UltraShock-EB
Red 485
Dark Blue Pantone 289
Light Blue 58% of Pantone 289
Red 485
Dark Blue Pantone 289
Light Blue 58% of Pantone 289
Battery Warning
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE,
FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH, PENETRATE OR INCINERATE. BATTERY MAY
LEAK OR EXPLODE IF HEATED ABOVE 54 °C (129 °F).

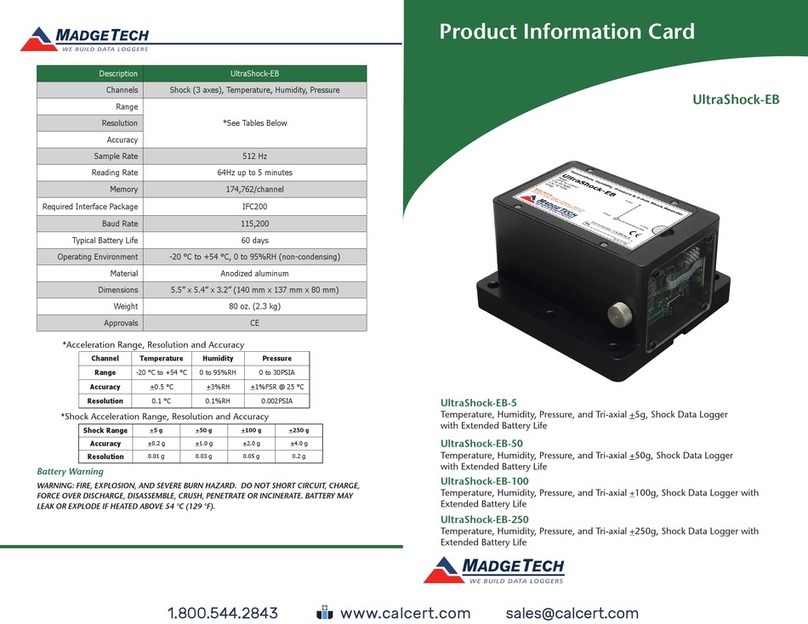

Product Information Card
UltraShock-EB-5
Temperature, Humidity, Pressure, and Tri-axial +5g, Shock Data Logger
with Extended Battery Life
UltraShock-EB-100
Temperature, Humidity, Pressure, and Tri-axial +100g, Shock Data Logger with
Extended Battery Life
UltraShock-EB-50
Temperature, Humidity, Pressure, and Tri-axial +50g, Shock Data Logger
with Extended Battery Life
UltraShock-EB-250
Temperature, Humidity, Pressure, and Tri-axial +250g, Shock Data Logger with
Extended Battery Life
Description UltraShock-EB
Channels Shock (3 axes), Temperature, Humidity, Pressure
Range
*See Tables BelowResolution
Accuracy
Sample Rate 512 Hz
Reading Rate 64Hz up to 5 minutes
Memory 174,762/channel
Required Interface Package IFC200
Baud Rate 115,200
Typical Battery Life 60 days
Operating Environment -20 °C to +54 °C, 0 to 95%RH (non-condensing)
Material Anodized aluminum
Dimensions 5.5” x 5.4” x 3.2” (140 mm x 137 mm x 80 mm)
Weight 80 oz. (2.3 kg)
Approvals CE
Shock Range +5 g +50 g +100 g +250 g
Accuracy +0.2 g +1.0 g +2.0 g +4.0 g
Resolution 0.01 g 0.03 g 0.05 g 0.2 g
*Shock Acceleration Range, Resolution and Accuracy
Channel Temperature Humidity Pressure
Range -20 °C to +54 °C 0 to 95%RH 0 to 30PSIA
Accuracy +0.5 °C +3%RH +1%FSR @ 25 °C
Resolution 0.1 °C 0.1%RH 0.002PSIA
*Acceleration Range, Resolution and Accuracy
www. .com [e-mail]1.800.561.8187

Product Notes
Reading Intervals
The UltraShock-EB measures pressure, temperature, humidity and tri-axial shock. The shock
parameter samples at 512Hz and at the user specified reading rate, the device writes the
peak values (g-force) from the samples to memory.
For Example:
Pressure, temperature and humidity readings are taken at the user specified reading rate
up to a maximum of 2 seconds intervals.
Axis Orientation
When the UltraShock-EB is laying flat, with the label facing
up, the x-axis indicates left to right direction and will read
~0 g when still. The y-axis reads in a top to bottom direction
and reads ~0 g when still. The z-axis reads perpendicular to
the other two axis, and will read ~1 g when still.
Installation Guide
Installing the Interface cable
- IFC200
Insert the device into a USB port. The drivers will install automatically.
Installing the software
Insert the Software USB Stick in an open USB port. If the autorun does not appear, locate
the drive on the computer and double click on Autorun.exe. Follow the instructions
provided in the Wizard.
Device Operation
Connecting and Starting the data logger
- Once the software is installed and running, plug the interface cable into the data logger.
- Connect the USB end of the interface cable into an open USB port on the computer.
- The device will appear in the Connected Devices list, highlight the desired data logger.
- For most applications, select “Custom Start” from the menu bar and choose the desired
start method, reading rate and other parameters appropriate for the data logging
application and click “Start”. (“Quick Start” applies the most recent custom start options,
“Batch Start” is used for managing multiple loggers at once, “Real Time Start” stores the
dataset as it records while connected to the logger.)
UltraShock-EB Product Information Card
- The status of the device will change to “Running”, “Waiting to Start” or “Waiting to
Manual Start”, depending upon your start method.
- Disconnect the data logger from the interface cable and place it in the environment to
measure.
Note: The device will stop recording data when the end of memory is reached or the device is stopped. At this point the
device cannot be restarted until it has been re-armed by the computer.
Downloading data from a data logger
- Connect the logger to the interface cable.
- Highlight the data logger in the Connected Devices list. Click “Stop” on the menu bar.
- Once the data logger is stopped, with the logger highlighted, click “Download”. You will
be prompted to name your report.
- Downloading will offload and save all the recorded data to the PC.
Device Maintenance
Battery Replacement
Materials: 3/32” HEX Driver (Allen Key) and a Replacement Battery (MN1300)
- Remove the cover from the device by unscrewing the four screws.
- Tip out the battery holder. Note: Do not pull on the battery leads.
- Replace the 6 D-cell batteries and put the holder back into the device.
- Replace the cover taking care not to pinch the wires. Screw the enclosure back together
securely. Note: Be sure not to over tighten the screws or strip the threads.
Recalibration
The UltraShock-EB standard calibration is one temperature point at 25 °C, two humidity
points at 25%RH and 75%RH, two pressure points at 15 PSI and 27-30 PSI and 0 g for the
x-axis, 0 g for the y-axis and 7 g for the z-axis. Note: The shock parameters are not traceable to NIST.
Sampled Data: Recorded Data:
Y-Axis
Z-Axis
X-Axis
www. .com [e-mail]1.800.561.8187
