Magellan MG6250 Operating instructions

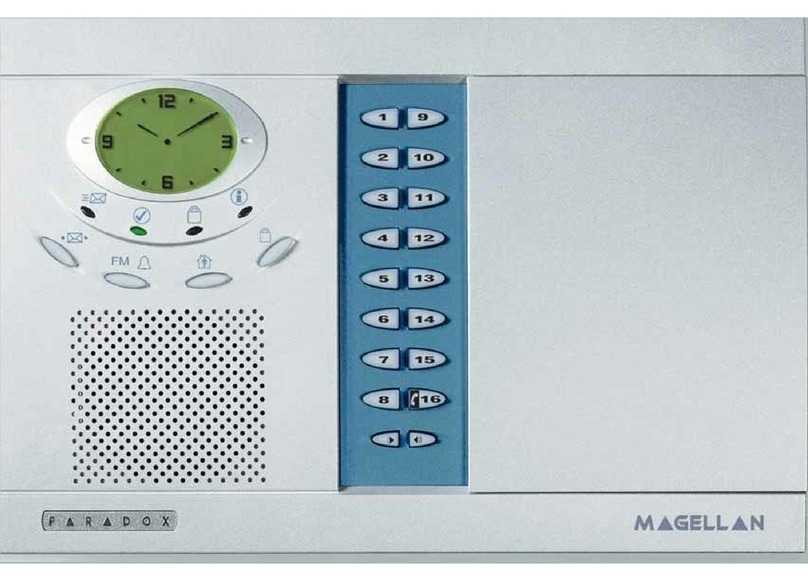

Magellan All-in-one Wireless Security System

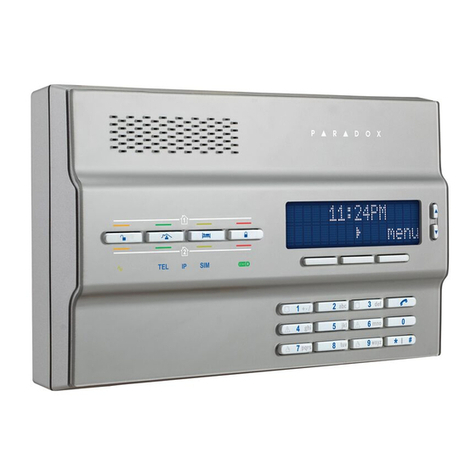

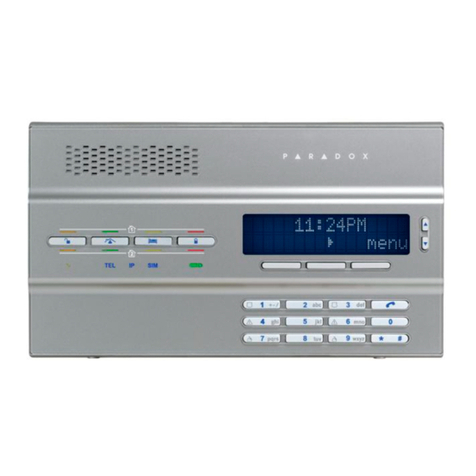

MG6250 Console
Version 1.0
Section Programming Guide

Version 1.0
2 | Things You Need to Know
MG6250 • Section Programming Guide
Things You Need to Know
About this Programming Guide
The MG6250 All-in-one Wireless Console can be programmed using either menu-based programming, or the section-based
method described in this manual. For complete details on the menu-based approach, refer to the MG6250 Menu Programming
Guide. This guide contains a list of programmable sections and supplemental programming information, which are not included in
the menu programming guide. As a result, use this programming guide in conjunction with the MG6250 Menu Programming
Guide when installing and programming your console.
Document Conventions
The following typographical conventions are used throughout this guide:
Installer Code
To enter programming mode, enter the installer code (0000/000000). This mode allows the installer to program all features and
options of the console, except for user codes. The installer code can be four or six digits in length. To change the installer code, refer
to the MG6250 Menu Programming Guide.
Maintenance Code
Similar to the installer code, the maintenance code allows you to enter programming mode and program all sections, except for
user codes and communication settings – these sections can only be accessed using the installer code. Since there is no default
code, refer to the MG6250 Menu Programming Guide to set a default.
System Master Code
The system master code (1234/123456) allows the master to utilize any arming method, as well as program user codes. This code
can be either four or six digits in length. The system master code cannot be changed by the installer or maintenance code.
System Reset
To reset the system to its default factory settings, press and hold the *and # buttons during system power-up, or access section
[9000]. For more information, refer to MG6250 Reset Sections on page 3.
Demo Mode
Demo mode provides a quick preview of the console’s visual and audible features. Upon entering demo mode, the console plays a
sequence of these features, such as playing its intro and greeting, as well as flashing LEDs and sounding tones and sirens. Demo
mode is only accessible via the system master code (default 1234/123456) and can be accessed as follows:
Menu>08-System Setup>Enter Code>12-Demo Mode.
Entering Programming Mode
To enter programming mode, proceed as follows:
1. Press and hold 0.
2. Enter your installer code (default is 0000/000000). See Installer Code for details.
3. Enter the four-digit section you wish to program.
4. Enter the required data and record your settings using the worksheets included in this guide.
5. Press the *key to clear data or to go back one step. Press the # key to save changes.
WARNING: To enter programming mode, all zones must be disarmed and StayD mode deactivated.
Type Description
DEFAULT SETTINGS Values which appear in bold typeface signify the default value: e.g., 6 Digits 4 Digits (4 digits is the set default value)
SECTION NUMBERS
AND KEYPAD KEYS Section numbers and keypad keys will also appear in bold typeface, enclosed by brackets: e.g., section [0440]
Warning Warnings will appear in bold typeface: e.g., WARNING: Important information
Note Notes will appear in blue typeface: e.g., NOTE: Suggestion or reminder

MG6250 • Section Programming Guide
Version 1.0 Things You Need to Know | 3
Data Entry
There are two methods that can be used to enter data when in programming mode: Single Digit Data Entry and Feature Select
Programming methods.
Single Digit Data Entry Method
After entering programming mode, some sections will require that you enter decimal values from 000 to 255. Other sections will
require that you enter hexadecimal values for 0 to F. The required data will be clearly indicated in this guide. When entering the
final digit in a section, the MG6250 console will automatically save and advance to the next section. See Decimal and Hexadecimal
Programming Table on page 3 for details on the various keys, and their equivalent decimal and hexadecimal values.
Feature Select Programming Method
After entering certain sections, eight options will be displayed where each option from 1to 8represents a specific feature. Press the
key corresponding to the desired option and the option number will appear in the LCD screen. This means the option is ON. Press
the key again to remove the digit from the LCD screen (*appears), thereby turning the option OFF. Press the *key to set all eight
options to OFF. When the options are set, press the #key to save and advance to the next section.
Decimal and Hexadecimal Programming Table
Certain sections may require the entry of one or more hexadecimal values. Refer to table 1 for a description of the decimal and
hexadecimal values.
Installer Quick-keys
Installer quick-keys provide shortcuts for certain system actions. Refer to table 2 for a description of these quick-keys.
To access the installer quick-keys:
1. Press and hold 0.
2. Enter your installer code (default is 0000/000000), or maintenance code.
3. Press the required quick-keys (see table 2).
Table 2: Installer quick-key values
MG6250 Reset Sections
Table 1: Decimal and hexadecimal values
Key Value or Action
2Hexadecimal values: A/B/C
3Hexadecimal values: D/E/F
OFF Deletes value entered
STAY Toggle between uppercase and lowercase characters
SLEEP Enter special characters
Key Value or Action
OFF Test Repor t: Send the “Test report code programmed in section [1701] to the monitoring station.
STAY Cancel Communication: Cancels all communication with the PC software or with the monitoring station until the next reportable event.
SLEEP Answer PC Software: Will force the console to answer an incoming call from the monitoring station that is using the PC software.
PHONE Call PC Software: Will dial the PC telephone number programmed in section [1021] in order to initiate communication with a computer
using the PC software.
ARM Installer Test Mode: The installer test mode will allow you to perform walk tests where the siren will squawk to indicate opened zones.
Press the ARM key again to exit.
#Output Reset: Will reset all outputs (on-board and wireless outputs) to their normal state. The normal state of on-board output is set via
section [2005].
Table 3: MG6250 Reset sections
Section
[9000] Resets all programmable sections to factory default values
[9001] Resets master code
[9002] Remove module scan (clears missing GPRS module/Sim card trouble)

Version 1.0 Contents | 4
Contents
Zone Programming .............................................. 5
Zone Definition Values ............................................................................5
Defining Your Zones .................................................................................6
Custom Zone Definition Templates ...................................................... 7
Remote Control Programming ........................... 8
Remote Control Serial Number .............................................................. 8
Remote Control Button Assignment .....................................................8
Programming Remote Controls ............................................................ 9
Remote Control Options ........................................................................10
User Labels ................................................................................................10
Supervision Options .......................................... 10
Wireless Keypad Supervision Options ................................................10
Wireless Repeater Supervision Options .............................................10
Wireless Siren Supervision Options .....................................................11
Wireless Repeater Options ................................ 11
Central Station Reporting Programming ........ 13
Central Station Reporting Telephone Number ................................13
Channel Reporting Format - Telephone ............................................13
Central Station Account Number ........................................................13
Report Codes ...................................................... 14
Arming Report Codes .............................................................................14
Special Disarming/ Disarming After Alarm/Cancelling Alarm Report
Codes ................................................................................................14
Special Arming Report Codes ...............................................................14
Special Disarming Report Codes .........................................................14
Alarm/Fire Alarm Report Codes ..........................................................15
Alarm Restore/Fire Alarm Restore Report Codes ............................16
Special Alarm Report Codes .................................................................17
Zone Tamper Report Codes ..................................................................17
Restore Zone Tamper Report Codes ...................................................18
Special Report Codes .............................................................................19
System Trouble Report Codes ..............................................................19
System Trouble Restore Report Codes ...............................................19
Zone Trouble/Restore Report Codes ..................................................19
Wireless PGM Trouble/Restore Report Codes ..................................20
Wireless Keypads Trouble/Restore Report Codes ...........................20
Wireless Repeater Trouble/Restore Report Codes ..........................20
Wireless Siren Trouble/Restore Report Codes ..................................20
System Programming ........................................ 20
Arming/Disarming Options ..................................................................21
Wireless Module Options .......................................................................22
Dialer Options .........................................................................................22
System Timers ..........................................................................................23
Daylight Savings Time Feature ......................... 24
Country Codes ..........................................................................................24
Partition Programming ......................................24
Partition Options .....................................................................................24
Partition Delays .......................................................................................25
Partition Auto-arm Time .......................................................................25
User Programming .............................................25
Installer Lock ............................................................................................25
User Options .............................................................................................25
Description of MG6250 Events ..........................26
Non Reportable Events/Non Saved Events .......................................26
Non Reportable Events/Saved Events ................................................26
Reportable Events/Saved Events .........................................................28
Entering Information .........................................31
Decimal and Hexadecimal Values ......................................................31
Special Characters ..................................................................................31
Notes ....................................................................32

MG6250 • Section Programming Guide
Version 1.0 Zone Programming | 5
Zone Programming
NOTE: If a device is assigned to a zone which is already programmed, a wireless zone will overwrite a hardwire zone.
Zone Definition Values
To program zone definitions and assign options:
1. Press and hold 0.
2. Enter your installer code or maintenance code.
3. Enter the four-digit zone you wish to program.
4. Enter the two-digit zone definition, refer to table 4.
5. Assign the partition, refer to table 5. By default all zones are assigned to partition 1.
6. Select or de-select zone options using buttons 1 through 8, see table 6 or table 7.
7. Press the #key to save and proceed to the next zone. Repeat steps 3 to 6 for all remaining zones.
Table 4: Zone definitions
Input
Value Description Arming Type
OFF Stay Arm Sleep Arm Full Arm
00 Disabled (default) ----
01 Entry delay 1* Not armed Entry delay 1 Entry delay 1 Entry delay 1
02 Entry delay 2* Not armed Entry delay 2 Entry delay 2 Entry delay 2
03 Entry delay 1 (full arm) Not armed Not armed Not armed Entry delay 1
04 Entry delay 2 (full arm) Not armed Not armed Not armed Entry delay 2
05 Follow* Not armed Follow Follow Follow
06 Follow (sleep/full arm) Not armed Not armed Follow Follow
07 Follow (full arm) Not armed Not armed Not armed Follow
08 Instant* Not armed Instant Instant Instant
09 Instant (sleep/full arm) Not armed Not armed Instant Instant
10 Instant (full arm) Not armed Not armed Not armed Instant
11 Instant fire* ----
12 Delayed fire* ----
13 Instant fire silent* ----
14 Delayed fire silent* ----
15 24 hr. buzzer* ----
16 24 hr. burglary* ----
17 24 hr. hold-up* ----
18 24 hr. gas* ----
19 24 hr. heat* ----
20 24 hr. water* ----
21 24 hr. freeze* ----
22 24 hr. panic* ----
23 Follow no pre-alarm* Not armed - - -
24 Instant no pre-alarm* Not armed - - -
25 Keyswitch maintain* ----
26 Keyswitch momentary* ----
27 Delay 1 (sleep/full arm) Not armed Not armed Entry delay 1 Entry delay 1
28 Delay 2 (sleep/full arm) Not armed Not armed Entry delay 2 Entry delay 2
29 Unarmed* Not armed Not armed Not armed Not armed
30-32 Future use - - - -
33 Custom template 1† Not armed Instant Instant Not armed
34 Custom template 2† Not armed Not armed Instant Not armed
35 Custom template 3 Not armed Entry delay 1 Instant Entry delay 1
36 Custom template 4 Not armed Instant Instant Entry delay 1
* : Zone definitions that can be used in custom zone templates.
- : Zone definitions remain the same, regardless of arming type.
†: WARNING: Do not use these definitions for a common zone. The definition of a common zone follows the
definition relative to the area that gets the lowest level of arming. A problem may occur if a common zone
follows an area armed in Stay/Sleep and an area armed in Full. The resulting zone definition will be the one
relative to the lowest level of arming which is Stay armed. The zone will be considered as armed in both area.
Table 5: Partition assignment
Input
Value Description
1 Assign to partition 1
2 Assign to partition 2
3 Assign to both partitions
Table 6: Zone options
Input
Value Description
1 Auto zone shutdown
2 Bypassable zone
3 RF zone supervision
6 Intellizone delay
7 Delay arm transmission
8Forcearming
Input Value Zone Alarm Type
4 5
OFF OFF Audible alarm
ON OFF Silent alarm
OFF ON Audible pulse
ON ON Report only
Table 7: Keyswitch options
Input Value Levels of Arming
1 2
OFF OFF Disarm
ON OFF Stay arm
OFF ON Sleep arm
ON ON Full arm
Input Value Description
3-
4 Disarm partial arm only
5Armonly
6-
7-
8-

Version 1.0
6 | Zone Programming
MG6250 • Section Programming Guide
Defining Your Zones
Section Zone # Description Zone Definition Partition Zone Options
[0001] 1/ 12345678
[0002] 2/ 12345678
[0003] 3/ 12345678
[0004] 4/ 12345678
[0005] 5/ 12345678
[0006] 6/ 12345678
[0007] 7/ 12345678
[0008] 8/ 12345678
[0009] 9/ 12345678
[0010] 10 / 12345678
[0011] 11 / 12345678
[0012] 12 / 12345678
[0013] 13 / 12345678
[0014] 14 / 12345678
[0015] 15 / 12345678
[0016] 16 / 12345678
[0017] 17 / 12345678
[0018] 18 / 12345678
[0019] 19 / 12345678
[0020] 20 / 12345678
[0021] 21 / 12345678
[0022] 22 / 12345678
[0023] 23 / 12345678
[0024] 24 / 12345678
[0025] 25 / 12345678
[0026] 26 / 12345678
[0027] 27 / 12345678
[0028] 28 / 12345678
[0029] 29 / 12345678
[0030] 30 / 12345678
[0031] 31 / 12345678
[0032] 32 / 12345678
[0033] 33 / 12345678
[0034] 34 / 12345678
[0035] 35 / 12345678
[0036] 36 / 12345678
[0037] 37 / 12345678
[0038] 38 / 12345678
[0039] 39 / 12345678
[0040] 40 / 12345678
[0041] 41 / 12345678
[0042] 42 / 12345678
[0043] 43 / 12345678
[0044] 44 / 12345678
[0045] 45 / 12345678
[0046] 46 / 12345678

MG6250 • Section Programming Guide
Version 1.0 Zone Programming | 7
Custom Zone Definition Templates
NOTE: Only the definitions marked with an asterisk (*) can be used for custom templates.
[0047] 47 / 12345678
[0048] 48 / 12345678
[0049] 49 / 12345678
[0050] 50 / 12345678
[0051] 51 / 12345678
[0052] 52 / 12345678
[0053] 53 / 12345678
[0054] 54 / 12345678
[0055] 55 / 12345678
[0056] 56 / 12345678
[0057] 57 / 12345678
[0058] 58 / 12345678
[0059] 59 / 12345678
[0060] 60 / 12345678
[0061] 61 / 12345678
[0062] 62 / 12345678
[0063] 63 / 12345678
[0064] 64 / 12345678
Section Description Disarm Stay Arm Sleep Arm Full Arm
[0091] Zone definition template 1 /
0/0
/
0/8
/
0/8
/
0/8
[0092] Zone definition template 2 /
0/0
/
0/0
/
0/8
/
0/8
[0093] Zone definition template 3 /
0/0
/
0/1
/
0/8
/
0/1
[0094] Zone definition template 4 /
0/0
/
0/8
/
0/8
/
0/1
Section Zone # Description Zone Definition Partition Zone Options

Version 1.0
8 | Remote Control Programming
MG6250 • Section Programming Guide
Remote Control Programming
Remote Control Serial Number
Assigning a Remote Control
1. Enter the remote’s respective section (see Programming Remote Controls on page 9).
2. Press any button on the designated remote twice, or manually enter the serial number.
Deleting a Remote Control
1. Enter the remote’s respective section (see Programming Remote Controls on page 9).
2. Enter 000000.
Remote Control Button Assignment
Refer to table 8 for details on button options for the MG6250 remote controls. The MG6250 Console supports the following remote controls: REM1, REM2, RAC1,
RAC2, REM3, and REM15.
Section Remote Remote Control Serial #
[0401] RC1 / ////
[0402] RC2 / ////
[0403] RC3 / ////
[0404] RC4 / ////
[0405] RC5 / ////
[0406] RC6 / ////
[0407] RC7 / ////
[0408] RC8 / ////
[0409] RC9 / ////
[0410] RC10 / ////
[0411] RC11 / ////
[0412] RC12 / ////
[0413] RC13 / ////
[0414] RC14 / ////
[0415] RC15 / ////
[0416] RC16 / ////
Table 8: Button options for MG6250 remote controls (see Decimal and Hexadecimal Programming Table on page 3)
Option Description Option Description
0 Empty/button disabled 8 PGM activation 4 (event group 10)*
1 Disarm 9 PGM activation 5 (event group 11)*
2 Stay arm A PGM activation 6 (event group 12)*
3 Sleep arm B PGM activation 6 (event group 13)*
4Fullarm CPanic1
5 Activate window mode (StayD) D Panic 2
6 PGM activation 1 (event group 08)* E Panic 3
7 PGM activation 2 (event group 09)* F Paramedic alarm
* For descriptions on the event groups, refer to section Description of MG6250 Events on page 26.

MG6250 • Section Programming Guide
Version 1.0 Remote Control Programming | 9
Programming Remote Controls
NOTE: The disarm button ( ) cannot be modified.
NOTE: When section [0440] is accessed, the control panel will copy the saved value of that section to all remote controls.
REM3 Remote Control
PGM 1
[9]
PGM 2
[0]
PGM 3
[x]
PGM 4
[]
PGM 5
[]
PGM 6
[]
PGM 3 & 4
[x] + []
PGM 5 & 6
[]+[]
Default Data 6 7 8 9 A B 0 0
RC # Section
All [0440]
1[0441]
2[0442]
3[0443]
4[0444]
5[0445]
6[0446]
7[0447]
8[0448]
9[0449]
10 [0450]
11 [0451]
12 [0452]
13 [0453]
14 [0454]
15 [0455]
16 [0456]
17 [0457]
18 [0458]
REM1/REM2/RAC1/RAC2/REM15
Reg. Arm PGM1 PGM2 Dis.
Default Data 4670
RC # Section
All [0440]
1[0441]
2[0442]
3[0443]
4[0444]
5[0445]
6[0446]
7[0447]
8[0448]
9[0449]
10 [0450]
11 [0451]
12 [0452]
13 [0453]
14 [0454]
15 [0455]
16 [0456]
+
+

Version 1.0
10 | Supervision Options
MG6250 • Section Programming Guide
Remote Control Options
User Labels
Supervision Options
Wireless Keypad Supervision Options
Wireless Repeater Supervision Options
Section REM3 Option Description OFF ON
[0481] 1 REM3 One-touch output button Disabled  Enabled
REM3 #1 2 REM3 One-touch disarm Disabled  Enabled
3 Future use --
4 Future use --
5 Future use --
6 Future use --
[0496] 7 Future use --
REM3 #16 8 Future use --
Section User Label Section User Label
[0521] 1 / / / / / / / / / / / / / / / [0529] 9 / / / / / / / / / / / / / / /
[0522] 2 / / / / / / / / / / / / / / / [0530] 10 / / / / / / / / / / / / / / /
[0523] 3 / / / / / / / / / / / / / / / [0531] 11 / / / / / / / / / / / / / / /
[0524] 4 / / / / / / / / / / / / / / / [0532] 12 / / / / / / / / / / / / / / /
[0525] 5 / / / / / / / / / / / / / / / [0533] 13 / / / / / / / / / / / / / / /
[0526] 6 / / / / / / / / / / / / / / / [0534] 14 / / / / / / / / / / / / / / /
[0527] 7 / / / / / / / / / / / / / / / [0535] 15 / / / / / / / / / / / / / / /
[0528] 8 / / / / / / / / / / / / / / / [0536] 16 / / / / / / / / / / / / / / /
Section Option Description OFF ON
[0620]
1 Wireless keypad 1 supervision  Disabled Enabled
2 Wireless keypad 2 supervision  Disabled Enabled
3 Wireless keypad 3 supervision  Disabled Enabled
4 Wireless keypad 4 supervision  Disabled Enabled
5 Future use --
6 Future use --
7 Future use --
8 Future use --
Section Option Description OFF ON
[0720]
1 Wireless repeater 1  Disabled Enabled
2 Wireless repeater 2  Disabled Enabled
3 Wireless repeater 3  Disabled Enabled
4 Wireless repeater 4  Disabled Enabled
5 Future use --
6 Future use --
7 Future use --
8 Future use --

MG6250 • Section Programming Guide
Version 1.0 Wireless Repeater Options | 11
Wireless Siren Supervision Options
NOTE: To cancel tamper supervision, access section [0800], and then press OK. The tamper supervision is disabled for 30 minutes.
Wireless Repeater Options
Section Option Description OFF ON
[0820]
1 Wireless Siren 1 Supervision  Disabled Enabled
2 Wireless Siren 2 Supervision  Disabled Enabled
3 Wireless Siren 3 Supervision  Disabled Enabled
4 Wireless Siren 4 Supervision  Disabled Enabled
5 Future use --
6 Future use --
7 Future use --
8 Future use --
Option Description RPT1 [0721] RPT2 [0741] RPT3[0761] RPT4 [0781]
OFF ON OFF ON OFF ON OFF ON
1Repeater Wireless Zone 1 
2Repeater Wireless Zone 2 
3Repeater Wireless Zone 3 
4Repeater Wireless Zone 4 
5Repeater Wireless Zone 5 
6Repeater Wireless Zone 6 
7Repeater Wireless Zone 7 
8Repeater Wireless Zone 8 
Option Description RPT1 [0722] RPT2 [0742] RPT3 [0762] RPT4 [0782]
OFF ON OFF ON OFF ON OFF ON
1Repeater Wireless Zone 9 
2Repeater Wireless Zone 10 
3Repeater Wireless Zone 11 
4Repeater Wireless Zone 12 
5Repeater Wireless Zone 13 
6Repeater Wireless Zone 14 
7Repeater Wireless Zone 15 
8Repeater Wireless Zone 16 
Option Description RPT1 [0723] RPT2 [0743] RPT3 [0763] RPT4 [0783]
OFF ON OFF ON OFF ON OFF ON
1Repeater Wireless Zone 17 
2Repeater Wireless Zone 18 
3Repeater Wireless Zone 19 
4Repeater Wireless Zone 20 
5Repeater Wireless Zone 21 
6Repeater Wireless Zone 22 
7Repeater Wireless Zone 23 
8Repeater Wireless Zone 24 
Option Description RPT1 [0724] RPT2 [0744] RPT3 [0764] RPT4 [0784]
OFF ON OFF ON OFF ON OFF ON
1Repeater Wireless Zone 25 
2Repeater Wireless Zone 26 
3Repeater Wireless Zone 27 
4Repeater Wireless Zone 28 
5Repeater Wireless Zone 29 
6Repeater Wireless Zone 30 
7Repeater Wireless Zone 31 
8Repeater Wireless Zone 32 

Version 1.0
12 | Wireless Repeater Options
MG6250 • Section Programming Guide
Option Description RPT1 [0725] RPT2 [0745] RPT3 [0765] RPT4 [0785]
OFF ON OFF ON OFF ON OFF ON
1Repeater Wireless Zone 33 
2Repeater Wireless Zone 34 
3Repeater Wireless Zone 35 
4Repeater Wireless Zone 36 
5Repeater Wireless Zone 37 
6Repeater Wireless Zone 38 
7Repeater Wireless Zone 39 
8Repeater Wireless Zone 40 
Option Description
RPT1 [0726] RPT2 [0746] RPT3 [0766] RPT4 [0786]
OFF ON OFF ON OFF ON OFF ON
1Repeater Wireless Zone 41 
2Repeater Wireless Zone 42 
3Repeater Wireless Zone 43 
4Repeater Wireless Zone 44 
5Repeater Wireless Zone 45 
6Repeater Wireless Zone 46 
7Repeater Wireless Zone 47 
8Repeater Wireless Zone 48 
Option Description RPT1 [0727] RPT2 [0747] RPT3 [0767] RPT4 [0787]
OFF ON OFF ON OFF ON OFF ON
1Repeater Wireless Zone 49 
2Repeater Wireless Zone 50 
3Repeater Wireless Zone 51 
4Repeater Wireless Zone 52 
5Repeater Wireless Zone 53 
6Repeater Wireless Zone 54 
7Repeater Wireless Zone 55 
8Repeater Wireless Zone 56 
Option Description RPT1 [0728] RPT2 [0748] RPT3 [0768] RPT4 [0788]
OFF ON OFF ON OFF ON OFF ON
1Repeater Wireless Zone 57 
2Repeater Wireless Zone 58 
3Repeater Wireless Zone 59 
4Repeater Wireless Zone 60 
5Repeater Wireless Zone 61 
6Repeater Wireless Zone 62 
7Repeater Wireless Zone 63 
8Repeater Wireless Zone 64 
Option Description RPT1 [0729] RPT2 [0749] RPT3 [0769] RPT4 [0789]
OFF ON OFF ON OFF ON OFF ON
1Wireless Keypad 1 
2Wireless Keypad 2 
3Wireless Keypad 3 
4Wireless Keypad 4 
5Future use --------
6Future use --------
7Future use --------
8Future use --------

MG6250 • Section Programming Guide
Version 1.0 Central Station Reporting Programming | 13
Central Station Reporting Programming
Central Station Reporting Telephone Number
Channel Reporting Format - Telephone
Central Station Account Number
Option Description RPT1 [0730] RPT2 [0750] RPT3 [0770] RPT4 [0790]
OFF ON OFF ON OFF ON OFF ON
1Wireless PGM 1 
2Wireless PGM 2 
3Wireless PGM 3 
4Wireless PGM 4 
5Wireless PGM 5 
6Wireless PGM 6 
7Wireless PGM 7 
8Wireless PGM 8 
Section Telephone Number Description
[1351] Telephone#1 ////////////// /////////////////
[1352] Telephone#2 ////////////// /////////////////
Section Tel. # Format Description
[1361] 1/
Telephone 1 reporting formats:
00 = Ademco Slow
02 = Landline - Silent Knight
03 = Landline - Sescoa
04 = Landline - Ademco Express
05 = Landline - Contact ID
[1362] 2/
Telephone 2 reporting formats:
00 = Ademco Slow
02 = Landline - Silent Knight
03 = Landline - Sescoa
04 = Landline - Ademco Express
05 = Landline - Contact ID
Section Account # Description
[1401] Account #1 / / /
[1402] Account #2 / / /

Version 1.0
14 | Report Codes
MG6250 • Section Programming Guide
Report Codes
Arming Report Codes
Special Disarming/ Disarming After Alarm/Cancelling Alarm Report Codes
Special Arming Report Codes
Special Disarming Report Codes
Section Description Data Section Description Data
[1601]
Arming user 01 /
[1602]
Arming user 05 /
Arming user 02 / Arming user 06 /
Arming user 03 / Arming user 07 /
Arming user 04 / Arming user 08 /
[1603]
Arming user 09 /
[1604]
Arming user 13 /
Arming user 10 / Arming user 14 /
Arming user 11 / Arming user 15 /
Arming user 12 / Arming user 16 /
Default = FF
Section Description Data Section Description Data
[1609]
Disarming user 01 /
[1610]
Disarming user 05 /
Disarming user 02 / Disarming user 06 /
Disarming user 03 / Disarming user 07 /
Disarming user 04 / Disarming user 08 /
[1611]
Disarming user 09 /
[1612]
Disarming user 13 /
Disarming user 10 / Disarming user 14 /
Disarming user 11 / Disarming user 15 /
Disarming user 12 / Disarming user 16 /
Default = FF
Section Description Data Section Description Data
[1617]
Auto-arming /
[1618]
Quick arming /
Late to close / Arming via PC /
No movement / Keyswitch arming /
Partial arming / Future use -
Default = FF
Section Description Data Section Description Data
[1619]
End auto-arm /
[1620]
Cancel paramedic alarm /
Software disarm / Keyswitch disarm /
Software disarm after alarm / Keyswitch disarm after alarm /
Software cancel alarm / Keyswitch cancel alarm /
Default = FF

MG6250 • Section Programming Guide
Version 1.0 Report Codes | 15
Alarm/Fire Alarm Report Codes
Section Description Data Section Description Data
[1621]
Alarm/fire 01 /
[1622]
Alarm/fire 05 /
Alarm/fire 02 / Alarm/fire 06 /
Alarm/fire 03 / Alarm/fire 07 /
Alarm/fire 04 / Alarm/fire 08 /
Section Description Data Section Description Data
[1623]
Alarm/fire 09 /
[1624]
Alarm/fire 13 /
Alarm/fire 10 / Alarm/fire 14 /
Alarm/fire 11 / Alarm/fire 15 /
Alarm/fire 12 / Alarm/fire 16 /
Section Description Data Section Description Data
[1625]
Alarm/fire 17 /
[1626]
Alarm/fire 21 /
Alarm/fire 18 / Alarm/fire 22 /
Alarm/fire 19 / Alarm/fire 23 /
Alarm/fire 20 / Alarm/fire 24 /
Section Description Data Section Description Data
[1627]
Alarm/fire 25 /
[1628]
Alarm/fire 29 /
Alarm/fire 26 / Alarm/fire 30 /
Alarm/fire 27 / Alarm/fire 31 /
Alarm/fire 28 / Alarm/fire 32 /
Section Description Data Section Description Data
[1629]
Alarm/fire 33 /
[1630]
Alarm/fire 37 /
Alarm/fire 34 / Alarm/fire 38 /
Alarm/fire 35 / Alarm/fire 39 /
Alarm/fire 36 / Alarm/fire 40 /
Section Description Data Section Description Data
[1631]
Alarm/fire 41 /
[1632]
Alarm/fire 45 /
Alarm/fire 42 / Alarm/fire 46 /
Alarm/fire 43 / Alarm/fire 47 /
Alarm/fire 44 / Alarm/fire 48 /
Section Description Data Section Description Data
[1633]
Alarm/fire 49 /
[1634]
Alarm/fire 53 /
Alarm/fire 50 / Alarm/fire 54 /
Alarm/fire 51 / Alarm/fire 55 /
Alarm/fire 52 / Alarm/fire 56 /
Section Description Data Section Description Data
[1635]
Alarm/fire 57 /
[1636]
Alarm/fire 61 /
Alarm/fire 58 / Alarm/fire 62 /
Alarm/fire 59 / Alarm/fire 63 /
Alarm/fire 60 / Alarm/fire 64 /
Default = FF

Version 1.0
16 | Report Codes
MG6250 • Section Programming Guide
Alarm Restore/Fire Alarm Restore Report Codes
Section Description Data Section Description Data
[1641]
Alarm/fire restore 01 /
[1642]
Alarm/fire restore 05 /
Alarm/fire restore 02 / Alarm/fire restore 06 /
Alarm/fire restore 03 / Alarm/fire restore 07 /
Alarm/fire restore 04 / Alarm/fire restore 08 /
Section Description Data Section Description Data
[1643]
Alarm/fire restore 09 /
[1644]
Alarm/fire restore 13 /
Alarm/fire restore 10 / Alarm/fire restore 14 /
Alarm/fire restore 11 / Alarm/fire restore 15 /
Alarm/fire restore 12 / Alarm/fire restore 16 /
Section Description Data Section Description Data
[1645]
Alarm/fire restore 17 /
[1646]
Alarm/fire restore 21 /
Alarm/fire restore 18 / Alarm/fire restore 22 /
Alarm/fire restore 19 / Alarm/fire restore 23 /
Alarm/fire restore 20 / Alarm/fire restore 24 /
Section Description Data Section Description Data
[1647]
Alarm/fire restore 25 /
[1648]
Alarm/fire restore 29 /
Alarm/fire restore 26 / Alarm/fire restore 30 /
Alarm/fire restore 27 / Alarm/fire restore 31 /
Alarm/fire restore 28 / Alarm/fire restore 32 /
Section Description Data Section Description Data
[1649]
Alarm/fire restore 33 /
[1650]
Alarm/fire restore 37 /
Alarm/fire restore 34 / Alarm/fire restore 38 /
Alarm/fire restore 35 / Alarm/fire restore 39 /
Alarm/fire restore 36 / Alarm/fire restore 40 /
Section Description Data Section Description Data
[1651]
Alarm/fire restore 41 /
[1652]
Alarm/fire restore 45 /
Alarm/fire restore 42 / Alarm/fire restore 46 /
Alarm/fire restore 43 / Alarm/fire restore 47 /
Alarm/fire restore 44 / Alarm/fire restore 48 /
Section Description Data Section Description Data
[1653]
Alarm/fire restore 49 /
[1654]
Alarm/fire restore 53 /
Alarm/fire restore 50 / Alarm/fire restore 54 /
Alarm/fire restore 51 / Alarm/fire restore 55 /
Alarm/fire restore 52 / Alarm/fire restore 56 /
Section Description Data Section Description Data
[1655]
Alarm/fire restore 57 /
[1656]
Alarm/fire restore 61 /
Alarm/fire restore 58 / Alarm/fire restore 62 /
Alarm/fire restore 59 / Alarm/fire restore 63 /
Alarm/fire restore 60 / Alarm/fire restore 64 /
Default = FF

MG6250 • Section Programming Guide
Version 1.0 Report Codes | 17
Special Alarm Report Codes
Zone Tamper Report Codes
Section Description Data Section Description Data
[1657]
Emergency panic /
[1658]
Zone shutdown /
Auxiliary panic / Duress /
Fire panic / Future use -
Recent closing / Paramedical /
Default = FF
Section Description Data Section Description Data
[1661]
Zone tamper 01 /
[1662]
Zone tamper 05 /
Zone tamper 02 / Zone tamper 06 /
Zone tamper 03 / Zone tamper 07 /
Zone tamper 04 / Zone tamper 08 /
Section Description /Section Description Data
[1663]
Zone tamper 09 /
[1664]
Zone tamper 13 /
Zone tamper 10 / Zone tamper 14 /
Zone tamper 11 / Zone tamper 15 /
Zone tamper 12 / Zone tamper 16 /
Section Description Data Section Description Data
[1665]
Zone tamper 17 /
[1666]
Zone tamper 21 /
Zone tamper 18 / Zone tamper 22 /
Zone tamper 19 / Zone tamper 23 /
Zone tamper 20 / Zone tamper 24 /
Section Description Data Section Description Data
[1667]
Zone tamper 25 /
[1668]
Zone tamper 29 /
Zone tamper 26 / Zone tamper 30 /
Zone tamper 27 / Zone tamper 31 /
Zone tamper 28 / Zone tamper 32 /
Section Description Data Section Description Data
[1669]
Zone tamper 33 /
[1670]
Zone tamper 37 /
Zone tamper 34 / Zone tamper 38 /
Zone tamper 35 / Zone tamper 39 /
Zone tamper 36 / Zone tamper 40 /
Section Description Data Section Description Data
[1671]
Zone tamper 41 /
[1672]
Zone tamper 45 /
Zone tamper 42 / Zone tamper 46 /
Zone tamper 43 / Zone tamper 47 /
Zone tamper 44 / Zone tamper 48 /
Section Description Data Section Description Data
[1673]
Zone tamper 49 /
[1674]
Zone tamper 53 /
Zone tamper 50 / Zone tamper 54 /
Zone tamper 51 / Zone tamper 55 /
Zone tamper 52 / Zone tamper 56 /

Version 1.0
18 | Report Codes
MG6250 • Section Programming Guide
Restore Zone Tamper Report Codes
Section Description Data Section Description Data
[1675]
Tamper Zone 57 /
[1676]
Tamper Zone 61 /
Tamper Zone 58 / Tamper Zone 62 /
Tamper Zone 59 / Tamper Zone 63 /
Tamper Zone 60 / Tamper Zone 64 /
Default = FF
Section Description Data Section Description Data
[1681]
Zone tamper restore 01 /
[1682]
Zone tamper restore 05 /
Zone tamper restore 02 / Zone tamper restore 06 /
Zone tamper restore 03 / Zone tamper restore 07 /
Zone tamper restore 04 / Zone tamper restore 08 /
Section Description Data Section Description Data
[1683]
Zone tamper restore 09 /
[1684]
Zone tamper restore 13 /
Zone tamper restore 10 / Zone tamper restore 14 /
Zone tamper restore 11 / Zone tamper restore 15 /
Zone tamper restore 12 / Zone tamper restore 16 /
Section Description Data Section Description Data
[1685]
Zone tamper restore 17 /
[1686]
Zone tamper restore 21 /
Zone tamper restore 18 / Zone tamper restore 22 /
Zone tamper restore 19 / Zone tamper restore 23 /
Zone tamper restore 20 / Zone tamper restore 24 /
Section Description Data Section Description Data
[1687]
Zone tamper restore 25 /
[1688]
Zone tamper restore 29 /
Zone tamper restore 26 / Zone tamper restore 30 /
Zone tamper restore 27 / Zone tamper restore 31 /
Zone tamper restore 28 / Zone tamper restore 32 /
Section Description Data Section Description Data
[1689]
Zone tamper restore 33 /
[1690]
Zone tamper restore 37 /
Zone tamper restore 34 / Zone tamper restore 38 /
Zone tamper restore 35 / Zone tamper restore 39 /
Zone tamper restore 36 / Zone tamper restore 40 /
Section Description Data Section Description Data
[1691]
Zone tamper restore 41 /
[1692]
Zone tamper restore 45 /
Zone tamper restore 42 / Zone tamper restore 46 /
Zone tamper restore 43 / Zone tamper restore 47 /
Zone tamper restore 44 / Zone tamper restore 48 /
Section Description Data Section Description Data
[1693]
Zone tamper restore 49 /
[1694]
Zone tamper restore 53 /
Zone tamper restore 50 / Zone tamper restore 54 /
Zone tamper restore 51 / Zone tamper restore 55 /
Zone tamper restore 52 / Zone tamper restore 56 /

MG6250 • Section Programming Guide
Version 1.0 Report Codes | 19
Special Report Codes
System Trouble Report Codes
System Trouble Restore Report Codes
Zone Trouble/Restore Report Codes
Section Description Data Section Description Data
[1695]
Zone tamper restore 57 /
[1696]
Zone tamper restore 61 /
Zone tamper restore 58 / Zone tamper restore 62 /
Zone tamper restore 59 / Zone tamper restore 63 /
Zone tamper restore 60 / Zone tamper restore 64 /
Default = FF
Section Description Data Section Description Data
[1701]
Cold start /
[1702]
Installer login /
Test report / Installer logout /
Future use - Delinquency /
Software logout / Future use -
Default = FF
Section Description Data Section Description Data
[1711]
TLM /
[1712]
Console tamper /
AC failure / RF jamming supervision /
Battery failure / GSM no service /
Timer loss / GSM missing module /
[1713]
Future use -
Future use -
IP receiver supervision lost /
Fail to communicate with central st. /
Default = FF
Section Description Data Section Description Data
[1721]
TLM restore /
[1722]
Console tamper restore /
AC failure restore / RF jamming supervision restore /
Battery failure restore / GSM no service restore /
Timer loss restore / GSM missing module restore /
[1723]
Future use -
Future use -
IP receiver supervision lost restore /
Fail to comm. with central st. restore /
Default = FF
Section Description Data Section Description Data
[1731]
Zone battery trouble /
[1732]
Zone battery trouble restore /
Zone supervision loss / Zone supervision loss restore /
Future use - Future use -
Future use - Future use -
Default = FF

Version 1.0
20 | System Programming
MG6250 • Section Programming Guide
Wireless PGM Trouble/Restore Report Codes
Wireless Keypads Trouble/Restore Report Codes
Wireless Repeater Trouble/Restore Report Codes
Wireless Siren Trouble/Restore Report Codes
System Programming
General Options
Section Description Data Section Description Data
[1733]
Wireless PGM tamper trouble /
[1734]
PGM tamper trouble restore /
Wireless PGM supervision loss / PGM supervision loss restore /
Future use - Future use -
Future use - Future use -
Default = FF
Section Description Data Section Description Data
[1735]
Wireless keypad supervision loss /
[1736]
Wireless keypad supervision loss restore /
Wireless keypad battery trouble / Wireless keypad battery trouble restore /
Wireless keypad AC trouble / Wireless keypad AC trouble restore /
Future use - Future use -
Default = FF
Section Description Data Section Description Data
[1737]
Wireless repeater supervision loss /
[1738]
Wireless repeater supervision loss restore /
Wireless repeater battery trouble / Wireless repeater battery trouble restore /
Wireless repeater AC trouble / Wireless repeater AC trouble restore /
Future use - Future use -
Default = FF
Section Description Data Section Description Data
[1739]
Wireless siren tamper trouble /
[1740]
Wireless siren tamper trouble restore /
Wireless siren supervision loss / Wireless siren supervision loss restore /
Wireless siren battery trouble / Wireless siren battery trouble restore /
Wireless siren AC trouble / Wireless siren AC trouble restore /
Default = FF
Section Option Description OFF ON
[2000]
1 Access code length  6 Digits 4 Digits
2 Audible trouble warning (except AC power failure) Disabled  Enabled
3 AC power failure warning Disabled  Enabled
4 Lock master code Disabled  Enabled
5 Console tamper supervision Disabled  Enabled
6 Code necessary to bypass zones Disabled  Enabled
7 Partition Disabled  Enabled
8 Future use --
