Mainstays GSH052135 User manual

TM
MAINSTAYS
Industrial Night Stand
Stock # GSH052135
15-20minutes
approx assembly time
One adult
Assembly
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
For assistance with assembly or installation, parts and customer
service , call 1-888-568-3818 Monday-Friday 8:30am-5:30pm
PST (U.S)
Email: [e-mail]
Working hour: Mon.-Fri., 8:30am - 5:30pm Pacific Standard
Time.
Stock # GSH052135
Lot Number : _________
Date Purchased ______/____/_____
Manufactured By : Young Chain Company Limited
Binh Duong Province, Vietnam
TEL : [phone]
EMAIL : [e-mail]
We are available to assist you Monday-Friday
From 8:30am-5:30pm PST (US)
MAXIMUM LOAD 44 LB (20 KG)
DRAWER MAXIMUM LOAD
10 LB (4.54 KG)
Review your purchases, thank you!
Share your feedback to help other shoppers
Link for this product is as below:
www.walmart.com/ip/427644224

TM
MAINSTAYS
Industrial Night Stand
Stock # GSH052135
Manufactured By : Young Chain Company Limited
Binh Duong Province, Vietnam
TEL : [phone]
EMAIL : [e-mail]
We are available to assist you Monday-Friday
From 8:30am-5:30pm PST (US)
Important Safety Information
Please read all instructions carefully before assembling this furniture.
For your safety, assembly by two or more adults is strongly recommended.
Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware
could jeopardize the structural integrity of the item.
Hardware may loosen overtime. Periodically check that all connections are tight.
NOTICE: To prevent injury and property damage from unexpected tipping of furniture, we highly
recommend installation of the anti-tip kit included with this product.
General Information, Tips & Tricks
Remove all parts and hardware from the box. Place all items on a carpeted or scratch-free work
surface, as this will avoid damaging parts during assembly.
The shipping box provides an ideal work surface.
To avoid accidentally discarding small parts or hardware, do not dispose of any packaging or
contents of the shipping carton until assembly is complete.
Use the parts and hardware lists below to identify and separate each of the pieces included.
The use of power tools for assembly is not recommended. Power tools can damage the hardware
and/or split the wood
Note: Do not fully tighten all bolts until all parts are in place. Failure to follow these instructions may
cause the bolts to misalign during assembly.
Safety and care
It is advisable to dust frequently with a clean, soft, dry, lint-free cloth. Clean the surface by
rubbing in the direction of the grain.
Do not place furniture in direct sunlight and keep furniture at least 60 cm / 2 ft from heat
sources to avoid fading.
DO NOT USE POWER DRILL / DRIVERS FOR INSERTING
SCREWS / BOLTS AS THIS COULD DAMAGE THE UNIT.
ONLY USE HAND SCREWDRIVERS.
Help and support
For assistance with assembly or installation, parts and customer service ,
call 1-888-568-3818 Monday-Friday 8:30am-5:30pm PST (U.S)
Email: [e-mail]
Working hour: Mon.-Fri., 8:30am - 5:30pm Pacific Standard Time.

PARTS
ATOP
×2
BSIDE FRAME
×2
C D
E F G H
I
SIDE PANEL
×2
BACK PANEL
×1
DRAWER FRONT
PANEL ×1
DRAWER LEFT
PANEL ×1
DRAWER RIGHT
PANEL ×1
DRAWER BACK
PANEL ×1
DRAWER BOTTOM
PANEL ×1
VERIFY THAT ALL PARTS ARE LISTED BEFORE BEGINNING Page 3

CAM LOCK
×20+1
CAM BOLT
×20+1
DOWEL
×8+1
BUCKLE
×2
FLAT HEAD
SCREW ×4+1
ROUND HEAD
SCREW ×4+1
STICKER PVC
×4+1
HANDLE
×1
ALLEN WRENCH
×1
SMALL BOLT
×2
SHORT BOLT
×8+1
SPRING WASHER
×8+1
FLAT WASHER
×8+1
2 3 41
6 7 85
10 11 129
13
VERIFY THAT ALL PARTS ARE LISTED BEFORE BEGINNING Page 4
HARDWARE LIST
TOOLS NEEDED
FOR ASSEMBLY
(NOT PROVIDED)

1. Screw the cam bolt into the predrilled panel. The cam bolt should be tightened
so no threads are visible.
2. The larger ring of the cam should touch the panel.
3. Insert the cam lock into the predrilled hole in the panel. Arrow faces the
outside of the panel.
4. Connect the previously tightened cam bolt with the panel connected into the
cam lock.
5. Using a flat head screw driver, turn the cam lock halfway clockwise to secure
the cam bolt.
6. FAILURE TO PROPERLY SECURE THE CAM LOCK AND CAM BOLT COULD RESULT
IN PRODUCT INSTABALITY AND FAILURE.
Page 5
CAM FASTEN SYSTEM EXAMPLE
Please call for replacement parts or assistance: 1-888-568-3818
Young Chain Company Limited
RING SHOULD
TOUCH THE BOARD
1 2 3
45 6

11. Place the TOP ( A ) face down on a smooth soft surface. The side with the holes
should be facing up.
2. Insert the CAM BOLT ( 1 ) into the corresponding hole of the TOP ( A ). And use a
hand screwdriver to tighten the CAM BOLT ( 1 ) clockwise.
** Repeat these same steps for the other TOP ( A ).
ASSEMBLY
Page 6
Please call for replacement parts or assistance: 1-888-568-3818
Young Chain Company Limited
DO NOT USE POWER DRILL / DRIVERS
FOR INSERTING SCREWS / BOLTS
AS THIS COULD DAMAGE THE UNIT.
ONLY USE HAND SCREWDRIVERS.
CAM BOLT
×12
1

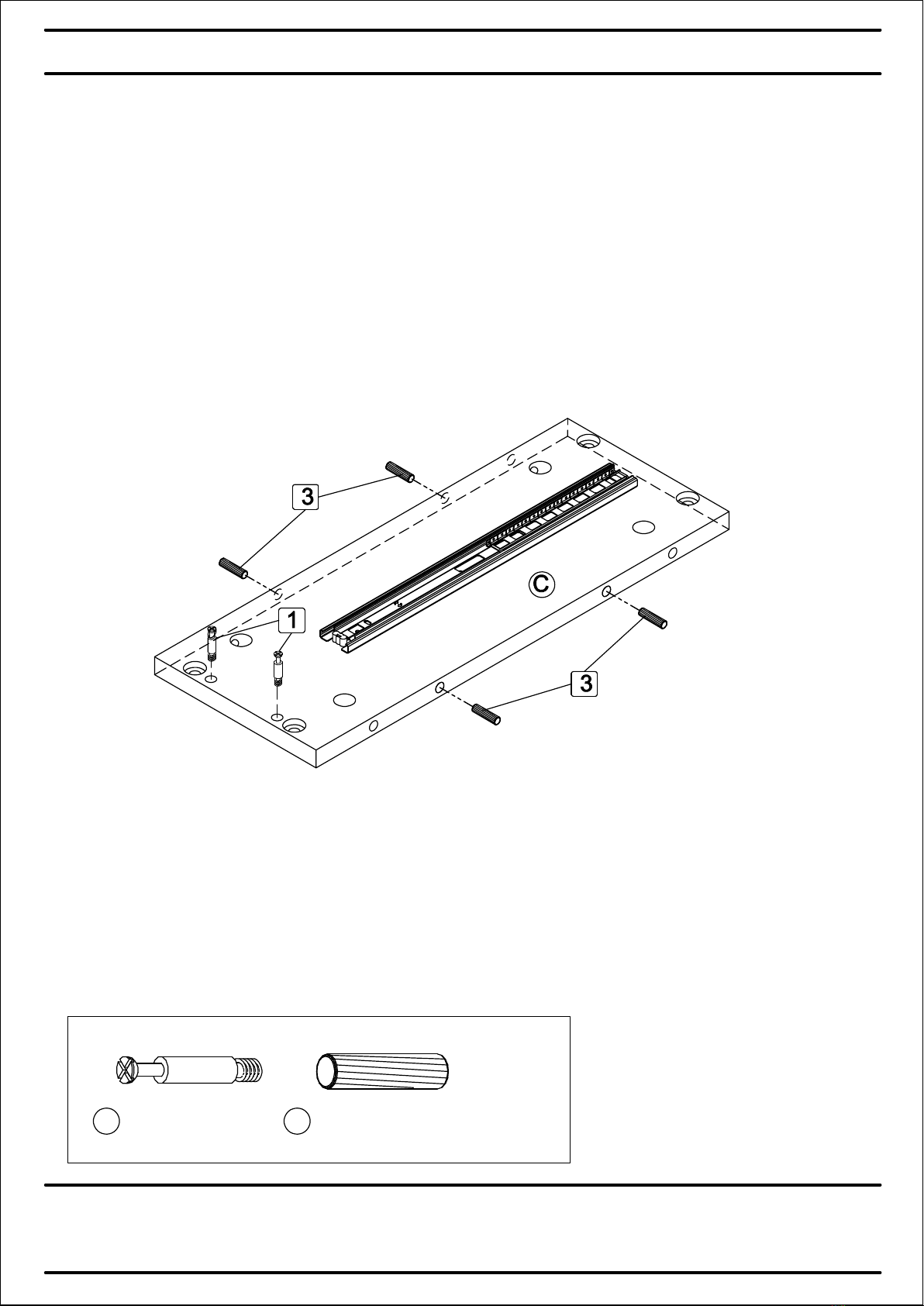

21. Place the SIDE PANEL ( C ) face down on a smooth soft surface. The side with the holes
should be facing up.
2. Insert the CAM BOLT ( 1 ) into the corresponding hole of the SIDE PANEL ( C ). And use
a hand screwdriver to tighten the CAM BOLT ( 1 ) clockwise.
3. Insert the DOWEL ( 3 ) all the way into the corresponding hole of the SIDE PANEL ( C ).
** Repeat these same steps for the other SIDE PANEL ( C ).
ASSEMBLY
Page 7
Please call for replacement parts or assistance: 1-888-568-3818
Young Chain Company Limited
CAM BOLT
×4
1DOWEL
×8
3

1. Align the corresponding hole of the SIDE PANEL ( C ) and SIDE FRAME ( B ).
2. Attach them with FLAT WASHER ( 13 ), SPRING WASHER ( 12 ) and SHORT BOLT ( 11 ) .
3. Use the ALLEN WRENCH ( 10 ) to tighten the SHORT BOLT ( 11 ).
** Repeat these same steps for the other SIDE PANEL ( C ) and SIDE FRAME ( B ).
ASSEMBLY
Please call for replacement parts or assistance: 1-888-568-3818
Young Chain Company Limited
ALLEN WRENCH
×1
SHORT BOLT
×8
SPRING WASHER
×8
FLAT WASHER
×8
10 11 12 13
Note : Side frame and side panel assembly will
have left and right. The edge with cam bolt of
Side panel should face toward each other
during assembly.
Page 8
3

1. Align the corresponding hole of the BACK PANEL ( D ) and SIDE PANEL ( C ).
2. Insert the CAM LOCK ( 2 ) into the corresponding hole ( the direction of the notch is
aligned with the cam bolt as the figure shown below).
3. Use a hand screwdriver to turn the CAM LOCK ( 2 ) clockwise to secure the cam bolt.
ASSEMBLY
Please call for replacement parts or assistance: 1-888-568-3818
Young Chain Company Limited
CAM LOCK
×2
2
4
Page 9
The direction of the
notch of the cam
lock is aligned with
the cam bolt.

2
5
Page 10

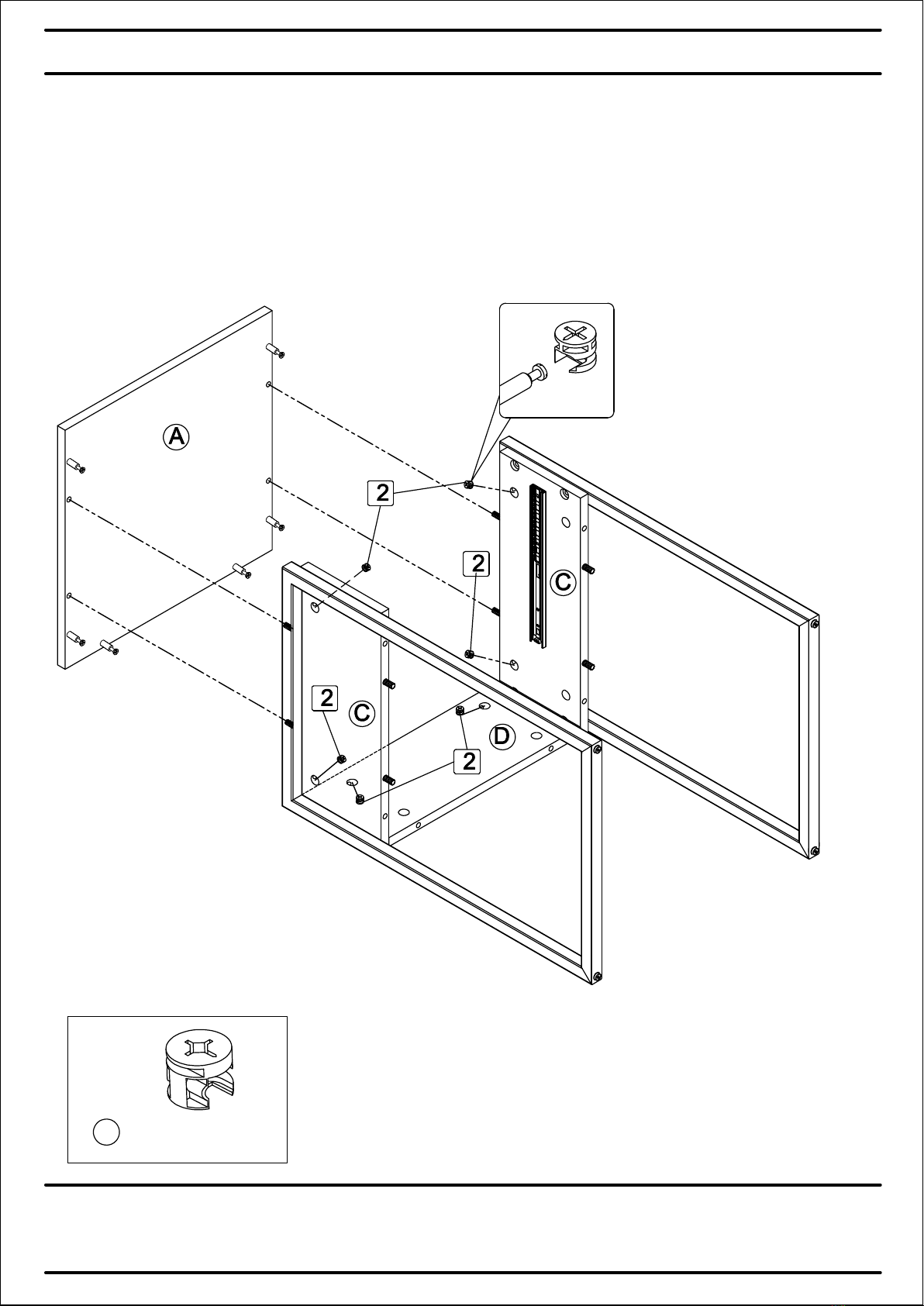

1. Align the corresponding hole of the BACK PANEL ( D ) and SIDE PANEL ( C ).
2. Insert the CAM LOCK ( 2 ) into the corresponding hole ( the direction of the notch is
aligned with the cam bolt as the figure shown below).
3. Use a hand screwdriver to turn the CAM LOCK ( 2 ) clockwise to secure the cam bolt.
ASSEMBLY
Please call for replacement parts or assistance: 1-888-568-3818
Young Chain Company Limited
CAM LOCK
×2
2
The direction of the
notch of the cam
lock is aligned with
the cam bolt.
