Mainstays MS96-010-103-01 User manual

MAINSTAYS 5-PIECE MISSION
COUNTER-HEIGHT DINING SET
Manufactured By: Saigon Furniture Co.,Ltd.
Binh Duong, Vietnam.
TEL: [phone] EMAIL: [email protected]
We are available to assist you Monday - Friday
from 9:00 am - 5:00 pm Eastern Standard Time.
1-877-637-3590
1 hour approx
assembly time
Two adult
assembly required
For online
assembly
instructions,
please scan
the QR Code
with your
smartphone.
Scan me !
If you have any question regarding assembly, please call our toll-free number for assistance.
STOCK # MS96-010-103-01 (BLACK FINISH)
STOCK # MS43-018-042-01 (CHERRY FINISH)
MAXIMUM LOAD 400 LB. (181.4 KG)
MAXIMUM LOAD
300 LB. (136.1 KG)
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Page 1/8
V02 - 200514
Stock # MS96-010-103-01 (Black)
Stock # MS43-018-042-01 (Cherry)
Lot Number:
Date Purchased:
DO NOT RETURN THE PRODUCT TO THE STORE, individual stores do not stock parts.
If a part is missing or damaged, please call 1-877-637-3590 or send e-mail to
[email protected] and have your instructions, parts list ready to provide the
model name, part name.
Parts will be shipped FREE of charge within 90 days of the purchase with proof of purchase.
Additional parts are available for a fee.

Manufactured By: Saigon Furniture Co.,Ltd.
Binh Duong, Vietnam.
TEL: [phone] EMAIL: [email protected]
We are available to assist you Monday - Friday
from 9:00 am - 5:00 pm Eastern Standard Time.
1-877-637-3590
General Information, Tips & Tricks
Read and understand all the steps carefully before starting.
Please follow the steps in the correct orders to avoid difficulties or damages to the parts during
assembly. If each step is not followed in the correct order the assembly will be difficult and may
result in damages.
Make sure all the parts are included. Most boards are labeled with a removable sticker.
Work in a spacious area, preferably on a carpeted surface, near where the unit will be used.
Please wait until all steps are completed before tightening bolts.
Please make sure all bolts are tightly fastened before the unit is used.
Looking for online assembly instructions ? you can access the link: https://bit.ly/2K9mWdv
Help and support
If you have any question regarding assembly, please call our toll-free number for assistance
.
DO NOT RETURN THE PRODUCT TO THE STORE, individual stores do not stock parts.
If a part is missing or damaged, please call 1-877-637-3590 or send e-mail to
[email protected] and have your instructions, parts list ready to provide the
model name, part name.
Parts will be shipped FREE of charge within 90 days of the purchase with proof of purchase.
Additional parts are available for a fee.
Safety and care
Do not allow children to climb or play on the unit.
Clean the product with your favorite furniture polish and a soft cloth.
Do not use harsh chemicals or abrasive cleaners.
Move your new furniture carefully with two people. Never push or drag the unit.
Page 2/8
Quality Guarantee
Should this product be defective in workmanship, materials or fail under normal use, we will send
replacement parts (excluding table top) for up to one (1) year from the date of purchase. If you have
issues with your table top, please return the dining set to Walmart within their Return Policy guideline.
Every Saigon Furniture product is designed to meet your highest expectations. We guarantee that
you will be satisfied with your purchase.
This warranty gives you specific legal rights and you may also have other rights which vary from
State to State.
The warranty applies to Walmart customer who purchased the product from Walmart stores or
Walmart.com with proof of purchase only.
MAINSTAYS 5-PIECE MISSION
COUNTER-HEIGHT DINING SET
STOCK # MS96-010-103-01 (BLACK FINISH)
STOCK # MS43-018-042-01 (CHERRY FINISH)
DO NOT USE POWER TOOLS TO ASSEMBLE
YOUR FURNITURE. POWER TOOLS MAY
DAMAGE THE PARTS AND RESULT IN
DAMAGE.

VERIFY THAT ALL PARTS ARE LISTED BEFORE BEGINNING
Left Leg Assembly x4

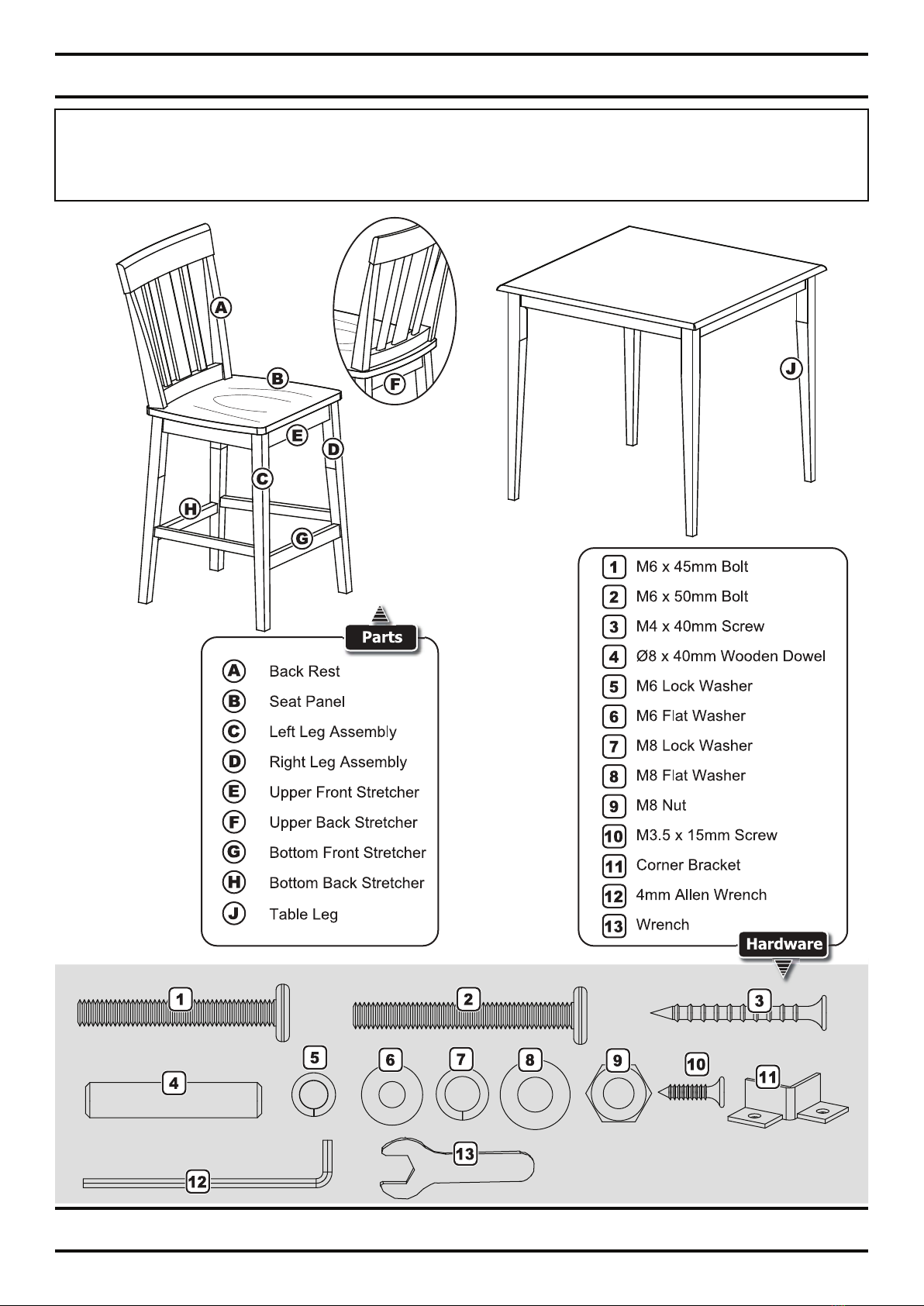

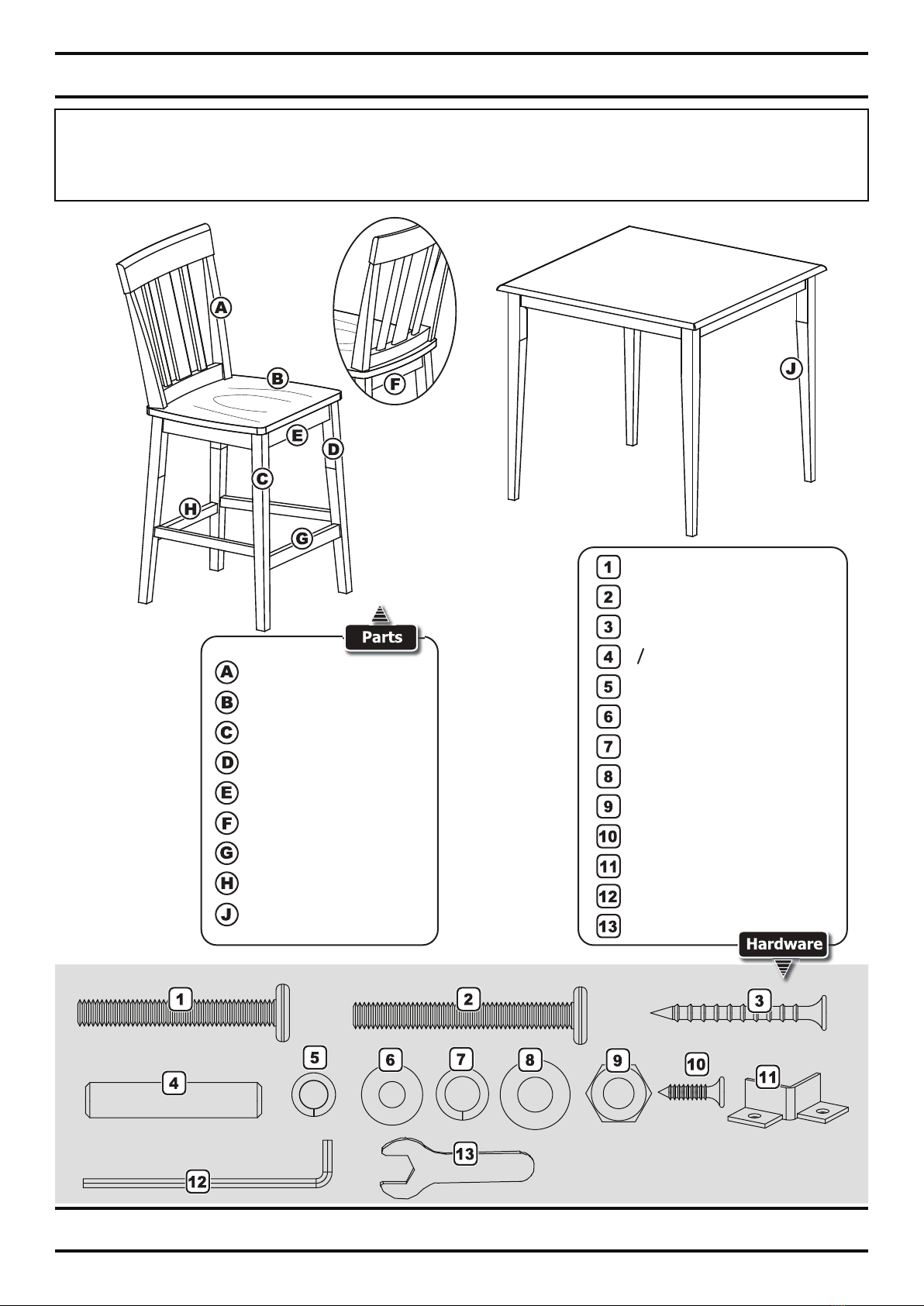

Parts and Hardware List
Tool required
PHILLIPS HEAD SCREWDRIVER (NOT PROVIDED)
Page 3/8

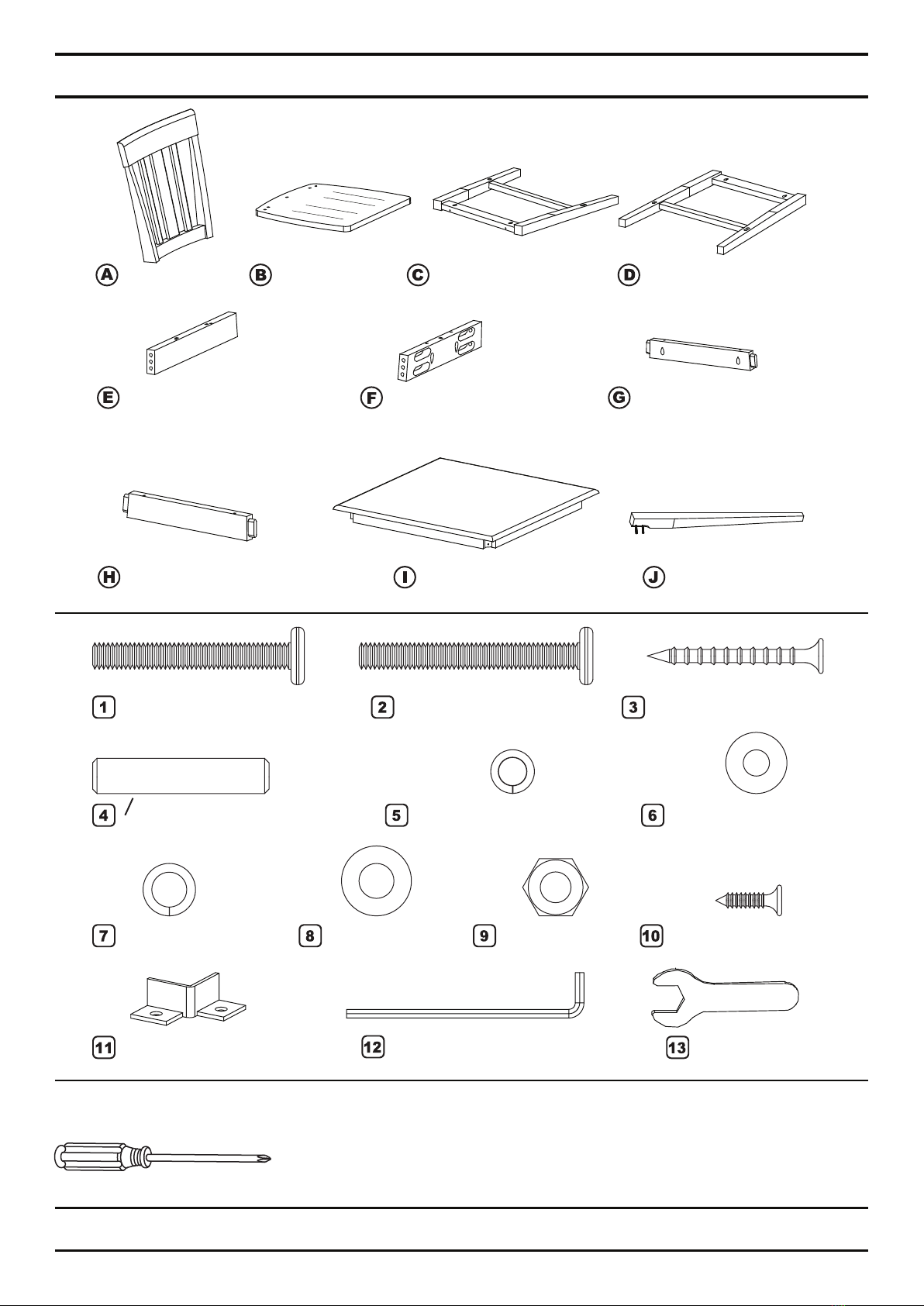

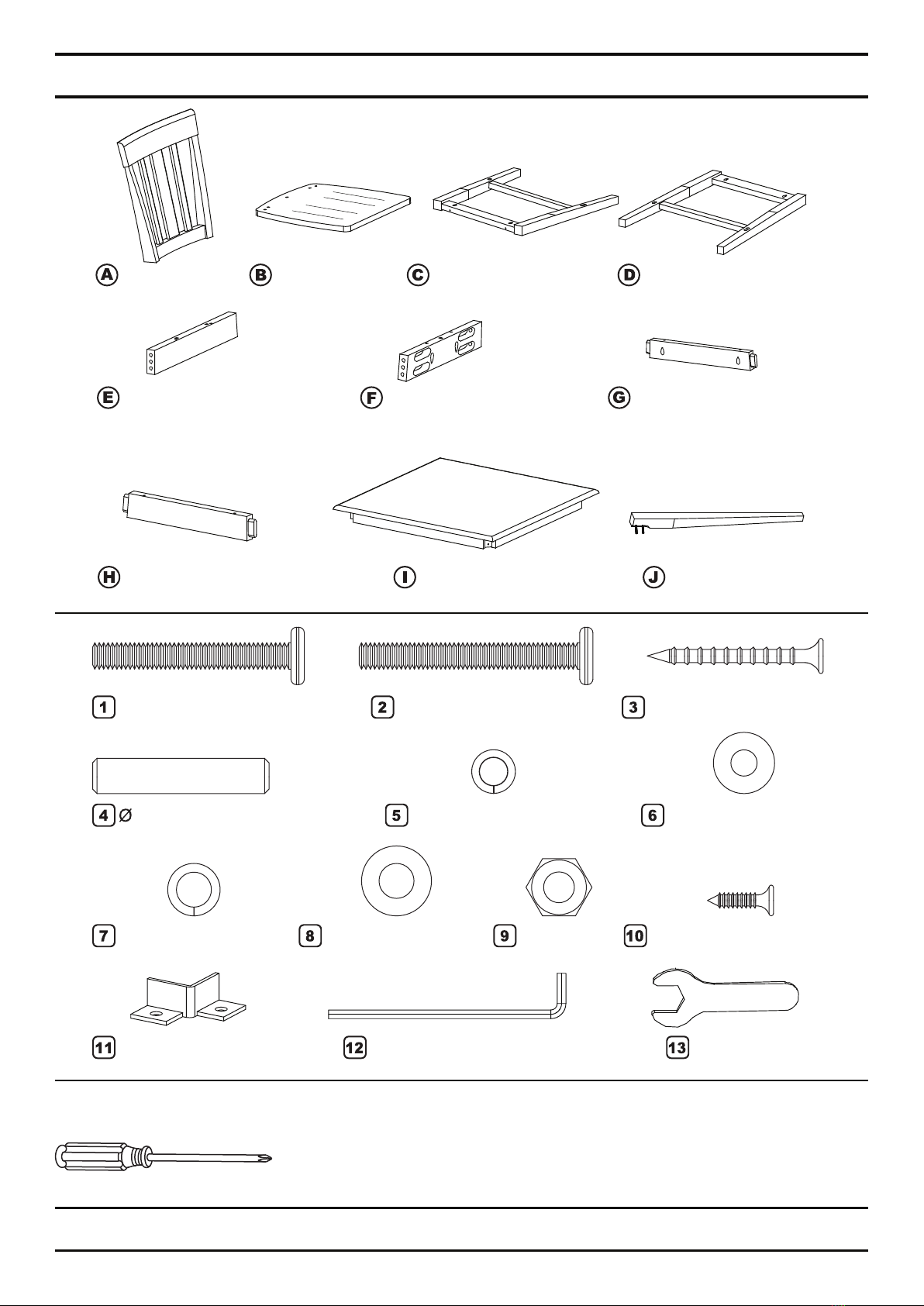

Corner Bracket x4 4mm Allen Wrench x1 Wrench x1
M3.5 x 15mm Screw x8
M8 Nut x8M8 Flat Washer x8M8 Lock Washer x8
8 x 40mm Wooden Dowel x16 M6 Lock Washer x52 M6 Flat Washer x52
M4 x 40mm Screw x48
M6 x 50mm Bolt x32
M6 x 45mm Bolt x20
Table Leg x4
Top Panel x1
Bottom Back Stretcher x4
Upper Front Stretcher x4 Upper Back Stretcher x4 Bottom Front Stretcher x4
Back Rest x4 Seat Panel x4 Right Leg Assembly x4

1
Please call for replacement parts or assistance: 1-877-637-3590
Saigon Furniture Co,. Ltd.Page 4/8

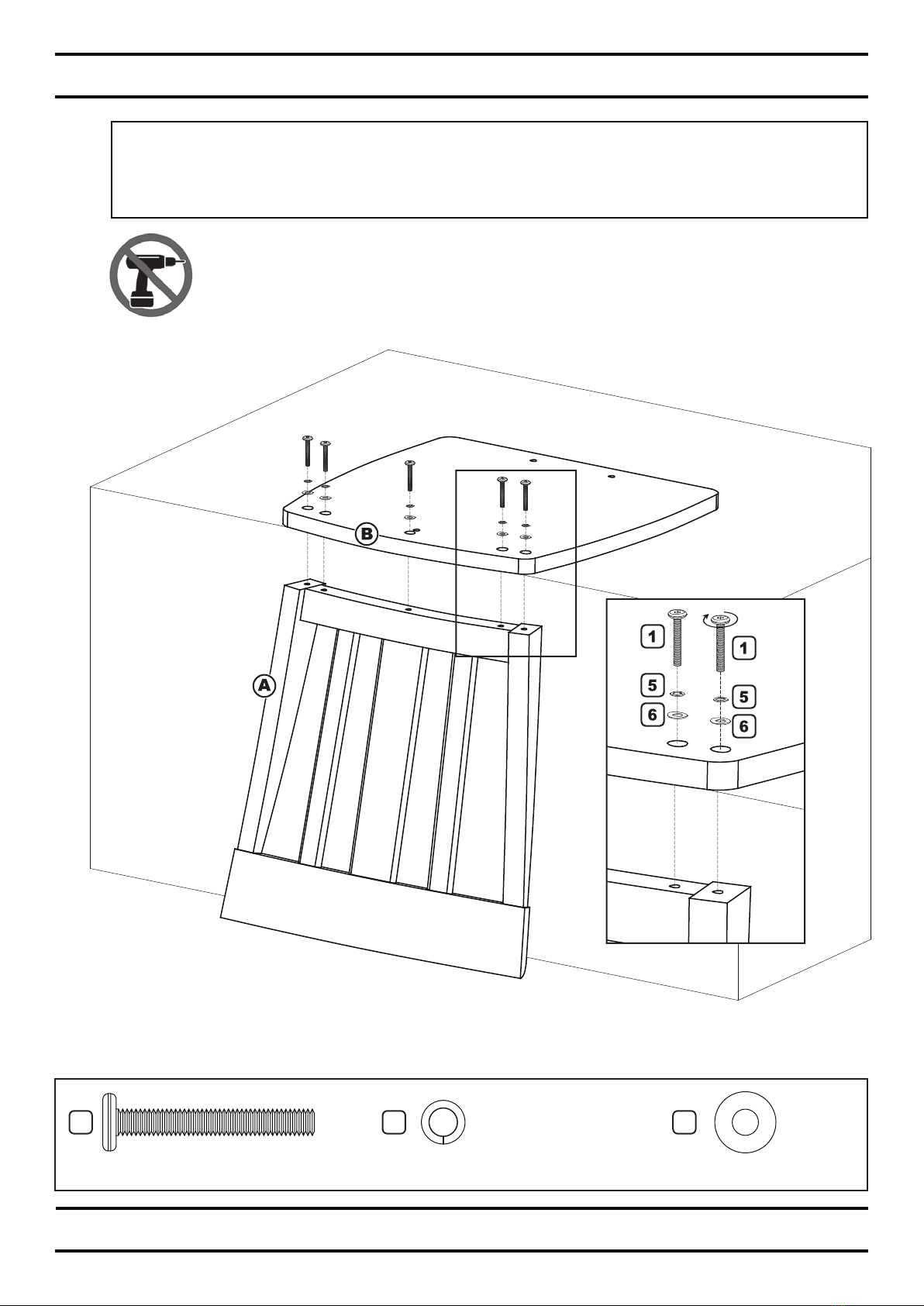

1. Unpack the unit and confirm that you have all the hardware and parts listed.
2. Align and attach Seat Panel (B) onto the bottom of Backrest (A) using M6x45mm Bolt (1) with
Small Lock Washers (5) & Flat Washers (6) through the c/sunk holes on Seat Panel into the
Backrest. Tighten the bolts with 4mm Allen Wrench (12) provided.
Chair Assembly
M6 x 45mm Bolt x5 M6 Lock washer x5 M6 Flat washer x5
1 5 6
DO NOT USE POWER DRILL / DRIVERS FOR INSERTING
SCREWS / BOLTS AS THIS COULD DAMAGE THE UNIT.
ONLY USE HAND SCREWDRIVERS !

2Position the Left Leg Assembly (C) on a flat and non-abrasive surface with the pre-drilled holes
facing up.
Attach Upper Front Stretcher (E) and Upper Back Stretcher (F) to Left Leg Assembly (C).
Make sure O8 x 40mm Wooden Dowels (4) are fully inserted into the pre-drilled holes without
threaded inserts, then using M6 x 50mm Bolts (2) lock them together.
Insert Bottom Front Stretcher (G) and Bottom Back Stretcher (H) into the pre-drilled holes of
Left Leg Assembly (C) using M4 x 40mm Screws (3), tighten with Phillips Head Screwdriver
(not provided).
Repeat steps to assemble Right Leg Assembly (D).
Page 5/8
Chair Assembly
NOTE: DO NOT FULLY TIGHTEN THE BOLTS AT THIS STAGE.
2 4 3
5 6
12
M6 x 50mm Bolt x8
M6 Lock Washer x8 M6 Flat Washer x8 4mm Allen Wrench x1
M4 x 40mm Screw x4O8 x 40mm Wooden Dowel x4
1.
2.
3.
4.
Please call for replacement parts or assistance: 1-877-637-3590
Saigon Furniture Co,. Ltd.

3Flip the installed leg assembly upside down and attach to the bottom of Seat Panel (B), using
the Wooden Dowels (4) pre-attached on the Upper Front & Back Stretcher (E & F) as guide,
secure with M4 x 40mm Screws (3) through the pre-drilled holes on Upper Stretchers, tighten
with Phillips Head Screwdriver (not provided).
Finally, tighten all bolts (2) with 4mm Allen Wrench (12).
Stand the unit upright.
Page 6/8
Chair Assembly
4 3
O8 x 40mm Wooden Dowel x3 M4 x 40mm Screw x8
Repeat the procedure to assemble the other Chairs.
1.
2.
3.
Please call for replacement parts or assistance: 1-877-637-3590
Saigon Furniture Co,. Ltd.

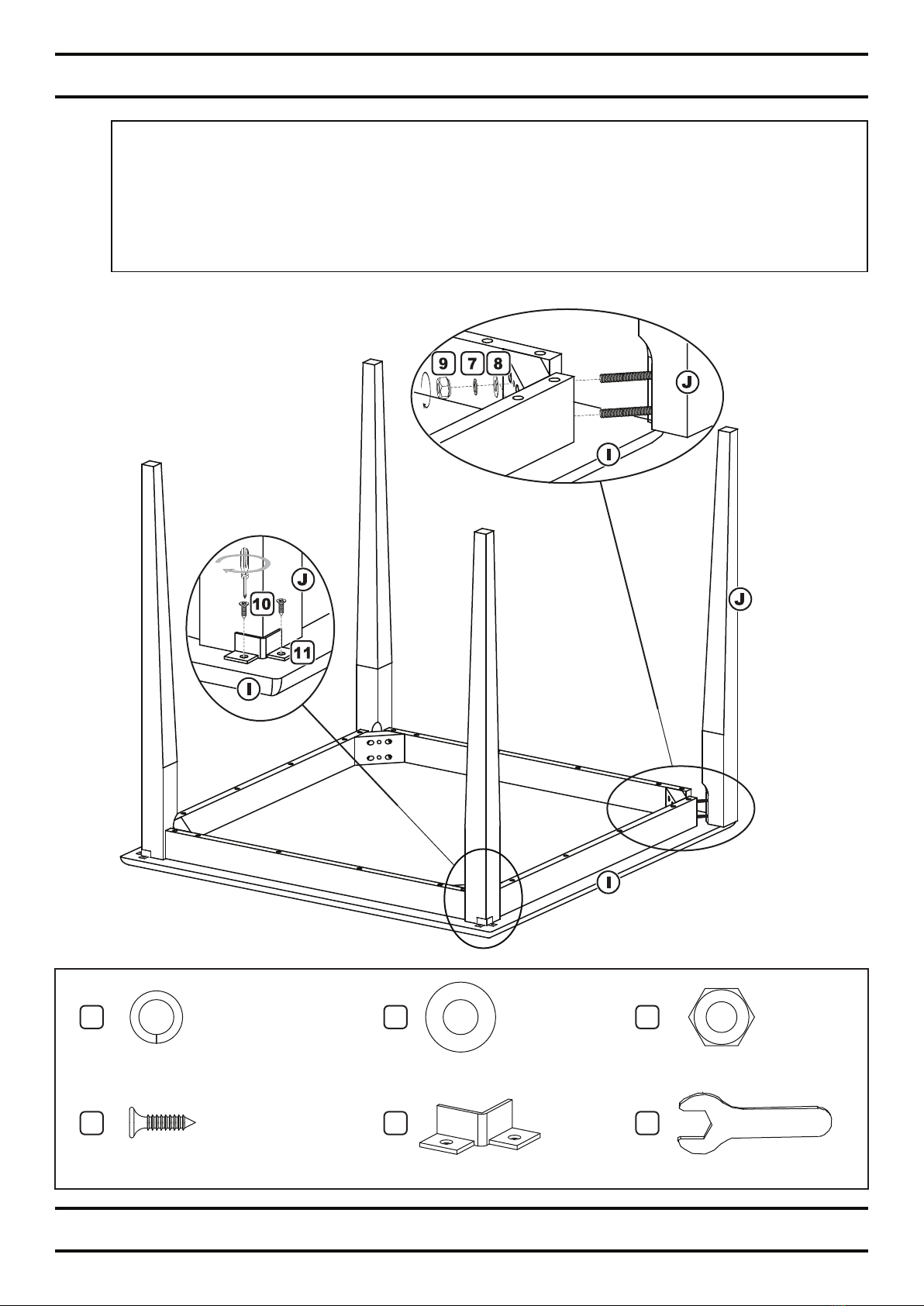

4Place the Top Panel (I) upside down on a non-abrasive surface.
Attach Table Legs (J) to the apron corners of Top Panel (I) in place using M8 Nuts (9) with
Large Lock Washers & Flat Washer (7 & 8) locking the pre-fixed bolt of the Table Leg and
tighten with Wrench (13) provided.
Fix the Corner Brackets (11) on the back of Top Panel using M3.5 x 15mm Screws (10),
tighten with Phillips Head Screwdriver (not provided).
Stand the unit upright.
Please call for replacement parts or assistance: 1-877-637-3590
Saigon Furniture Co,. Ltd.Page 7/8
Table Assembly
7 8 9
10 11 13
M8 Lock Washer x8 M8 Flat Washer x8 M8 Nut x8
M3.5 x 15mm Screw x8 Corner Bracket x4 Wrench x1
1.
2.
3.
4.

IF YOU NEED TO ORDER ANY PARTS PLEASE USE THE LIST BELOW.
Please email defect photos and proof of purchase to [email protected]
Parts will be shipped FREE of charge within 90 days of the purchase with proof of purchase.
Spare parts and services only support the purchase made from Walmart Store or Walmart.com
Please call for replacement parts or assistance: 1-877-637-3590
Saigon Furniture Co,. Ltd.Page 8/8
Replacement Parts Stock # MS96-010-103-01 (Black)
Stock # MS43-018-042-01 (Cherry)

Fabricante: Saigon Furniture Co.,Ltd.
Binh Duong, Vietnam.
TEL: [phone] EMAIL: [email protected]
Estamos disponibles para ayudarlo de Lunes
-Voermes de 9:00 am - 5:00 pm Hora de la Zona Este.
1-877-637-3590
ESTE LIBRO DE INSTRUCCIONES CONTIENE INFORMATIÓN IMPORTANTE DE SEGURIDAD.
POR FAVOR LEA Y MANTENGA PARA FUTURAS REFERENCIAS.
Tiempo estimado de
ensamblaje: 1 hora
Asamblea de
adulto requerido
Si tiene preguntas o dudas referentes al ensamble, llame a nuestro número gratuito para
obtener más ayuda.
NO RETORNE ESTE PRODUCTO A LA TIENDA; las tiendas no cuentan con partes del producto.
Para piezas perdidas o dañadas llame al, por favor llame al 1-877-637-3590 o envíe un
correo electrónico a: [email protected] de ayuda al cliente tenindosu instructivo y
lista departes para proveer el modelo, nombre de parte o el número de Fábrica
Las piezas se enviarán GRATIS dentro de los 90 días de la compra con el comprobante de compra.
Piezas adicionales están disponibles por una tarifa.
MAXIMA CARGA 400 LB. (181.4 KG)
MAXIMA CARGA
300 LB. (136.1 KG)
Página 1/8
V02 - 200514
Escanéame !
Use su teléfono
para escanear
el Codeigo QR
y ver el
Instructivo de
armado en
linea
JUEGO DE 5 SILLAS
ALTAS PARA COMEDOR
MODELO NO.: MS96-010-103-01 (ACABADO COLOR NEGRO)
MODELO NO.: MS43-018-042-01 (ACABADO COLOR CEREZO)
Modelo No.: MS96-010-103-01 (Acabado Color Negro)
Modelo No.: MS43-018-042-01 (Acabado Color Cerezo)
Lote No:
Fecha De Compra:

Información General Y Recomendaciones De Uso
Leer y entender todos los pasos cuidadosamente antes de comenzar.
Si no se sigue cada paso en el orden correcto, el montaie será difícil y puede ocasionar daños.
Trabaiar en una zona amplia, meior sobre la alfombra, cerca del sitio donde la unidad se utiliza.
Asegurarse de que todas las piezas estén incluidos. La mayoría de los tableros están etiquetados
con una pegatina removible.
Por favor espere a terminar de montar todas las piezas, entes de apretar completamente todos
los tornillos.
Asegúrese que todos los tornillos estén bien apretados antes de utilizar la unidad.
Buscas las Instrucciones de construcción digitales ? Por favor consulte: https://bit.ly/2K9mWdv
Ayudar y apoyar
Si tiene preguntas o dudas referentes al ensamble, llame a nuestro número gratuito para
obtener más ayuda.
NO RETORNE ESTE PRODUCTO A LA TIENDA; las tiendas no cuentan con partes del producto.
Para piezas perdidas o dañadas llame al, por favor llame al 1-877-637-3590 o envíe un correo
electrónico a: [email protected] de ayuda al cliente tenindosu instructivo y lista departes
para proveer el modelo, nombre de parte o el número de Fábrica.
Las piezas se enviarán GRATIS dentro de los 90 días de la compra con el comprobante de compra.
Piezas adicionales están disponibles por una tarifa.
Seguridad y cuidado
Limpiar el producto con tu pulidor favorite de mueble y un trapo blando.
No usar químicos fuertes o producto de limpieza abrasivo.
Mueva sus nuevos muebles cuidadosamente con dos personas, nunca empuje o
Arrastre la unidad.
Garantia De Calidad
Si este producto tiene algún defecto de montaje o de material, o si tiene algún fallo en el uso
normal, nosotros lo repararemos o reemplazaremos hasta en un año a partir de la fecha de
compra. Todos los productos de Saigon Furniture están diseñados para alcanzar las más altas
expectativas. Le garantizamos que podrá ver la más alta calidad en nuestros productos.
Esta garantía le otorga derechos legales específicos y usted también puede tener otros
derechos que varían de un estado a otro.
Fabricante: Saigon Furniture Co.,Ltd.
Binh Duong, Vietnam.
TEL: [phone] EMAIL: [email protected]
Estamos disponibles para ayudarlo de Lunes
-Voermes de 9:00 am - 5:00 pm Hora de la Zona Este.
1-877-637-3590 Página 2/8
La garatía se aplica a los clientes que compraron el producto de Walmart con el comprobante de
compra única.
NO UTILICE HERRAMIENTAS ELÉCTRICAS
PARA MONTAR SUS MUEBLES.
HERRAMIENTAS ELÉCTRICAS PUEDEN
DAÑAR LAS PIEZAS Y PROVOCAR DAÑOS
JUEGO DE 5 SILLAS
ALTAS PARA COMEDOR
MODELO NO.: MS96-010-103-01 (ACABADO COLOR NEGRO)
MODELO NO.: MS43-018-042-01 (ACABADO COLOR CEREZO)
